Instrument s and warnin g/indic ator ligh ts 13
-The engine compartment of any motor
vehicle is a potentially hazardous area.
Before you check anything in the engine
compartment, stop the engine and let it
cool down. Always exercise extreme cau­
t ion when working under the hood
¢ page 174, Engine compartment
(D Tips
Malfunctions or faults w ill be identified e i­
ther with a red symbol (pr iority 1 -Dan­
ger!) or with a yellow symbol (pr iority 2 -
Warn ing).
Overview
Some ind icator lights tu rn on briefly to che ck
the func tion of that system when yo u switch
the ignition on. These systems are marked
with a./ in the following tables. If one of
these ind icator lights does not turn on, there
is a malfunction in that system.
R ed indicator lights
Red symbols indica te a priority malfunction -
Danger!
- Pull
off the road.
- Stop the vehicle.
- Turn
off the engine.
- Check the ma lfunction ing system. Contact
your authorized Aud i dea ler or a qualified
workshop for assistance .
-USA models: Malf u nction in the
brake system
¢ page 14
D
D
Canada models : Malfunction in the
brake system
¢ page 1 4
USA models : Airbag system./
¢page 15
Canada models: Airbag system./
¢page 15
Safety belt
¢page 16
Generator ./
¢page 16 Engine o
il pressure too low
¢ page 16
Engine coolant level too low/
engine coolant tempe rature too
h igh
¢ page 16
Electro -mechanical power assist
¢ page 17
Clutch is overheating
¢page85
Yellow indicator light s
Yellow symbo ls indicate a priority 2 malfunc ­
tion -Warning!
Ji]
I
Clutch pedal
¢page 17
Electronic Stabilization Control (ESC)
./ ¢page 17
Electron ic Stabilisat ion Control (ESC)
./ ¢page 17
~ USA models: anti-lock brake system
~(ABS)./ defective ¢page 18
•
Canada models : anti-lock brake sys­
tem (ABS) ./ defective
¢ page 18
Worn brake pads
¢page 18
Tire pressure too low
¢page 214
Tire pressure monitoring system ¢page 215
--~
~ Electron ic powe r control./
~ ¢page19
~ USA models: Malfunctio n Indicator
Bil Lamp (MIL) ¢page 19
11'!!1 Canada models : Malfunction Indica­
mil to r Lamp (MIL) ¢page 19
Engine speed limitation*
¢page 19

accidentally press the power locking
switch.
- Do not leave children inside the vehicle
unsupervised. In an emergency it would
be impossible to open the doors from
the outside without the key.
@ Tips
- In the event of a crash with airbag de­
ployment a ll locked doors will be auto­
matically unlocked to g ive access to the
vehicle occupants from the outside.
- If the power locking system should mal­
function, you can lock each door individ­
ually using the vehicle key .
- If the power locking system should fail,
you can still open the fue l tank flap in an
emergency
c>page 179.
- You are well advised not to keep valua­
bles inside an unattended vehicle, visible
or not . Even a properly locked vehicle
cannot provide the security of a safe!
Unlocking and locking the vehicle w ith
the remote control
How the remote control works.
Fig . 28 Remote contro l: fu nctio n buttons
Whether only the driver's door or the entire
vehicle is unlocked when the opening b utton
@ is pressed once, depends on the settings in
the Driver information system Central locking
menu
c> page 24.
To unlock the vehicle !Ii
.,. Press button @.
.,. Press button @
two times with in two sec ­
onds to unlock all doors and the rear lid.
Opening and closing 35
To lock the vehicle efl
.,. Press button @ c> .&. in General description
on page 34 .
.,. Watch that a ll turn signal lights flash once.
To unlock rear lid only~
.,. Press button © for approximate ly one sec­
ond .
PANIC Button
.,. Push the red button @to activate the panic
function . The horn sounds and the turn sig­
na ls flash .
.,. Push the button @aga in to deact ivate the
pan ic function .
The remote controls allows you to:
- lock or unlock the vehicle
- select ively unlock the rear lid.
The turn signals will flash briefly whenever
you lock or unlock the vehicle. Also, the interi­
or light will come on or go off whenever you
open or close the driver's door .
The transm itter and battery are located in the
head o f the remote contro l. The receiver is lo­
cated ins ide the vehicle. The max imum effec ­
tive range depends on several th ings . Remem­
ber, if the battery is weak, the effective range
decreases.
The remote-control key contains a fo ld-out
key that you can use to manually lock or un­
lock the vehicle and to start the engine.
If you need to replace the remote control, or if
you need to have it repaired, you must see
your authorized Aud i dealer. Only then can
you use the key again.
A WARNING
Read and follow all WARNINGS c> .&. in
General description on page 34.
(0 Tips
- The remote contro l key is automatically
deactivated when the ignition is switch­
ed on.
-

36 Opening and closing
-The operation of the remote control key
can be temporarily disrupted by interfer­
ence from transmitters in the vicinity of
the vehicle working in the same frequen­
cy range (e.g. a cell phone, radio equip­
ment) .
- In order to make sure the locking func­
tion is working, you should always keep
your eye on the vehicle to make sure it is
properly locked .
- Do not use the remote control if you are
inside the car, otherwise you may unin­
tentionally lock the vehicle, and then you
would set off the anti-theft alarm when
you try to start the engine or open a
door. In case this happens anyhow, push
the unlock button
CD .
- Use the panic function only if you are in
an emergency situation.
Resetting the remote control
The remote control must be reset if the vehi­
cle does not unlock .
.,,. Press the unlock button CD on the remote
control.
.,,. Manually unlock the driver's door lock with
the mechanical key within 30 seconds.
.,,. Press either the lock-
lD or the unlock CD but­
ton to complete th e reset sequence.
Operating locks with the key
To lock and unlock the vehicle from the out­
side , turn the key in the lock of the driver's
door .
Fig. 29 Key turns for ope ning and clo sing.
.,,. To unlock the vehicle, turn the key to the
opening position@¢
fig. 29.
.,,. To lock the vehicle, turn the key in the lock
of the driver's door to the lock position
@
¢ &_ .
A WARNING
Always read and heed WARNING¢.&. in
General description on page 34.
Locking and unlocking the vehicle from
inside
The vehicle can be locked or unlocked from
the inside using the power locking switch .
Fig. 30 Sec tion from center conso le: Ce ntra l locking
switch
.,,. Press the upper part of the power locking
switch
@ to lock the vehicle ¢&_ .
.,,. Press lower part of the switch
en to unlock
the vehicle .
If you lock the vehicle using the power locking
switch , please note the following:
- You cannot open the doors or the rear lid
from the
outside (increased security, for ex ­
ample when you are stopped at a red light).
- You can unlock and open the doors from the
inside by pulling on the door handle .
-If the driver's door is opened (after you have
locked the vehicle from the inside using the
power locking switch), the door will remain
unlocked to prevent you from locking your­
self out of your vehicle. After you close the
door, you have to lock the driver 's door
again.
- If you have a crash and the airbag is activat-
ed, the doors automatically unlock. ..,.

instrument cluster illuminates when the
high beams are on.
- The
headlight flasher works only as long as
yo u hold the lever -even if there are no
l ights turned on . The indicator light
El in
the instrument cluster illuminates when you
use the headlight flasher.
A WARNING
Do not use the hig h beam or headlight
flasher if you know that these could blind
oncoming traffic.
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle are in an emer­
gency situation.
Fi g. 44 Cente r co nso le: emerge ncy flasher switch
.,.. Press the switch ~ ~fig. 44, to sw itch the
eme rgency flasher on or off.
When the emergency flashe r is on, all four
turn signals blink a t the same time. The tu rn
signa l indicator lights
BB in the ins trument
cluster, as we ll as the light in the emergency
f lasher switch ~ blink likewise. The emergen­
cy flashers also work when the ignition is
turned off.
The emergency flasher will automatica lly
switch on if you are in an acc ident where the
airbag has deployed.
@ Tips
You shou ld switch on the emergency flash­
er when: Clear vi
sion 45
- you are the last vehicle standing in a tra f­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency s ituation, or when
- your vehicle is be ing towed by a tow
truck or if you are towing another vehicle
behind you.
Interior Lights
Interior lights
The interior lights include the reading lights
for the driver and the front passenger.
Fi g. 45 Sect ion from hea dlin er: Interior lights
Activating door contact circuit
.,.. Press the button @. The LED in the b utton
illuminates .
Deactivating door contact circuit
.,.. Press the button @. The LED in the button
goes out.
Front reading lights "<~
.,.. Press one of the switches ® to turn the
r ight or left reading light on or off.
With the door contact circuit, the inter ior
lights turn on as soon as you unlock the vehi­
cle or open the doors. The interior lights are
also t urned on when the ignition key is re­
moved. The lights turn off about 30 seconds
after the doors are closed. When the veh icle is
locked or when the ignition is turned on, the
interior lights are turned off.
When a door is open, the interior lights are
turned off after about 10 minutes to prevent battery dra ining.

54 Seat s a nd s tor ag e
Seats and storage
General recommen­
dations
Why is your seat adjustment so
important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjust ing the front
seats to provide safe and comfortable support
for the driver and the front passenger . Adjust
your seat properly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
-your body is prope rly supported thus reduc­
ing physical stress and fatigue
- the safety be lts and airbag system can offer
maximum protection
¢ page 108 .
In the following sec tions, you will see exactly
how you can best adjust you r seats .
There are special regulations and instructions
for insta lling a child safety seat on the front
passenger's seat. Always heed the informa­
tion rega rd ing child safety provided in
~ page 130, Child Safety.
A WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal in jury.
- Always keep your feet on the floor when
the vehicle is in motion -never p ut your
feet on top of the instrument panel, out
of the w indow or on top of the seat cush­
ion! This applies espec ially to the passen­
gers .
If your seating position is incorrect
yo u increase the r isk of injury in the case
of sudden braking or an acc ident.
If the
airbag infla tes and the seating position
is incorrect this could result in personal
injury or even death.
- It is import ant for bo th the driver and
front passenger to keep a distance of at least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel. If you're s itting any
closer than th is, the a irbag system can­
not protect you properly . In addition to
this, the front seats and head restra ints
must be adjusted to your body height so
that they can give you max imum protec­
tion.
- Always try to keep as much distance as
possible between yourself and the s teer­
ing wheel or instrument pane l.
- Do not adjust the driver's o r fron t pa s­
senger's seat whi le the vehicle is moving.
Your seat may move unexpected ly, caus ­
ing sudden loss of vehicle contro l and
personal injury . If you ad just yo ur seat
while the veh icle is moving, you are out
of posit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving.
We recommend that you adjust the driver's
seat in the fo llowing manner:
.,. Adjust the seat in fore and aft direction so
t ha t you can easily p ush the peda ls to the
floor wh ile keeping your knee slightly bent
~ A in Why is your seat adjustment so im­
portant? on page 54 .
.,. Adjust the seatback so that when you sit
w ith your back against the seatback, you can
still grasp the top of the steering wheel.
.,. Posit ion the head restraint accord ing to the
occupant 's height~
page 57 . For maxi­
mum protection, t he top of the head re­
s t raint shou ld be a t least at eye level, pref ­
erably higher and idea lly level with the top
of the head
¢ page 94, fig. 92.
A WARNING "--
Never place any objects in the dr iver's foot-
well. An object could get into the pedal
area and interfere with pedal function. In
case of sudden braking or an acc ident, you
would not be able to brake or accelerate!

Front passenger's seat
Always move the front passenger seat into the rearmost position .
To avoid contact with the airbag while it is de­
ploying, do not sit any closer to the instru­
ment panel than necessary and always wear
the three-point safety belt provided adjusted
correctly . We recommend that you adjust the
passenger's seat in the following manner:
.. Bring the backrest up to an (almost) upright
pos it ion .
Do not ride with the seat reclined .
.. The idea l posit ion for the head restraint is
with the upper edge of the restraint level
with the top of your head
¢ page 5 7. You
shou ld
not lower the top of the restraint be­
low the level of your eyes .
.. Place your feet on the floor in front of the
passenger's seat.
Adjusting front seats manually
Adjustment controls
Applies to vehicles: with manual seat adjustme nt
Various controls on the manual seats provide
a wide range for individual adjustments.
Fig. S5 Ad just men t contro ls : locat ions o n drive r's seat
CD Moving the seat forward or backward
@ Adjusting the lumbar support
@ Adjusting the seat height
@ Adjusting the seatback angle
® Releasing the seatback
Seats and storage 55
@ Tips
Some of the controls are fitted on certain
models only or they are optional equip­
ment .
Adjusting the manual seats
Applies to vehicles: with manual seat adjustment
Position, angle and shape of the manual
seats can be adjusted to provide safe and
comfortable seating .
Reed and heed all WARNINGS ¢.&. before
you adjust your seat .
Moving the front seats forward or
backward
.. Lift the lever CD¢ page 55, fig. 55 and slide
the seat to the desired position.
.. Release the lever and then move the seat
further until you feel and hear it engage.
Adjusting the seat height
.. Pull the lever ® up and pump it to raise the
seat .
.. Push the lever down and pump it to lower
the seat.
Adjusting the seatback angle
.. Lean forward to take your weight off the
seatback .
.. Turn the hand wheel@ in the direction you
want the seatback to tilt.
Releasing seatback
.. Pull the lever ® up .
.. Push the seatback forward.
WARNING
-Never adjust the driver's or front pas­
senger's seat while the vehicle is moving.
If you do this while the vehicle is moving,
you will be out of position. Always adjust
the dr iver's or front passenger's seat
when the vehicle is not moving .
- Be careful when adjusting the seat
he ight. Check to see that no one is in the
way, or serious injury cou ld result!

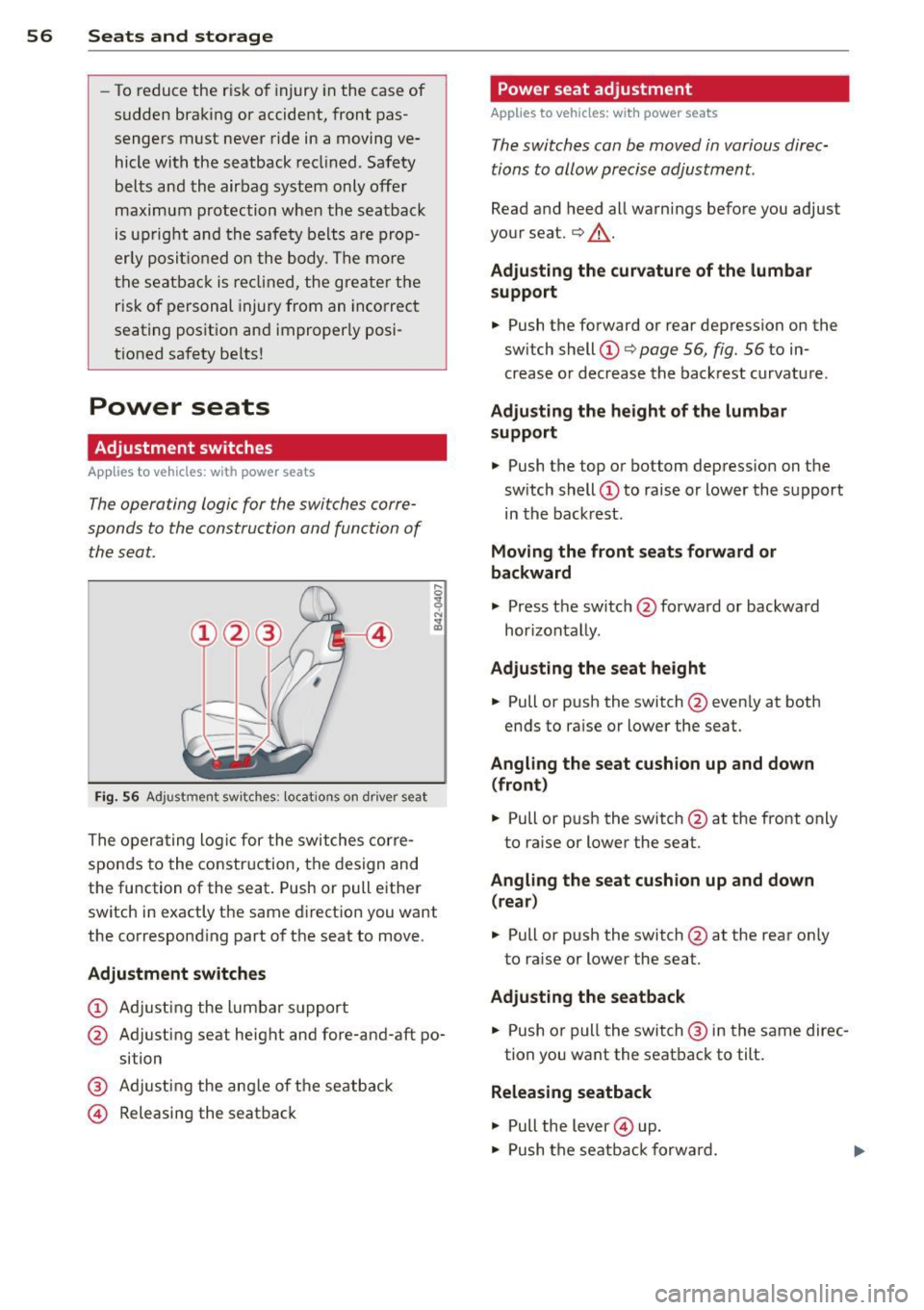

56 Seats and storage
- To reduce the r isk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in
a moving ve­
hicle with the seatback recl ined . Safety
belts and the airbag system only offer
maximum protection whe n the seatback
is up right and the safe ty belts a re p rop ­
erly posi tioned on the body. The more
the seatback is re clin ed, the greate r the
risk of personal injury from an incorrect
seating posit ion and improperly posi­
t ioned safety be lts!
Power seats
Adjustment switches
App lies to vehicles: with power seats
The operating logic for the switches corre­
sponds to the construction and function of
the seat.
Fi g. 56 Adjust ment sw itches : locat io ns on driver seat
The operating logic for the switches corre­
sponds to the constr uction, the design and
the function of the seat . Push or pull e ither
switch in exactly the same d irect ion you want
the corresponding part of the seat to move.
Adjustment switches
CD Adjusting the lumbar s upport
@ Adjusting seat height and fore-and-aft po­
sition
@ Adjusting the ang le of the seatback
@ Releasing the seatback
Power seat adjustment
Applies to vehicles: with power seats
The switches can be moved in various direc­
tions to allow precise adjustment.
Read and heed all warnings before you adjust
your seat.¢ &.
Adju sting the curv atur e of the lumbar
support
.,._ Push the forward or rear depression on the
sw itch shell CD¢
page 56, fig. 56 to in­
crease or decrease the back rest curvature.
Adju sting the he ight of the lumbar
support
.,._ Push the top or bottom depress ion on the
sw itch shell (!) to raise or lower the support
in the back rest .
Mo ving the front se ats forward or
ba ckward
.,._ Press the switch @forward or backward
hor izontally.
Ad ju sting the seat height
.,._ Pull or push the switch @even ly at both
ends to ra ise or lower the seat.
Angling the seat cu shion up and down
(front )
.,._ Pull or push the switch @at the front only
to raise or lower the seat .
Angling the seat cushion up and down
( rear)
.,._ Pull or push the switch @at the rear on ly
to ra ise or lower the seat.
Ad ju sting the seatback
.,._ Push or pull the switch @ in the same direc-
tion you want the seatback to tilt .
Releasing seatback
.,. Pull the lever@ up .
.,. Push the seatback forward.

A WARNING
-Never adjust the driver's or front passen­
ger seat while the vehicle is moving. If
you do this while the vehicle is moving,
you will be out of posit ion. Always adjust
the driver's or front passenger seat when
the vehicle is not moving.
- Be careful when adjusting the seat
height. Check to see that no one is in the
way, or serious injury could result!
- Beca use the seats can be electrically ad­
justed wi th the ign it ion key removed,
never leave children unattended in the
vehicle. Unsupervised use of the e lectric
seat adj ustments may cause serious in­
jury.
- To reduce the r isk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in a moving ve­ hicle with the seatback recl ined. Safety
belts and the airbag system offer maxi­
mum p rotection only when the seatback
is upright and the safety be lts a re prop­
erly posit ioned on the body. The more
the seatback is recl ined, the greate r the
risk of personal injury from an inco rrec t
seating position and improperly posi­
t ioned safety be lts!
- Always make sure the front seatbac ks are
in the upright position and securely
locked in place when driving.

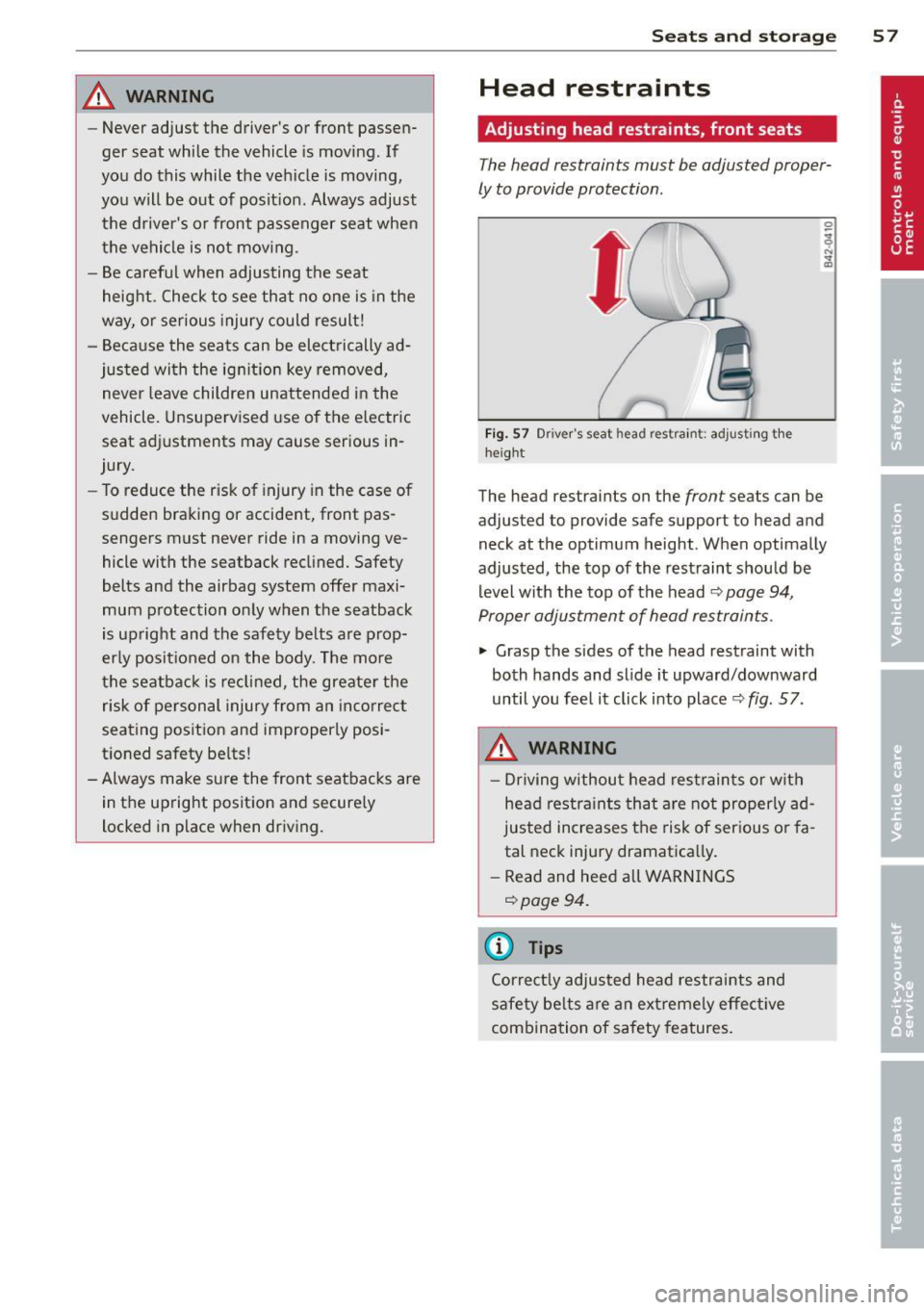

S ea ts a nd s to rage 57
Head restraints
Adjusting head restraints, front seats
The head restraints must be adjusted proper­
ly to provide protection.
Fi g. 57 Driver's seat head restra int: adjust ing the
he ig ht
The head restraints on the front seats can be
adjusted to provide safe support to head and
neck at the optimum height . When optimally
adjusted , the top of the rest raint should be
level with the top of the head
~ page 94,
Proper adjustment of head restraints .
.. Grasp the sides of the head restraint with
both hands and slide it upward/downward
until you fee l it click into place<>
fig. 57.
A WARNING
- Driving withou t head restraint s or wit h
head restra ints tha t are not properly ad­
justed increases the risk of serious o r fa­
tal neck injury dramatica lly .
- Read and heed all WARNINGS
<> page 94 .
{i) Tips
Correctly adjusted head restraints and
safety be lts are an ext reme ly effect ive
combination of safety features.
-

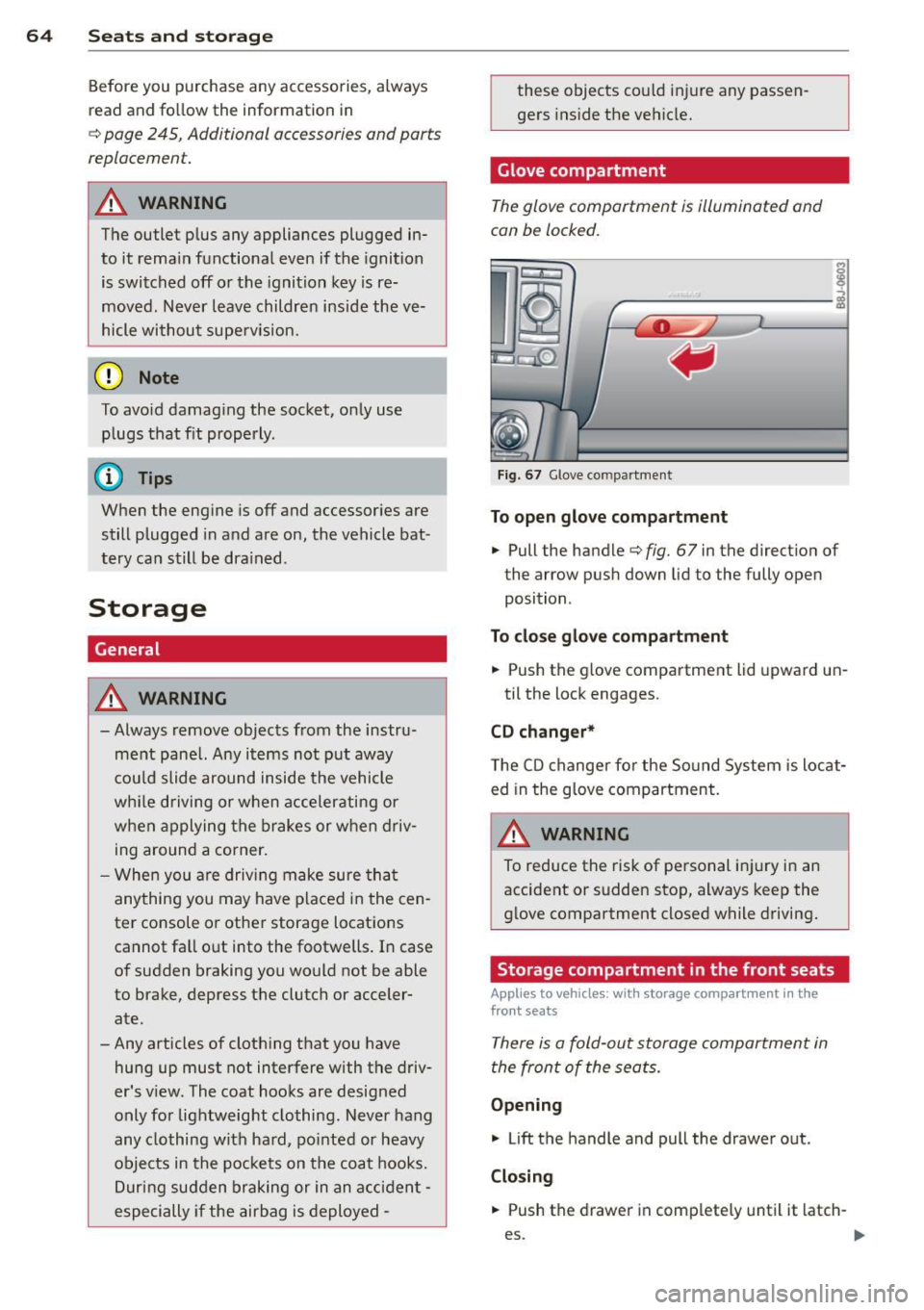

64 Seats and storage
Before you purchase any accessories, a lways
read and fo llow the information in
c::> page 245, Additional accessories and parts
replacement.
A WARNING
The outlet p lus any appliances plugged in­
to it rema in functional even if the ignition
is switched off or the ignition key is re­
moved. N ever leave children inside the ve­
hicle withou t supe rv ision.
Q) Note
To avo id damag ing the socket, only use
plugs that fit properly .
(D Tips
When the engine is off and accessor ies are
still plugged in and are on, the vehicle bat­
tery ca n still be dra ined .
Storage
General
A WARNING
-Always remove objec ts from the instru­
ment panel. Any items not put away
cou ld slide around inside the vehicle
wh ile driving or when acce lerating or
when applying the brakes or when driv­
ing around a corner.
- When you are drivi ng make sure tha t
anything you may have placed in the cen­
ter console or other storage lo cations
cannot fa ll out into the footwells . In case
of sudden braking you would not be able
to brake, depress th e clutch or acceler­
ate.
-Any articles of cloth ing that you have
hung up must not interfere with the driv­
er's v iew. The coat hooks are desig ned
only for lightweight clothing. Never hang
any clothing with ha rd, po inted or heavy
objects in the pocke ts on the coat hooks.
Dur ing sudden braking or in an acciden t -
especially if the airbag is deployed -
-
these objects co uld injure any passen­
gers inside the vehicle.
Glove compartment
The glove compartment is illuminated and
can be locked.
I i I
I
ij
----------- i
Fig. 67 Glove compa rt me nt
To open glo ve com partment
.. Pull the handle c::>fig. 67 in the direction of
the arrow push down lid to the fully open
position .
To close gl ove c ompa rtment
.. Push the glove compartment lid upward un-
til the lock engages.
CD changer *
The CD changer fo r the Sound System is locat­
ed in the g love compartment.
A WARNING
To reduce the risk of pe rsonal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
Storage compartment in the front seats
App lies to veh icles : w it h storage compart men t in the
fro nt seats
There is a fold-out storage compartment in
the front of the seats.
Opening
.. Lift the handle and pull the drawer out.
Closing
-
.. Push the drawer in complete ly until it latch -
es. .,.

On the road
Steering
Adjusting the steering wheel column
The steering wheel position can be continu­
ously adjusted in height and distance.
Fig. 70 Lever under the stee ring column
• Push the lever~ fig. 70 -Arrow-~ .&,..
• Move the steering wheel to the desired po­
sition.
• Push the lever against the steering column
until it locks.
There must be at least 10 inches (25 cm) be­ tween your chest and the center of the steer­
ing wheel. If you cannot sit more than 10 in­
ches (25 cm) from the steering wheel, see if
adaptive equipment is available to help you
reach the pedals and increase the distance
from the steering wheel.
For detailed information on how to adjust the
driver's sea t, see
Q page 56 .
A WARNING
Improper use of steering wheel adjust­
ment and improper seating position can
cause serious personal injury.
- Adjust the steering wheel column only
when the vehicle is not moving to pre­
vent loss of vehicle control.
- Adjust the driver's seat or steering wheel so that there is a minimum of 10 inches
(25 cm) between your chest and the
steering wheel
~page 91, fig. 91. If
you cannot maintain this minimum dis­
tance, the airbag system cannot protect
you properly.
On the road 71
-If physical limitations prevent you from
sitt ing 10 inches (25 cm) or more from
the steering wheel, check with your au­
thorized Audi dealer to see if adaptive equipment is ava ilable .
- If the steering wheel is aligned with your
face, the supplemental dr iver 's airbag
cannot provide as much protection in an
accident. Always make sure that the
steering wheel is al igned with your
chest .
-Always hold the steer ing wheel w ith your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of persona l injury
if the driver's airbag deploys .
- Never hold the steering wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub. Holding the steering wheel
the wrong way can cause serious injuries
to the hands, arms and head if the driv­
er's airbag deploys.
Ignition lock and ignition switch
Ignition lock
The ignition key starts or stops the engine.
Fig. 71 Ignit ion lock posit ions
Ignition off @
In position ~ fig. 71 @both the ignition and
engine are off, and the steering is locked .
To
lock the steering after you have removed
the ignition key , turn the steering wheel in ei­
ther direction until you hear it lock into place .
You should always lock the steering whenever ..,.
