climate settings AUDI TT 2013 Owner´s Manual

The LED in the buttons illum inates when the
function is active.
Button (s) Meaning
Rotary Tem
perature selection
knob
CD r=;, poge 67
Rotary Switch air cond itioning on/
knob
2 ~ off (Fan) ¢ page 67
Rotary Air distribution
knob @
¢page 68
~
Defrost
r=;,page69
~
Rear window defogger
¢page 70
Heated seat * driver/passen-I-.,; +I
ger side ¢ page 70
~
Recirculation
¢page 69
!AIC! Switch on cooling system
r=;, page69
Pollutant filter
The po llutant filter (particle filter) ensures
that contaminants in the outs ide a ir (such as
dust or pollen) are greatly reduced or stop­ ped. The air is also f iltered in recirculation
mode .
The pollutant filter element must be changed according to the intervals spec ified in the
maintenance schedule so that the air cond i­
tioning system's pe rformance is not adversely
affected.
If the filter's effect iveness is weakened by
driving the vehicle in areas with heavily pollut­
ed outs ide a ir, the fi lter element should also
be changed in between the listed services.
,&. WARNING
For safety reasons, it is impo rtant that all
w indows are free o f ice, snow, a nd conden­
sation . Only then is good visib ility ensured .
Please fami liarize yourse lf wit h the correct
operation of the air conditioning and how
to deh umidify/defrost the windows.
Warm and c old 67
@ Note
-If you s uspect that the climate controls
have been damaged, switch the system
off to avoid damaging it, and have it in ­
spected by an authorized Audi dealer.
-Audi cl imate control system repairs re­
quire special expertise and the proper
tools. You should contact an author ized
Audi dealer in the event of malfunctions.
(D Tips
- To avoid adversely affecting heat ing and
cooling performance and to prevent con­
densation on the w indows, the air i ntake
in front of the windshield must be free of
ice, snow, and leaves.
- T he a ir com ing from the vents and circu­
lat ing th rough the e ntire interior is ex­
tracted throug h the o utlet s lots in the
side p ane ls in the luggage compartmen t.
Ma ke s ure th at the outlet slots are no t
cove red by clo thing, e tc.
- C limate cont ro l wor ks mos t effectively i f
t he windows are closed. Howeve r, if the
interior of a par ked vehicle is extreme ly
hot from the sun's rays, brief ly opening
the windows can speed up the cooling
process.
Setting temperature
"' Turn the rotary knob CD ¢ page 66, fig. 68
to the desired temperature setting.
To set a lower temperature, turn the rotary
knob to the left . To set a higher temperatu re,
turn the rotary knob to the r ight . There are
additional inte rmediate settings available to
adjust the tempe ratu re as needed .
Switching climate control on and off
Switching the climate control system on
and off
"' Turn the knob@ r=;, page 66, fig. 68 to the
right to switc h climate contro l on . The LED
next to the word OFF goes o ut. ..,.

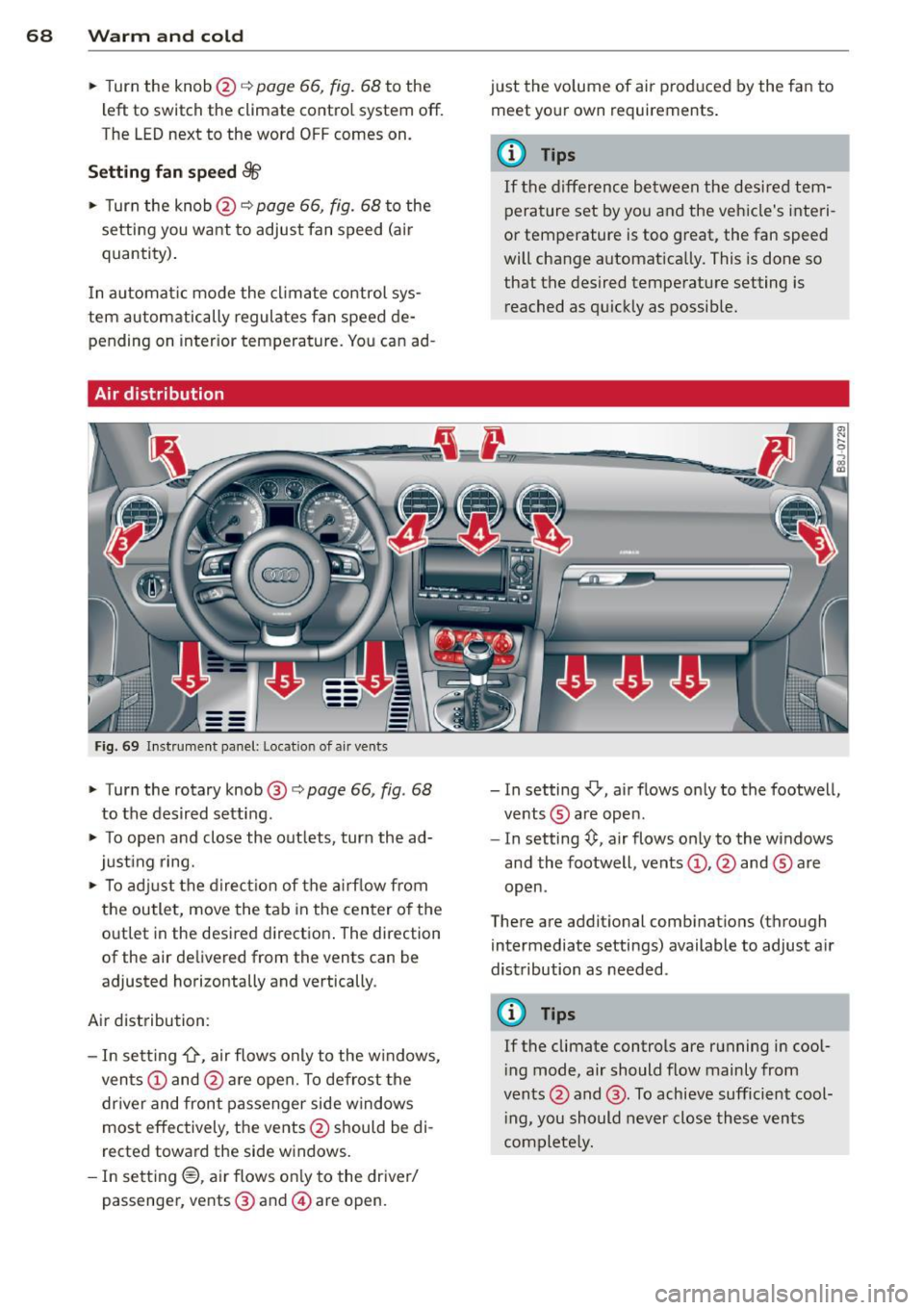

68 Warm and cold
• Turn the knob@c:> page 66, fig. 68 to the
l eft to switch the climate contro l system off.
T he LED next to the word OFF comes on .
Setting fan speed ~
• Turn the knob@c:> page 66, fig. 68 to the
setting you want to adjust fan speed (ai r
quantity).
I n automat ic mode the cl imate control sys­
tem automatically regulates fan speed de­
pending on interior temperature . You can ad-
Air distribution
F ig. 6 9 In st ru m ent panel: Locat io n of air ven ts
• Turn the rotary knob @ c:> page 66, fig . 68
to the desired setting.
• To open and close the out lets, turn the ad­
just ing ring.
• To adj ust the direct ion of the a irf low from
the outlet, move the tab in the center o f the
outlet in the desired d irection . The direction
of the air delivered from the vents can be
adjusted horizontally and vertically .
Air distribution:
- In sett ing
-0-, air flows only to the w indows,
ven ts @ and @are open. To defrost the
dr iver and front passenger side windows
most effectively, the vents @should be di­
rected toward the side w indows.
- In sett ing®, ai r flows on ly to the dr iver/
passenger , vents @ and @are open. just the volume of air produced by the fan to
meet your own requirements .
(D Tips
If the d ifference between the desired tem­
pera ture set by you and the vehicle's interi­
or temperature is too great, the fan speed
will change automat ically. This is done so
that the desired temperature setting is
reached as quickly as possib le.
- In setting
-0, air flows only to the footwell,
ve nts ® are open.
- In setting~. air flows only to the windows
and the footwell , vents @, @ and ® are
open .
There are additional comb inations (through
intermediate settings) available to adjust a ir
distribution as needed .
(D Tips
If the climate controls are running in cool­
i ng mode, air should flow mainly from
vents @and @. To achieve sufficient cool­
i ng, you should never close these vents
complete ly.
