engine coolant AUDI TT 2013 Owner´s Manual

10 Instruments and warning/indicator lights
Instruments and warning/indicator Lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.
Fig. 3 Overv iew of the inst rument cluster
(D Tachometer with time and date
dis play .. .... ..... ........ .
@ Coolant temperature gauge .. .
® Fuel gauge ................ .
© Speedometer with odometer ..
® Set/Check button ..... ... .. .
@ Driver information display
(?) Reset button for
- Trip odometer .......... .. .
- Service indicator
@ Tips
10 ,11
11
12
12
11
22
12
28
- When switching the ignition on, the nee­
dles in the instrument cluster move up­
ward briefly.
- The illumination for the instrument clus ­
ter lights up whenever you switch on the
i gnition with the
vehicle headlights off .
As the daylight fades, the instrument
cluster illumination likewise dims auto­
matically a nd will go out completely
when the outside light is very low. This
feature is meant to remind you to switch
on the head lights when outside light
conditions become poor .
Tachometer (engine rev counter)
The tachometer indicates the engine RPM
(revolutions per minutes) .
en 0
~
~
"'
If engine RPM drops below 1,500, you should
downshift to the next lower gear. The red area
at the end of the scale indicates maximum
permissible engine RPM after the br eak-in pe­
riod. Before reaching this area, move these­
lector lever to position "D (Drive)" or ease
your foot off the acce lerator pedal.
(D Note
The tachometer needle should only briefly
be in the red zone: you could damage your
engine! The beg inning of the red zone var­
i es depending on the engine.
@ For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise.

Instrument s and warning /indicator lights 11
Digital clock with date display
Your vehicle is equipped with a quartz con­
trolled digital clock .
Fig. 4 In str um en t cl uste r w it h t he dig ita l cloc k
To set the hour
.. Pu ll t he knob (hour d isp lay flashes) and
tu rn it t o the left or rig ht.
To set the minutes
.. Pull the knob as ma ny times as necessary
un til the mi nute display flash es.
.. Turn the knob to the left or r ight .
To set the date
.. Pull the knob as many times as necessary
until the day, month or year display flashes.
.. Turn the knob to the left or right .
To hide or d isplay the d ate
.. Pull the knob as many times as necessary
unti l the date display flashes.
.. Turn the knob to t he left or r ight.
When the date disp lay stops blinking, this
means the time and date have been success­
fu lly stored.
W ith the ignition off, pushing or pulling the
Set/Check button¢
page 10, fig . 3@ can
turn on the dis play f ie ld lighting for a few sec ­
onds .
Engine coolant temperature gauge
The engine coo la nt gauge ¢ page 10 , fig. 3@
only works when the ign ition is on. To prevent
damage to your e ngine, please note the fo l­
l owing important points:
Engine cold
As long as the nee dle rem ains a t the left end
of the gauge, the engine s till h as not reac hed
its operating temperat ure. Avoid high engine
speeds, heavy engine loads and heavy throt­
tle.
Normal temperature
W hen the engine has re ache d its ope rat ing
temperature, the need le w ill move into the
mid dle of t he gauge and rema in there .
If the
engine is working hard at high outside tem ­
peratures, the needle may turn fu rther to the
right. This is no cause for concern as long as
the . warni ng lig ht in the inst rument cl uster
does not illuminate .
When the. war ning light starts to flash,
th is can mean one of two thi ngs: either the
coolant
temperature is too high, o r the coo l­
ant
level is too low ¢ page 16 .
A WARNING
--Always obs erv e th e warn ing in
¢ page 1 7 4, Engine compar tment be ­
fore opening the eng ine ho od and check­
in g the eng ine coolan t leve l.
- N ever open t he eng ine hood if you see or
he ar ste am, or if you see engi ne coo lant
drippi ng from t he en gine compar tment .
You could bur n yourse lf . Let the en gin e
coo l off fi rst u ntil yo u can n o longe r see
or hear steam or coolant escap ing.
(D Note
- M ounting ad ditiona l lights or accessories
i n fr ont of the air inlets reduces the coo l­
ing effect of t he radiato r. At high o utsi de
tempe rat ures or h igh engine load, the
eng ine could overheat.
- The front spoiler has been designed to
properly d istribute the cooling a ir when
the vehicl e is movi ng. If the spoiler is
damaged, this c ould reduce the coo ling
e ff ect a nd th e eng ine could then ove r­
h eat . As k yo ur au thori zed A udi deal er for
a ssis tan ce.

Instrument s and warnin g/indic ator ligh ts 13
-The engine compartment of any motor
vehicle is a potentially hazardous area.
Before you check anything in the engine
compartment, stop the engine and let it
cool down. Always exercise extreme cau­
t ion when working under the hood
¢ page 174, Engine compartment
(D Tips
Malfunctions or faults w ill be identified e i­
ther with a red symbol (pr iority 1 -Dan­
ger!) or with a yellow symbol (pr iority 2 -
Warn ing).
Overview
Some ind icator lights tu rn on briefly to che ck
the func tion of that system when yo u switch
the ignition on. These systems are marked
with a./ in the following tables. If one of
these ind icator lights does not turn on, there
is a malfunction in that system.
R ed indicator lights
Red symbols indica te a priority malfunction -
Danger!
- Pull
off the road.
- Stop the vehicle.
- Turn
off the engine.
- Check the ma lfunction ing system. Contact
your authorized Aud i dea ler or a qualified
workshop for assistance .
-USA models: Malf u nction in the
brake system
¢ page 14
D
D
Canada models : Malfunction in the
brake system
¢ page 1 4
USA models : Airbag system./
¢page 15
Canada models: Airbag system./
¢page 15
Safety belt
¢page 16
Generator ./
¢page 16 Engine o
il pressure too low
¢ page 16
Engine coolant level too low/
engine coolant tempe rature too
h igh
¢ page 16
Electro -mechanical power assist
¢ page 17
Clutch is overheating
¢page85
Yellow indicator light s
Yellow symbo ls indicate a priority 2 malfunc ­
tion -Warning!
Ji]
I
Clutch pedal
¢page 17
Electronic Stabilization Control (ESC)
./ ¢page 17
Electron ic Stabilisat ion Control (ESC)
./ ¢page 17
~ USA models: anti-lock brake system
~(ABS)./ defective ¢page 18
•
Canada models : anti-lock brake sys­
tem (ABS) ./ defective
¢ page 18
Worn brake pads
¢page 18
Tire pressure too low
¢page 214
Tire pressure monitoring system ¢page 215
--~
~ Electron ic powe r control./
~ ¢page19
~ USA models: Malfunctio n Indicator
Bil Lamp (MIL) ¢page 19
11'!!1 Canada models : Malfunction Indica­
mil to r Lamp (MIL) ¢page 19
Engine speed limitation*
¢page 19

16 Instrum ent s and w arn ing /indic ato r light s
_& WARNING
If you have a malfunction in the safety sys ­
tems, contact your authorized Audi dealer
immediate ly. Otherw ise the safety sys­
tems may not work properly in an acci­
dent.
~ Safety belt warning light
App lies to vehicles: with safety belt warning light
The warning light is a reminder to fasten
safety belts.
The warning light . comes on for a few sec ­
onds after the ignition is switched on as a re­
minder to fasten your safety be lt.
Addit ional info rmation on safety be lts
¢ page 100.
0 Generator
This warning/indicator light detects a mal­
function in the generator or in the vehicle's
electrical system .
The. warning/ind icator light illuminates
when yo u switch on the ignit ion and must go
out after the engine has started .
I f the . warning/indicator light illum inates
while you are driving, yo u should contact you r
author ized Audi dealer. Since the veh icle bat­
tery is discha rging, you should switch
off any
unnecessary electrical consumers (for exam ­
p le, the air conditioner).
~ Engine oil pressure
The red engine oil pressure warning symbol
requires immediate service or repair.
I f the . symbol appears in the display and
flashes, the oil pressure is too low . In addition
to the symbo l, the following message a lso ap­
pears in the d isp lay:
S wi tch off en gin e! Oil pr essure is t oo low
• Pull off the road and stop the vehicle .
• Shut the engine down.
• Check the eng ine oil level¢
page 185.
• Contact your authorized Audi dealer for as-
sistance if necessary .
Engine oil level too low
If the engine oil level is too low , top off oil to
t h e proper level
¢ page 185.
Engine oil leve l OK
If the . symbol starts flashing again even
though the eng ine oil level checks OK on the
dipstick,
do not start dri ving again and d o
not l et th e engine run at idl e.
Instead, con­
tact yo ur auth o rized Aud i dea ler fo r ass is­
tance .
(D Tips
- The engin e oil pr essure symbol. is
n ot an indi cato r for a l ow eng in e oil lev ­
e l. Do not rel y on i t. In ste ad, che ck th e
o il le vel in yo ur engine at regul ar inter­
vals, p referably ea ch time you refuel ,
a nd a lw ay s befo re going on a long t rip.
- The yellow oil le vel warning indication
Ill r equires oil refill or wor kshop s erv ­
ic e w ithout delay. Do not wait until the
red oil pressure warni ng sy mbol.
s tarts to flash before you re spo nd to
th e lo w oil level warning
111-By then,
y our engin e may already ha ve suffer ed
s er iou s damag e.
-L Engine cooling system
A malfunction in the engine cooling system
must be repaired as soon as possible .
When the. symbol in the d isplay flashes,
then either the engine coolant
temperature i s
too high, or the coolant
level is too low . In ad­
dition to the symbo l, the following message
also appears in the d isp lay:
Swit ch off en gin e and chec k coolant level
• Pull off the road and stop the veh icle.
• Turn
off the engine.
• Check coolant level
¢page 187.
• Add coolant if necessary¢ page 188.
• Continue driv ing on ly after the engine cool-
ant wa rning/ind icator light goes out. ..,.

Instrument s and warnin g/indic ator ligh ts 17
~ Contact your authorized Audi dea ler for as -
sistance if necessary.
If the engine coolant level is co rrect, then the
radiator fan may be the cause of the malfunc­
tion.
If the generator wa rning/ind icator light
should also illuminate
r:!:> page 16, then the
fan belt may be damaged.
A WARNING
- If your vehicle should break down for
mechanical or other reasons, park at a
safe distance from moving traffic, turn
off the engine and turn on the hazard
warning lights
c> page 45, Emergency
flasher &.
-
-Never open the hood if you see or hear
steam or coolant escap ing from the en­
gine compartment - you risk being scald­
ed . Wait until you can no longe r see or
hear steam or coo lant escaping.
- The engine compartment of any ve hicle
is a da ngerous a rea. Before you perfo rm
any wor k in the engine compartment,
turn off the engi ne and a llow i t to cool.
F ollow the wa rning stickers
¢ page 180.
(D Note
Do not co nti nu e d riving if the. symbol
illum inates. There is a ma lf u nct ion in the
eng ine cooling system -you co ul d damage
your eng ine.
@ Electro-mechanical power assist
If the indicator lig ht illuminates w hile you are
driving, there is a malfunction in the electro­
mechanical steering. If the ind icator light is
show ing ,£"~ . there may be a reduction in pow­
er steering assist. If the ind icator light is
show ing . , there may be a total loss of pow­
e r steering assist. The stee ring m ust be in­
spected immediately by a qua lified wor kshop
¢ ,&. .With the engine no t running (e.g. when
the car is being towed), there is a lso no power
assist avai lab le .
A WARNING
-
If there is a ma lf u nction, the indicator
light for the electro-mechanical power as­
sist illuminates. Seek professional assis­
tance.
~ Clutch pedal
App lies to vehicles: wit h manual transmiss ion
T he ind icator light [~l ill uminates if you do
not press the clu tch pedal when s ta rting the
engine. For safety reasons, the eng ine will on ­
ly start when the clutch peda l is pressed.
;;,I C; Electronic Stabilization Control
(ESC)
If the hJ indicator lamp blinks while dr iv ing,
the ESC or ASR (Anti-Slip Regu lation) is active ­
ly regulating .
If the
G! indicator lamp illuminates, the sys­
tem has switched the ESC off. In th is case, you
can switch the ignition off and then on to
switch the ESC on again. The system is func­
t ion ing complete ly when the ind icator lamp
swi tches off.
If the
I) indicator lamp illuminates, the ESC
was switched off w ith the
[ru button .
Stabilization program and AB S fault! See
owner 's manual
If the G! indicator lamp and the [I] ABS indi­
cator lamp illum inate and the driver message
appears, the ABS or electron ic different ia l lock
is malfunct io ning . This also interrupts the
ESC. The brakes still function with their nor ­
mal power, but ABS is not active.
Drive to your authori zed A udi dealer immedi­
ate ly to have the malfunction corrected .
For more information abo ut the ESC
¢ page 150.

66 Warm and cold
Warm and cold
Climate controls
Controls
The air conditioning automatically maintains the selected temperature in the vehicle interior
throughout each season .
Fig. 68 Climate contro ls
We recommend the following sett ing :
> Rotate the knob ¢ fig. 68 @to the right to
switch on the air conditioning .
> Set the temperature to 72 °F (22 °() .
> Press the !AUTO I ¢ fig . 68 button .
Using the previously recommended setting is
the quickest way to achieve a comfortable cli ­
mate in the vehicle . This setting should there­
fore only be changed when persona l comfort
l eve ls or ce rtain circumstances requi re it .
The climate controls are a combination of au ­
tomatic heating and ventilation systems and a
coo ling system which dehumidifies and coo ls
the air ins ide the veh icle.
The climate controls automatically maintain a temperature once it has been set . The tem­
perat ure of the air from the vents, fan speed
(air vol ume) and ai r d ist ribution are also auto­
mat ical ly adjusted . The system also takes into
account strong s unshine so that manua l ad­
justment is not necessary. So in almost all cases,
a ut om at ic mode offers the best cond i­
tions for the comfort of the occupants at all
times of the year ¢
page 69.
Please not e:
In cooling mode , relative humidity in the inte­
rior is reduced . This prevents the w indows
from fogg ing up.
When relative hum idity and temperatures
outside are high ,
conden sati on can drip from
the a ir condition ing evaporator and form a
pool of water under the vehicle. This is normal
and not an ind ication of a leak!
When outs ide temperatures are low, the fan
does not switch to a higher speed until the
coolant has reached an adequate tempera ­
tu re, with the exception of the defrost set­
t ing.
When accelerating at wide-open throttle, the air conditioning compressor is temporarily
switched off to ma intain full engine power .
In order to ensure engine cooling under ex­
treme engine loads, the compressor is switch­ ed off if coolant temperatures climb too high.
Funct ions are set by turning the rotary knob
or switched on and off by tapp ing the buttons.
II>

CD Note
-Avoid high engine speeds, fast accelera­
tion or heavy engine loads whi le the en­
gine is still cold. This could damage the
engine.
- The engine cannot be started by pushing or towing the veh icle.
@) For the sake of the environment
To avoid unnecessary engine wear and to
reduce exhaust emissions, do not let your
veh icle stand and warm up. Be ready to
drive off immediately after starting your
veh icle. Maintain moderate speed until the
eng ine is completely warm . Remember,
the engine performs best at operating
temperature .
Stopping the engine
~ Turn the ign ition key to position @
~page 71, fig. 71.
_& WARNING
-Never turn off the engine before the ve­
hicle has come to a complete stop. The
full function of the brake booster and the
power steering is not guaranteed . You
must use more force to turn or brake if
necessary. Because you cannot steer and
brake as you usually would, this could
lead to crashes and serious injur ies.
- The radiator fan can continue to run for
up to 10 minutes even after you have
turned
off the engine and removed the
ignition key . The radiator fan can also
turn on again if the engine coolant heats
up because of intense sunlight or heat
build-up in the engine compartment.
CD Note
Do not stop the engine immed iate ly after
hard or extended driving. Keep the engine
running for approximately two minutes to
prevent excessive heat build-up.
On the road 73
Parking brake
Parking brake
When the parking brake is set, it prevents the
vehicle from rolling away unintentionally .
Fig. 72 Center console: Parki ng b rake set
Setting the parking brake
~ Pull the park ing brake lever all the way up.
Releasing the parking brake
~ Pull the parking brake lever up slightly and
press the release button at the same time
~ fig. 72 -arrow-.
~ Keep the release button pressed and lower
the parking brake~&_ .
If you should drive
off with the parking brake
still set, a warning tone will sound and the
follow ing will appear in the instrument clus­
ter to rem ind you to release the parking
brake:
Handbrake is applied
The parking brake warning comes on only af­
ter you have driven for longer than 3 seconds
and faster than 5 mph (5 km/h) .
The parking brake warning light_
(USA)/ . (CON) illuminates when the park­
ing brake is set and you switch on the ignition .
A WARNING
Always re lease the park ing brake com -
pletely. A partially engaged brake will
overheat the rear brakes, reduce their ef­
fectiveness and cause excessive wear. This
could lead to brake failure and an accident. .,.

180 Checking and filling
Checking and filling
Engine hood
Releasing the engine hood
The engine hood is released from inside the
vehicle.
Fi g. 132 Dr iver's side footwell: engine hood re lease
lever
.. Open the driver's door.
.. Pull the release lever on the left under the
instrument panel
c> fig. 132 in the direction
of the arrow .
The hood pops up slight ly under spring pres­
sure.
Opening the engine hood
Fig . 133 Re lease lever under the engine hood
Before opening the engine hood, make sure
that the windshie ld wipers are flat against the
windshie ld. Otherwise, they cou ld damage the
pa int on the hood.
.. Lift the hood s light ly
c> _& .
.. Pull up on the release under the hood
¢ fig. 133. This releases the catch.
.. Open the hood all the way.
A WARNING
-Hot engine coolant can burn you.
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coo lant escaping from the eng ine
compartment. Wait unt il no steam or
coolant can be seen o r heard before care­
fu lly opening the hood.
Closing the engine hood
.. Pull the hood down until the pressure from
the struts is reduced .
.. Let the hood
drop down and latch in p lace.
Do not try to push it shut; it may fail to en­
gage
c> _& .
A WARNING
--
A hood that is not completely latched
could fly up and b lock your view while dr iv­
i ng.
- When you close the engine hood, check it
to make sure the safety catch has proper­
ly engaged . The hood should be flush
with the surrounding vehicle body parts.
- If you notice while dr iv ing that the hood
is not secured properly, stop at once and
close it.
Working in the engine compartment
Be especially careful whenever you work in
the engine compartment!
Wheneve r you must pe rform any wo rk in the
eng ine compartment, for e xample chec king
and filling the different fluids, ther e is a risk
of injury, burns and a ccident s. To prevent
p ers onal injury al ways obs erv e the following
WARNINGS. The eng in e c ompartm ent of an y
vehicl e is a hazardou s area!
c> .&.
A WARNING
To he lp avoid injury, before yo u check any­
thing under the hood:
- Sw itch off the engine .
- Remove the ignition key.

-Apply the parking brake.
- Move selector lever of automatic trans-
mission to "P" (Park); put manual trans­
mission in Neutral.
- Always let the engine cool down . Hot
components will burn skin on contact.
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment . Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood.
- Keep children away from the engine com­
partment .
- Never spill fluids on hot engine compo­
nents. They can cause a fire.
- Never touch the radiator fan. The auxili­
ary electric fan is temperature controlled
and can switch on suddenly.
- Never open the coolant reservoir cap
when the engine is still warm. The cool­
ant system is pressurized and hot cool­ ant could spray out .
-Protect your face, hands and arm from
steam or hot engine coolant by placing a
thick rag over the cap when you open the
coolant reservoir .
- Do not remove the engine cover under
any circumstances. This increases the
risk of burns.
- If work on the fuel system or the electri­
cal system is necessary:
- Always disconnect the battery.
- Never smoke or work near heaters or
open flames. Fluids in the engine com­
partment could start a fire.
- Keep an approved fire extinguisher im­
mediately available.
- To avoid electrical shock and personal in­
jury while the engine is running or being
started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
-If you must perform a check or repair
with the engine running:

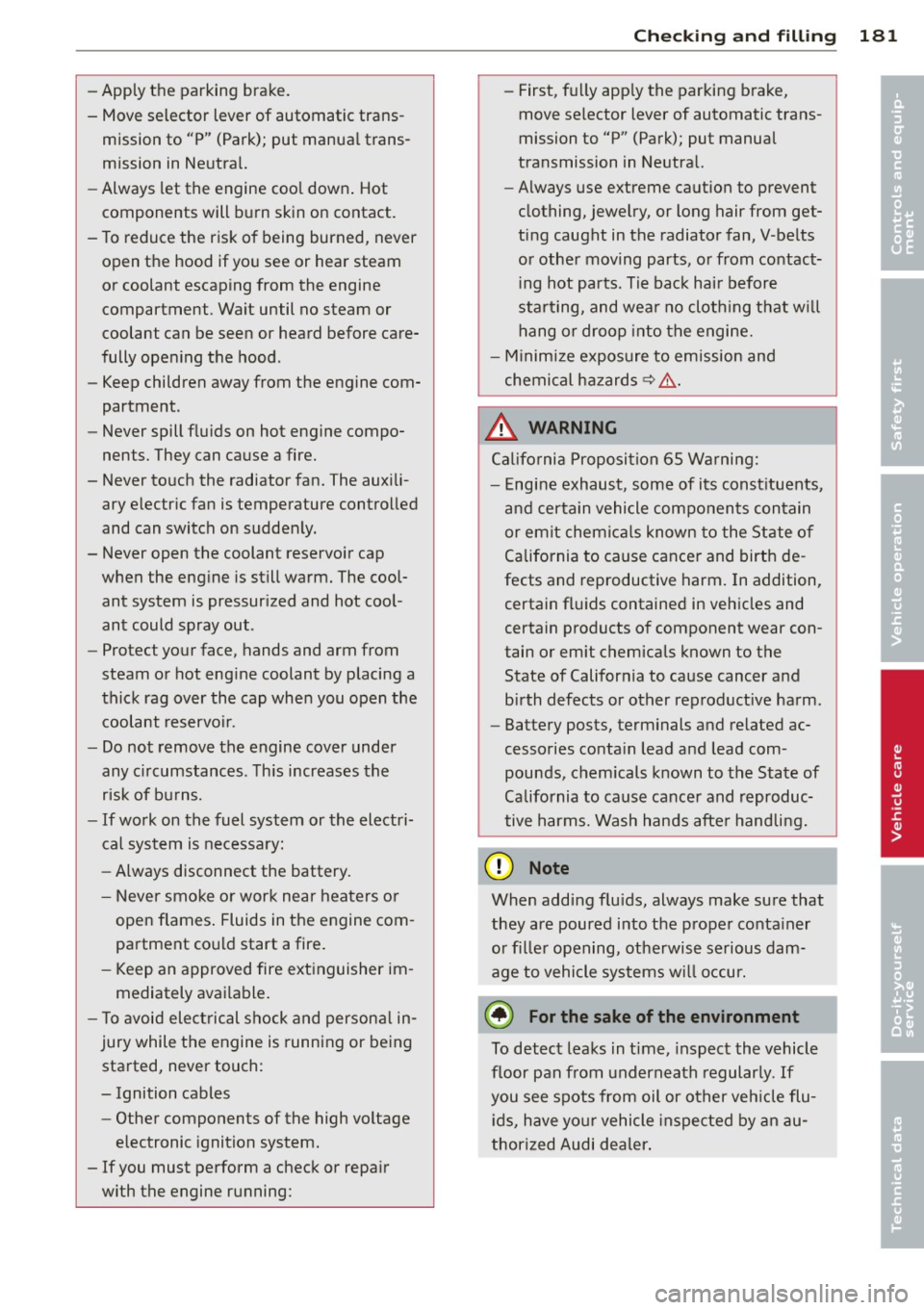

Checking and filling 181
- First, fully apply the parking brake,
move selector lever of automatic trans­
mission to "P" (Park); put manual
transmission in Neutral.
- Always use extreme caution to prevent
clothing, jewelry, or long hair from get­
ting caught in the radiator fan, V -belts
or other moving parts, or from contact­ ing hot parts. Tie back hair before
starting, and wear no clothing that will hang or droop into the engine.
- Minimize exposure to emission and
chemical hazards~,& .
.8, WARNING
California Proposition 65 Warning:
- Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth de­
fects and reproductive harm. In addition,
certain fluids contained in vehicles and
certain products of component wear con­
tain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive harms. Wash hands after handling.
(D Note
When adding fluids, always make sure that
they are poured into the proper container
or filler opening, otherwise serious dam­
age to vehicle systems w ill occur.
@ For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly. If
you see spots from oil or other veh icle flu­
id s, have your vehicle inspected by an au­
thorized Audi dealer . •
•

182 Checking and filling
Engine compartment
These are the most important items that you can check .
•
Fig. 134 Typ ica l layout for containers and eng ine oil filler cap
CD Coolant expansion tank (-L) .. .
'2' E . 'l d. . k \61 ngIne 0 1 1pst1c .......... .
@ Engine oil filler cap ('1:::r.) .. .. .
@ Brake fluid reservoir((();) .. .. .
® Jump start points(+) under a
cover, (-) bolt head .... ... .. .
® Windshield/headlight washer
t . (
;;p, ) con ainer ,-!,, •••.•••.•.•••.
187
185
185
189
233
194
The pos ition of the engine o il dipstick and the
engine o il fi lling hole
r::> fig. 134 (items @and
@) can differ depending on the engine de­
sign .
A WARNING
Before you check anything in the engine
compartment, always read and heed all
WARN INGS
c::> .& in Working in the engine
compartment on page 180.
Engine oil
Engine oil specifications
The engine oil used in your Audi needs the
right kind of oil.
T he eng ine in your Aud i is a soph ist icated
powerplant that was built to exact ing spec ifi­
cat ions . T his engine needs the right kind of
engine oil that meets specifications regard ing
quality and viscosity so that it can run
smooth ly and reliably . Choosing the right o il
and changing oil within the time and mileage
i ntervals printed in your vehicle's Warranty
&
Maintenance booklet matters a lot more to­
day tha n it did years ago. Audi has developed
a spec ia l quality standard for engine oil that
will help assure that you r vehicle's engine w ill
get the lubr ication it needs fo r proper opera­
t ion.
Modern engine l ubr ication has taken a q uan­
tum leap in the last few years. Many synthet ic
1J.
