maintenance AUDI TT 2013 Owner´s Manual

Audi TT Coupe
Audi TTS Coupe
Audi TT RS Coupe
Fo reword
Thank you for choosing an Audi - we value your trust in us.
Your new Audi will allow you to experience the best in groundbreaking technolo­
gy and premium quality equ ipment a vehicle has to offer. We recommend that
you read your Owner's Manual thoroughly so that you qu ickly become acquaint­
ed with your Audi and make use of all of its features.
In addition to explaining how the different features work, we provide many use­
ful tips and information concerning your safety, how to care for your vehicle and how to mainta in your veh icle's value. We also give you useful tips and informa­
tion on how to drive your veh icle more efficiently and in an environmentally
friendly manner.
In the Owner's Manual packet, you will also find a quick reference guide, an
Owner's Manual for your Infotainment system and the vehicle maintenance
schedule.
We hope you enjoy driving your Audi and we w ish you safe and pleasant motor­
ing.
AUDIAG
II III I I ll I I IIIII III II III I III I II I ll Ill
1325618)321

In addition to t his Owner's Ma nual, your A udi
comes w ith a Warranty
& Maintena nce book ­
l et.
Mor eover , d ep en ding on the mode l and t he
e quip ment, there may be additiona l ins truc ­
tion boo klets delivered w ith your vehicle (for
e x amp le, Ope rat ing Instr uctions fo r yo ur
Sound System, Navigation System , etc .).
If yo u are m iss ing one of these publicat ions,
or if you believe that the inf ormation is not
comp lete, contact you r auth orized Audi dea le r
for assistance.
The Warranty & Maintenance booklet
explains how yo u can kee p your A udi in top
d riving conditi on by hav ing it serviced regular ­
l y and conta ins deta iled in fo rmat ion about
the wa rranties covering your Aud i. Always
h ave the book let with yo u when yo u take your
ve hicle to an auth orized Audi dealer for serv­
i ce . Y our Aud i Service Adviso r will record each
sche duled service and can answer any ques­
tions you may have r ega rding how to ma intain
your ve hicle.
In Canada,
the vehicle lite ratu re is also avai lab le in
Fr ench . T o obtai n a co py, c ontact your dea ler
or w rit e to :
Au Canada, on peut se procure r un e xempla ire
e n fran~ais de ce doc ument aupres du conces ­
sionna ire ou de :
Vo lkswagen Canada, Inc.
Client Assistance
Assistance a la Clientele
77 7 Bayly Street, West,
A jax, On tario LIS 7G 7
If you sell your Audi
all literatu re should be left in the veh icle to
make the Warranty terms as we ll as a ll oper­
ating, safety and ma intenance information
ava ilab le to the ne xt owne r.
Vehicle literature 5
If you change your address or if you
bought this Audi used
b e s ure to send in a "Notice of A ddress
Change"
I " N otice of Used Car Purchase" post
ca rd. T his card can be fo und in the War ranty
&
M aint enance booklet or obtained from your
a utho rized Aud i dea le r.
It is in your own interest that we are able to
contact you should the need arise .
•
•

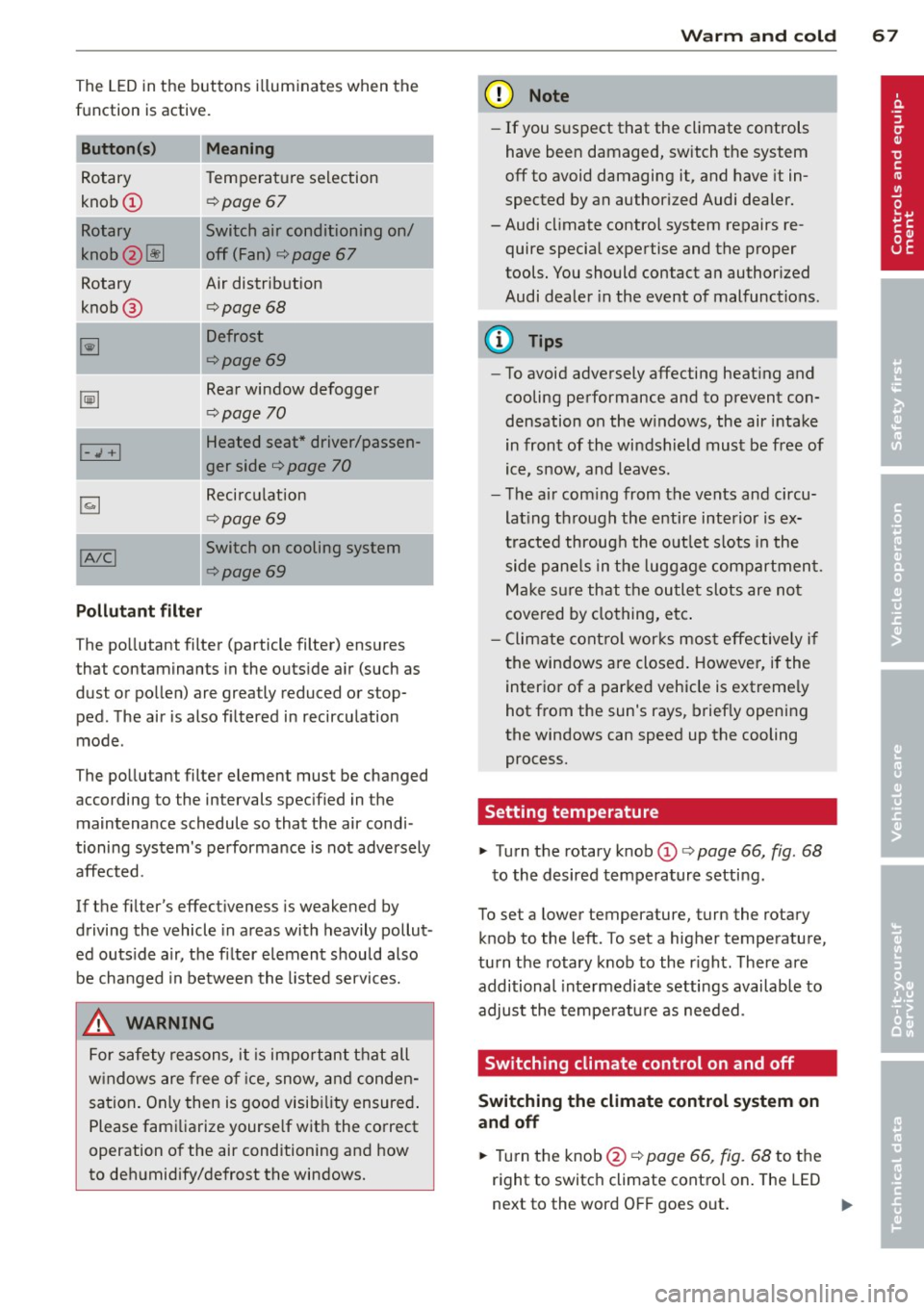

The LED in the buttons illum inates when the
function is active.
Button (s) Meaning
Rotary Tem
perature selection
knob
CD r=;, poge 67
Rotary Switch air cond itioning on/
knob
2 ~ off (Fan) ¢ page 67
Rotary Air distribution
knob @
¢page 68
~
Defrost
r=;,page69
~
Rear window defogger
¢page 70
Heated seat * driver/passen-I-.,; +I
ger side ¢ page 70
~
Recirculation
¢page 69
!AIC! Switch on cooling system
r=;, page69
Pollutant filter
The po llutant filter (particle filter) ensures
that contaminants in the outs ide a ir (such as
dust or pollen) are greatly reduced or stop­ ped. The air is also f iltered in recirculation
mode .
The pollutant filter element must be changed according to the intervals spec ified in the
maintenance schedule so that the air cond i­
tioning system's pe rformance is not adversely
affected.
If the filter's effect iveness is weakened by
driving the vehicle in areas with heavily pollut­
ed outs ide a ir, the fi lter element should also
be changed in between the listed services.
,&. WARNING
For safety reasons, it is impo rtant that all
w indows are free o f ice, snow, a nd conden­
sation . Only then is good visib ility ensured .
Please fami liarize yourse lf wit h the correct
operation of the air conditioning and how
to deh umidify/defrost the windows.
Warm and c old 67
@ Note
-If you s uspect that the climate controls
have been damaged, switch the system
off to avoid damaging it, and have it in ­
spected by an authorized Audi dealer.
-Audi cl imate control system repairs re­
quire special expertise and the proper
tools. You should contact an author ized
Audi dealer in the event of malfunctions.
(D Tips
- To avoid adversely affecting heat ing and
cooling performance and to prevent con­
densation on the w indows, the air i ntake
in front of the windshield must be free of
ice, snow, and leaves.
- T he a ir com ing from the vents and circu­
lat ing th rough the e ntire interior is ex­
tracted throug h the o utlet s lots in the
side p ane ls in the luggage compartmen t.
Ma ke s ure th at the outlet slots are no t
cove red by clo thing, e tc.
- C limate cont ro l wor ks mos t effectively i f
t he windows are closed. Howeve r, if the
interior of a par ked vehicle is extreme ly
hot from the sun's rays, brief ly opening
the windows can speed up the cooling
process.
Setting temperature
"' Turn the rotary knob CD ¢ page 66, fig. 68
to the desired temperature setting.
To set a lower temperature, turn the rotary
knob to the left . To set a higher temperatu re,
turn the rotary knob to the r ight . There are
additional inte rmediate settings available to
adjust the tempe ratu re as needed .
Switching climate control on and off
Switching the climate control system on
and off
"' Turn the knob@ r=;, page 66, fig. 68 to the
right to switc h climate contro l on . The LED
next to the word OFF goes o ut. ..,.

Rear spoiler
Applies to vehicles: with retractable rear spoiler
The rear spoiler improves vehicle handling
and enhances driver control.
Fig. 128 Switc h for rear spo iler
The rear spoiler deploys and retracts . Spo iler
operation can be set for automatic or manua l
operation.
Automatic m ode (no rmal operat ion )
-Automatic deployment: At a speed of about
75 mph (120 km/h), the rear spoiler deploys
automatically.
-Automat ic retraction: When speed drops be ­
low about SO mph (80 km/h), the rear spo il­
er retracts automatically .
Manu al mode
- Manual deployment: Tapping briefly on the
switch
c:> fig. 128 dep loys the rear spo iler .
- Manual retraction: At speeds up to about 10 mph (20 km/h), retract the rear spoiler
by pressing and holding the switch
c:> fig . 128 . At speeds between 10 mph (20
km/h) and 75 mph (120 km/h) , retract the
rear spoiler by tapping on the switch
c:>fig . 128.
_& WARNING
Dr iv ing at higher speeds w ithout the rear
spoiler dep loyed can impair hand ling cha r­
acteristics, making the vehicle harder to
contro l.
- Always make sure that the spoiler is de­
ployed when driving at speeds over
85 mph (140 km/h).
If the rear spoiler
warning/ind icator light in the instru-
Intelligen t technolog y 153
ment cluster comes on, the rear spoiler
may not have deployed .
- Never drive at speeds higher than
85 mph (140 km/h) if the spoiler is not
deployed. Have the spoiler inspected as
soon as possible by an authorized Audi
deale r o r qualified workshop .
- Always obey speed limits and other traf­
fic laws.
_& WARNING
Improper operation of the rear spoiler can
cause crushing injuries.
- Always make sure that nobody, especially
children, is in the way when the rear
spoiler is deployed or retracted .
(D Note
Never push the vehicle or apply force to
the rear spoi ler -it cou ld be damaged.
{!) Tips
C lean the spoiler compartment every 2 to
3 months. The spoiler compartment must
a lways be free of ice, snow, leaves or other
debr is .
Braking
General information
What affects braking efficiency?
Ope rating cond itions and driving habits
The brakes on today's automobiles a re still
subject to wear, depe nd ing largely on operat ­
ing condit ions and driving hab its
c:> .&,. . On
vehicles that are either driven most ly in stop­
and-go city t raff ic or are dr iven hard, the
brake pads should be checked by yo ur au thor­
ized Audi dealer more often than specified in
the
Warr anty & Maintenance booklet. Failure
to have your brake pads inspected can result
in reduced brake performance.
On steep slopes, you should use the braking
effect of the engine. T his way, you prevent un­
necessary wear on the brake system . If you
must use your brakes, do not hold the brakes .,.

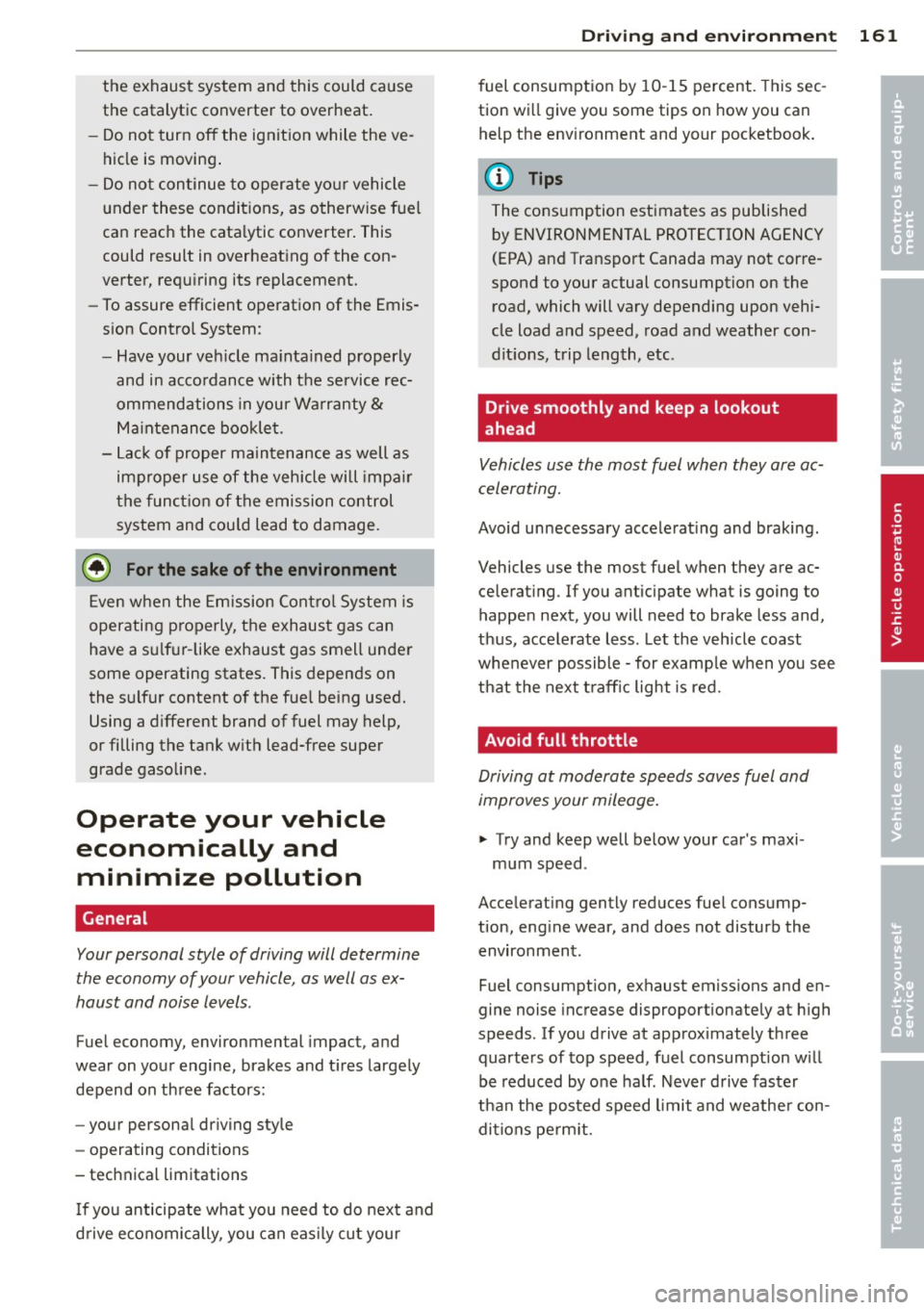

the exhaust system and this could cause
the catalytic converter to overheat.
- Do not turn off the ignition while the ve ­
hicle is moving .
- Do not con tinue to operate yo ur vehicle
under these conditions, as otherwise fuel
can reach the cata lytic converter . This
could result in overheating of the con­
verter, requ iring its replacement.
- To assure efficient operation of the Emis­
sion Control System:
- Have your veh icle ma inta ined properly
and in acco rdance with the service rec­
ommendations in your Wa rranty
&
Ma intenan ce booklet.
- Lac k of proper maintenance as well as
improper use of the vehicle will impa ir
t he funct ion of the emission control
system and cou ld lead to damage.
@ For the sake of the environment
Even when the Emission Contro l System is
operating p roperly, the exhaus t gas can
have a s ulfu r- like exhaust gas smell under
some operating states. This depends on
the s ulfur content o f the fue l being used.
Using a different brand of fuel may help,
or filling the tank w ith lead-free super
grade gasoline .
Operate your vehicle
economically and
minimize pollution
General
Your personal style of driving will determine
the economy of your vehicle, as well as ex­
haust and noise levels .
Fuel economy, environmental impact, and
wear on your engine, brakes and t ires largely
depend on three factors :
- your persona l driving style
- operating conditions
- technical lim itations
I f you anticipate w hat you need to do nex t and
d rive economically, you can eas ily cut your
Dri vin g and en vironm ent 161
fuel consumption by 10 -15 percent. Th is sec ­
tion w ill give yo u some tips on how you can
help the env ironment and your pocketbook .
(D Tips
The cons umption estimates as published
by ENVIRONME NTAL PROTEC TION AGENCY
(EPA) and Transport Canada may not corre­
spond to your actual consumption on the road, which will vary depending upon vehi­
cle load and speed, road and weather con­
dit ions, trip length, etc.
Drive smoothly and keep a lookout
ahead
Vehicles use the most fuel when they are ac­
celerating.
Avoid unnecessary accelerat ing and braking .
Vehicles use the most fuel when they are ac­
ce lerat ing . If you anticipate what is going to
happe n next, you will need to brake less and,
th us, accele rate less. Let the vehicle coast
whenever possible -for examp le when you see
that the next t raff ic light is red.
Avoid full throttle
Driving at moderate speeds saves fuel and
improves your mileage.
"' Try and keep well below your car's maxi -
mum speed.
Acce lerat ing gently reduces fue l consump­
tion, eng ine wear, and does not disturb the
environment.
Fuel consumpt ion, exhaust emiss ions and en­
gine noise increase disproportionately at high
speeds. If you drive at approximately three
quarte rs of top speed, fuel consumption w il l
be reduced by one half. Never drive faster
t h an the posted speed limit and weathe r con­
ditions perm it.
•
•

162 Driving and en vironm ent
Reducing unnecessary idling
Even when your car is just idling it burns up
fuel .
.,. Shut the engine off when you are not driv­
ing the vehicle.
.,. Do not warm up the vehicle by letting the
engine run at idle .
It makes sense to shut off the engine in traff ic
jams, when waiting for trains to pass at ra il­
road crossings, or at traff ic lights that have
l ong wa its on red . Turning the engine off fo r
just 30-40 seconds saves more fue l than is
burned starti ng the eng ine again .
It takes a long time for the engine to warm up
fully when it is running at idle . However , wear
and nox ious em issions are especially high
when the engine is warming up. So you should
drive away as soon as you start the engine and
avoid running at high RPMs whi le the engine
is sti ll warming up.
(D Note
Do not leave engine idling unattended af­
ter starting . If warning lights shou ld come
on to indicate improper operation, they
wou ld go unheeded. Extended idling also
produces heat, which cou ld result in over­
heating or other damage to the vehicle or
other property .
Regular maintenance
A badly tuned engine unnecessarily wastes a
lot of fuel .
... Have your vehicle serviced at regular inter-
vals.
By having your vehicle regularly serviced by an
Audi dealer helps to ensure that it runs prop­
erly and economica lly. The cond it ion of yo ur
vehicle not only affects its safety and ab ility to
hold its value, it also affects
fuel con sump­
tion .
Check you r oil ea ch time you fill you r tan k.
The amount o f oi l used is re lated to engine
load and speed.
It i s normal fo r the oil consump tion of a new
engine to reach its lowest value after a certa in
mileage has been d riven.
You must drive your veh icle about 3,000 m iles
(5,000 kilometres) before you can properly
assess oil consumpt ion.
This also app lies to fue l consumption and en­
gine o utput.
(D Note
- Have your veh icle ma inta ined properly
and in acco rdance with the service rec­
ommendations in your Wa rranty
& Main­
t enance boo klet . Lack of p roper ma inte­
nance as well as improper use of the ve­
hicle will impair the function of the
emission contro l system and cou ld lead
to damage.
- Do not alter or remove any component of
the Emission Control System unless ap­
proved
by the manufacturer.
- Do not alter or remove any device, such
as heat sh ie lds, switches, ignit ion w ires,
valves, which are designed to protect
your vehicle's Emission Control System and other important vehicle compo­
nents.
Fewer short trips
Fuel consumption will always be relatively
high on short trips .
.,. Try to avoid driv ing short distances w ith a
cold engine .
T he engine and cata lytic converter have to
reach their opt imal
operat ing temperature to
reduce fuel consumpt ion and nox ious emis­
s ions effectively .
- Ju st after starting, a cold engine in a mid­
size car burns the fue l at a poor rate of 6-8
m iles per gallon (30-40 l/l00km). Half a
m ile down the road, the mileage improves
to 12 MPG (20 l/100 km). It w ill take the
ll>

182 Checking and filling
Engine compartment
These are the most important items that you can check .
•
Fig. 134 Typ ica l layout for containers and eng ine oil filler cap
CD Coolant expansion tank (-L) .. .
'2' E . 'l d. . k \61 ngIne 0 1 1pst1c .......... .
@ Engine oil filler cap ('1:::r.) .. .. .
@ Brake fluid reservoir((();) .. .. .
® Jump start points(+) under a
cover, (-) bolt head .... ... .. .
® Windshield/headlight washer
t . (
;;p, ) con ainer ,-!,, •••.•••.•.•••.
187
185
185
189
233
194
The pos ition of the engine o il dipstick and the
engine o il fi lling hole
r::> fig. 134 (items @and
@) can differ depending on the engine de­
sign .
A WARNING
Before you check anything in the engine
compartment, always read and heed all
WARN INGS
c::> .& in Working in the engine
compartment on page 180.
Engine oil
Engine oil specifications
The engine oil used in your Audi needs the
right kind of oil.
T he eng ine in your Aud i is a soph ist icated
powerplant that was built to exact ing spec ifi­
cat ions . T his engine needs the right kind of
engine oil that meets specifications regard ing
quality and viscosity so that it can run
smooth ly and reliably . Choosing the right o il
and changing oil within the time and mileage
i ntervals printed in your vehicle's Warranty
&
Maintenance booklet matters a lot more to­
day tha n it did years ago. Audi has developed
a spec ia l quality standard for engine oil that
will help assure that you r vehicle's engine w ill
get the lubr ication it needs fo r proper opera­
t ion.
Modern engine l ubr ication has taken a q uan­
tum leap in the last few years. Many synthet ic
1J.

oils available today provide better engine lu­
brication that can outlast traditional petrole­
um-based oils, making them a smart choice
for use throughout the life of your Audi.
Whether you use synthetic or petroleum­based engine oil, the oil that you use must
conform to Audi's oil quality standard
VW 502 00 to help keep your vehicle's engine running smoothly and help prevent the for­
mation of harmful deposits, sometimes called
" sludge," that over t ime can lead to expensive
repairs .
At the time of printing, engine oils available in the U .S . and Canada that meet the exacting
specifications of Audi oil standard VW 502 00
are synthetic engine oils . This does not mean,
however, that every synthetic engine oil will
meet Audi oil standard VW 502 00 . So always
be sure that you use an approved oil.
To help prevent the formation of harmful de­ posits use only oil with the following specifi­
cations printed on the oil container :
Audi oil standard VW S02 00
Oil container labels may carry the specifica­
tion singly or in combination with other desig­
nations and oil quality standards .
Viscosity
Engine oils are graded according to their vis­
cosity . The proper viscosity grade oil for your
engine depends on climactic or seasonal con­
ditions where you drive. You can use oil with a
viscosity grade of SA E SW40 across all tem­
perature ranges for normal driving conditions.
However, if engine oil viscosity grade SAE
SW40 is not available, you can also use viscos­
ity grade SAE SW-30 or SAE OW-40 as long as
it meets Audi oil quali ty standard VW 502 00
specifications .
Because engine oil that meets the Audi oil
standard may not be available everywhere
when you need it, we strongly recommend
that you always carry with you an extra quart (liter) of oil that expressly conforms to the
Checking and filling 183
VW 502 00 specification, in case you have to
top
off the oil while on the road.
Only if the level of the oil is at or below the
minimum mark on the oil dipstick - and no oil
that expressly conforms to Audi oil standard
VW 502 00 specifications is available - may
you top
off with a high quality engine oil, pref­
erably synthetic-based, that meets ACEA A3
or API SM specifications, but even then, only
in viscosity grades SA E SW-40, SA E 5W -30, or
SAE OW-40. However, during the entire time
between oil change intervals, never top
off
with more than a total of 0.5 qt/liter engine
oil that does not conform to Audi oil specifica­
tion VW 502 00.
For more information about engine oil that
has been approved for your vehicle, please
contact either your autho rized Audi dealer or
Audi Customer Relations at 1 (800) 822-2834
or visit our web site at www.audiusa .com or
www.audicanada.ca . Here you will also find a
current list of oils (manufacturers, brand
names etc.) that conform to Audi oil standard
vw 502 00.
Changing the engine oil
The engine oil and oil filter must be changed
according to the mileage (kilometers) and
time intervals specified in your vehicle's War­
ranty
& Maintenance booklet. Do not exceed
these intervals -harmful deposits from old
engine oil can reduce engine performance and
can lead to expensive engine repairs.
Changing the oil at the recommended inter­
vals is so very important because the lubricat­
ing properties of oil decrease gradually during
normal vehicle use. If you are not sure when
you have your oil changed, ask your author ­
ized Audi Serv ice Adv isor.
Under some circumstances the engine oil
should even be changed more frequently. Change oil more often if you drive mostly
short distances, operate the vehicle in dusty
areas or mostly under stop-and-go traffic con­
ditions, or when you use your vehicle where
temperatures stay below freezing point for
long periods.
•
•

184 Checking and filling
Detergent additives in the o il will make fresh
oil look dark after the engine has been run­
n ing for a short time . This is norma l and is not
a reason to change the oil more often than recommended.
D am ag e o r m alfun ction s due to lack of
m ainten ance
It is essent ial that yo u change your oil at the
recommended intervals using only engine oil
that complies with Audi oi l standard
VW 502 00 . Your Lim ited New Vehicle War­
ranty does not cover damage or malfunctions
due to failure to follow recommended mainte­
nance and use requ irements as set forth in
the Audi Owner's Manual and Warranty
&
M aintenance book let . Your dea ler will have to
deny warranty coverage un less you p resen t to
the dea ler proof in the form of Servi ce or Re­
pa ir Orde rs that all schedu led maintenance
was performed in a timely manner.
Engine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all
of its moving ports.
I n o rder to prov ide effective lubr ication and
cooling of internal engine components, a ll in­
ternal comb ustion engines consume a certain
amount of oil. Oi l consumption varies from
engine to engine and may change significantly
over the life of the eng ine . Typically, eng ines
with a specif ied break-in per iod (see
c::;, page 159) consume more oil during the
break-in per iod than they consume after oil
consumption has stabilized .
Under normal conditions, the rate of oil con­
sumpt io n depends on the quality and viscosity
of the oil, the RPM (revolutions per m inute) at
which the engine is operated, the ambient
temperature and road cond it io ns. Furthe r fac­
tors are the amo unt of o il d ilution from wate r
condensation or fuel residue and the ox ida­
tion level of the oi l. As any engine is subject to
wear as mileage bui lds up, the oil consump­
tion may increase over t ime until replacement
of worn components may become necessary. Wi
th a ll these variab les coming into p lay, no
standard rate of oil consumption can be es­
tab lished or spec ified. There is no alte rnative
to regular and frequent check ing of the o il lev­
el, see
Note .
If the yellow engine oil leve l warning symbo l
in the instr ument cluster
II lights up, you
sho uld check the oil leve l as soon as possib le
with the oil dipstick c::;, page 185. Top off the
o il at your earliest conven ience
c::;, page 185 .
A WARNING
-Before you chec k anything in the eng ine
compartment, a lways read and heed a ll
WAR NINGS
c::;, .& in Working in the engine
comportment on page 180.
CI) Note
D riving with an insufficient o il level is like­
l y to cause sever e damage to the engine.
(D Tips
- The oil pressure warn ing display. is
not an indicator of the oil level. Do not
re ly on it . Instead, check the oil level in
your engine at regular intervals, pr ef­
erably ea ch time you refu el, and alway s
before going on a long trip.
- If you have the impression yo ur engine
cons umes excessive amoun ts of oil, we
recommend that you consult your Aud i
dealer to have the cause of your concern
properly diagnosed. Keep in mind that
the accurate meas urement of o il con­
sumption requ ires great care and may
take some t ime . Your Audi dea ler has in­
struct ions about how to measure oil con­
sumption acc urately.

186 Checking and filling
on the hot engine and exhaust system
when the engine is running -fire hazard!
- If your skin has come in contact with the
engine oil, you must subsequently
cleanse it thoroughly .
(D Note
- The oil level must not be above range 0
-danger of converter or engine damage!
Contact an authorized Audi dealer to
draw off oil, if necessary.
- Audi does not recommend the use of oil
additives. They may damage the engine
and adversely affect your New Vehicle
Warranty.
@ For the sake of the environment
- Under no circumstances can the oil come
in contact with the sewage network or
the soil.
- Observe and follow legal regulations
when disposing of empty oil containers.
Changing the engine oil
We recommend that have your oil changed by
an authori zed Audi dealer or a qualified serv­
ice station .
Before you check anything in the engine com­
partment,
always read and heed all WARN·
INGS
¢ & in Working in the engine compart­
ment on page 180 .
The engine oil must be changed according to
the intervals specified in your Warranty &
Maintenance booklet. This is very important
because the lubricating properties of oil di ­
minish gradually during normal vehicle use .
Under some circumstances the engine oil
should be changed more frequently . Change
oil more often if you drive mostly short dis­
tances , operate the vehicle in dusty areas or
under predominantly stop-and-go traffic con­
ditions, or have your vehicle where tempera­
tures remain below freezing for extended pe­ riods. Detergent
additives in the oil will make fresh
oil look dark after the engine has been run­
ning for a short time. This is normal and is not
a reason to change the oil more often than
recommended.
Because of the problem of proper disposal,
along with the special tools and necessary ex­
pertise required, we strongly recommend that
you have your oil changed by an authorized
Audi dealer or a qualified service station .
If you choose to change your oil yourself,
please note the following important informa­
tion:
A WARNING
=
To reduce the risk of personal injury if you
must change the engine oil in your vehicle
yourself:
- Wear eye protection.
- To reduce the risk of burns from hot en-
gine oil, let the engine cool down to the
touch.
- When removing the oil drain plug with
your fingers, stay as far away as possible. Always keep your forearm parallel to the
ground to help prevent hot oil from run­
ning down your arm.
- Drain the oil into a container designed
for this purpose, one large enough to
hold at least the total amount of oil in
your engine.
- Engine oil is poisonous. Keep it well out
of the reach of children.
- Continuous contact with used engine oil
is harmful to your skin. Always protect
your skin by washing oil off thoroughly
with soap and water.
(D Note
Never mix oil additives with your engine
oil. These additives can damage your en­
gine and adversely affect your Audi Limit­
ed New Vehicle Warranty.
