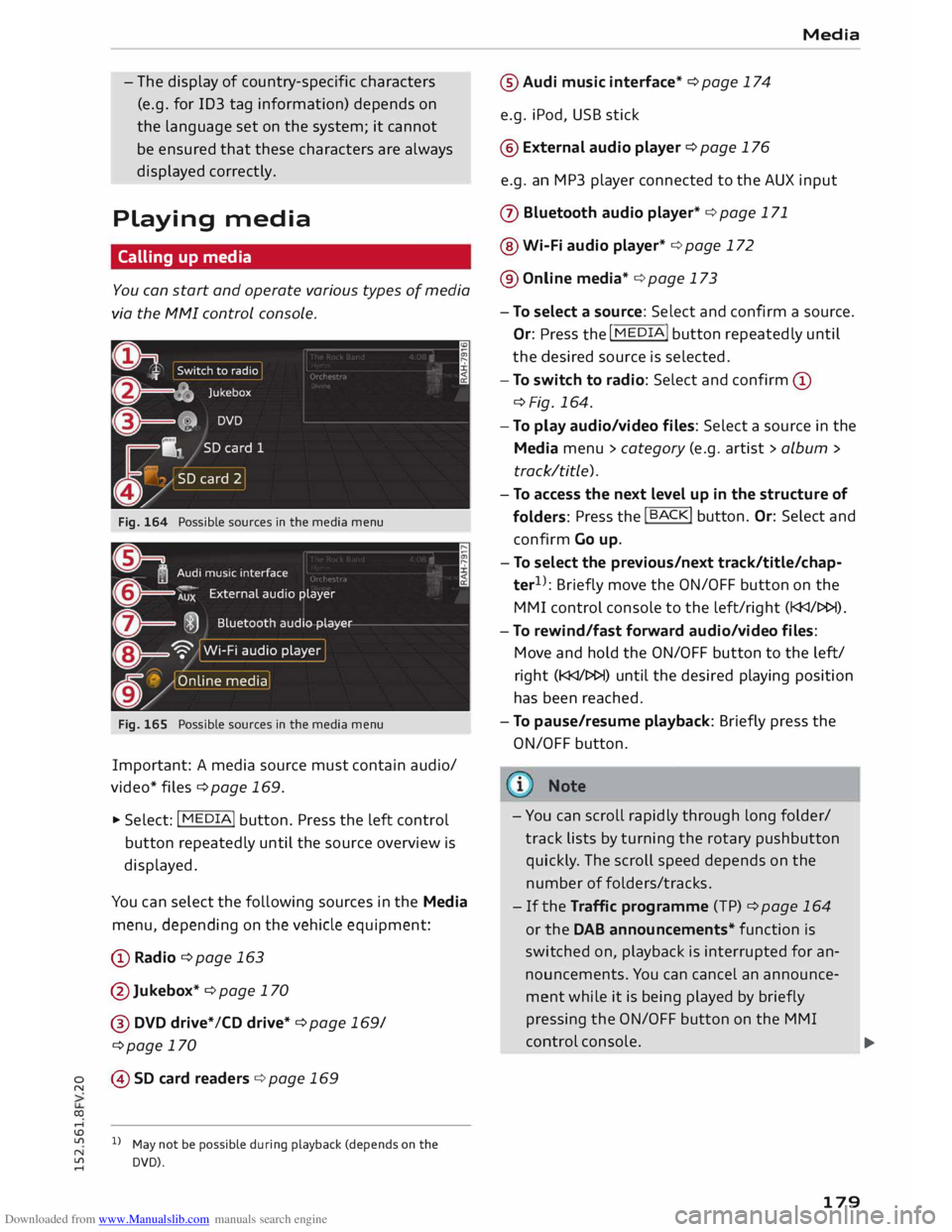

The display of country-specific characters
(e.g.
for
ID3 tag information) depends on
the language set on the system; it cannot
be ensured that these characters are always
displayed correctly.
Playing media
Calling up media
You can start and operate various types of media
via the MMI control console.
Fig. 164 Possible sources in the media menu
Fig. 165 Possible sources in the media menu
Important: A media source must contain audio/
video* files ¢page 169.
.,. Select: I MEDIA!
button. Press the left control
button repeatedly until the source overview is
displayed.
You can select the following sources in the Media
menu, depending on the vehicle equipment:
(D Radio ¢page 163
@Jukebox* ¢ page 170
@ DVD drive*/CD drive* ¢page 169/
¢page 170
© SD card readers ¢ page 169
l l
May not be possible during playback (depends on the
DVD). Media
® Audi music interface* ¢ page 174
e.g. iPod, USB stick
@ External audio player ¢ page 176
e.g. an MP3 player connected to the AUX input
(J) Bluetooth audio player* ¢ page 171
@ Wi-Fi audio player* ¢ page 172
® Online media* ¢ page 173
- To select a source: Select and confirm a source.
Or:
Press
the I MEDIA! button
repeatedly until
the desired source is selected.
- To switch to radio: Select and confirm (D
¢Fig. 164.
- To play audio/video files: Select a source in the
Media menu> category (e.g. artist > album >
track/title).
- To access the next level up in the structure of
folders: Press
the I B A
CK! button.
Or: Select and
confirm Go up.
- To select the previous/next track/title/chap­
ter 1
>
: Briefly move the ON/OFF button on the
MMI control console to the left/right (ll>I).
- To rewind/fas t forward audio/video files:
Move and hold the ON/OFF button to the left/
right (ll>I) until the desired playing position
has been reached.
- To pause/resume playback: Briefly press the
ON/OFF button.
- You can scroll rapidly through long folder/
track lists by turning the rotary pushbutton
quickly . The scroll speed depends on the
number of folders/tracks.
-If the Traffic programme (TP) ¢page 164
or the DAB announcements* function is
swit ched on, playback is interrupted for an­
nouncements. You can cancel an announce­
ment while it is being played by briefly
pressing the ON/OFF button on the MMI
control console.
..,.
179

Downloaded from www.Manualslib.com manuals search engine Media

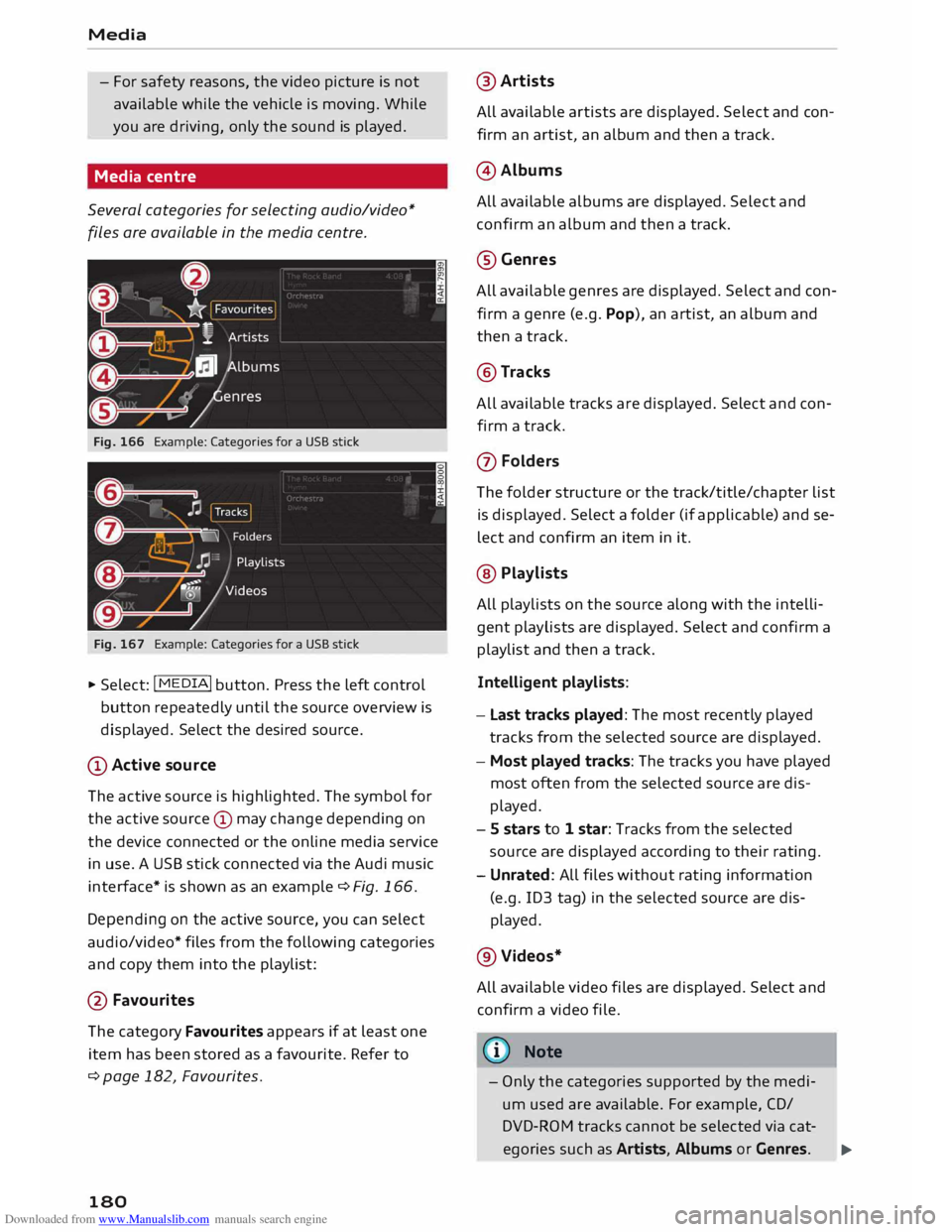

- For safety reasons, the video picture is not
available while the vehicle is moving. While
you are driving, only the sound is played.
Media centre
Several categories for selecting audio/video*
files are available in the media centre.
Fig. 166 Example: Categories for a USB stick
Fig. 167 Example: Categories for a USB stick
"' Select: I MEDIA! button. Press the left control
button repeatedly until the source overview is
displayed. Select the desired source.
(D Active source
The active source is highlighted. The symbol for
the active source © may change depending on
the device connected or the online media service
in use. A USB stick connected via the Audi music
interface* is shown as an example ¢Fig. 166.
Depending on the active source, you can select
audio/video* files from the following categories
and copy them into the playlist:
@ Favourites
The category Favourites appears if at least one
item has been stored as a favourite. Refer to
¢ page 182, Favourites.
180 @
Artists
All available artists are displayed. Select and con­
firm an artist, an album and then a track.
@ Albums
All available albums are displayed. Select and
confirm an album and then a track.
@Genres
All available genres are displayed. Select and con­
firm a genre (e.g. Pop), an artist, an album and
then a track.
@Tracks
All available tracks are displayed. Select and con­
firm a track.
(J) Folders
The folder structure or the track/title/chapter list
is displayed. Select a folder (if applicable) and se­
lect and confirm an item in it.
@ Playlists
All playlists on the source along with the intelli­
gent playlists are displayed. Select and confirm a
playlist and then a track.
Intelligent playlists:
- Last tracks played: The most recently played
tracks from the selected source are displayed.
- Most played tracks: The tracks you have played
most often from the selected source are dis­
played.
- S stars to 1 star: Tracks from the selected
source are displayed according to their rating.
- Unrated: All files without rating information
(e.g. ID3 tag) in the selected source are dis­
played.
@Videos*
All available video files are displayed. Select and
confirm a video file.
@ Note
- Only the categories supported by the medi­
um used are available. For example, CD/
DVD-ROM tracks cannot be selected via cat-
egories such as Artists, Albums or Genres. ...,

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl

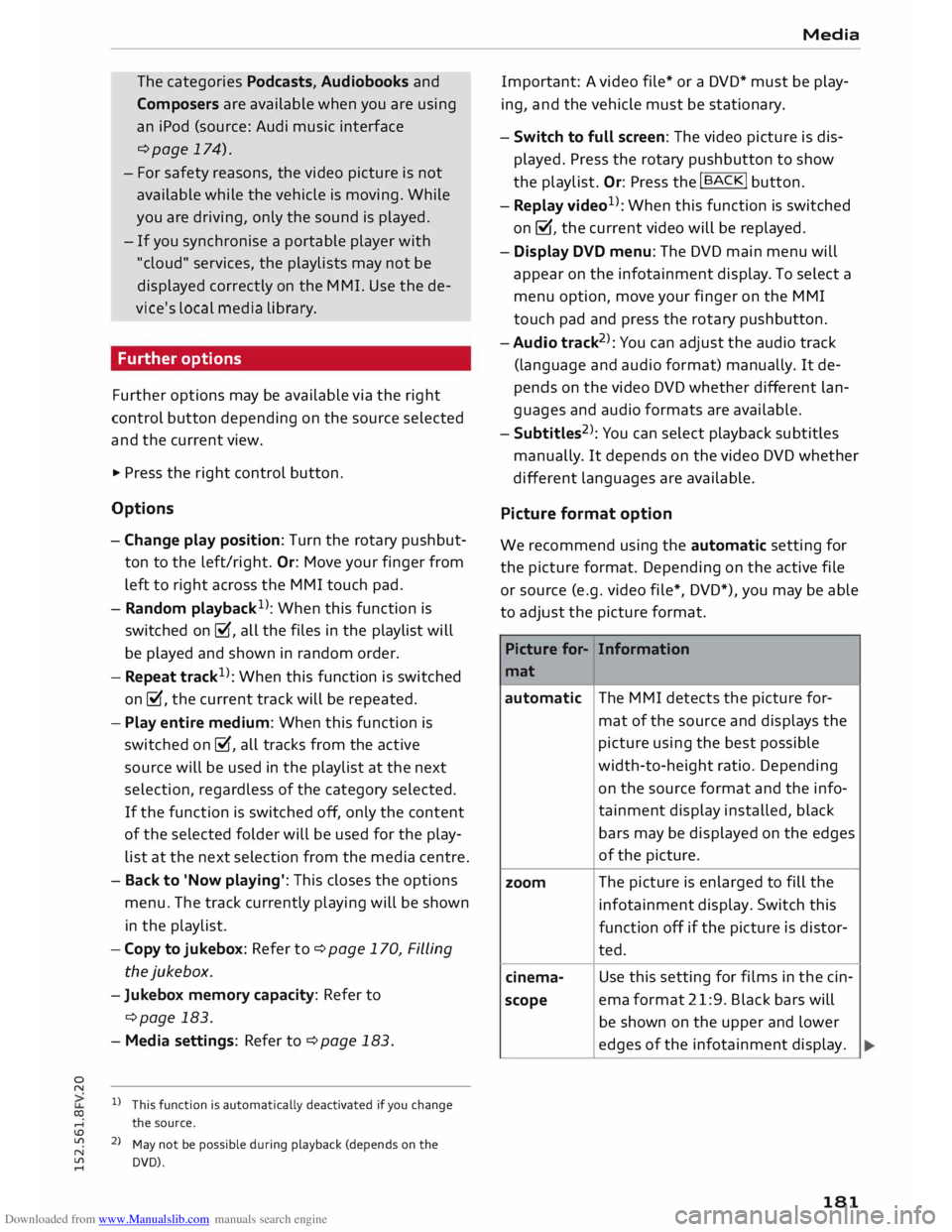

.... The
categories Podcasts, Audiobooks and
Composers are available when you are using
an iPod (source: Audi music interface
¢page 174).
- For safety reasons, the video picture is not
available while the vehicle is moving. While
you are driving, only the sound is played.
- If you synchronise a portable player with
"cloud" services, the playlists may not be
displayed correctly on the MMI. Use the de­
vice's local media library.
Further options
Further options may be available via the right
control button depending on the source selected
and the current view.
.,. Press the right control button.
Options
- Change play position: Turn the rotary pushbut­
ton to the left/right. Or: Move your finger from
left to right across the MMI touch pad.
- Random playback 1
>: When this function is
switched on�. all the files in the playlist will
be played and shown in random order.
- Repeat track1
>: When this function is switched
on �, the current track will be repeated.
- Play entire medium: When this function is
switched on�. all tracks from the active
source will be used in the playlist at the next
selection, regardless of the category selected.
If the function is switched off, only the content
of the selected folder will be used for the play­
list at the next selection from the media centre.
- Back to 'Now playing': This closes the options
menu. The track currently playing will be shown
in the playlist.
- Copy to jukebox: Refer to ¢ page 170, Filling
the jukebox.
- Jukebox memory capacity: Refer to
¢page 183.
- Media settings: Refer to ¢ page 183.
l) This function is automatically deactivated if you change
the source .
2 > May not be possible during playback (depends on the
DVD). Media
Important: A video file* or a DVD* must be play­
ing, and the vehicle must be stationary.
- Switch to full screen: The video picture is dis­
played. Press the rotary pushbutton to show
the playlist. Or: Press the I
BACK!
button.
- Replay video1
>: When this function is switched
on �. the current video will be replayed.
- Display DVD menu: The DVD main menu will
appear on the infotainment display. To select a
menu option, move your finger on the MMI
touch pad and press the rotary pushbutton.
- Audio track2
>: You can adjust the audio track
(language and audio format) manually. It de­
pends on the video DVD whether different lan­
guages and audio formats are available.
- Subtitles 2
l
: You can select playback subtitles
manually . It depends on the video DVD whether
different languages are available.
Picture format option
We recommend using the automatic setting for
the picture format. Depending on the active file
or source (e.g. video file*, DVD*), you may be able
to adjust the picture format.
Picture for-Information
mat
automatic The
MMI detects the picture for-
mat of the source and displays the
picture using the best possible
width-to-height ratio. Depending
on the source format and the info-
tainment display installed, black
bars may be displayed on the edges
of the picture.
zoom The
picture is enlarged to fill the
infotainment display. Switch this
function off if the picture is distor-
ted.
cinema- Use
this setting for films in the cin-
scope ema
format 21:9. Black bars will
be shown on the upper and lower
edges of the infotainment display.
181

Downloaded from www.Manualslib.com manuals search engine Media

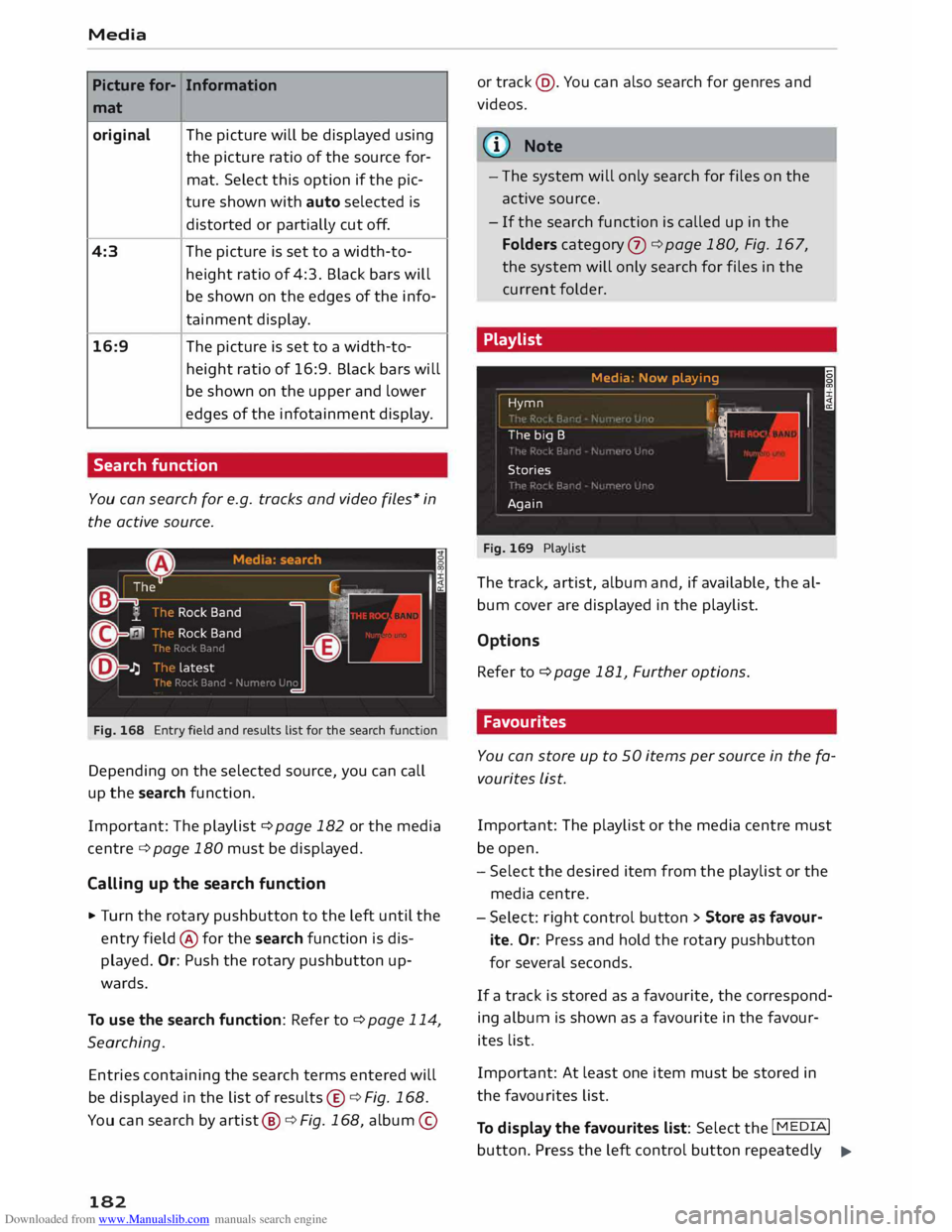

Picture for-
Information
mat
original The
picture will be displayed using
the picture ratio of the source for-
mat. Select this option if the pie-
ture shown with auto selected is
distorted or partially cut off.
4:3 The picture is set to a width-to-
height ratio of 4:3. Black bars will
be shown on the edges of the info-
tainment display.
16:9 The
picture is set to a width-to-
height ratio of 16:9. Black bars will
be shown on the upper and lower
edges of the infotainment display.
Search function
You can search for e.g. tracks and video files* in
the active source.
Fig. 168 Entry field and results List for the search function
Depending on the selected source, you can call
up the search function.
Important: The playlist ¢ page 182 or the media
centre ¢page 180 must be displayed.
Calling up the search function
� Turn the rotary pushbutton to the left until the
entry field @for the search function is dis­
played. Or: Push the rotary pushbutton up­
wards.
To use the search function: Refer to ¢ page 114,
Searching.
Entries containing the search terms entered will
be displayed in the list of results ©¢ Fig. 168.
You can search by artist @¢Fig. 168, album ©
182 or
track @. You can also search for genres and
videos.
{(!) Note
- The system will only search for files on the
active source.
- If the search function is called up in the
Folders category (J) ¢ page 180, Fig. 167,
the system will only search for files in the
current folder.
Playlist
Hymn
The big B
Stories
Again
Fig. 169 Playlist Media
: Now play ing
�
I· ��. I ;
� o
The track, artist, album and, if available, the al­
bum cover are displayed in the playlist.
Options Refer to ¢ page 1 Bl, Further options.
Favourites
You can store up to 50 items per source in the fa­
vourites List.
Important: The playlist or the media centre must
be open.
- Select the desired item from the playlist or the
media centre.
- Select: right control button > Store as favou r
­
ite. Or: Press and hold the rotary pushbutton
for several seconds.
If a track is stored as a favourite, the correspond­
ing album is shown as a favourite in the favour­
ites list.
Important: At least one item must be stored in
the favourites list.
To display the favourites list: Select the I MEDIA!
button. Press the left control button repeatedly .,..

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl

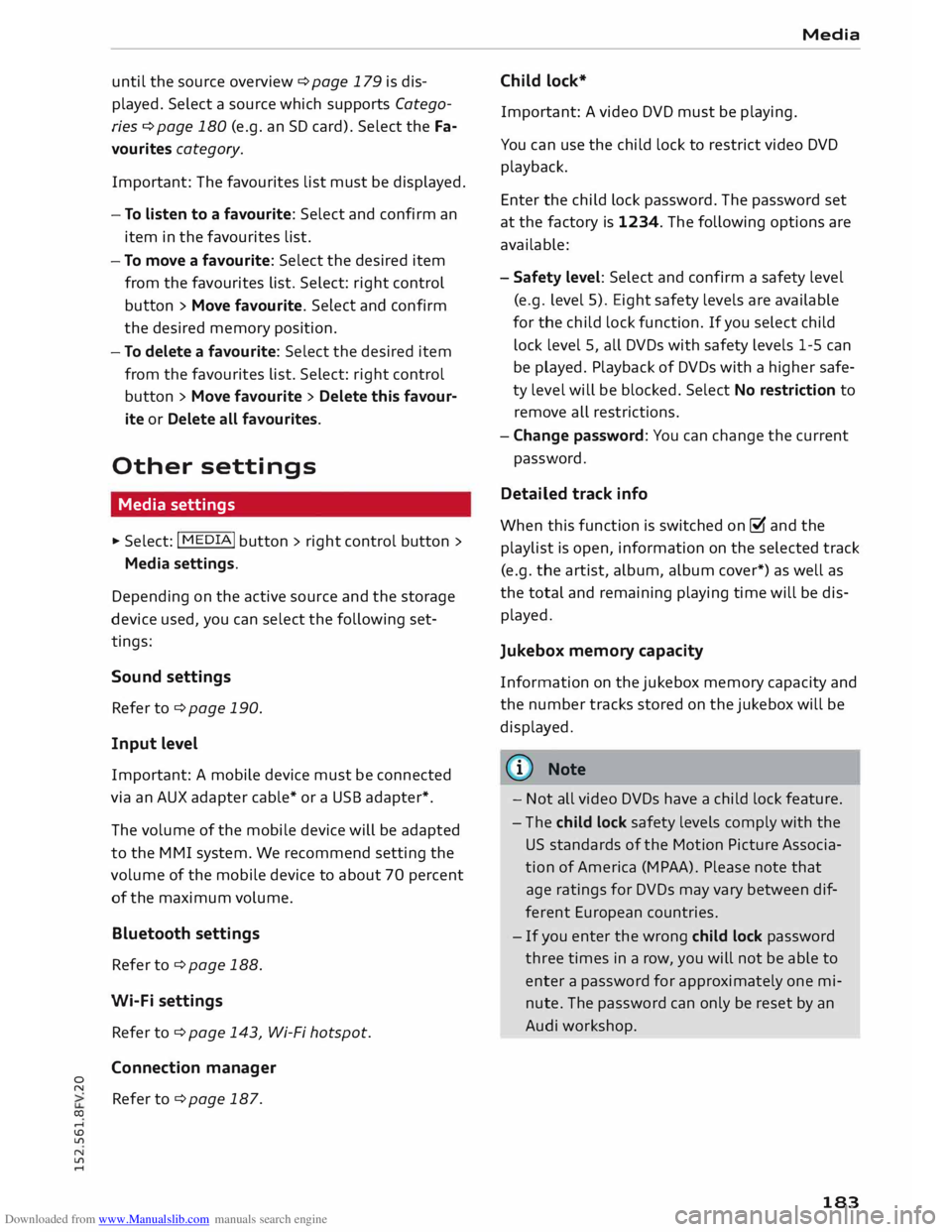

.... until
the source overview ¢ page 179 is dis­
played. Select a source which supports Catego­
ries ¢ page 180 (e.g. an SD card). Select the Fa­
vourites category.
Important: The favourites list must be displayed.
- To listen to a favourite: Select and confirm an
item in the favourites list.
- To move a favourite: Select the desired item
from the favourites list. Select: right control
button > Move favourite. Select and confirm
the desired memory position.
- To delete a favourite: Select the desired item
from the favourites list. Select: right control
button > Move favourite > Delete this favour­
ite or Delete all favourites.
Other settings
Media settings
� Select: I MEDIA! button > right control button >
Media settings.
Depending on the active source and the storage
device used, you can select the following set­
tings:
Sound settings
Refer to¢ page 190.
Input level
Important: A mobile device must be connected
via an AUX adapter cable* or a USB adapter*.
The volume of the mobile device will be adapted
to the MMI system. We recommend setting the
volume of the mobile device to about 70 percent
of the maximum volume.
Bluetooth settings
Refer to¢ page 188.
Wi-Fi settings
Refer to ¢ page 143, Wi-Fi hotspot.
Connection manager
Refer to¢ page 187. Media
Child lock*
Important: A video DVD must be playing.
You can use the child lock to restrict video DVD
playback.
Enter the child lock password. The password set
at the factory is 1234. The following options are
available:
- Safety level: Select and confirm a safety level
(e.g. level 5). Eight safety levels are available
for the child lock function. If you select child
lock level 5, all DVDs with safety levels 1-5 can
be played. Playback of DVDs with a higher safe­
ty level will be blocked. Select No restriction to
remove all restrictions.
- Change password: You can change the current
password.
Detailed track info
When this function is switched on [;1 and the
playlist is open, information on the selected track
(e.g. the artist, album, album cover*) as well as
the total and remaining playing time will be dis­
played.
Jukebox memory capacity
Information on the jukebox memory capacity and
the number tracks stored on the jukebox will be
displayed.
{!) Note
- Not all video DVDs have a child lock feature.
- The child lock safety levels comply with the
US standards of the Motion Picture Associa­
tion of America (MPAA). Please note that
age ratings for DVDs may vary between dif­
ferent European countries.
- If you enter the wrong child lock password
three times in a row, you will not be able to
enter a password for approximately one mi­
nute. The password can only be reset by an
Audi worksho p.
183

Downloaded from www.Manualslib.com manuals search engine Media

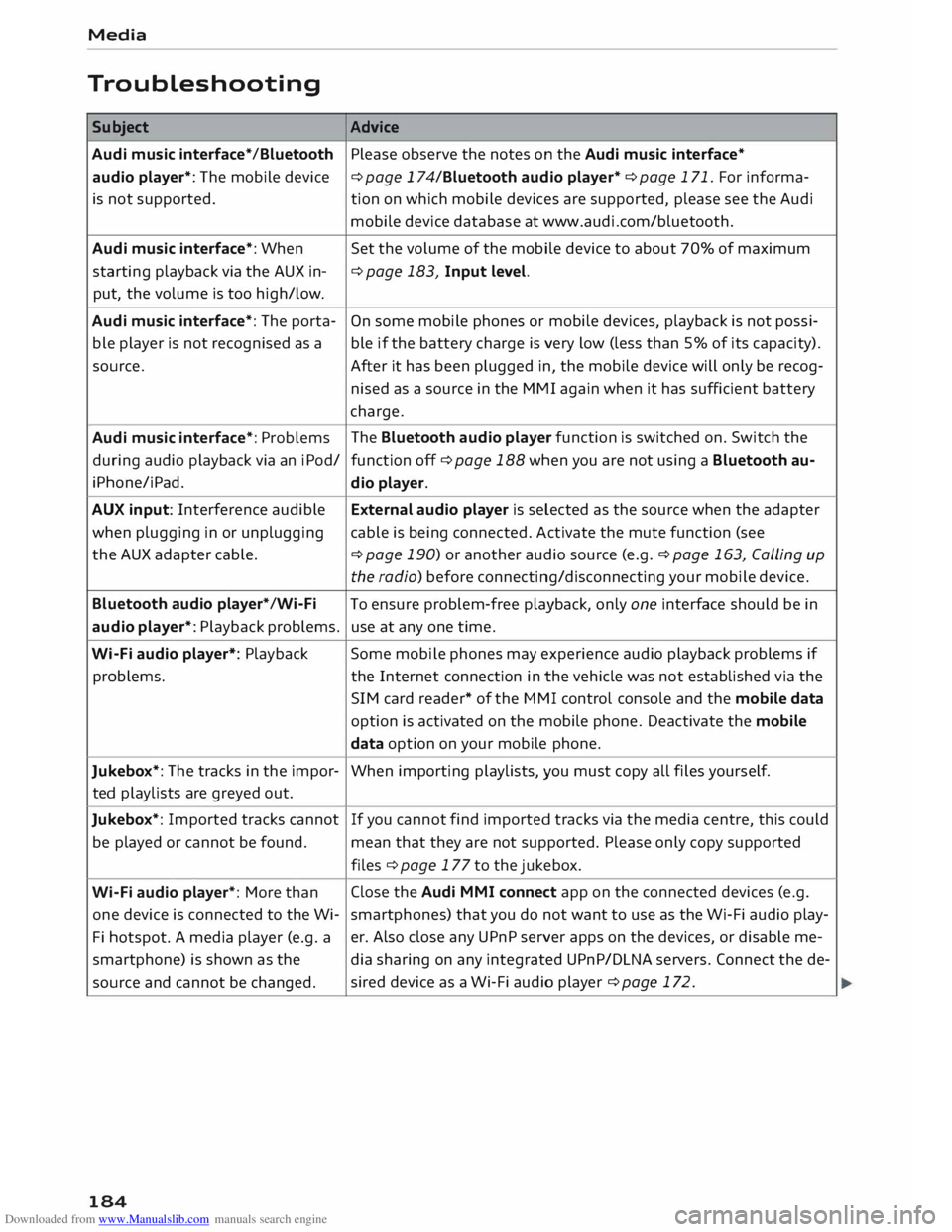

Troubleshooting Subject Advice
Audi music interface* /Bluetooth Please observe the notes on the Audi music interface*
audio player*: The mobile device
¢ page 174/Bluetooth audio player* ¢ page 171. For informa-
is not supported. tion on which mobile devices are supported, please see the Audi
mobile device database at www.audi.com/bluetooth.
Audi music interface*: When
Set the volume of the mobile device to about 70% of maximum
starting playback via the AUX in- ¢
page 183, Input level.
put, the volume is too high/low.
Audi music interface*: The porta- On
some mobile phones or mobile devices, playback is not possi-
ble player is not recognised as a ble if the battery charge is very low (less than 5% of its capacity).
source. After it has been plugged in, the mobile device will only be recog-
nised as a source in the MMI again when it has sufficient battery
charge.
Audi music interface*: Problems The
Bluetooth audio player function is switched on. Switch the
during audio playback via an iPod/
function off¢ page 188 when you are not using a Bluetooth au-
i Phone/i Pad.
dio player.
AUX input: Interference audible External audio player is selected as the source when the adapter
when plugging in or unplugging cable is being connected. Activate the mute function (see
the AUX adapter cable.
¢ page 190) or another audio source (e.g.¢ page 163, Calling up
the radio) before connecting/disconnecting your mobile device.
Bluetooth audio player*/Wi-Fi
To ensure problem-free playback, only one interface should be in
audio player*: Playback problems. use at any one time.
Wi-Fi audio player*: Playback Some
mobile phones may experience audio playback problems if
problems. the Internet connection in the vehicle was not established via the
SIM card reader* of the MMI control console and the mobile data
option is activated on the mobile phone. Deactivate the mobile
data option on your mobile phone.
Jukebox*: The tracks in the impor-
When importing playlists, you must copy all files yours elf.
ted playlists are greyed out.
Jukebox*: Imported tracks cannot If
you cannot find imported tracks via the media centre, this could
be played or cannot be found.
mean that they are not supported. Please only copy supported
files ¢ page 177 to the jukebox.
Wi-Fi audio player*: More than Close
the Audi MMI connect app on the connected devices (e.g.
one device is connected to the Wi- smartphones) that you do not want to use as the Wi-Fi audio play-
Fi hotspot. A media player (e.g. a er.
Also close any UPnP server apps on the devices, or disable me-
smartphone) is shown as the
dia sharing on any integrated UPnP/DLNA servers. Connect the de-
source and cannot be changed. sired
device as a Wi-Fi audio player ¢ page 172.
184

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l

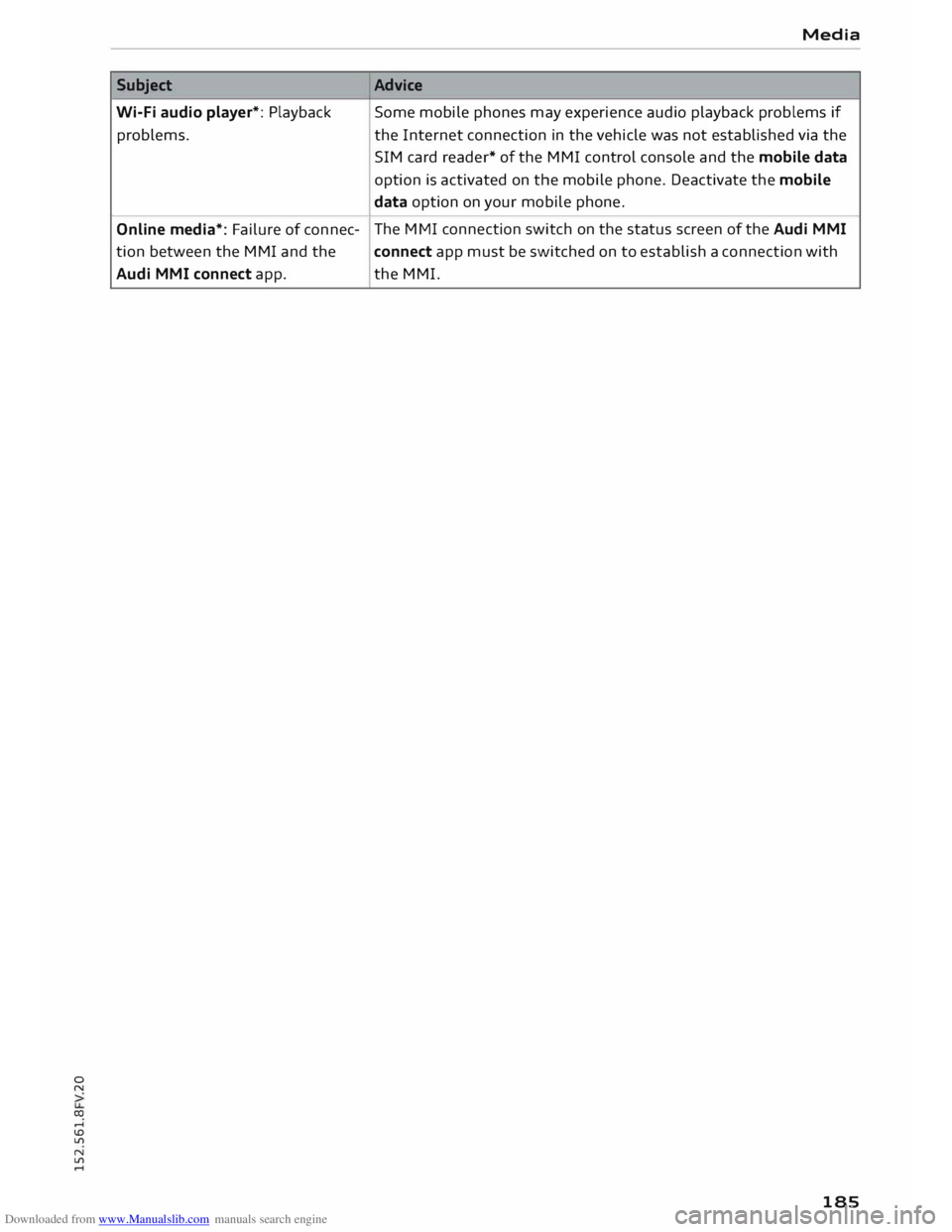

.... Subject
Wi-Fi audio player*: Playback
problems.
Online media*: Failure of connec-
tion between the MMI and the
Audi MMI connect app. Media
Advice Some mobile phones may experience audio playback problems if
the Internet connection in the vehicle was not established via the
SIM card reader* of the MMI control console and the mobile data
option is activated on the mobile phone. Deactivate the mobile
data option on your mobile phone.
The MMI connection switch on the status screen of the Audi MMI
connect app must be switched on to establish a connection with
the MMI.
185

Downloaded from www.Manualslib.com manuals search engine System
settings
System settings
Setting the date and
time
The time can be set manually or via CPS.
.,. Select: I MENU I button >Settings > left control
button > MMI settings > Date & time.
Set automatically
The time and date are automatically updated
when this function is switched on.
Time The Time can be set manually. The Set automati­
cally function must be deactivated to do this.
Date
The Date can be set manually. The Set automati­
cally function must be deactivated to do this.
Time zone
When selecting the correct time zone, a list of
corresponding countries is displayed as an exam­
ple.
Automatic time zone*
When the automatic time zone option is activa­
ted, the time is automatically adjusted to the rel­
evant time zone.
Time format
When this option is set to 24h, for example
13:00 will be displayed as the time. When it is
set to AM/PM, for example 1:00 PM will be dis­
played.
Date format
When this option is set to TT. MM.YYYY, for ex­
ample 31.12.2013 will be displayed as the date.
When it is set to MM/DD /JJJJ, for example
12/31/ 2013 will be displayed. When it is set to
JJJ- MM-DD , for example 2013-12-31 will be dis­
played.
MMI settings
.,. Select: I MENU I button >Settings > left control
button > MMI settings.
186 Language
You can change the language of the display along
with the language of the navigation cues* and
the speech dialogue system*.
The number of languages available depends on
the market .
Meas urem ent units
The following measurement units are available:
- Speed (km/h or mph)
- Dist ance (km or miles)
- Temperature (0
( or °F)
- Consumption (ltr/100 km, mpg (US), mpg (UK)
or km/ltr)
- Cap acity (litres, gallons)
Usage tips
Your MMI displays usage tips when this function
is switched on�. They will appear less often as
time goes by. You can switch the usage tips off at
any time.
Speech dialogue system*
Command display: The display of possible com­
mands during a speech dialogue can be switched
on/off.
Short dialogue: This option can be switched on/
off. When it is activated, the spoken cues played
by the system are shortened.
Speech dialogue system volume: Turn the rotary
pushbutton to adjust the volume of the spoken
cues.
Individual speech training (only possible when
the vehicle is stationary): You can use the individ­
ual speech training to adapt the speech dialogue
system to your voice or pronunciation so that the
speech dialogue system can then better recog­
nise what you are saying. The individual speech
training prompts you to repeat 20 spoken phra­
ses that consist of certain commands and blocks
of digits. If you would like to delete the stored
speech training setup, you can use the function
Reset speech training.
...,

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l
.... Factory
settings
You can reset the following functions to the fac­
tory settings:
- Sound settings
-Radio
- Media settings
-Jukebox*
- Directory*
- Telephone*
- Bluetooth and Wi-Fi*
- Navigation settings*
- Navigation and online memory*
- Speech dialogue system*
- Message settings*
-Apps*
- Usage tips
- Audi connect*
You can select the desired options individually or
mark Select all entries. Select and confirm Re­
store factory settings.
i Note
Please note that not only settings will be de­
leted when you do this;
saved
data may also
be erased.
Connection manager
Introduction
The connection manager gives you an overview
of your connected devices and their connection
status.
.. Select: I MENU
I button
>Settings> left control
button > MMI settings > Connection manager.
If a mobile device has already been connected, its
name and connection mode is displayed under
the relevant menu item.
Telephone
- Connect new device: You can search for and
connect a mobile phone.
- List of devices already bonded: Select your mo­
bile phone from the list of all devices which System
settings
have already been bonded. Or: Insert a SIM
card in the SIM card reader¢ page 126.
Data connection
Applies to vehicles: with Audi connect
- Connect new device: You can search for and
connect a mobile device (e.g. a smartphone).
- List of devices already bonded: Select your mo­
bile phone from the list of all devices which
have already been bonded. Or: Insert a SIM
card in the SIM card reader¢ page 138.
MMI connect app
Applies to vehicles: with Audi connect
Important: The Audi MMI connect app must be
installed on your mobile device and have been
started.
- Connect new device: You can search for and
connect a mobile device (e.g. a smartphone).
- List of devices already bonded: Select your mo­
bile device from the list of all devices which
have already been bonded.
Music
Applies to vehicles: with Bluetooth audio player or Wi-Fi au­
dio player
Audio player*
Important: The Bluetooth function and the dis­
coverability option of the MMI system
¢ page 188 and the mobile phone must be acti­
vated.
- To connect a new device: Press the rotary push­
button. Select Bluetooth audio player. Search
for and connect a new device.
- List of devices already bonded: Select a Blue­
tooth device from the list of all devices which
have already been bonded.
Wi-Fi audio player*
Important: The Wi-Fi hotspot on the MMI system
¢ page 143 and your mobile phone must be acti­
vated.
- To connect a new device: Press the rotary push­
button. Search for and connect a Wi-Fi enabled
device. ...,.
187

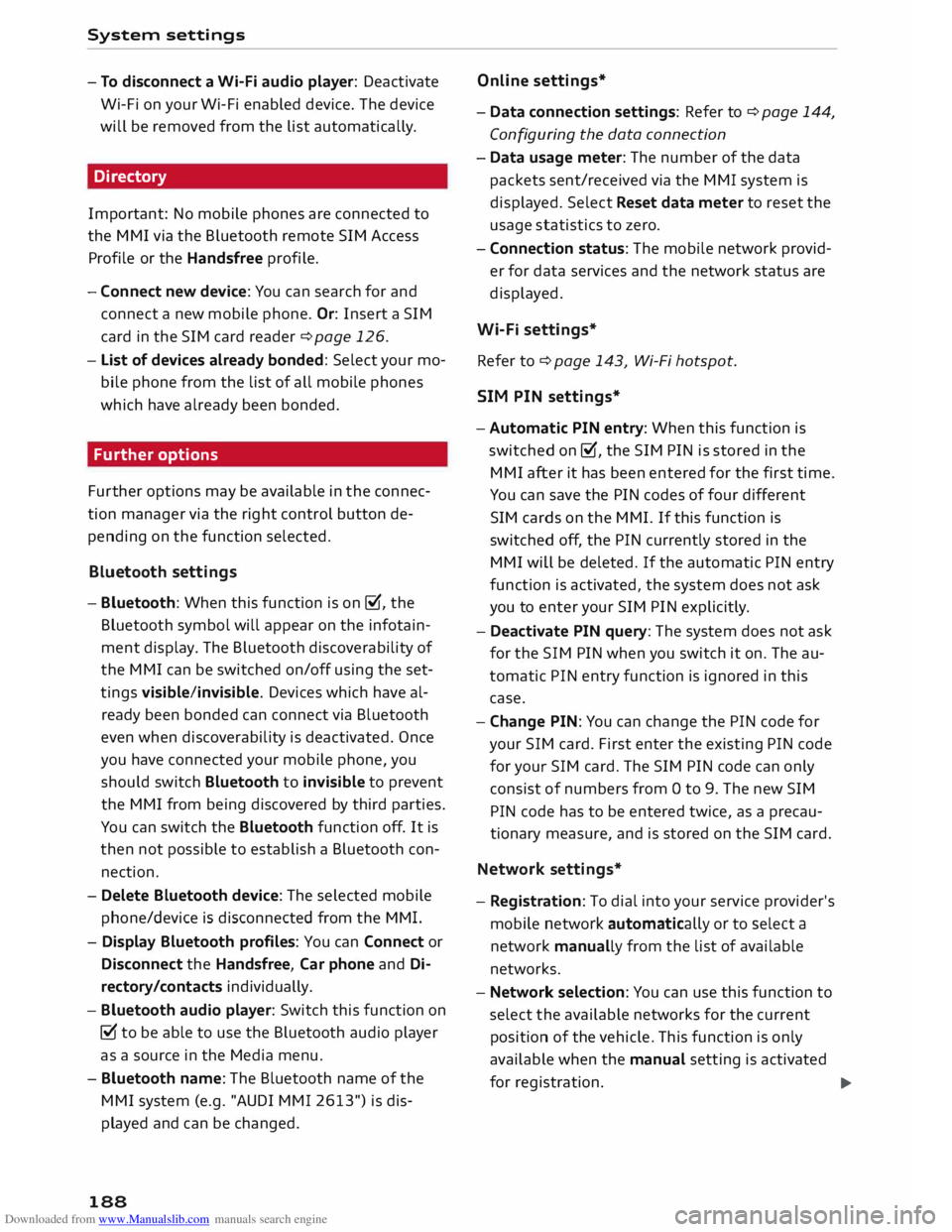

Downloaded from www.Manualslib.com manuals search engine System
settings
- To disconnect a Wi-Fi audio player: Deactivate
Wi-Fi on your Wi-Fi enabled device. The device
will be removed from the list automatically.
Directory
Important: No mobile phones are connected to
the MMI via the Bluetooth remote SIM Access
Profile or the Handsfree profile.
- Connect new device: You can search for and
connect a new mobile phone. Or: Insert a SIM
card in the SIM card reader ¢ page 126.
- List of devices already bonded: Select your mo­
bile phone from the list of all mobile phones
which have already been bonded.
Further options
Further options may be available in the connec­
tion manager via the right control button de­
pending on the function selected.
Bluetooth settings
- Bluetooth: When this function is on �. the
Bluetooth symbol will appear on the infotain­
ment display. The Bluetooth discoverability of
the MMI can be switched on/off using the set­
tings visible/invisible. Devices which have al­
ready been bonded can connect via Bluetooth
even when discoverability is deactivated. Once
you have connected your mobile phone, you
should switch Bluetooth to invisible to prevent
the MMI from being discovered by third parties.
You can switch the Bluetooth function off. It is
then not possible to establish a Bluetooth con­
nection.
- Delete Bluetooth device: The selected mobile
phone/device is disconnected from the MMI.
- Display Bluetooth profiles: You can Connect or
Disconnect the Handsfree, Car phone and Di­
rectory/contacts individually.
- Bluetooth audio player: Switch this function on
� to be able to use the Bluetooth audio player
as a source in the Media menu.
- Bluetooth name: The Bluetooth name of the
MMI system (e.g. "AUDI MMI 2613") is dis­
played and can be changed.
188 Online
settings*
- Data conne ction settings: Refer to ¢ page 144,
Configuring the data connection
- Data usage meter: The number of the data
packets sent/received via the MMI system is
displayed. Select Reset data meter to reset the
usage statistics to zero.
- Connection status: The mobile network provid­
er for data services and the network status are
displayed.
Wi-Fi settings*
Refer to¢ page 143, Wi-Fi hotspot.
SIM PIN settings*
- Automatic PIN entry: When this function is
switched on�, the SIM PIN is stored in the
MMI after it has been entered for the first time.
You can save the PIN codes of four different
SIM cards on the MMI. If this function is
switched off, the PIN currently stored in the
MMI will be deleted. If the automatic PIN entry
function is activated, the system does not ask
you to enter your SIM PIN explicitly.
- Deactivate PIN query: The system does not ask
for the SIM PIN when you switch it on. The au­
tomatic PIN entry function is ignored in this
case.
- Change PIN: You can change the PIN code for
your SIM card. First enter the existing PIN code
for your SIM card. The SIM PIN code can only
consist of numbers from Oto 9. The new SIM
PIN code has to be entered twice, as a precau­
tionary measure, and is stored on the SIM card.
Network settings*
- Registration: To dial into your service provider's
mobile network automatically or to select a
network manually from the list of available
networks.
- Network selection: You can use this function to
select the available networks for the current
position of the vehicle. This function is only
available when the manual setting is activated
for registration.
�
