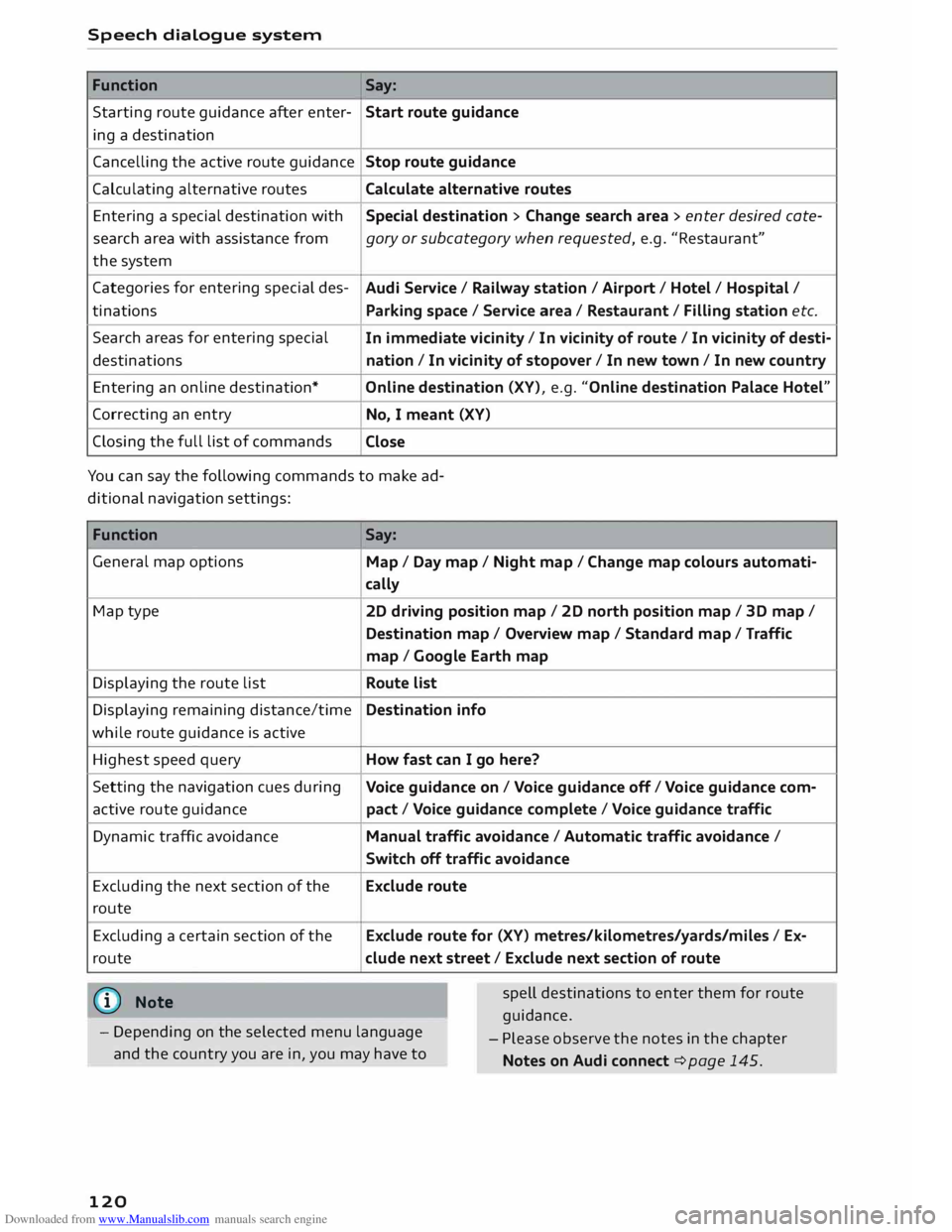

stop start AUDI TT COUPE 2014 Owner's Guide

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system
Function Say:
Starting route guidance after enter-
Start route guidance
ing a destination
Cancelling the active route guidance
Stop route guidance
Calculating alternative routes
Calculate alternative routes
Entering a special destination with
Special destination > Change search area > enter desired cote-
search area with assistance from
gory or subcategory when requested, e.g. "Restaurant"
the system
Categories for entering special des-
Audi Service / Railway station/ Airport/ Hotel/ Hospital /
ti nations
Parking space/ Service area/ Restaurant/ Filling station etc.
Search areas for entering special
In immediate vicinity/ In vicinity of route / In vicinity of desti-
destinations nation/ In vicinity of stopover / In new town/ In new country
Entering an online destination* Online destination (XV), e.g. "Online destination Palace Hotel"
Correcting an entry
No, I meant (XV)
Closing the full list of commands
Close
You can say the following commands to make ad­
ditional navigation settings:
Function
General map options
Map type
Displaying the route list
Displaying remaining distance/time
while route guidance is active
Highest speed query
Setting the navigation cues during
active route guidance
Dynamic traffic avoidance
Excluding the next section of the
route
Excluding a certain section of the
route
(©) Note Say:
Map / Day map/ Night map/ Change map colours automati-
cally
20 driving position map/ 20 north position map/ 30 map/
Destination map/ Overview map/ Standard map/ Traffic
map / Google Earth map
Route list
Destination info
How fast can I go here?
Voice guidance on/ Voice guidance off/ Voice guidance com-
pact / Voice guidance complete/ Voice guidance traffic
Manual traffic avoidance / Automatic traffic avoidance /
Switch off traffic avoidance
Exclude route
Exclude route for (XV) metres/kilometres/yards/miles / Ex-
elude next street/ Exclude next section of route
spell destinations to enter them for route
guidance.
- Depending on the selected menu language
and the country you are in, you may have to -
Please observe the notes in the chapter
Notes on Audi connect ¢ page 145.
120

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D U'l
N
U'l

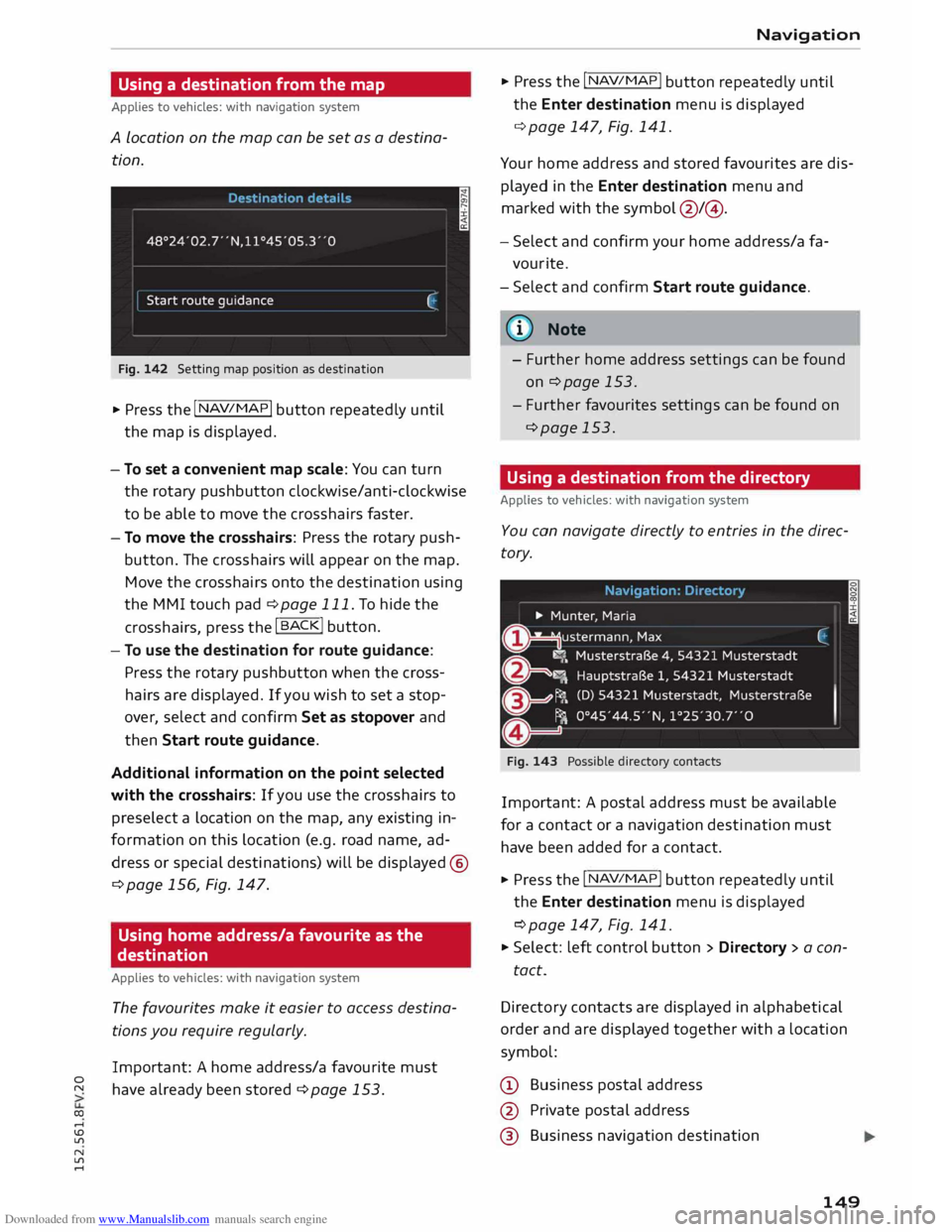

.... Using
a destination from the map
Applies to vehicles: with navigation system
A Location on the map can be set as a destina­
tion.
Fig. 142 Setting map position as destination
... Press the I NAV/MAPI
button repeatedly until
the map is displayed.
- To set a convenient map scale: You can turn
the rotary pushbutton clockwise/anti-clockwise
to be able to move the crosshairs faster.
- To move the crosshairs: Press the rotary push­
button. The crosshairs will appear on the map.
Move the crosshairs onto the destination using
the MMI touch pad ¢ page 111. To hide the
crosshairs, press the I B A
CK! button.
- To use the destination for route guidance:
Press the rotary pushbutton when the cross­
hairs are displayed. If you wish to set a stop­
over, select and confirm Set as stopover and
then Start route guidance.
Additional information on the point selected
with the crosshairs: If you use the crosshairs to
preselect a location on the map, any existing in­
formation on this location (e.g. road name, ad­
dress or special destinations) will be displayed @
q page 156, Fig. 147.
Using home address/a favourite as the
destination
Applies to vehicles: with navigation system
The favourites make it easier to access destina­
tions you require regularly.
Important: A home address/a favourite must
have already been stored ¢page 153. Navigation
... Press the I N
A V/MAP
!
button repeatedly until
the Enter destination menu is displayed
¢ page 147, Fig. 141.
Your home address and stored favourites are dis­
played in the Enter destination menu and
marked with the symbol @/@.
- Select and confirm your home address/a fa­
vourite.
- Select and confirm Start route guidance.
(i} Note
- Further home address settings can be found
on¢ page 153.
- Further favourites settings can be found on
¢page 153.
Using a destination from the directory
Applies to vehicles: with navigation system
You can navigate directly to entries in the direc­
tory.
Fig. 143 Possible directory contacts
Important: A postal address must be available
for a contact or a navigation destination must
have been added for a contact.
... Press the I N
A V/ MAP
!
button repeatedly until
the Enter destination menu is displayed
¢ page 147, Fig. 141.
... Select: left control button > Directory > a con-
tact.
Direc tory contacts are displayed in alphabetical
order and are displayed together with a location
symbol:
(!) Business postal address
@ Private postal address
@ Business navigation destination
149

Downloaded from www.Manualslib.com manuals search engine Navigation
@ Private navigation destination
- Select and confirm a postal address or a naviga­
tion destination. If you select a navigation des­
tination, route guidance is started immediately.
- If you select a postal address, you can check the
address details again.
- You can then select and confirm Start route
guidance.
Further directory functions in the navigation sys­
tem can be found on ¢page 153.
((!) Note
- Addresses which you have imported from
your mobile phone into the MMI can also be
used as navigation destinations.
- If a directory contact is greyed out, no navi­
gation destination/postal address has yet
been added for the contact.
Entering a special destination
Applies to vehicles: with navigation system
Navigation • Special destinations
Search area (In imm ediate vicinity)
Find entry
Select category
[:J myAudi special destinations
B1 Petrol station
P Parking space
Fig. 144 Entering a special destination
.,. Press the I NAV/MAP!
button repeatedly until
the Enter destination menu is displayed
¢ page 147, Fig. 141 .
.,. Select: left control button > Special destina­
tions.
- To change the search area: Select and confirm
Search area and then a search area from the
list. I
- To find the name of a special destination in
the selected search area: Enter the name of the
special destination.
- To search for a special destination in a certain
category: Choose Select category. Select and
confirm a category, for example Restaurants or
Parking space.
150 The
following search categories are available:
In immediate vicinity: You can select special des­
tinations from different categories. The special
destinations are displayed in a list, starting with
destinations in the immediate vicinity and going
up to destinations within a radius of 200 km.
In vicinity of route: Special destinations along
the route can only be selected when the route
guidance function is active. The special destina­
tions are located directly on or in the immediate
vicinity of your route.
In vicinity of destination/In vicinity of stopover:
You can also select special destinations from dif­
ferent categories in the vicinity of the destina­
tion/stopo ver. For example, you can look for a ho­
tel or a car park at the destination.
In new town: Enter the name of the town. You
can select special destinations from different cat­
egories. You can use this function to find special
destinations in any town irrespective of the desti­
nation currently set or the vehicle position.
myAudi special destinations
In myAudi special destinations, you can find per­
sonal special destinations which you have added
in your myAudi account and imported to the MMI
using an SD card.
- To import new myAudi special destinations in­
to the MMI: Select the right control button >
Import myAudi special destinations. Select
and confirm the relevant medium. Select and
confirm the files you would like to import to
the MMI.
{(!) Note
- For more information on the myAudi special
destinations*, please see the Operating
manual for Audi connect at www.audi.com/
myaudi.
- The distances to special destinations are
shown as the crow flies from your current
location (arrow not filled in). The actual
driving distance between your current posi-
tion and the special destination is updated
automatically (filled in arrow). However, the
�

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l
.... ®

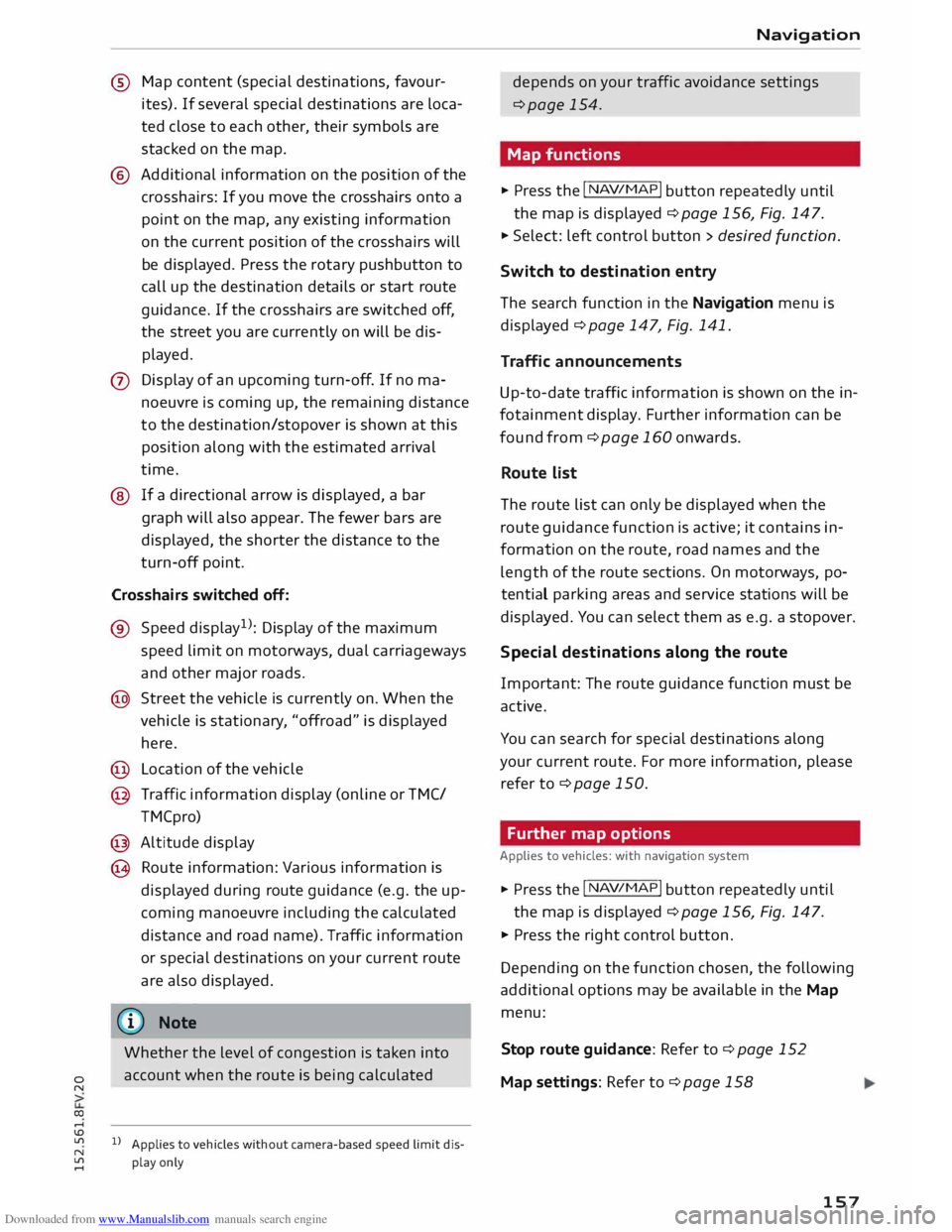

Map content (special destinations, favour­
ites). If several special destinations are loca­
ted close to each other, their symbols are
stacked on the map.
® Additional information on the position of the
crosshairs: If you move the crosshairs onto a
point on the map, any existing information
on the current position of the crosshairs will
be displayed. Press the rotary pushbutton to
call up the destination details or start route
guidance. If the crosshairs are switched off,
the street you are currently on will be dis­
played.
0 Display of an upcoming turn-off. If no ma­
noeuvre is coming up, the remaining distance
to the destination/stopover is shown at this
position along with the estimated arrival
time.
@ If a directional arrow is displayed, a bar
graph will also appear. The fewer bars are
displayed, the shorter the distance to the
turn-off point.
Crosshairs switched off:
® Speed display !
): Display of the maximum
speed limit on motorways, dual carriageways
and other major roads.
@ Street the vehicle is currently on. When the
vehicle is stationary , "offroad" is displayed
here.
@ Location of the vehicle
@ Traffic information display (online orTMC/
TM Cpro)
@ Altitude display
@ Route information: Various information is
displayed during route guidance (e.g. the up­
coming manoeuvre including the calculated
distance and road name). Traffic information
or special destinations on your current route
are also displayed.
(D Note
Whether the level of congestion is taken into
account when the route is being calculated
ll Applies to vehicles without camera-based speed limit dis­
play only Navigation
depends on your traffic avoidance settings
¢page 154.
Map functions
� Press the I NA
V/MAP!
button repeatedly until
the map is displayed ¢ page 156, Fig. 147.
� Select: left control button > desired function.
Switch to destination entry
The search function in the Navigation menu is
displayed ¢page 147, Fig. 141.
Traffic announcements
Up-to-date traffic information is shown on the in­
fotainment display. Further information can be
found from ¢ page 160 onwards.
Route list
The route list can only be displayed when the
route guidance function is active; it contains in­
formation on the route, road names and the
length of the route sections. On motorways, po­
tential parking areas and service stations will be
displayed. You can select them as e.g. a stopover.
Special destinations along the route
Important: The route guidance function must be
active.
You can search for special destinations along
your current route. For more information, please
refer to ¢page 150.
Further map options
A pplies to vehicles: with navigation system
� Press the I NA
V
/MAP!
button repeatedly until
the map is displayed ¢ page 156, Fig. 147.
� Press the right control button.
Depending on the function chosen, the following
additional options may be available in the Map
menu:
Stop route guidance: Refer to¢ page 152
Map settings: Refer to¢ page 158
157

Downloaded from www.Manualslib.com manuals search engine Checking
and topping up fluids
Diesel can thicken at very low temperatures,
which can result in problems starting the engine
or prevent the engine from running smoothly. For
this reason, filling stations in some countries of­
fer winter-grade diesel fuel during the cold
months so that you can continue to operate your
vehicle reliably. Ask at your filling station wheth­
er the diesel fuel available there is suitable for
the current conditions and for the temperatures
which could potentially occur.
CD CAUTION
- Never use FAME fuels (biodiesel), petrol,
heating oil, thinners or any other fuels or
additives, as these could cause serious dam­
age to the fuel system and the engine.
- Never start the engine if you fill up with the
wrong type of fuel, as this could damage
the fuel system and the engine. Obtain pro­
fessional assistance.
Filling the tank
Procedure for filling the tank
Fig. 204 Vehicle as seen from the rear right: Opening the
fuel tank flap
Fig. 205 Inserting the filler nozzle
The fuel tank flap is unlocked and locked auto­
mati cally by the central locking system.
218 "'
N
00
0
00
ca �
Press the tank flap -arrow- ¢ Fig. 204 to open
it. Your vehicle has a new self-sealing fuel tank
without a tank cap.
� Insert the filler nozzle into the fuel filler neck
as far as the stop ¢ Fig. 205 and ensure it is
properly engaged.
� Start refuelling. When the automatic filler noz­
zle is operated correctly it will switch itself off
as soon as the tank is "full". Do not try to put in
more fuel after the nozzle cuts out, as this will
fill the expansion chamber in the fuel tank.
� When the fuel filler pump switches itself off,
wait for 5 seconds before pulling out the filler
nozzle so that any remaining fuel can flow into
the tank opening.
� Close the tank flap. Make sure you hear it click
into place.
The correct fuel grade for your vehicle is given on
a sticker on the inside of the tank flap. Further
notes on fuel ¢page 217.
The tank capacity of your vehicle is given in the
Technical data section ¢ page 258.
& WARNING
Fuel is highly inflammable and can cause seri­
ous burns and other injuries.
- For safety reasons we do not recommend
carrying a spare fuel canister in the vehicle.
The canister could become damaged in an
accident and leak.
- Observe all relevant statutory regulations
on using, storing and transporting spare
fuel canisters.
- When filling your tank or a spare fuel canis­
ter with fuel, do not smoke and keep away
from naked flames -risk of explosion!
- If,
in exceptional circumstances, you have to
carry a spare fuel canister, please observe
the following warnings:
- Never fill fuel into the spare fuel canister
with the canister placed in or on top of the
vehicle. An electrostatic charge could
build up during filling, causing the fuel va­
pour to ignite -risk of explosion! Always
place the canister on the ground to fill it.
- Insert the filler nozzle as far as possible
into the spare fuel canister.

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl
.... -
If the spare fuel canister is made of metal,
the filler nozzle must be in contact with
the canister during filling. This helps pre­
vent an electrostatic charge building up.
- Make sure you never spill fuel in the vehi­
cle or in the Luggage compartment. Fuel
vapour is explosive -danger to Life!
CD CAUTION
- Remove any fuel spills from the paintwork
immediately.
- Never run the tank completely dry. If there
is an irregular fuel supply, misfiring can oc­
cur. As a result unburnt fuel can enter the
exhaust system and cause damage to the
cata Lytic converter(s).
- When filling the fuel tank after having run it
completely dry on a vehicle with a diesel en­
gine the ignition must be switched on for at
Least 30 seconds without starting the en­
gine. When you then start the engine it may
take Longer than normal (up to one minute)
for the engine to start firing. This is because
air needs to be bled from the fuel system
while starting.
(® For the sake of the environment
Do not overfill the fuel tank -this may cause
the fuel to overflow if it becomes warm.
(1j) Note
Should the fuel tank flap become frozen stuck
during inclement weather, press the middle
of the flap with the palm of the hand and try
again.
@ Note
To prevent the tank from being filled with the
incorrect type of fuel (petrol or diesel), only
suitable filler nozzles can be inserted in the
fuel filler on your vehicle.
- If the filler nozzle is old, damaged or too
small, it may not be able to open the pro­
tection mechanism on the fuel tank. In this
case, try turning the filler nozzle before in­
serting it in the fuel filler neck, use a differ- Checking
and topping up fluids
ent filling pump or seek professional assis­
tance.
- The protection mechanism will not open if
you try to add fuel from a spare fuel canis­
ter. If you need to fill the tank from a spare
fuel canister, you must use the special fun­
nel stowed in the Luggage compartment
¢page 219, Fig. 206.
Filling the tank using a spare fuel canister
Fig. 206 Luggage compartment: Funnel
Fig. 207 Funnel inserted in tank opening
Please refer to the important safety notes¢ A
in Procedure for filling the tank on page 218.
... Press the tank flap -arrow- ¢page 218,
Fig. 204 to open it. .....
(')
0
0
... Take the funnel out from underneath the floor
panel in the Luggage compartment.
... Insert the funnel into the fuel filler neck as far
as the stop ¢ Fig. 207. The funnel should be in­
serted so far into the fuel filler neck that the
ring on the funnel is not visible.
... Insert the filler of the spare fuel canister into
the funnel and start fuelling.
... After fuelling, remove the funnel and close the
fuel tank flap so that it Locks in place.
llJl,,
219

Downloaded from www.Manualslib.com manuals search engine Checking
and topping up fluids
.. Press the release lever ¢Fig. 210 in the direc­
tion indicated (arrow). This will release the ar­
rester hooks.
.. Open the bonnet.
& WARNING
To avoid the risk of being scalded, never open
the bonnet if you see steam or coolant escap­
ing from the engine compartment. Wait until
no steam or coolant can be seen before open­
ing the bonnet.
Closing the bonnet
.. To close the bonnet, pull it down to overcome
the spring pressure.
Engine compartment layout
Main components for checking and refilling ..
Then let it drop into the catches; do not press
down ¢,8. .
& WARNING
- For safety reasons the bonnet must always
be completely closed when the vehicle is
moving. After closing it always check that it
is properly secured. The bonnet must be
flush with the adjacent body panels.
- Should you notice that the bonnet is not
safely secured when the vehicle is moving,
stop the vehicle immediately and close the
bonnet properly, otherwise it could cause an
accident .
Fig. 211 Typical locations of fluid containers and engine oil filler cap
(D Coolant expansion tank (-L) .....
@
@
@ Engine
oil dipstick ............ .
Engine oil filler cap(�)
...... .
Brake fluid reservoir ((0))
222 225
®
223
224 ®
226 0 Jump-start
terminals: under a cover
(+); earth point on body(-) ...
...
249
Fuse box ..................... 254
Windscreen washer container (W)
229 ....

Downloaded from www.Manualslib.com manuals search engine Mobility
..

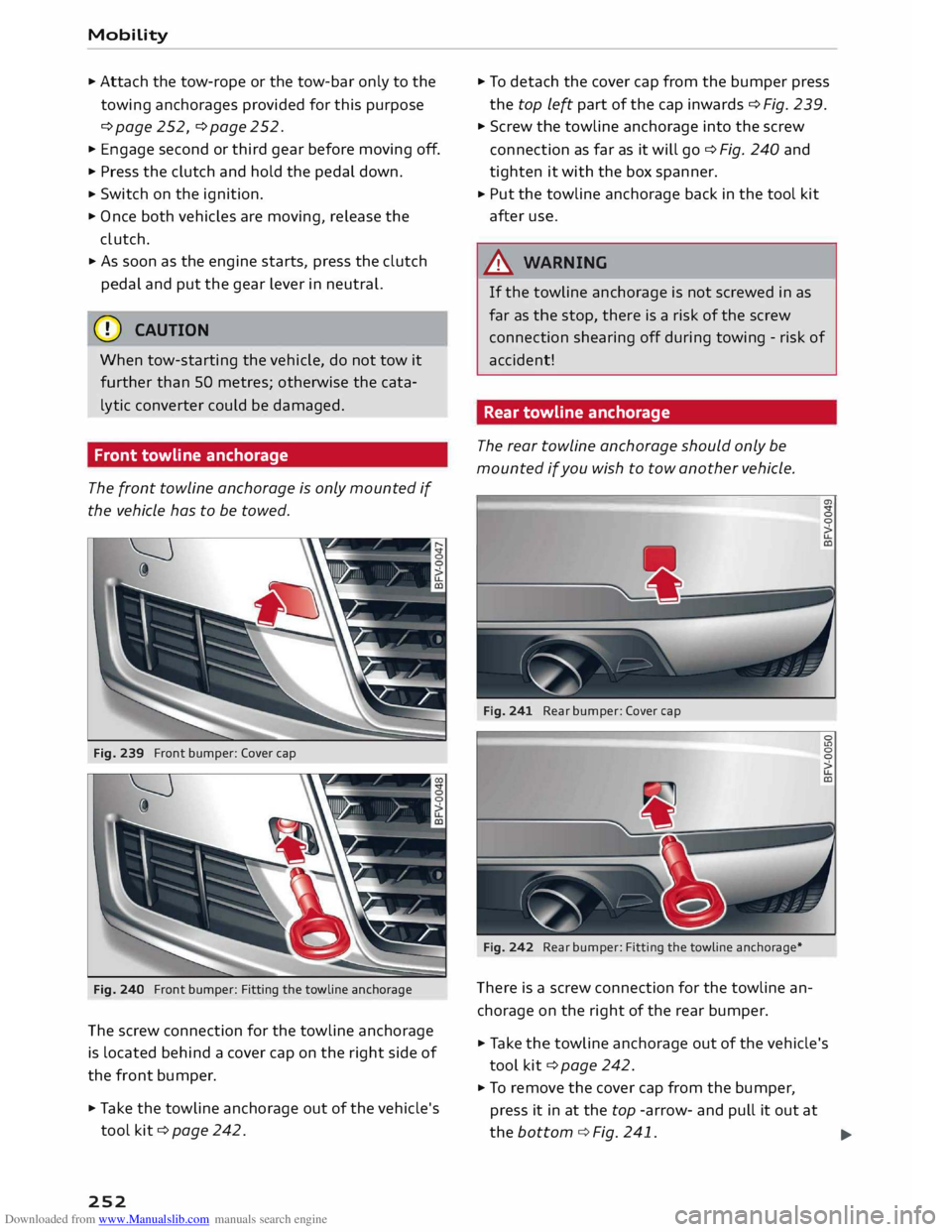

Attach the tow-rope or the tow-bar only to the
towing anchorages provided for this purpose
¢page 252, ¢page 252 .
.. Engage second or third gear before moving off.
.. Press the clutch and hold the pedal down .
.. Switch
on the ignition.
.. Once both vehicles are moving, release the
clutch.
"'As soon as the engine starts, press the clutch
pedal and put the gear lever in neutral.
CD CAUTION
When tow-starting the vehicle, do not tow it
further than SO metres; otherwise the cata­
lytic converter could be damaged.
Front towline anchorage
The front towline anchorage is only mounted if
the vehicle has to be towed.
Fig. 239 Front bumper: Cover cap
Fig. 240 Front bumper: Fitting the towline anchorage
The screw connection for the towline anchorage
is located behind a cover cap on the right side of
the front bumper.
.. Take the towline anchorage out of the vehicle's
tool kit ¢ page 242.
252 ..
To detach the cover cap from the bumper press
the top left part of the cap inwards ¢ Fig. 239.
.. Screw the towline anchorage into the screw
connection as far as it will go¢ Fig. 240 and
tighten it with the box spanner .
.. Put
the towline anchorage back in the tool kit
after use .
A WARNING
If the towline anchorage is not screwed in as
far as the stop, there is a risk of the screw
connection shearing off during towing -risk of
accident!
Rear towline anchorage
The rear towline anchorage should only be
mounted if you wish to tow another vehicle.
Fig. 241 Rear bumper: Cover cap
Fig. 242 Rear bumper: Fitting the towline anchorage*
There is a screw connection for the towline an­
chorage on the right of the rear bumper. a,
.. Take the towline anchorage out of the vehicle's
tool kit ¢ page 242.
"'To remove the cover cap from the bumper,
press it in at the top -arrow- and pull it out at
the bottom ¢ Fig. 241.
..,.

Downloaded from www.Manualslib.com manuals search engine Index
Closing Bonnet 222
Windows ........................... 33
Coasting mode . . . . . . . . . . . . . . . . . . . . . . . .
75
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . .
SO
Colour code . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Coming home . . . . . . . . . . . . . . . . . . . . . . . . . 40
Command (speech dialogue system) . . . . . .
116
Compact temporary spare wheel . . . . . . . . . 247
Compartments . . . . . . . . . . . . . . . . . . . . . . . . 49
Compass in mirror
Conference calling
Connecting a mobile phone 44
129
Requirements . . . . . . . . . . . . . . . . . . . 124, 137
Connection manager . . . . . . . . . . . . . . . . . .
187
Audi MMI connect app . . . . . . . . . . . . . . . .
187
Bluetooth settings . . . . . . . . . . . . . . . . . . .
188
Data connection . . . . . . . . . . . . . . . . . . . . . 187
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . .
188
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Network settings . . . . . . . . . . . . . . . . . . . .
188
Online settings . . . . . . . . . . . . . . . . . . . . . .
188
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .
188
SIM PIN settings . . . . . . . . . . . . . . . . . . . .
188
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . .
187
Connections see Media drives. . . . . . . . . . . . . . . . . . . . .
168
Consumption (fuel) . . . . . . . . . . . . . . . . 22, 257
Contact Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Deleting . . . . . . . . . . . . . . . . . . . . . . . 133, 135
Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . .
133
Finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Greying out . . . . . . . . . . . . . . . . . . . . . . . . .
135
Having read out . . . . . . . . . . . . . . . . . . . . .
133
Importing/exporting . . . . . . . . . . . . . . . . . 133
Navigating to . . . . . . . . . . . . . . . . . . . 133, 149
Searching for . . . . . . . . . . . . . . . . . . . . . . .
132
Sending as text message . . . . . . . . . . . . . .
133
Using from another mobile phone . . . . . .
132
Contacts Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Controls Multi-function steering wheel . . . . . . . . . . .
19
Controls and displays (overview) . . . . . . . . . . . 6
Controls (MMI control console) . . . . . . . . . .
109
Control units . . . . . . . . . . . . . . . . . . . . . . . . . 107
266 Convenience key
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 62
Locking and unlocking the vehicle . . . . . . .
28
Switching off engine (START ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Convenience open/close . . . . . . . . . . . . . . . . . 34
Cooling mode (automatic air conditioner) . . 55
Cooling mode (manual air conditioner) . . . . . 54
Cooling system
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . 224
Checking coolant level . . . . . . . . . . . . . . . .
225
Coolant temperature gauge . . . . . . . . . . . . . 8
Topping up coolant . . . . . . . . . . . . . . . . . . 225
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 12
Copyright Media drives . . . . . . . . . . . . . . . . . . . . . . . . 168
Cornering light . . . . . . . . . . . . . . . . . . . . . . . . 90
Country information . . . . . . . . . . . . . . . . . . . 157
Cruise control system
Adjusting stored speed . . . . . . . . . . . . . . . .
81
Pre-selecting a speed . . . . . . . . . . . . . . . . . .
81
Switching off . . . . . . . . . . . . . . . . . . . . . . . .
81
Switching on . . . . . . . . . . . . . . . . . . . . . . . . .
80
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
Current fuel consumption . . . . . . . . . . . . . . . 22
D
DAB (digital radio)
Data connection
Configuring ....................... .
Data connection .................... .
Data roaming ...................... .
Resetting configuration .............. .
Usage meter ....................... .
Data encryption
Data protection
Audi connect 166
144 144
144
144
188
186
146
Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 186
Daytime running Lights.. . . . . . . . . . . . . . . . . 37
Deactivatiing front passenger's airbag . . . . . 211
Defrosting (windows)
Automatic air conditioner . . . . . . . . . . . . . .
56
Manual air conditioner. . . . . . . . . . . . . . . . .
54
DEF (instrument cluster) . . . . . . . . . . . . . . . .
22

Downloaded from www.Manualslib.com manuals search engine Index
MMI touch . . . . . . . . . . . . . . . . . . . . . . . . .
111
Speech dialogue system . . . . . . . . . . . . . . 121
Dynamic volume control
see Entertainment volume
E
ElO 190
see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . .
217
ECO mode (automatic air conditioner) . . . . .
55
Economical driving . . . . . . . . . . . . . . . . . . . . .
58
Economical route . . . . . . . . . . . . . . . . . . . . . 155
EDL see Electronic differential lock . . . . . . . . .
102
Electrical socket . . . . . . . . . . . . . . . . . . . . . . .
48
Electric seat adjustment . . . . . . . . . . . . . . . . 46
Electric windows . . . . . . . . . . . . . . . . . . . . . . . 33
Convenience open/close . . . . . . . . . . . . . . .
34
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . .
34
Electro-mechanical parking brake
see Parking brake . . . . . . . . . . . . . . . . . . . . . 66
Electro-mechanical power steering . . . . . . . 101
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . 101
Electronic differential lock . . . . . . . . . . . . . . 103
Electronic immobiliser . . . . . . . . . . . . . . . . . . 25
Electronic stabilisation control (ES() . . . . . 102
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 14
Sport mode . . . . . . . . . . . . . . . . . . . . . . . .
104
Emergency calls . . . . . . . . . . . . . . . . . . . . . .
131
Emergency key . . . . . . . . . . . . . . . . . . . . . 25, 27
Emission control systems
Catalytic converter . . . . . . . . . . . . . . . . . . .
220
Diesel particulate filter . . . . . . . . . . . . . . .
220
Emission control system (indicator lamp) . . . 15
Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Engine Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .
224
Jump-starting . . . . . . . . . . . . . . . . . . . . . . .
248
Preheating (glow plugs) . . . . . . . . . . . . . . .
60
Start/stop system . . . . . . . . . . . . . . . . . . . .
63
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
60
Starting (driver messages for convenience
key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 61
Switching off (driver messages for mechani-
cal ignition lock) . . . . . . . . . . . . . . . . . . . . . .
62
268 Engine
compartment
Closing bonnet . . . . . . . . . . . . . . . . . . . . . .
222
Layout.. ........................... 222
Opening bonnet . . . . . . . . . . . . . . . . . . . . .
221
Safety notes . . . . . . . . . . . . . . . . . . . . . . . .
220
Engine management (indicator lamp) . . . . . . 15
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Checking oil level . . . . . . . . . . . . . . . . . . . . 223
Consumption . . . . . . . . . . . . . . . . . . . . . . . 223
Indicator lamp . . . . . . . . . . . . . . . . . . . . 15, 16
Oil change service . . . . . . . . . . . . . . . . . . .
223
Service intervals . . . . . . . . . . . . . . . . . . . . .
223
Topping up . . . . . . . . . . . . . . . . . . . . . . . . .
224
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 12
Engine speed governing (indicator lamp)
15
Engine start/stop mode
see Star t/stop system . . . . . . . . . . . . . . . . .
65
Entering Using MMI touch . . . . . . . . . . . . . . . . . . . . 111
Using the speech dialogue system . . . . . .
116
Using the speller . . . . . . . . . . . . . . . . . . . . 113
Entertainment volume . . . . . . . . . . . . . . . . . 190
Environmental compatibility . . . . . . . . . . . . 262
Environmental tips Filling the tank .................. 218, 219
Leaks.. ............................ 221
Minimising pollution . . . . . . . . . . . . . . . . . .
58
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . .
52
EPC (engine management) . . . . . . . . . . . . . . .
15
EPG see Programme guide . . . . . . . . . . . . . . . . 163
ESC Multicollision brake assist system . . . . . . 103
Sport mode . . . . . . . . . . . . . . . . . . . . . . . .
104
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . 217
Event data recorder . . . . . . . . . . . . . . . . . . . 107
Event memory . . . . . . . . . . . . . . . . . . . . . . . .
107
Exclude route . . . . . . . . . . . . . . . . . . . . . . . .
155
Exporting/ importing contacts . . . . . . . . . . . 133
Exterior lights . . . . . . . . . . . . . . . . . . . . . . . . . 37
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
Anti-dazzle setting . . . . . . . . . . . . . . . . . . .
42
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
