remote start AUDI TT COUPE 2014 Owners Manual

Downloaded from www.Manualslib.com manuals search engine Instruments
and warning/indicator lamps
10 Electro-mechanical
parking brake
¢page 11
Tyre pressure loss indicator ./
¢page 234
Tyre pressure loss indicator
¢page 234
Engine management./
¢page 15
Engine management system (diesel
engines)./ ¢page 15
Emission control system
¢page 15
Diesel particulate filter*
¢page 15
Engine speed governing
¢page 15
Engine oil level
¢page 15
Engine oil sensor
¢page 16
Battery charge
¢page 13
Fuel tank system
¢page 16
Washer fluid level
¢page 16
Windscreen wipers
¢page 16
Remote control key
¢page 62
Battery in remote control key
¢page 27
Bulb monitor*
¢page 16
Headlight range control
¢page 17
Adaptive light*
¢page 17
Light sensor/rain sensor*
¢page 17 Active
lane assist*
¢page 85
Gearbox ¢page 77
Steering lock
¢page 13
Engine start system
¢page 13
Central warning/indicator lamp
¢page 13
Electro-mechanical power steering ./
¢page 101
Suspension control*
¢page 17
Rear spoiler ./
¢page 105
Speed warning function*
¢page 80
Electro-mechanical power steering
¢page 101
Further indicator lamps
Turn signals
¢page 17
Cruise control system*
¢page 80
Active lane assist*
¢page 85
Hold assist*
¢page 68
Speed limiter*
¢page 82
Start/stop system*
¢page 63
Start/stop system*
¢page 63
Convenience key
¢page 63
Park assist*
¢page 95
Park assist*
¢page 95

Downloaded from www.Manualslib.com manuals search engine Doors
and windows
check regularly that the emergency key is still
present in the remote control key casing.
@ Spare key
This key is intended for temporary use only and
should be used only in an emergency. Keep it in a
safe place and do not carry it on the keyring.
Replacing a key
If you should lose a key, please contact an Audi
dealer. Have the remote control coding for that
key deactivated. For this purpose you should
bring all available keys with you. It is also impor­
tant to notify your insurance company if a key has
been lost.
Number of keys
You can check how many keys are initialised for
your vehicle using the infotainment system. Se­
lect the following on the infotainment system:
I MENU I
button >Car> left control button > Serv­
icing & checks > Initialised keys. This feature en­
ables used car buyers to make sure they have re­
ceived all of the keys.
Electronic immobiliser
The immobiliser is designed to prevent unauthor­
ised persons from driving the vehicle.
It may not be possible to start the engine with
the key if there is another ignition key from a dif­
ferent make of vehicle on the same key ring.
Data stored on remote control key
Data related to the service and maintenance of
the vehicle are stored continuously on your re­
mote control key while you are driving. Your Audi
dealer can read out the data and will then be able
to tell you what service work is required. This also
applies to vehicles with convenience key*.
Personal convenience settings
If two people use the same car regularly, it is a
good idea for each person to have his or her
"own" remote control key. When you switch off
the ignition or lock the vehicle, your personal set­
tings for the following convenience features are
stored and assigned to the remote control key:
- Air conditioner
26 -
Central locking system
-Windows
- Background lighting*
- Parking aid*
- Active lane assist*
- Side assist*
- Drive select
The stored settings are then recalled automati­
cally the next time the vehicle is unlocked, the
doors are opened or the ignition is switched on.
_& WARNING
Always take the key with you when leaving the
vehicle -even if you only intend to be gone for
a short time. This is especially important if
children are left in the car. They might other­
wise be able to start the engine or use power­
operated equipment such as the electric win­
dows -this could lead to injuries.
The function of the remote control key may be
impaired by interference from other nearby
radio signals (for example from a mobile tele­
phone or TV transmitter) if these are in the
same frequency range.

Downloaded from www.Manualslib.com manuals search engine Driving
or if the engine is hot and the engine com­
par tment is heated up further by direct
sunlight.

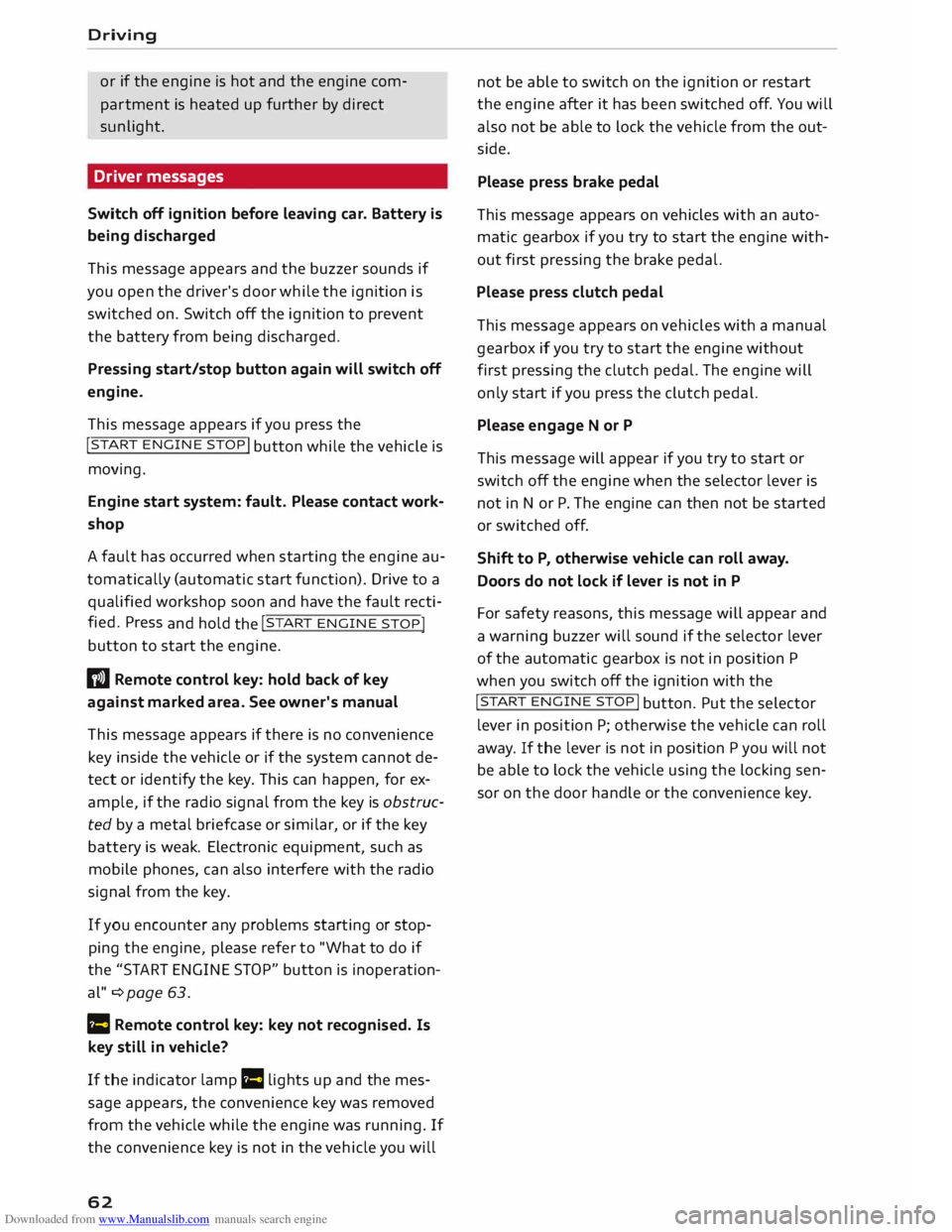

Driver messages
Switch off ignition before leaving car. Battery is
being discharged
This message appears and the buzzer sounds if
you open the driver's door while the ignition is
switched on. Switch off the ignition to prevent
the battery from being discharged.
Pressing start/stop button again will switch off
engine.
This message appears if you press the
!START ENGINE STOP!
button while the vehicle is
moving.
Engine start system: fault. Please contact work­
shop
A fault has occurred when starting the engine au­
tomatically (automatic start function). Drive to a
qualified workshop soon and have the fault recti­
fied. Press
and hold
the !S
TA RT
ENGINE STOP I
button to start the engine.
II Remote control key: hold back of key
against marked area. See owner's manual
This message appears if there is no convenience
key inside the vehicle or if the system cannot de­
tect or identify the key. This can happen, for ex­
ample, if the radio signal from the key is obstruc­
ted by a metal briefcase or similar, or if the key
battery is weak. Electronic equipment, such as
mobile phones, can also interfere with the radio
signal from the key.
If you encounter any problems starting or stop­
ping the engine, please refer to "What to do if
the "START ENGINE STOP" button is inoperation­
al" ¢page 63.
Ill Remote control key: key not recognis ed. Is
key still in vehicle?
If the indicator lamp Ill Lights up and the mes­
sage appears, the convenience key was removed
from the vehicle while the engine was running. If
the convenience key is not in the vehicle you will
62 not
be able to switch on the ignition or restart
the engine after it has been switched off. You will
also not be able to lock the vehicle from the out­
side.
Please press brake pedal
This message appears on vehicles with an auto­
matic gearbox if you try to start the engine with­
out first pressing the brake pedal.
Please press clutch pedal
This message appears on vehicles with a manual
gearbox if you try to start the engine without
first pressing the clutch pedal. The engine will
only start if you press the clutch pedal.
Please engage N or P
This message will appear if you try to start or
switch off the engine when the selector lever is
not in Nor P. The engine can then not be started
or switched off.
Shift to P, otherwise vehicle can roll away.
Doors do not lock if lever is not in P
For safety reasons, this message will appear and
a warning buzzer will sound if the selector lever
of the automatic gearbox is not in position P
when you switch off the ignition with the
!START ENGINE STOP!
button. Put the selector
lever in position P; otherwise the vehicle can roll
away. If the lever is not in position P you will not
be able to Lock the vehicle using the locking sen­
sor on the door handle or the convenience key.

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl

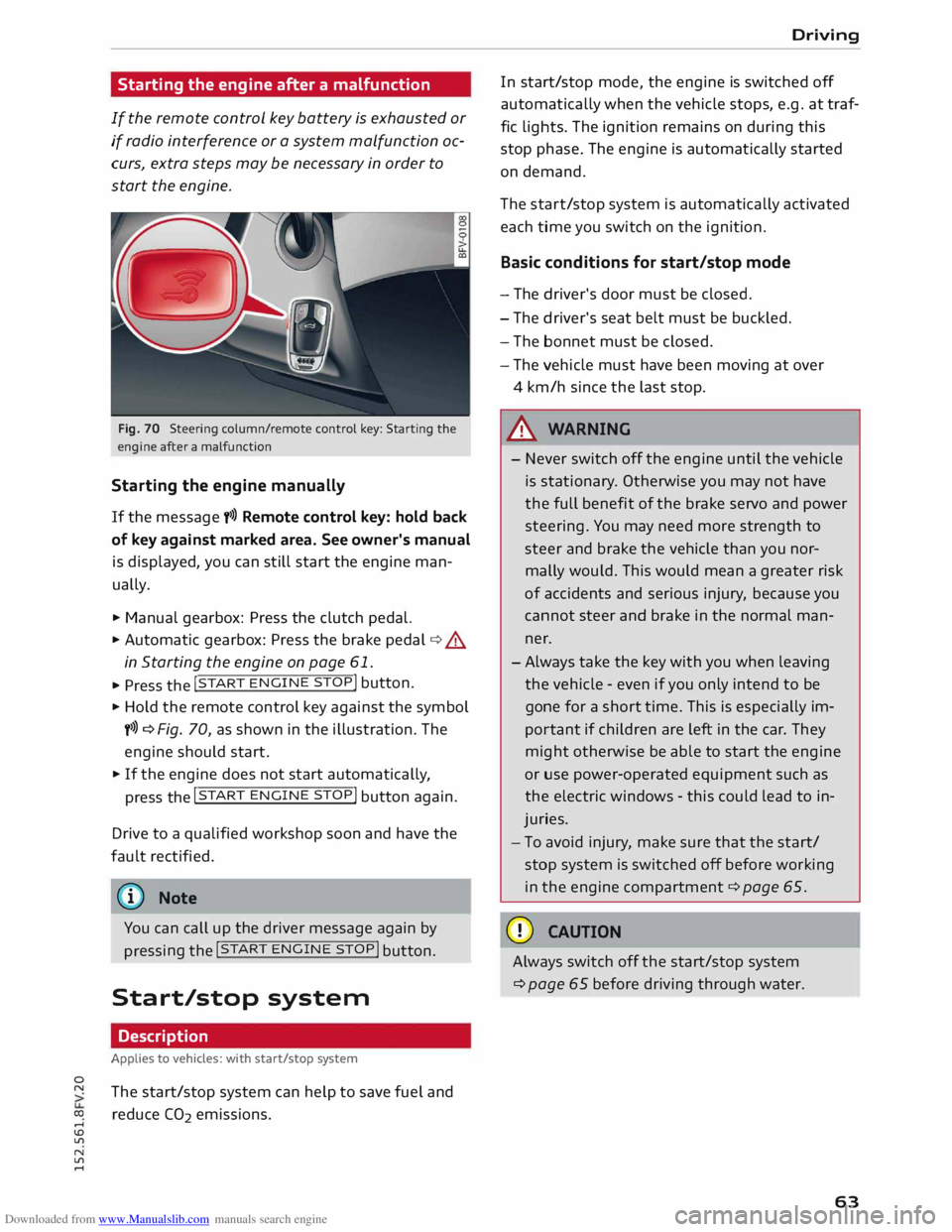

.... Starting
the engine after a malfunction
If the remote control key battery is exhausted or
if radio interference or a system malfunction oc­
curs, extra steps may be necessary in order to
start the engine.
Fig. 70 Steering column/rem ote control key: Starting the
engine after a malfunction
Starting the engine manually
If the message y>>) Remote control key: hold back
of key against marked area. See owner's manual
is displayed, you can still start the engine man­
ually.
.,.. Manual gearbox: Press the clutch pedal.
.,.. Automatic gearbox:
Press the brake pedal¢.&
in Starting the engine on page 61 .
... Press the !
START ENGINE
STOP!
button.
.,.. Hold the remote control key against the symbol
y>>) ¢ Fig. 70, as shown in the illustration. The
engine should start .
.,.. If the engine does not start automatically,
press the !START
ENGINE
STOP!
button again.
Drive to a qualified workshop soon and have the
fault rectified.
{D Note
You can call up the driver message again by pressing
the !START
ENG
INE
STOP! button.
Start/stop system
Description
Applies to vehicles: with start/stop system
The start/stop system can help to save fuel and
reduce CO2 emissions. Driving
In start/stop mode, the engine is switched off
automatically when the vehicle stops, e.g. at traf­
fic lights. The ignition remains on during this
stop phase. The engine is automatically started
on demand.
The start/stop system is automatically activated
each time you switch on the ignition.
Basic conditions for start/stop mode
- The driver's door must be closed.
- The driver's seat belt must be buckled.
- The bonnet must be closed.
- The vehicle must have been moving at over
4 km/h since the last stop .
.&, WARNING
- Never switch off the engine until the vehicle
is stationary . Otherwise you may not have
the full benefit of the brake servo and power
steering. You may need more strength to
steer and brake the vehicle than you nor­
mally would. This would mean a greater risk
of accidents and serious injury, because you
cannot steer and brake in the normal man­
ner.
-Always take the key with you when leaving
the vehicle -even if you only intend to be
gone for a short time. This is especially im­
portant if children are left in the car. They
might otherwise be able to start the engine
or use power-operated equipment such as
the electric windows -this could lead to in­
juries.
- To avoid injury, make sure that the start/
stop system is switched off before working
in the engine compartment ¢ page 65.
CD CAUTION
Always switch off the start/stop system
¢page 65 before driving through water.
63

Downloaded from www.Manualslib.com manuals search engine Driver
assist systems

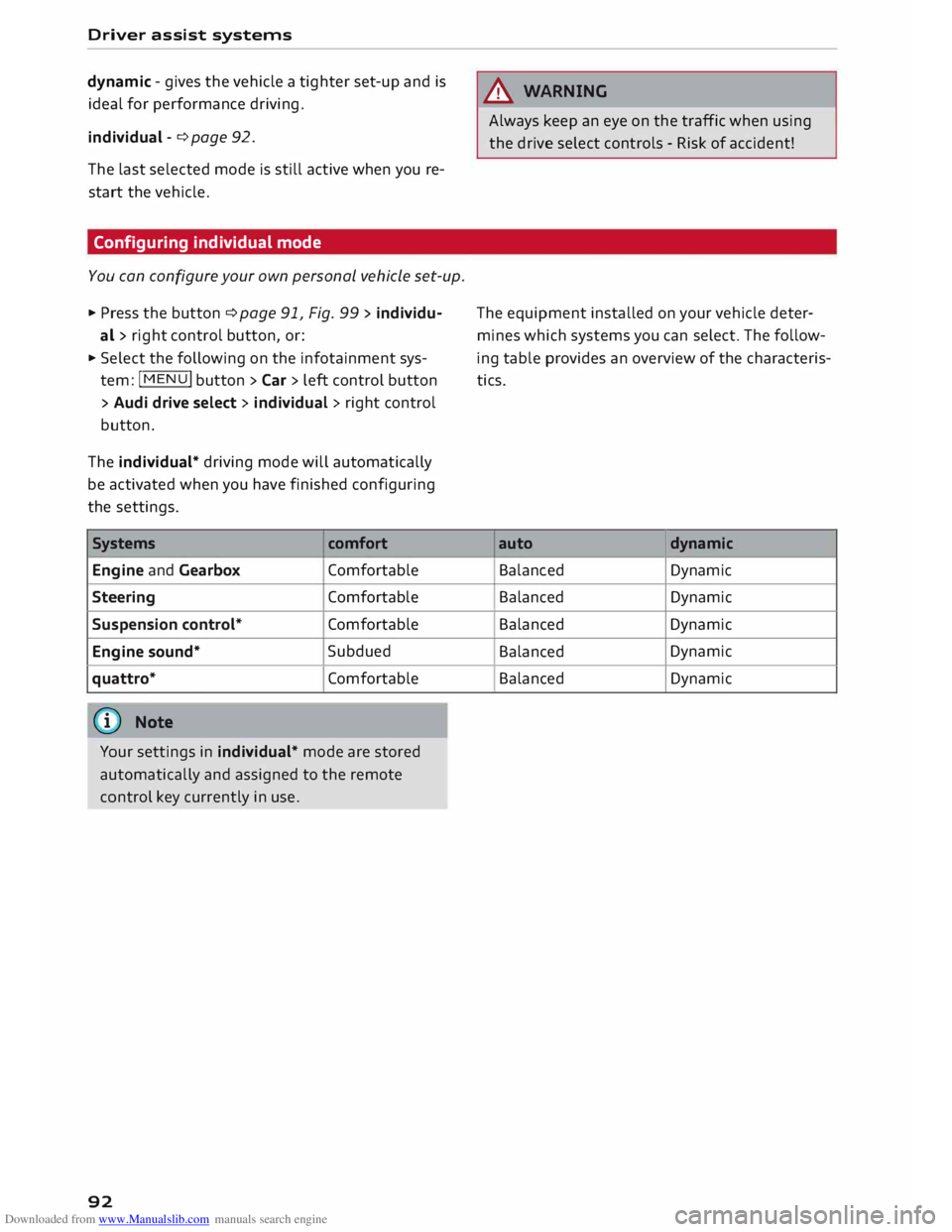

dynamic -gives the vehicle a tighter set-up and is
ideal for performance driving.
individual -¢page 92.
The last selected mode is still active when you re­
start the vehicle.
Configuring individual mode
You can configure your own personal vehicle set-up .
.,. Press the button ¢ page 91, Fig. 99 > individu-
al > right control button, or:
.,. Select the following on the infotainment sys­
tem: IM EN u I
button > Car > left control button
> Audi drive select> individual> right control
button.
The individual* driving mode will automatically
be activated when you have finished configuring
the settings.
Systems comfort
Engine and Gearbox Comfortable
Steering Comfortable
Suspension control* Comfortable
Engine sound* Subdued
quattro* Comfortable
(©) Note
Your settings in individual* mode are stored
automatically and assigned to the remote
control key currently in use.
92 A
WARNING
Always keep an eye on the traffic when using
the drive select controls - Risk of accident!
The equipment installed on your vehicle deter­
mines which systems you can select. The follow­
ing table provides an overview of the characteris­
tics.
auto dynamic
Balanced Dynamic
Balanced Dynamic
Balanced Dynamic
Balanced Dynamic
Balanced Dynamic

Downloaded from www.Manualslib.com manuals search engine Parking
aids
II Park assist: not stopped long enough
After you select reverse gear, the vehicle has to
remain stationary for a moment so that the park
assist can activate the steering. Follow the direc­
tions given in the display.
Ill Park assist: fault. Please contact workshop
II Park assist: fault. Continue steering vehicle!
Please contact workshop
Please contact a qualified workshop. The park as­
sist cannot be used to park the vehicle if a system
fault occurs.
II Park assist: cancelled. Space too small. Con­
tinue steering vehicle!
The park assist cannot be used to park the vehicle
in this space. Park the vehicle without using the
park assist or look for a bigger space.
Ill Park assist: stabilisation control (ESC) input
The detected space could not be used because
the stabilisation control intervened.
Adjusting graphic display
and warning beeps
Applies to vehicles: with parking system plus/park assist
The settings for the graphic display and acoustic
signals are controlled via the infotainment sys­
tem.
.., Select the following on the infotainment sys­
tem: IM EN u I button > Car > left control button
> Driver assist> Parking aid.
Warning beeps
Front volume -Volume for the front and side*
zones
Rear volume -Volume for the rear zone
In-car entertainment fader -The volume of the
current audio or video source is reduced when the
parking aid is switched on.
You will hear a short test tone each time you
make a new setting.
100 @
Note
The settings will be automatically stored and
assigned to the remote control key in use.
Fault warnings
Applies to vehicles: with rear parking aid/parking system
plus/park assist
Rear parking aid: fault. Obstacles cannot be de­
tected
Front parking aid: fault. Obstacles cannot be
detected
Parking aid: fault. Obstacles cannot be detected
If the LED in the P,1
1i button starts flashing when
you switch the system on, a system fault has oc­
curred. If the fault is not corrected before you
switch off the ignition, it will only be indicated by
the flashing LED in the P111i button the next time
you switch on the parking aid by engaging re­
verse gear. The fault warning can be displayed in
the second tab of the driver information system
as long as the fault is active.
Parking system plus*/parking system plus
and park assist*
If a sensor or loudspeaker malfunctions, the J;l4:
symbol will be shown on the infotainment sys­
tem in front of or behind the vehicle. If a rear
sensor malfunctions, obstacles will only be dis­
played in zones @and @ ¢ page 94, Fig. 101. If
a front sensor malfunctions, obstacles will only
be displayed in zones © and@ .
Drive to a qualified workshop soon and have the
fault rectified.

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl

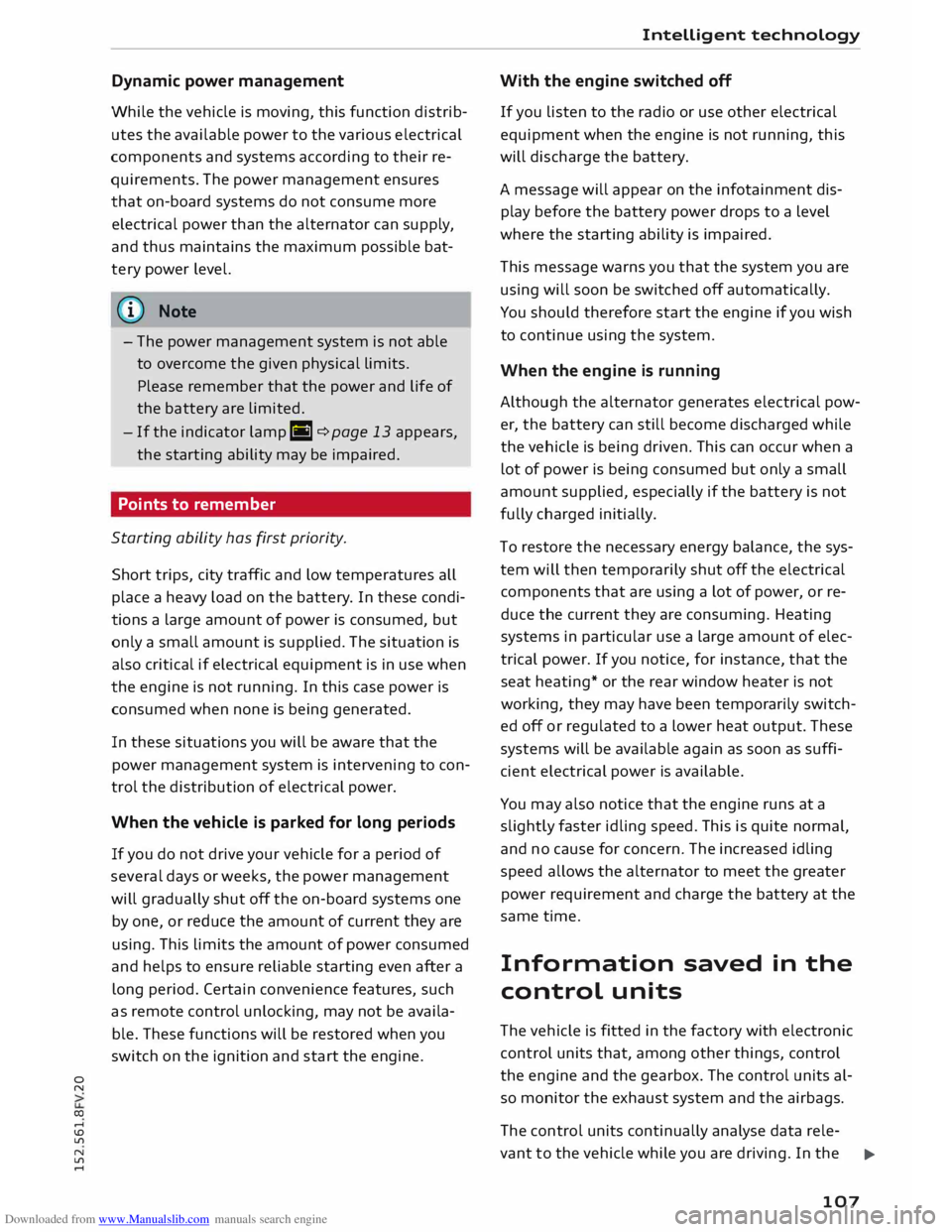

.... Dynamic
power management
While the vehicle is moving, this function distrib­
utes the available power to the various electrical
components and systems according to their re­
quirements. The power management ensures
that on-board systems do not consume more
electrical power than the alternator can supply,
and thus maintains the maximum possible bat­
tery power Level.
ijJ Note
- The power management system is not able
to overcome the given physical Limits.
Please remember that the power and Life of
the battery are Limited.
- If the indicator Lamp ril c:> page 13 appears,
the starting ability may be impaired.
Points to remember
Starting ability has first priority.
Short trips, city traffic and Low temperatures all
place a heavy Load on the battery . In these condi­
tions a Large amount of power is consumed, but
only a small amount is supplied. The situation is
also critical if electrical equipment is in use when
the engine is not running. In this case power is
consumed when none is being generated.
In these situations you will be aware that the
power management system is intervening to con­
trol the distribution of electrical power.
When the vehicle is parked for long periods
If you do not drive your vehicle for a period of
several days or weeks, the power management
will gradually shut off the on-board systems one
by one, or reduce the amount of current they are
using. This Limits the amount of power consumed
and helps to ensure reliable starting even after a
Long period. Certain convenience features, such
as remote control unlocking, may not be availa­
ble. These functions will be restored when you
switch on the ignition and start the engine. Intelligent
technology
With the engine switched off
If you Listen to the radio or use other electrical
equipment when the engine is not running, this
will discharge the battery.
A message will appear on the infotainment dis­
play before the battery power drops to a Level
where the starting ability is impaired.
This message warns you that the system you are
using will soon be switched off automatically.
You should therefore start the engine if you wish
to continue using the system.
When the engine is running
Although the alternator generates electrical pow­
er, the battery can still become discharged while
the vehicle is being driven. This can occur when a
Lot of power is being consumed but only a small
amount supplied, especially if the battery is not
fully charged initially.
To restore the necessary energy balance, the sys­
tem will then temporarily shut off the electrical
components that are using a Lot of power, or re­
duce the current they are consuming. Heating
systems in particular use a Large amount of elec­
trical power. If you notice, for instance, that the
seat heating* or the rear window heater is not
working, they may have been temporarily switch­
ed off or regulated to a Lower heat output. These
systems will be available again as soon as suffi­
cient electrical power is available.
You may also notice that the engine runs at a
slightly faster idling speed. This is quite normal,
and no cause for concern. The increased idling
speed allows the alternator to meet the greater
power requirement and charge the battery at the
same time.
Information saved in the
control units
The vehicle is fitted in the factory with electronic
control units that, among other things, control
the engine and the gearbox. The control units al­
so monitor the exhaust system and the airbags.
The control units continually analyse data rele-
vant to the vehicle while you are driving. In the
...,.
107

Downloaded from www.Manualslib.com manuals search engine Telephone
Troubleshooting
Applies to vehicles: with telephone
Subject Connecting the mobile phone to
the MMI fails.
The mobile phone does not sup­
port the remote SIM Access Pro­
file (e.g. iPhone).
Using the MMI with two SIM Advice
Check that Bluetooth discoverability is switched on in the MMI
and on your mobile phone. On some mobile phones, discoverabili­
ty is deactivated automatically after a short time.
Or: Restart your mobile phone.
Please refer to your mobile phone's operating manual for further
information.
You can insert the SIM card in the SIM card reader ¢ page 126 and
use the functions of the car telephone kit independently of your
mobile phone.
Or: Use an additional SIM card in the SIM card reader.
When the SIM card is inserted, you can also use the contacts from
your mobile phone by connecting the mobile phone to the system
via the Directory profile¢ page 188.
The MMI only ever accesses one SIM card at a time. A SIM card in-
cards (in the SIM card reader andserted
in the SIM card reader has priority over one in a mobile
in a mobile phone). phone.
After the mobile phone was con­
nected not all/none of the con­
tacts were loaded into the MMI.
Some telephone functions are
greyed out/not available.
Some telephone functions are
greyed out/not available, even
though the mobile phone sup­
ports them.
136 However,
you can still access the contacts on another mobile
phone via Bluetooth if a SIM card is inserted ¢ page 188.
Avoid using special characters in names.
Avoid using contact groups.
The telephone functions will depend on the mobile network serv­
ice provider and the mobile phone used. For further information,
please contact your mobile network service provider, see the oper­
ating instructions for your mobile phone, or consult the Audi mo­
bile device database at www.audi.com/bluetooth.
On corporate phones, some Bluetooth settings may not be com­
patible with the system or the Bluetooth function of your mobile
phone may have been deactivated. For more information, contact
your system administrator.

Downloaded from www.Manualslib.com manuals search engine 0
N
co
.... Audi
connect
Introduction
Applies to vehicles: with Audi connect
Audi connect services allow on line information to
be directly transmitted and integrated into the
vehicle.
Thanks to a Wi-Fi hotspot, it is possible to use a
mobile device to access the Internet in the rear of
the vehicle during journeys or anywhere in the ve­
hicle when it is stationary .
.&_ WARNING
- Only use Audi connect services when the
traffic conditions allow you to do so safely -
risk of accident! Please always observe
¢ page 192, Notes on traffic safety.
- The Audi connect services should only be
used via a Wi-Fi hotspot when the vehicle is
stationary or from the rear seats if the vehi­
cle is in motion -risk of accident!
Cl) Note
Please observe the Notes on Audi co nnect
¢ page 145 before using the system.
Setting up
Before you start
An Internet connection is required in order to use
Audi connect services. You can establish a con­
nection by using one of the following options:
Option 11
>
Connecting an rSAP 2
) enabled mobile phone via
Bluetooth ¢page 137
Option 2 Using a separate SIM card in the SIM card reader
¢page 138
� l
l
Not available for all countries and models
N
� 2
l
Bluetooth remote SIM Access Profile Audi
connect
Option 3l)
Using a mobile device (e.g. a smartphone) as a
personal Wi-Fi hotspot for the MMI ¢ page 139
Connecting an rSAP enabled mobile phone
via Bluetooth
Applies to vehicles: with Audi connect
<(
a:
Fig. 137 Is your mobile phone rSAP enabled? This QR code
takes you directly to the mobile device database (data con­
nection costs vary according to your mobile phone con­
tract).
Requirements
Your mobile phone must support the Bluetooth
remote SIM Access Profile (Bluetooth rSAP).
For information regarding which Bluetooth con­
nections and functions your mobile phone sup­
ports, contact your mobile network service pro­
vider or consult the mobile device database at
www.audi.com/bluetooth ¢ Fig. 13 7.
The vehicle must be stationary, and the ignition
must be switched on.
The Bluetooth function and the discoverability
option of the MMI system¢ page 143 and the
mobile phone must be activated.
The mobile phone you would like to connect must
not be connected actively to any other Bluetooth
device. The MMI must not be connected to a mo­
bile phone.
Access to your SIM card (SIM Access) must be ac­
tivated on your mobile phone.
137

Downloaded from www.Manualslib.com manuals search engine Q
quattro (four-wheel drive) . . . . . . . . . . . . . . 105
R
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Alternative frequency . . . . . . . . . . . . . . . . 166
Announcements . . . . . . . . . . . . . . . . . . . . . 164
Detailed station information . . . . . . . . . . .
164
Favourites . . . . . . . . . . . . . . . . . . . . . . . . . .
165
Manual station search . . . . . . . . . . . . . . . .
163
Menu.............................. 165
MMI control console . . . . . . . . . . . . . . . . . 163
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .
163
Programme guide . . . . . . . . . . . . . . . . . . .
163
Radio settings . . . . . . . . . . . . . . . . . . . . . .
166
Radio text . . . . . . . . . . . . . . . . . . . . . . . . . .
164
Searching for a radio station . . . . . . . . . . .
163
Seek . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
163
Sound settings . . . . . . . . . . . . . . . . . . . . . .
163
Speech dialogue system . . . . . . . . . . . . . . 121
Station list . . . . . . . . . . . . . . . . . . . . . . . . .
163
Station names . . . . . . . . . . . . . . . . . . . . . .
164
Troubleshooting . . . . . . . . . . . . . . . . . . . . .
167
Waveband . . . . . . . . . . . . . . . . . . . . . . . . .
165
Radio-operated remote control
see Remote control keys . . . . . . . . . . . . . . . 25
Radio equipment . . . . . . . . . . . . . . . . . . . . .
261
Radio settings . . . . . . . . . . . . . . . . . . . . . . . .
166
Alternative frequency . . . . . . . . . . . . . . . .
166
Detailed station information . . . . . . . . . . .
166
Preferred image . . . . . . . . . . . . . . . . . . . . .
166
Radio transmitters . . . . . . . . . . . . . . . . . . . .
261
Rain sensor/light sensor
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . .
37
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . .
17
Intermittent wipe (windscreen wipers) . . .
42
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear seats, folding down . . . . . . . . . . . . . . . . 51
Rear spoiler . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Rear window heating . . . . . . . . . . . . . . . . 54, 56
Recuperation . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
134
o
Refuelling with spare fuel canister .
. . . . . . 219
a: Regional
stations (radio) . . . . . . . . . . . . . . . 166
co
....
\D Lfl
N
Lfl
.... Index
Remote control keys . . . . . . . . . . . . . . . . . . . . 25
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Locking and unlocking the vehicle . . . . . . . 28
Perso nalised key . . . . . . . . . . . . . . . . . . . . . 25
Replacing the battery . . . . . . . . . . . . . . . . .
27
Remote SIM Access Profile (rSAP) . . . . . . . . 123
Repair kit
Tyre Mobility System (tyre repair kit) . . . . 242
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
260
Replacement keys . . . . . . . . . . . . . . . . . . . . . . 25
Replacement parts . . . . . . . . . . . . . . . . . . . . 260
Requirements Connecting a mobile phone . . . . . . . . . . . .
137
Reset button (trip recorder) . . . . . . . . . . . . . . 22
Resetting (data connection) . . . . . . . . . . . . .
144
Restart (reset) . . . . . . . . . . . . . . . . . . . . . . . .
191
Restricted use of telephone . . . . . . . . . 124, 137
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . 8, 21
Reverse gear (automatic gearbox) . . . . . . . . . 70
Rewind (audio/video file) . . . . . . . . . . . . . . . 179
Right control button ................ 20, 110
Ring tone settings . . . . . . . . . . . . . . . . 134, 190
Roaming see Data connection . . . . . . . . . . . . . . . . . .
144
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . .
52
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . .
52
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
52
Rotary pushbutton . . . . . . . . . . . . . . . . . . . .
109
Rotary pushbutton with joystick function . .
112
Route criteria . . . . . . . . . . . . . . . . . . . . . . . .
154
Route guidance
see Navigation . . . . . . . . . . . . . . . . . . . . . .
148
Route information . . . . . . . . . . . . . . . . . . . .
158
Route list ........................ 157, 158
Running in
New brake pads . . . . . . . . . . . . . . . . . . . . . 101
New engine . . . . . . . . . . . . . . . . . . . . . . . . . 58
New tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 231
s
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Safelock mechanism................. 25, 31
Safety Airbag system . . . . . . . . . . . . . . . . . . . . . .
209
Child seats . . . . . . . . . . . . . . . . . . . . . . . . .
195
275
