Downloaded from www.Manualslib.com manuals search engine Driving

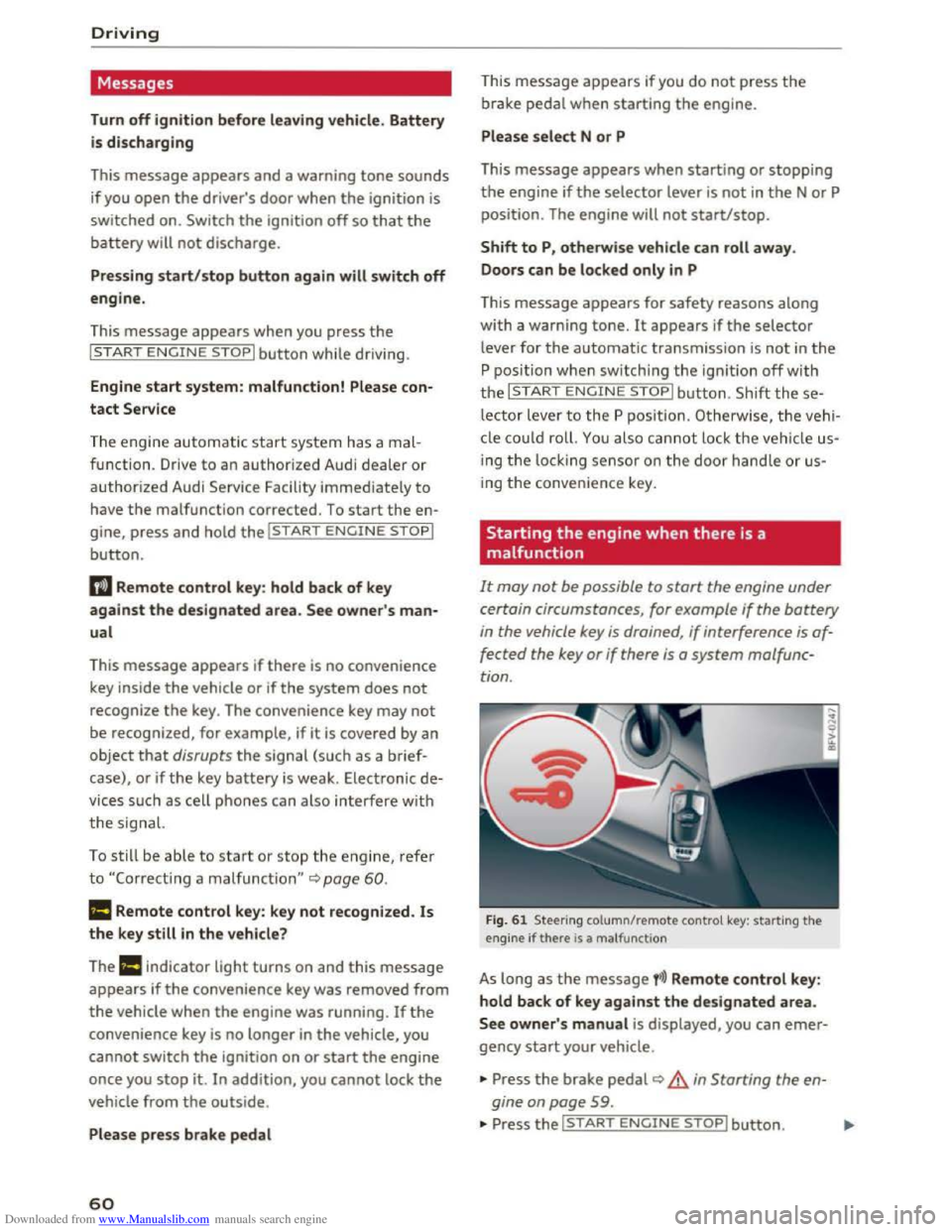

Messages
Turn off ignition before leaving vehicle. Battery
is discharging
This message appears and a warning tone sounds
if you open the driver's door when the ignition is
switched on. Switch
the ignition off so that the
battery will not discharge.
Pressing start/stop b utton again will switch off
engine.
This
message appears when you press the
I START ENGINE STOPI button while driving .
Engine
start system: malfunction! Please con­
tact Service
The engine automatic start system has a mal­
function. Drive
to an authorized Audi dealer or
authorized Audi Service Facility immediately to
have the malfunction corrected. To start the en­
gine,
press and hold the I START ENGINE STOPI
button.
II Remote control key : hold back of key
against the designated area. See owner's man­
ual
This message appears if there is no convenience
key inside
the vehicle or ifthe system does not
recognize the key. The convenience key may not
be recognized, for example, if it is covered by an
object that disrupts the signal (such as a brief­
case), or if
the key battery is weak. Electronic de­
vices su ch as cell phones can also interfere with
the signal.
To still be able to start or stop the engine, refer
to "Correct ing a malfunction" Q page 60.
ml Remote control key : key not recognized . Is
the key still in the vehicle?
The
ml indicator light turns on and this message
appears if the convenience key was removed from
the vehicle when the engine was running. If the
convenience key is no longer in the vehicle, you
cannot switch the ignition on or start the engine
once you stop it. In addition, you cannot lock the
vehicle from the outside.
Please press brake pedal
60
This message appears if you do not press the
brake pedal when starting the engine.
Please select N or P
This
message appears when starting or stopping
the engine if the selector lever is not in the N or P
posi tion. The engine will not start/stop.
Shift to P, otherwise vehicle can roll away.
Doors
can be locked only in P
This
message appears for safety reasons along
with a warning
tone. It appears if the selector
lever for the automatic transmission is not in the
P position when switch ing the ignition off w ith
the I START ENGIN E STOPI button. Sh ift these­
lector lever to the P pos ition. Otherwise, the vehi­
cl e could roll.
You also cannot lock the ve hicl e us­
ing
the loc kin g sensor on the door hand le or us­
ing
the convenience key.
Starting the engine when there is a
malfunction
It may not be possible to start the engine under
certain circumstances, for example
if the battery
in the vehicle key is drained , if interference is af­
fected
the key or if there is a system malfunc­
tion .
Fig. 61 Steering column/remote control key: starting the
engine if there is a ma lfunction
As long as the message fi)) Remote control key:
hold back of key against the designated area.
See owner' s manual is displayed, you can emer­
gency start your vehicle .
... Press the brake pedal~ A in Starting the en­
gine on page
59 .
... Press the~, S~T~A~R~T~E_N _G ~l-N~E-S_T_ O_P~I button. ....

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....

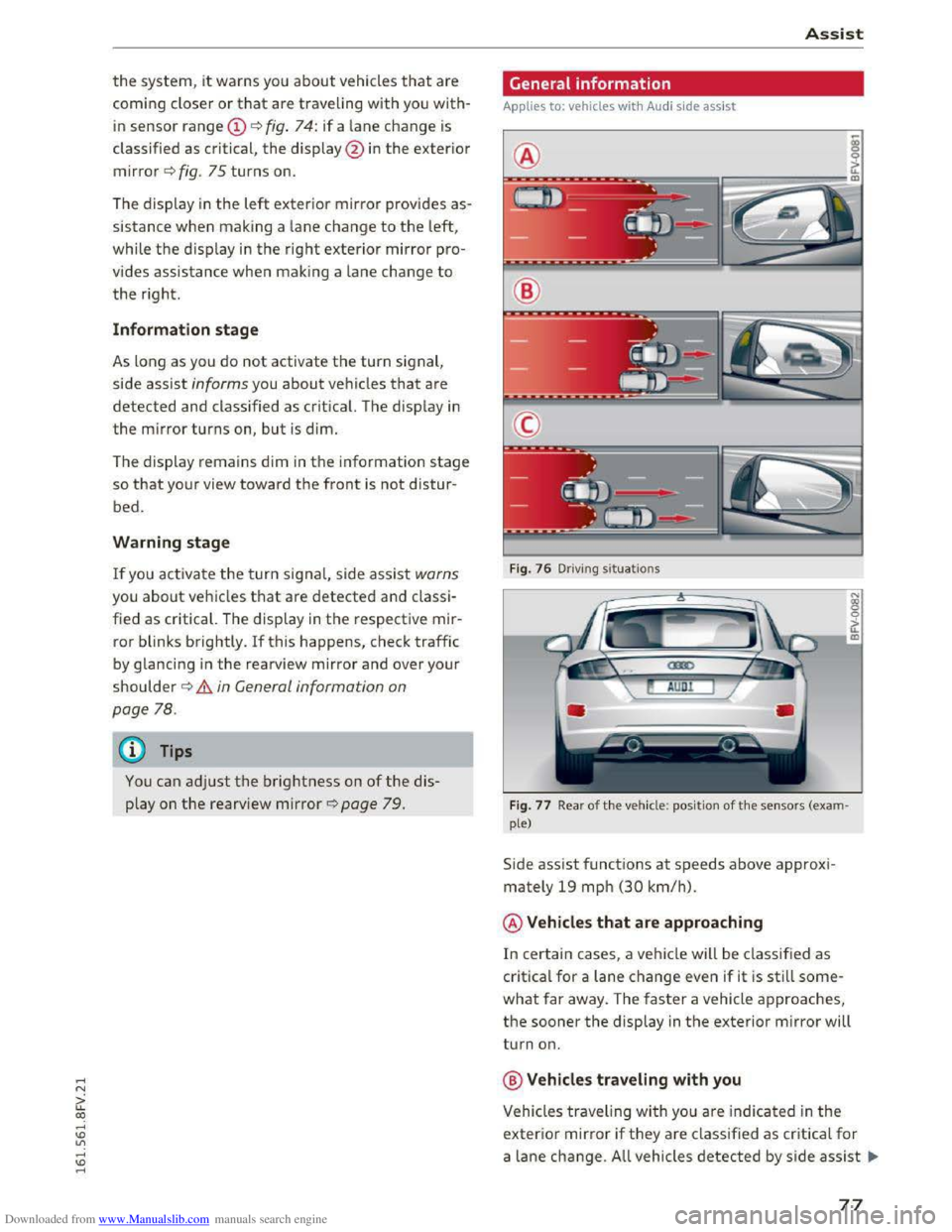

the system, it warns you about vehicles that are
coming closer or
that are traveling with you with­
in sensor range(!) c::> fig. 74: if a lane change is
classified as critical, the display @ in the exterior
mirror c::>fig. 75 turns on.
General information
Applies to: veh icles wit h Aud i s ide assi st
®
Assist
The display in the left exterior mirror provides as­
sistance when making a lane change to the left,
while the disp lay in the right exterior mirror pro­
vides assistance when making a lane change
to
the right. @
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified
as critical. The display in
the mirror turns on, but is dim.
The display remains
dim in the information stage
so that your view toward the front is not distur­
bed.
Warning stage
If you activate the turn signal, side assist warns
you about vehicles
that are detected and classi­
fied
as critical. The display in the respective mir­
ror blinks brightly. If this happens, check traffic
by glancing in the rearview mirror and over your
shoulder
c::> .& in General information on
page 78.
@ Tips
You can adjust the brightness on of the dis­
play on
the rearview mirror r::;, page 79.
Fig. 76 Driv ing s ituations
Fig.
77 Rear of t h e vehicl e: positio n of the sensors (exam­
ple)
Side assist functions at speeds above approxi­
mately 19 mph
(30 km/h).
@Vehicles that are approaching
In certain cases, a vehicle will be classified as
critical for a lane change even if it is still some­
what far away. The faster a vehicle approaches,
the sooner the display in the exterior mirror will
turn on.
@Vehicles traveling with you
Vehicles traveling with you are indicated in the
exterior mirror if they are classified as critica l for
a lane change. All vehicles detected by side assist 111>-
77

Downloaded from www.Manualslib.com manuals search engine Assis t

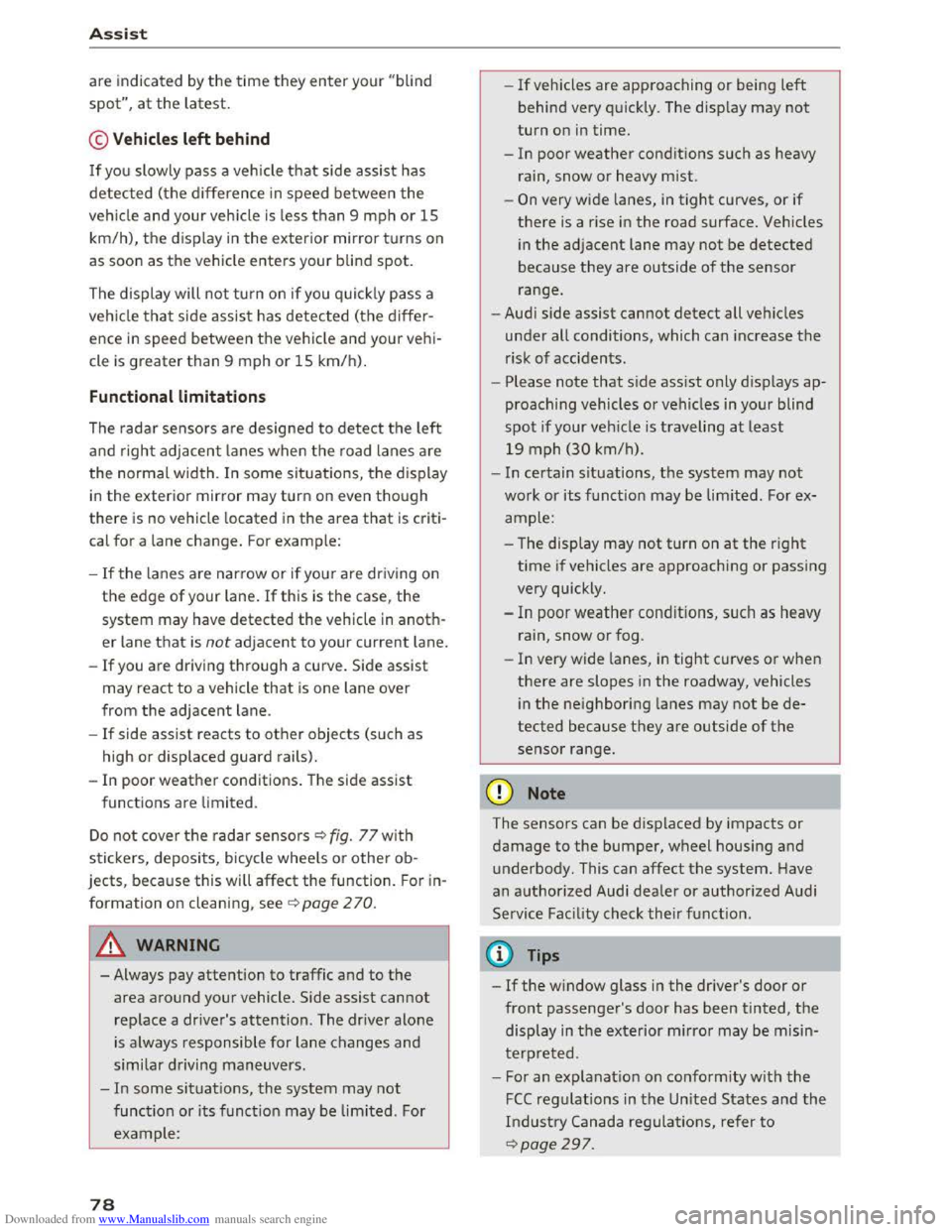

are indicated by the time they enter your "blind
spot",
at the latest.
© Vehicles left behind
If you slowly pass a vehicle that side assist has
detected ( the difference in speed betwee n the
vehicle and your vehicle is less than 9 mph or 15
km/h), the display in the exterior mirror turns on
as soon as the vehicle enters your blind spot.
The display will not turn o n if you quick ly pass a
vehicle that side assist has detected (the differ­
ence in speed between
the vehicle and your vehi­
cle
is greater than 9 mph or 15 km/h).
Functional limitations
The radar senso rs a re designed to detect the left
and right adjacent lanes when the road lanes are
the normal width. In some situations, the display
in the exter ior mirr or may turn on even though
there
is no vehicle located in the area that is criti­
cal
for a lane change. For example:
-
If the lanes are narrow or if your are driving on
the edge of your lane. If this is the case, the
system may have detected the vehicle in anoth­
er lane
that is not adjacent to your current lane.
-
If you are driving through a curve. Side assist
may react
to a vehicle that is one lane over
from the adjacent lane.
-
If side assist reacts to other objects (such as
high or displaced guard rails).
-
In poor weather conditions . The side assist
functions are limited.
Do not cover the radar senso rs c::> fig. 77 w it h
stic kers, deposits, bicycle wheels or
other ob ­
jects,
because this will affect the function. For in­
formation on cleaning, see c::>poge 270.
.&. WARNING
-Always pay attention to traffic and to the
area around your vehicle. Side assist cannot
replace a
driver's attention. The driver alone
is always responsible for lane changes and
similar driving maneuvers.
-
In some situati ons, the system may not
function or its function may be limited. For
example:
78
-If vehicles are app roaching or being left
behind very quickly . The display may not
turn on in time.
-
In poor weather condit ions such as heavy
r ain, snow or heavy
mist.
-
On very wide lanes, in tight curves, or if
there is a r ise in the road surface. Vehicles
i n
the adjacent lane may not be detected
because they are outside
of the sensor
range.
-
Audi side assist cannot detect all vehicles
under
all conditions, which can increase the
risk of acciden ts.
-Please note that side assist only disp lays ap­
proach ing vehicles
or veh icles in your blind
spot if your vehicle is traveling at l east
19 mph (30 km/h).
-In certain situations, th e system may not
work or its function may be limited. For ex­
ample:
- The displ
ay may not turn on at the right
time if vehicles are approaching or passing
very quickly.
-In poor weathe r condit ions, such as heavy
rain, snow or fog .
-
In very wide lanes, in tight cu rves or when
there are slopes in the roadway, vehicles
i n
the neighboring lanes may not be de­
tected because they a re outside
of the
senso r range.
CD Note
The sensors can be displaced by impacts or
damage
to the bumper, wheel housing and
underbody. This
can affect the system. Have
an authorized Audi dealer or authorized Audi
Service
Facility check thei r f unct ion .
(D Tips
-If the window glass in the driver's door or
front passenger 's door has been tinted, the
display in th e exterior mirror may be misin­
terpreted.
- For
an explanation on conform ity with the
FCC reg ulations in the United States and the
Industry Canada regulatio ns, refer to
c::>poge 297.

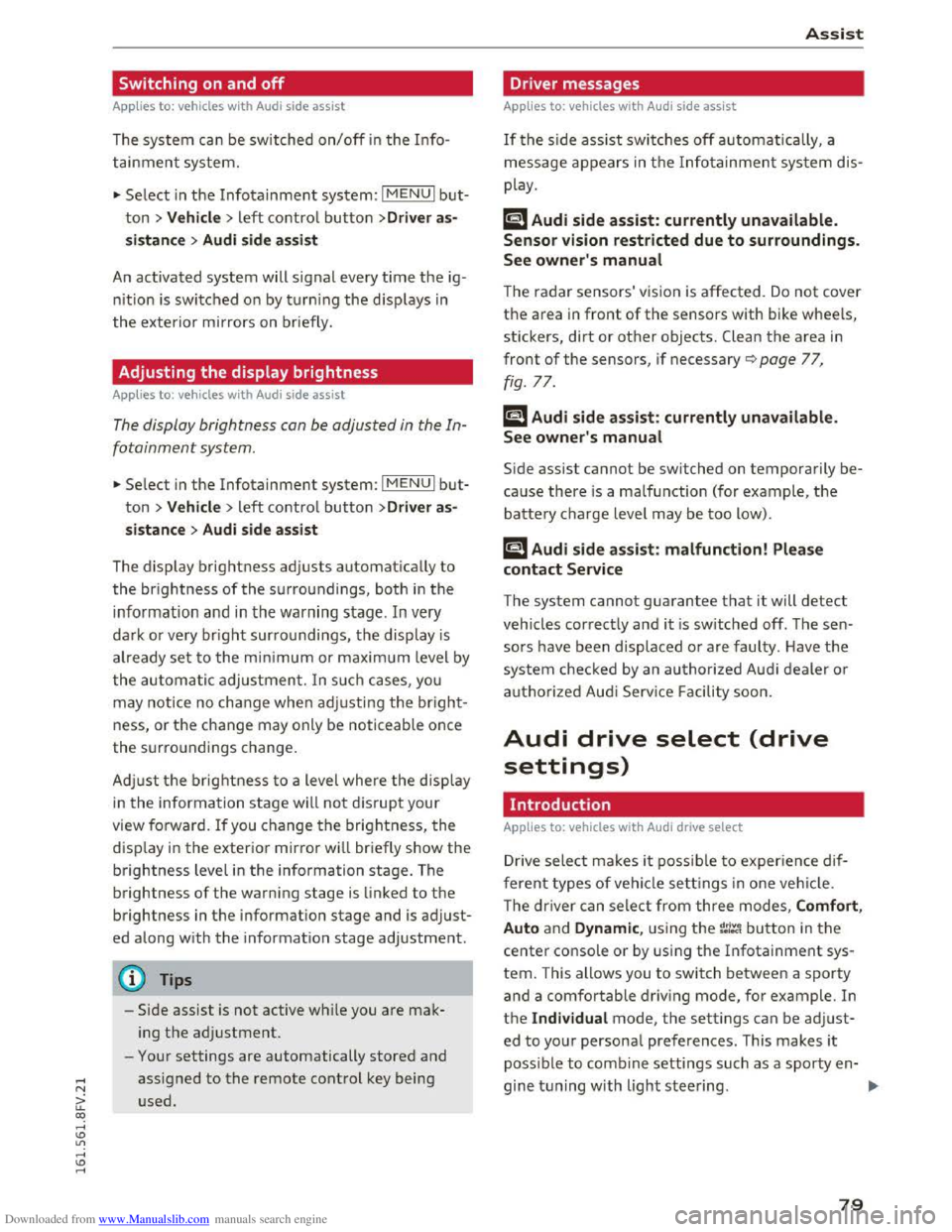

Downloaded from www.Manualslib.com manuals search engine Switching on and off
App lies to: vehicles with Audi side assist
The system can be switched on/off in the Info­
tainment system.
"'Select in the Infotainment system: IM ENUI but­
ton >Vehicle > left control button >Driver as­
sistance >Audi side assist
An activated system will signal every time the ig­
nition is switched on by turning the displays in
the exterior mirrors on briefly.
Adjusting the display brightness
Applies to: vehicles with Audi side assist
The display brightness can be adjusted in the In­
fotainment system.
"'Select in the Infotainment system: IM ENUI but­
ton >Vehicle > left control button >Driver as­
sistance >Audi side assist
The display brightness adjusts automatically to
the brightness of the surroundings, both in the
information and in the warning stage. In very
dark or very bright surroundings, the display is
already set to the minimum or maximum level by
the automatic adjustment. In such cases, you
may notice no
change when adjusting the bright­
ness, or the change may only be noticeable once
the surroundings change.
Adjust
the brightness to a level where the display
in the information stage will not disrupt your
view forward. If you change the brightness, the
display in the exterior mirror will briefly show the
brightness level in the information stage. The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment.
-Side assist is not active while you are mak­
ing the adjustment.
- Your settings are automatically stored and
assigned to the remote control key being
used.
Assist
Driver messages
Applies to: vehicles with Audi side assist
If the side assist switches off automatically, a
message appears in the Infotainment system dis ­
play.
@i Audi side assist: currently unavailable.
Sensor vision restricted due to surroundings.
See owner's
manual
The radar sensors' vision is affected. Do not cover
the area in front of the sensors with bike wheels,
stickers, dirt or other objects. Clean the area in
front of the sensors, if necessary q page 77,
fig. 77.
@i Audi side assist: currently unavailable.
See owner's
manual
Side assist cannot be switched on temporarily be­
cause there is a malfunction (for example, the
battery charge level may be too low).
@i Audi side assist: malfunction! Please
contact
Service
The system cannot guarantee that it will detect
vehicles correctly and it is switched off. The sen­
sors have been displaced or are faulty. Have the
system checked by an authorized Audi dealer or
authorized Audi Service Facility soon.
Audi drive select (drive
settings)
Introduction
Applies to: vehicles with Audi drive select
Drive select makes it possible to experience dif­
ferent types of vehicle settings in one vehicle.
The driver can
select from three modes, Comfort,
Auto and Dynamic, using the~.~;\,~ button in the
center console or by using the Infotainment sys­
tem. This allows you to switch between a sporty
and a comfortable driving mode, for example. In
the Individual mode, the settings can be adjust­
ed to your personal preferences. This makes it
possible to combine settings such as a sporty en-
gine
tuning with light steering. .,.
79

Downloaded from www.Manualslib.com manuals search engine Assist
& WARNING
Using Audi drive select incorrectly can lead to
collisions, other accidents and serious inju­
ries.

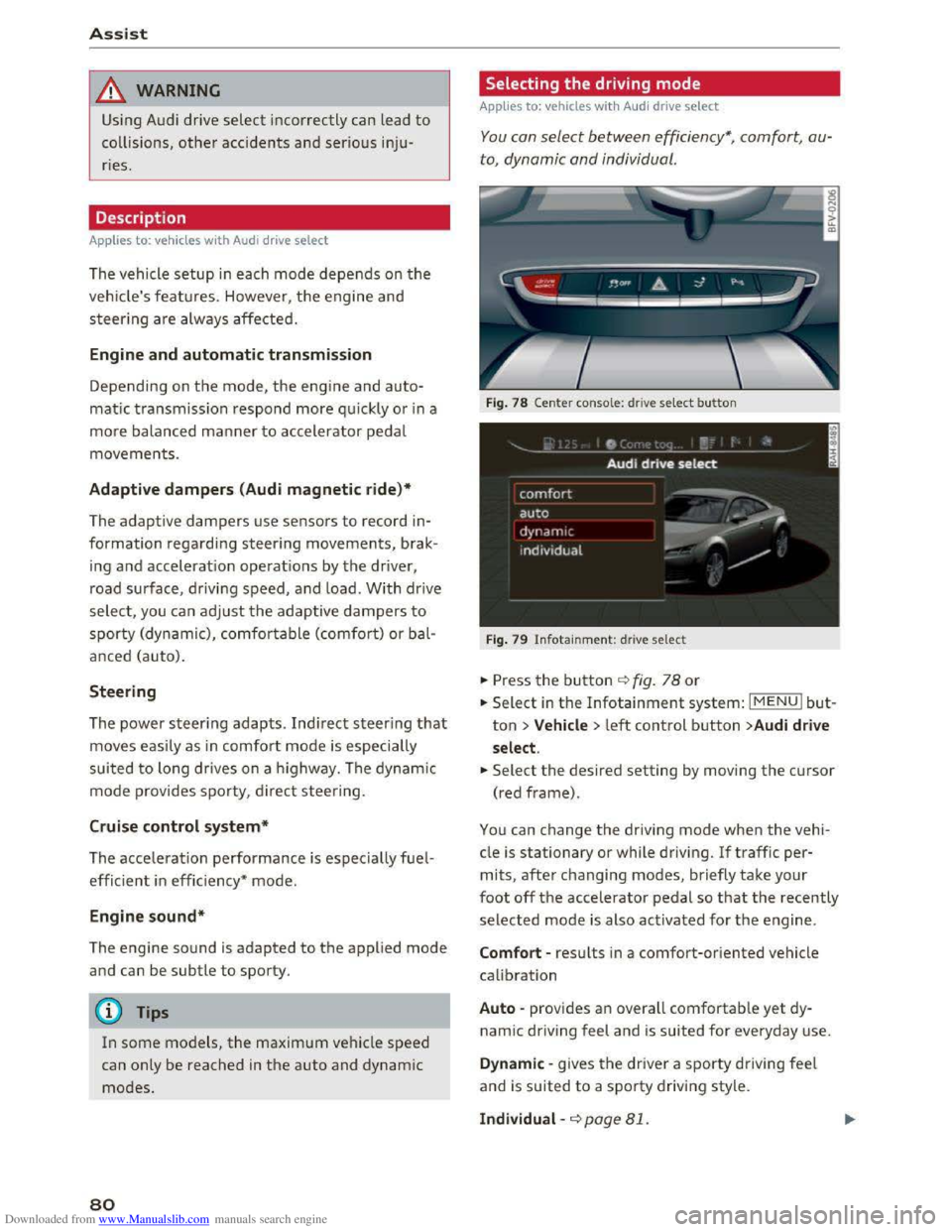

Description
Applies to: vehicles with Audi drive select
The vehicle setup in each mode depends on the
vehicle's features. However, the engine and
steering are always affected.
Engine and automatic transmission
Depending on the mode, the engine and auto­
matic transmission respond more quickly or i n a
more balanced
manner to accelerator pedal
movements.
Adaptive dampers (Audi magnetic ride)*
The adaptive dampers use sensors to record in­
formation regarding steering movements, brak­
ing and acceleration operations by the driver,
road
surface, driving speed, and load. With dri ve
select, you can adjust the adaptive dampers to
sporty (dynamic), comfortable (comfort) or ba l­
anced (auto).
Steering
The power steering adapts. Indirect steering that
moves easily as in comfort mode is especially
suited to long drives on a highway. The dynamic
mode provides sporty, direct steering.
Cruise control system*
The acceleration performance is especially fuel­
efficient in efficiency* mode.
Engine sound*
The engine sound is adapted to the applied mode
and can be subtle to sporty.
@ Tips
In some models, the maximum vehicle speed
can only be reached in the auto and dynamic
modes.
80
Selecting the driving mode
Applies to: vehicles with A ud i drive select
You can select between efficiency*, comfort, au­
to, dynamic and individual.
Fig. 78 Center conso le: drive select button
Fig. 79 Infotainment: drive select
.. Press the button ¢fig. 78 or
.. Select in the Infotainment system: IMENUI but­
ton >Vehicle > left control button >Audi drive
select .
.. Select the desired setting by moving the cursor
(red frame).
You can change the driving mode when the vehi­
cle is stationary or while driving. If traffic per­
mits, after changing modes, briefly take your
foot off the accelerator pedal so that the recently
selected mode is also activated for the engine.
Comfort -results in a comfort-oriented vehicle
calibration
Auto -provides an overall comfortable yet dy­
namic driving feel and is suited for everyday use.
Dynamic -gives the driver a sporty driving feel
and is suited to a sporty driving style.
Individual -¢page 81.

Downloaded from www.Manualslib.com manuals search engine Parking systems

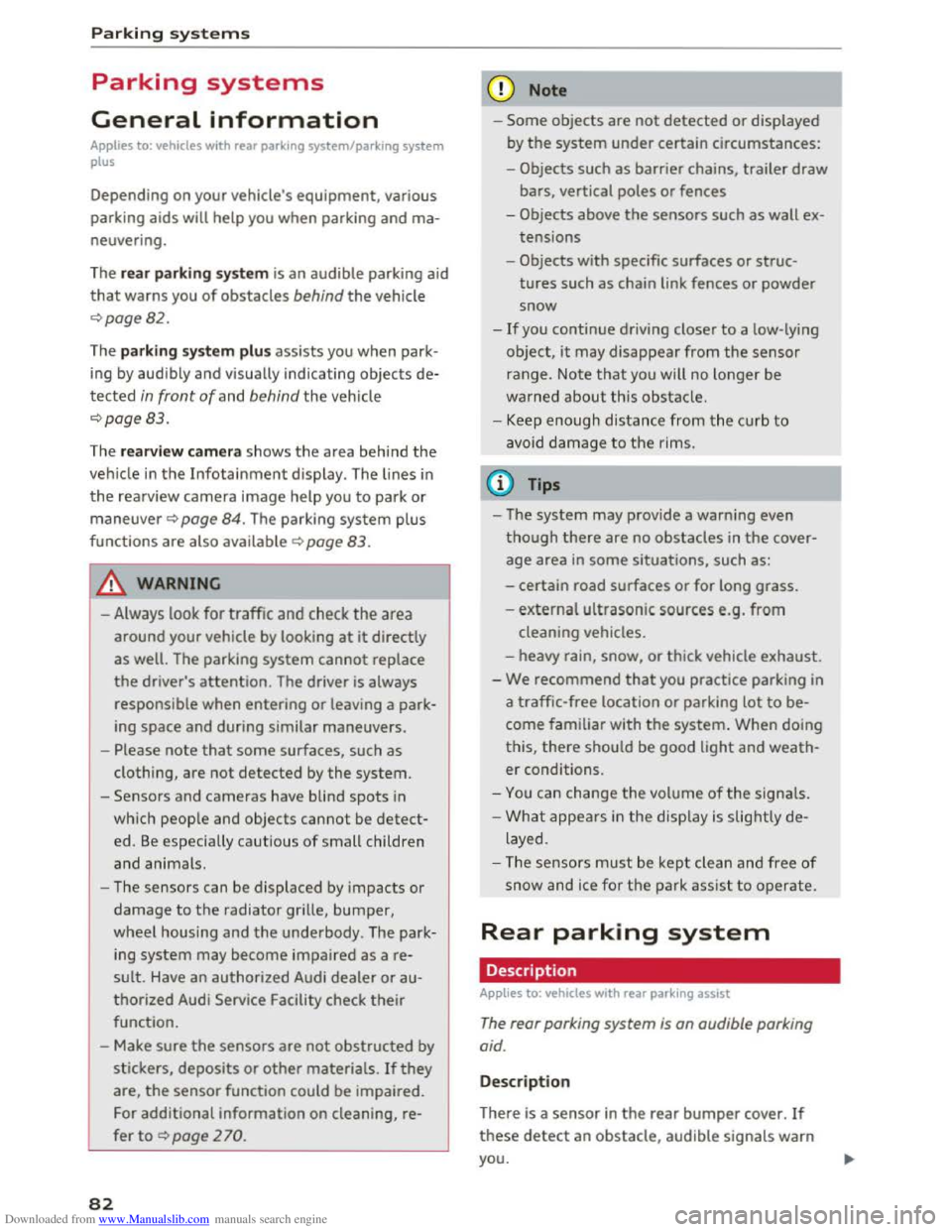

Parking systems
General information
Applies to: vehicles with rear parking system/parking system
plus
Depending on your vehicle's equipment, various
parking aids will
help you when parking and ma­
neuvering.
The r
ear pa rk ing syst em is an audible parking aid
that warns you of obstacles behind the vehicle
9page82.
The parking syste m plus assists you when park­
ing by audibly and visually indicating
objects de­
tected in front of and behind the vehicle
9page 83.
The rearv iew cam era shows the area behind the
vehicle in the Infotainment d isplay. The lines in
the rearview camera image help you to park or
maneuver~ page 84. The parking system plus
functions are also available~ page 83.
A WARNING
r-= ---'
-Always look for traffic and check the area
around your vehicle by looking at it directly
as well. The parking system cannot replace
the driver's attention. The driver is always
responsible when entering or leaving a park­
ing
space and during similar maneuvers.
-
Please note that some surfaces, such as
clothing,
are not detected by the system.
-Sensors and cameras have blind spots in
which people and objects cannot be detect­
ed. Be especia lly cautious of small children
and animals.
- The
sensors can be displaced by impacts or
damage to the radiator grille, bumper,
wheel housing and the underbody. The park­
ing
system may become impaired as a re­
sult. Have an authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
- Make
sure the sensors are not obstructed by
stickers,
deposits or other materials. If they
are, the sensor function could be impaired.
For
additional information on cleaning, re­
fer to ~page 2 70.
82
-Some objects are not detected or displayed
by
the system under certain circumstances:
- Objects
such as barrier chains, trailer draw
bars, vertical poles or fences
- Objects above
the sensors such as wall ex­
tensions
-Objects with specific surfaces or struc­
tures such as chain link fences or powder
snow
-If you continue driving closer to a low-lying
object, it may
disappear from the sensor
range. Note that you will no longer be
warned about this obstacle.
- Keep enough distance from the curb to
avoid damage to the rims.
(D Tips
-The system may provide a warning even
though there are no obstacles in the cover­
age area in some situations, such as:
-
certain road surfaces or for long grass.
-external ultrasonic sources e.g. from
cleaning vehicles.
- heavy rain, snow,
or thick vehicle exhaust.
-We recommend that you practice parking in
a traffic-free location or parking lot to be­
come familiar with the system. When doing
this,
there should be good light and weath­
er conditions.
-
You can change the volume of the signals.
-
What appears in the display is slightly de-
layed.
- The
sensors must be kept clean and free of
snow and ice for the park assist to operate.
Rear parking system
Description
Applies to: vehicles with rear parking assist
The rear parking system is an audible parking
aid.
Description
There is a sensor in the rear bumper cover. If
these detect an obstacle, audible signals warn
you.

Downloaded from www.Manualslib.com manuals search engine Make sure the sensors are not covered by stick ­
ers, deposits or any other obstructions
as it may
impair
the sensor function. For information on
cleaning , refer
to c:::> page 2 70.
The range at which the sensors begin to measure
is approximately:
side 3
ft (0
.90 m)
rear center 5.2
ft (1.60
m)
The closer you
get to the obstacle, the shorter
the interval between the audible signals. A con ­
tinuous tone sounds when
the obstacle is less
than approximately 1
foot (0.30 meters) away.
Do not continue backing up c:::> .&. in General infor­
mation on page 82, c:::>(D in General information
on page 82!
If the distance to an obstacle remains constant,
the volume of the distance warning gradually
drops
after about four seconds (this is not apply
i n
the continuous tone range).
Activating
The rear parking assist activates automatically
when
the reverse gear is engaged. You will hear a
brief confirmation tone.

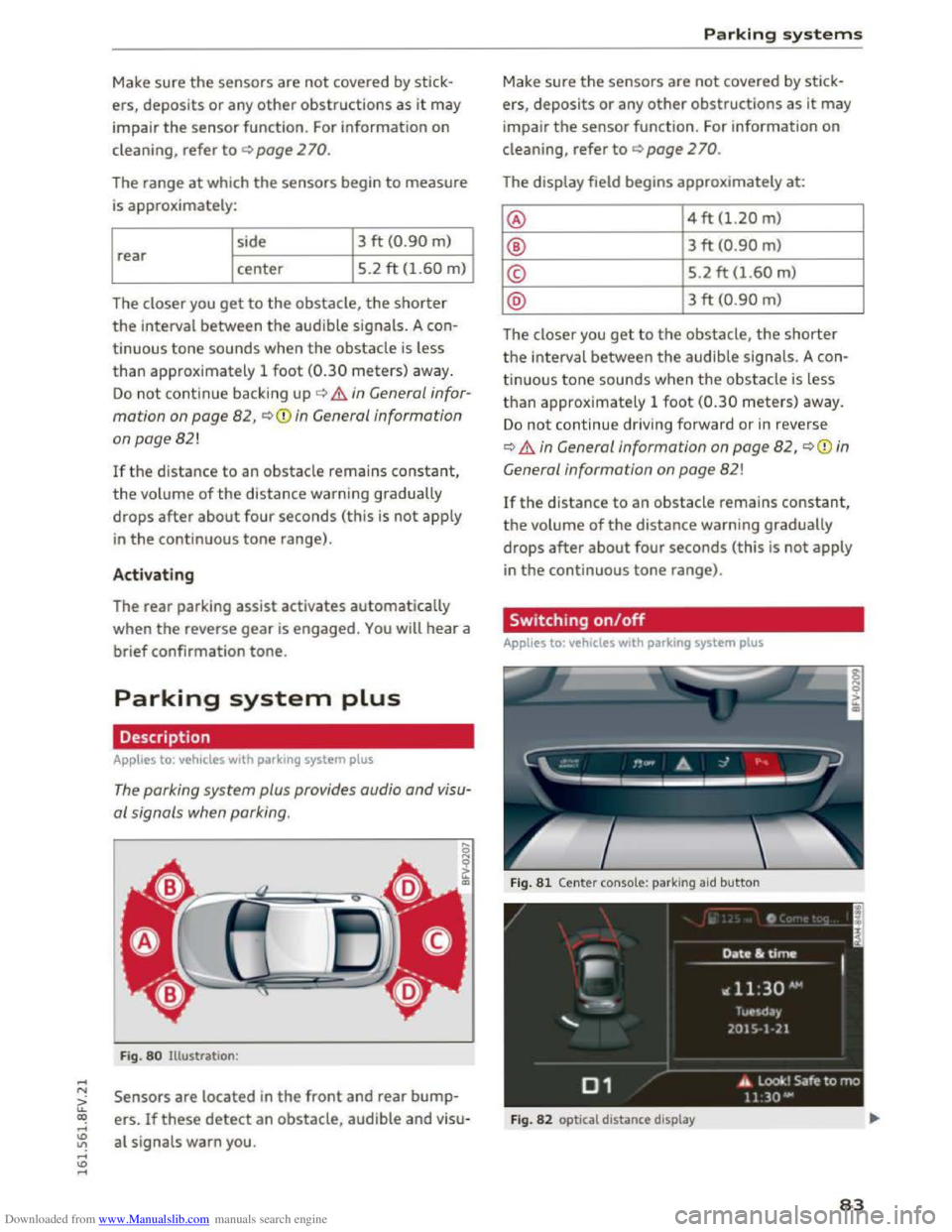

Parking system plus
Description
Applies to: vehicles with parking system plus
The parking system plus provides audio and visu­
al signals when parking.
Fig . 80 Illustration :
Sensors are located in the front and rear bump­
ers.
If these detect an obstacle, audible and visu­
al signals warn you.
Parking systems
Make sure the sensors are not covered by stic k­
ers, deposits
or any other obstruc tions as it may
impair
the sensor function. For information on
cleaning, refer
to c:::> page 2 70.
The display field begins approximately at:
@ 4 ft (1.20 m)
® 3 ft (0 .90 m)
© 5.2 ft (1.60 m)
@ 3 ft (0.90 m)
The closer you
get to the obstacle, the shorter
the interval between the audible signals. A con­
tinuous tone sounds when the obstacle is less
t h a n approx imately 1
foot (0.30 meters) away.
Do not continue driv ing forward or in reverse
c:::> .&. in General information on page 82, c:::> (i) in
G eneral
information on page 82!
If the distance to an obstacle remains constant,
the volume
of the distance warning gradually
drops
after about four seconds (this is not apply
in the continuous tone range) .
Switching on/off
Applies to: vehicles with parking system plus
F i
g. 81 Center console: parking aid button
Fig. 82 optical distance display
83

Downloaded from www.Manualslib.com manuals search engine Parking systems
in the parking space c) fig. 86. Use the mark­
ings @
to help you estimate th e distance from
an obstacle. Each marking represents approxi ­
mately 3 ft (1 m) . The blue area represents an
extension of the vehicle's outline by approxi­
mately 16 ft (5 meters) to the rear.
.,.. While driving in reverse gear, adjust the steer­
ing wheel angle to fit the parking space using
the orange orientation lines for assistance
c) .&. in General information on page 84, c)(i)
in General information on page 85.@ displays
the rear bumper. Stop the vehicle, at the latest,
when
the red orientation line @ borders an ob ­
j ect.

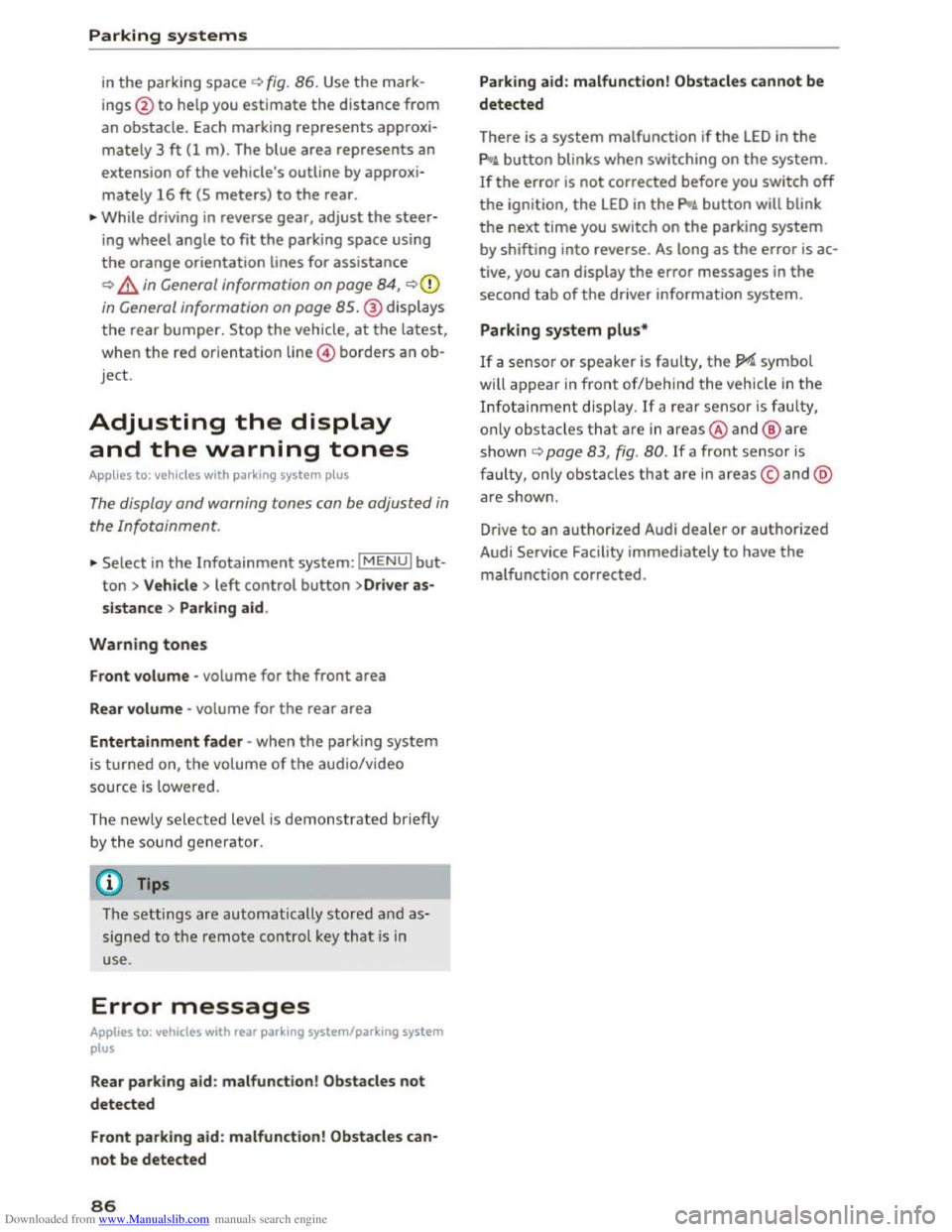

Adjusting the display
and the warning tones
A pp lies to: vehicles with park ing system plus
The display and warning tones can be adjusted in
the Infotainment.
.,.. Select in the Infotainment system: IMENUI but­
ton > Vehicle > left control button >Dr iver as­
sistance > Parking aid.
Warning tones
Front volume -volume for the front area
Rear volume -volume for the rear area
Entertainment fader -when the parking system
is turned on, the volume of the aud io/video
source
is l owered.
The newly selected level is demonstrated briefly
b y the sou nd
generator.
(}) Tips
The settings are automatically stored a nd as­
signed to the remote control key that is in
use.
Error messages
Applies to: vehicles with rear parking system/parking system
plus
Rear parking aid : malfunction! Obstacles not
detected
Front parking aid : malfunction! Obstacles can­
not be detected
86
Parking aid: malfunction! Obstacles cannot be
detected
There is a system malfunction if the LED in the
pg~ button blinks when switching on the system.
If the error is not corrected before you switch off
the ignition, the LED in the pg~ button will blink
the next time you switch on the parking system
by shifting into reverse . As long as the error is ac­
tive, you can display
the error messages in the
second tab of the driver information system.
Parking system plus*
If a sensor or speaker is faulty, the JM symbol
will
appear in front of/behind the vehicle in the
Infotainment display. If a rear sensor is faulty,
o nl y o
bstacles that a re in areas@and@ are
s h own c) page 83, fig. 80. If a front sensor is
faulty, only obstacles that are in areas© and @
ar e show n.
Drive
to an authorized Audi dealer or authorized
Audi Service Facility immediately
to have the
malfunction corrected.

Downloaded from www.Manualslib.com manuals search engine Intelligent Technology

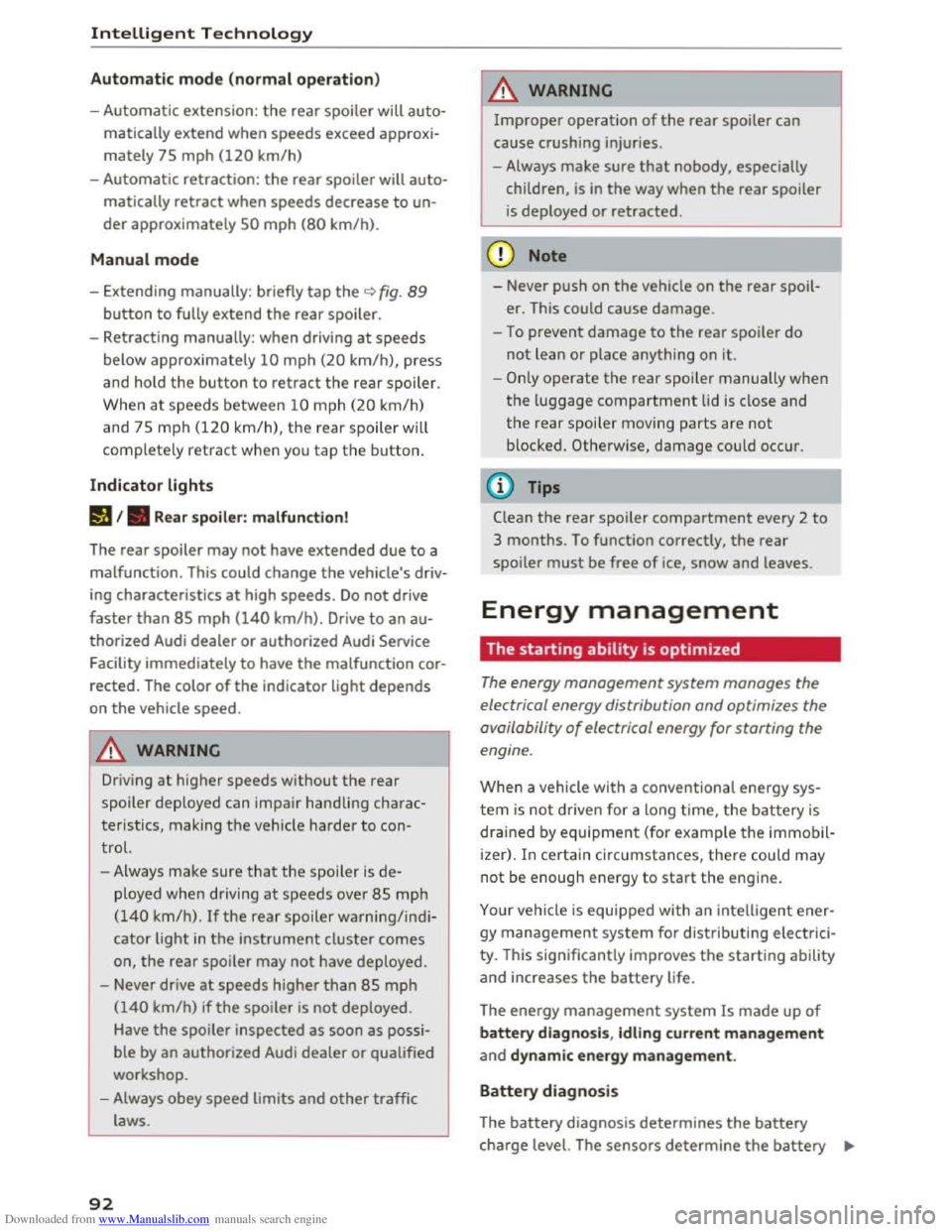

Automatic mode (normal operation)
-Automatic extension: the rear spoiler will auto­
matically extend when speeds exceed approxi­
mately 75 mph (120 km/h)
-Automatic retraction: the rear spoiler will auto­
matically retract when speeds decrease to un­
der approximately 50 mph (80 km/h).
Manual mode
-Extending manually: briefly tap the~ fig. 89
button to fully extend the rear spoiler.
- Retracting manually:
when driving at speeds
below approximately 10 mph (20 km/h), press
and hold the button to retract the rear spoiler.
When at speeds between 10 mph (20 km/h)
and 75 mph (120 km/h), the rear spoiler will
completely retract when you tap the button.
Indicator lights
Ii) I. Rear spoiler: malfunction!
The
rear spoiler may not have extended due to a
malfunction.
This could change the veh icle's driv­
ing characteristics
at high speeds. Do not drive
faster than 85 mph (140 km/h). Drive to an au ­
thorized Audi dealer or authorized Audi Service
Facility
immediately to have the malfunction cor­
rected. The color
of the indicator light depends
on the vehicle speed.
..&. WARNING
-
Driving at higher speeds without the rear
spoiler deployed can impair handling charac­
teristics, making
the vehicle harder to con­
trol.
- Always
make sure that the spoiler is de­
ployed when driving at
speeds ove r 85 mph
(140 km/h). If the rear spoiler warning/indi­
cator light in the instrument cluster comes
on, the rear spoiler may not have deployed.
- Never drive
at speeds higher than 85 mph
(140 km/h) ifthe spoiler is not deployed.
Have
the spoiler inspected as soon as possi ­
ble by an
authorized Audi dealer or qualified
workshop.
- Always obey
speed limits and other traffic
laws.
92
..&. WARNING
Improper operation of the rear spoiler can
cause crushing injuries.
-Always make sure that nobody, especially
children, is
in the way when the rear spoiler
is deployed or retracted.
«J:) Note
-Never push on the vehicle on the rear spoil­
er. This could
cause damage.
- To
prevent damage to the rear spoiler do
not lean or place anything on it.
-
-Only operate the rear spoiler manually when
the luggage compartment lid is close and
the rear spoiler moving parts are not
blocked. Otherwise, damage could occur.
(D Tips
Clean the rear spoiler compartment every 2 to
3 months. To function correctly, the rear
spoiler must be free of ice, snow and leaves.
Energy management
The starting ability is optimized
The energy management system manages the
electrical energy distribution
and optimizes the
availability
of electrical energy for starting the
engine.
When a vehicle with a conventiona l energy sys­
tem is not driven for a long time, the battery is
drained by equipment (for example the immobil­
izer). In
certain circumstances, there could may
not be enough energy to start the engine.
Your vehicle
is equipped with an intelligent ener­
gy
management system for distributing electrici­
ty. T his sign ificant
ly improves the starting ability
and increases the battery life.
The
energy management system Is made up of
battery diagnosis, Idling current management
and dynamic energy management.
Battery diagnosis
The battery diagnosis determines the battery
charge level. The sensors determine the battery Ill>

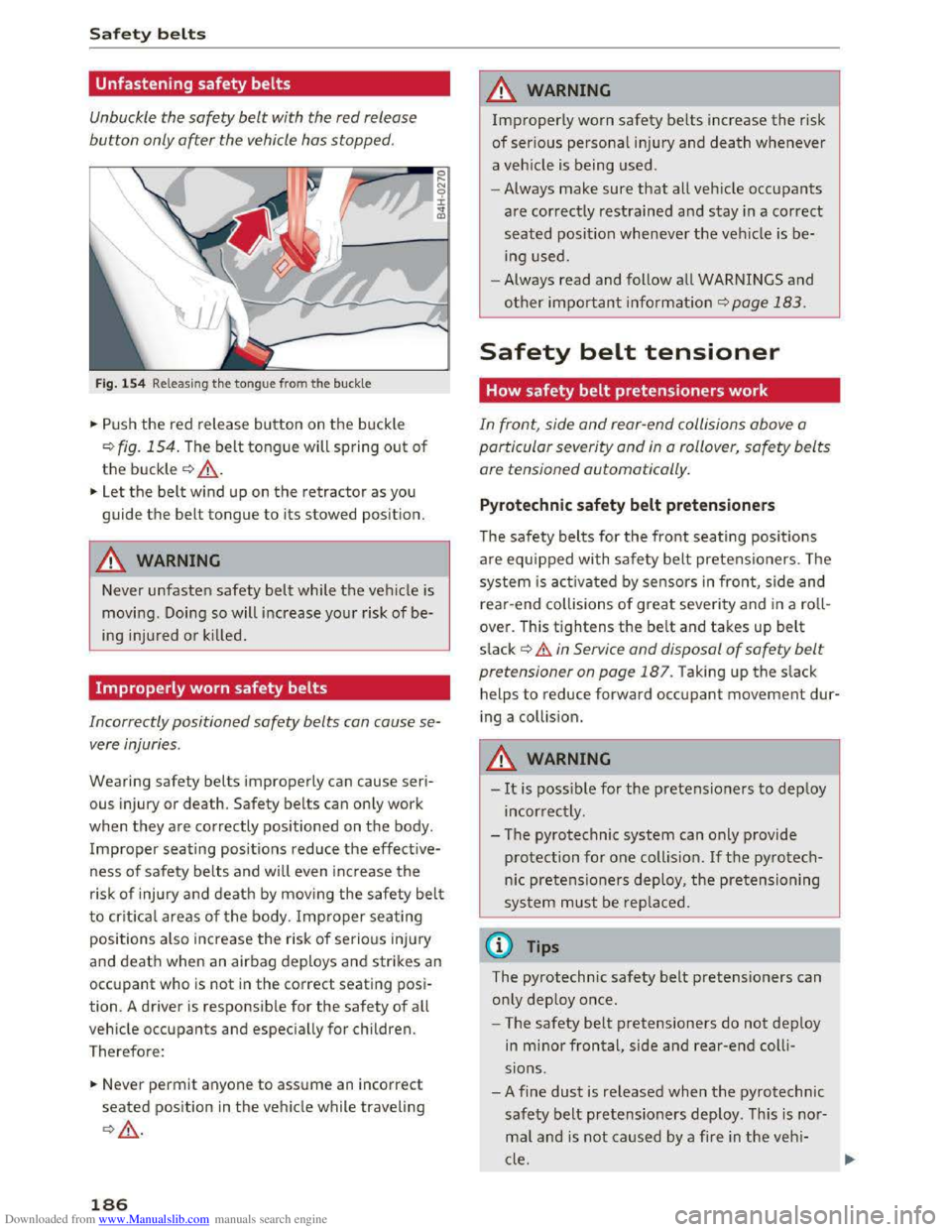

Downloaded from www.Manualslib.com manuals search engine Safety belts
Unfastening safety belts
Unbuckle the safety belt with the red release
button only after the vehicle has stopped.


Fig. 154 Releasing the tongue from the buckle
.. Push the red release button on the buckle
Q fig. 154. The belt tongue will spring out of
the buckle Q ,&..
.. Let the belt wind up on the retractor as you
guide
the belt tongue to its stowed position.
A WARNING
Never unfasten safety belt while the vehicle is
moving . Doing so will increase your risk of be­
ing injured
or kil led.
Improperly worn safety belts
a
~ 0 ± .. QJ
Incorrectly positioned safety belts can cause se­
vere injuries .
Wearing safety belts improperly can cause seri­
ous injury or death. Safety belts can only work
when they are correctly positioned on the body.
Improper seating positions reduce the effective­
ness of safety belts and wil l even increase the
risk of injury and death by mov ing the safety belt
to crit ica l areas of the body. Improper seating
positions also increase the risk of serious injury
and death when an airbag deploys and strikes an
occupant who is not in the correct seating posi­
tion. A driver
is responsible for the safety of all
vehicle
occupants and especially for children.
Therefore:
.. Never permit anyone to assume an incorrect
seated position in the vehicle while traveling
QA .
186
A WARNING
Improperly worn safety belts increase the risk
of serious personal injury and death whenever
a veh icle is being used.
- Always
make sure that all veh icle occupants
are corr ectly restrained and stay in a correct
seated position whenever the vehicle is be­
ing
used.
- Always read and follow all WARNINGS and
other important information Q page 183.
Safety belt tensioner
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular severity
and in a rollover, safety belts
are tensioned automatically .
Pyrotechnic safety belt pretensioners
The safety belts for the front seati ng pos it io ns
are equipped with safety belt pretensioners. The
system is acti va ted by sensors in front, side and
r
ear-end collisions of great seve rity and in a roll­
over. This
tightens the belt and takes up belt
s lack ~ .& in Service and disposal of safety belt
pretensioner on page 187. Taking up the slack
helps
to reduce forward occupant movement dur­
i ng a collis ion.
A WARNING
-It is possi ble for the pretensioners to deploy
incorrect ly .
- The pyrotechnic
system can only provide
protection for one collision. If th e py rotech­
nic pretensioners deploy, the pretensioning
sys tem must be replaced.
(!) Tips
The pyrotechnic safety belt pretensioners can
o nl y
deploy once .
- The
safety belt pretensioners do not deploy
in minor frontal, side and rear-end colli­
sions .
- A
fine dust is re leased when the pyrotechnic
safety belt pretensioners deploy . This is no r­
mal and is not caused by a fire in the veh i­
cle.
