service schedule AUDI TT ROADSTER 2016 Owners Manual

Downloaded from www.Manualslib.com manuals search engine Technical
data
Vehicle identification
data
XXXXX XX -X -XXXX XXX
(1\_J_ FAHRZG. -llENT -NR.
� VEHnE-IOENT -NO. xx
P /TYPE XXXXXXXX
XX X
XXXXXXXX
XXX XXX
I XX
XXXXXXX XX X.X XX
XXX KW
XXX
®i �i��:-:::s��
OE
xxxx
XXX XXX
©+ �N
:t,) N
�:� r.
xxxx I xxxx XXX I xx
M. -AUSSl/ !M'TIONS
EOA 7D5
4UB 6XM 5SG 5RW
2EH JOZ lLB
lAS 1BA
3FC 5MU 7X1
FOA 9G3 OG7
OYH
OJF
TL6 3KA 8EH UlA X9B QZ7 lXW
803 908 8Z4 D2D
7T6 CV7
7KO
4X3 2K2
3L4 4KC 3YO
4I3 5D2
15A 7GB 01A
4GO
® XX.
X XX.
X XX. X xxxx
® @ © @

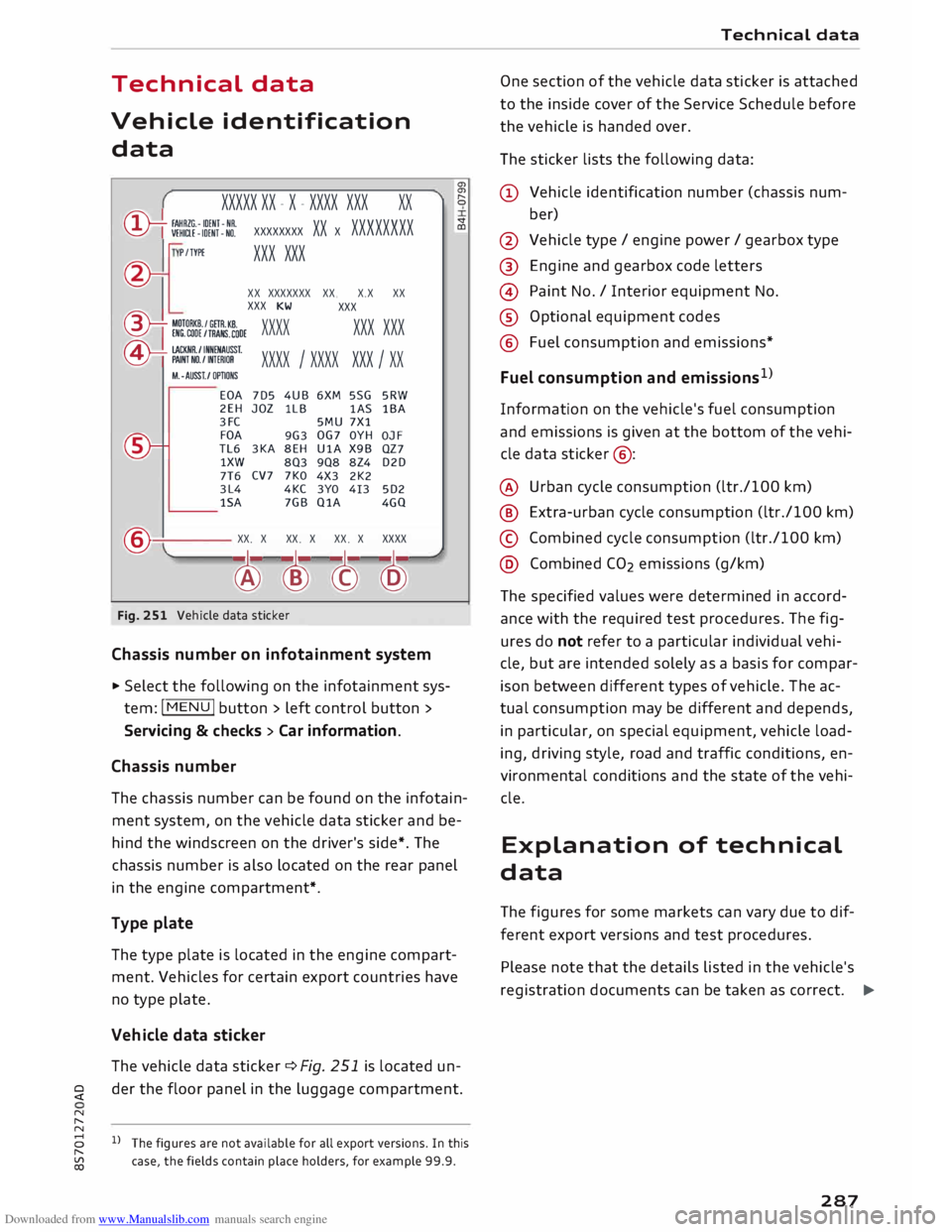

Fig. 251 Vehicle data sticker
Chassis number on infotainment system
... Select the following on the infotainment sys­
tem: I MENU I button > left control button >
Servicing & checks > Car information.
Chassis number a,
a,
"
0
V
CD
The chassis number can be found on the infotain­
ment system, on the vehicle data sticker and be­
hind the windscreen on the driver's side*. The
chassis number is also located on the rear panel
in the engine compartment*.
Type plate
The type plate is located in the engine compart­
ment. Vehicles for certain export countries have
no type plate.
Vehicle data sticker
The vehicle data sticker¢ Fig. 251 is located un-
� der
the floor panel in the luggage compartment.
N
,.....
N
8 l}The figures are not available for all export versions. In this
,.....
� case,
the fields contain place holders, for example 99.9. Technical
data
One section of the vehicle data sticker is attached
to the inside cover of the Service Schedule before
the vehicle is handed over.
The sticker lists the following data:
(!) Vehicle identification number (chassis num-
ber)
@ Vehicle type/ engine power/ gearbox type
@ Engine and gearbox code letters
@ Paint No./ Interior equipment No.
® Optional equipment codes
@ Fuel consumption and emissions*
Fuel consumption and emissions 1
>
Information on the vehicle's fuel consumption
and emissions is given at the bottom of the vehi­
cle data sticker @:
@ Urban cycle consumption (ltr./100 km)
@ Extra-urban cycle consumption (ltr./100 km)
© Combined cycle consumption (ltr./100 km)
@ Combined CO2 emissions (g/km)
The specified values were determined in accord­
ance with the required test procedures. The fig­
ures do not refer to a particular individual vehi­
cle, but are intended solely as a basis for compar­
ison between different types of vehicle. The ac­
tual consumption may be different and depends,
in particular, on special equipment, vehicle load­
ing, driving style, road and traffic conditions, en­
vironmental conditions and the state of the vehi­
cle.
Explanation of technical
data
The figures for some markets can vary due to dif­
ferent export versions and test procedures.
Please note that the details listed in the vehicle's
registration documents can be taken as correct. .,.
287
