BMW 1 SERIES 2010 User Guide

At a glance
This overview of buttons, switches and displays
is intended to familiarize you with your vehicle's
operating environment. The section will also
assist you in becoming acquainted with the
control concepts and options available for
operating the various systems.
At a glance

Cockpit
10

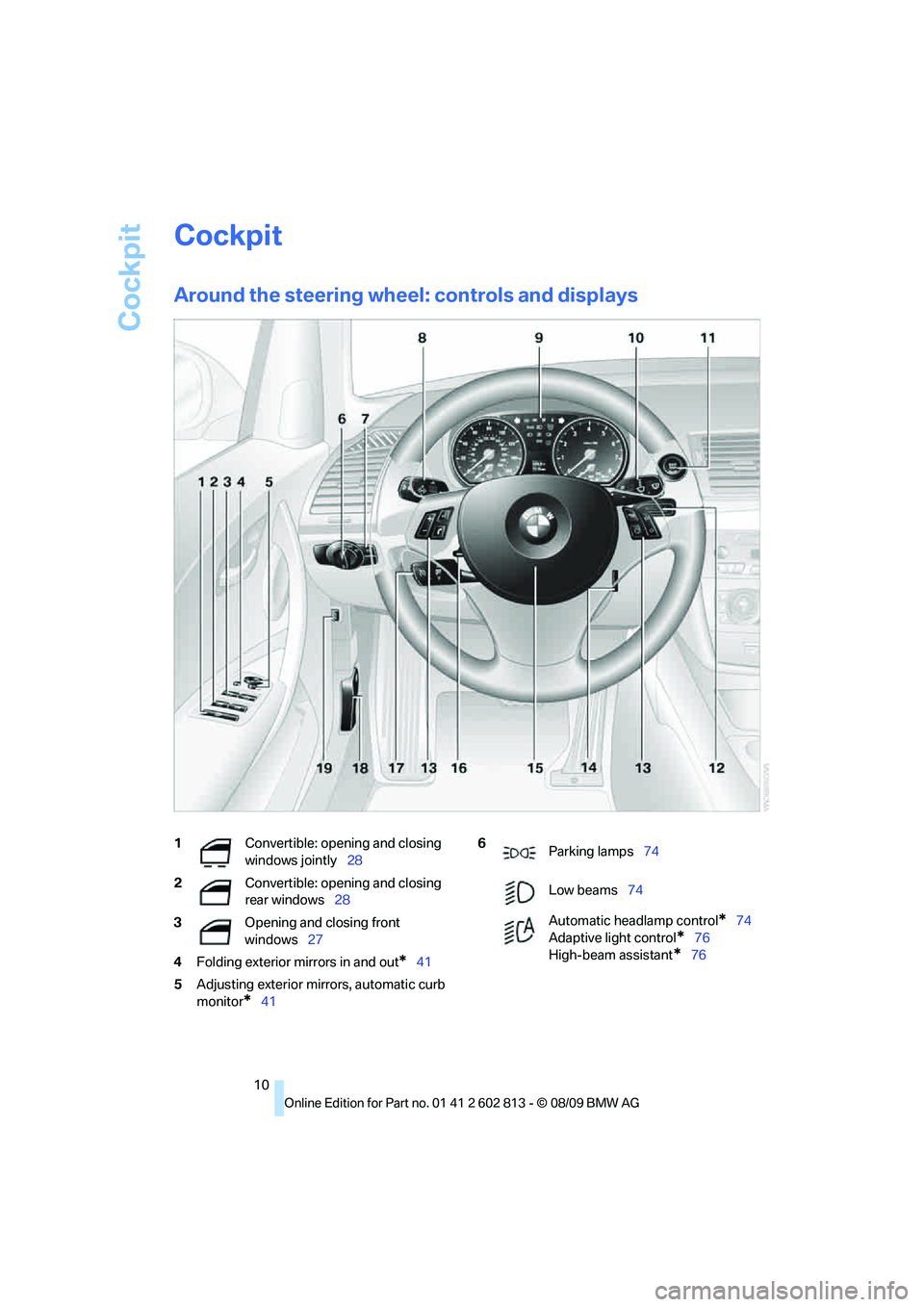

Cockpit
Around the steering wheel: controls and displays
1Convertible: opening and closing
windows jointly28
2Convertible: opening and closing
rear windows28
3Opening and closing front
windows27
4Folding exterior mirrors in and out
*41
5Adjusting exterior mirrors, automatic curb
monitor
*41
6
Parking lamps74
Low beams74
Automatic headlamp control
*74
Adaptive light control
*76
High-beam assistant
*76

At a glance
Controls
Driving tips
Mobility Reference
11
7
Fog lamps*77
8
Turn signals51
High beams, headlamp flasher76
High-beam assistant
*76
Roadside parking lamps
*76
Computer57
Settings and information about the
vehicle59
9Instrument cluster12
10
Windshield wipers52
Rain sensor
*53
11Switching the ignition on/off and
starting/stopping the engine47
12Ignition lock47
13Buttons on the steering wheel
Telephone
*:
Accepting and ending a call; dial-
ing
* the selected phone number;
redialing if no phone number is
selected
Volume
Voice commands for telephone
*
Changing the radio station
Interrupting a traffic bulletin
Selecting a music track
Scrolling through the redial list
Next entertainment source
Recirculated-air mode83
14
Steering wheel heating
*43
15Horn, entire surface
16Adjusting the steering wheel43
17
Cruise control
*54
18Releasing the hood114
19Opening the trunk lid23

Cockpit
12

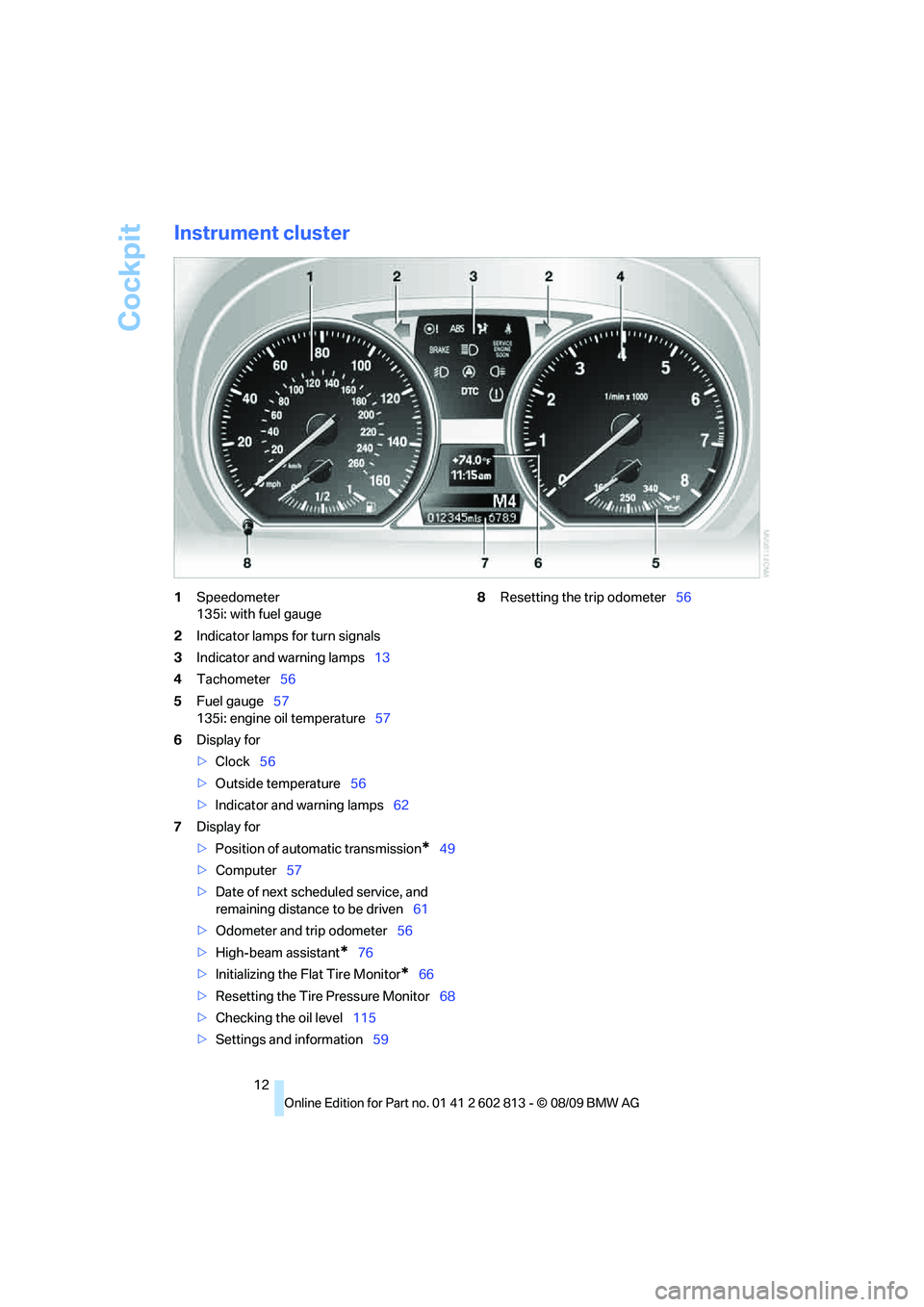

Instrument cluster
1Speedometer
135i: with fuel gauge
2Indicator lamps for turn signals
3Indicator and warning lamps13
4Tachometer56
5Fuel gauge57
135i: engine oil temperature57
6Display for
>Clock56
>Outside temperature56
>Indicator and warning lamps62
7Display for
>Position of automatic transmission
*49
>Computer57
>Date of next scheduled service, and
remaining distance to be driven61
>Odometer and trip odometer56
>High-beam assistant
*76
>Initializing the Flat Tire Monitor
*66
>Resetting the Tire Pressure Monitor68
>Checking the oil level115
>Settings and information598Resetting the trip odometer56

At a glance
Controls
Driving tips
Mobility Reference
13

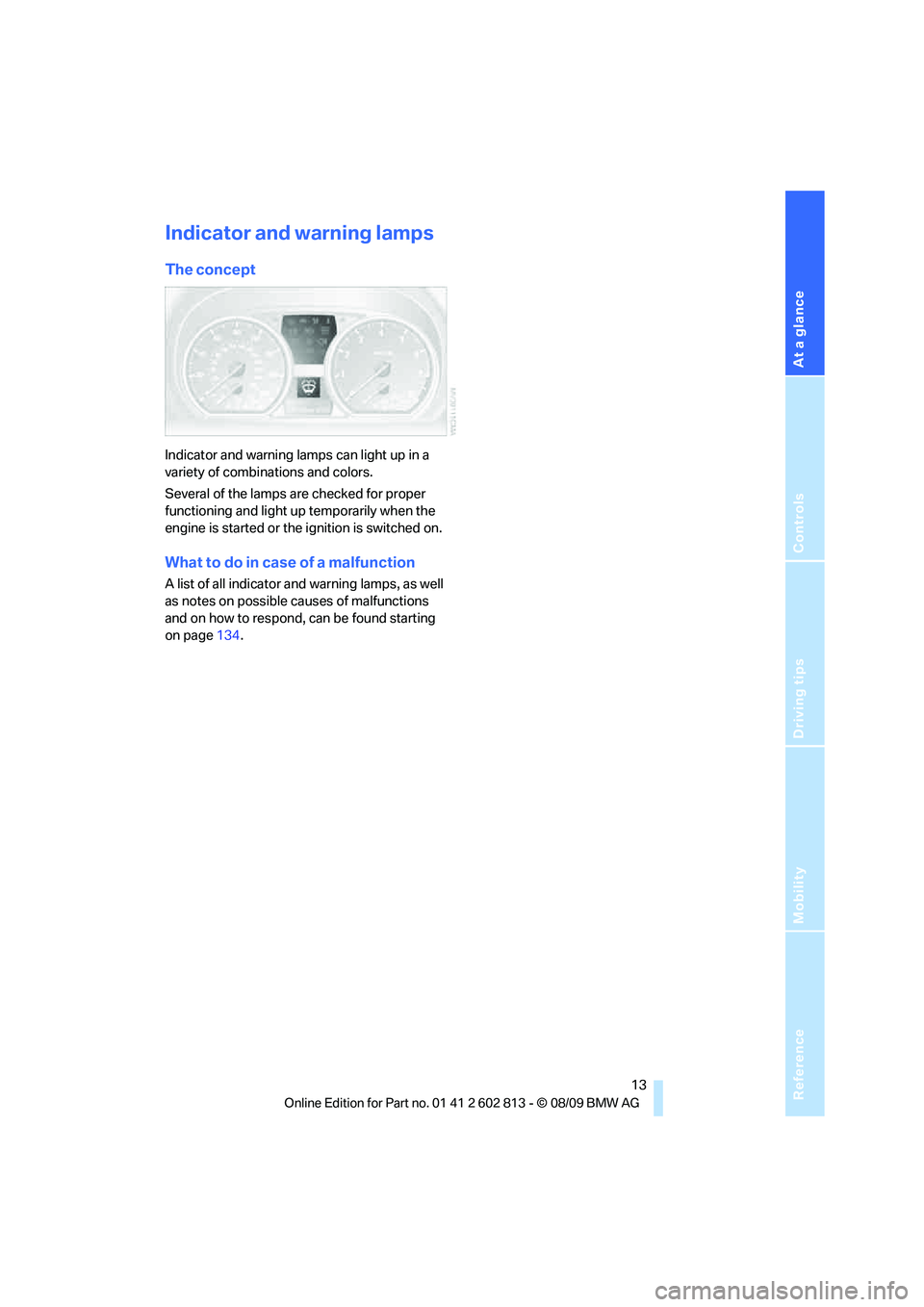

Indicator and warning lamps
The concept
Indicator and warning lamps can light up in a
variety of combinations and colors.
Several of the lamps are checked for proper
functioning and light up temporarily when the
engine is started or the ignition is switched on.
What to do in case of a malfunction
A list of all indicator and warning lamps, as well
as notes on possible causes of malfunctions
and on how to respond, can be found starting
on page134.

Cockpit
14

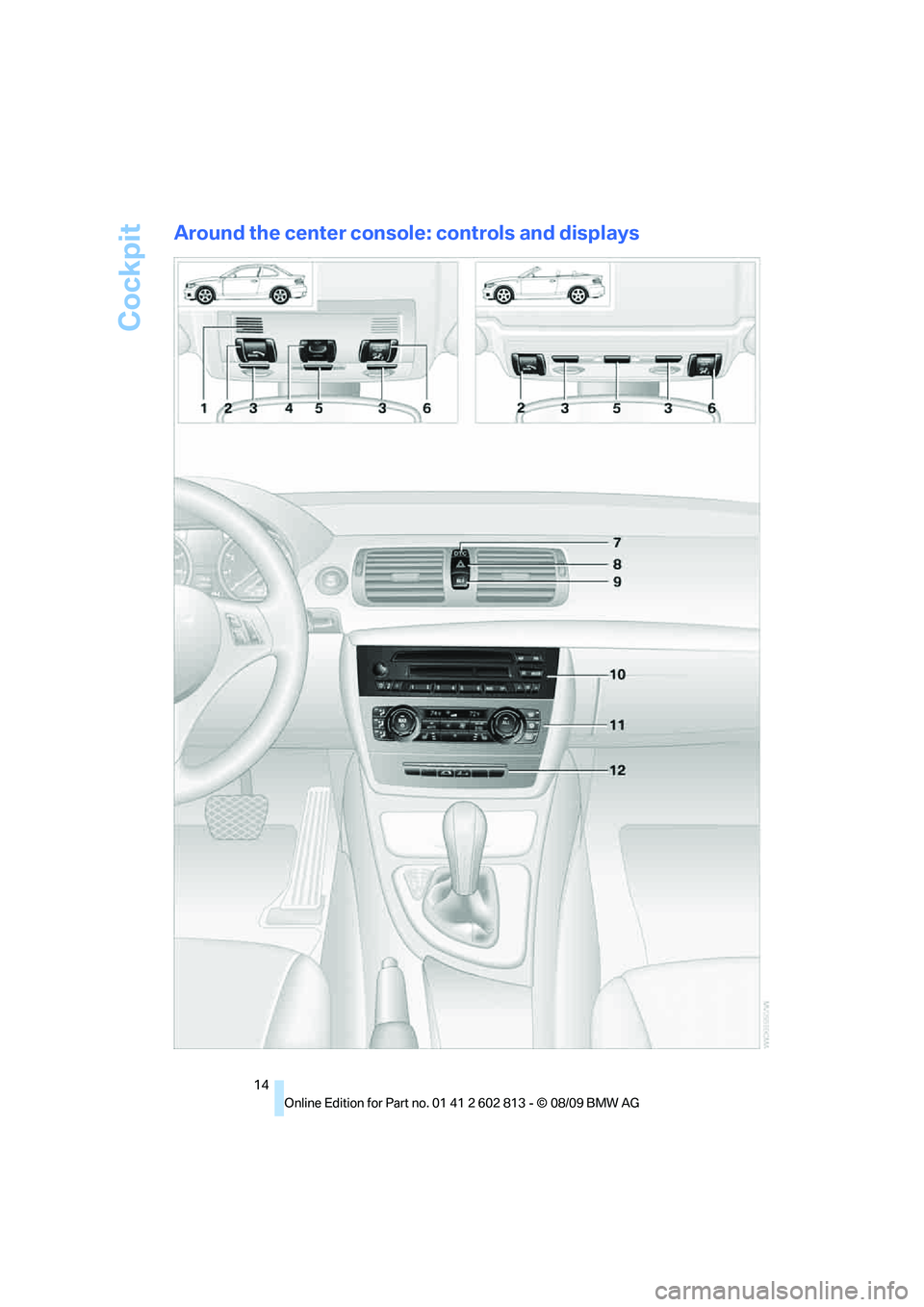

Around the center console: controls and displays

At a glance
Controls
Driving tips
Mobility Reference
15

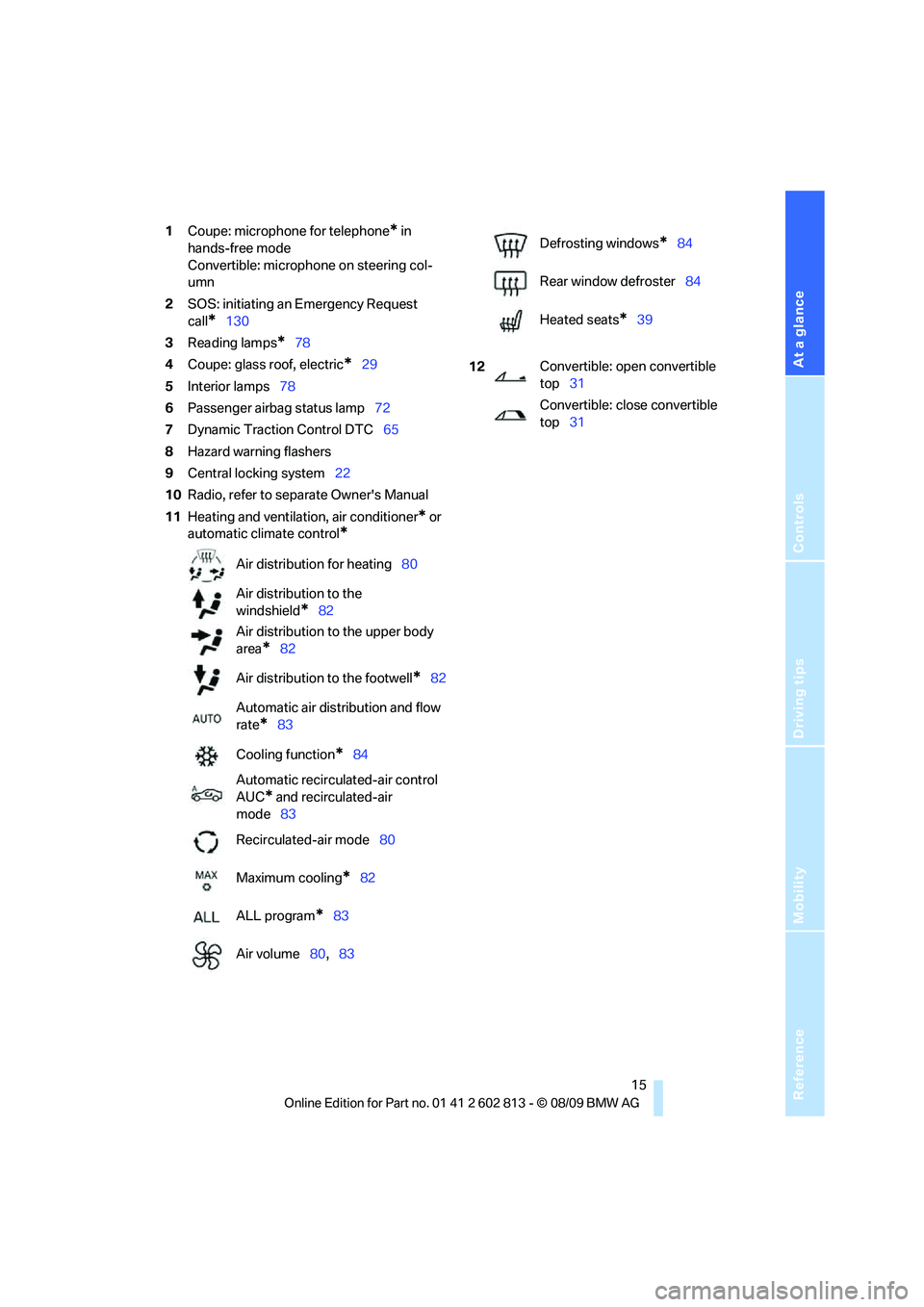

1Coupe: microphone for telephone* in
hands-free mode
Convertible: microphone on steering col-
umn
2SOS: initiating an Emergency Request
call
*130
3Reading lamps
*78
4Coupe: glass roof, electric
*29
5Interior lamps78
6Passenger airbag status lamp72
7Dynamic Traction Control DTC65
8Hazard warning flashers
9Central locking system22
10Radio, refer to separate Owner's Manual
11Heating and ventilation, air conditioner
* or
automatic climate control
*
Air distribution for heating80
Air distribution to the
windshield
*82
Air distribution to the upper body
area
*82
Air distribution to the footwell
*82
Automatic air distribution and flow
rate
*83
Cooling function
*84
Automatic recirculated-air control
AUC
* and recirculated-air
mode83
Recirculated-air mode80
Maximum cooling
*82
ALL program
*83
Air volume80,83
Defrosting windows*84
Rear window defroster84
Heated seats
*39
12Convertible: open convertible
top31
Convertible: close convertible
top31

Controls
This chapter is intended to provide you with
information for complete control of your vehicle.
All features and accessories that are useful for
driving and your safety, comfort and
convenience, are described here.
Controls

Opening and closing
18

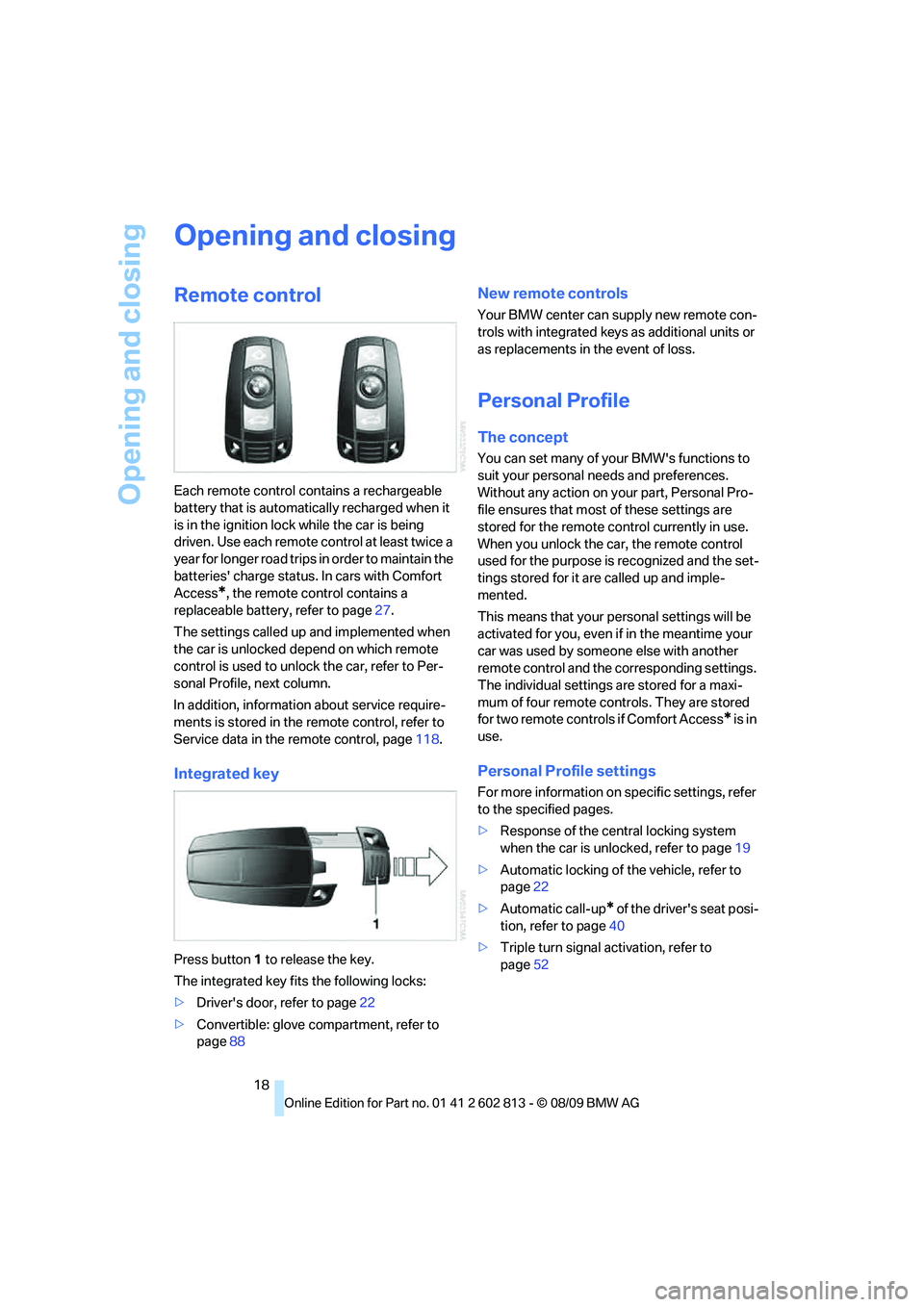

Opening and closing
Remote control
Each remote control contains a rechargeable
battery that is automatically recharged when it
is in the ignition lock while the car is being
driven. Use each remote control at least twice a
year for longer road trips in order to maintain the
batteries' charge status. In cars with Comfort
Access
*, the remote control contains a
replaceable battery, refer to page27.
The settings called up and implemented when
the car is unlocked depend on which remote
control is used to unlock the car, refer to Per-
sonal Profile, next column.
In addition, information about service require-
ments is stored in the remote control, refer to
Service data in the remote control, page118.
Integrated key
Press button1 to release the key.
The integrated key fits the following locks:
>Driver's door, refer to page22
>Convertible: glove compartment, refer to
page88
New remote controls
Your BMW center can supply new remote con-
trols with integrated keys as additional units or
as replacements in the event of loss.
Personal Profile
The concept
You can set many of your BMW's functions to
suit your personal needs and preferences.
Without any action on your part, Personal Pro-
file ensures that most of these settings are
stored for the remote control currently in use.
When you unlock the car, the remote control
used for the purpose is recognized and the set-
tings stored for it are called up and imple-
mented.
This means that your personal settings will be
activated for you, even if in the meantime your
car was used by someone else with another
remote control and the corresponding settings.
The individual settings are stored for a maxi-
mum of four remote controls. They are stored
for two remote controls if Comfort Access
* is in
use.
Personal Profile settings
For more information on specific settings, refer
to the specified pages.
>Response of the central locking system
when the car is unlocked, refer to page19
>Automatic locking of the vehicle, refer to
page22
>Automatic call-up
* of the driver's seat posi-
tion, refer to page40
>Triple turn signal activation, refer to
page52
