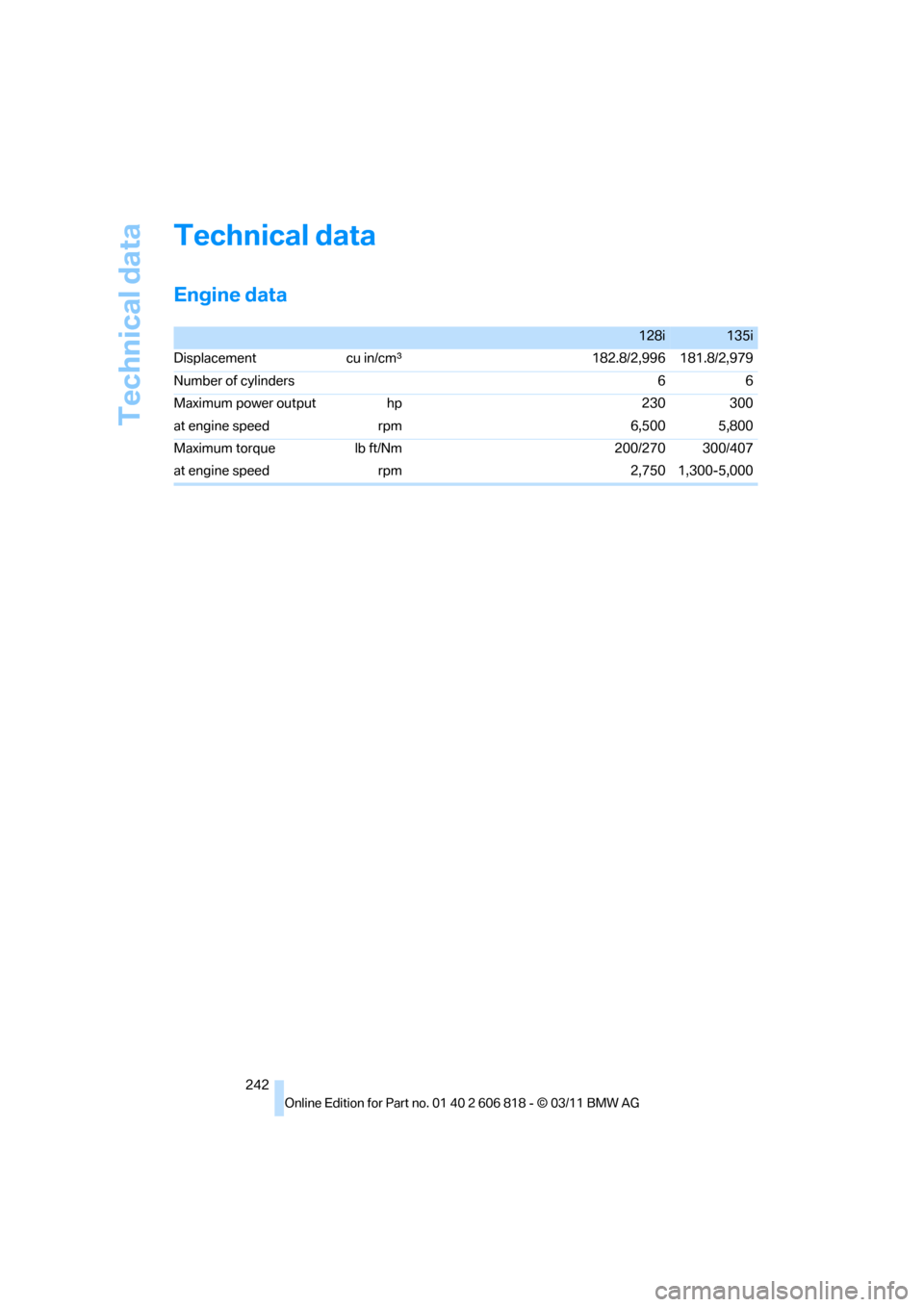

Technical data
242
Technical data
Engine data
128i135i
Displacement cu in/cmμ182.8/2,996 181.8/2,979
Number of cylinders 6 6
Maximum power output hp 230 300
at engine speed rpm 6,500 5,800
Maximum torque lb ft/Nm 200/270 300/407
at engine speed rpm 2,750 1,300-5,000
Reference 243
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

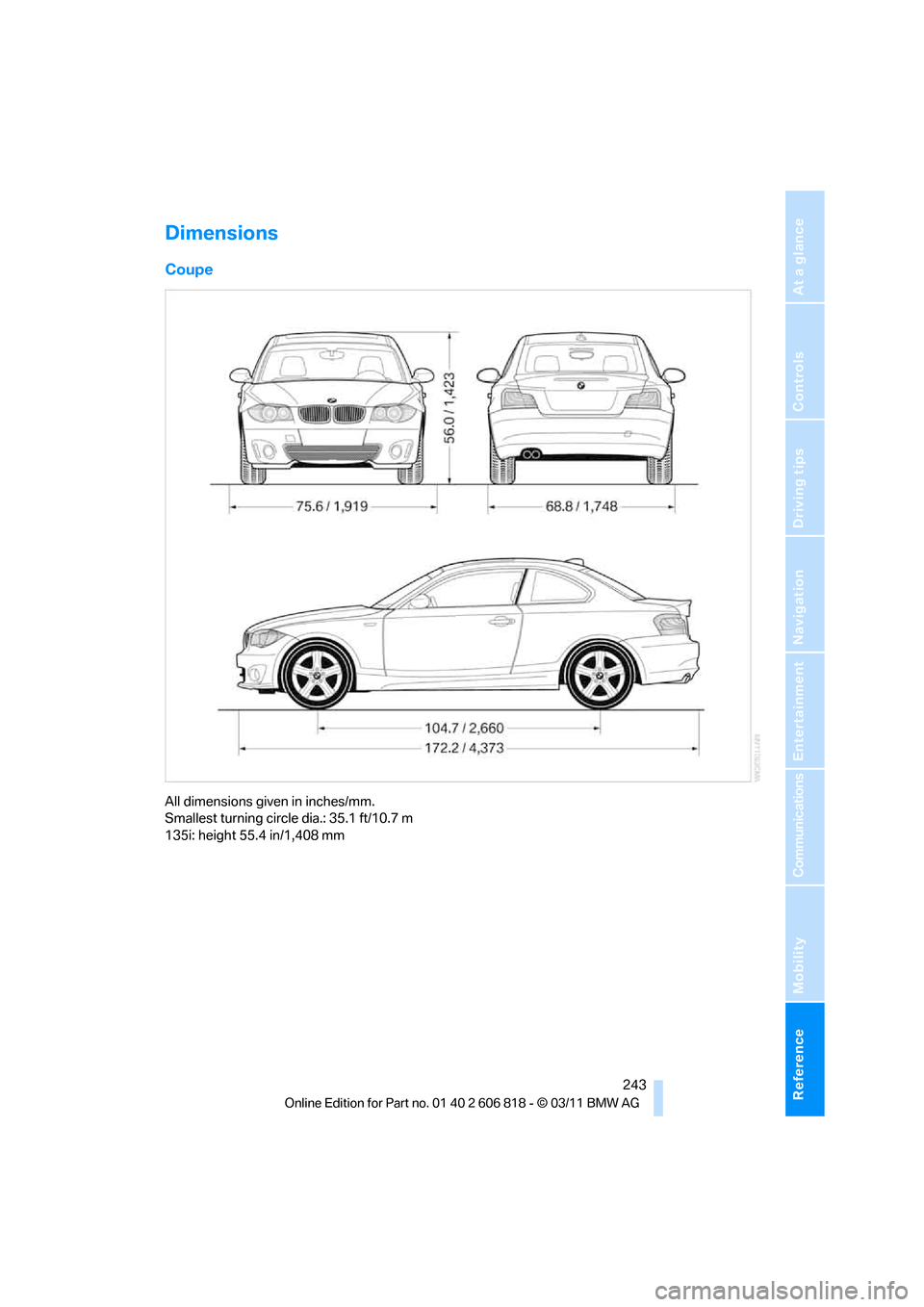

Dimensions
Coupe
All dimensions given in inches/mm.
Smallest turning circle dia.: 35.1 ft/10.7 m
135i: height 55.4 in/1,408 mm
Reference 245
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

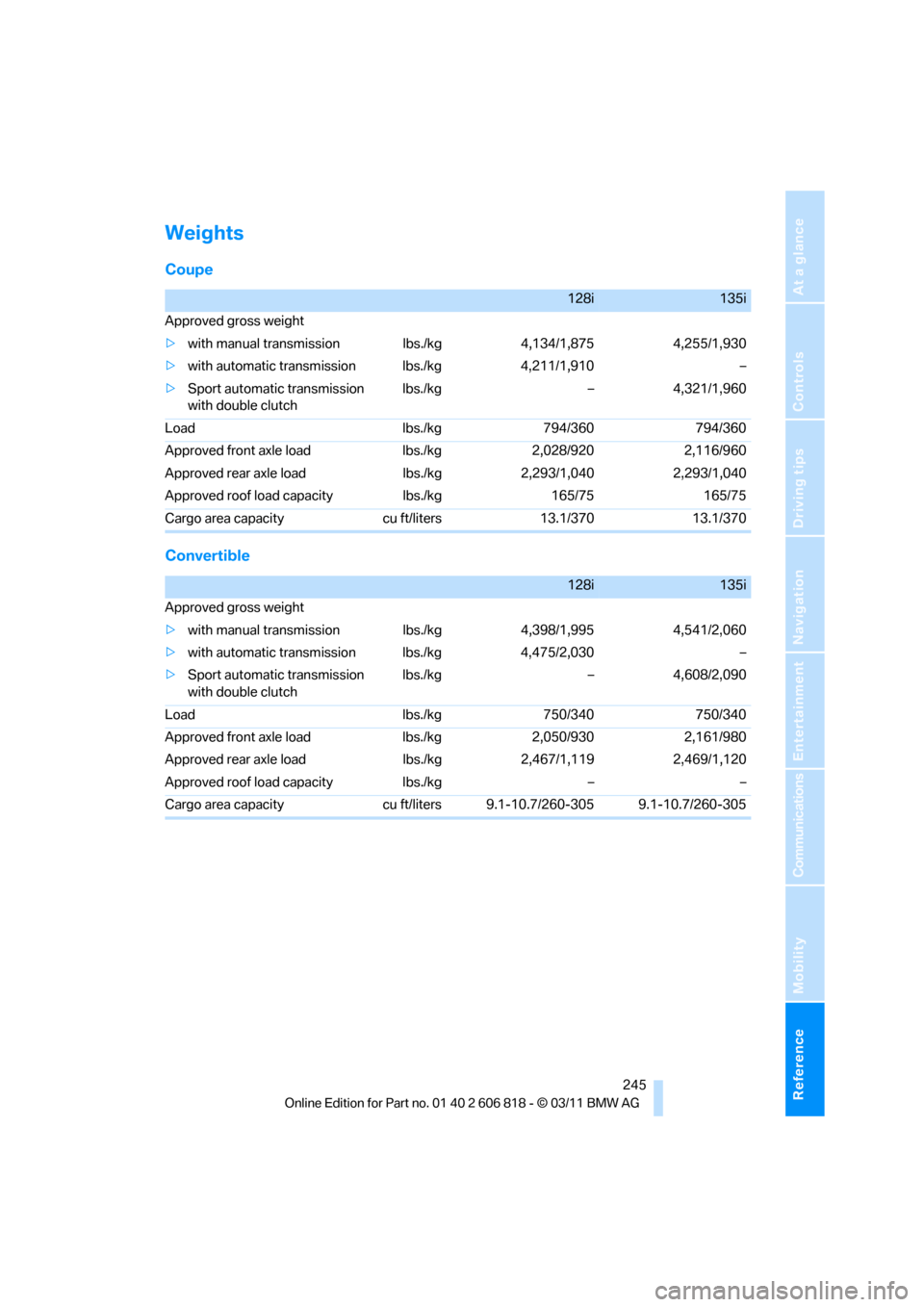

Weights
Coupe
Convertible
128i135i
Approved gross weight
>with manual transmission lbs./kg 4,134/1,875 4,255/1,930
>with automatic transmission lbs./kg 4,211/1,910 –
>Sport automatic transmission
with double clutchlbs./kg – 4,321/1,960
Load lbs./kg 794/360 794/360
Approved front axle load lbs./kg 2,028/920 2,116/960
Approved rear axle load lbs./kg 2,293/1,040 2,293/1,040
Approved roof load capacity lbs./kg 165/75 165/75
Cargo area capacity cu ft/liters 13.1/370 13.1/370
128i135i
Approved gross weight
>with manual transmission lbs./kg 4,398/1,995 4,541/2,060
>with automatic transmission lbs./kg 4,475/2,030 –
>Sport automatic transmission
with double clutchlbs./kg – 4,608/2,090
Load lbs./kg 750/340 750/340
Approved front axle load lbs./kg 2,050/930 2,161/980
Approved rear axle load lbs./kg 2,467/1,119 2,469/1,120
Approved roof load capacity lbs./kg – –
Cargo area capacity cu ft/liters 9.1-10.7/260-305 9.1-10.7/260-305
Reference 247
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

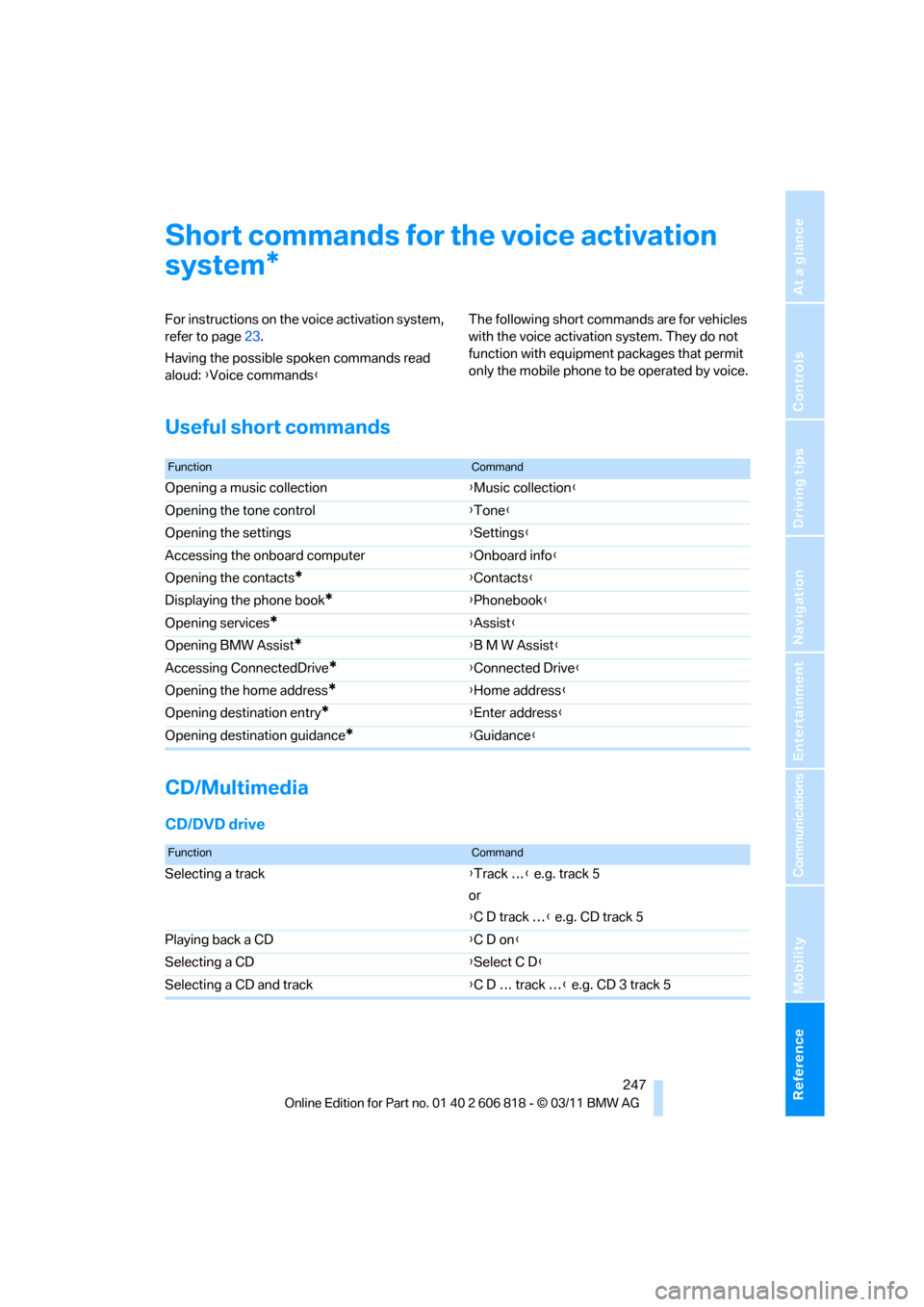

Short commands for the voice activation
system
For instructions on the voice activation system,
refer to page23.
Having the possible spoken commands read
aloud: {Voice commands}The following short commands are for vehicles
with the voice activation system. They do not
function with equipment packages that permit
only the mobile phone to be operated by voice.
Useful short commands
CD/Multimedia
CD/DVD drive
*
FunctionCommand
Opening a music collection{Music collection}
Opening the tone control{Tone}
Opening the settings{Settings}
Accessing the onboard computer{Onboard info}
Opening the contacts
*{Contacts}
Displaying the phone book
*{Phonebook}
Opening services
*{Assist}
Opening BMW Assist
*{B M W Assist}
Accessing ConnectedDrive
*{Connected Drive}
Opening the home address
*{Home address}
Opening destination entry
*{Enter address}
Opening destination guidance
*{Guidance}
FunctionCommand
Selecting a track{Track …} e.g. track 5
or
{C D track …} e.g. CD track 5
Playing back a CD{C D on}
Selecting a CD{Select C D}
Selecting a CD and track{C D … track …} e.g. CD 3 track 5

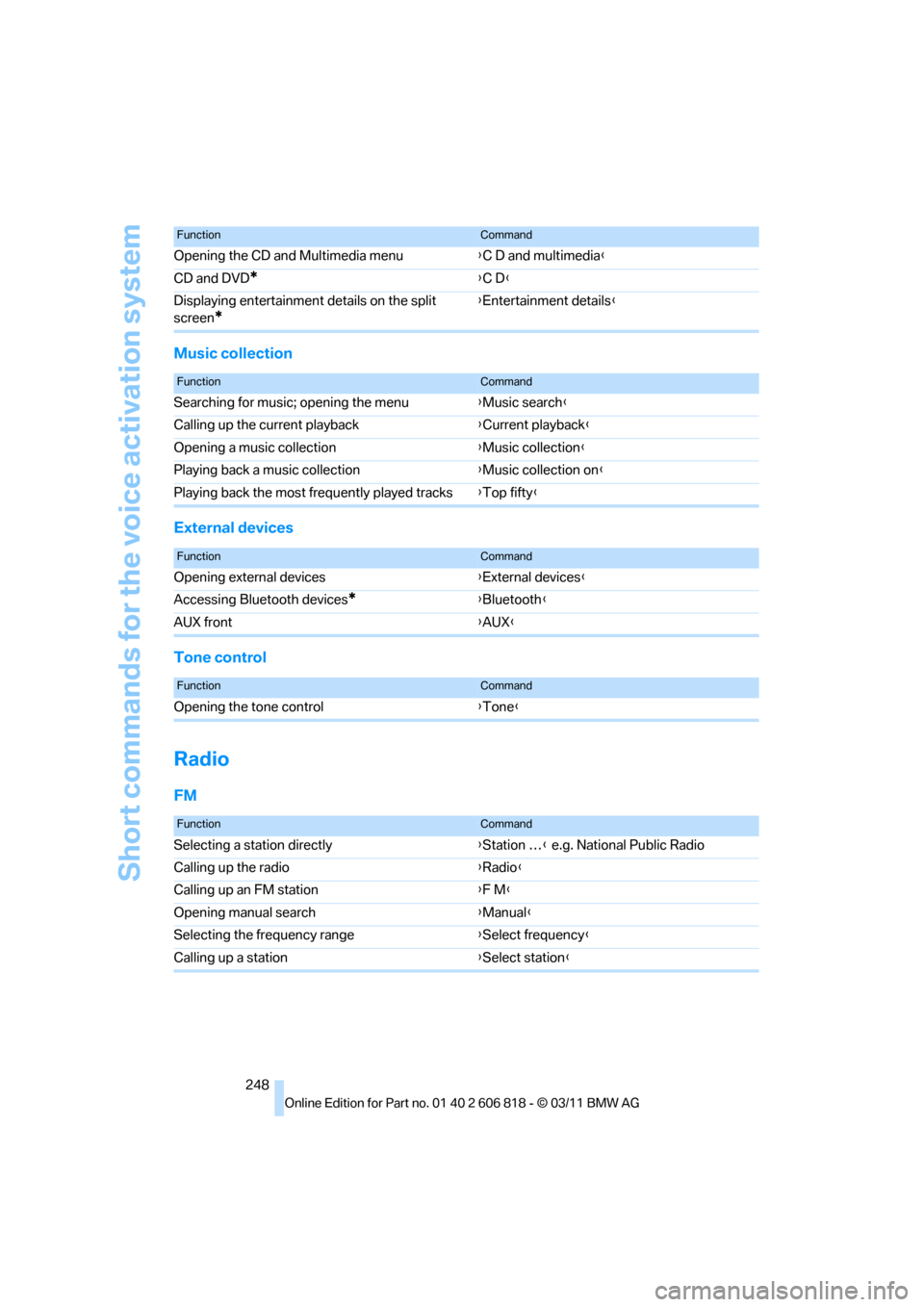

Short commands for the voice activation system
248
Music collection
External devices
Tone control
Radio
FM
Opening the CD and Multimedia menu{C D and multimedia}
CD and DVD
*{C D}
Displaying entertainment details on the split
screen
*
{Entertainment details}
FunctionCommand
FunctionCommand
Searching for music; opening the menu{Music search}
Calling up the current playback{Current playback}
Opening a music collection{Music collection}
Playing back a music collection{Music collection on}
Playing back the most frequently played tracks{Top fifty}
FunctionCommand
Opening external devices{External devices}
Accessing Bluetooth devices
*{Bluetooth}
AUX front{AUX}
FunctionCommand
Opening the tone control{Tone}
FunctionCommand
Selecting a station directly{Station …} e.g. National Public Radio
Calling up the radio{Radio}
Calling up an FM station{F M}
Opening manual search{Manual}
Selecting the frequency range{Select frequency}
Calling up a station{Select station}
