diagram BMW 3 SERIES 2002 E46 TV Function Retrofit Kit Installation Instruction Manual

EN/2

Retrofit kit No. 65 50 0 143 549
Installation Instructions No. 01 29 0 143 558 Issue date: 03.2002
Contents

SectionPage

Important information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Installation and cabling diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. Connection diagram for TV function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. To adjust the shock absorbers on both sides (cars without towing hitch only) . . . . . . . . . . . . . . . . 8
6. To install the aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7. To install and connect the TV function wiring harness; to install the video module . . . . . . . . . . . . 12
8. Concluding work and coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9. Wiring diagram for TV function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

EN/3

Retrofit kit No. 65 50 0 143 549
Installation Instructions No. 01 29 0 143 558 Issue date: 03.2002
Important information

The retrofit kit is for use within the BMW dealership organisation only.
Subject to technical modifications.

Target group

The target group for these installation instructions is specialist personnel trained on BMW cars with the
appropriate specialist knowledge.
All work must be completed using the latest BMW repair manuals, circuit diagrams, servicing manuals and
work instructions in a rational order using the prescribed tools (special tools) and observing current health and
safety regulations.

Installation information

The installation of the aerial is shown on the left-hand side of the bumper, proceed in the same way on the
right-hand side of the bumper.
Refer to the instructions for use of Sikaflex-221 (Saloon only).
Observe the tightening torque values for screw connections. The required tightening torque values are set
out in the part information system (TIS).
Ensure that the cables/lines are not kinked or damaged as you install them in the car.
The installed cables are to be secured with cable ties.
If the specified PIN chambers are occupied, bridges, double crimps or twin-lead terminals must be used.
After the installation work the retrofit TV function must be coded using DIS or MoDiC via the

Retrofit

path.

Information on operation

The TV function is only active when the car is at a standstill.

Tools required

DIS or MoDiC
Removal clips (65 5 400)

Special material required (Saloon only)

Sikaflex-221 (81 22 9 407 533)

EN/6

Retrofit kit No. 65 50 0 143 549
Installation Instructions No. 01 29 0 143 558 Issue date: 03.2002
3. Installation and cabling diagram

0

Legend

1 Aerial right
2 Aerial left
3 Video module
4 Navigation computer
5 Radio receiver
6 Adapter cable
7 Aerial cables TV 1 and TV 2
1
5243
67
046 0617 Z

EN/7

Retrofit kit No. 65 50 0 143 549
Installation Instructions No. 01 29 0 143 558 Issue date: 03.2002
4. TV function connection diagram

0
0

Item Description SignalCable colour /
Cross-sectionConnection location in the car Abbreviation / Slot

A Adapter cable --- --- --- ---
A1 18-pin BL socket casing --- --- To navigation computer

A112

X1313
A2 18-pin BL plug casing
--- ---To the plug on the standard wiring
harness, 18-pin BL socket casingX1313
A3 18-pin BL socket casing --- --- To video module

A197

X18804
A4 Socket contact TVNF+ GE
0.5 mm

2

To radio receiver

N9

12-pin natural socket casing



X13648
PIN 11



A5 Socket contact TVNF- BL/GE
0.5 mm

2

To radio receiver

N9

12-pin natural socket casing



X13648
PIN 12



A6 18-pin natural socket casing --- --- To video module

A197

X18806
B Aerial cable TV 1 --- --- Between aerial and video module

A197

---
C Aerial cable TV 2 --- --- Between aerial and video module

A197

---
046 0638 Z
A3
A1A6
A4
A2
A5
C
B
A

EN/15Retrofit kit No. 65 50 0 143 549
Installation Instructions No. 01 29 0 143 558 Issue date: 03.2002

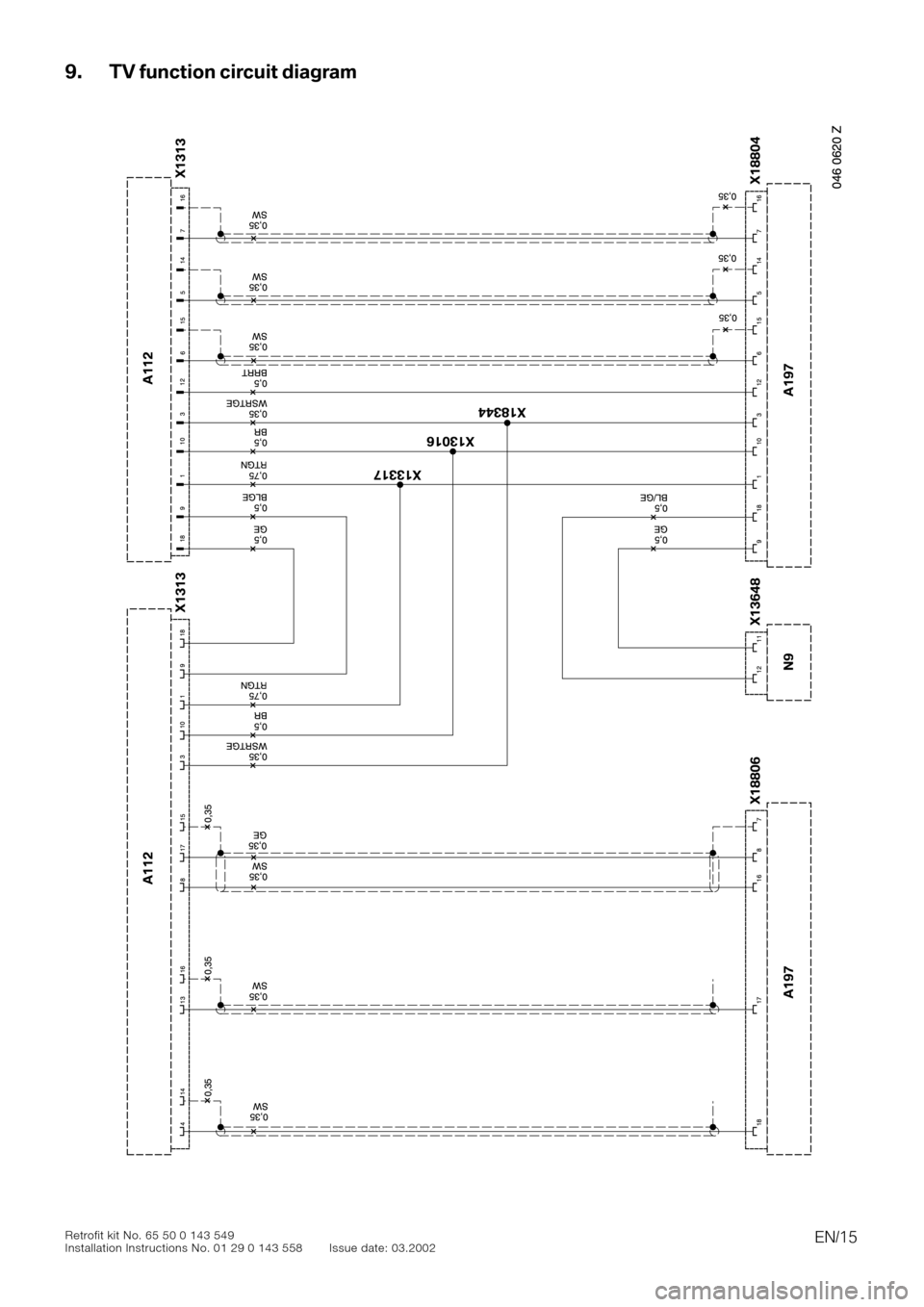

9. TV function circuit diagram
0
046 0620 Z
X18806X18804 X13648
X18344X13016X13317
A112A112
X1313 X1313
30,35
WSRTGE
100,5
BR
10,75
RTGN
9
18
180,5
GE
90,5
BLGE
12120,5
BRRT
330,35
WSRTGE
10100,5
BR
110,75
RTGN
180,5
BL/GE
90,5
GE
11
12 4
180,35
SW
140,35
660,35
SW
15150,35
550,35
SW
14140,35
770,35
SW
16160,35
13170,35
SW
160,35
1780,35
GE
1570,35
8160,35
SW
A197A197 N9

EN/16Retrofit kit No. 65 50 0 143 549
Installation Instructions No. 01 29 0 143 558 Issue date: 03.2002
9. TV function circuit diagram
Legend
Cable coloursA112Navigation computer
A197Video module
N9Radio receiver
X1313 Blue 18-pin socket casing on the navigation computer and blue 18-pin plug casing to the
standard wiring harness
X13016Terminal 31 connector
X13317Terminal 30 connector
X1364812-pin natural socket casing on the radio receiver
X18344I bus connector
X18804Blue 18-pin plug on the video module
X18806Natural coloured 18-pin plug on the video module
RT red
SW black
GN green
BR brown
GE yellow
WS white
BL blue
