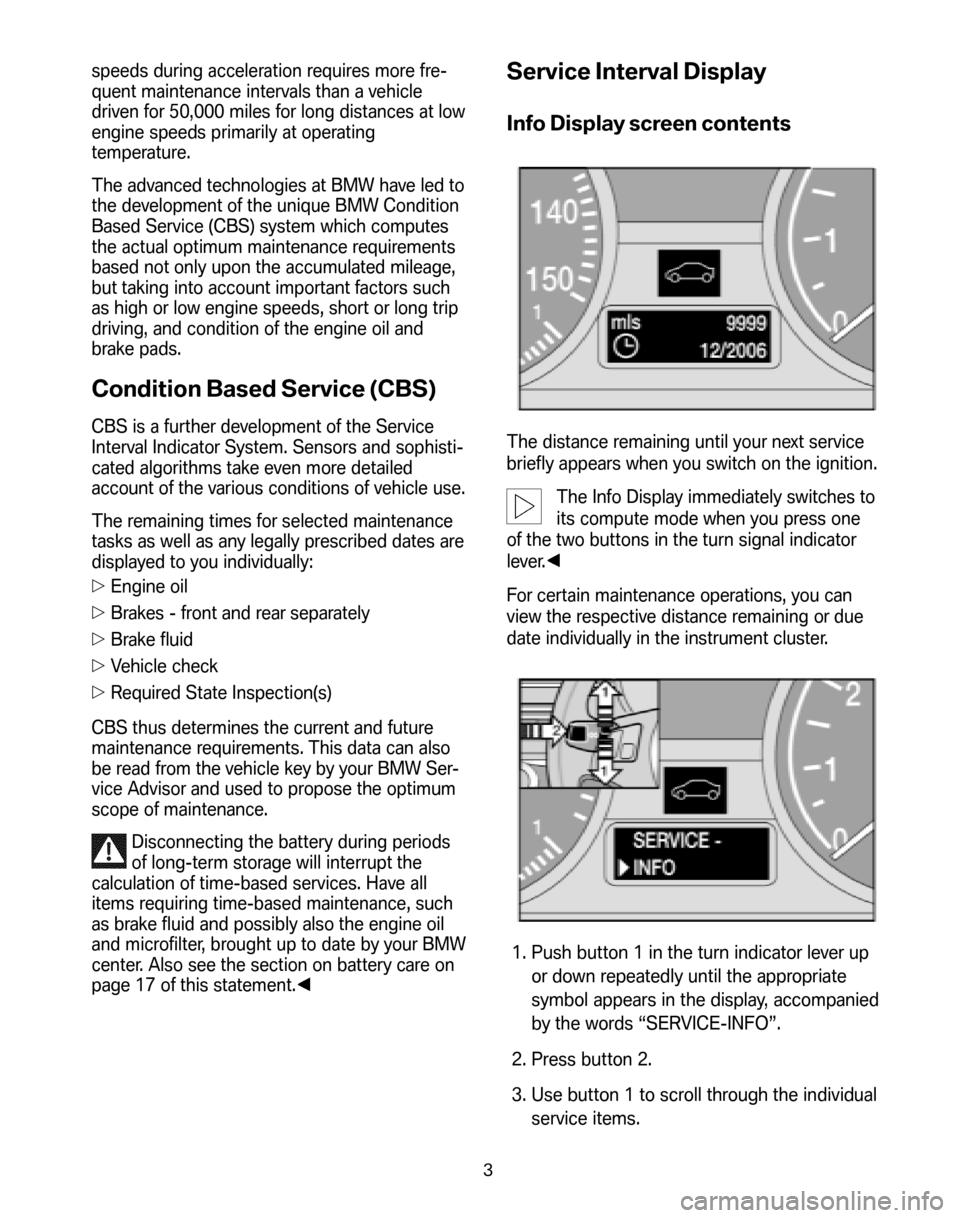

speeds during acceleration requires more fre-
quent maintenance intervals than a vehicle
driven for 50,000 miles for long distances at low
engine speeds primarily at operating
temperature.
The advanced technologies at BMW have led to
the development of the unique BMW Condition
Based Service (CBS) system which computes
the actual optimum maintenance requirements
based not only upon the accumulated mileage,
but taking into account important factors such
as high or low engine speeds, short or long trip
driving, and condition of the engine oil and
brake pads.
Condition Based Service (CBS)
CBS is a further development of the Service
Interval Indicator System. Sensors and sophisti-
cated algorithms take even more detailed
account of the various conditions of vehicle use.
The remaining times for selected maintenance
tasks as well as any legally prescribed dates are
displayed to you individually:
 Engine oil
 Brakes - front and rear separately
 Brake fluid
 Vehicle check
 Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can also
be read from the vehicle key by your BMW Ser-
vice Advisor and used to propose the optimum
scope of maintenance.
Disconnecting the battery during periods
of long-term storage will interrupt the
calculation of time-based services. Have all
items requiring time-based maintenance, such
as brake fluid and possibly also the engine oil
and microfilter, brought up to date by your BMW
center. Also see the section on battery care on
page 17 of this statement.
Service Interval Display
Info Display screen contents
The distance remaining until your next service
briefly appears when you switch on the ignition.
The Info Display immediately switches to
its compute mode when you press one
of the two buttons in the turn signal indicator
lever.
For certain maintenance operations, you can
view the respective distance remaining or due
date individually in the instrument cluster.
1. Push button 1 in the turn indicator lever up
or down repeatedly until the appropriate
symbol appears in the display, accompanied
by the words “SERVICE-INFO”.
2. Press button 2.
3. Use button 1 to scroll through the individual service items.
3

Green lamps
No service is currently required.
You can request more detailed information on
every entry.
Turn the controller to scroll through the list, then
confirm the selected entry.
Confirm to exit the list.
Symbols
No service is currently required.
The deadline for service or a legally man-
dated inspection is approaching. Please
schedule a service appointment.
The service deadline has already passed.
The current service status is automatically
saved in the vehicle’s ignition key. The Service
Advisor at your BMW center has a device called
a key reader. When your Service Advisor inserts
your key into the key reader, all pertinent vehicle
and servicing data will be available, and a cus-
tomized maintenance checklist is printed out
based on the specific operations called for by
the Condition Based Service.
Special Note
The maintenance requirements for your vehicle
are determined dynamically by the Condition
Based Service (CBS) system. The maintenance
items stated herein reflect the latest information
available at the time of the printing of this state-
ment, and are subject to change. The most cur-
rent maintenance recommendations are
available from your authorized BMW center. The performance of certain subsequent mainte-
nance elements, as required by the BMW New
Vehicle Limited Warranty, will be specified at
intervals computed by the BMW Service Interval
Indicator as follows:

Oil Service: Engine oil should be changed
with the engine at operating temperature.
Note: Change oil at least once a year.
All 2008 model year 3 Series vehicles are facto-
ry-filled with BMW High Performance Synthetic
oils. At the time of the printing of this booklet,
the following oils are strongly recommended
and approved by BMW:
 BMW High Performance 5W-30 Synthetic Oil
(BMW part number 07 51 0 017 866)
 Mobil 1 10W-40 Synthetic
BMW is evaluating various synthetic oils for
inclusion in our list of recommended engine oils.
For the most current list of synthetic oils, please
contact your BMW center, or call BMW of North
America, LLC at 1 800 831-1117. You can also
obtain this information from our website,
www.bmwusa.com/.
BMW recommends that you check your engine
oil level whenever you add fuel to your vehicle. If
you need to add oil between oil changes and
are unable to obtain BMW High Performance
Synthetic Oil, Mobil 1 or another special oil on
the list, use a synthetic oil with an API rating of
SH or higher.
The following maintenance elements must be
performed at the mileage/time stated (time inter-
vals begin from the vehicles production date):
 Brake Fluid Service: Change brake fluid every
two years, or when specified by CBS.
 Oxygen Sensor Service: The oxygen sensor
deteriorates strictly on a mileage basis and
must therefore be replaced every
120,000 miles to maximize vehicle fuel econ-
omy and minimize exhaust pollution. For the
328i SULEV (PZEV) models, the oxygen sen-
sor must be replaced every 150,000 miles.
The replacement of the oxygen sensor is
required under the terms of the applicable
BMW emission system warranties.
 Spark Plug Service (not shown in CBS).
Replace at the following intervals:
328i versions: 100,000 miles
335i versions: 45,000 miles
6

Vehicle Check
Maintenance work:
 Check operation of horn, headlight flasher
and hazard warning flashers.
 Check instrument and control lighting and
heater/air-conditioning blower.
 Check lighting system: turn signals, back-up,
license plate, interior (incl. map, reading
lights), glovebox, flashlight, luggage area
lights.
 Safety belts: Check condition and function.
 Check windshield wiper and washer jet
positions.
 Body: Check for corrosion (except cavities).
 Tires: Check tread depth, wear pattern, outer
condition, inflation pressure. If necessary, cor-
rect pressure.
 Reset Tire Pressure Monitor.
 Battery: Check state of charge (magic eye)
and charge if required.
 Power steering reservoir: Check fluid level.
 Visually inspect all SRS airbag units for torn
covers, obvious damage or attachment of
stickers.
 Rear-view mirrors
 Coolant: Check fluid level and concentration.
 Windshield washer and intensive cleaning
system: Check protection level, fluid level, top
if necessary.
 Brake system connections and lines: Check
for leaks, damage and correct positioning.
 Underbody, incl. all visible parts (i.e. transmis-
sion, rear axle, fuel lines, exhaust system):
Check for damage, leaks and corrosion.
 Steering components: Check for clearance,
leaks, damage and wear.
 Final Inspection: Road test with check of
– Brakes, including burnishing of parking
brake pads
– Steering
– Shock absorbers (visual)
– Transmission
Brake fluid
Maintenance work:
 Replace brake fluid.
Automatic Transmission
Maintenance work:
 Replace ATF at intervals of 100,000 miles.
Emission Control Maintenance
Schedule
The maintenance schedule as shown is required
for the proper functioning of the emission con-
trol systems for optimum vehicle performance
and fuel economy.
Basic Engine
Engine oil As specified by CBS
Engine oil filter As specified by CBS
Fuel System
Air filter As specified by CBS
Ignition System
Spark plugs (328i
versions) 100,000 miles
Spark plugs (335i
versions) 45,000 miles
Emission Control
Components
Oxygen sensor (except
SULEV) 120,000 miles
Oxygen sensor: SULEV
(PZEV) 150,000 miles
Evidence of Maintenance Work
This BMW Service and Warranty Information
Booklet should be presented to your BMW cen-
ter when maintenance is required. Make sure
that confirmation of maintenance work is always
entered in this Service and Warranty Information
Booklet. You may need this for any warranty
claims that become necessary, and later on as
evidence that your car has been given the cor-
rect and regular maintenance that justifies its
resale or trade-in value.
8

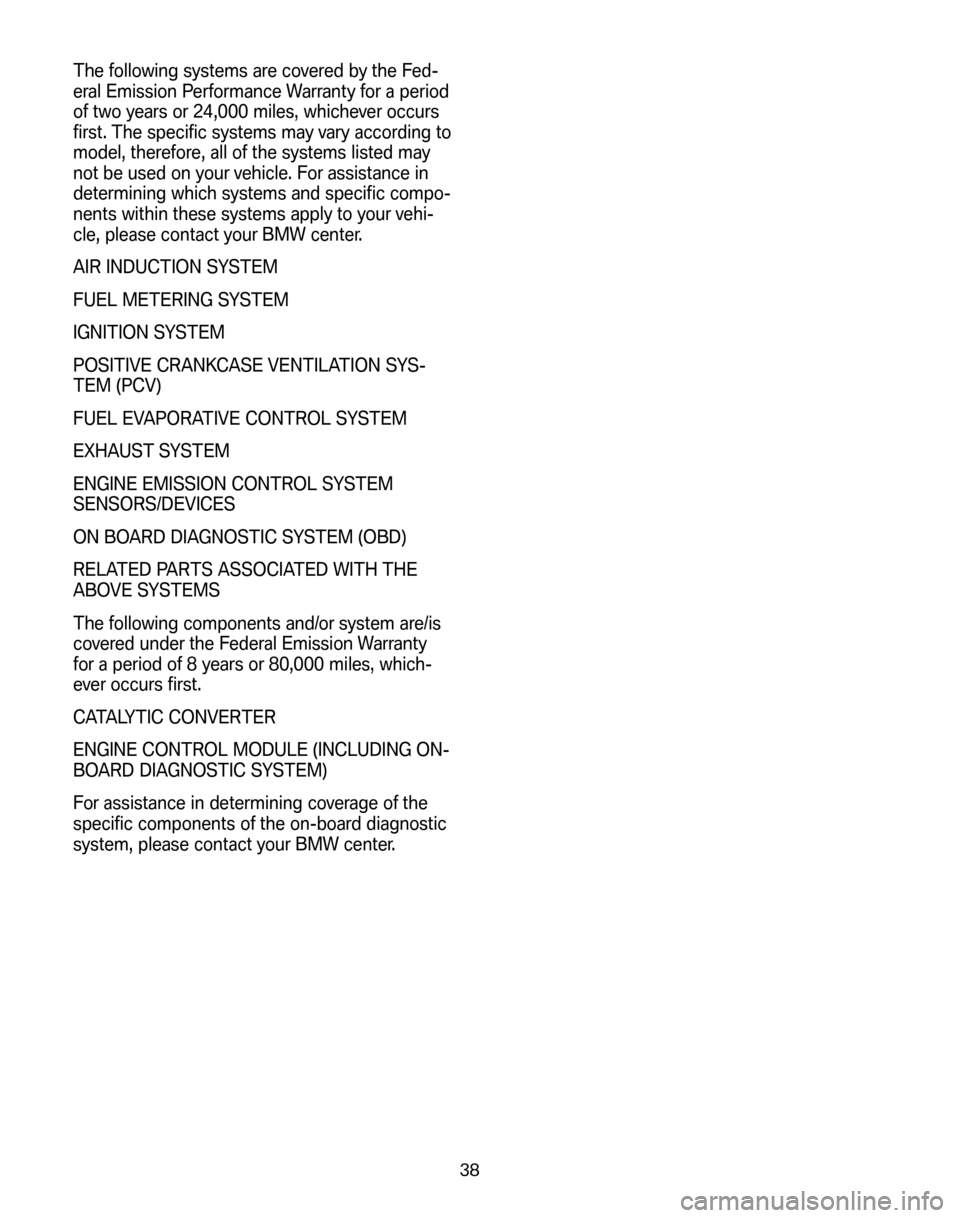

The following systems are covered by the Fed-
eral Emission Performance Warranty for a period
of two years or 24,000 miles, whichever occurs
first. The specific systems may vary according to
model, therefore, all of the systems listed may
not be used on your vehicle. For assistance in
determining which systems and specific compo-
nents within these systems apply to your vehi-
cle, please contact your BMW center.
AIR INDUCTION SYSTEM
FUEL METERING SYSTEM
IGNITION SYSTEM
POSITIVE CRANKCASE VENTILATION SYS-
TEM (PCV)
FUEL EVAPORATIVE CONTROL SYSTEM
EXHAUST SYSTEM
ENGINE EMISSION CONTROL SYSTEM
SENSORS/DEVICES
ON BOARD DIAGNOSTIC SYSTEM (OBD)
RELATED PARTS ASSOCIATED WITH THE
ABOVE SYSTEMS
The following components and/or system are/is
covered under the Federal Emission Warranty
for a period of 8 years or 80,000 miles, which-
ever occurs first.
CATALYTIC CONVERTER
ENGINE CONTROL MODULE (INCLUDING ON-
BOARD DIAGNOSTIC SYSTEM)
For assistance in determining coverage of the
specific components of the on-board diagnostic
system, please contact your BMW center.
38

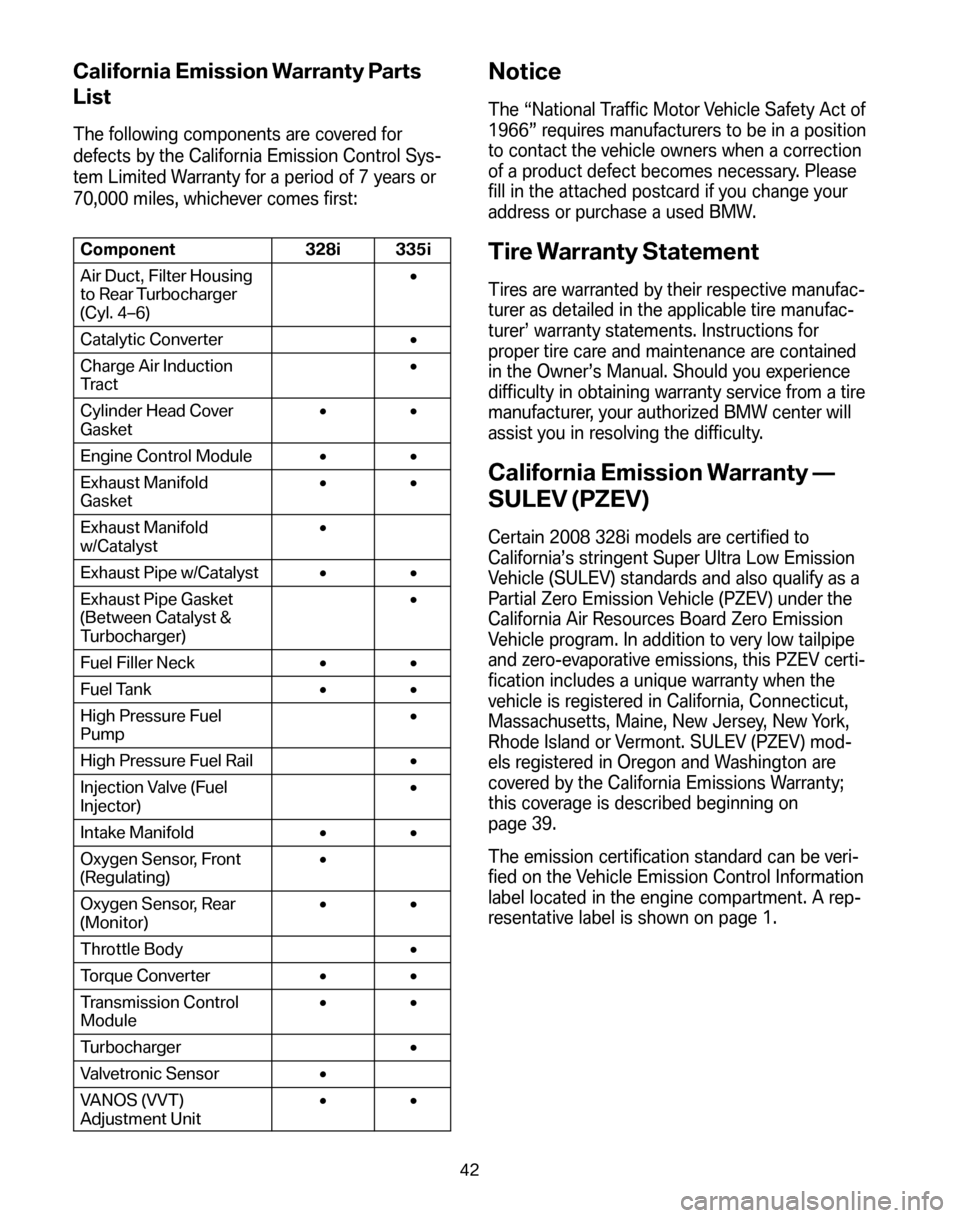

California Emission Warranty Parts
List
The following components are covered for
defects by the California Emission Control Sys-
tem Limited Warranty for a period of 7 years or
70,000 miles, whichever comes first:
Component 328i 335i
Air Duct, Filter Housing
to Rear Turbocharger
(Cyl. 4–6) •
Catalytic Converter •
Charge Air Induction
Tract •
Cylinder Head Cover
Gasket ••
Engine Control Module ••
Exhaust Manifold
Gasket ••
Exhaust Manifold
w/Catalyst •
Exhaust Pipe w/Catalyst ••
Exhaust Pipe Gasket
(Between Catalyst &
Turbocharger) •
Fuel Filler Neck ••
Fuel Tank ••
High Pressure Fuel
Pump •
High Pressure Fuel Rail •
Injection Valve (Fuel
Injector) •
Intake Manifold ••
Oxygen Sensor, Front
(Regulating) •
Oxygen Sensor, Rear
(Monitor) ••
Throttle Body •
Torque Converter ••
Transmission Control
Module ••
Turbocharger •
Valvetronic Sensor •
VANOS (VVT)
Adjustment Unit ••
Notice
The “National Traffic Motor Vehicle Safety Act of
1966” requires manufacturers to be in a position
to contact the vehicle owners when a correction
of a product defect becomes necessary. Please
fill in the attached postcard if you change your
address or purchase a used BMW.
Tire Warranty Statement
Tires are warranted by their respective manufac-
turer as detailed in the applicable tire manufac-
turer’ warranty statements. Instructions for
proper tire care and maintenance are contained
in the Owner’s Manual. Should you experience
difficulty in obtaining warranty service from a tire
manufacturer, your authorized BMW center will
assist you in resolving the difficulty.
California Emission Warranty —
SULEV (PZEV)
Certain 2008 328i models are certified to
California’s stringent Super Ultra Low Emission
Vehicle (SULEV) standards and also qualify as a
Partial Zero Emission Vehicle (PZEV) under the
California Air Resources Board Zero Emission
Vehicle program. In addition to very low tailpipe
and zero-evaporative emissions, this PZEV certi-
fication includes a unique warranty when the
vehicle is registered in California, Connecticut,
Massachusetts, Maine, New Jersey, New York,
Rhode Island or Vermont. SULEV (PZEV) mod-
els registered in Oregon and Washington are
covered by the California Emissions Warranty;
this coverage is described beginning on
page 39.
The emission certification standard can be veri-
fied on the Vehicle Emission Control Information
label located in the engine compartment. A rep-
resentative label is shown on page 1.
42
