Page 241 of 311
236

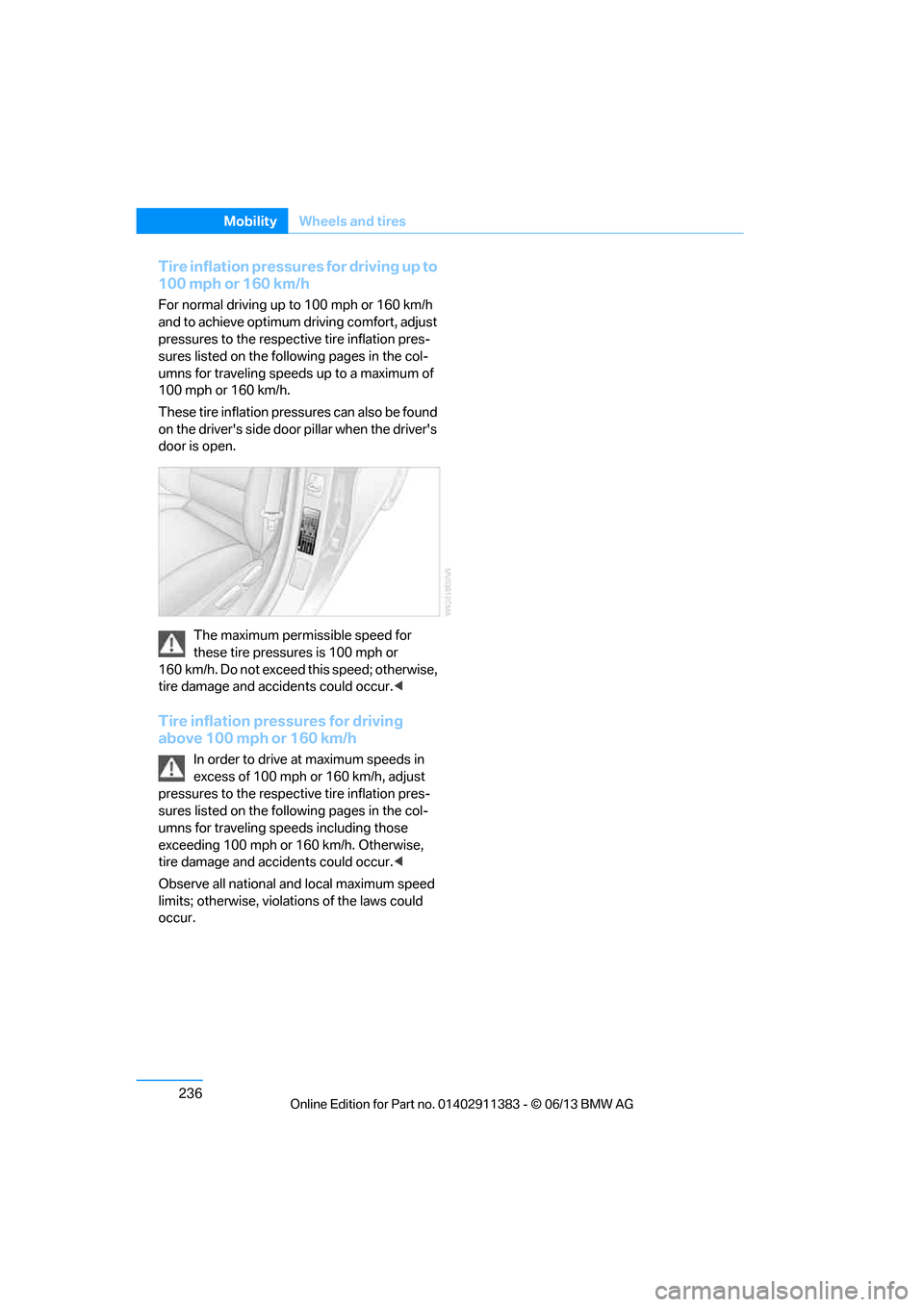

MobilityWheels and tires
Tire inflation pressures for driving up to
100 mph or 160 km/h
For normal driving up to 100 mph or 160 km/h
and to achieve optimum driving comfort, adjust
pressures to the respecti ve tire inflation pres-
sures listed on the following pages in the col-
umns for traveling speeds up to a maximum of
100 mph or 160 km/h.
These tire inflation pre ssures can also be found
on the driver's side door pillar when the driver's
door is open.
The maximum permissible speed for
these tire pressures is 100 mph or
160 km/h. Do not exceed this speed; otherwise,
tire damage and accidents could occur. <
Tire inflation pressures for driving
above 100 mph or 160 km/h
In order to drive at maximum speeds in
excess of 100 mph or 160 km/h, adjust
pressures to the respecti ve tire inflation pres-
sures listed on the following pages in the col-
umns for traveling speeds including those
exceeding 100 mph or 160 km/h. Otherwise,
tire damage and accidents could occur. <
Observe all national an d local maximum speed
limits; otherwise, violations of the laws could
occur.
00320051004F004C00510048000300280047004C0057004C005200510003
Page 242 of 311
237
Wheels and tires
Mobility
Coupe: tire inflation pressures for the 328i
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S RSC
225/50 R 16 92 H M+S RSC
225/45 R 17 91 H M+S A/S RSC
225/45 R 17 91 H M+S RSC
225/45 R 17 91 V RSC 2.2/32 2.6/38 2.5/36 3.0/44
225/45 R 17 94 V M+S XL RSC 2.2/32 2.7/39 2.5/36 3.0/44
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.5/36 -
Rear: 255/40 R 17 94 V RSC - 2.4/35 - 2.7/39
Front: 225/40 R 18 88 W RSC 2.2/32 - 2.5/36 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 2.9/42
Front: 225/35 R 19 88 Y XL RSC 2.5/36 - 2.5/36 -
Rear: 255/30 R 19 91 Y XL RSC - 3.0/44 - 3.0/44
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
With Sport Package:
205/55 R 16 91 H M+S RSC
225/50 R 16 92 H M+S RSC
225/45 R 17 91 H M+S RSC 2.2/32 2.6/38 2.5/36 3.0/44
225/45 R 17 91 V RSC 2.2/32 2.6/38 2.9/42 3.4/49
225/45 R 17 94 V M+S XL RSC 2.2/32 2.7/39 2.9/42 3.4/49
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.9/42 -
Rear: 255/40 R 17 94 V RSC - 2.4/35 - 3.0/44
Front: 225/40 R 18 88 W RSC 2.2/32 - 2.7/39 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 3.2/46
00320051004F004C00510048000300280047004C0057004C005200510003
Page 243 of 311
238
MobilityWheels and tires
Front: 225/35 R 19 88 Y XL RSC 2.5/36 -2.7/39 -
Rear: 255/30 R 19 91 Y XL RSC - 3.0/44- 3.2/46
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specificat ions in the table are
indicated in bar/ps i with cold tires.
Cold = ambient temperature
00320051004F004C00510048000300280047004C0057004C005200510003
Page 244 of 311
239
Wheels and tires
Mobility

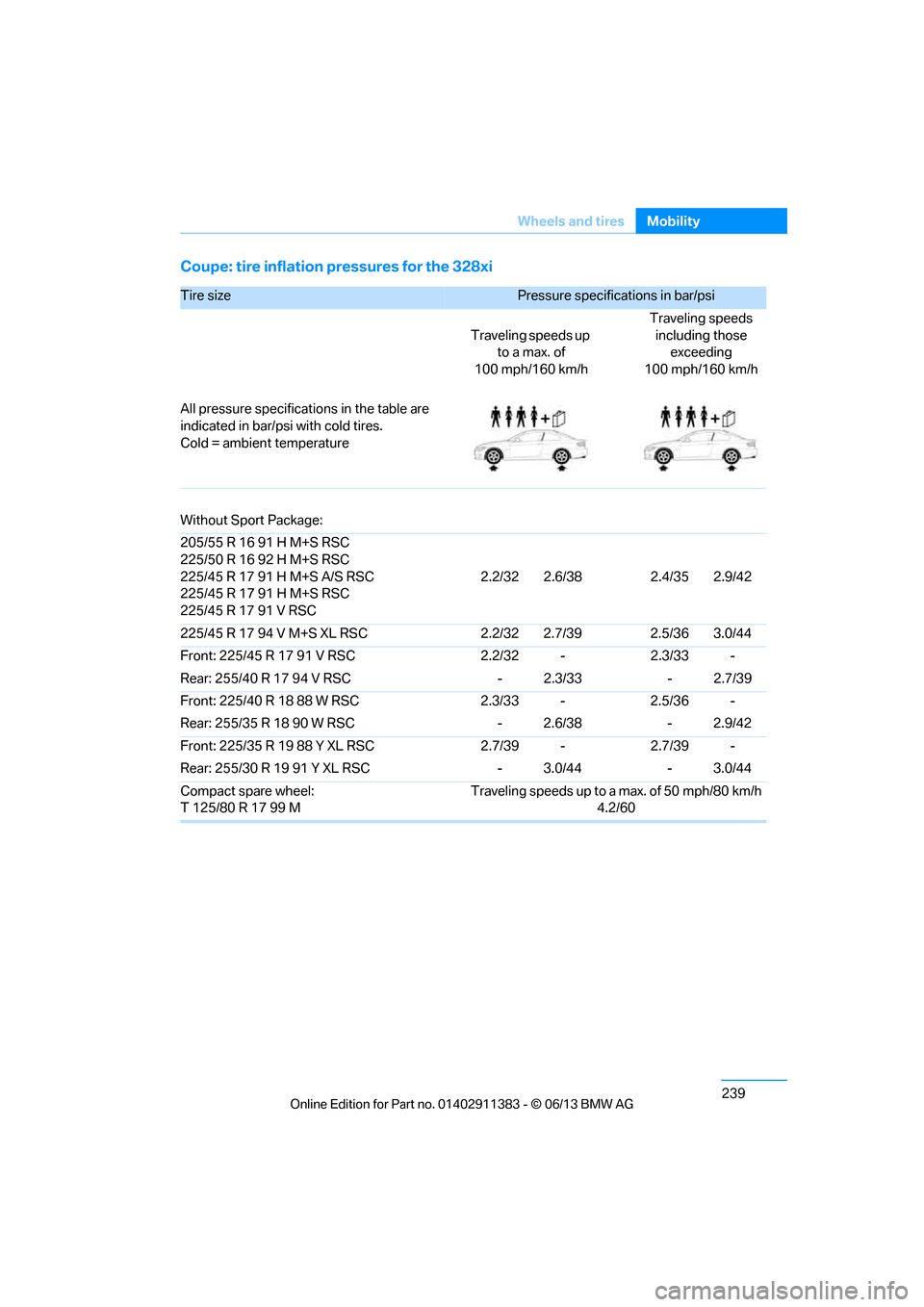

Coupe: tire inflation pressures for the 328xi
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S RSC
225/50 R 16 92 H M+S RSC
225/45 R 17 91 H M+S A/S RSC
225/45 R 17 91 H M+S RSC
225/45 R 17 91 V RSC 2.2/32 2.6/38 2.4/35 2.9/42
225/45 R 17 94 V M+S XL RSC 2.2/32 2.7/39 2.5/36 3.0/44
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.3/33 -
Rear: 255/40 R 17 94 V RSC - 2.3/33 - 2.7/39
Front: 225/40 R 18 88 W RSC 2.3/33 - 2.5/36 -
Rear: 255/35 R 18 90 W RSC - 2.6/38 - 2.9/42
Front: 225/35 R 19 88 Y XL RSC 2.7/39 - 2.7/39 -
Rear: 255/30 R 19 91 Y XL RSC - 3.0/44 - 3.0/44
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
00320051004F004C00510048000300280047004C0057004C005200510003
Page 245 of 311
240
MobilityWheels and tires

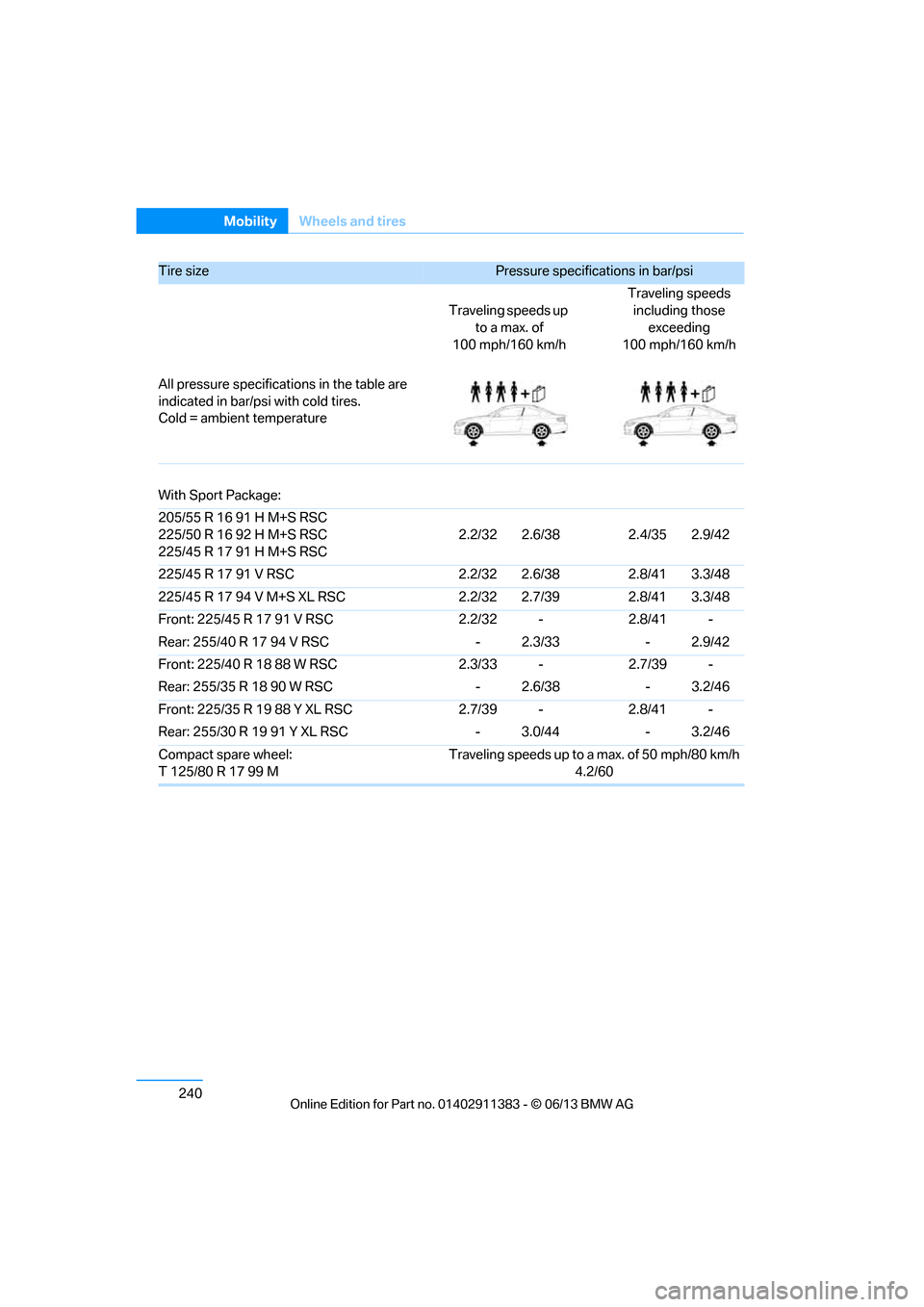

With Sport Package:
205/55 R 16 91 H M+S RSC
225/50 R 16 92 H M+S RSC
225/45 R 17 91 H M+S RSC 2.2/32 2.6/38 2.4/35 2.9/42
225/45 R 17 91 V RSC 2.2/32 2.6/38 2.8/41 3.3/48
225/45 R 17 94 V M+S XL RSC 2.2/32 2.7/39 2.8/41 3.3/48
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.8/41 -
Rear: 255/40 R 17 94 V RSC - 2.3/33 - 2.9/42
Front: 225/40 R 18 88 W RSC 2.3/33 - 2.7/39 -
Rear: 255/35 R 18 90 W RSC - 2.6/38 - 3.2/46
Front: 225/35 R 19 88 Y XL RSC 2.7/39 - 2.8/41 -
Rear: 255/30 R 19 91 Y XL RSC - 3.0/44 - 3.2/46
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specificat ions in the table are
indicated in bar/ps i with cold tires.
Cold = ambient temperature
00320051004F004C00510048000300280047004C0057004C005200510003
Page 246 of 311
241
Wheels and tires
Mobility

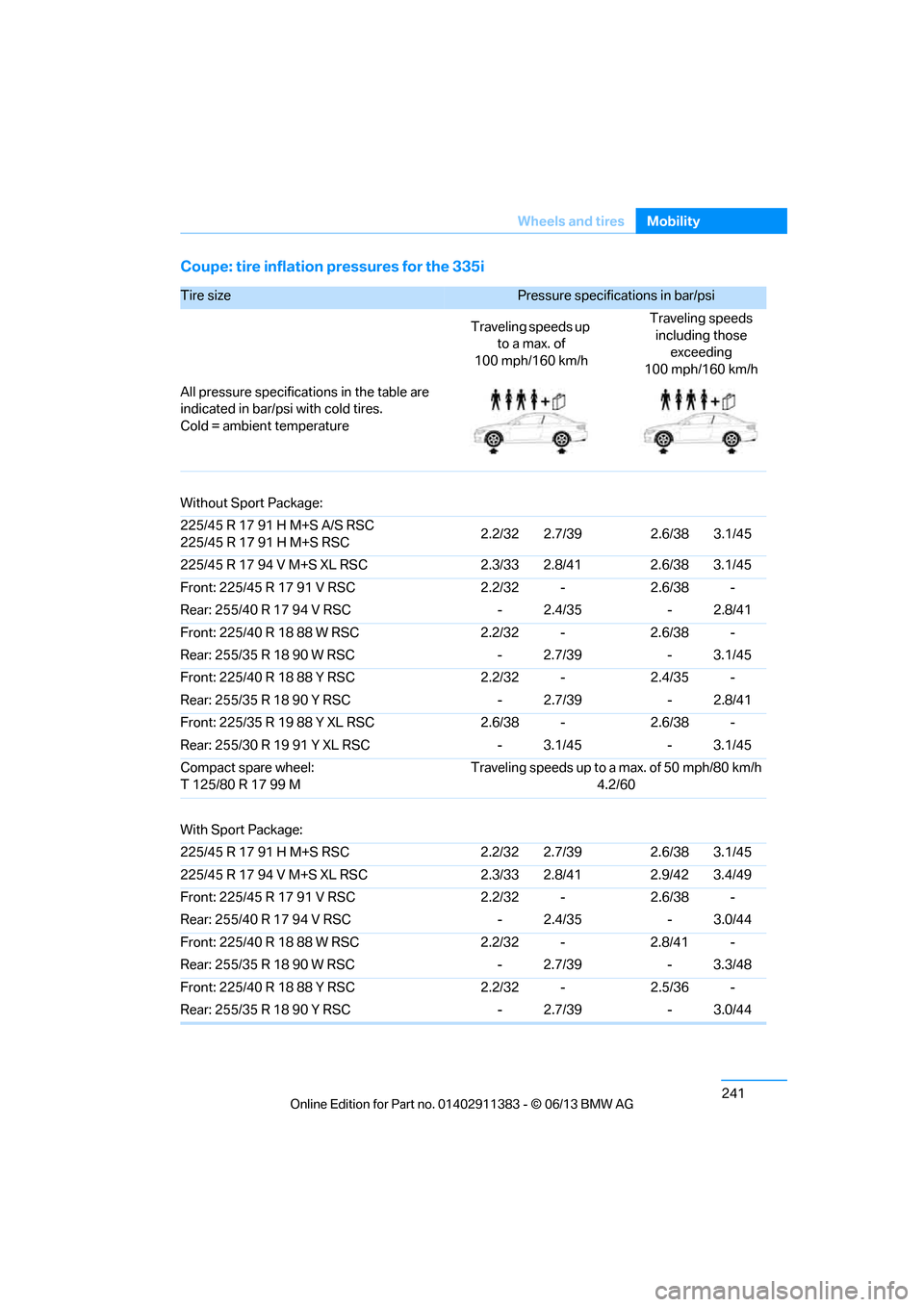

Coupe: tire inflation pressures for the 335i
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S A/S RSC
225/45 R 17 91 H M+S RSC 2.2/32 2.7/39 2.6/38 3.1/45
225/45 R 17 94 V M+S XL RSC 2.3/33 2.8/41 2.6/38 3.1/45
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.6/38 -
Rear: 255/40 R 17 94 V RSC - 2.4/35 - 2.8/41
Front: 225/40 R 18 88 W RSC 2.2/32 - 2.6/38 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 3.1/45
Front: 225/40 R 18 88 Y RSC 2.2/32 - 2.4/35 -
Rear: 255/35 R 18 90 Y RSC - 2.7/39 - 2.8/41
Front: 225/35 R 19 88 Y XL RSC 2.6/38 - 2.6/38 -
Rear: 255/30 R 19 91 Y XL RSC - 3.1/45 - 3.1/45
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
With Sport Package:
225/45 R 17 91 H M+S RSC 2.2/32 2.7/39 2.6/38 3.1/45
225/45 R 17 94 V M+S XL RSC 2.3/33 2.8/41 2.9/42 3.4/49
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.6/38 -
Rear: 255/40 R 17 94 V RSC - 2.4/35 - 3.0/44
Front: 225/40 R 18 88 W RSC 2.2/32 - 2.8/41 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 3.3/48
Front: 225/40 R 18 88 Y RSC 2.2/32 - 2.5/36 -
Rear: 255/35 R 18 90 Y RSC - 2.7/39 - 3.0/44
00320051004F004C00510048000300280047004C0057004C005200510003
Page 247 of 311
242
MobilityWheels and tires

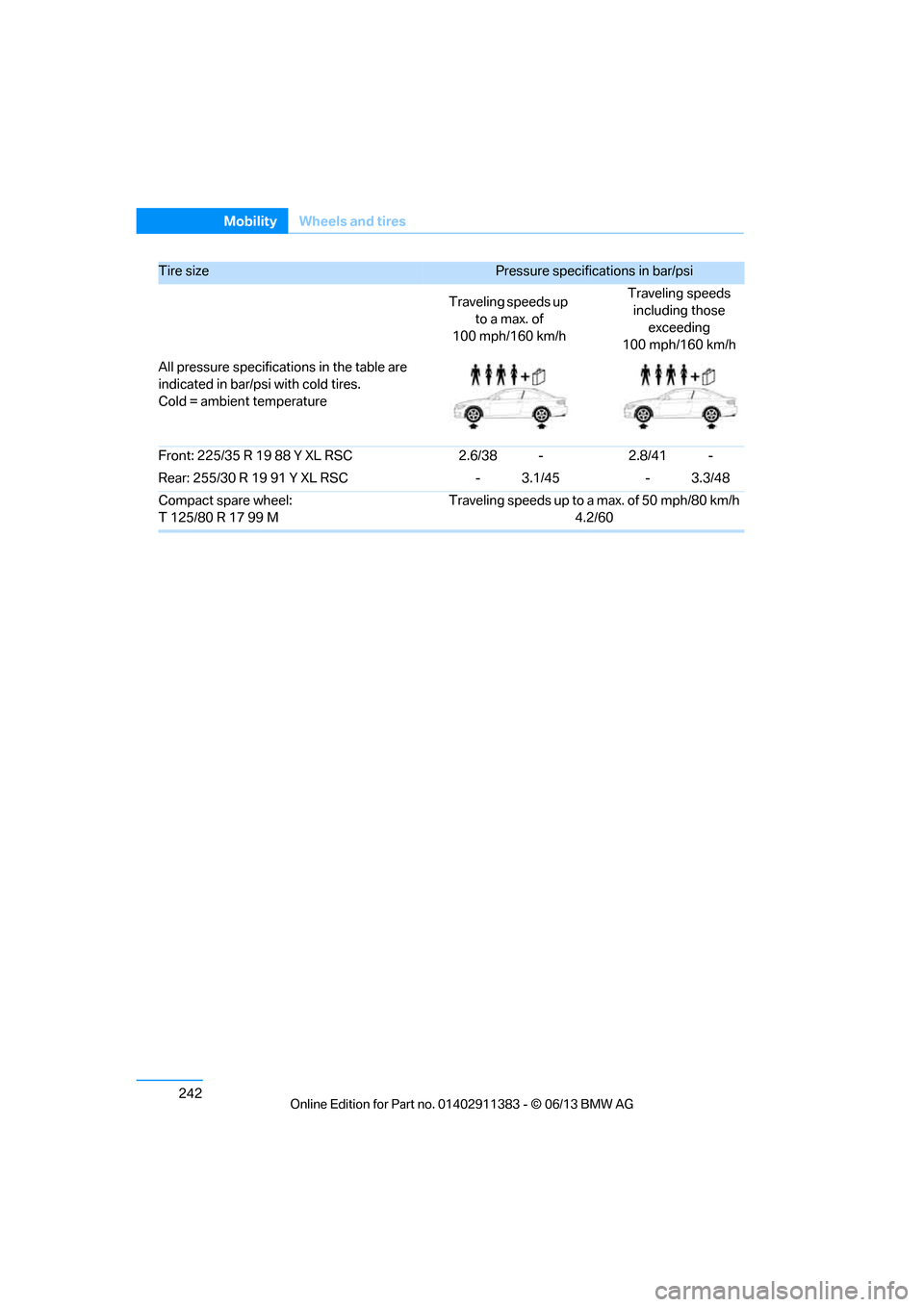

Front: 225/35 R 19 88 Y XL RSC 2.6/38 -2.8/41 -
Rear: 255/30 R 19 91 Y XL RSC - 3.1/45- 3.3/48
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specificat ions in the table are
indicated in bar/ps i with cold tires.
Cold = ambient temperature
00320051004F004C00510048000300280047004C0057004C005200510003
Page 248 of 311
243
Wheels and tires
Mobility

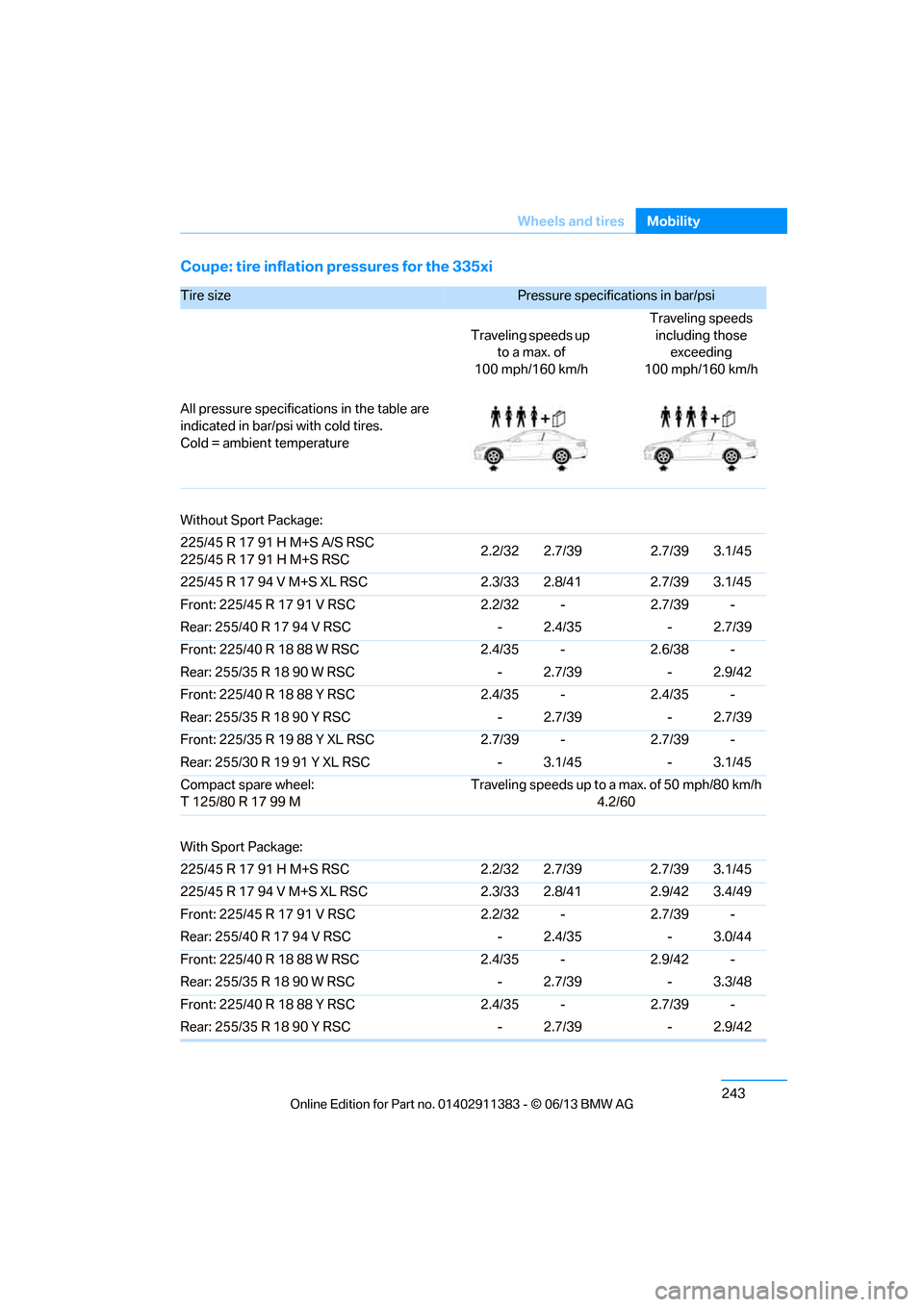

Coupe: tire inflation pressures for the 335xi
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S A/S RSC
225/45 R 17 91 H M+S RSC 2.2/32 2.7/39 2.7/39 3.1/45
225/45 R 17 94 V M+S XL RSC 2.3/33 2.8/41 2.7/39 3.1/45
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.7/39 -
Rear: 255/40 R 17 94 V RSC - 2.4/35 - 2.7/39
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 2.9/42
Front: 225/40 R 18 88 Y RSC 2.4/35 - 2.4/35 -
Rear: 255/35 R 18 90 Y RSC - 2.7/39 - 2.7/39
Front: 225/35 R 19 88 Y XL RSC 2.7/39 - 2.7/39 -
Rear: 255/30 R 19 91 Y XL RSC - 3.1/45 - 3.1/45
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
With Sport Package:
225/45 R 17 91 H M+S RSC 2.2/32 2.7/39 2.7/39 3.1/45
225/45 R 17 94 V M+S XL RSC 2.3/33 2.8/41 2.9/42 3.4/49
Front: 225/45 R 17 91 V RSC 2.2/32 - 2.7/39 -
Rear: 255/40 R 17 94 V RSC - 2.4/35 - 3.0/44
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 3.3/48
Front: 225/40 R 18 88 Y RSC 2.4/35 - 2.7/39 -
Rear: 255/35 R 18 90 Y RSC - 2.7/39 - 2.9/42
00320051004F004C00510048000300280047004C0057004C005200510003
Page 249 of 311
244
MobilityWheels and tires

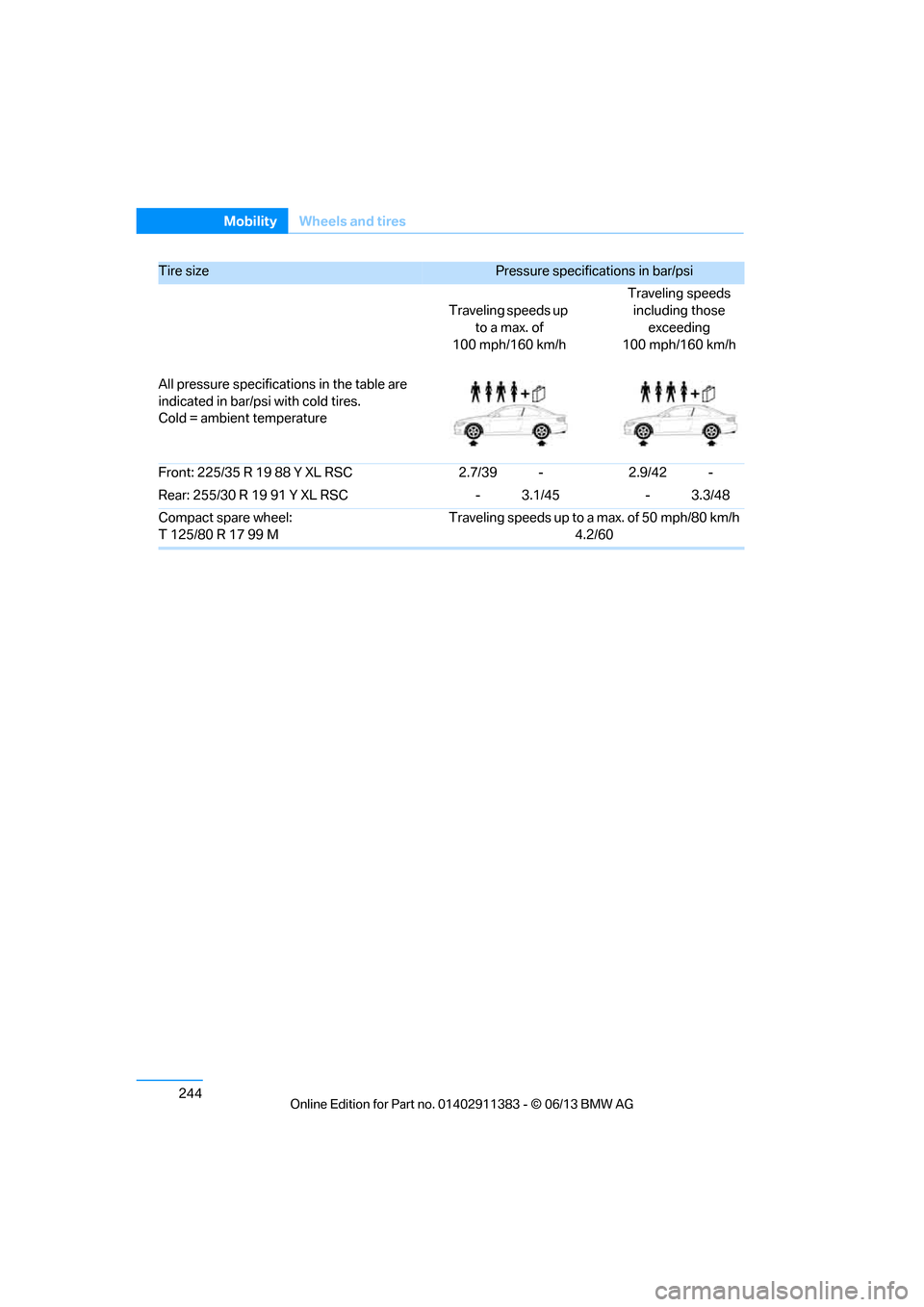

Front: 225/35 R 19 88 Y XL RSC 2.7/39 -2.9/42 -
Rear: 255/30 R 19 91 Y XL RSC - 3.1/45- 3.3/48
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specificat ions in the table are
indicated in bar/ps i with cold tires.
Cold = ambient temperature
00320051004F004C00510048000300280047004C0057004C005200510003
Page 250 of 311
245
Wheels and tires
Mobility

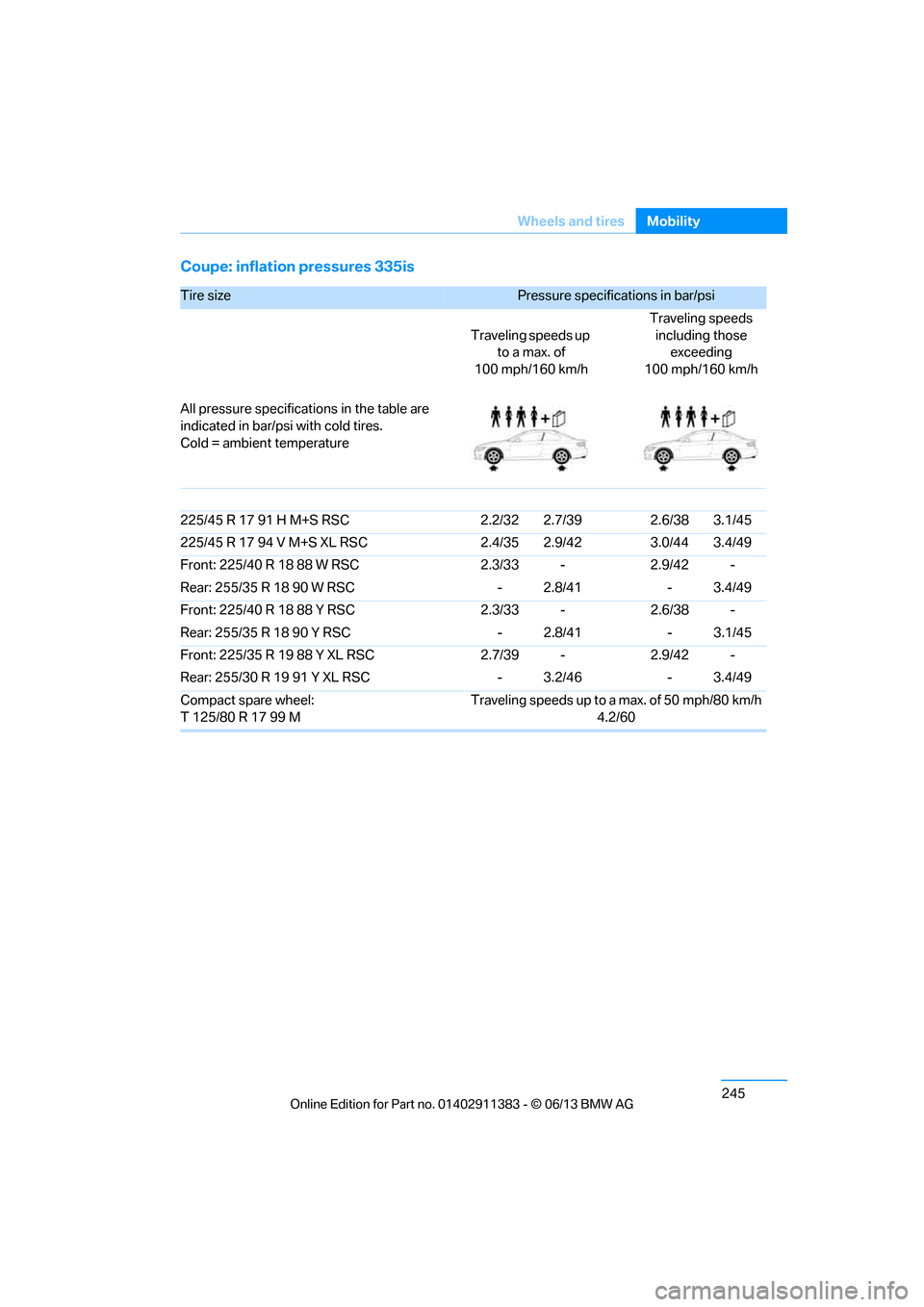

Coupe: inflation pressures 335is
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
225/45 R 17 91 H M+S RSC 2.2/32 2.7/39 2.6/38 3.1/45
225/45 R 17 94 V M+S XL RSC 2.4/35 2.9/42 3.0/44 3.4/49
Front: 225/40 R 18 88 W RSC 2.3/33 - 2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.8/41 - 3.4/49
Front: 225/40 R 18 88 Y RSC 2.3/33 - 2.6/38 -
Rear: 255/35 R 18 90 Y RSC - 2.8/41 - 3.1/45
Front: 225/35 R 19 88 Y XL RSC 2.7/39 - 2.9/42 -
Rear: 255/30 R 19 91 Y XL RSC - 3.2/46 - 3.4/49
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
