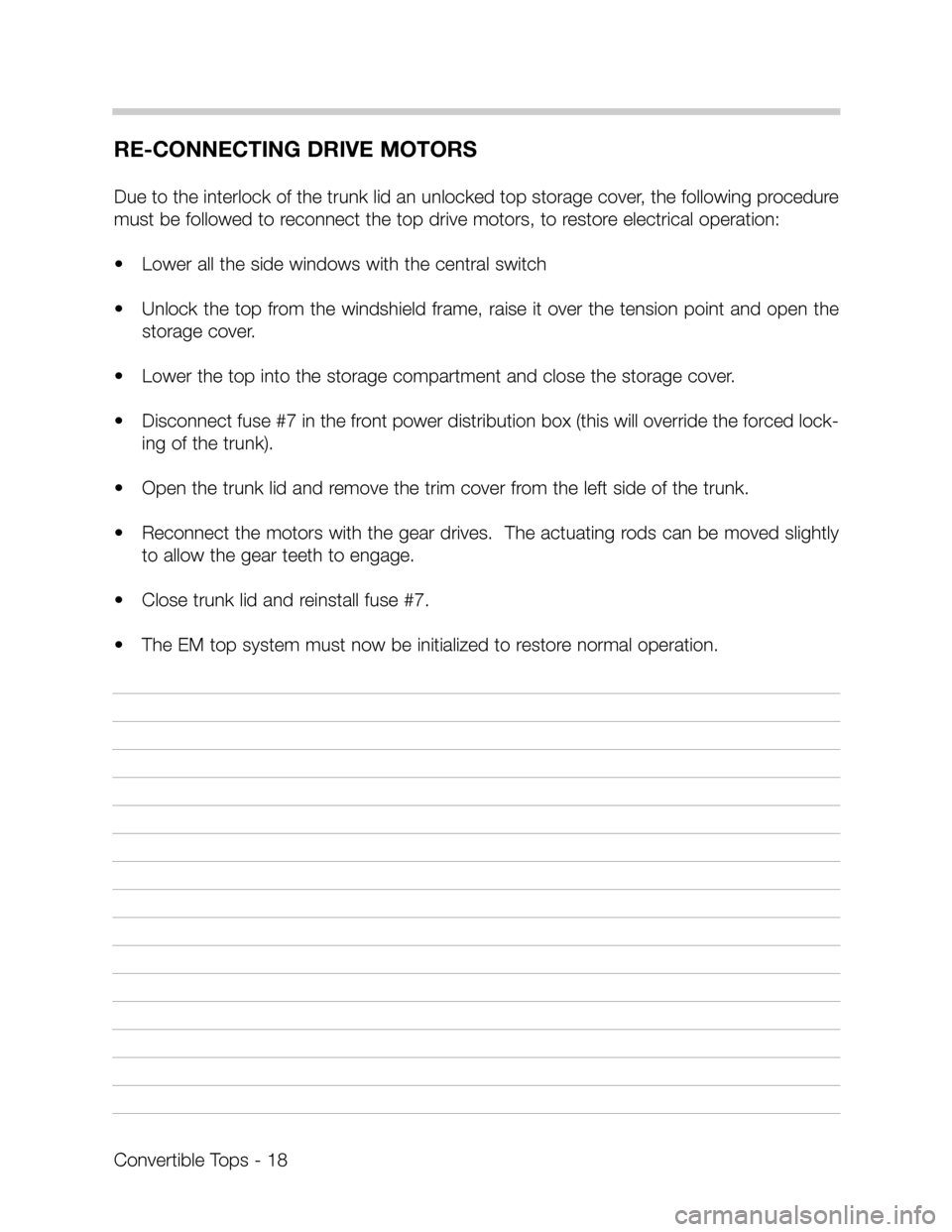

RE-CONNECTING DRIVE MOTORS
Due to the interlock of the trunk lid an unlocked top storage cover, the following procedure
must be followed to reconnect the top drive motors, to restore electrical operation:
•Lower all the side windows with the central switch
•Unlock the top from the windshield frame, raise it over the tension point and open the
storage cover.
•Lower the top into the storage compartment and close the storage cover.
•Disconnect fuse #7 in the front power distribution box (this will override the forced lock-
ing of the trunk).
•Open the trunk lid and remove the trim cover from the left side of the trunk.
•Reconnect the motors with the gear drives. The actuating rods can be moved slightly
to allow the gear teeth to engage.
•Close trunk lid and reinstall fuse #7.
•The EM top system must now be initialized to restore normal operation.
Convertible Tops - 18
