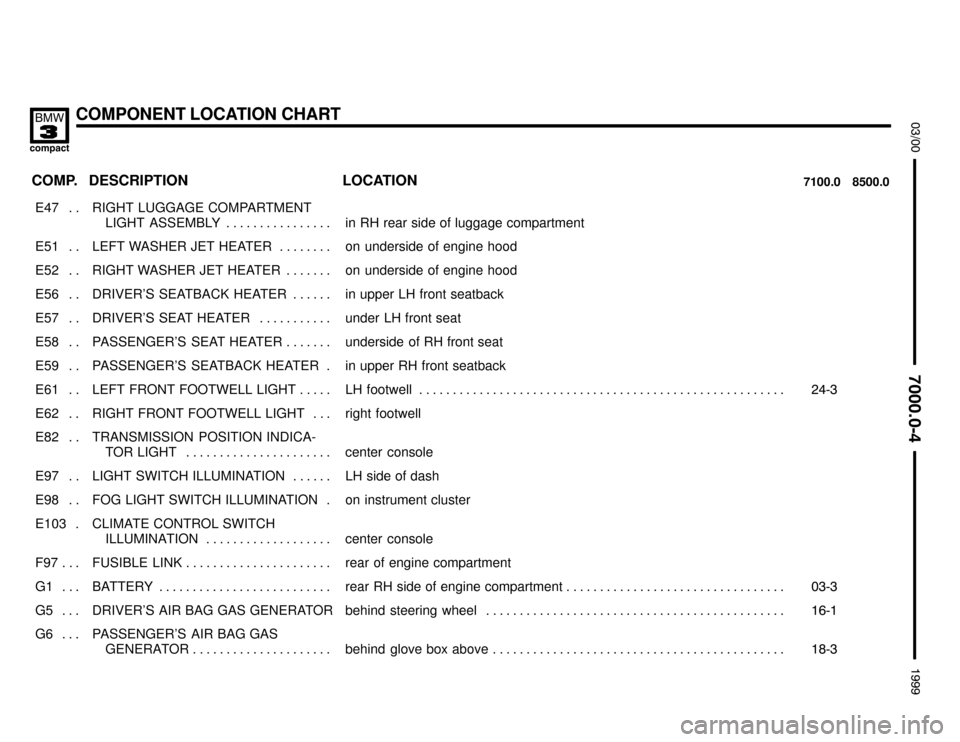

COMPONENT LOCATION CHART








COMP.8500.0 7100.0LOCATION DESCRIPTION

E47 . .
RIGHT LUGGAGE COMPARTMENT
LIGHT ASSEMBLY . . . . . . . . . . . . . . . .
in RH rear side of luggage compartment




E51 . . LEFT WASHER JET HEATER . . . . . . . . on underside of engine hood

E52 . .

RIGHT WASHER JET HEATER . . . . . . .

on underside of engine hood




E56 . . DRIVER’S SEATBACK HEATER . . . . . . in upper LH front seatback
E57 . . DRIVER’S SEAT HEATER . . . . . . . . . . . under LH front seat

E58 . .
PASSENGER’S SEAT HEATER . . . . . . .
underside of RH front seat



E59 . . PASSENGER’S SEATBACK HEATER . in upper RH front seatback
E61 . . LEFT FRONT FOOTWELL LIGHT . . . . . LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
E62 . . RIGHT FRONT FOOTWELL LIGHT . . . right footwell



E82 . .



TRANSMISSION POSITION INDICA-
TOR LIGHT . . . . . . . . . . . . . . . . . . . . . .


center console






E97 . . LIGHT SWITCH ILLUMINATION . . . . . . LH side of dash
E98 . . FOG LIGHT SWITCH ILLUMINATION . on instrument cluster

E103 .
CLIMATE CONTROL SWITCH
ILLUMINATION . . . . . . . . . . . . . . . . . . .
center console




F97 . . . FUSIBLE LINK . . . . . . . . . . . . . . . . . . . . . . rear of engine compartment

G1 . . .

BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . .

rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0


G5 . . . DRIVER’S AIR BAG GAS GENERATOR behind steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0


G6 . . .

PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
behind glove box above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0

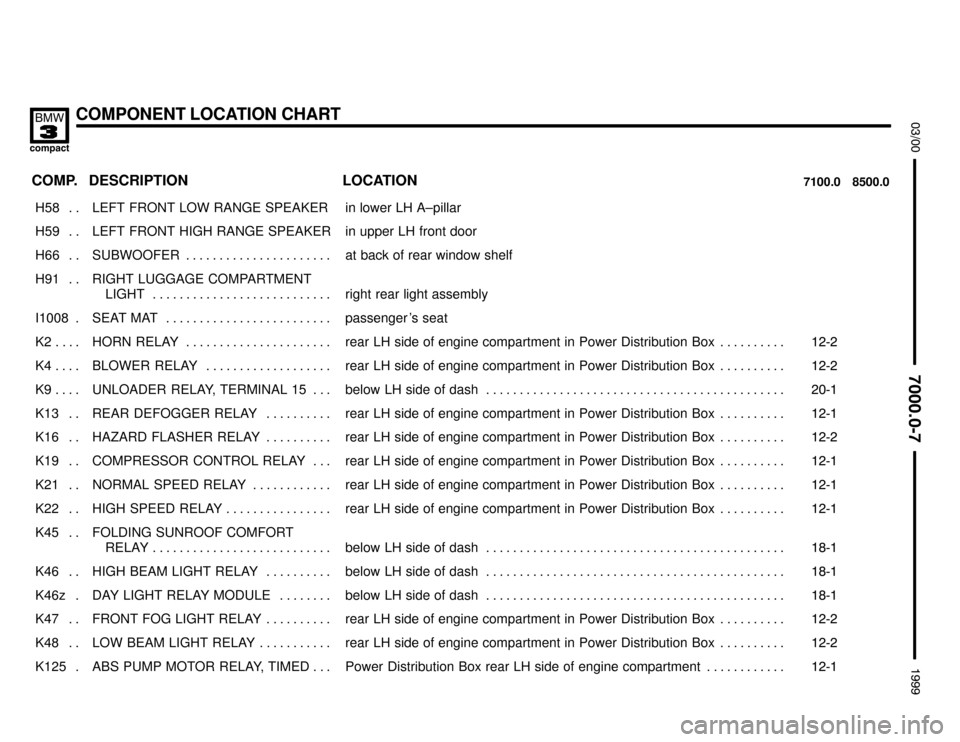

COMPONENT LOCATION CHART








COMP.8500.0 7100.0LOCATION DESCRIPTION
H58 . . LEFT FRONT LOW RANGE SPEAKER in lower LH A–pillar

H59 . .

LEFT FRONT HIGH RANGE SPEAKER

in upper LH front door




H66 . . SUBWOOFER . . . . . . . . . . . . . . . . . . . . . . at back of rear window shelf


H91 . .

RIGHT LUGGAGE COMPARTMENT
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
right rear light assembly




I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . passenger’s seat

K2 . . . .
HORN RELAY . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .

0


K4 . . . . BLOWER RELAY . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0

K9 . . . . UNLOADER RELAY, TERMINAL 15 . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
K13 . . REAR DEFOGGER RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0

K16 . .

HAZARD FLASHER RELAY . . . . . . . . . .

rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .


0


K19 . . COMPRESSOR CONTROL RELAY . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0

K22 . .
HIGH SPEED RELAY . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .

0



K45 . .

FOLDING SUNROOF COMFORT
RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0

K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
K46z . DAY LIGHT RELAY MODULE . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
K47 . . FRONT FOG LIGHT RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0


K48 . .

LOW BEAM LIGHT RELAY . . . . . . . . . . .

rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .


0


K125 . ABS PUMP MOTOR RELAY, TIMED . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .
0

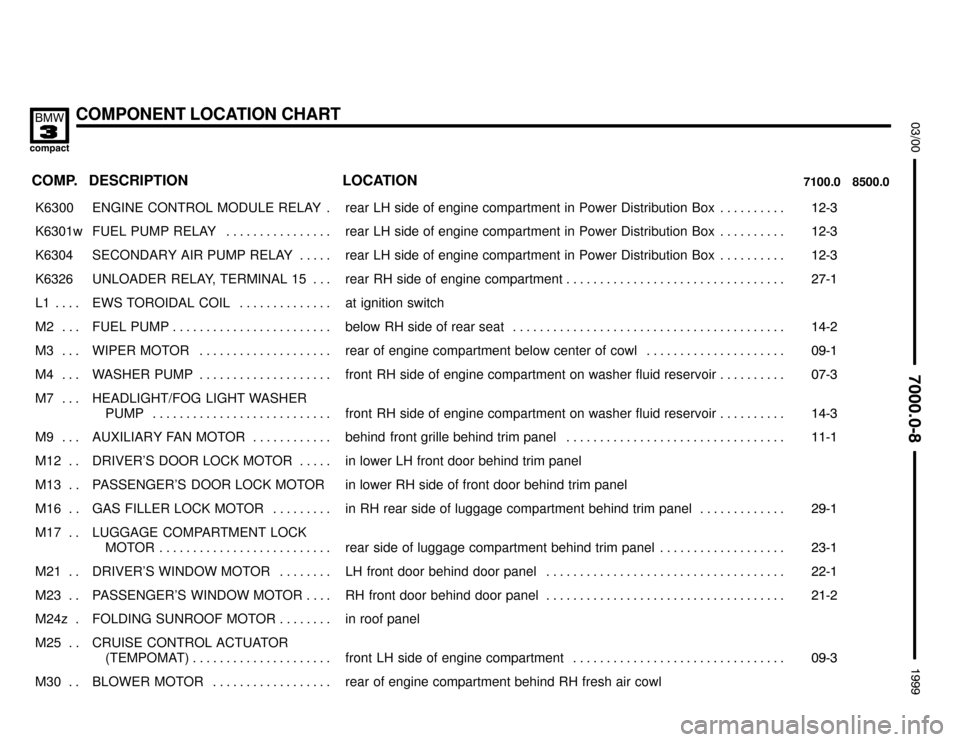

COMPONENT LOCATION CHART








COMP.8500.0 7100.0LOCATION DESCRIPTION
K6300 ENGINE CONTROL MODULE RELAY . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0

K6301w

FUEL PUMP RELAY . . . . . . . . . . . . . . . .

rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .


0


K6304 SECONDARY AIR PUMP RELAY . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K6326 UNLOADER RELAY, TERMINAL 15 . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0

L1 . . . .
EWS TOROIDAL COIL . . . . . . . . . . . . . .
at ignition switch



M2 . . .

FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . .

below RH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0


M3 . . . WIPER MOTOR . . . . . . . . . . . . . . . . . . . . rear of engine compartment below center of cowl . . . . . . . . . . . . . . . . . . . . . 0
M4 . . . WASHER PUMP . . . . . . . . . . . . . . . . . . . . front RH side of engine compartment on washer fluid reservoir . . . . . . . . . . 0

M7 . . .
HEADLIGHT/FOG LIGHT WASHER
PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .

0



M9 . . .

AUXILIARY FAN MOTOR . . . . . . . . . . . .

behind front grille behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0


M12 . . DRIVER’S DOOR LOCK MOTOR . . . . . in lower LH front door behind trim panel
M13 . . PASSENGER’S DOOR LOCK MOTOR in lower RH side of front door behind trim panel

M16 . .
GAS FILLER LOCK MOTOR . . . . . . . . .
in RH rear side of luggage compartment behind trim panel . . . . . . . . . . . . .

0



M17 . .

LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment behind trim panel . . . . . . . . . . . . . . . . . . .

0

M21 . . DRIVER’S WINDOW MOTOR . . . . . . . . LH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0
M23 . . PASSENGER’S WINDOW MOTOR . . . . RH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0

M24z . FOLDING SUNROOF MOTOR . . . . . . . . in roof panel



M25 . .



CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . .


front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


0



M30 . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . rear of engine compartment behind RH fresh air cowl

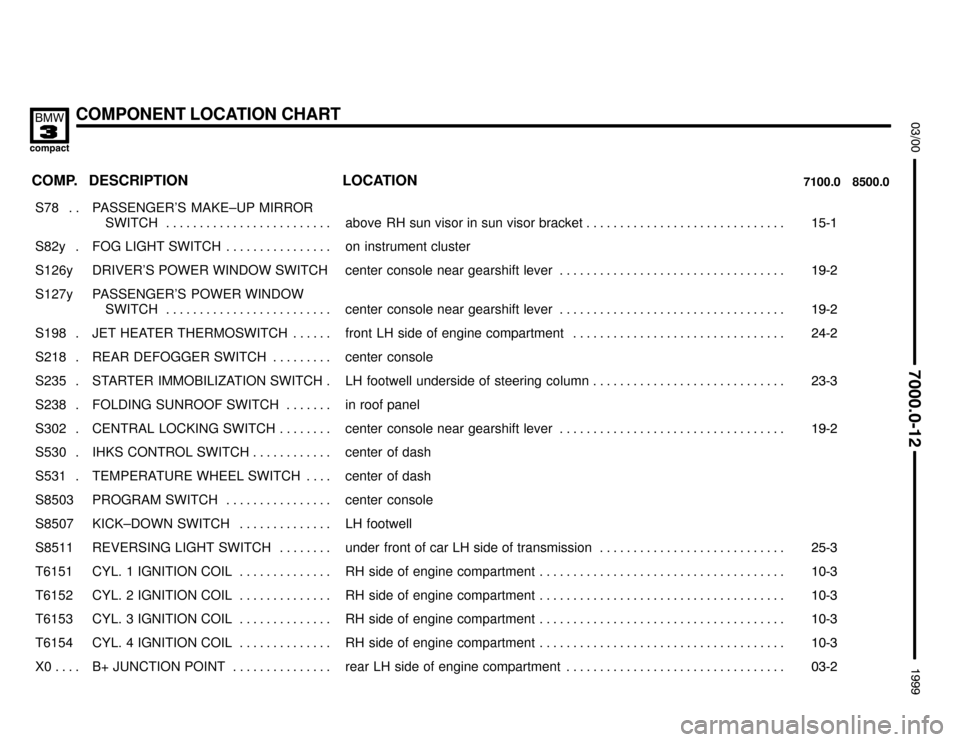

COMPONENT LOCATION CHART








COMP.8500.0 7100.0LOCATION DESCRIPTION

S78 . .
PASSENGER’S MAKE–UP MIRROR
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
above RH sun visor in sun visor bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0


S82y . FOG LIGHT SWITCH . . . . . . . . . . . . . . . . on instrument cluster

S126y

DRIVER’S POWER WINDOW SWITCH

center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0




S127y

PASSENGER’S POWER WINDOW
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0


S198 . JET HEATER THERMOSWITCH . . . . . . front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0

S218 . REAR DEFOGGER SWITCH . . . . . . . . . center console

S235 .

STARTER IMMOBILIZATION SWITCH .

LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


0


S238 . FOLDING SUNROOF SWITCH . . . . . . . in roof panel
S302 . CENTRAL LOCKING SWITCH . . . . . . . . center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0


S530 .
IHKS CONTROL SWITCH . . . . . . . . . . . .
center of dash



S531 . TEMPERATURE WHEEL SWITCH . . . . center of dash
S8503 PROGRAM SWITCH . . . . . . . . . . . . . . . . center console
S8507 KICK–DOWN SWITCH . . . . . . . . . . . . . . LH footwell

S8511
REVERSING LIGHT SWITCH . . . . . . . .
under front of car LH side of transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0

T6151 CYL. 1 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
T6152 CYL. 2 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
T6153 CYL. 3 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0

T6154

CYL. 4 IGNITION COIL . . . . . . . . . . . . . .

RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0


X0 . . . . B+ JUNCTION POINT . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0

B1
RIGHT FRONT
SPEED SENSOR –
ABS
B2
LEFT FRONT
SPEED SENSOR –
ABS
B16
LEFT FRONT
BRAKE PAD
SENSOR*E26
LEFT FOG LIGHT
E27
RIGHT FOG LIGHT
X768
X769
*
*X143
X713




COMPONENT LOCATION VIEWS










RH SIMILAR *RH SIMILAR *







K6300
ENGINE CONTROL
MODULE RELAY
K6301w
FUEL PUMP RELAY K2
HORN RELAY
K4
BLOWER RELAYK47
FRONT FOG LIGHT
RELAY
K16
HAZARD FLASHER
RELAYK48
LOW BEAM LIGHT
RELAYK21
NORMAL SPEED
RELAY K13
REAR DEFOGGER
RELAYK22
HIGH SPEED
RELAY
K19
COMPRESSOR
CONTROL RELAYK125
ABS PUMP MOTOR
RELAY, TIMED

COMPONENT LOCATION VIEWS













K6304
SECONDARY AIR
PUMP RELAY


M2
FUEL PUMP
X638
X679
B21
ON–BOARD
COMPUTER
TEMPERATURE
SENSOR
X770
M7
HEADLIGHT/FOG
LIGHT WASHER
PUMP
S21w
ENGINE HOOD
SWITCH
X123
X371




COMPONENT LOCATION VIEWS
