BMW 320i 2001 User Guide

11n

Controls and features
Operation, care and maintenance

Lamps:

Side lamps/Headlamps88
Instrument lighting88
High beams/Parking lamps89
Fog lamps89
Interior lamps89

Controlling the climate
for pleasant driving:

Air conditioner92
Automatic climate control98
Seat heating103
Roller sun blind103

Interior conveniences:

HiFi system104
Glove compartment104
Storage compartments105
Cellular phones107
Ashtray, front107
Cigarette lighter108
Ashtray, rear108

Loading and transporting:

Through-loading system109
Ski bag110
Cargo loading112
Roof-mounted luggage rack113

Special operating instructions:

Break-in procedures116
Driving notes117
Catalytic converter117
Antilock Brake System
(ABS)118
Disc brakes120
Brake system121
Winter operation121
Power steering123
Cellular phones124
Radio reception124

Wheels and tires:

Tire inflation pressures125
Tire condition125
Tire replacement126
Tire rotation127
Wheel and tire
combinations128
Winter tires129
Snow chains129
Approved wheel and tire
specifications130

Under the hood:

Hood134
Engine compartment136
Washer fluids138
Washer nozzles138
Engine oil139
Coolant142
Brake fluid143
Vehicle Identification
Number144

Care and maintenance:

The BMW Maintenance
System145
Caring for your vehicle146
Airbags151
Vehicle storage152

Laws and regulations:

Technical modifications to the
vehicle153
California Proposition
65 Warning153
OBD interface socket154

Contents

Owner service procedures
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit158
Windshield wiper blades158
Lamps and bulbs158
Changing a wheel165
Battery168
Fuses170
Microfilter/Activated-charcoal
filter171

In case of electrical
malfunction:

Fuel filler door172
Sliding/Tilt sunroof172

Assistance, giving and
receiving:

Jump-starting173
Towing the vehicle174Adaptive Transmission Control
(ATC)178
Airbags179
Automatic Stability Control plus
traction (ASC+T)/Dynamic
Stability Control (DSC)180
Radio reception181
Four-wheel drive182
Safety belt tensioner183
Interior rearview mirror with
automatic dimming
feature184
Rain sensor185
Tire Pressure Control (RDC)186
Self-diagnostics187
Xenon lamps188Engine data192
Dimensions193
Weights194
Capacities195
Electrical system196
V-belts196

13n

Index

Everything from A to Z200
Owner service procedures206

14n

Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology

15n

IndexDataTechnologyRepairsCar careControlsOverview
Cockpit16
Instrument cluster18
Indicator and warning lamps20
Multifunction steering wheel
(MFL)24
Sports steering wheel with
multifunction buttons25
Hazard warning flashers26
Warning triangle26
First-aid kit26
Refueling27
Fuel specifications28
Tire inflation pressure28
Overview

16n
460us298

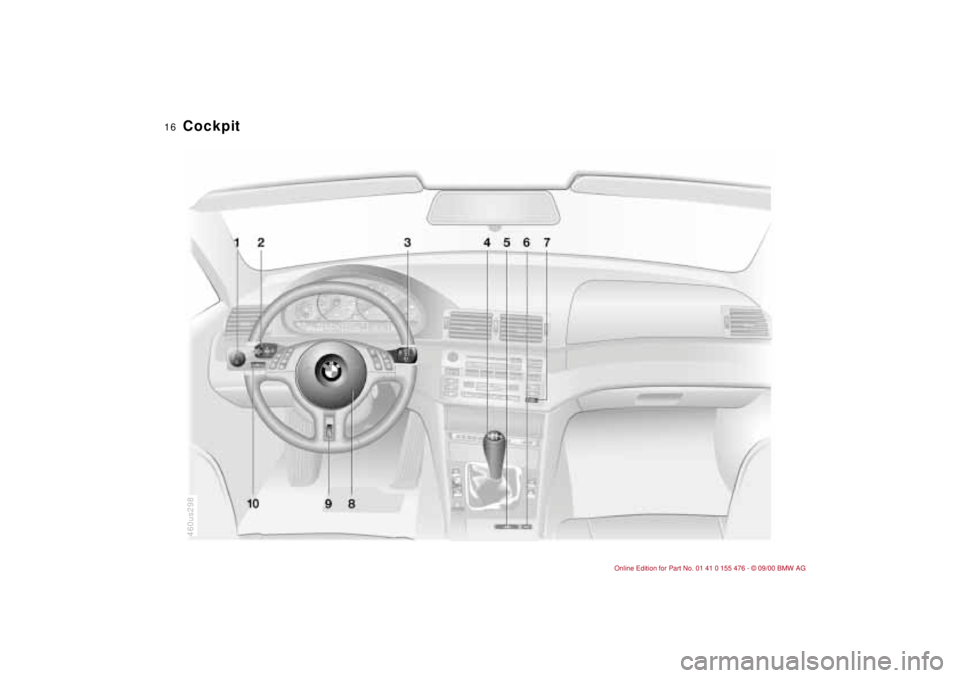

Cockpit

17n

IndexDataTechnologyRepairsCar careControlsOverview

Cockpit

1 Parking lamps/Low beams88
2

>

Turn signal indicator69

>

Parking lamps89

>

High beams89

>

Headlamp flasher69

>

Computer

*
77
3 Wiper/Washer system69
4 Shift lever/Selector lever

*
65
For vehicles equipped with manual
transmission:
To shift into reverse, push the gear
shift lever to the left, overcoming
the resistance
5 Hazard warning flashers26
6 Central locking system34
7 Rear window defroster71
8 Horn sports steering wheel

*
, the
entire surface functions as the horn
9 Adjusting steering wheel51
10 Front fog lamps

*
89

18n

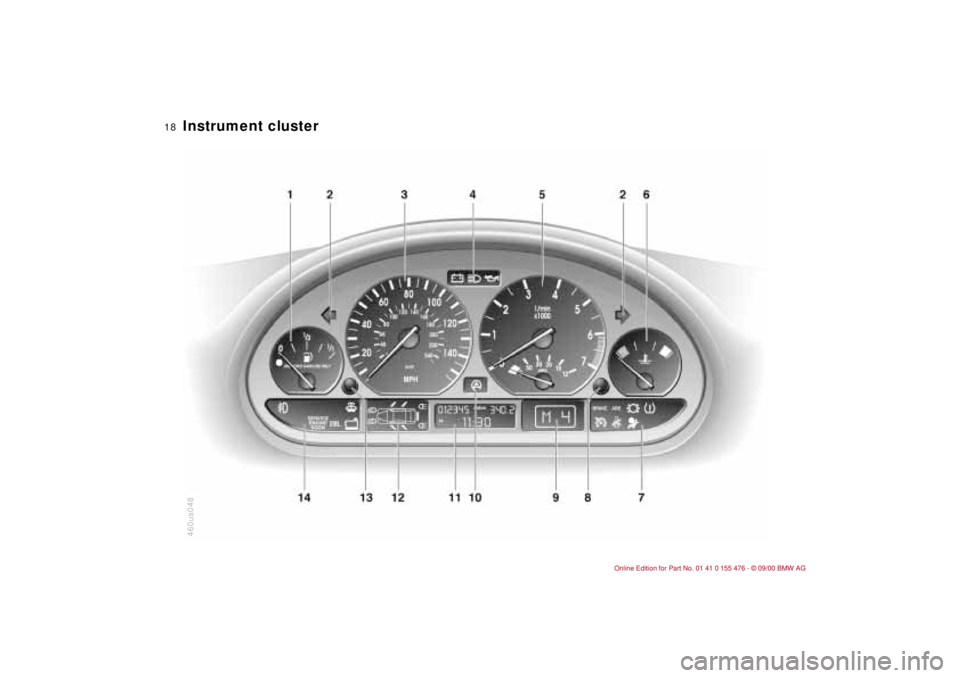

Instrument cluster 460us048

19n

IndexDataTechnologyRepairsCar careControlsOverview

Instrument cluster

1 Fuel gauge with indicator lamp
for fuel reserve75
2 Indicator lamp for turn signal
indicators23
3 Speedometer
4 Indicator lamp for:

>

Battery charge current20

>

High beams23

>

Engine oil pressure/Engine oil
level20, 22
5 Tachometer and Energy Control74
6 Engine coolant temperature gauge
with "Coolant temperature too high"
indicator75
7 Indicator and warning lamps
(clockwise) for:

>

Parking brake/Brake hydraulic
system/Cornering Brake Control
(CBC/DBC)20

>

Antilock Brake System (ABS)22

>

Brake pads22

>

Tire Pressure Control
(RDC)

*
20, 22

>

Airbags21

>

Please fasten safety belts21

>

Cruise control

*
23
8 Set button for the clock769 Program display for automatic
transmission

*
66, 68
Indicator lamp for automatic
transmission

*
21, 66
10 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability Control
(DSC)

*
or DSC

*
and ADB

*
/
ADB-X

*
22
11 Indicator for:

>

Odometer74

>

Trip odometer74

>

Clock76

>

Service Interval76
Display for computer

*
, operation via
the turn signal lever, refer to
page 77:

>

Clock

>

Outside temperature

>

Average fuel consumption

>

Range

>

Average speed
12 Indicator for Check Control76
13 Trip odometer, reset to zero7414 Indicator and warning lamps
(clockwise) for:

>

Front fog lamps

*
23

>

Add washer fluid22

>

Coolant level23

>

Electronic Engine Power Control
(EML)

*
23

>

Service Engine Soon23
You can display the outside
temperature and distance driven
in different units of measurement.

<

20n
Indicator and warning lamps Technology that monitors itself Many of the systems of your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
that are identified by "l" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started, or
it lights up while the vehicle is moving.
You will see how to react to this below.
Red: stop immediately
Battery charge l
The battery is no longer being
charged. There is a malfunction
of the alternator V-belt or in the
charging circuit of the alternator. Please
contact the nearest BMW center.
If the V-belt is defective, do not
continue driving. If you do so, the
engine could be damaged due to over-
heating. If the V-belt is defective,
increased steering effort is also
required.<
Engine oil pressure
l
Stop the vehicle and switch off
the engine immediately. Check
the engine oil and top off as required. If
the oil level is correct, please contact
the nearest BMW center.
Do not continue driving. If you do
so, the engine could be damaged
because of inadequate lubrication.<
Tire Pressure Control (RDC)
* l
In addition, an acoustic signal is
sounded: a tire failure has
occurred. Reduce vehicle speed imme-
diately and stop the vehicle. Avoid hard
brake applications. Do not oversteer.
For additional information, refer to
page 86.
Brake hydraulic system l
If the lamp comes on when the
parking brake is not engaged:
Check the brake fluid level. Before
driving further, be sure to read the
notes on pages 121 and 143.
Brake warning lamp for Cana-
dian models.
