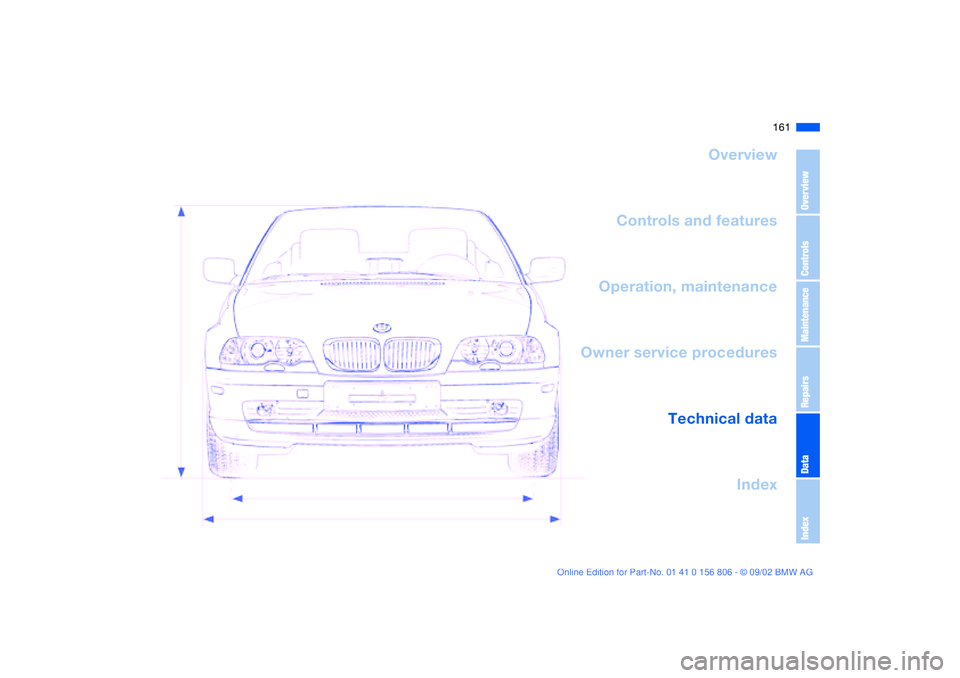

BMW 325Ci 2003 Owners Manual

161
Overview
Controls and features
Operation, maintenance
Owner service procedures
Technical data
Index
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 161 Wednesday, July 31, 2002 9:29 AM

162

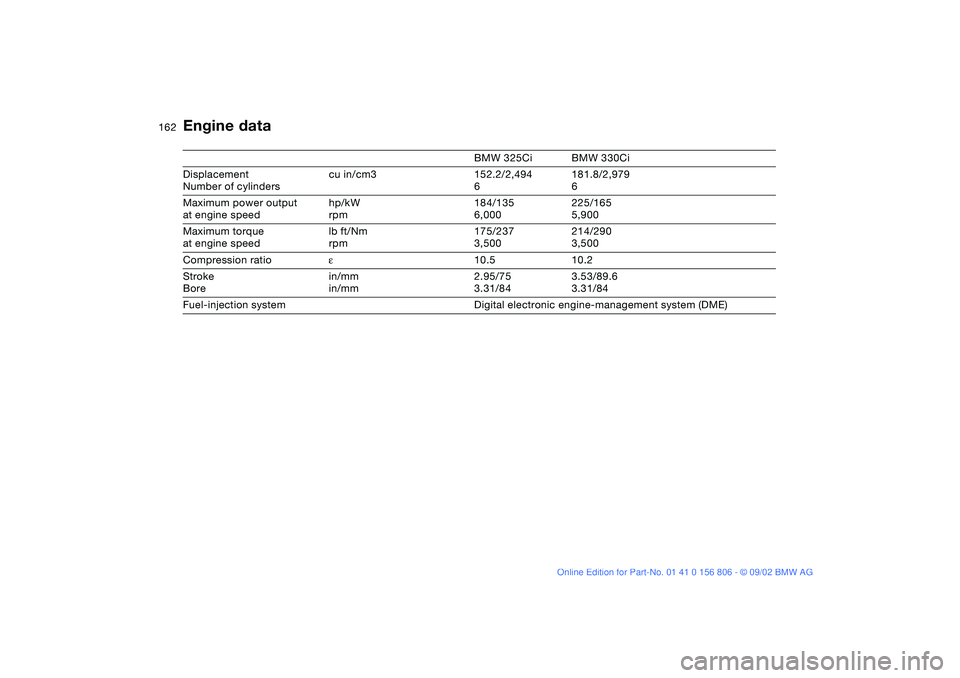

Engine data
BMW 325Ci BMW 330Ci
Displacement
Number of cylinderscu in/cm3 152.2/2,494
6181.8/2,979
6
Maximum power output
at engine speedhp/kW
rpm184/135
6,000225/165
5,900
Maximum torque
at engine speedlb ft/Nm
rpm175/237
3,500214/290
3,500
Compression ratioε10.5 10.2
Stroke
Borein/mm
in/mm2.95/75
3.31/843.53/89.6
3.31/84
Fuel-injection system Digital electronic engine-management system (DME)
handbook.book Page 162 Wednesday, July 31, 2002 9:29 AM

163

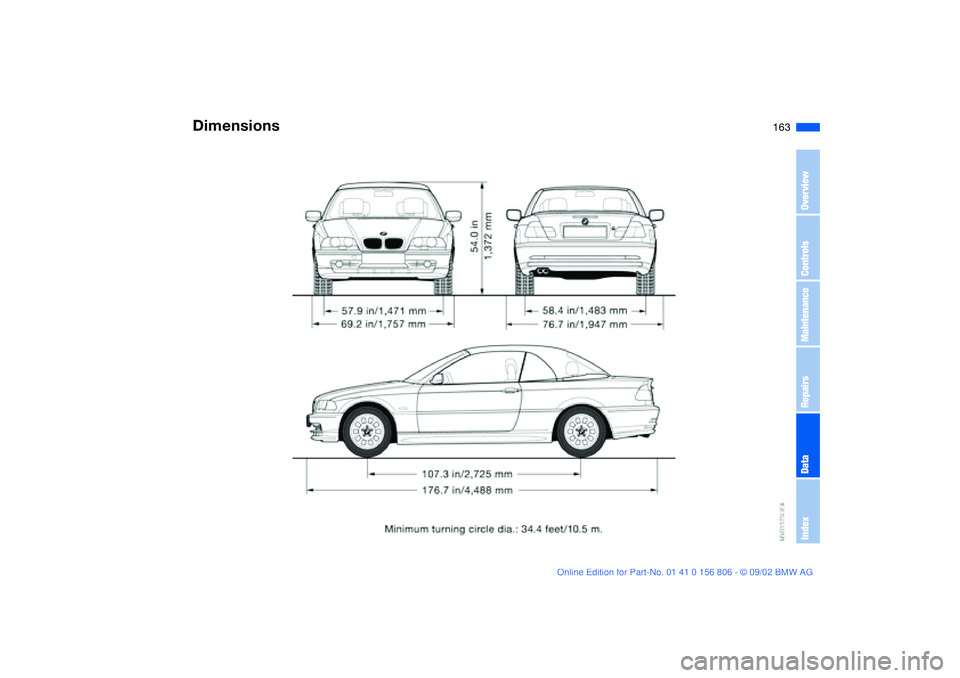

Dimensions
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 163 Wednesday, July 31, 2002 9:29 AM

164

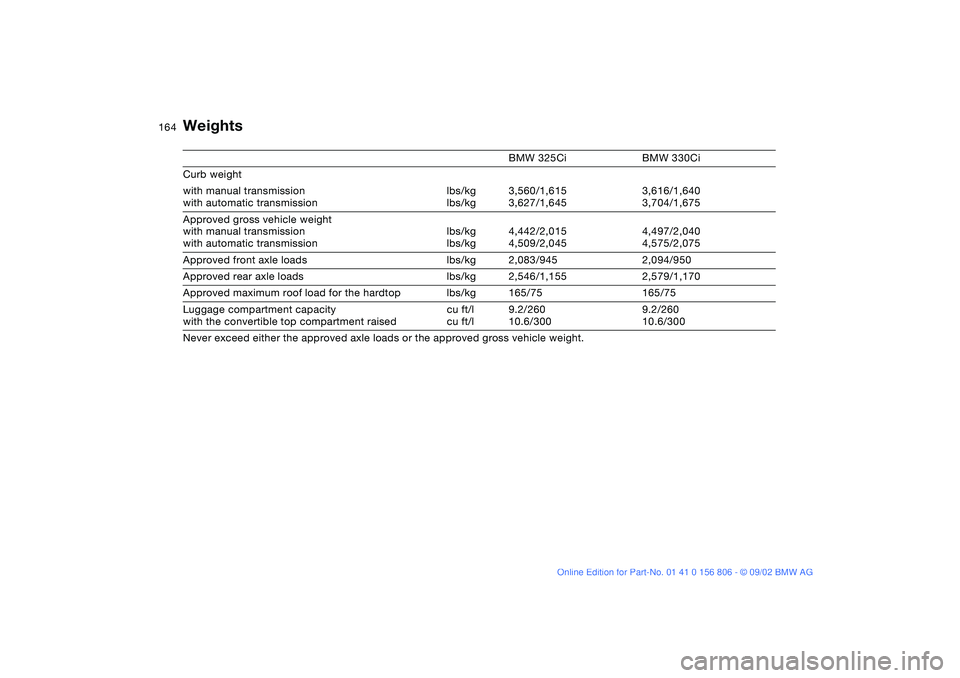

Weights
BMW 325Ci BMW 330Ci
Curb weight
with manual transmission
with automatic transmissionlbs/kg
lbs/kg3,560/1,615
3,627/1,6453,616/1,640
3,704/1,675
Approved gross vehicle weight
with manual transmission
with automatic transmissionlbs/kg
lbs/kg4,442/2,015
4,509/2,0454,497/2,040
4,575/2,075
Approved front axle loads lbs/kg 2,083/945 2,094/950
Approved rear axle loads lbs/kg 2,546/1,155 2,579/1,170
Approved maximum roof load for the hardtop lbs/kg 165/75 165/75
Luggage compartment capacity
with the convertible top compartment raisedcu ft/l
cu ft/l9.2/260
10.6/3009.2/260
10.6/300
Never exceed either the approved axle loads or the approved gross vehicle weight.
handbook.book Page 164 Wednesday, July 31, 2002 9:29 AM

165

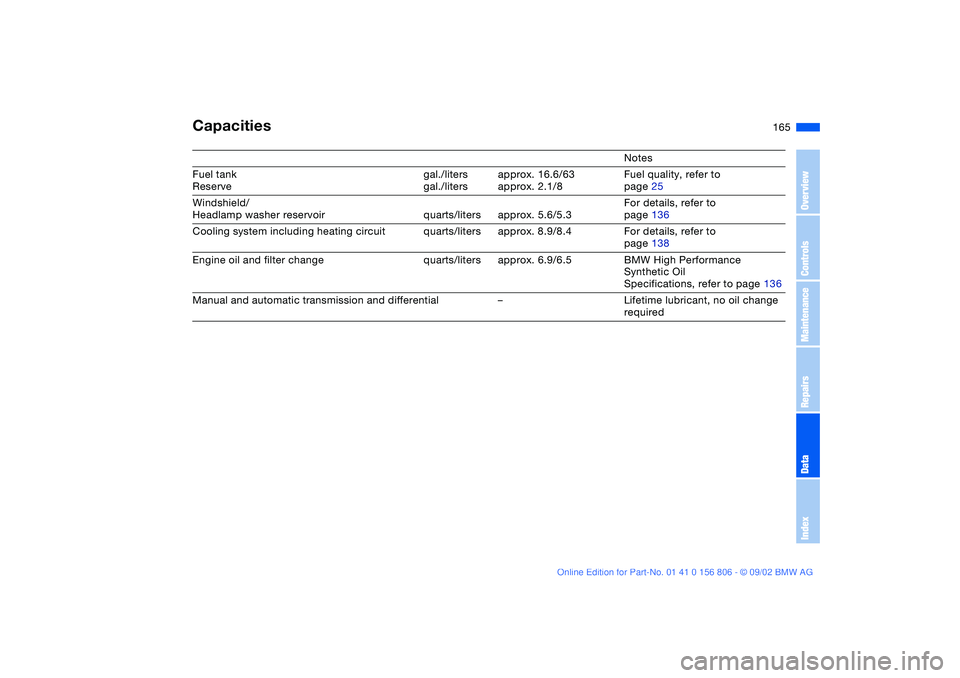

Capacities
Notes
Fuel tank
Reservegal./liters
gal./litersapprox. 16.6/63
approx. 2.1/8Fuel quality, refer to
page 25
Windshield/
Headlamp washer reservoir quarts/liters approx. 5.6/5.3For details, refer to
page 136
Cooling system including heating circuit quarts/liters approx. 8.9/8.4 For details, refer to
page 138
Engine oil and filter change quarts/liters approx. 6.9/6.5 BMW High Performance
Synthetic Oil
Specifications, refer to page 136
Manual and automatic transmission and differential – Lifetime lubricant, no oil change
required
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 165 Wednesday, July 31, 2002 9:29 AM

166handbook.book Page 166 Wednesday, July 31, 2002 9:29 AM

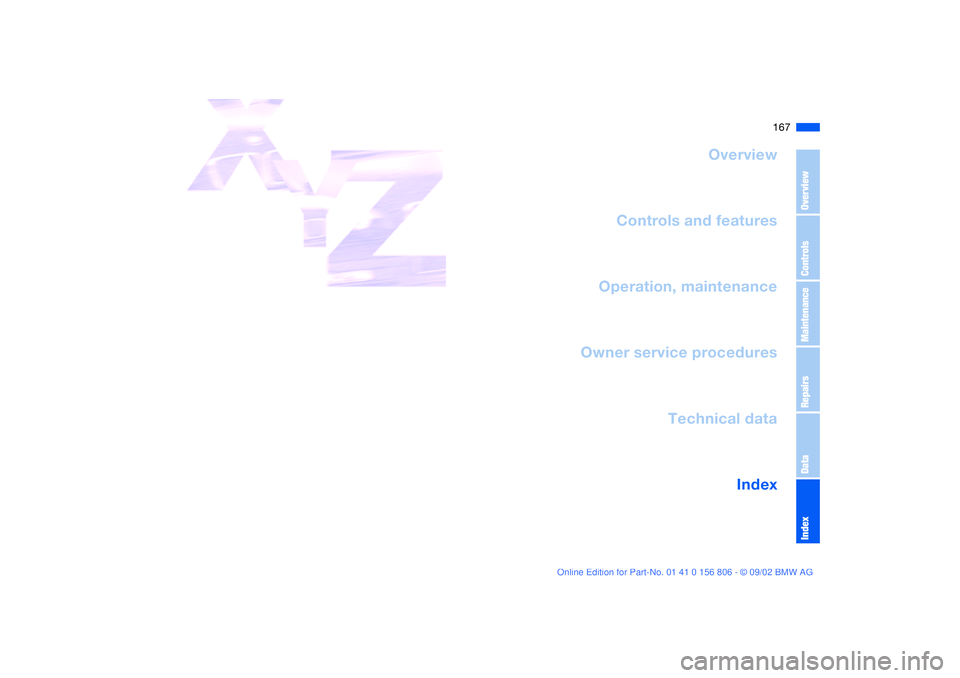

167
Overview
Controls and features
Operation, maintenance
Owner service procedures
Technical data
Index
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 167 Wednesday, July 31, 2002 9:29 AM

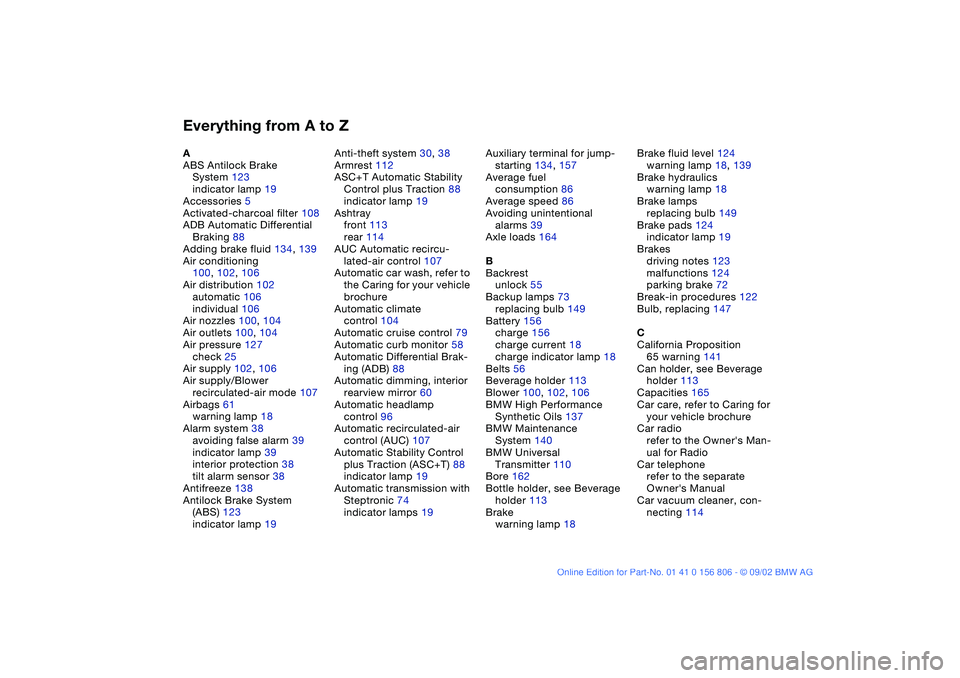

Everything from A to ZA
ABS Antilock Brake
System 123
indicator lamp 19
Accessories 5
Activated-charcoal filter 108
ADB Automatic Differential
Braking 88
Adding brake fluid 134, 139
Air conditioning
100, 102, 106
Air distribution 102
automatic 106
individual 106
Air nozzles 100, 104
Air outlets 100, 104
Air pressure 127
check 25
Air supply 102, 106
Air supply/Blower
recirculated-air mode 107
Airbags 61
warning lamp 18
Alarm system 38
avoiding false alarm 39
indicator lamp 39
interior protection 38
tilt alarm sensor 38
Antifreeze 138
Antilock Brake System
(ABS) 123
indicator lamp 19Anti-theft system 30, 38
Armrest 112
ASC+T Automatic Stability
Control plus Traction 88
indicator lamp 19
Ashtray
front 113
rear 114
AUC Automatic recircu-
lated-air control 107
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate
control 104
Automatic cruise control 79
Automatic curb monitor 58
Automatic Differential Brak-
ing (ADB) 88
Automatic dimming, interior
rearview mirror 60
Automatic headlamp
control 96
Automatic recirculated-air
control (AUC) 107
Automatic Stability Control
plus Traction (ASC+T) 88
indicator lamp 19
Automatic transmission with
Steptronic 74
indicator lamps 19Auxiliary terminal for jump-
starting 134, 157
Average fuel
consumption 86
Average speed 86
Avoiding unintentional
alarms 39
Axle loads 164
B
Backrest
unlock 55
Backup lamps 73
replacing bulb 149
Battery 156
charge 156
charge current 18
charge indicator lamp 18
Belts 56
Beverage holder 113
Blower 100, 102, 106
BMW High Performance
Synthetic Oils 137
BMW Maintenance
System 140
BMW Universal
Transmitter 110
Bore 162
Bottle holder, see Beverage
holder 113
Brake
warning lamp 18Brake fluid level 124
warning lamp 18, 139
Brake hydraulics
warning lamp 18
Brake lamps
replacing bulb 149
Brake pads 124
indicator lamp 19
Brakes
driving notes 123
malfunctions 124
parking brake 72
Break-in procedures 122
Bulb, replacing 147
C
California Proposition
65 warning 141
Can holder, see Beverage
holder 113
Capacities 165
Car care, refer to Caring for
your vehicle brochure
Car radio
refer to the Owner's Man-
ual for Radio
Car telephone
refer to the separate
Owner's Manual
Car vacuum cleaner, con-
necting 114
handbook.book Page 168 Wednesday, July 31, 2002 9:29 AM

Everything from A to Z
169
Car wash, refer to the Caring
for your vehicle brochure
Cargo loading 116
Cassette player operation,
refer to the Owner's Man-
ual for Radio
CBC Cornering Brake
Control 123
indicator lamp 19
CD player operation, refer to
the Owner's Manual for
Radio
Cellular phone 113
Center armrest 112
Center high-mount brake
lamp 150
Central locking system 30
button 34
Changing a wheel 151
Check Control 83
Check Filler Cap
indicator lamp 19
Checking coolant level 138
Checking oil level 136
Child seats 63
integrated 61
Child-restraint mounting
system (LATCH) 66
Child-restraint system 63
Cigarette lighter 113
Clean headlamps 79Cleaning position, convert-
ible top 45, 50
Cleaning windshield 79
Clock 84
setting 84
Cockpit 14
Code, refer to the Owner's
Manual for Radio
Coin box 113
Compartments 112
Compression ratio 162
Computer 85
Condensation
removing from windows
103, 106
Consumption
display 82
fuel 86
Convertible top
cleaning position 45, 50
closing in an
emergency 48
electrical fault 48
Convertible top activation
fully automatic top 46
manual top 41
Convertible top compart-
ment panel, folding
down 37
Coolant 134, 138, 165
indicator lamp 19
Cooling system 165Copyright 4
Cornering Brake Control
(CBC) 123
indicator lamp 19
Cruise control 79
indicator lamp 20
Cup holder, see Beverage
holder 113
Curb weight 164
Cushion height 163
D
Data
dimensions 163
engine 162
technical 162
weights 164
Daytime driving lamps 96
DBC Dynamic Brake
Control 123
warning lamp 19
Defrost position 103, 106
Defrosting rear window
102, 107
Defrosting windows
103, 106
Digital clock 84
Dimensions 163
Dipstick, engine oil 136
Disc brakes 124
Displacement 162
Display lighting 97Displays 16
Distance warning PDC 87
Door key 30
Door lock buttons 34
Doors
emergency operation 33
manual operation 33
remote control 31
unlocking and locking
31, 33
Driving notes
braking 123
disc brakes 124
general information 123
hydroplaning 123
DSC Dynamic Stability
Control 90
indicator lamp 19
DTC Dynamic Traction
Control 90
Dynamic Brake Control
(DBC) 123
warning lamps 19
Dynamic Stability Control
(DSC) 90
indicator lamp 19
Dynamic Traction Control
(DTC) 90
E
Electric power windows 40
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 169 Wednesday, July 31, 2002 9:29 AM

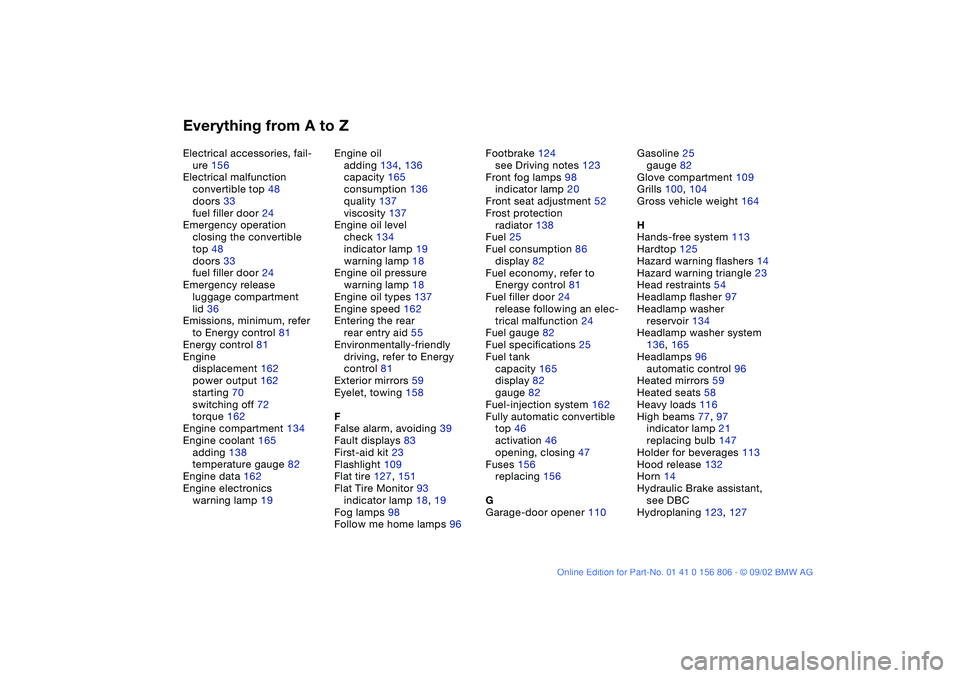

Everything from A to ZElectrical accessories, fail-
ure 156
Electrical malfunction
convertible top 48
doors 33
fuel filler door 24
Emergency operation
closing the convertible
top 48
doors 33
fuel filler door 24
Emergency release
luggage compartment
lid 36
Emissions, minimum, refer
to Energy control 81
Energy control 81
Engine
displacement 162
power output 162
starting 70
switching off 72
torque 162
Engine compartment 134
Engine coolant 165
adding 138
temperature gauge 82
Engine data 162
Engine electronics
warning lamp 19Engine oil
adding 134, 136
capacity 165
consumption 136
quality 137
viscosity 137
Engine oil level
check 134
indicator lamp 19
warning lamp 18
Engine oil pressure
warning lamp 18
Engine oil types 137
Engine speed 162
Entering the rear
rear entry aid 55
Environmentally-friendly
driving, refer to Energy
control 81
Exterior mirrors 59
Eyelet, towing 158
F
False alarm, avoiding 39
Fault displays 83
First-aid kit 23
Flashlight 109
Flat tire 127, 151
Flat Tire Monitor 93
indicator lamp 18, 19
Fog lamps 98
Follow me home lamps 96Footbrake 124
see Driving notes 123
Front fog lamps 98
indicator lamp 20
Front seat adjustment 52
Frost protection
radiator 138
Fuel 25
Fuel consumption 86
display 82
Fuel economy, refer to
Energy control 81
Fuel filler door 24
release following an elec-
trical malfunction 24
Fuel gauge 82
Fuel specifications 25
Fuel tank
capacity 165
display 82
gauge 82
Fuel-injection system 162
Fully automatic convertible
top 46
activation 46
opening, closing 47
Fuses 156
replacing 156
G
Garage-door opener 110Gasoline 25
gauge 82
Glove compartment 109
Grills 100, 104
Gross vehicle weight 164
H
Hands-free system 113
Hardtop 125
Hazard warning flashers 14
Hazard warning triangle 23
Head restraints 54
Headlamp flasher 97
Headlamp washer
reservoir 134
Headlamp washer system
136, 165
Headlamps 96
automatic control 96
Heated mirrors 59
Heated seats 58
Heavy loads 116
High beams 77, 97
indicator lamp 21
replacing bulb 147
Holder for beverages 113
Hood release 132
Horn 14
Hydraulic Brake assistant,
see DBC
Hydroplaning 123, 127
