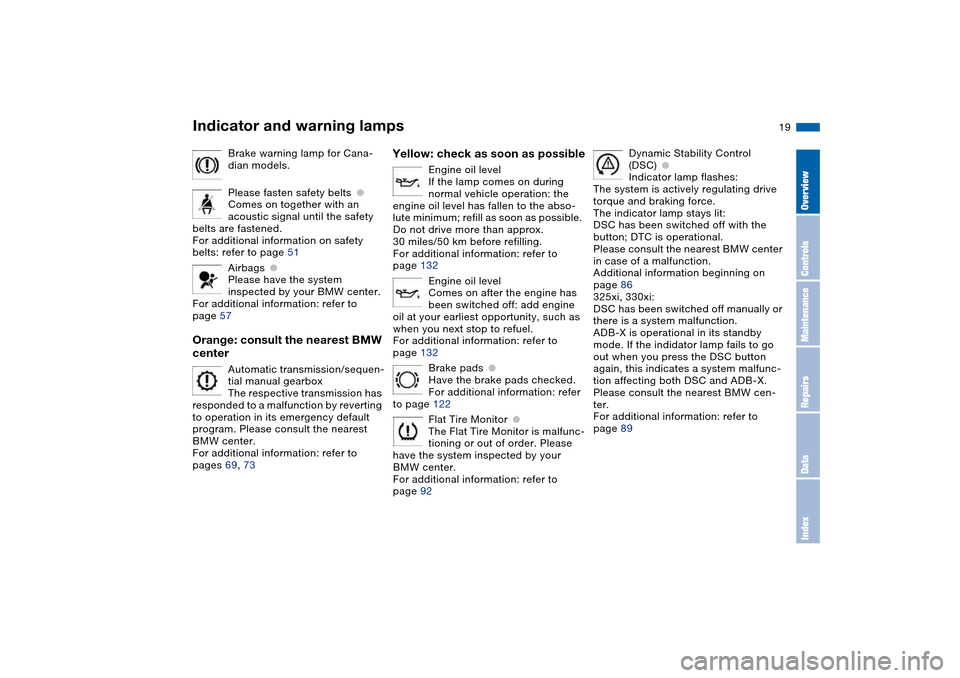

19
Brake warning lamp for Cana-
dian models.
Please fasten safety belts

●

Comes on together with an
acoustic signal until the safety
belts are fastened.
For additional information on safety
belts: refer to page 51
Airbags

●

Please have the system
inspected by your BMW center.
For additional information: refer to
page 57

Orange: consult the nearest BMW
center

Automatic transmission/sequen-
tial manual gearbox
The respective transmission has
responded to a malfunction by reverting
to operation in its emergency default
program. Please consult the nearest
BMW center.
For additional information: refer to
pages 69, 73

Yellow: check as soon as possible

Engine oil level
If the lamp comes on during
normal vehicle operation: the
engine oil level has fallen to the abso-
lute minimum; refill as soon as possible.
Do not drive more than approx.
30 miles/50 km before refilling.
For additional information: refer to
page 132
Engine oil level
Comes on after the engine has
been switched off: add engine
oil at your earliest opportunity, such as
when you next stop to refuel.
For additional information: refer to
page 132
Brake pads

●

Have the brake pads checked.
For additional information: refer
to page 122
Flat Tire Monitor

●

The Flat Tire Monitor is malfunc-
tioning or out of order. Please
have the system inspected by your
BMW center.
For additional information: refer to
page 92

Dynamic Stability Control
(DSC)

●

Indicator lamp flashes:
The system is actively regulating drive
torque and braking force.
The indicator lamp stays lit:
DSC has been switched off with the
button; DTC is operational.
Please consult the nearest BMW center
in case of a malfunction.
Additional information beginning on
page 86
325xi, 330xi:
DSC has been switched off manually or
there is a system malfunction.
ADB-X is operational in its standby
mode. If the indidator lamp fails to go
out when you press the DSC button
again, this indicates a system malfunc-
tion affecting both DSC and ADB-X.
Please consult the nearest BMW cen-
ter.
For additional information: refer to
page 89

Indicator and warning lamps

OverviewControlsMaintenanceRepairsDataIndex

133

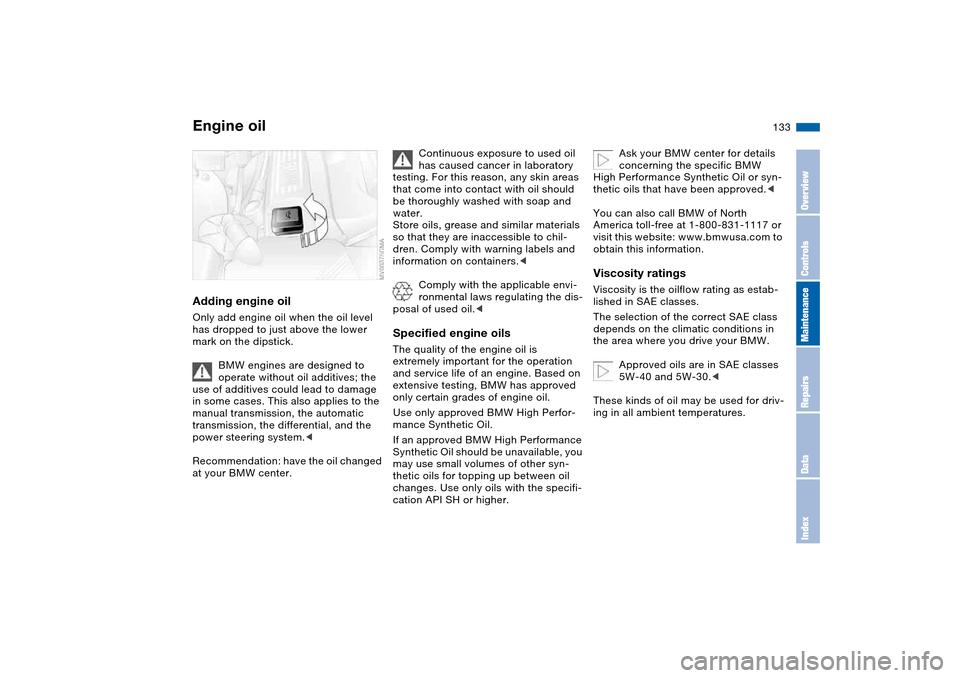

Adding engine oilOnly add engine oil when the oil level
has dropped to just above the lower
mark on the dipstick.
BMW engines are designed to
operate without oil additives; the
use of additives could lead to damage
in some cases. This also applies to the
manual transmission, the automatic
transmission, the differential, and the
power steering system.<
Recommendation: have the oil changed
at your BMW center.
Continuous exposure to used oil
has caused cancer in laboratory
testing. For this reason, any skin areas
that come into contact with oil should
be thoroughly washed with soap and
water.
Store oils, grease and similar materials
so that they are inaccessible to chil-
dren. Comply with warning labels and
information on containers.<
Comply with the applicable envi-
ronmental laws regulating the dis-
posal of used oil.<
Specified engine oilsThe quality of the engine oil is
extremely important for the operation
and service life of an engine. Based on
extensive testing, BMW has approved
only certain grades of engine oil.
Use only approved BMW High Perfor-
mance Synthetic Oil.
If an approved BMW High Performance
Synthetic Oil should be unavailable, you
may use small volumes of other syn-
thetic oils for topping up between oil
changes. Use only oils with the specifi-
cation API SH or higher.
Ask your BMW center for details
concerning the specific BMW
High Performance Synthetic Oil or syn-
thetic oils that have been approved.<
You can also call BMW of North
America toll-free at 1-800-831-1117 or
visit this website: www.bmwusa.com to
obtain this information.
Viscosity ratingsViscosity is the oilflow rating as estab-
lished in SAE classes.
The selection of the correct SAE class
depends on the climatic conditions in
the area where you drive your BMW.
Approved oils are in SAE classes
5W-40 and 5W-30.<
These kinds of oil may be used for driv-
ing in all ambient temperatures.
Engine oil
OverviewControlsMaintenanceRepairsDataIndex

163

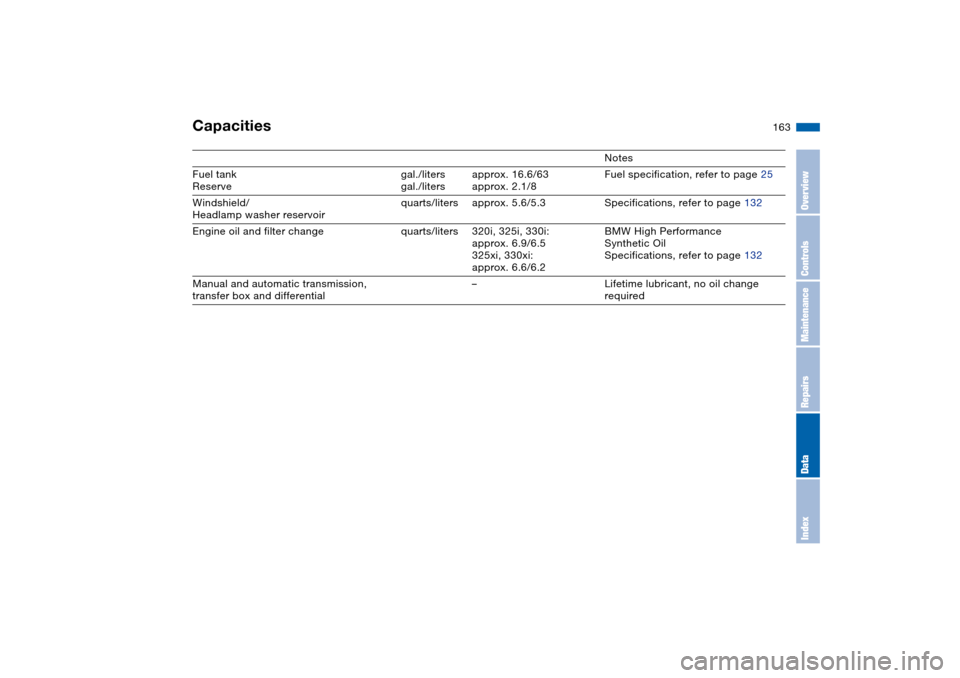

Capacities
Notes
Fuel tank
Reserve gal./liters
gal./litersapprox. 16.6/63
approx. 2.1/8Fuel specification, refer to page 25
Windshield/
Headlamp washer reservoirquarts/liters approx. 5.6/5.3 Specifications, refer to page 132
Engine oil and filter change quarts/liters 320i, 325i, 330i:
approx. 6.9/6.5
325xi, 330xi:
approx. 6.6/6.2BMW High Performance
Synthetic Oil
Specifications, refer to page 132
Manual and automatic transmission,
transfer box and differential–Lifetime lubricant, no oil change
required
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to Z
169
DSC Dynamic Stability Con-
trol 87
indicator lamp 19, 87
DTC Dynamic Traction Con-
trol 87
indicator lamp 19, 87
Dynamic Brake Control
(DBC) 19, 121
Dynamic Brake Control DBC
indicator lamp 19
Dynamic Stability Control
(DSC) 19, 87
Dynamic Traction Control
(DTC) 87
indicator lamp 19, 87
E
Electric glass sunroof 44
Electric power windows 43
Electrical accessories, fail-
ure 151
Electrical malfunction
automatic transmission
with Steptronic 75
door lock 36
driver's door 36
fuel filler door 24
glass sunroof 46
luggage compartment
lid 38Electronic Stability Program
ESP, refer to Dynamic Sta-
bility Control DSC 87
Emergency call 152
Emergency operation
doors 36
driver's door 36
fuel filler door 24
glass sunroof 46
Emergency release
luggage compartment lid
38, 40
Emissions, minimum, refer
to Energy control 80
Energy control 80
Engine
breaking in 120
data 160
electronics 19
indicator lamp 19
speed 80, 160
starting 65
switching off 67
Engine compartment 130
Engine coolant 134
adding 134Engine oil
adding 133
additives, refer to Adding
engine oil 133
capacity 163
consumption 132
indicator/warning lamp 19
quality 133
types 133
viscosity 133
Engine oil level 19
check 132
indicator/warning lamp 18
Engine oil pressure
indicator/warning lamp 18
Engine output, refer to
Engine data 160
Engine speed 80, 160
Environmentally-friendly
driving, refer to Energy
control 80
ESP Electronic Stability Pro-
gram, refer to Dynamic
Stability Control (DSC) 87
Exterior mirrors 55
Eyeglasses
compartment 109
Eyelet, towing 155F
False alarm, refer to
Avoiding unintentional
alarms 42
Fastening the safety belts 51
Fault displays 82
First aid, refer to First-aid
kit 23
First-aid kit 23
Flashlight 108
Flashlight, refer to
Rechargeable
flashlight 108
Flat tire 147
Flat Tire Monitor 92
space-saver spare tire 147
Flat Tire Monitor 92
indicator lamp 18, 19, 93
Flat tire, refer to Tire condi-
tion 124
Fluid reservoir for washer
systems 132
Fog lamps 96
indicator lamp 20
Folding rear backrest 112
Follow me home lamps 94
Footbrake, refer to General
driving notes 121
Front airbags 57
Front center armrest 108
Front fog lamps 96
indicator lamp 20
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to ZLuggage compartment lid 38
emergency operation 38
emergency release 40
indicator lamp 82
opening from inside the
vehicle 38, 39
opening from outside 38
remote control 34
securing separately 38
unlocking manually 38
Luggage rack, refer to Roof-
mounted luggage rack 117
Lumbar support 50
M
M+S tires, refer to Winter
tires 127
Maintenance 82, 136
Maintenance system 136
Making telephone calls,
refer to the telephone
Owner's Manual
Malfunction
door lock 36
fuel filler door 24
Malfunction displays 82Manual operation
door lock 36
driver's door 36
fuel filler door 24
glass sunroof 46
luggage compartment
lid 38
Manual transmission 68
Master keys
with remote control 32
MC operation, refer to the
Owner's Manual for
Radio/Onboard Computer
MD operation, refer to the
Owner's Manual for
Radio/Onboard Computer
Mechanical seats 48
Memory, refer to Seat and
mirror memory 53
Memory, refer to Vehicle
Memory, Key Memory 64
Microfilter
air conditioning 101
automatic climate
control 106
Microphone, refer to Cellular
phone 110
Mini disc operation, refer to
the Owner's Manual for
Radio/Onboard ComputerMirrors 55
automatic curb monitor 54
heated 55
memory, refer to Seat and
mirror memory 53
Mobile Service 152
Modifications, technical,
refer to For your own
safety 5
Multifunction steering
wheel 22
Multifunction switch
turn signal indicator/head-
lamp flasher 76
washer/wiper system 77
N
Navigation system, refer to
the Owner's Manual for
Radio/Onboard Computer
Neck restraints, refer to
Head restraints 51
Nets 108
Nozzles, refer to Ventilation
98, 102
O
OBD interface socket 138
Odometer 80Oil
additives, refer to Adding
engine oil 133
capacity 163
dipstick 132
quality 133
viscosity 133
Oil change interval, refer
to Service interval
display 136
Oil change intervals, refer to
the Service and Warranty
Information Booklet for US
models/Warranty and Ser-
vice Guide Booklet for
Canadian models
Oil consumption 132
Oil dipstick 132
Oil filter change 163
Oil level
checking 132
indicator lamp 18
Oil pressure
indicator lamp 18
OIL SERVICE 82
Oil types 133
Old batteries, refer to Dis-
posal 151
Onboard computer 84
Onboard computer, refer to
the Owner's Manual for
Onboard Computer

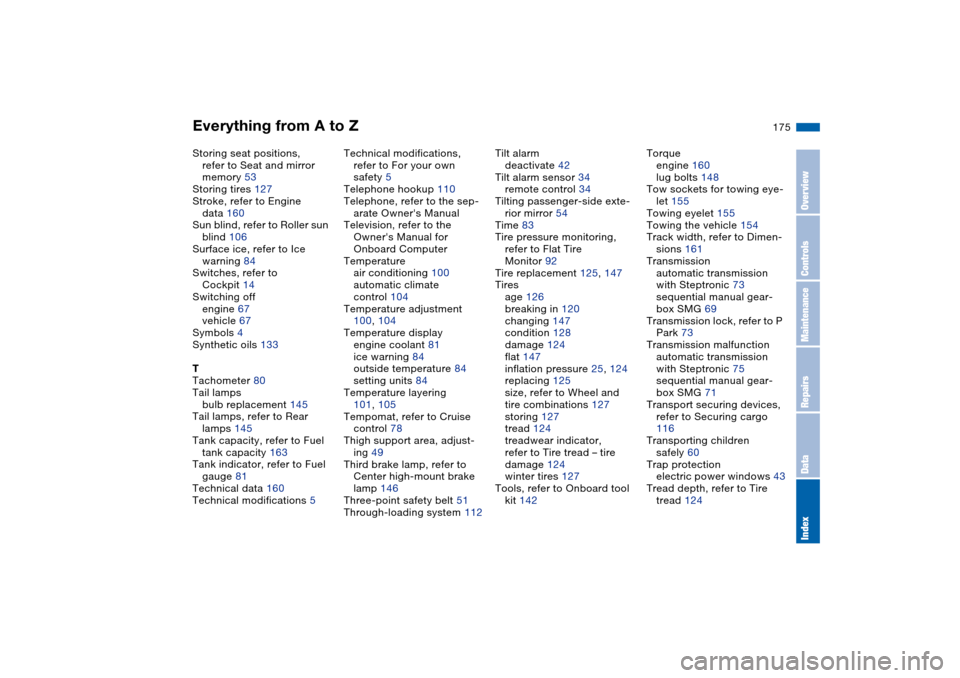

Everything from A to Z
175
Storing seat positions,
refer to Seat and mirror
memory 53
Storing tires 127
Stroke, refer to Engine
data 160
Sun blind, refer to Roller sun
blind 106
Surface ice, refer to Ice
warning 84
Switches, refer to
Cockpit 14
Switching off
engine 67
vehicle 67
Symbols 4
Synthetic oils 133
T
Tachometer 80
Tail lamps
bulb replacement 145
Tail lamps, refer to Rear
lamps 145
Tank capacity, refer to Fuel
tank capacity 163
Tank indicator, refer to Fuel
gauge 81
Technical data 160
Technical modifications 5Technical modifications,
refer to For your own
safety 5
Telephone hookup 110
Telephone, refer to the sep-
arate Owner's Manual
Television, refer to the
Owner's Manual for
Onboard Computer
Temperature
air conditioning 100
automatic climate
control 104
Temperature adjustment
100, 104
Temperature display
engine coolant 81
ice warning 84
outside temperature 84
setting units 84
Temperature layering
101, 105
Tempomat, refer to Cruise
control 78
Thigh support area, adjust-
ing 49
Third brake lamp, refer to
Center high-mount brake
lamp 146
Three-point safety belt 51
Through-loading system 112Tilt alarm
deactivate 42
Tilt alarm sensor 34
remote control 34
Tilting passenger-side exte-
rior mirror 54
Time 83
Tire pressure monitoring,
refer to Flat Tire
Monitor 92
Tire replacement 125, 147
Tires
age 126
breaking in 120
changing 147
condition 128
damage 124
flat 147
inflation pressure 25, 124
replacing 125
size, refer to Wheel and
tire combinations 127
storing 127
tread 124
treadwear indicator,
refer to Tire tread – tire
damage 124
winter tires 127
Tools, refer to Onboard tool
kit 142Torque
engine 160
lug bolts 148
Tow sockets for towing eye-
let 155
Towing eyelet 155
Towing the vehicle 154
Track width, refer to Dimen-
sions 161
Transmission
automatic transmission
with Steptronic 73
sequential manual gear-
box SMG 69
Transmission lock, refer to P
Park 73
Transmission malfunction
automatic transmission
with Steptronic 75
sequential manual gear-
box SMG 71
Transport securing devices,
refer to Securing cargo
116
Transporting children
safely 60
Trap protection
electric power windows 43
Tread depth, refer to Tire
tread 124
OverviewControlsMaintenanceRepairsDataIndex
