20

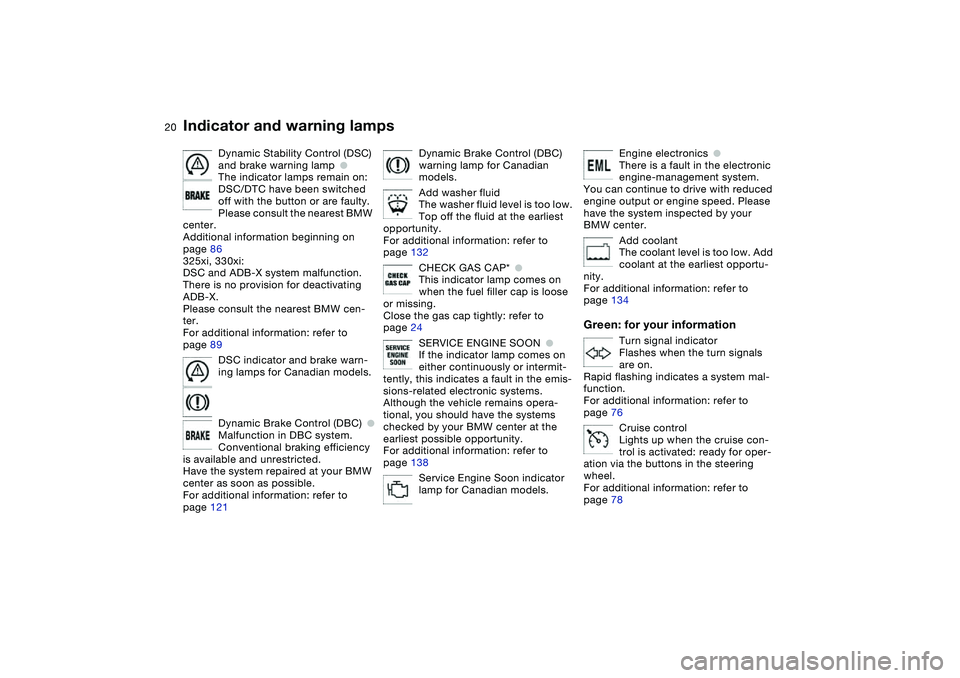

Dynamic Stability Control (DSC)
and brake warning lamp

●

The indicator lamps remain on:
DSC/DTC have been switched
off with the button or are faulty.
Please consult the nearest BMW
center.
Additional information beginning on
page 86
325xi, 330xi:
DSC and ADB-X system malfunction.
There is no provision for deactivating
ADB-X.
Please consult the nearest BMW cen-
ter.
For additional information: refer to
page 89
DSC indicator and brake warn-
ing lamps for Canadian models.
Dynamic Brake Control (DBC)

●

Malfunction in DBC system.
Conventional braking efficiency
is available and unrestricted.
Have the system repaired at your BMW
center as soon as possible.
For additional information: refer to
page 121

Dynamic Brake Control (DBC)
warning lamp for Canadian
models.
Add washer fluid
The washer fluid level is too low.
Top off the fluid at the earliest
opportunity.
For additional information: refer to
page 132
CHECK GAS CAP*

●

This indicator lamp comes on
when the fuel filler cap is loose
or missing.
Close the gas cap tightly: refer to
page 24
SERVICE ENGINE SOON

●

If the indicator lamp comes on
either continuously or intermit-
tently, this indicates a fault in the emis-
sions-related electronic systems.
Although the vehicle remains opera-
tional, you should have the systems
checked by your BMW center at the
earliest possible opportunity.
For additional information: refer to
page 138
Service Engine Soon indicator
lamp for Canadian models.

Engine electronics

●

There is a fault in the electronic
engine-management system.
You can continue to drive with reduced
engine output or engine speed. Please
have the system inspected by your
BMW center.
Add coolant
The coolant level is too low. Add
coolant at the earliest opportu-
nity.
For additional information: refer to
page 134

Green: for your information

Turn signal indicator
Flashes when the turn signals
are on.
Rapid flashing indicates a system mal-
function.
For additional information: refer to
page 76
Cruise control
Lights up when the cruise con-
trol is activated: ready for oper-
ation via the buttons in the steering
wheel.
For additional information: refer to
page 78

Indicator and warning lamps

24

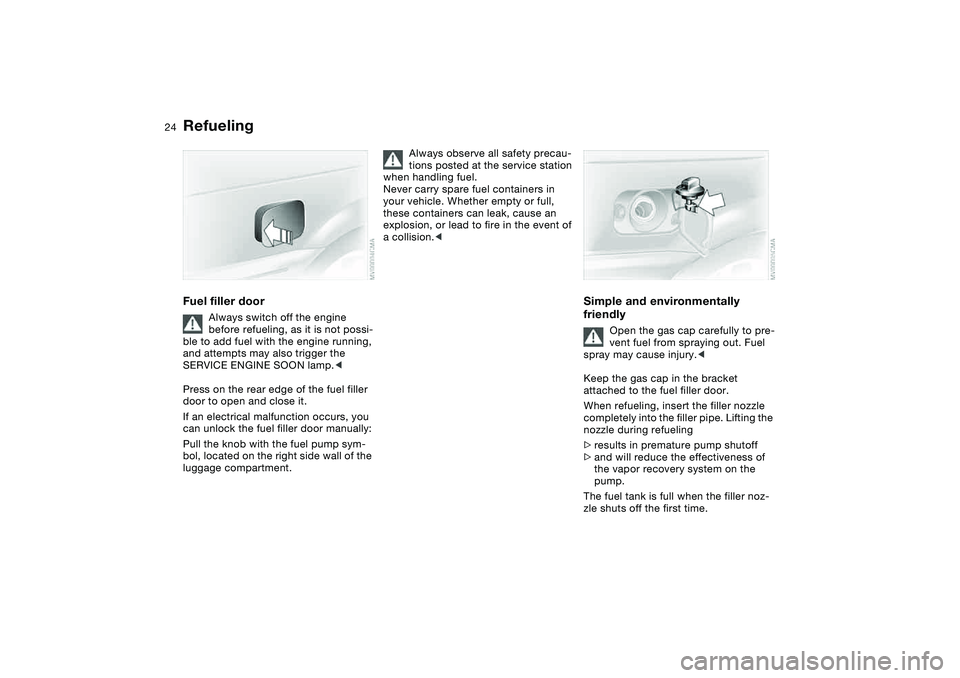

RefuelingFuel filler door
Always switch off the engine
before refueling, as it is not possi-
ble to add fuel with the engine running,
and attempts may also trigger the
SERVICE ENGINE SOON lamp.<
Press on the rear edge of the fuel filler
door to open and close it.
If an electrical malfunction occurs, you
can unlock the fuel filler door manually:
Pull the knob with the fuel pump sym-
bol, located on the right side wall of the
luggage compartment.
Always observe all safety precau-
tions posted at the service station
when handling fuel.
Never carry spare fuel containers in
your vehicle. Whether empty or full,
these containers can leak, cause an
explosion, or lead to fire in the event of
a collision.<
Simple and environmentally
friendly
Open the gas cap carefully to pre-
vent fuel from spraying out. Fuel
spray may cause injury.<
Keep the gas cap in the bracket
attached to the fuel filler door.
When refueling, insert the filler nozzle
completely into the filler pipe. Lifting the
nozzle during refueling
>results in premature pump shutoff
>and will reduce the effectiveness of
the vapor recovery system on the
pump.
The fuel tank is full when the filler noz-
zle shuts off the first time.

25

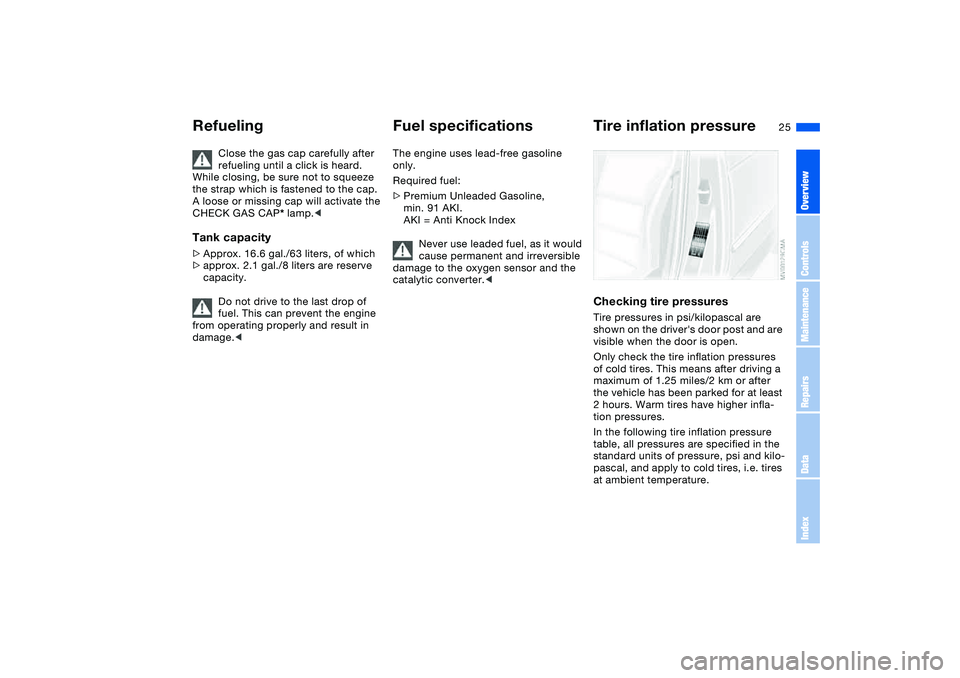

Close the gas cap carefully after
refueling until a click is heard.
While closing, be sure not to squeeze
the strap which is fastened to the cap.
A loose or missing cap will activate the
CHECK GAS CAP* lamp.<
Tank capacity>Approx. 16.6 gal./63 liters, of which
>approx. 2.1 gal./8 liters are reserve
capacity.
Do not drive to the last drop of
fuel. This can prevent the engine
from operating properly and result in
damage.<
Fuel specificationsThe engine uses lead-free gasoline
only.
Required fuel:
>Premium Unleaded Gasoline,
min. 91 AKI.
AKI = Anti Knock Index
Never use leaded fuel, as it would
cause permanent and irreversible
damage to the oxygen sensor and the
catalytic converter.<
Tire inflation pressureChecking tire pressuresTire pressures in psi/kilopascal are
shown on the driver's door post and are
visible when the door is open.
Only check the tire inflation pressures
of cold tires. This means after driving a
maximum of 1.25 miles/2 km or after
the vehicle has been parked for at least
2 hours. Warm tires have higher infla-
tion pressures.
In the following tire inflation pressure
table, all pressures are specified in the
standard units of pressure, psi and kilo-
pascal, and apply to cold tires, i.e. tires
at ambient temperature.
Refueling
OverviewControlsMaintenanceRepairsDataIndex

81

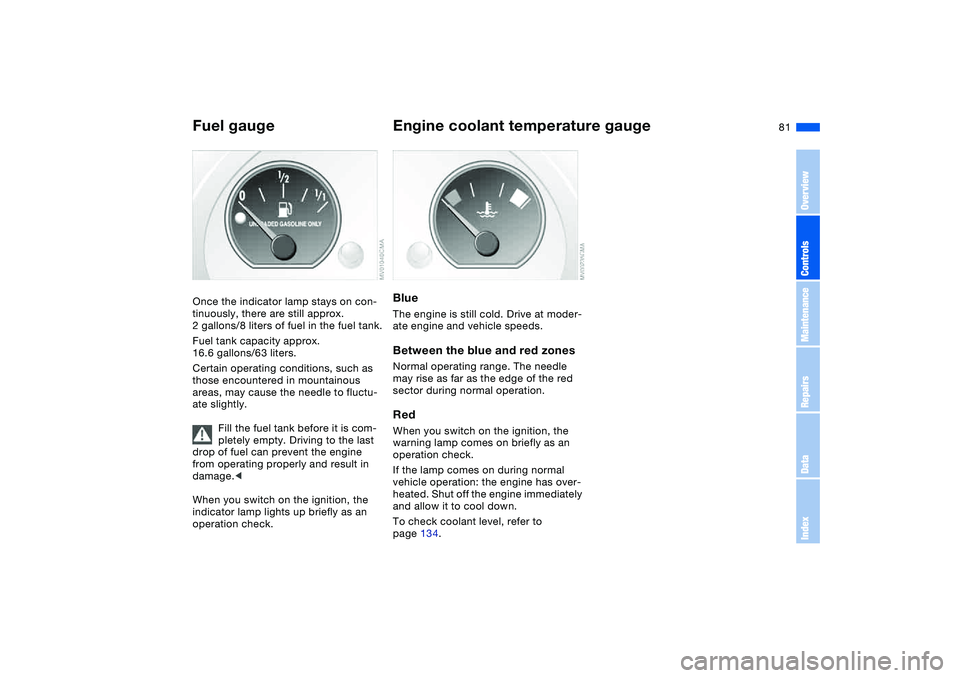

Fuel gaugeOnce the indicator lamp stays on con-
tinuously, there are still approx.
2 gallons/8 liters of fuel in the fuel tank.
Fuel tank capacity approx.
16.6 gallons/63 liters.
Certain operating conditions, such as
those encountered in mountainous
areas, may cause the needle to fluctu-
ate slightly.
Fill the fuel tank before it is com-
pletely empty. Driving to the last
drop of fuel can prevent the engine
from operating properly and result in
damage.<
When you switch on the ignition, the
indicator lamp lights up briefly as an
operation check.
Engine coolant temperature gaugeBlueThe engine is still cold. Drive at moder-
ate engine and vehicle speeds.Between the blue and red zonesNormal operating range. The needle
may rise as far as the edge of the red
sector during normal operation.RedWhen you switch on the ignition, the
warning lamp comes on briefly as an
operation check.
If the lamp comes on during normal
vehicle operation: the engine has over-
heated. Shut off the engine immediately
and allow it to cool down.
To check coolant level, refer to
page 134.
OverviewControlsMaintenanceRepairsDataIndex

117

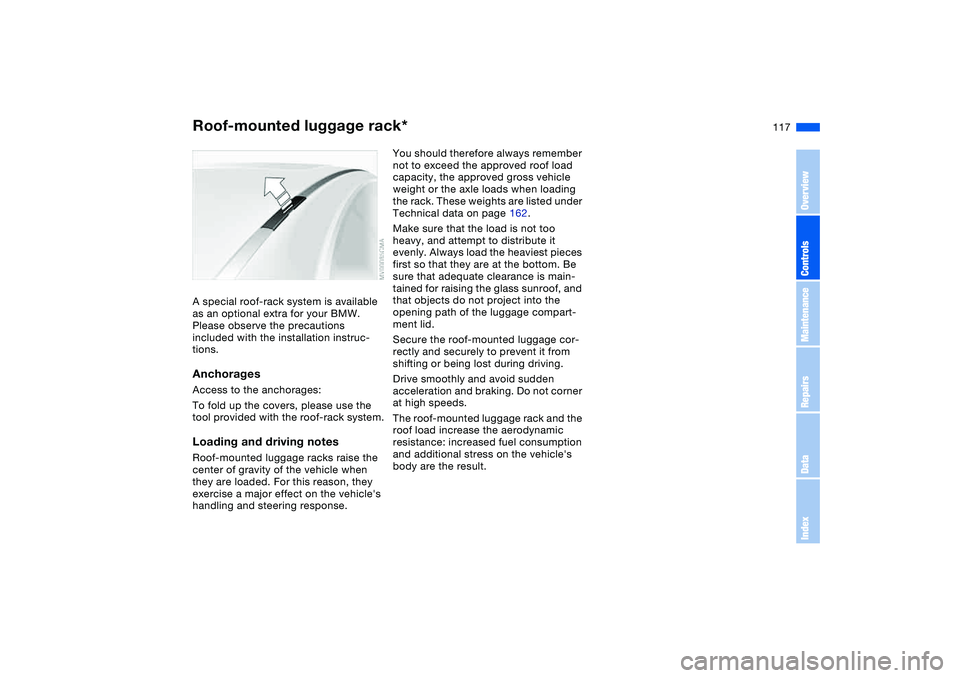

Roof-mounted luggage rack*A special roof-rack system is available
as an optional extra for your BMW.
Please observe the precautions
included with the installation instruc-
tions.AnchoragesAccess to the anchorages:
To fold up the covers, please use the
tool provided with the roof-rack system.Loading and driving notesRoof-mounted luggage racks raise the
center of gravity of the vehicle when
they are loaded. For this reason, they
exercise a major effect on the vehicle's
handling and steering response.
You should therefore always remember
not to exceed the approved roof load
capacity, the approved gross vehicle
weight or the axle loads when loading
the rack. These weights are listed under
Technical data on page 162.
Make sure that the load is not too
heavy, and attempt to distribute it
evenly. Always load the heaviest pieces
first so that they are at the bottom. Be
sure that adequate clearance is main-
tained for raising the glass sunroof, and
that objects do not project into the
opening path of the luggage compart-
ment lid.
Secure the roof-mounted luggage cor-
rectly and securely to prevent it from
shifting or being lost during driving.
Drive smoothly and avoid sudden
acceleration and braking. Do not corner
at high speeds.
The roof-mounted luggage rack and the
roof load increase the aerodynamic
resistance: increased fuel consumption
and additional stress on the vehicle's
body are the result.
OverviewControlsMaintenanceRepairsDataIndex

132

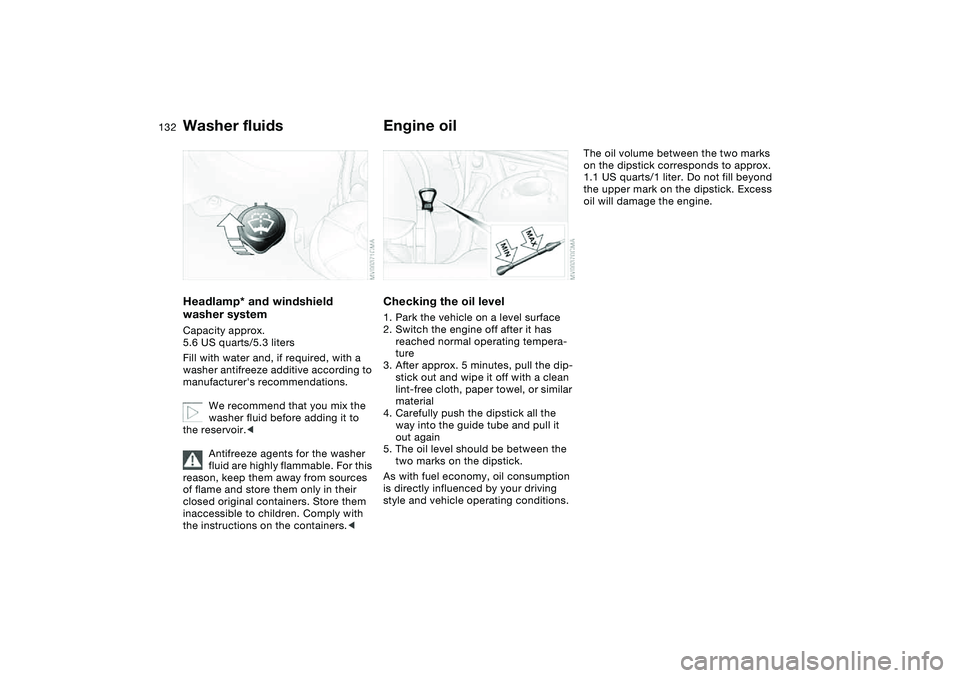

Washer fluidsHeadlamp* and windshield
washer systemCapacity approx.
5.6 US quarts/5.3 liters
Fill with water and, if required, with a
washer antifreeze additive according to
manufacturer's recommendations.
We recommend that you mix the
washer fluid before adding it to
the reservoir.<
Antifreeze agents for the washer
fluid are highly flammable. For this
reason, keep them away from sources
of flame and store them only in their
closed original containers. Store them
inaccessible to children. Comply with
the instructions on the containers.<
Engine oilChecking the oil level1. Park the vehicle on a level surface
2. Switch the engine off after it has
reached normal operating tempera-
ture
3. After approx. 5 minutes, pull the dip-
stick out and wipe it off with a clean
lint-free cloth, paper towel, or similar
material
4. Carefully push the dipstick all the
way into the guide tube and pull it
out again
5. The oil level should be between the
two marks on the dipstick.
As with fuel economy, oil consumption
is directly influenced by your driving
style and vehicle operating conditions.
The oil volume between the two marks
on the dipstick corresponds to approx.
1.1 US quarts/1 liter. Do not fill beyond
the upper mark on the dipstick. Excess
oil will damage the engine.

163

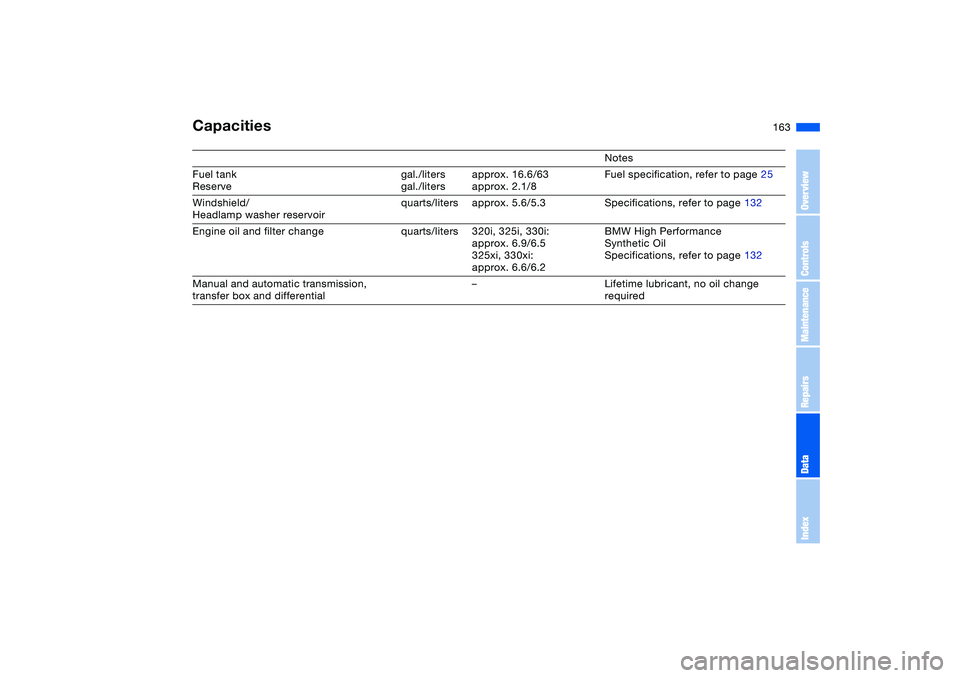

Capacities
Notes
Fuel tank
Reserve gal./liters
gal./litersapprox. 16.6/63
approx. 2.1/8Fuel specification, refer to page 25
Windshield/
Headlamp washer reservoirquarts/liters approx. 5.6/5.3 Specifications, refer to page 132
Engine oil and filter change quarts/liters 320i, 325i, 330i:
approx. 6.9/6.5
325xi, 330xi:
approx. 6.6/6.2BMW High Performance
Synthetic Oil
Specifications, refer to page 132
Manual and automatic transmission,
transfer box and differential–Lifetime lubricant, no oil change
required
OverviewControlsMaintenanceRepairsDataIndex

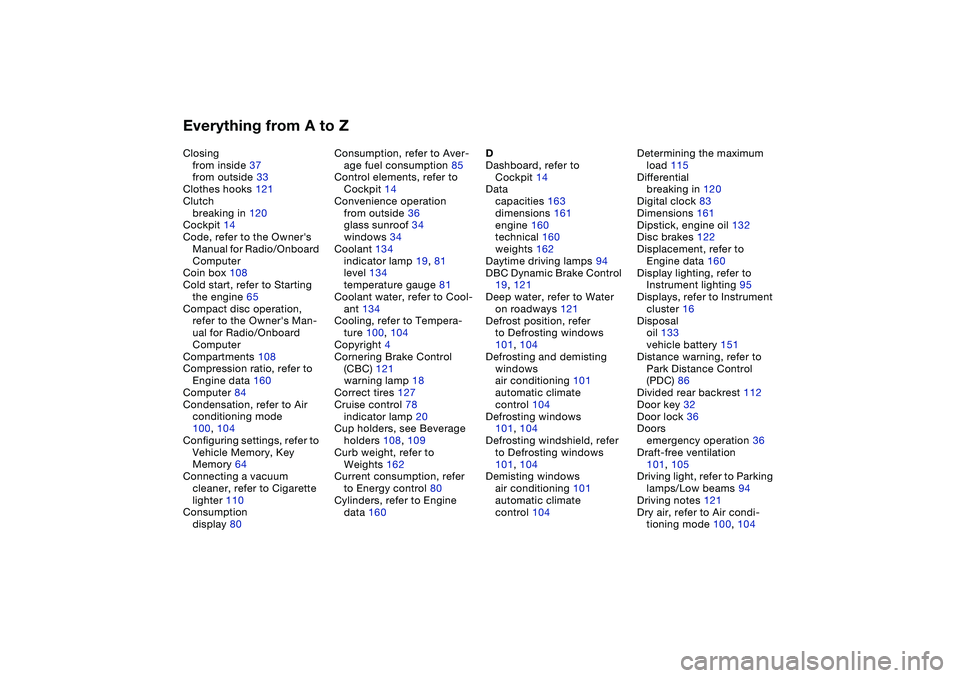

Everything from A to ZClosing
from inside 37
from outside 33
Clothes hooks 121
Clutch
breaking in 120
Cockpit 14
Code, refer to the Owner's
Manual for Radio/Onboard
Computer
Coin box 108
Cold start, refer to Starting
the engine 65
Compact disc operation,
refer to the Owner's Man-
ual for Radio/Onboard
Computer
Compartments 108
Compression ratio, refer to
Engine data 160
Computer 84
Condensation, refer to Air
conditioning mode
100, 104
Configuring settings, refer to
Vehicle Memory, Key
Memory 64
Connecting a vacuum
cleaner, refer to Cigarette
lighter 110
Consumption
display 80Consumption, refer to Aver-
age fuel consumption 85
Control elements, refer to
Cockpit 14
Convenience operation
from outside 36
glass sunroof 34
windows 34
Coolant 134
indicator lamp 19, 81
level 134
temperature gauge 81
Coolant water, refer to Cool-
ant 134
Cooling, refer to Tempera-
ture 100, 104
Copyright 4
Cornering Brake Control
(CBC) 121
warning lamp 18
Correct tires 127
Cruise control 78
indicator lamp 20
Cup holders, see Beverage
holders 108, 109
Curb weight, refer to
Weights 162
Current consumption, refer
to Energy control 80
Cylinders, refer to Engine
data 160D
Dashboard, refer to
Cockpit 14
Data
capacities 163
dimensions 161
engine 160
technical 160
weights 162
Daytime driving lamps 94
DBC Dynamic Brake Control
19, 121
Deep water, refer to Water
on roadways 121
Defrost position, refer
to Defrosting windows
101, 104
Defrosting and demisting
windows
air conditioning 101
automatic climate
control 104
Defrosting windows
101, 104
Defrosting windshield, refer
to Defrosting windows
101, 104
Demisting windows
air conditioning 101
automatic climate
control 104Determining the maximum
load 115
Differential
breaking in 120
Digital clock 83
Dimensions 161
Dipstick, engine oil 132
Disc brakes 122
Displacement, refer to
Engine data 160
Display lighting, refer to
Instrument lighting 95
Displays, refer to Instrument
cluster 16
Disposal
oil 133
vehicle battery 151
Distance warning, refer to
Park Distance Control
(PDC) 86
Divided rear backrest 112
Door key 32
Door lock 36
Doors
emergency operation 36
Draft-free ventilation
101, 105
Driving light, refer to Parking
lamps/Low beams 94
Driving notes 121
Dry air, refer to Air condi-
tioning mode 100, 104

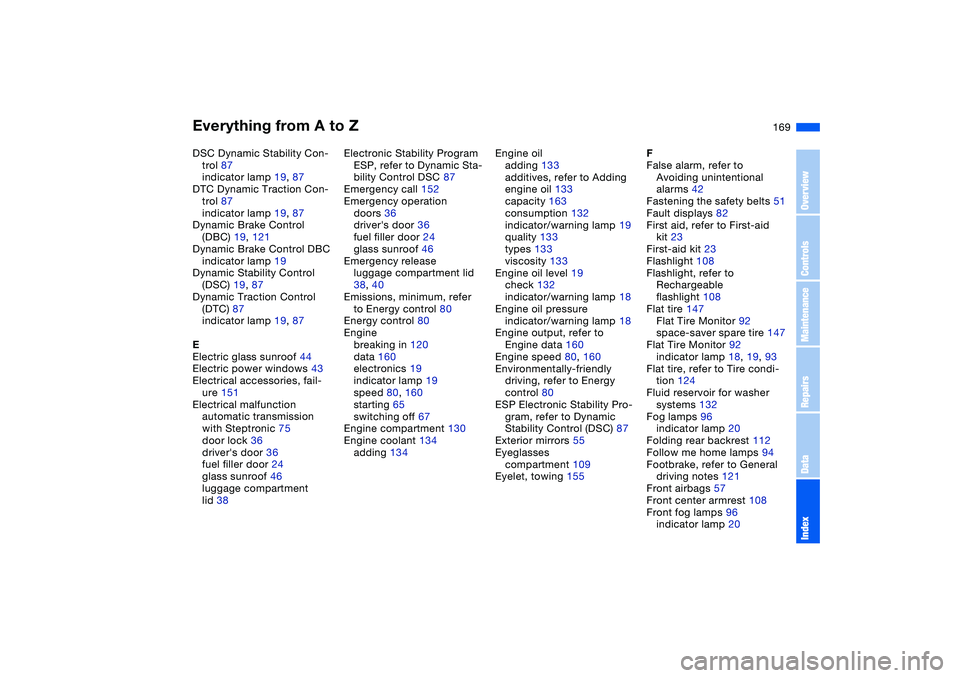

Everything from A to Z
169
DSC Dynamic Stability Con-
trol 87
indicator lamp 19, 87
DTC Dynamic Traction Con-
trol 87
indicator lamp 19, 87
Dynamic Brake Control
(DBC) 19, 121
Dynamic Brake Control DBC
indicator lamp 19
Dynamic Stability Control
(DSC) 19, 87
Dynamic Traction Control
(DTC) 87
indicator lamp 19, 87
E
Electric glass sunroof 44
Electric power windows 43
Electrical accessories, fail-
ure 151
Electrical malfunction
automatic transmission
with Steptronic 75
door lock 36
driver's door 36
fuel filler door 24
glass sunroof 46
luggage compartment
lid 38Electronic Stability Program
ESP, refer to Dynamic Sta-
bility Control DSC 87
Emergency call 152
Emergency operation
doors 36
driver's door 36
fuel filler door 24
glass sunroof 46
Emergency release
luggage compartment lid
38, 40
Emissions, minimum, refer
to Energy control 80
Energy control 80
Engine
breaking in 120
data 160
electronics 19
indicator lamp 19
speed 80, 160
starting 65
switching off 67
Engine compartment 130
Engine coolant 134
adding 134Engine oil
adding 133
additives, refer to Adding
engine oil 133
capacity 163
consumption 132
indicator/warning lamp 19
quality 133
types 133
viscosity 133
Engine oil level 19
check 132
indicator/warning lamp 18
Engine oil pressure
indicator/warning lamp 18
Engine output, refer to
Engine data 160
Engine speed 80, 160
Environmentally-friendly
driving, refer to Energy
control 80
ESP Electronic Stability Pro-
gram, refer to Dynamic
Stability Control (DSC) 87
Exterior mirrors 55
Eyeglasses
compartment 109
Eyelet, towing 155F
False alarm, refer to
Avoiding unintentional
alarms 42
Fastening the safety belts 51
Fault displays 82
First aid, refer to First-aid
kit 23
First-aid kit 23
Flashlight 108
Flashlight, refer to
Rechargeable
flashlight 108
Flat tire 147
Flat Tire Monitor 92
space-saver spare tire 147
Flat Tire Monitor 92
indicator lamp 18, 19, 93
Flat tire, refer to Tire condi-
tion 124
Fluid reservoir for washer
systems 132
Fog lamps 96
indicator lamp 20
Folding rear backrest 112
Follow me home lamps 94
Footbrake, refer to General
driving notes 121
Front airbags 57
Front center armrest 108
Front fog lamps 96
indicator lamp 20
OverviewControlsMaintenanceRepairsDataIndex

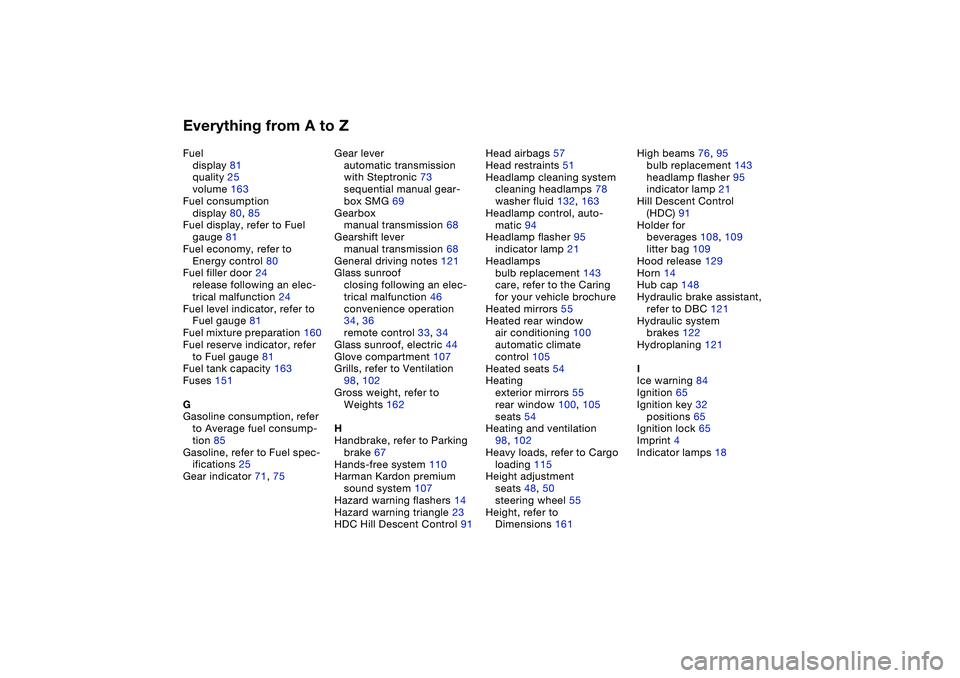

Everything from A to ZFuel
display 81
quality 25
volume 163
Fuel consumption
display 80, 85
Fuel display, refer to Fuel
gauge 81
Fuel economy, refer to
Energy control 80
Fuel filler door 24
release following an elec-
trical malfunction 24
Fuel level indicator, refer to
Fuel gauge 81
Fuel mixture preparation 160
Fuel reserve indicator, refer
to Fuel gauge 81
Fuel tank capacity 163
Fuses 151
G
Gasoline consumption, refer
to Average fuel consump-
tion 85
Gasoline, refer to Fuel spec-
ifications 25
Gear indicator 71, 75Gear lever
automatic transmission
with Steptronic 73
sequential manual gear-
box SMG 69
Gearbox
manual transmission 68
Gearshift lever
manual transmission 68
General driving notes 121
Glass sunroof
closing following an elec-
trical malfunction 46
convenience operation
34, 36
remote control 33, 34
Glass sunroof, electric 44
Glove compartment 107
Grills, refer to Ventilation
98, 102
Gross weight, refer to
Weights 162
H
Handbrake, refer to Parking
brake 67
Hands-free system 110
Harman Kardon premium
sound system 107
Hazard warning flashers 14
Hazard warning triangle 23
HDC Hill Descent Control 91Head airbags 57
Head restraints 51
Headlamp cleaning system
cleaning headlamps 78
washer fluid 132, 163
Headlamp control, auto-
matic 94
Headlamp flasher 95
indicator lamp 21
Headlamps
bulb replacement 143
care, refer to the Caring
for your vehicle brochure
Heated mirrors 55
Heated rear window
air conditioning 100
automatic climate
control 105
Heated seats 54
Heating
exterior mirrors 55
rear window 100, 105
seats 54
Heating and ventilation
98, 102
Heavy loads, refer to Cargo
loading 115
Height adjustment
seats 48, 50
steering wheel 55
Height, refer to
Dimensions 161High beams 76, 95
bulb replacement 143
headlamp flasher 95
indicator lamp 21
Hill Descent Control
(HDC) 91
Holder for
beverages 108, 109
litter bag 109
Hood release 129
Horn 14
Hub cap 148
Hydraulic brake assistant,
refer to DBC 121
Hydraulic system
brakes 122
Hydroplaning 121
I
Ice warning 84
Ignition 65
Ignition key 32
positions 65
Ignition lock 65
Imprint 4
Indicator lamps 18
