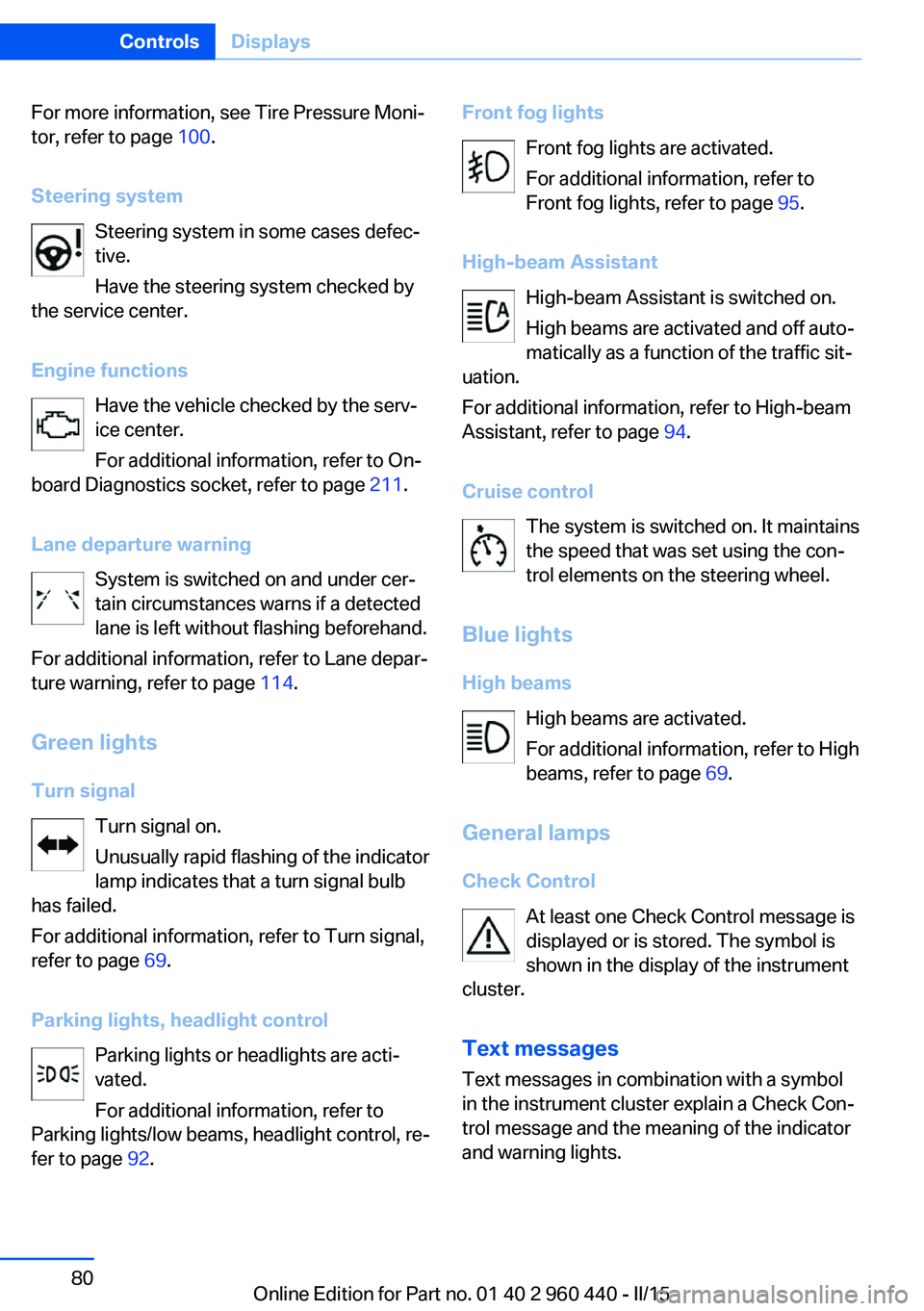

For more information, see Tire Pressure Moni‐
tor, refer to page 100.
Steering system Steering system in some cases defec‐
tive.
Have the steering system checked by
the service center.
Engine functions Have the vehicle checked by the serv‐ice center.
For additional information, refer to On-
board Diagnostics socket, refer to page 211.
Lane departure warning System is switched on and under cer‐
tain circumstances warns if a detected
lane is left without flashing beforehand.
For additional information, refer to Lane depar‐
ture warning, refer to page 114.
Green lights Turn signal Turn signal on.
Unusually rapid flashing of the indicator
lamp indicates that a turn signal bulb
has failed.
For additional information, refer to Turn signal,
refer to page 69.
Parking lights, headlight control Parking lights or headlights are acti‐
vated.
For additional information, refer to
Parking lights/low beams, headlight control, re‐
fer to page 92.Front fog lights
Front fog lights are activated.
For additional information, refer to
Front fog lights, refer to page 95.
High-beam Assistant High-beam Assistant is switched on.
High beams are activated and off auto‐
matically as a function of the traffic sit‐
uation.
For additional information, refer to High-beam
Assistant, refer to page 94.
Cruise control The system is switched on. It maintains
the speed that was set using the con‐
trol elements on the steering wheel.
Blue lights
High beams High beams are activated.
For additional information, refer to High
beams, refer to page 69.
General lamps
Check Control At least one Check Control message is
displayed or is stored. The symbol is
shown in the display of the instrument
cluster.
Text messagesText messages in combination with a symbol
in the instrument cluster explain a Check Con‐ trol message and the meaning of the indicator
and warning lights.Seite 80ControlsDisplays80
Online Edition for Part no. 01 40 2 960 440 - II/15

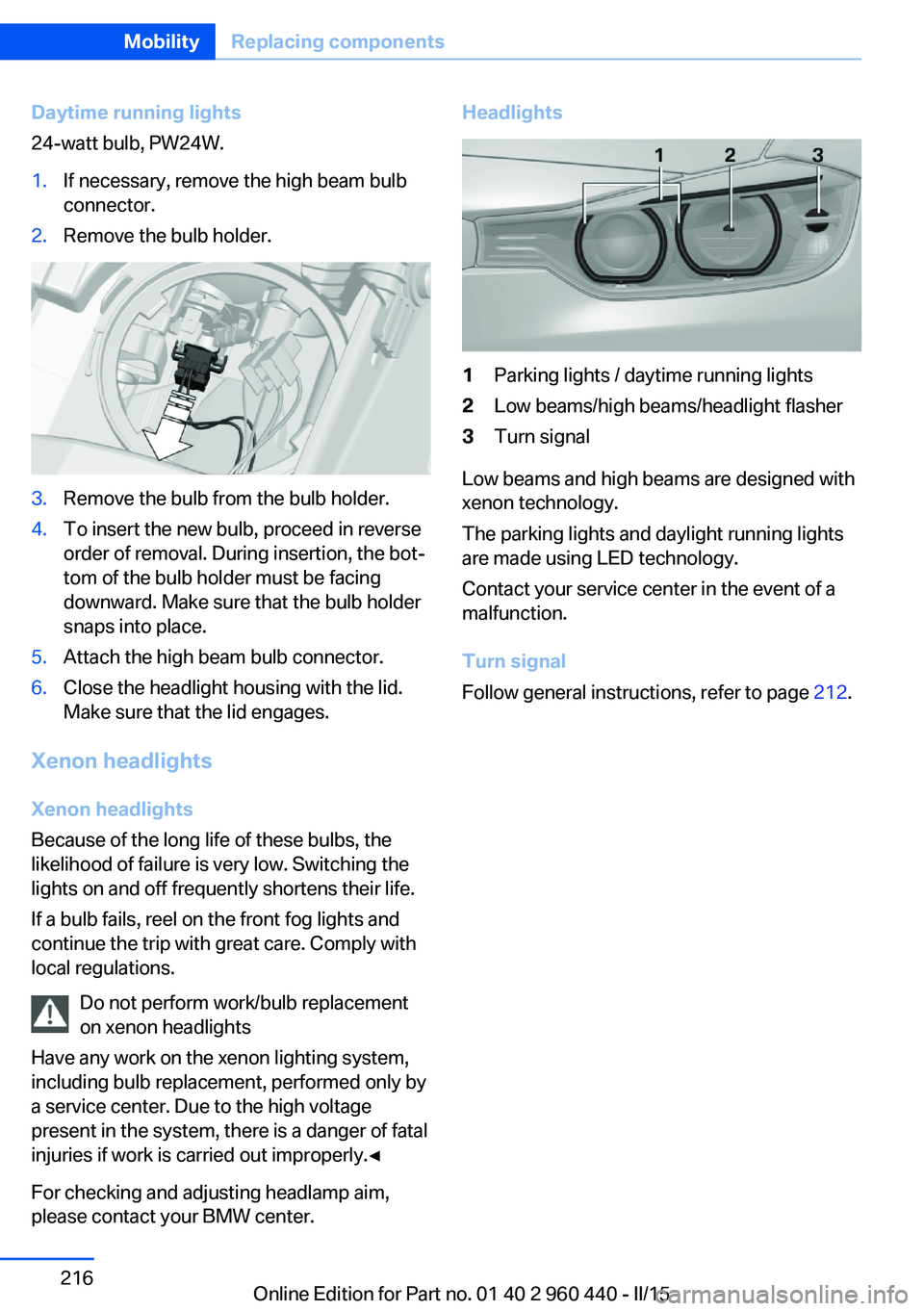

Daytime running lights
24-watt bulb, PW24W.1.If necessary, remove the high beam bulb
connector.2.Remove the bulb holder.3.Remove the bulb from the bulb holder.4.To insert the new bulb, proceed in reverse
order of removal. During insertion, the bot‐
tom of the bulb holder must be facing
downward. Make sure that the bulb holder
snaps into place.5.Attach the high beam bulb connector.6.Close the headlight housing with the lid.
Make sure that the lid engages.
Xenon headlights
Xenon headlights
Because of the long life of these bulbs, the
likelihood of failure is very low. Switching the
lights on and off frequently shortens their life.
If a bulb fails, reel on the front fog lights and
continue the trip with great care. Comply with
local regulations.
Do not perform work/bulb replacement
on xenon headlights
Have any work on the xenon lighting system,
including bulb replacement, performed only by
a service center. Due to the high voltage
present in the system, there is a danger of fatal
injuries if work is carried out improperly.◀
For checking and adjusting headlamp aim,
please contact your BMW center.
Headlights1Parking lights / daytime running lights2Low beams/high beams/headlight flasher3Turn signal
Low beams and high beams are designed with
xenon technology.
The parking lights and daylight running lights
are made using LED technology.
Contact your service center in the event of a
malfunction.
Turn signal
Follow general instructions, refer to page 212.
Seite 216MobilityReplacing components216
Online Edition for Part no. 01 40 2 960 440 - II/15

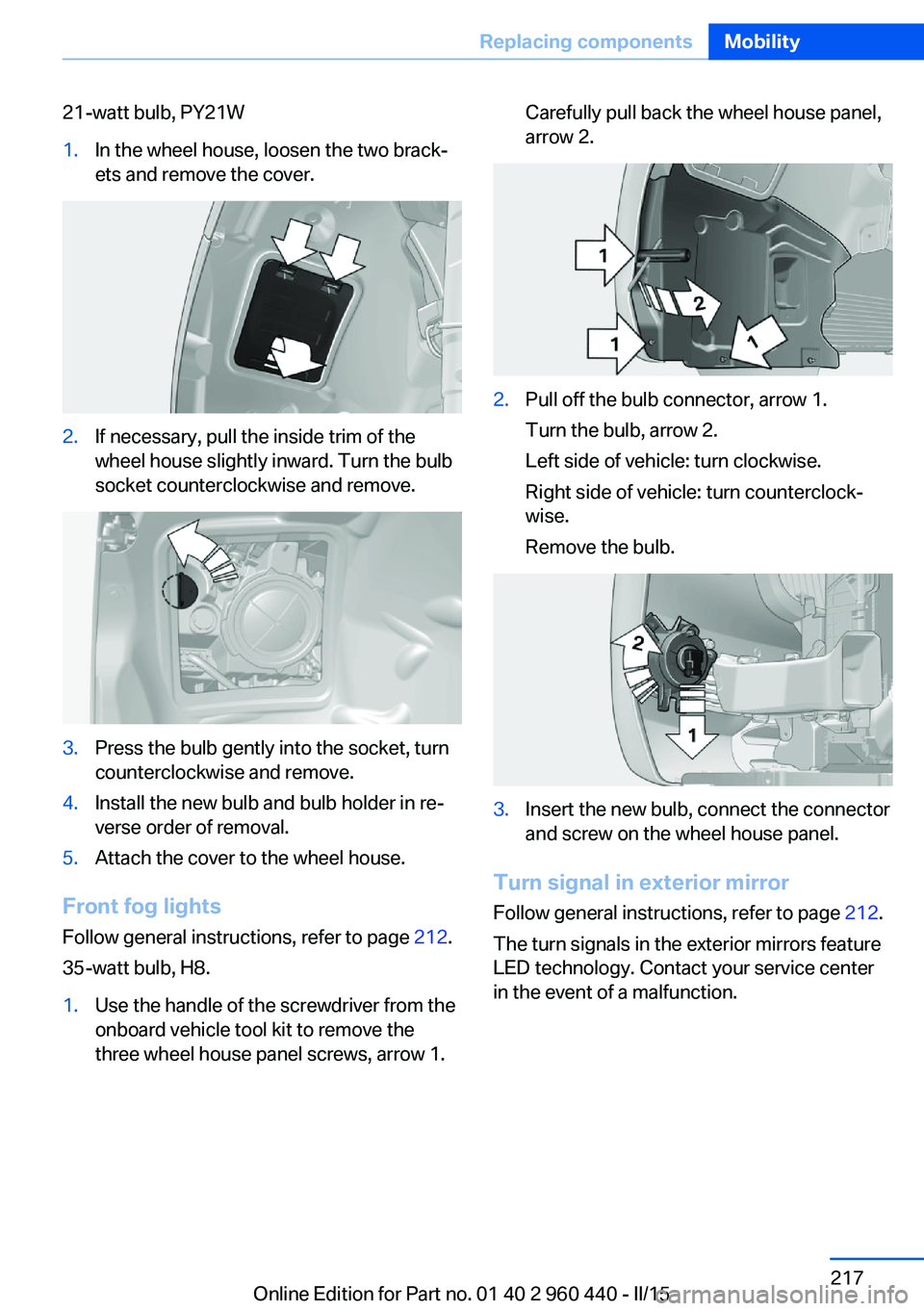

21-watt bulb, PY21W1.In the wheel house, loosen the two brack‐
ets and remove the cover.2.If necessary, pull the inside trim of the
wheel house slightly inward. Turn the bulb
socket counterclockwise and remove.3.Press the bulb gently into the socket, turn
counterclockwise and remove.4.Install the new bulb and bulb holder in re‐
verse order of removal.5.Attach the cover to the wheel house.
Front fog lights
Follow general instructions, refer to page 212.
35-watt bulb, H8.
1.Use the handle of the screwdriver from the
onboard vehicle tool kit to remove the
three wheel house panel screws, arrow 1.Carefully pull back the wheel house panel,
arrow 2.2.Pull off the bulb connector, arrow 1.
Turn the bulb, arrow 2.
Left side of vehicle: turn clockwise.
Right side of vehicle: turn counterclock‐
wise.
Remove the bulb.3.Insert the new bulb, connect the connector
and screw on the wheel house panel.
Turn signal in exterior mirror
Follow general instructions, refer to page 212.
The turn signals in the exterior mirrors feature
LED technology. Contact your service center
in the event of a malfunction.
Seite 217Replacing componentsMobility217
Online Edition for Part no. 01 40 2 960 440 - II/15

Engine, automatic Start/Stopfunction 66
Engine, automatic switch- off 66
Engine compartment 204
Engine compartment, work‐ ing in 205
Engine coolant 209
Engine idling when driving, coasting 176
Engine oil 206
Engine oil, adding 207
Engine oil additives 208
Engine oil change 208
Engine oil filler neck 207
Engine oil temperature 81
Engine oil types, alterna‐ tive 208
Engine oil types, ap‐ proved 208
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 224
Engine start, refer to Starting the engine 65
Engine stop 66
Engine temperature 81
Entering a car wash 229
Equipment, interior 152
Error displays, see Check Control 78
ESP Electronic Stability Pro‐ gram, refer to DSC 119
Exchanging wheels/tires 197
Exhaust system 167
Exterior mirror, automatic dimming feature 58
Exterior mirrors 57
External start 224
External temperature dis‐ play 82
External temperature warn‐ ing 82
Eyes for securing cargo 170 F
Failure message, see Check Control 78
False alarm, refer to Uninten‐ tional alarm 45
Fan, refer to Air flow 146, 149
Filler neck for engine oil 207
Fine wood, care 231
First aid kit 224
Fitting for towing, see Tow fit‐ ting 227
Flat tire, changing wheels 220
Flat Tire Monitor FTM 104
Flat tire, Tire Pressure Moni‐ tor TPM 100
Flat tire, warning lamp 101, 104
Flooding 167
Floor carpet, care 232
Floor mats, care 232
Fogged up windows 146
Fold down the rear seat back‐ rest, see Though-loading
system 158
Fold-out position, wiper 71
Foot brake 167
Front airbags 97
Front-end collision warning with braking function 109
Front-end collision warning with City Braking func‐
tion 107
Front fog lights 95
Front fog lights, front, bulb re‐ placement 217
Front lights 213
front-seat passenger airbags, automatic deactivation 99
Front-seat passenger airbags, indicator lamp 99
FTM Flat Tire Monitor 104
Fuel 184
Fuel consumption, current 83 Fuel consumption, refer to
Average fuel consump‐
tion 87
Fuel filler flap 182
Fuel gauge 81
Fuel lid 182
Fuel quality 184
Fuel recommendation 184
Fuel, tank capacity 241
Fuse 221
G Garage door opener, refer to Universal Integrated Remote
Control 152
Gasoline 184
Gear change, Steptronic transmission 73
Gear shift indicator 84
General driving notes 166
Glare shield 156
Glass sunroof, powered 47
Glove compartment 160
Gross vehicle weight, ap‐ proved 236
H Handbrake, refer to parking brake 68
Hand-held transmitter, alter‐ nating code 153
Hazard warning flashers 223
Head airbags 97
Headlight control, auto‐ matic 93
Headlight courtesy delay fea‐ ture 93
Headlight flasher 69
Headlight glass 213
Headlights 213
Headlights, care 230
Headlight washer system 69
Head restraints 50
Head restraints, front 54 Seite 245Everything from A to ZReference245
