BMW 328I COUPE 2006 E92 Owner's Manual

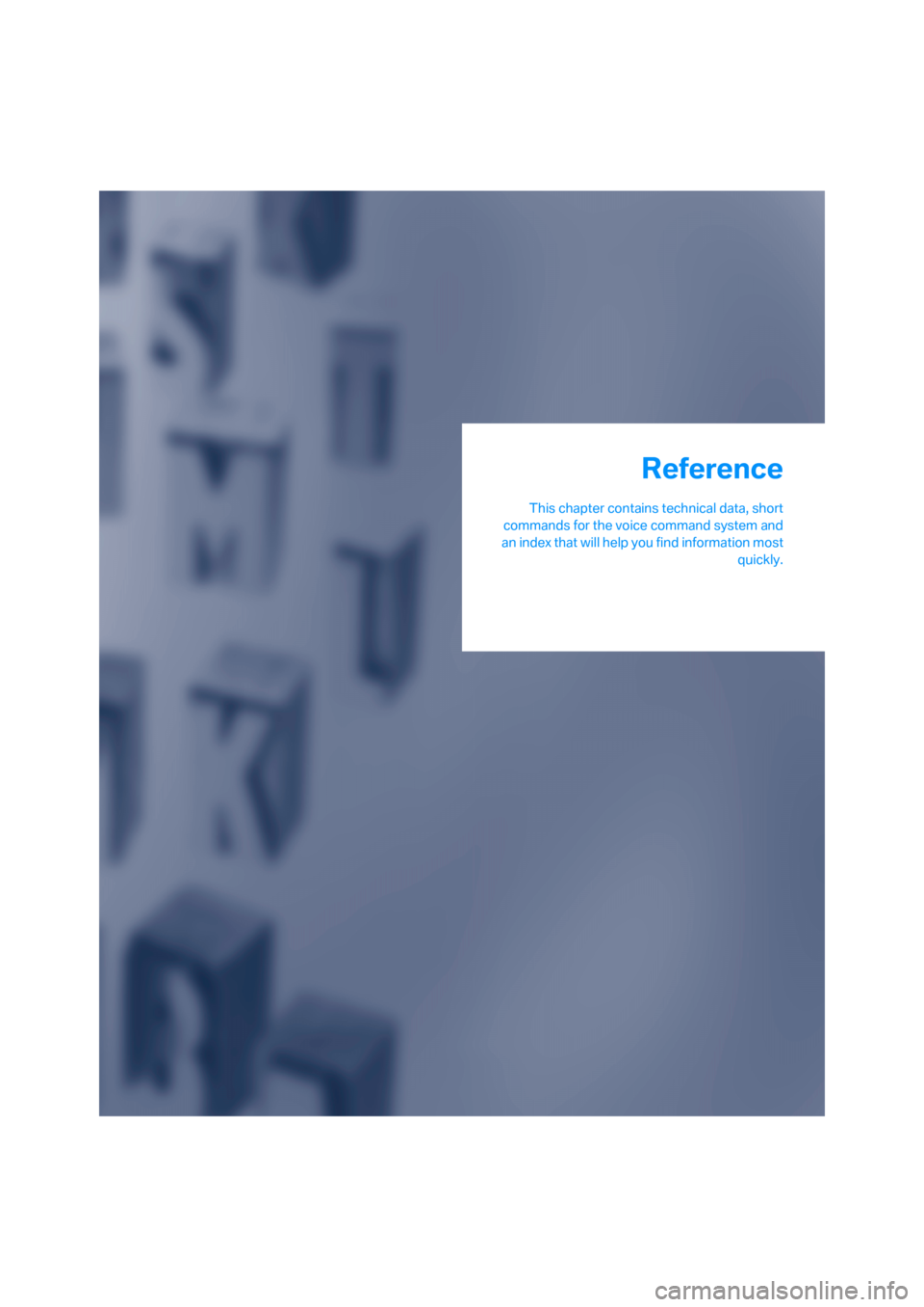

Reference
This chapter contains technical data, short
commands for the voice command system and
an index that will help you find information most
quickly.
Reference
ba8_E9293_US.book Seite 209 Freitag, 5. Mai 2006 1:02 13

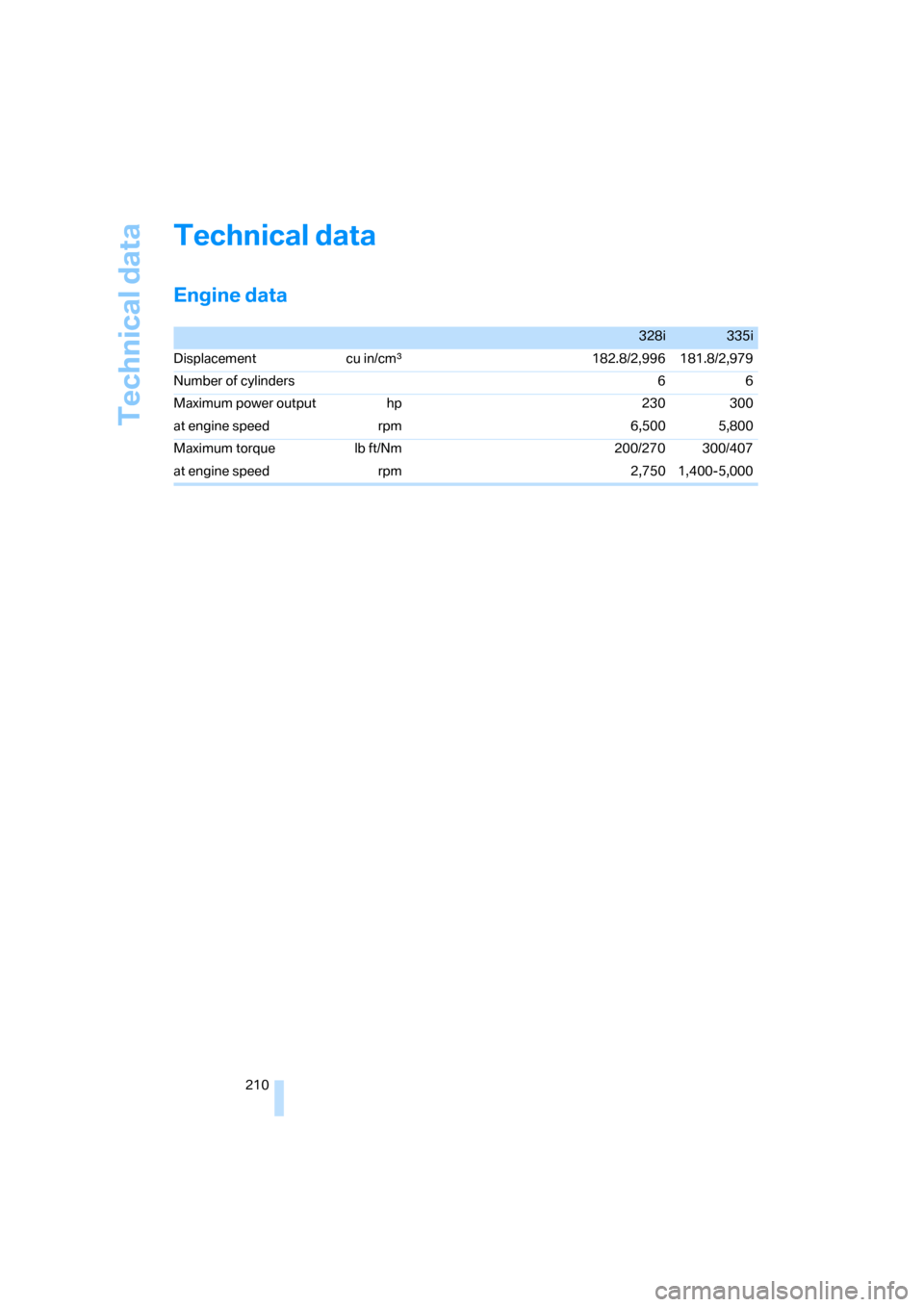

Technical data
210
Technical data
Engine data
328i335i
Displacement cu in/cmµ182.8/2,996 181.8/2,979
Number of cylinders 6 6
Maximum power output hp 230 300
at engine speed rpm 6,500 5,800
Maximum torque lb ft/Nm 200/270 300/407
at engine speed rpm 2,750 1,400-5,000
ba8_E9293_US.book Seite 210 Freitag, 5. Mai 2006 1:02 13

Reference 211
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

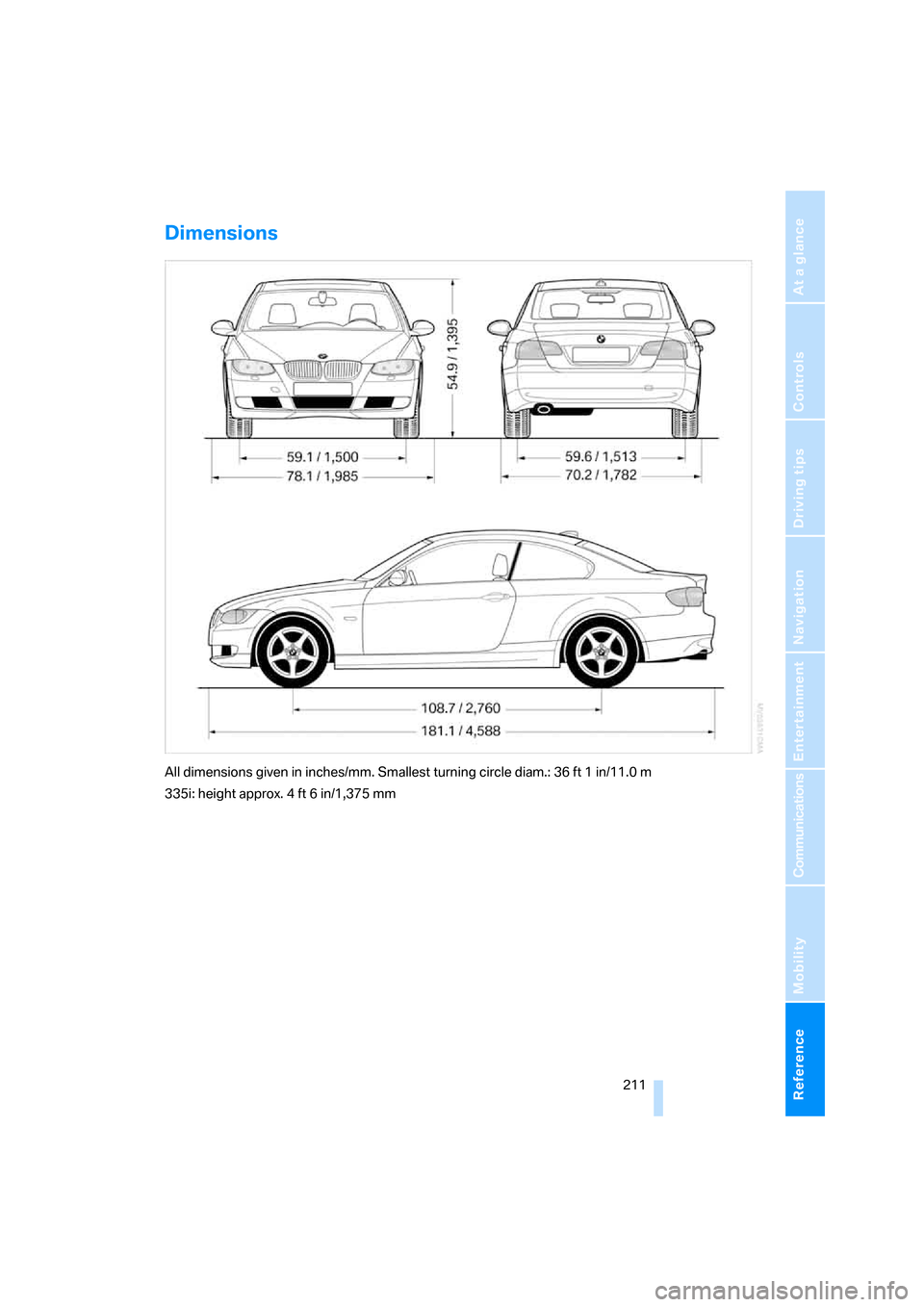

Dimensions
All dimensions given in inches/mm. Smallest turning circle diam.: 36 ft 1 in/11.0 m
335i: height approx. 4 ft 6 in/1,375 mm
ba8_E9293_US.book Seite 211 Freitag, 5. Mai 2006 1:02 13

Technical data
212

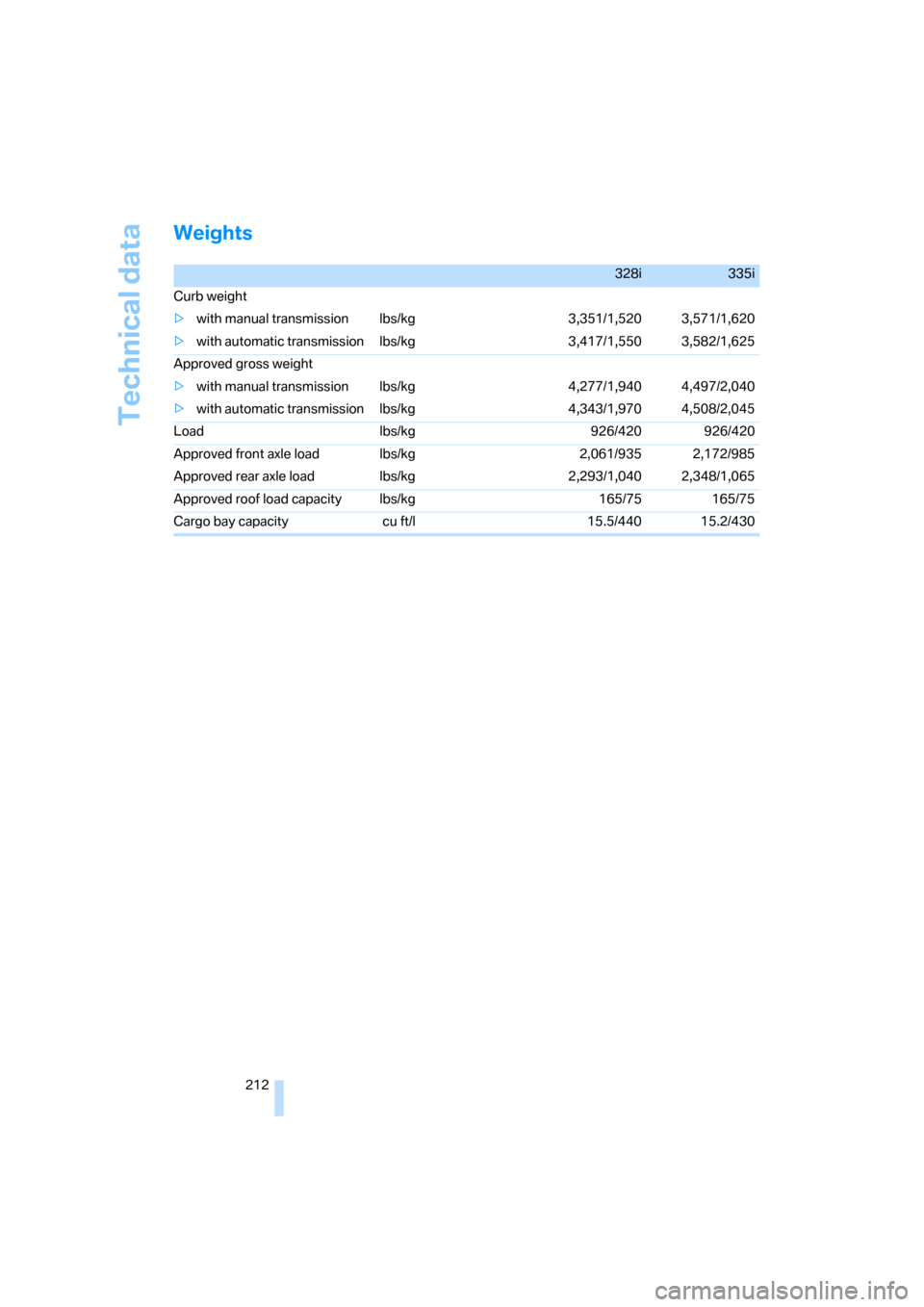

Weights
328i335i
Curb weight
>with manual transmission lbs/kg 3,351/1,520 3,571/1,620
>with automatic transmission lbs/kg 3,417/1,550 3,582/1,625
Approved gross weight
>with manual transmission lbs/kg 4,277/1,940 4,497/2,040
>with automatic transmission lbs/kg 4,343/1,970 4,508/2,045
Load lbs/kg 926/420 926/420
Approved front axle load lbs/kg 2,061/935 2,172/985
Approved rear axle load lbs/kg 2,293/1,040 2,348/1,065
Approved roof load capacity lbs/kg 165/75 165/75
Cargo bay capacity cu ft/l 15.5/440 15.2/430
ba8_E9293_US.book Seite 212 Freitag, 5. Mai 2006 1:02 13

Reference 213
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

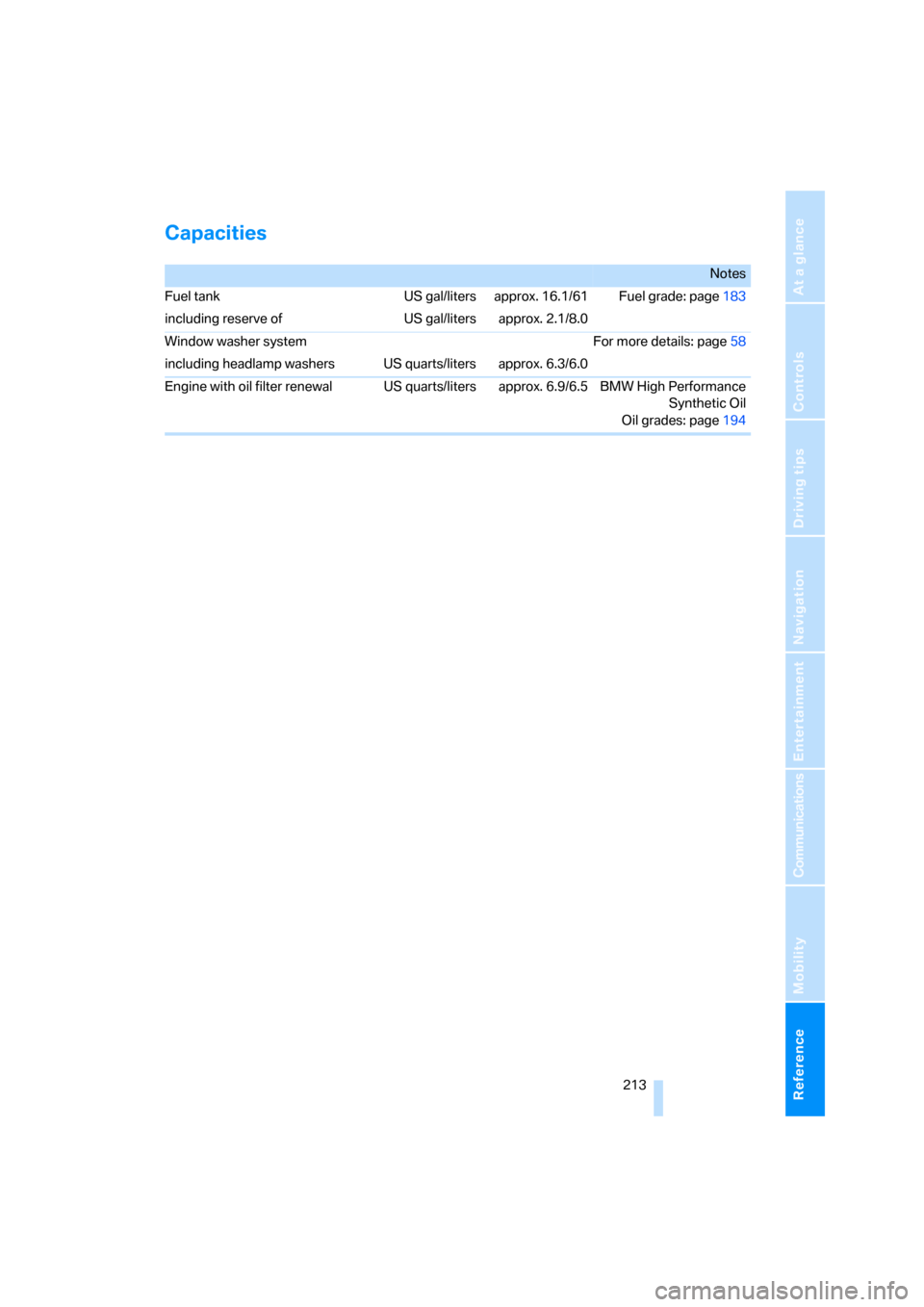

Capacities
Notes
Fuel tank US gal/liters approx. 16.1/61 Fuel grade: page183
including reserve of US gal/liters approx. 2.1/8.0
Window washer system For more details: page58
including headlamp washers US quarts/liters approx. 6.3/6.0
Engine with oil filter renewal US quarts/liters approx. 6.9/6.5 BMW High Performance
Synthetic Oil
Oil grades: page194
ba8_E9293_US.book Seite 213 Freitag, 5. Mai 2006 1:02 13

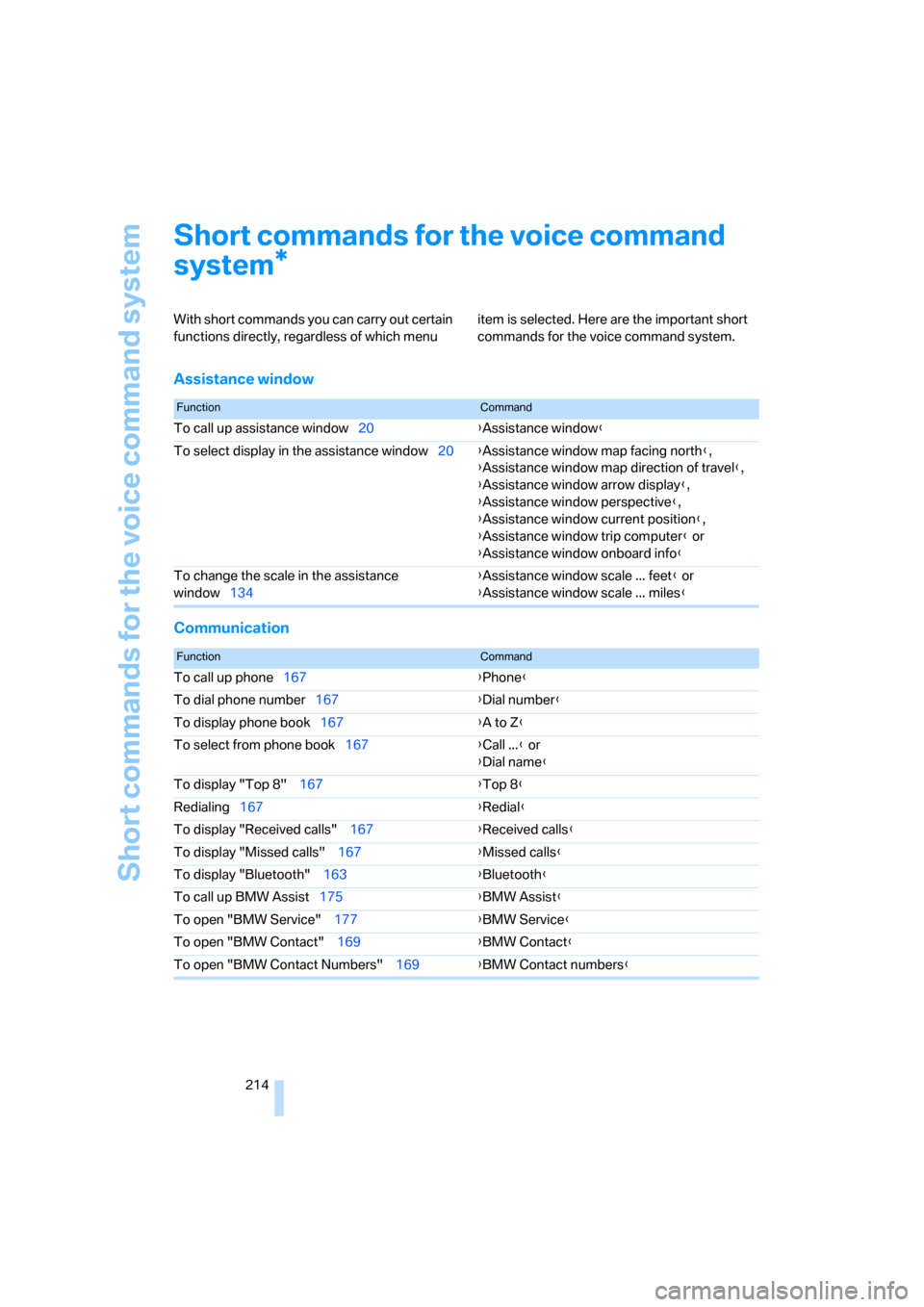

Short commands for the voice command system
214
Short commands for the voice command
system
With short commands you can carry out certain
functions directly, regardless of which menu item is selected. Here are the important short
commands for the voice command system.
Assistance window
Communication
*
FunctionCommand
To call up assistance window20{Assistance window}
To select display in the assistance window20{Assistance window map facing north},
{Assistance window map direction of travel},
{Assistance window arrow display},
{Assistance window perspective},
{Assistance window current position},
{Assistance window trip computer} or
{Assistance window onboard info}
To change the scale in the assistance
window134{Assistance window scale ... feet} or
{Assistance window scale ... miles}
FunctionCommand
To call up phone167{Phone}
To dial phone number167{Dial number}
To display phone book167{A to Z}
To select from phone book167{Call ...} or
{Dial name}
To display "Top 8" 167{Top 8}
Redialing167{Redial}
To display "Received calls" 167{Received calls}
To display "Missed calls" 167{Missed calls}
To display "Bluetooth" 163{Bluetooth}
To call up BMW Assist175{BMW Assist}
To open "BMW Service" 177{BMW Service}
To open "BMW Contact" 169{BMW Contact}
To open "BMW Contact Numbers" 169{BMW Contact numbers}
ba8_E9293_US.book Seite 214 Freitag, 5. Mai 2006 1:02 13

Reference 215
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

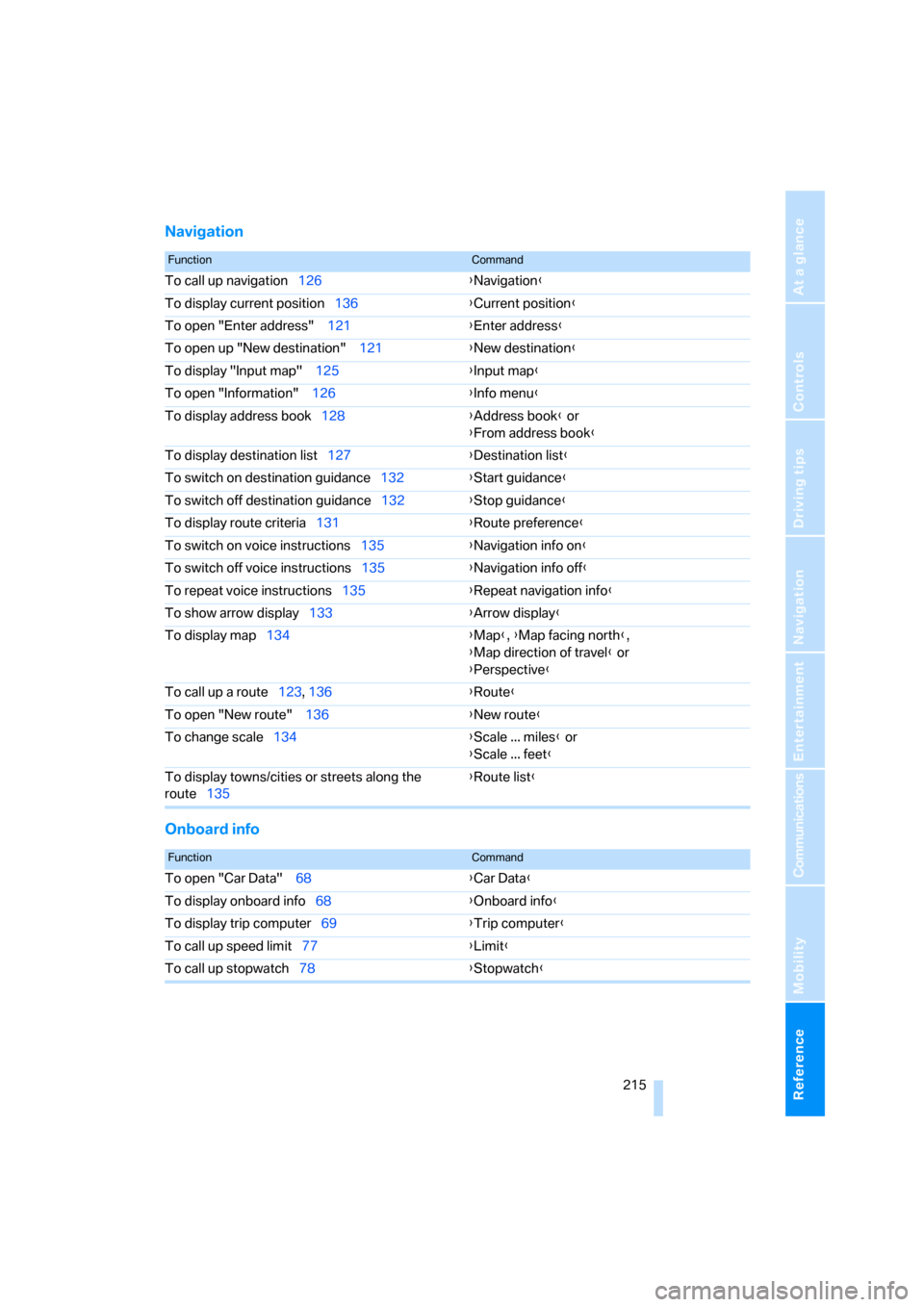

Navigation
Onboard info
FunctionCommand
To call up navigation126{Navigation}
To display current position136{Current position}
To open "Enter address" 121{Enter address}
To open up "New destination" 121{New destination}
To display "Input map" 125{Input map}
To open "Information" 126{Info menu}
To display address book128{Address book} or
{From address book}
To display destination list127{Destination list}
To switch on destination guidance132{Start guidance}
To switch off destination guidance132{Stop guidance}
To display route criteria131{Route preference}
To switch on voice instructions135{Navigation info on}
To switch off voice instructions135{Navigation info off}
To repeat voice instructions135{Repeat navigation info}
To show arrow display133{Arrow display}
To display map134{Map}, {Map facing north},
{Map direction of travel} or
{Perspective}
To call up a route123, 136
{Route}
To open "New route" 136{New route}
To change scale134{Scale ... miles} or
{Scale ... feet}
To display towns/cities or streets along the
route135{Route list}
FunctionCommand
To open "Car Data" 68{Car Data}
To display onboard info68{Onboard info}
To display trip computer69{Trip computer}
To call up speed limit77{Limit}
To call up stopwatch78{Stopwatch}
ba8_E9293_US.book Seite 215 Freitag, 5. Mai 2006 1:02 13

Short commands for the voice command system
216

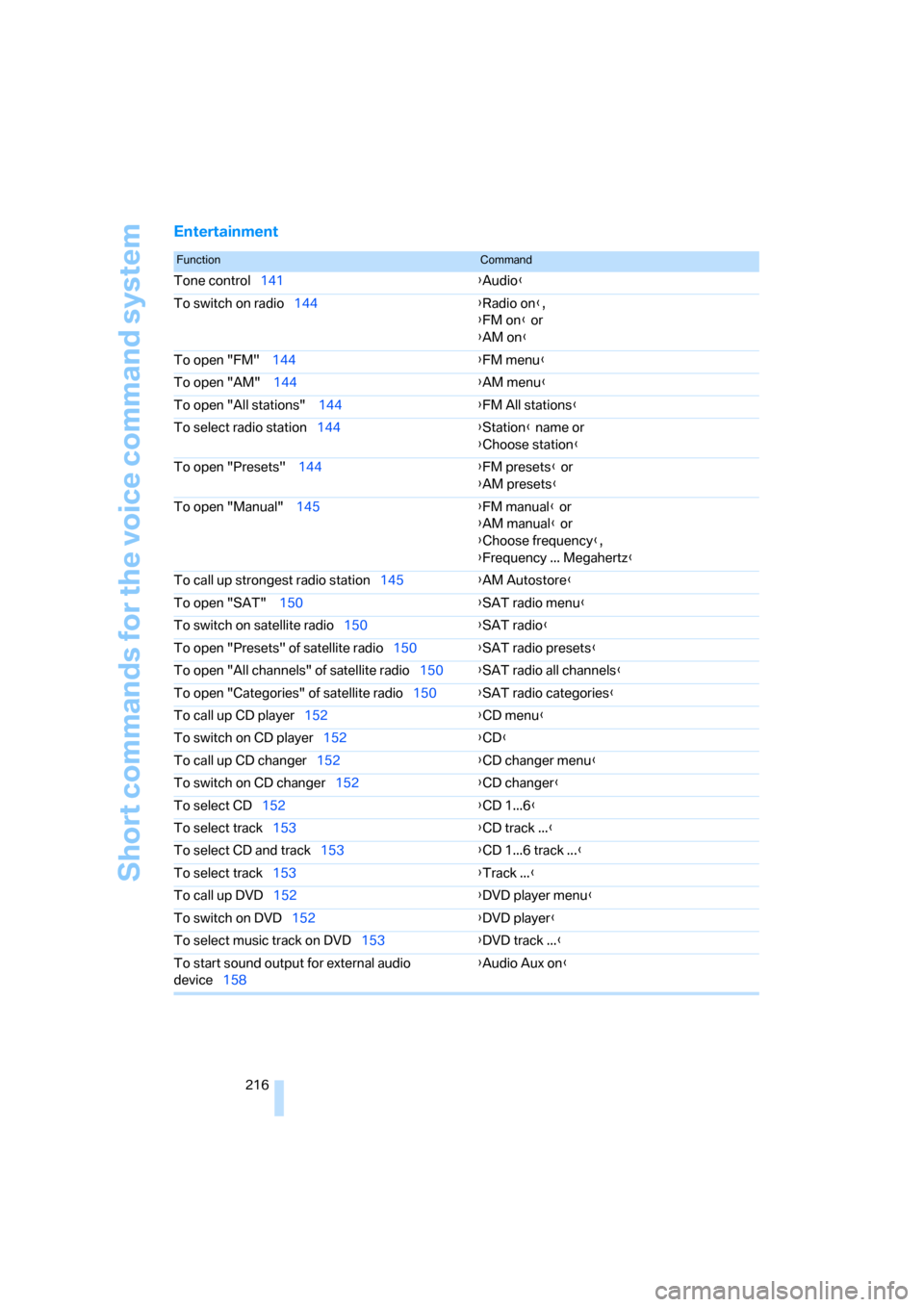

Entertainment
FunctionCommand
Tone control141{Audio}
To switch on radio144{Radio on},
{FM on} or
{AM on}
To open "FM" 144{FM menu}
To open "AM" 144{AM menu}
To open "All stations" 144{FM All stations}
To select radio station144{Station} name or
{Choose station}
To open "Presets" 144{FM presets} or
{AM presets}
To open "Manual" 145{FM manual} or
{AM manual} or
{Choose frequency},
{Frequency ... Megahertz}
To call up strongest radio station145{AM Autostore}
To open "SAT" 150{SAT radio menu}
To switch on satellite radio150{SAT radio}
To open "Presets" of satellite radio150{SAT radio presets}
To open "All channels" of satellite radio150{SAT radio all channels}
To open "Categories" of satellite radio150{SAT radio categories}
To call up CD player152{
CD menu}
To switch on CD player152{CD}
To call up CD changer152{CD changer menu}
To switch on CD changer152{CD changer}
To select CD152{CD 1...6}
To select track153{CD track ...}
To select CD and track153{CD 1...6 track ...}
To select track153{Track ...}
To call up DVD152{DVD player menu}
To switch on DVD152{DVD player}
To select music track on DVD153{DVD track ...}
To start sound output for external audio
device158{Audio Aux on}
ba8_E9293_US.book Seite 216 Freitag, 5. Mai 2006 1:02 13

Reference 217
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

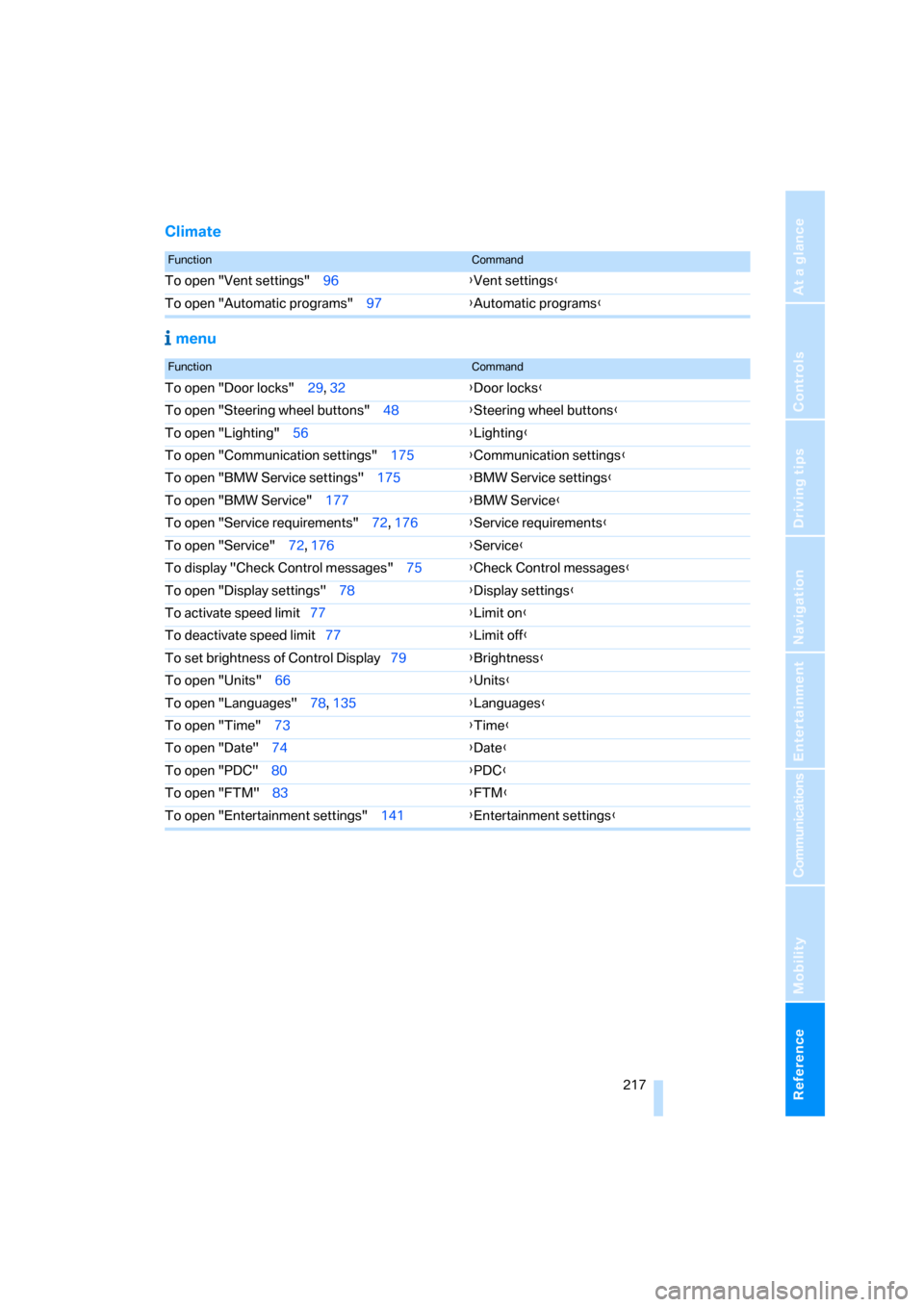

Climate
menu
FunctionCommand
To open "Vent settings" 96{Vent settings}
To open "Automatic programs" 97{Automatic programs}
FunctionCommand
To open "Door locks" 29, 32{Door locks}
To open "Steering wheel buttons" 48{Steering wheel buttons}
To open "Lighting" 56{Lighting}
To open "Communication settings" 175{Communication settings}
To open "BMW Service settings" 175{BMW Service settings}
To open "BMW Service" 177{BMW Service}
To open "Service requirements" 72, 176{Service requirements}
To open "Service" 72, 176{Service}
To display "Check Control messages" 75{Check Control messages}
To open "Display settings" 78{Display settings}
To activate speed limit77{Limit on}
To deactivate speed limit77{Limit off}
To set brightness of Control Display79{Brightness}
To open "Units" 66{Units}
To open "Languages" 78, 135{Languages}
To open "Time" 73{Time}
To open "Date" 74{Date}
To open "PDC" 80{PDC}
To open "FTM" 83{
FTM}
To open "Entertainment settings" 141{Entertainment settings}
ba8_E9293_US.book Seite 217 Freitag, 5. Mai 2006 1:02 13

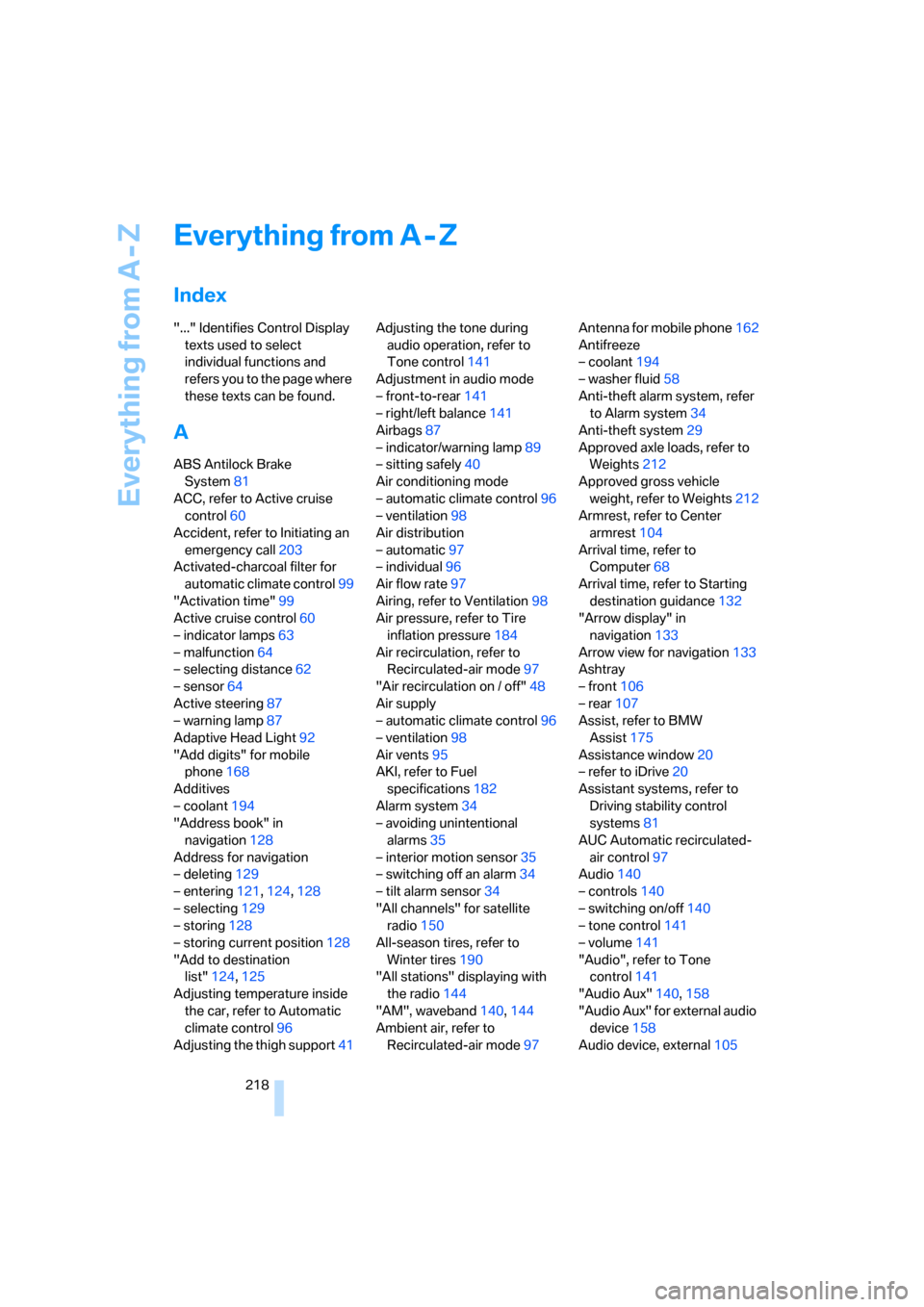

Everything from A - Z
218
Everything from A - Z
Index
"..." Identifies Control Display
texts used to select
individual functions and
refers you to the page where
these texts can be found.
A
ABS Antilock Brake
System81
ACC, refer to Active cruise
control60
Accident, refer to Initiating an
emergency call203
Activated-charcoal filter for
automatic climate control99
"Activation time"99
Active cruise control60
– indicator lamps63
– malfunction64
– selecting distance62
– sensor64
Active steering87
– warning lamp87
Adaptive Head Light92
"Add digits" for mobile
phone168
Additives
– coolant194
"Address book" in
navigation128
Address for navigation
– deleting129
– entering121,124,128
– selecting129
– storing128
– storing current position128
"Add to destination
list"124,125
Adjusting temperature inside
the car, refer to Automatic
climate control96
Adjusting the thigh support41Adjusting the tone during
audio operation, refer to
Tone control141
Adjustment in audio mode
– front-to-rear141
– right/left balance141
Airbags87
– indicator/warning lamp89
– sitting safely40
Air conditioning mode
– automatic climate control96
– ventilation98
Air distribution
– automatic97
– individual96
Air flow rate97
Airing, refer to Ventilation98
Air pressure, refer to Tire
inflation pressure184
Air recirculation, refer to
Recirculated-air mode97
"Air recirculation on / off"48
Air supply
– automatic climate control96
– ventilation98
Air vents95
AKI, refer to Fuel
specifications182
Alarm system34
– avoiding unintentional
alarms35
– interior motion sensor35
– switching off an alarm34
– tilt alarm sensor34
"All channels" for satellite
radio150
All-season tires, refer to
Winter tires190
"All stations" displaying with
the radio144
"AM", waveband140,144
Ambient air, refer to
Recirculated-air mode97Antenna for mobile phone162
Antifreeze
– coolant194
– washer fluid58
Anti-theft alarm system, refer
to Alarm system34
Anti-theft system29
Approved axle loads, refer to
Weights212
Approved gross vehicle
weight, refer to Weights212
Armrest, refer to Center
armrest104
Arrival time, refer to
Computer68
Arrival time, refer to Starting
destination guidance132
"Arrow display" in
navigation133
Arrow view for navigation133
Ashtray
– front106
– rear107
Assist, refer to BMW
Assist175
Assistance window20
– refer to iDrive20
Assistant systems, refer to
Driving stability control
systems81
AUC Automatic recirculated-
air control97
Audio140
– controls140
– switching on/off140
– tone control141
– volume141
"Audio", refer to Tone
control141
"Audio Aux"140,
158
"Audio Aux" for external audio
device158
Audio device, external105
