BMW 328i SEDAN 2000 E46 User Guide

11n

Controls and features
Operation, care and maintenance

Lamps:

Parking lamps/Headlamps82
Dash lighting82
High beams/Parking lamps83
Fog lamps83
Interior lamps83
Reading lamps84

Controlling the climate
for pleasant driving:

Automatic climate control86
Seat heating91
Roller sun blind91

Interior conveniences:

HiFi system92
Glove compartment92
Storage compartments93
Cellular phones95
Ashtray, front95
Cigarette lighter96
Ashtray, rear96

Loading and transporting:

Through-loading system97
Ski bag98
Cargo loading99
Roof-mounted luggage rack100

Special operating instructions:

Break-in procedures104
Driving notes104
Catalytic converter105
Antilock Brake System
(ABS)106
Disc brakes108
Brake system109
Winter operation110
Power steering111
Cellular phones112
Radio reception112

Wheels and tires:

Tire inflation pressures113
Tire condition113
Tire replacement114
Tire rotation115
Wheel and tire
combinations116
Winter tires117
Snow chains117
Approved wheel and tire
specifications118

Under the hood:

Hood120
Engine compartment122
Washer fluids124
Washer nozzles124
Engine oil125
Coolant128
Brake fluid129
Vehicle Identification
Number130

Care and maintenance:

The BMW Maintenance
System131
Caring for your car132
Airbags137
Vehicle storage137

Laws and regulations:

Technical modifications to the
vehicle138
OBD interface socket139

Contents

Owner service procedures
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit142
Windshield wiper blades142
Lamps and bulbs142
Changing a wheel149
Battery152
Fuses154
Microfilter155

In case of electrical
malfunction:

Fuel filler door156
Sliding/Tilt sunroof156

Assistance, giving and
receiving:

Jump-starting157
Towing the vehicle158Adaptive Transmission Control
(ATC)162
Airbags163
Dynamic Stability Control
(DSC)163
Radio reception164
Safety belt tensioner164
Interior rearview mirror with
automatic dimming
feature165
Rain sensor166
Tire Pressure Control (RDC)167
Self-diagnostics168
Xenon lamps169Engine data172
Dimensions173
Weights174
Capacities175
Electrical system176
Ribbed V-belt176

13n

Index

Everything from A to Z180
Owner service procedures186

14n

Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology

15n

IndexDataTechnologyRepairsCar careControlsOverview

Cockpit16
Instrument cluster18
Indicator and warning lamps20
Multifunction steering wheel
(MFL)24
Hazard warning flashers25
Warning triangle25
First-aid kit25
Refueling26
Fuel specifications26
Tire inflation pressure27

Overview

16n
460us001

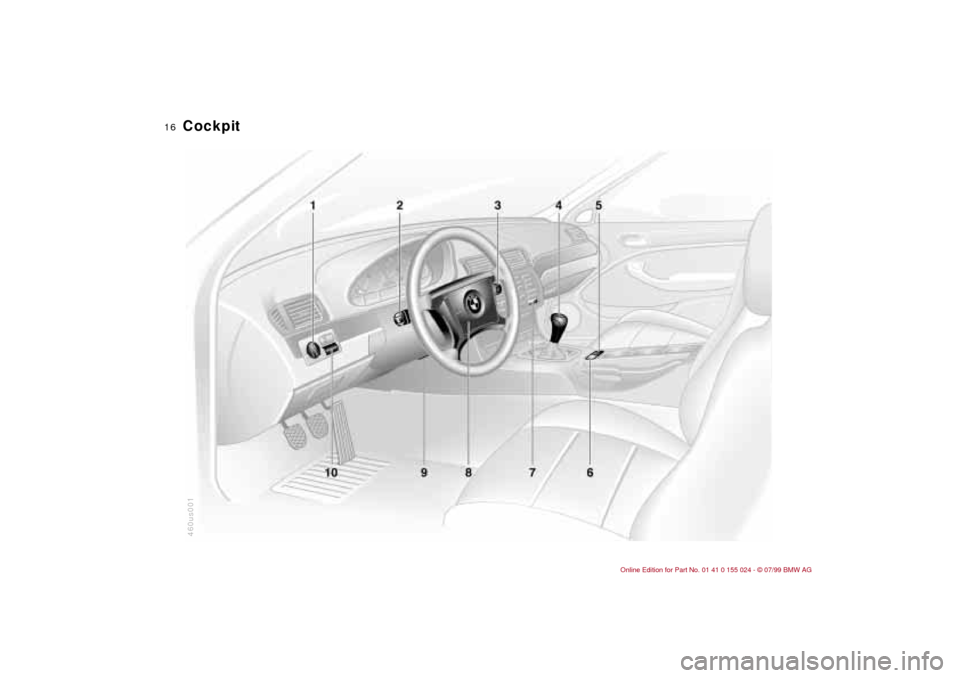

Cockpit

17n

IndexDataTechnologyRepairsCar careControlsOverview

Cockpit

1 Headlamp switch82
2

>

Turn signal indicator68

>

Parking lamps83

>

High beams83

>

Headlamp flasher68

>

Onboard computer

*
76
3 Wiper/Washer system68
4 Shift lever/Selector lever

*
64
For vehicles equipped with manual
transmission:
Press the lever to the left to
overcome the slight resistance to
engage reverse gear
5 Central locking system34
6 Hazard warning flashers25
7 Rear window defroster70
8 Horn: The entire surface functions
as the horn
9 Adjusting steering wheel51
10 Front fog lamps

*
83

18n

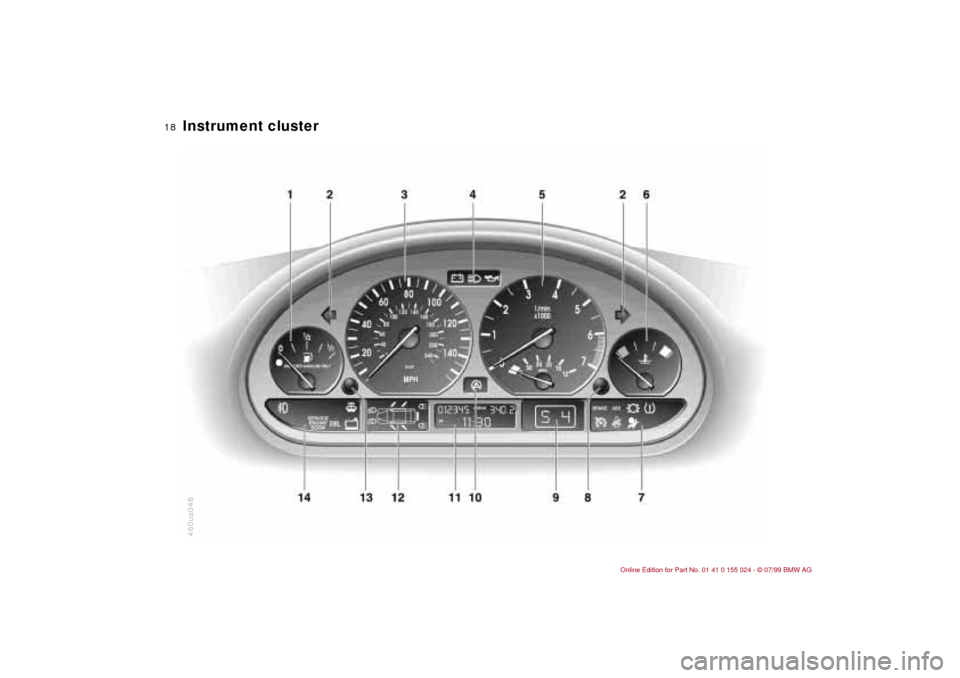

Instrument cluster 460us048

19n

IndexDataTechnologyRepairsCar careControlsOverview

Instrument cluster

1 Fuel gauge with indicator lamp
for fuel reserve74
2 Turn signal indicator23
3 Speedometer
4 Indicator lamp for

>

Battery charge current20

>

High beams23

>

Engine oil pressure/Engine oil
level20, 22
5 Tachometer and Energy Control73
6 Engine coolant temperature gauge
with "Coolant temperature too high"
indicator74
7 Indicator and warning lamps
(clockwise) for

>

Parking brake/Brake hydraulic
system/Cornering Brake Control
(CBC)20

>

ABS22

>

Brake pads22

>

Tire Pressure Control
(RDC)

*
20, 22

>

Airbags21

>

Please fasten safety belts21

>

Cruise control

*
23
8 Clock reset

>

Clock75

>

Service Interval749 Program display for automatic
transmission

*
65, 67
Indicator lamp for automatic
transmission

*
22, 65
10 Indicator lamp for Dynamic Stability
Control (DSC)22
11 Indicator for

>

Odometer73

>

Trip odometer73

>

Clock75

>

Service Interval74
Display for onboard computer

*
,
operation via the turn signal lever:
Refer to page 76.

>

Clock

>

Outside temperature

>

Average fuel consumption

>

Range

>

Average speed
12 Indicator for Check Control75
13 Trip odometer, reset to zero7314 Indicator and warning lamps
(clockwise) for

>

Front fog lamps

*
23

>

Add washer fluid22

>

Coolant level23

>

Electronic Engine Power Control
(EML)

*
23

>

Engine22
You can display the outside tem-
perature and distance driven in
different units of measurement.

<

20n

Indicator and warning lamps

Technology that monitors itself

Many of the systems of your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
that are identified by "

l

" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started, or
it lights up while the vehicle is moving.
You will see how to react to this below.

Red: Stop immediately

Battery charge

l


The battery is no longer being
charged. There is a malfunction
of the alternator ribbed V-belt or in the
charging circuit of the alternator. Please
contact the nearest BMW center.
If the ribbed V-belt is defective, do
not continue driving. If you do so,
the engine could be damaged due to
overheating. If the ribbed V-belt is de-
fective, increased steering effort is also
required.<
Engine oil pressure l
Stop the vehicle and switch off
the engine immediately. Check
the engine oil and top up as required. If
the oil level is correct, please contact
the nearest BMW center.
Do not continue driving. If you do
so, the engine could be damaged
because of inadequate lubrication.<
Tire Pressure Control (RDC)
* l
In addition, an acoustic signal is
sounded: A tire failure has oc-
curred. Reduce vehicle speed immedi-
ately and stop the vehicle. Avoid hard
brake applications. Do not oversteer.
For additional information: Refer to
page 80.
Brake hydraulic system l
If the lamp comes on when the
parking brake is not engaged:
Check the brake fluid level. Before driv-
ing further, be sure to read the notes on
pages 109 and 129.
Brake warning lamp for Cana-
dian models.
