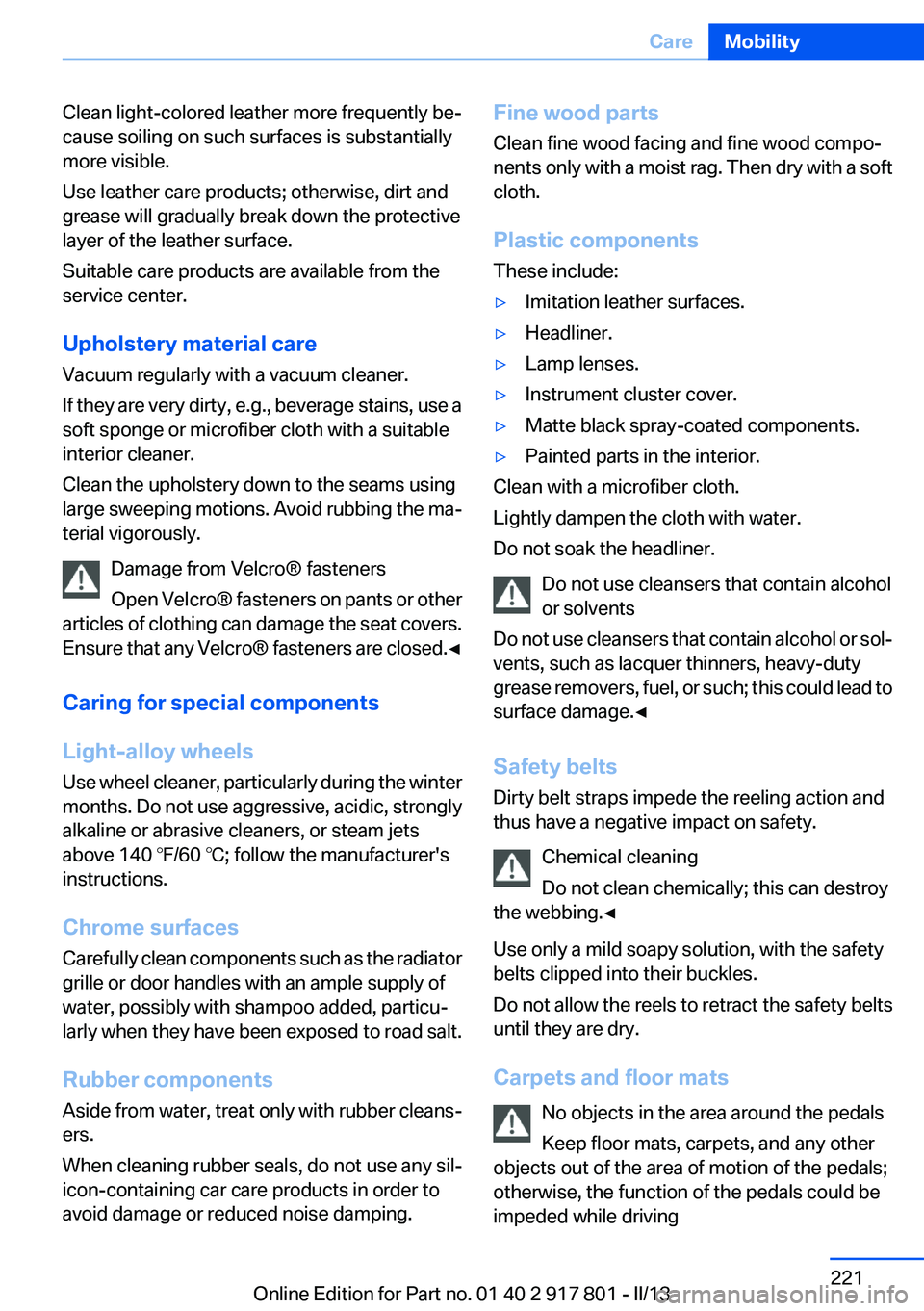

Clean light-colored leather more frequently be‐
cause soiling on such surfaces is substantially
more visible.
Use leather care products; otherwise, dirt and
grease will gradually break down the protective
layer of the leather surface.
Suitable care products are available from the
service center.
Upholstery material care
Vacuum regularly with a vacuum cleaner.
If they are very dirty, e.g., beverage stains, use a
soft sponge or microfiber cloth with a suitable
interior cleaner.
Clean the upholstery down to the seams using
large sweeping motions. Avoid rubbing the ma‐
terial vigorously.
Damage from Velcro® fasteners
Open Velcro® fasteners on pants or other
articles of clothing can damage the seat covers.
Ensure that any Velcro® fasteners are closed. ◀
Caring for special components
Light-alloy wheels
Use wheel cleaner, particularly during the winter
months. Do not use aggressive, acidic, strongly
alkaline or abrasive cleaners, or steam jets
above 140 ℉/60 ℃; follow the manufacturer's
instructions.
Chrome surfaces
Carefully clean components such as the radiator
grille or door handles with an ample supply of
water, possibly with shampoo added, particu‐
larly when they have been exposed to road salt.
Rubber components
Aside from water, treat only with rubber cleans‐
ers.
When cleaning rubber seals, do not use any sil‐
icon-containing car care products in order to
avoid damage or reduced noise damping.Fine wood parts
Clean fine wood facing and fine wood compo‐
nents only with a moist rag. Then dry with a soft
cloth.
Plastic components
These include:▷Imitation leather surfaces.▷Headliner.▷Lamp lenses.▷Instrument cluster cover.▷Matte black spray-coated components.▷Painted parts in the interior.
Clean with a microfiber cloth.
Lightly dampen the cloth with water.
Do not soak the headliner.
Do not use cleansers that contain alcohol
or solvents
Do not use cleansers that contain alcohol or sol‐
vents, such as lacquer thinners, heavy-duty
grease removers, fuel, or such; this could lead to
surface damage.◀
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety belts
until they are dry.
Carpets and floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the area of motion of the pedals;
otherwise, the function of the pedals could be
impeded while driving
Seite 221CareMobility221
Online Edition for Part no. 01 40 2 917 801 - II/13

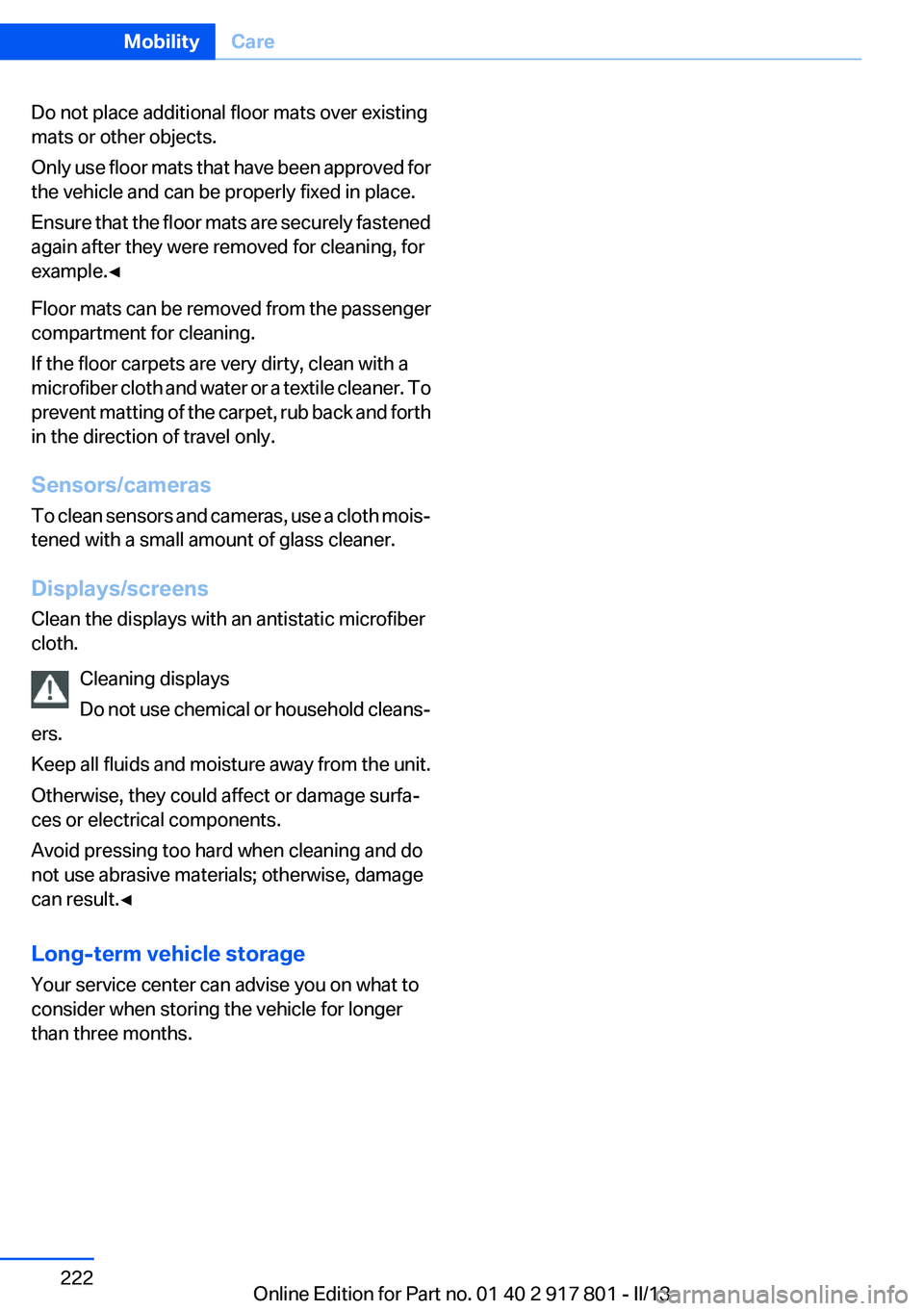

Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved for
the vehicle and can be properly fixed in place.
Ensure that the floor mats are securely fastened
again after they were removed for cleaning, for
example.◀
Floor mats can be removed from the passenger
compartment for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner. To
prevent matting of the carpet, rub back and forth
in the direction of travel only.
Sensors/cameras
To clean sensors and cameras, use a cloth mois‐
tened with a small amount of glass cleaner.
Displays/screens
Clean the displays with an antistatic microfiber
cloth.
Cleaning displays
Do not use chemical or household cleans‐
ers.
Keep all fluids and moisture away from the unit.
Otherwise, they could affect or damage surfa‐
ces or electrical components.
Avoid pressing too hard when cleaning and do
not use abrasive materials; otherwise, damage
can result.◀
Long-term vehicle storage
Your service center can advise you on what to
consider when storing the vehicle for longer
than three months.Seite 222MobilityCare222
Online Edition for Part no. 01 40 2 917 801 - II/13

Seite 223CareMobility223
Online Edition for Part no. 01 40 2 917 801 - II/13

Online Edition for Part no. 01 40 2 917 801 - II/13

Reference
This chapter contains the technical data and an
index that will quickly take you to the information you need.Online Edition for Part no. 01 40 2 917 801 - II/13

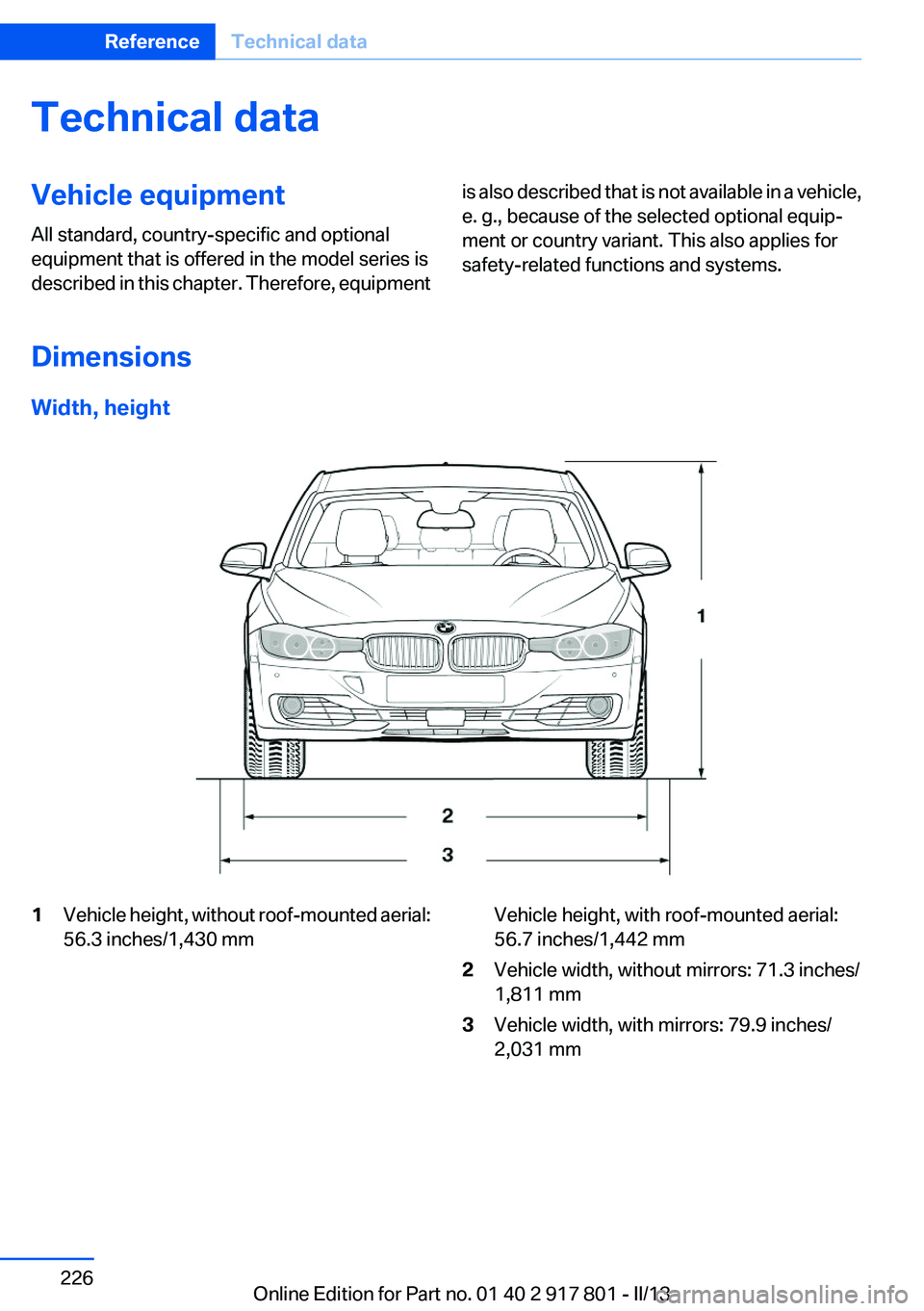

Technical dataVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipmentis also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
Dimensions
Width, height
1Vehicle height, without roof-mounted aerial:
56.3 inches/1,430 mmVehicle height, with roof-mounted aerial:
56.7 inches/1,442 mm2Vehicle width, without mirrors: 71.3 inches/
1,811 mm3Vehicle width, with mirrors: 79.9 inches/
2,031 mmSeite 226ReferenceTechnical data226
Online Edition for Part no. 01 40 2 917 801 - II/13

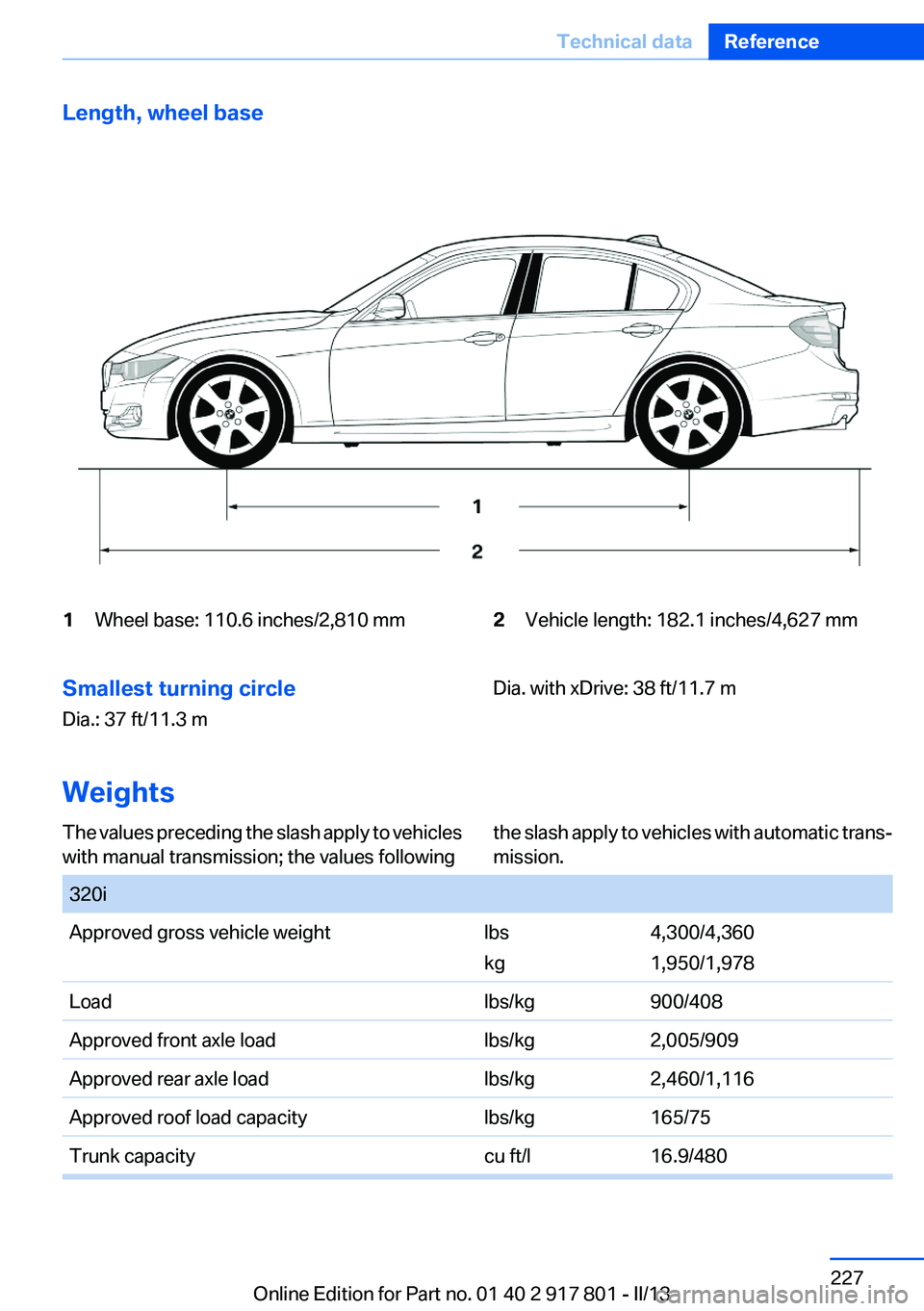

Length, wheel base1Wheel base: 110.6 inches/2,810 mm2Vehicle length: 182.1 inches/4,627 mmSmallest turning circle
Dia.: 37 ft/11.3 m
Dia. with xDrive: 38 ft/11.7 m
Weights
The values preceding the slash apply to vehicles
with manual transmission; the values following
the slash apply to vehicles with automatic trans‐
mission.
320iApproved gross vehicle weightlbs
kg
4,300/4,360
1,950/1,978
Loadlbs/kg900/408Approved front axle loadlbs/kg2,005/909Approved rear axle loadlbs/kg2,460/1,116Approved roof load capacitylbs/kg165/75Trunk capacitycu ft/l16.9/480Seite 227Technical dataReference227
Online Edition for Part no. 01 40 2 917 801 - II/13

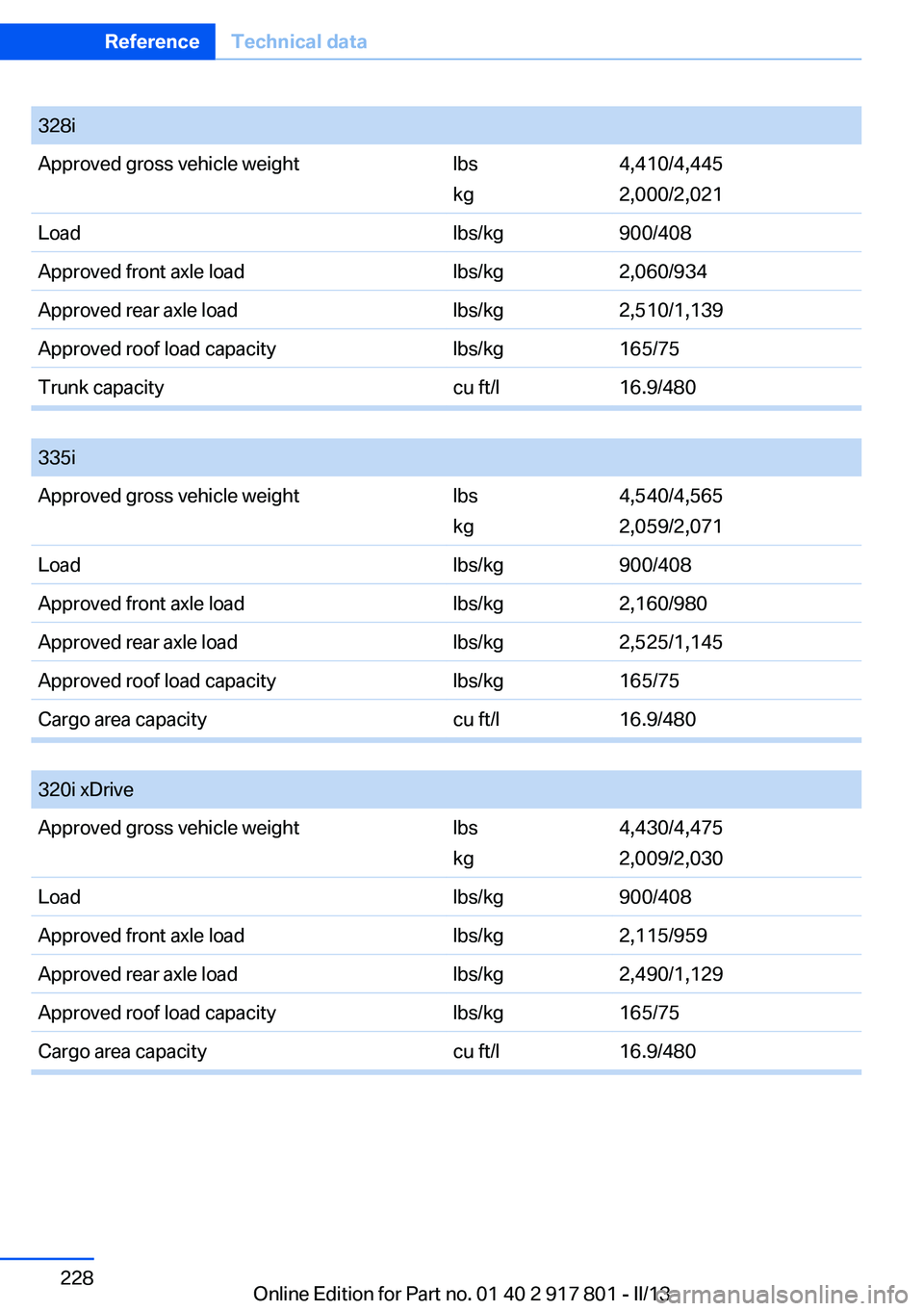

328iApproved gross vehicle weightlbs
kg
4,410/4,445
2,000/2,021
Loadlbs/kg900/408Approved front axle loadlbs/kg2,060/934Approved rear axle loadlbs/kg2,510/1,139Approved roof load capacitylbs/kg165/75Trunk capacitycu ft/l16.9/480

335iApproved gross vehicle weightlbs
kg
4,540/4,565
2,059/2,071
Loadlbs/kg900/408Approved front axle loadlbs/kg2,160/980Approved rear axle loadlbs/kg2,525/1,145Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l16.9/480

320i xDriveApproved gross vehicle weightlbs
kg
4,430/4,475
2,009/2,030
Loadlbs/kg900/408Approved front axle loadlbs/kg2,115/959Approved rear axle loadlbs/kg2,490/1,129Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l16.9/480Seite 228ReferenceTechnical data228
Online Edition for Part no. 01 40 2 917 801 - II/13

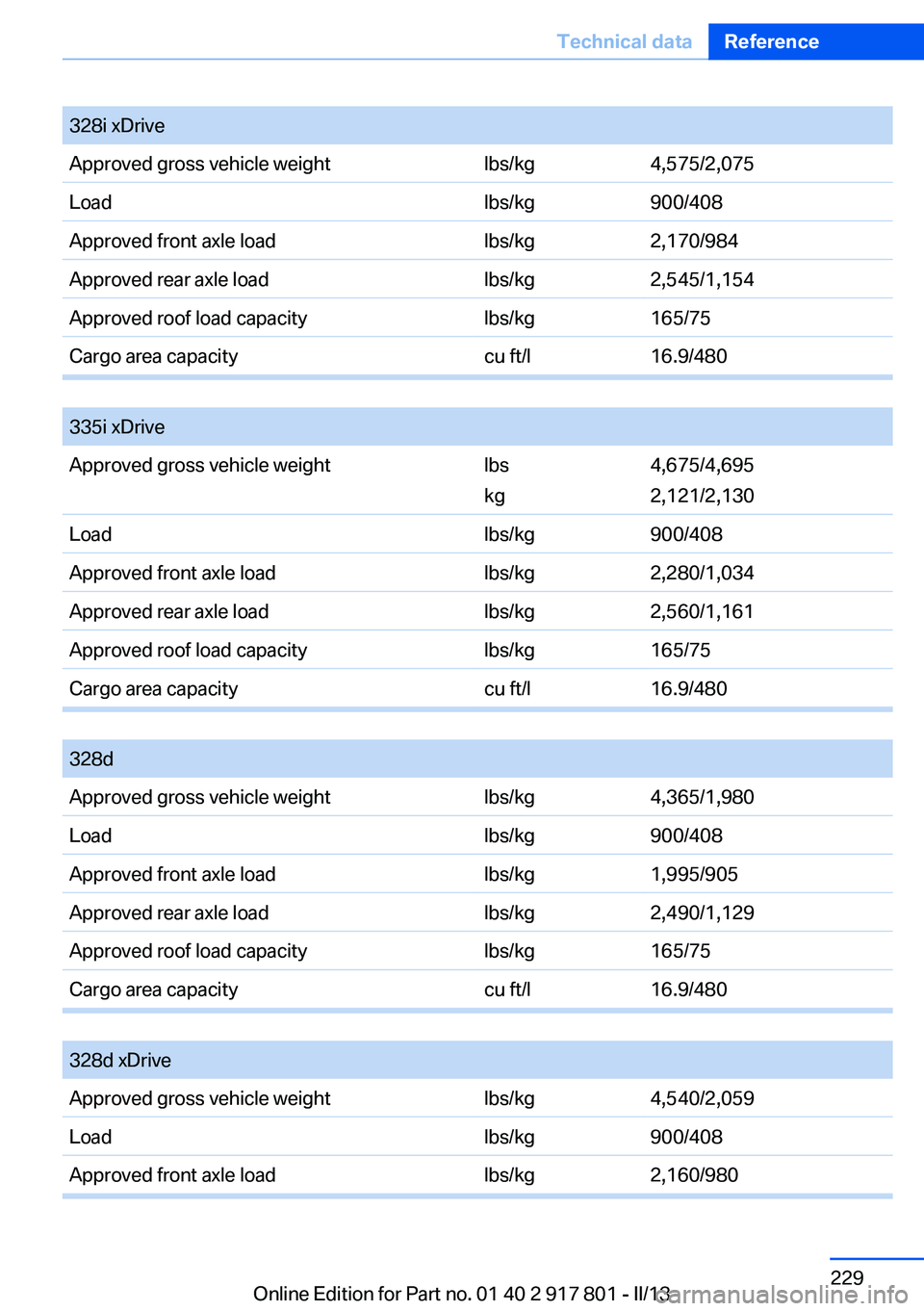

328i xDriveApproved gross vehicle weightlbs/kg4,575/2,075Loadlbs/kg900/408Approved front axle loadlbs/kg2,170/984Approved rear axle loadlbs/kg2,545/1,154Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l16.9/480

335i xDriveApproved gross vehicle weightlbs
kg
4,675/4,695
2,121/2,130
Loadlbs/kg900/408Approved front axle loadlbs/kg2,280/1,034Approved rear axle loadlbs/kg2,560/1,161Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l16.9/480

328dApproved gross vehicle weightlbs/kg4,365/1,980Loadlbs/kg900/408Approved front axle loadlbs/kg1,995/905Approved rear axle loadlbs/kg2,490/1,129Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l16.9/480

328d xDriveApproved gross vehicle weightlbs/kg4,540/2,059Loadlbs/kg900/408Approved front axle loadlbs/kg2,160/980Seite 229Technical dataReference229
Online Edition for Part no. 01 40 2 917 801 - II/13

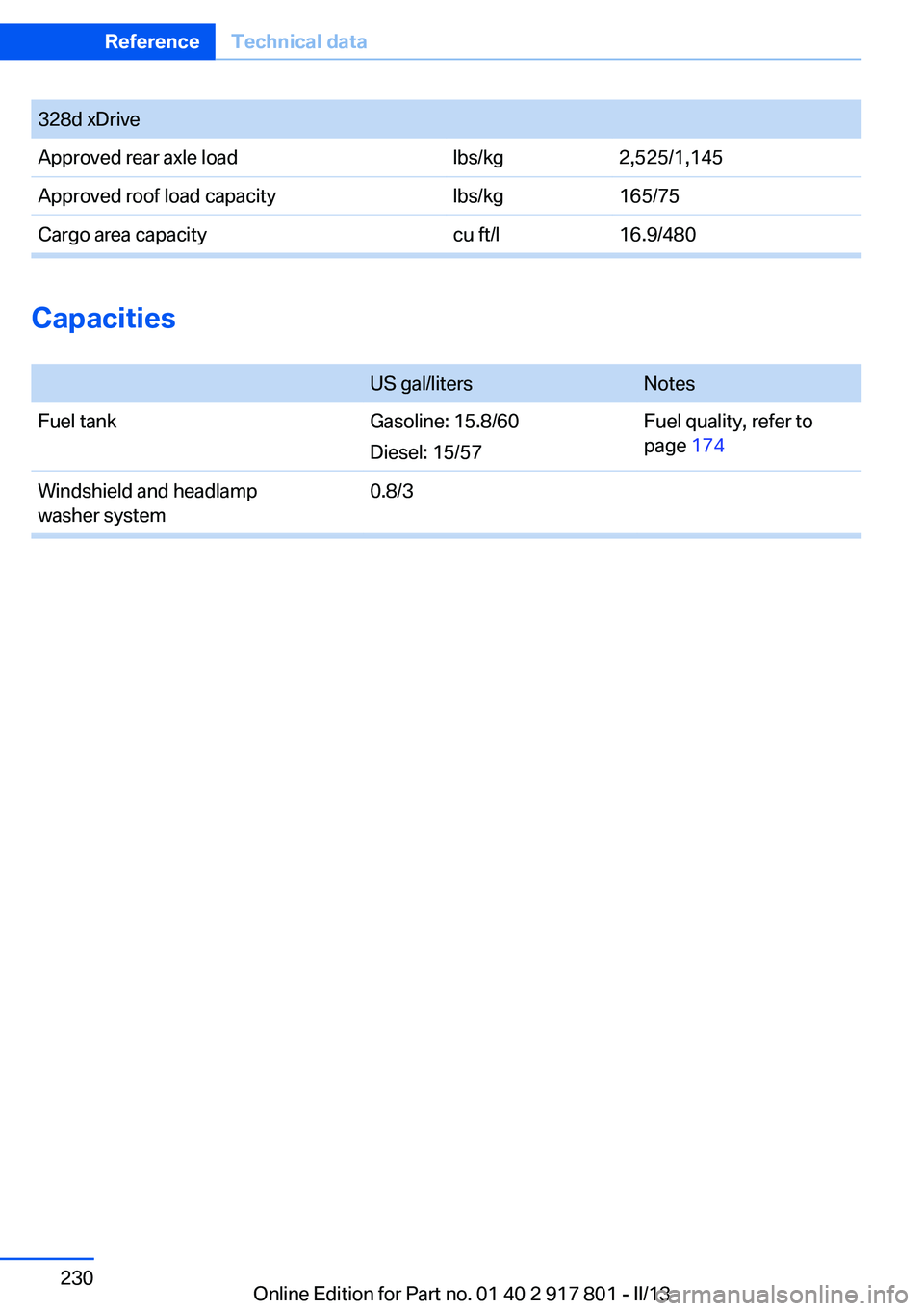

328d xDriveApproved rear axle loadlbs/kg2,525/1,145Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l16.9/480
Capacities

US gal/litersNotesFuel tankGasoline: 15.8/60
Diesel: 15/57Fuel quality, refer to
page 174Windshield and headlamp
washer system0.8/3Seite 230ReferenceTechnical data230
