Page 14 of 266
Cockpit
12
Instrument cluster
1Speedometer
2Indicator lamps for turn signals
3Indicator and warning lamps13
4Displays for active cruise control
*63
5Tachometer69
6Engine oil temperature70
7Display for
>Clock69
>Outside temperature69
>Indicator and warning lamps778Display for
>Position of automatic transmission
*57
>Computer70
>Date of next scheduled service, and
remaining distance to be driven73
>Odometer and trip odometer69
>High-beam assistant
*95
>Checking engine oil level
*213
>Settings and information72
>There is a Check Control
message77
9Fuel gauge70
10Resetting the trip odometer69
Page 57 of 266
Controls
55Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Driving
Ignition lock
Insert the remote control into the
ignition lock
Insert the remote control all the way into the
ignition lock.
>Radio readiness is switched on.
Individual electrical consumers can operate.
Comfort Access*
If the car is equipped with Comfort Access, only
insert the remote control into the ignition lock
under special circumstances, refer to page33.
Removing the remote control from the
ignition lock
Do not forcibly pull the remote control out
of the ignition lock as this may cause
damage.<
Before removing the remote control, push it all
the way in to release the locking mechanism.
>The ignition is switched off if it was on.
Automatic transmission
You cannot take out the remote control unless
the selector lever is in the P position: interlock.
Start/stop button
Pressing the start/stop button switches radio
readiness or the ignition on or off.
Manual transmission: the engine is
started when you press the start/stop
button and depress the clutch.
Automatic transmission: the engine is started
when you press the start/stop button and
depress the brake.<
Radio readiness
Individual electrical consumers can operate.
The time and the outside temperature are dis-
played in the instrument cluster.
Radio readiness is switched off automatically:
>When the remote control is removed from
the ignition lock
>In cars with Comfort Access
*, by touching
the surface above the door lock, refer to
Locking on page34
Ignition on
All electrical consumers can operate. The
odometer and trip odometer are displayed in
the instrument cluster.
When the engine is off, please switch off
the ignition and any unnecessary electri-
cal consumers in order to preserve the bat-
tery.<
Page 71 of 266
Controls
69Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Controls overview
Odometer, outside
temperature display, clock
1Knob in the instrument cluster
2Outside temperature display and clock
3Odometer and trip odometer
Knob in the instrument cluster
>To reset the trip odometer while the ignition
is switched on
>To display the time, outside temperature
and odometer briefly while the ignition is
switched off
Units of measure
T o s e l e c t t h e r e s p e c t i v e u n i t s o f m e a s u r e , m i l e s
or km for the odometer as well as 7 or 6 for
the outside temperature, refer to page72.
The setting is stored for the remote control cur-
rently in use.
Time, outside temperature display
Setting the time, refer to page75.
Outside temperature warning
When the displayed temperature sinks to
approx. +377/+36, a signal sounds and a
warning lamp lights up. There is an increased
risk of black ice.
Black ice can also form at temperatures
above +377/+36. You should there-
fore drive carefully on bridges and shaded roads, for example; otherwise, there is an
increased risk of an accident.<
Odometer and trip odometer
Resetting the trip odometer:
With the ignition switched on, press button1 in
the instrument cluster.
When the vehicle is parked
If you still want to view the time, outside tem-
perature and odometer reading briefly after the
remote control has been taken out of the igni-
tion lock:
Press button 1 in the instrument cluster.
Tachometer
Never force the engine speed up into the red
warning field, see arrow. In this range, the fuel
supply is interrupted to protect the engine.

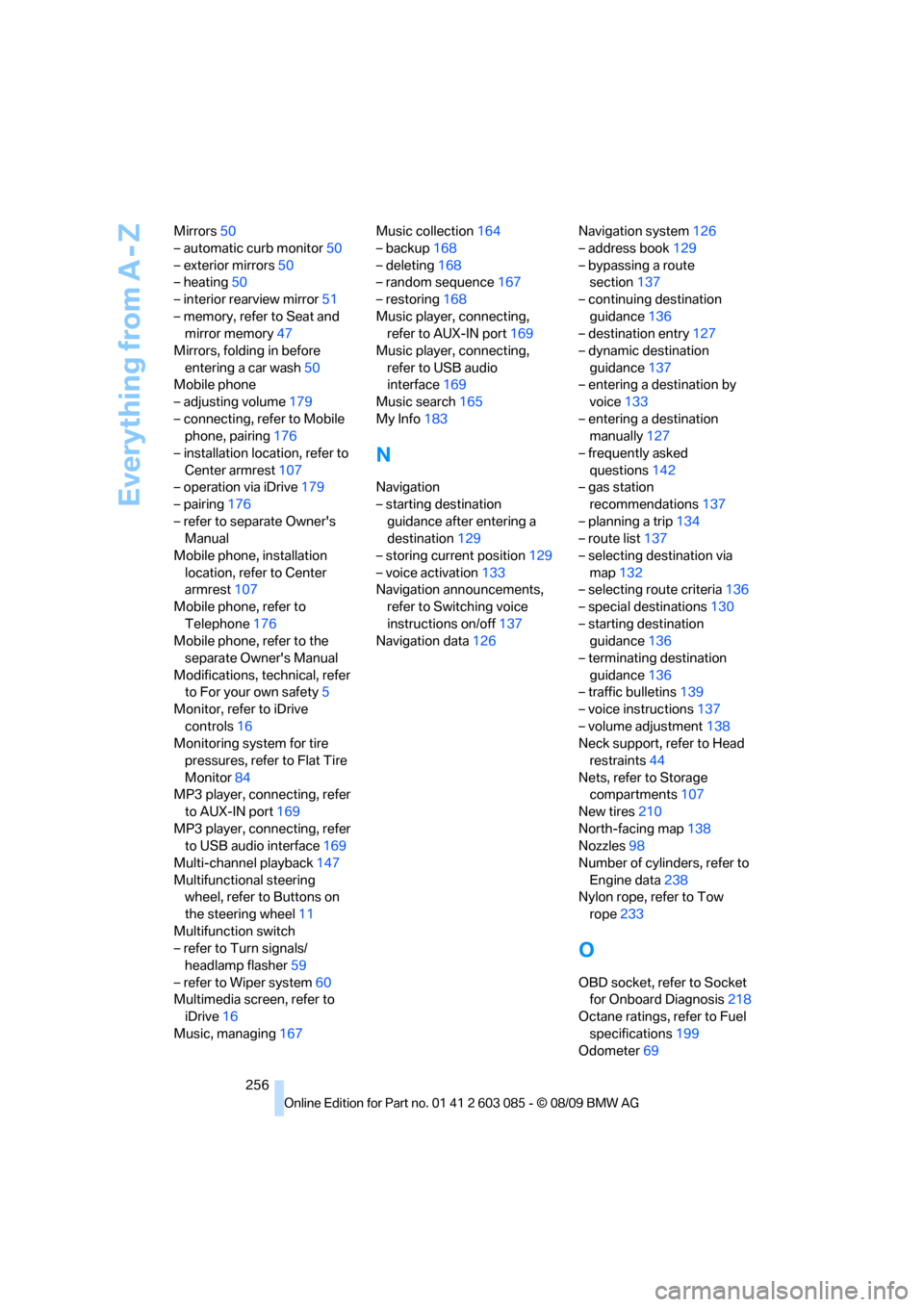

Page 258 of 266
Everything from A - Z
256 Mirrors50
– automatic curb monitor50
– exterior mirrors50
– heating50
– interior rearview mirror51
– memory, refer to Seat and
mirror memory47
Mirrors, folding in before
entering a car wash50
Mobile phone
– adjusting volume179
– connecting, refer to Mobile
phone, pairing176
– installation location, refer to
Center armrest107
– operation via iDrive179
– pairing176
– refer to separate Owner's
Manual
Mobile phone, installation
location, refer to Center
armrest107
Mobile phone, refer to
Telephone176
Mobile phone, refer to the
separate Owner's Manual
Modifications, technical, refer
to For your own safety5
Monitor, refer to iDrive
controls16
Monitoring system for tire
pressures, refer to Flat Tire
Monitor84
MP3 player, connecting, refer
to AUX-IN port169
MP3 player, connecting, refer
to USB audio interface169
Multi-channel playback147
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher59
– refer to Wiper system60
Multimedia screen, refer to
iDrive16
Music, managing167Music collection164
– backup168
– deleting168
– random sequence167
– restoring168
Music player, connecting,
refer to AUX-IN port169
Music player, connecting,
refer to USB audio
interface169
Music search165
My Info183
N
Navigation
– starting destination
guidance after entering a
destination129
– storing current position129
– voice activation133
Navigation announcements,
refer to Switching voice
instructions on/off137
Navigation data126Navigation system126
– address book129
– bypassing a route
section137
– continuing destination
guidance136
– destination entry127
– dynamic destination
guidance137
– entering a destination by
voice133
– entering a destination
manually127
– frequently asked
questions142
– gas station
recommendations137
– planning a trip134
– route list137
– selecting destination via
map132
– selecting route criteria136
– special destinations130
– starting destination
guidance136
– terminating destination
guidance136
– traffic bulletins139
– voice instructions137
– volume adjustment138
Neck support, refer to Head
restraints44
Nets, refer to Storage
compartments107
New tires210
North-facing map138
Nozzles98
Number of cylinders, refer to
Engine data238
Nylon rope, refer to Tow
rope233
O
OBD socket, refer to Socket
for Onboard Diagnosis218
Octane ratings, refer to Fuel
specifications199
Odometer69

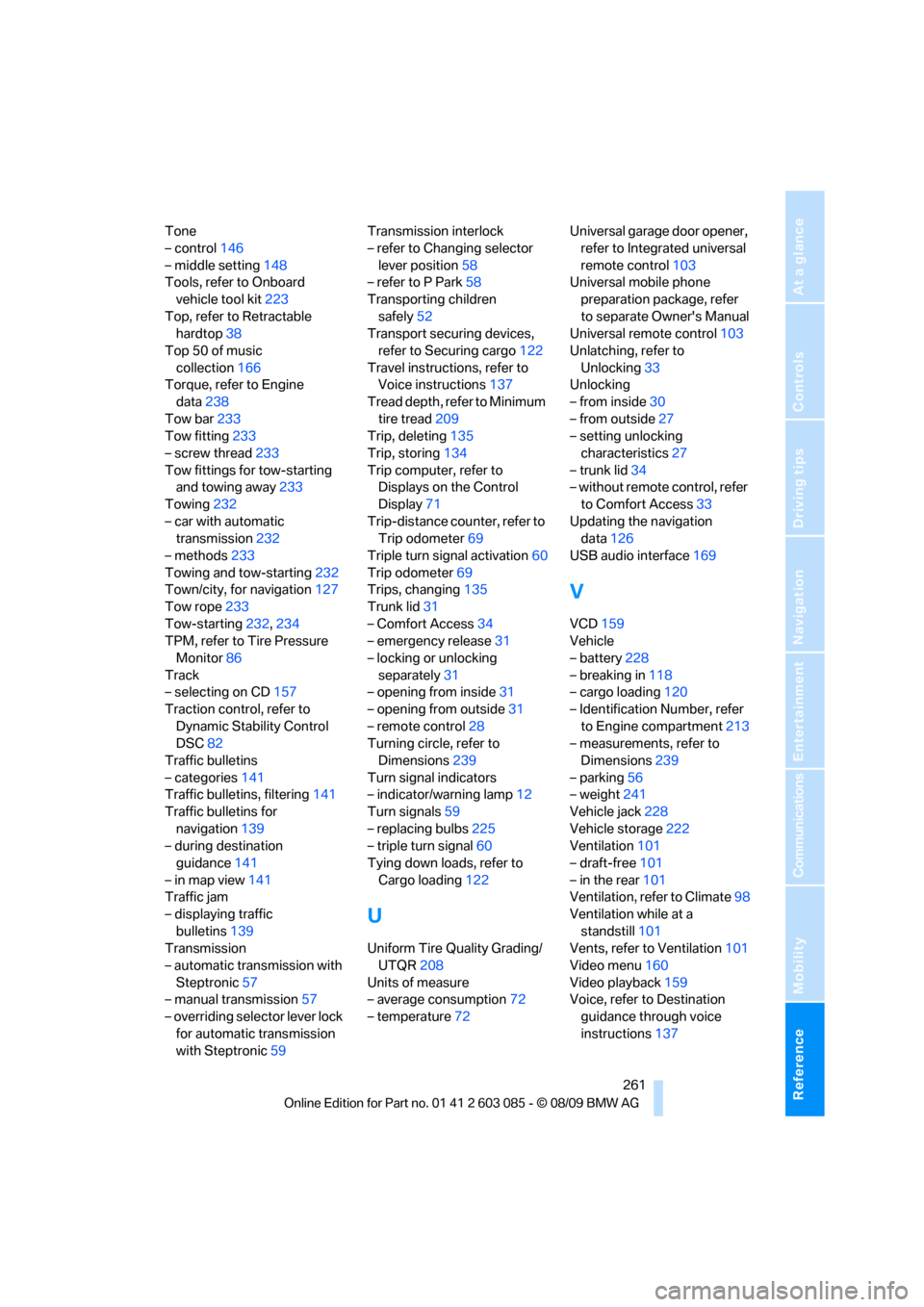

Page 263 of 266
Reference 261
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Tone
– control146
– middle setting148
Tools, refer to Onboard
vehicle tool kit223
Top, refer to Retractable
hardtop38
Top 50 of music
collection166
Torque, refer to Engine
data238
Tow bar233
Tow fitting233
– screw thread233
Tow fittings for tow-starting
and towing away233
Towing232
– car with automatic
transmission232
– methods233
Towing and tow-starting232
Town/city, for navigation127
Tow rope233
Tow-starting232,234
TPM, refer to Tire Pressure
Monitor86
Track
– selecting on CD157
Traction control, refer to
Dynamic Stability Control
DSC82
Traffic bulletins
– categories141
Traffic bulletins, filtering141
Traffic bulletins for
navigation139
– during destination
guidance141
– in map view141
Traffic jam
– displaying traffic
bulletins139
Transmission
– automatic transmission with
Steptronic57
– manual transmission57
– overriding selector lever lock
for automatic transmission
with Steptronic59Transmission interlock
– refer to Changing selector
lever position58
– refer to P Park58
Transporting children
safely52
Transport securing devices,
refer to Securing cargo122
Travel instructions, refer to
Voice instructions137
Tread depth, refer to Minimum
tire tread209
Trip, deleting135
Trip, storing134
Trip computer, refer to
Displays on the Control
Display71
Trip-distance counter, refer to
Trip odometer69
Triple turn signal activation60
Trip odometer69
Trips, changing135
Trunk lid31
– Comfort Access34
– emergency release31
– locking or unlocking
separately31
– opening from inside31
– opening from outside31
– remote control28
Turning circle, refer to
Dimensions239
Turn signal indicators
– indicator/warning lamp12
Turn signals59
– replacing bulbs225
– triple turn signal60
Tying down loads, refer to
Cargo loading122
U
Uniform Tire Quality Grading/
UTQR208
Units of measure
– average consumption72
– temperature72Universal garage door opener,
refer to Integrated universal
remote control103
Universal mobile phone
preparation package, refer
to separate Owner's Manual
Universal remote control103
Unlatching, refer to
Unlocking33
Unlocking
– from inside30
– from outside27
– setting unlocking
characteristics27
– trunk lid34
– without remote control, refer
to Comfort Access33
Updating the navigation
data126
USB audio interface169
V
VCD159
Vehicle
– battery228
– breaking in118
– cargo loading120
– Identification Number, refer
to Engine compartment213
– measurements, refer to
Dimensions239
– parking56
– weight241
Vehicle jack228
Vehicle storage222
Ventilation101
– draft-free101
– in the rear101
Ventilation, refer to Climate98
Ventilation while at a
standstill101
Vents, refer to Ventilation101
Video menu160
Video playback159
Voice, refer to Destination
guidance through voice
instructions137
