sensor BMW 328XI CONVERTIBLE 2007 E93 User Guide

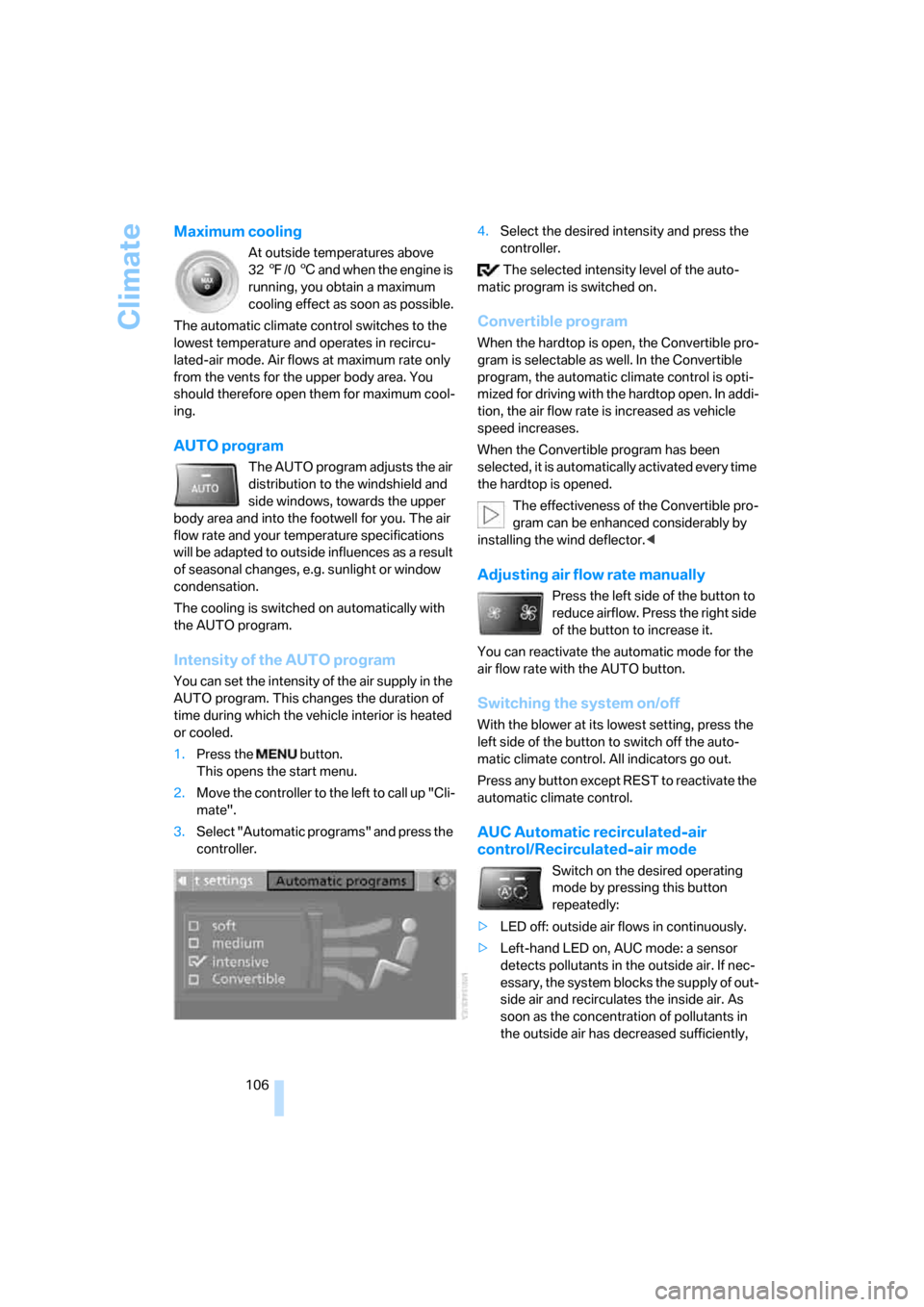

Climate
106
Maximum cooling
At outside temperatures above
327/06 and when the engine is
running, you obtain a maximum
cooling effect as soon as possible.
The automatic climate control switches to the
lowest temperature and operates in recircu-
lated-air mode. Air flows at maximum rate only
from the vents for the upper body area. You
should therefore open them for maximum cool-
ing.
AUTO program
The AUTO program adjusts the air
distribution to the windshield and
side windows, towards the upper
body area and into the footwell for you. The air
flow rate and your temperature specifications
will be adapted to outside influences as a result
of seasonal changes, e.g. sunlight or window
condensation.
The cooling is switched on automatically with
the AUTO program.
Intensity of the AUTO program
You can set the intensity of the air supply in the
AUTO program. This changes the duration of
time during which the vehicle interior is heated
or cooled.
1.Press the button.
This opens the start menu.
2.Move the controller to the left to call up "Cli-
mate".
3.Select "Automatic programs" and press the
controller.4.Select the desired intensity and press the
controller.
The selected intensity level of the auto-
matic program is switched on.
Convertible program
When the hardtop is open, the Convertible pro-
gram is selectable as well. In the Convertible
program, the automatic climate control is opti-
mized for driving with the hardtop open. In addi-
tion, the air flow rate is increased as vehicle
speed increases.
When the Convertible program has been
selected, it is automatically activated every time
the hardtop is opened.
The effectiveness of the Convertible pro-
gram can be enhanced considerably by
installing the wind deflector.<
Adjusting air flow rate manually
Press the left side of the button to
reduce airflow. Press the right side
of the button to increase it.
You can reactivate the automatic mode for the
air flow rate with the AUTO button.
Switching the system on/off
With the blower at its lowest setting, press the
left side of the button to switch off the auto-
matic climate control. All indicators go out.
Press any button except REST to reactivate the
automatic climate control.
AUC Automatic recirculated-air
control/Recirculated-air mode
Switch on the desired operating
mode by pressing this button
repeatedly:
>LED off: outside air flows in continuously.
>Left-hand LED on, AUC mode: a sensor
detects pollutants in the outside air. If nec-
essary, the system blocks the supply of out-
side air and recirculates the inside air. As
soon as the concentration of pollutants in
the outside air has decreased sufficiently,

Mobility
225Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

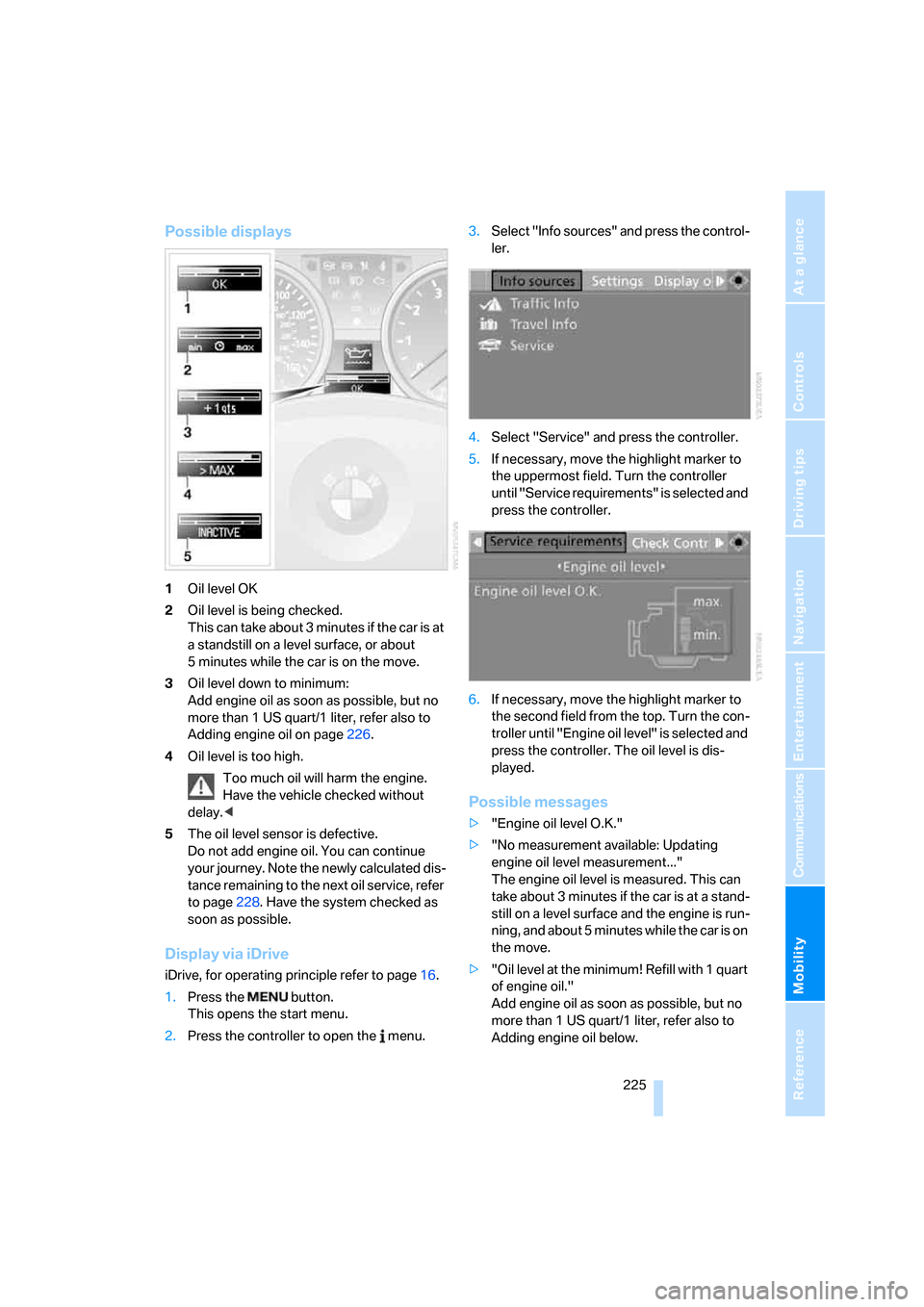

Possible displays
1Oil level OK
2Oil level is being checked.
This can take about 3 minutes if the car is at
a standstill on a level surface, or about
5 minutes while the car is on the move.
3Oil level down to minimum:
Add engine oil as soon as possible, but no
more than 1 US quart/1 liter, refer also to
Adding engine oil on page226.
4Oil level is too high.
Too much oil will harm the engine.
Have the vehicle checked without
delay.<
5The oil level sensor is defective.
Do not add engine oil. You can continue
your journey. Note the newly calculated dis-
tance remaining to the next oil service, refer
to page228. Have the system checked as
soon as possible.
Display via iDrive
iDrive, for operating principle refer to page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.3.Select "Info sources" and press the control-
ler.
4.Select "Service" and press the controller.
5.If necessary, move the highlight marker to
the uppermost field. Turn the controller
until "Service requirements" is selected and
press the controller.
6.If necessary, move the highlight marker to
the second field from the top. Turn the con-
troller until "Engine oil level" is selected and
press the controller. The oil level is dis-
played.
Possible messages
>"Engine oil level O.K."
>"No measurement available: Updating
engine oil level measurement..."
The engine oil level is measured. This can
take about 3 minutes if the car is at a stand-
still on a level surface and the engine is run-
ning, and about 5 minutes while the car is on
the move.
>"Oil level at the minimum! Refill with 1 quart
of engine oil."
Add engine oil as soon as possible, but no
more than 1 US quart/1 liter, refer also to
Adding engine oil below.

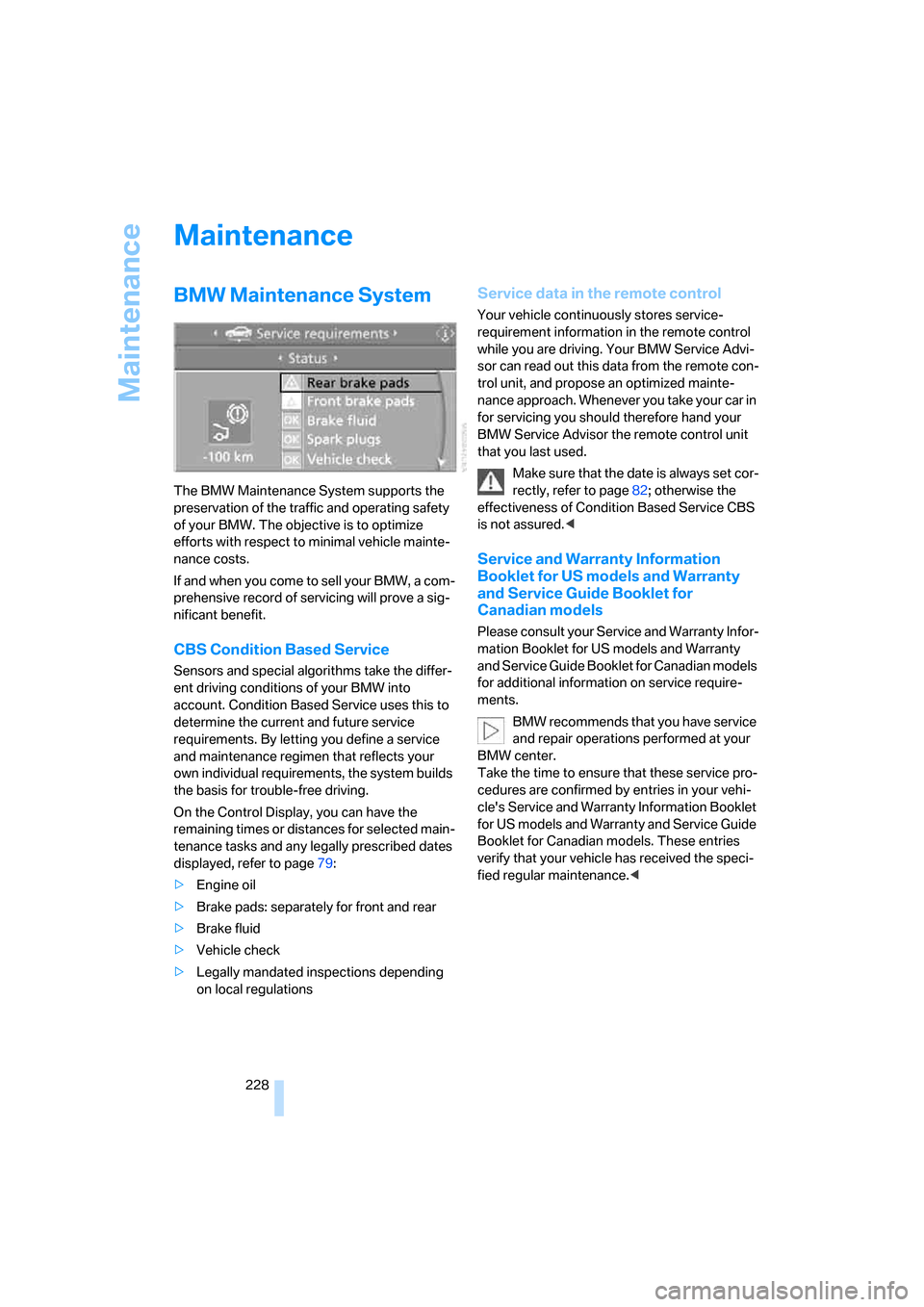

Maintenance
228
Maintenance
BMW Maintenance System
The BMW Maintenance System supports the
preservation of the traffic and operating safety
of your BMW. The objective is to optimize
efforts with respect to minimal vehicle mainte-
nance costs.
If and when you come to sell your BMW, a com-
prehensive record of servicing will prove a sig-
nificant benefit.
CBS Condition Based Service
Sensors and special algorithms take the differ-
ent driving conditions of your BMW into
account. Condition Based Service uses this to
determine the current and future service
requirements. By letting you define a service
and maintenance regimen that reflects your
own individual requirements, the system builds
the basis for trouble-free driving.
On the Control Display, you can have the
remaining times or distances for selected main-
tenance tasks and any legally prescribed dates
displayed, refer to page79:
>Engine oil
>Brake pads: separately for front and rear
>Brake fluid
>Vehicle check
>Legally mandated inspections depending
on local regulations
Service data in the remote control
Your vehicle continuously stores service-
requirement information in the remote control
while you are driving. Your BMW Service Advi-
sor can read out this data from the remote con-
trol unit, and propose an optimized mainte-
nance approach. Whenever you take your car in
for servicing you should therefore hand your
BMW Service Advisor the remote control unit
that you last used.
Make sure that the date is always set cor-
rectly, refer to page82; otherwise the
effectiveness of Condition Based Service CBS
is not assured.<
Service and Warranty Information
Booklet for US models and Warranty
and Service Guide Booklet for
Canadian models
Please consult your Service and Warranty Infor-
mation Booklet for US models and Warranty
and Service Guide Booklet for Canadian models
for additional information on service require-
ments.
BMW recommends that you have service
and repair operations performed at your
BMW center.
Take the time to ensure that these service pro-
cedures are confirmed by entries in your vehi-
cle's Service and Warranty Information Booklet
for US models and Warranty and Service Guide
Booklet for Canadian models. These entries
verify that your vehicle has received the speci-
fied regular maintenance.<

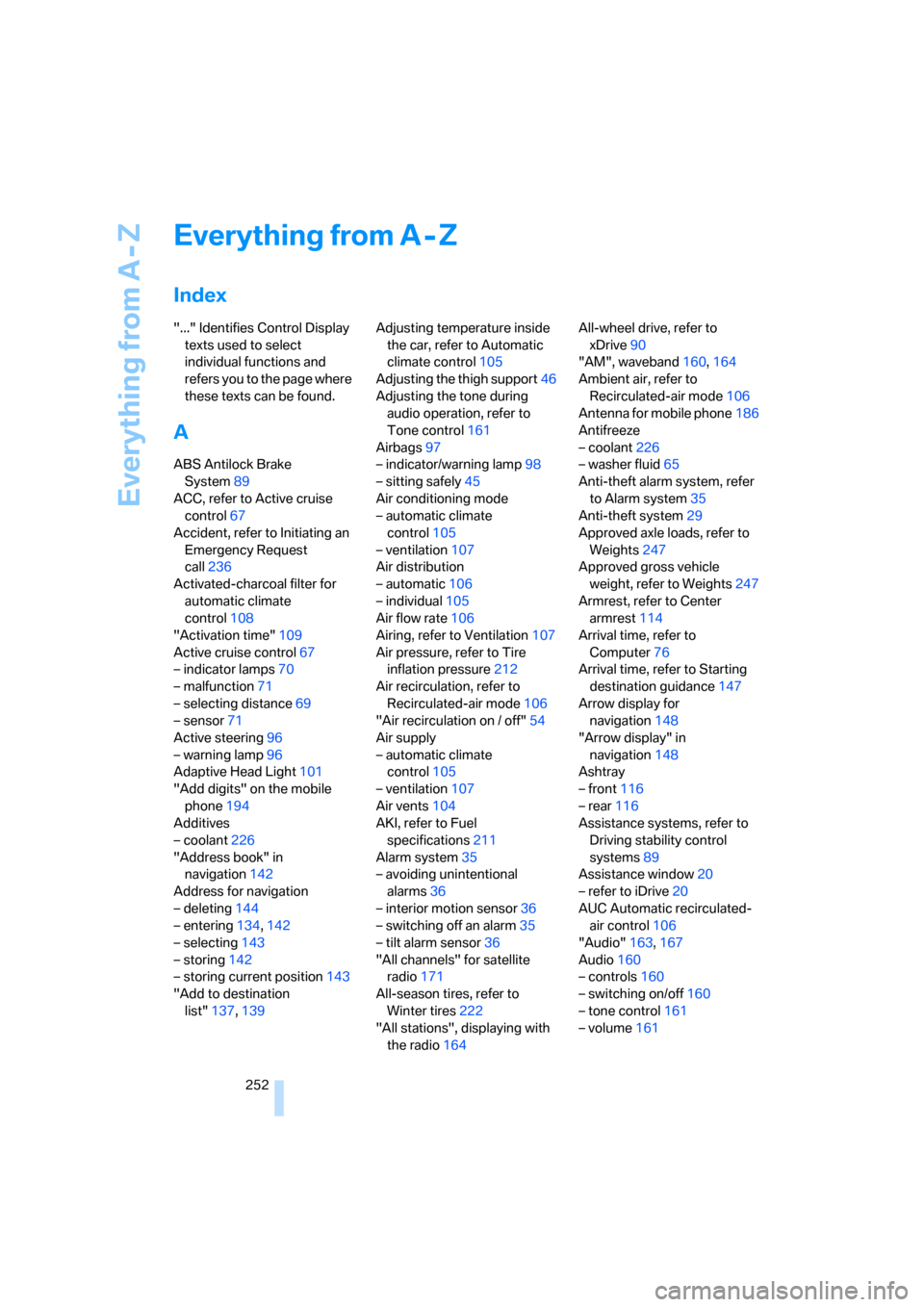

Everything from A - Z
252
Everything from A - Z
Index
"..." Identifies Control Display
texts used to select
individual functions and
refers you to the page where
these texts can be found.
A
ABS Antilock Brake
System89
ACC, refer to Active cruise
control67
Accident, refer to Initiating an
Emergency Request
call236
Activated-charcoal filter for
automatic climate
control108
"Activation time"109
Active cruise control67
– indicator lamps70
– malfunction71
– selecting distance69
– sensor71
Active steering96
– warning lamp96
Adaptive Head Light101
"Add digits" on the mobile
phone194
Additives
– coolant226
"Address book" in
navigation142
Address for navigation
– deleting144
– entering134,142
– selecting143
– storing142
– storing current position143
"Add to destination
list"137,139Adjusting temperature inside
the car, refer to Automatic
climate control105
Adjusting the thigh support46
Adjusting the tone during
audio operation, refer to
Tone control161
Airbags97
– indicator/warning lamp98
– sitting safely45
Air conditioning mode
– automatic climate
control105
– ventilation107
Air distribution
– automatic106
– individual105
Air flow rate106
Airing, refer to Ventilation107
Air pressure, refer to Tire
inflation pressure212
Air recirculation, refer to
Recirculated-air mode106
"Air recirculation on / off"54
Air supply
– automatic climate
control105
– ventilation
107
Air vents104
AKI, refer to Fuel
specifications211
Alarm system35
– avoiding unintentional
alarms36
– interior motion sensor36
– switching off an alarm35
– tilt alarm sensor36
"All channels" for satellite
radio171
All-season tires, refer to
Winter tires222
"All stations", displaying with
the radio164All-wheel drive, refer to
xDrive90
"AM", waveband160,164
Ambient air, refer to
Recirculated-air mode106
Antenna for mobile phone186
Antifreeze
– coolant226
– washer fluid65
Anti-theft alarm system, refer
to Alarm system35
Anti-theft system29
Approved axle loads, refer to
Weights247
Approved gross vehicle
weight, refer to Weights247
Armrest, refer to Center
armrest114
Arrival time, refer to
Computer76
Arrival time, refer to Starting
destination guidance147
Arrow display for
navigation148
"Arrow display" in
navigation148
Ashtray
– front116
– rear116
Assistance systems, refer to
Driving stability control
systems89
Assistance window20
– refer to iDrive20
AUC Automatic recirculated-
air control106
"Audio"163,167
Audio160
– controls160
– switching on/off160
– tone control161
– volume161

Reference 259
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

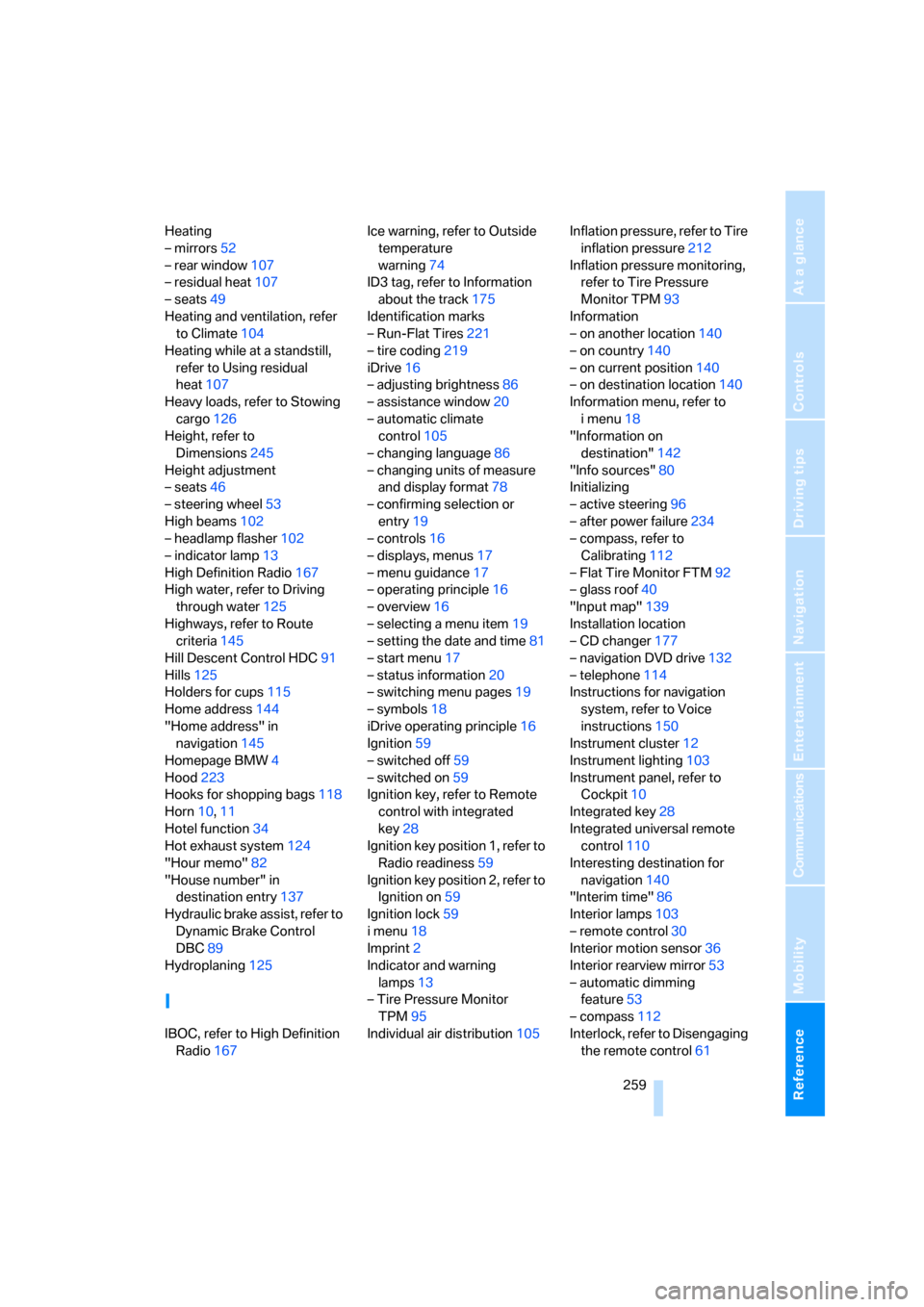

Heating
– mirrors52
– rear window107
– residual heat107
– seats49
Heating and ventilation, refer
to Climate104
Heating while at a standstill,
refer to Using residual
heat107
Heavy loads, refer to Stowing
cargo126
Height, refer to
Dimensions245
Height adjustment
– seats46
– steering wheel53
High beams102
– headlamp flasher102
– indicator lamp13
High Definition Radio167
High water, refer to Driving
through water125
Highways, refer to Route
criteria145
Hill Descent Control HDC91
Hills125
Holders for cups115
Home address144
"Home address" in
navigation145
Homepage BMW4
Hood223
Hooks for shopping bags118
Horn10,11
Hotel function34
Hot exhaust system124
"Hour memo"82
"House number" in
destination entry137
Hydraulic brake assist, refer to
Dynamic Brake Control
DBC89
Hydroplaning125
I
IBOC, refer to High Definition
Radio167Ice warning, refer to Outside
temperature
warning74
ID3 tag, refer to Information
about the track175
Identification marks
– Run-Flat Tires221
– tire coding219
iDrive16
– adjusting brightness86
– assistance window20
– automatic climate
control105
– changing language86
– changing units of measure
and display format78
– confirming selection or
entry19
– controls16
– displays, menus17
– menu guidance17
– operating principle16
– overview16
– selecting a menu item19
– setting the date and time81
– start menu17
– status information20
– switching menu pages19
– symbols18
iDrive operating principle16
Ignition59
– switched off59
– switched on59
Ignition key, refer to Remote
control with integrated
key28
Ignition key position 1, refer to
Radio readiness59
Ignition key position 2, refer to
Ignition on59
Ignition lock59
i menu18
Imprint2
Indicator and warning
lamps13
– Tire Pressure Monitor
TPM95
Individual air distribution105Inflation pressure, refer to Tire
inflation pressure212
Inflation pressure monitoring,
refer to Tire Pressure
Monitor TPM93
Information
– on another location140
– on country140
– on current position140
– on destination location140
Information menu, refer to
i menu18
"Information on
destination"142
"Info sources"80
Initializing
– active steering96
– after power failure234
– compass, refer to
Calibrating112
– Flat Tire Monitor FTM92
– glass roof40
"Input map"139
Installation location
– CD changer177
– navigation DVD drive132
– telephone114
Instructions for navigation
system, refer to Voice
instructions150
Instrument cluster12
Instrument lighting103
Instrument panel, refer to
Cockpit10
Integrated key28
Integrated universal remote
control110
Interesting destination for
navigation140
"Interim time"86
Interior lamps103
– remote control30
Interior motion sensor36
Interior rearview mirror53
– automatic dimming
feature53
– compass112
Interlock, refer to Disengaging
the remote control61

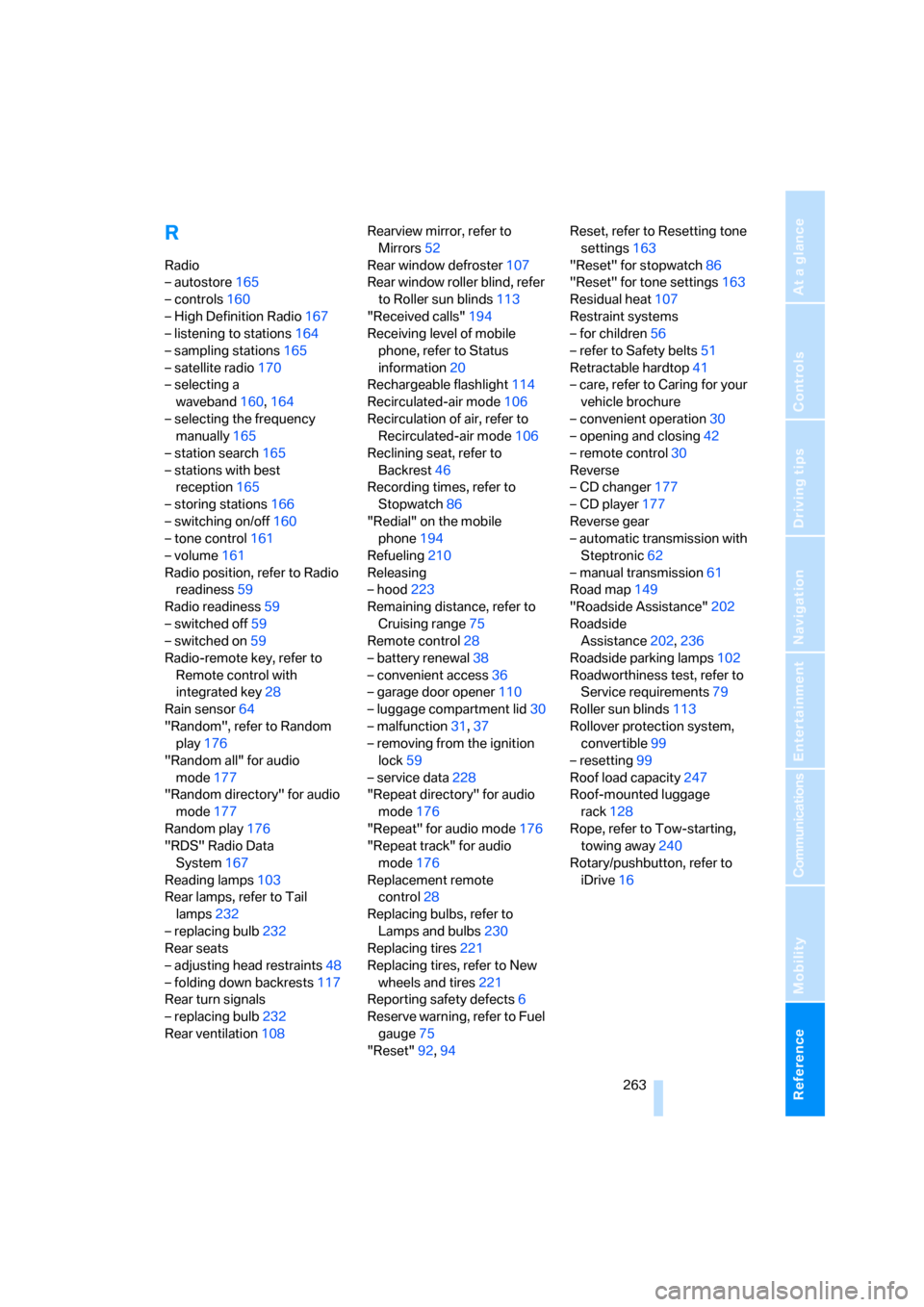

Reference 263
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
R
Radio
– autostore165
– controls160
– High Definition Radio167
– listening to stations164
– sampling stations165
– satellite radio170
– selecting a
waveband160,164
– selecting the frequency
manually165
– station search165
– stations with best
reception165
– storing stations166
– switching on/off160
– tone control161
– volume161
Radio position, refer to Radio
readiness59
Radio readiness59
– switched off59
– switched on59
Radio-remote key, refer to
Remote control with
integrated key28
Rain sensor64
"Random", refer to Random
play176
"Random all" for audio
mode177
"Random directory" for audio
mode177
Random play176
"RDS" Radio Data
System167
Reading lamps103
Rear lamps, refer to Tail
lamps232
– replacing bulb232
Rear seats
– adjusting head restraints48
– folding down backrests117
Rear turn signals
– replacing bulb232
Rear ventilation108Rearview mirror, refer to
Mirrors52
Rear window defroster107
Rear window roller blind, refer
to Roller sun blinds113
"Received calls"194
Receiving level of mobile
phone, refer to Status
information20
Rechargeable flashlight114
Recirculated-air mode106
Recirculation of air, refer to
Recirculated-air mode106
Reclining seat, refer to
Backrest46
Recording times, refer to
Stopwatch86
"Redial" on the mobile
phone194
Refueling210
Releasing
– hood223
Remaining distance, refer to
Cruising range75
Remote control28
– battery renewal38
– convenient access36
– garage door opener110
– luggage compartment lid30
– malfunction31,37
– removing from the ignition
lock59
– service data228
"Repeat directory" for audio
mode176
"Repeat" for audio mode176
"Repeat track" for audio
mode176
Replacement remote
control28
Replacing bulbs, refer to
Lamps and bulbs230
Replacing tires221
Replacing tires, refer to New
wheels and tires221
Reporting safety defects6
Reserve warning, refer to Fuel
gauge75
"Reset"92,94Reset, refer to Resetting tone
settings163
"Reset" for stopwatch86
"Reset" for tone settings163
Residual heat107
Restraint systems
– for children56
– refer to Safety belts51
Retractable hardtop41
– care, refer to Caring for your
vehicle brochure
– convenient operation30
– opening and closing42
– remote control30
Reverse
– CD changer177
– CD player177
Reverse gear
– automatic transmission with
Steptronic62
– manual transmission61
Road map149
"Roadside Assistance"
202
Roadside
Assistance202,236
Roadside parking lamps102
Roadworthiness test, refer to
Service requirements79
Roller sun blinds113
Rollover protection system,
convertible99
– resetting99
Roof load capacity247
Roof-mounted luggage
rack128
Rope, refer to Tow-starting,
towing away240
Rotary/pushbutton, refer to
iDrive16

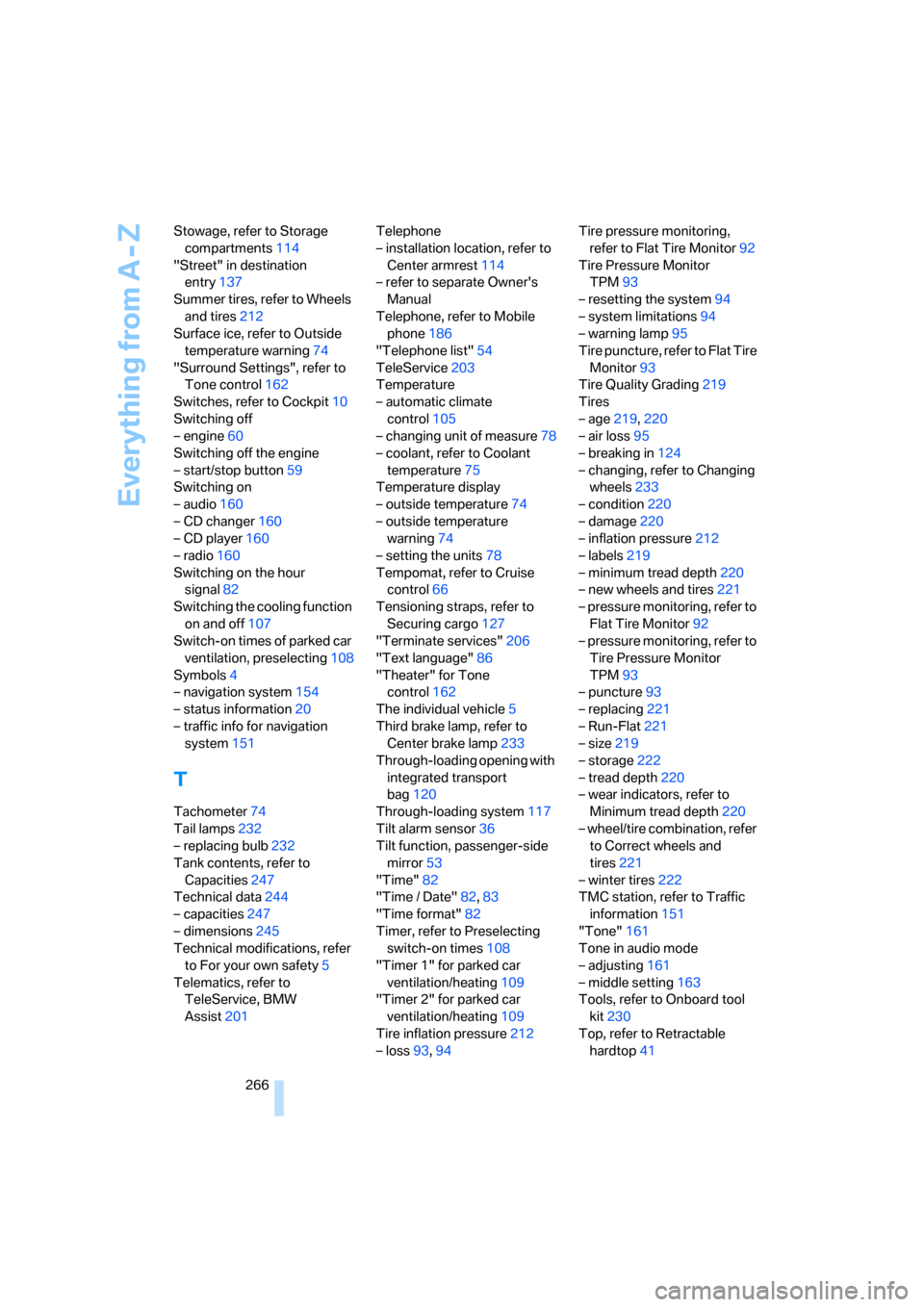

Everything from A - Z
266 Stowage, refer to Storage
compartments114
"Street" in destination
entry137
Summer tires, refer to Wheels
and tires212
Surface ice, refer to Outside
temperature warning74
"Surround Settings", refer to
Tone control162
Switches, refer to Cockpit10
Switching off
– engine60
Switching off the engine
– start/stop button59
Switching on
– audio160
– CD changer160
– CD player160
– radio160
Switching on the hour
signal82
Switching the cooling function
on and off107
Switch-on times of parked car
ventilation, preselecting108
Symbols4
– navigation system154
– status information20
– traffic info for navigation
system151
T
Tachometer74
Tail lamps232
– replacing bulb232
Tank contents, refer to
Capacities247
Technical data244
– capacities247
– dimensions245
Technical modifications, refer
to For your own safety5
Telematics, refer to
TeleService, BMW
Assist201Telephone
– installation location, refer to
Center armrest114
– refer to separate Owner's
Manual
Telephone, refer to Mobile
phone186
"Telephone list"54
TeleService203
Temperature
– automatic climate
control105
– changing unit of measure78
– coolant, refer to Coolant
temperature75
Temperature display
– outside temperature74
– outside temperature
warning74
– setting the units78
Tempomat, refer to Cruise
control66
Tensioning straps, refer to
Securing cargo127
"Terminate services"206
"Text language"86
"Theater" for Tone
control162
The individual vehicle5
Third brake lamp, refer to
Center brake lamp233
Through-loading opening with
integrated transport
bag120
Through-loading system117
Tilt alarm sensor36
Tilt function, passenger-side
mirror53
"Time"82
"Time / Date"82,83
"Time format"82
Timer, refer to Preselecting
switch-on times108
"Timer 1" for parked car
ventilation/heating109
"Timer 2" for parked car
ventilation/heating109
Tire inflation pressure212
– loss
93,94Tire pressure monitoring,
refer to Flat Tire Monitor92
Tire Pressure Monitor
TPM93
– resetting the system94
– system limitations94
– warning lamp95
Tire puncture, refer to Flat Tire
Monitor93
Tire Quality Grading219
Tires
– age219,220
– air loss95
– breaking in124
– changing, refer to Changing
wheels233
– condition220
– damage220
– inflation pressure212
– labels219
– minimum tread depth220
– new wheels and tires221
– pressure monitoring, refer to
Flat Tire Monitor92
– pressure monitoring, refer to
Tire Pressure Monitor
TPM93
– puncture93
– replacing221
– Run-Flat221
– size219
– storage222
– tread depth220
– wear indicators, refer to
Minimum tread depth220
– wheel/tire combination, refer
to Correct wheels and
tires221
– winter tires222
TMC station, refer to Traffic
information151
"Tone"161
Tone in audio mode
– adjusting161
– middle setting163
Tools, refer to Onboard tool
kit230
Top, refer to Retractable
hardtop41
