Replacement procedures:
Onboard tool kit152
Windshield wiper blades152
Lamps and bulbs152
Changing a wheel159
Battery163
Fuses166
Microfilter/Activated-charcoal
filter166
In case of electrical
malfunction:
Fuel filler door167
Sliding/tilt sunroof167
Assistance, giving and
receiving:
Jump-starting168
Towing the vehicle169
Repairs

152n
The onboard tool kit is located in the
luggage compartment lid.
Loosen the wingnut to open.
460de066
1 Rotate the wiper arm completely out
from the windshield.
2 Position the wiper blade at an angle
and pull the release spring (arrow).
3 Fold the wiper blade down and
unhook it toward the windshield.
4 Pull the wiper blade past the wiper
arm toward the top.
5 Insert a new wiper blade and apply
pressure until you hear it engage.
Use only wiper blades approved
by BMW.<460de056
The lamps and bulbs are essential
factors contributing to the safety of
your vehicle. For this reason, follow the
instructions below carefully when
replacing a bulb. If you are not familiar
with any of the procedures, consult
your BMW center.
Do not touch the glass portion of
a new bulb with your bare hands
since even small amounts of impurities
burn into the surface and reduce the
service life of the bulb. Use a clean
cloth, paper napkin, or a similar material,
or hold the bulb by its metallic base.<
A replacement bulb set is available from
your BMW center.
Whenever working on the
electrical system, switch off the
electrical accessory you are working on
or disconnect the cable from the
negative terminal of the battery. Failure
to do this could result in short circuits.
To prevent injuries and damage, comply
with any instructions provided by the
bulb manufacturer.<
Onboard tool kit Windshield wiper blades Lamps and bulbs

153n
IndexDataTechnologyRepairsCar careControlsOverview

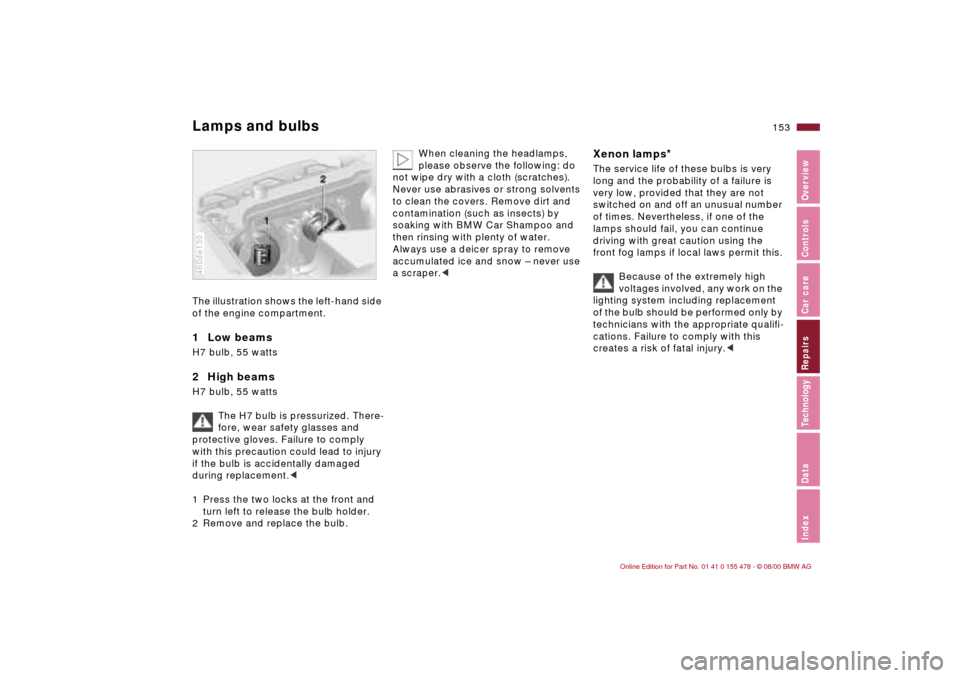

Lamps and bulbsThe illustration shows the left-hand side
of the engine compartment.1 Low beams H7 bulb, 55 watts2 High beamsH7 bulb, 55 watts
The H7 bulb is pressurized. There-
fore, wear safety glasses and
protective gloves. Failure to comply
with this precaution could lead to injury
if the bulb is accidentally damaged
during replacement.<
1 Press the two locks at the front and
turn left to release the bulb holder.
2 Remove and replace the bulb.460de130
When cleaning the headlamps,
please observe the following: do
not wipe dry with a cloth (scratches).
Never use abrasives or strong solvents
to clean the covers. Remove dirt and
contamination (such as insects) by
soaking with BMW Car Shampoo and
then rinsing with plenty of water.
Always use a deicer spray to remove
accumulated ice and snow Ð never use
a scraper.<
Xenon lamps
*
The service life of these bulbs is very
long and the probability of a failure is
very low, provided that they are not
switched on and off an unusual number
of times. Nevertheless, if one of the
lamps should fail, you can continue
driving with great caution using the
front fog lamps if local laws permit this.
Because of the extremely high
voltages involved, any work on the
lighting system including replacement
of the bulb should be performed only by
technicians with the appropriate qualifi-
cations. Failure to comply with this
creates a risk of fatal injury.<

154n
Lamps and bulbsThe illustration shows the left-hand side
of the engine compartment.Parking lamps5 watt bulb

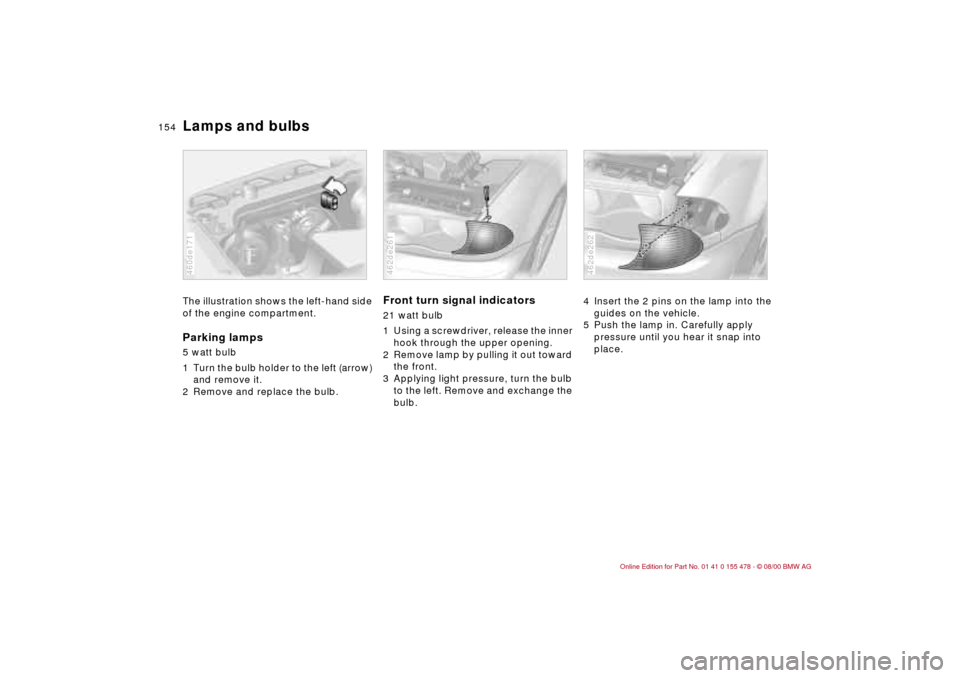

1 Turn the bulb holder to the left (arrow)
and remove it.
2 Remove and replace the bulb.460de171
Front turn signal indicators 21 watt bulb
1 Using a screwdriver, release the inner
hook through the upper opening.
2 Remove lamp by pulling it out toward
the front.
3 Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb.462de261
4 Insert the 2 pins on the lamp into the
guides on the vehicle.
5 Push the lamp in. Carefully apply
pressure until you hear it snap into
place.462de262

155n
IndexDataTechnologyRepairsCar careControlsOverview

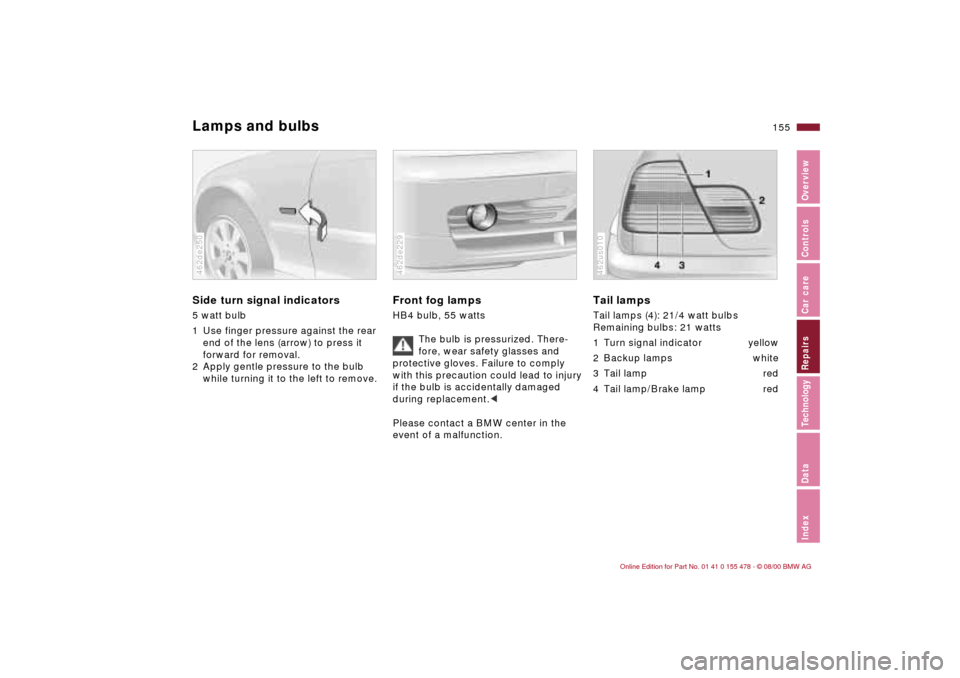

Lamps and bulbsSide turn signal indicators5 watt bulb
1 Use finger pressure against the rear
end of the lens (arrow) to press it
forward for removal.
2 Apply gentle pressure to the bulb
while turning it to the left to remove.462de250
Front fog lampsHB4 bulb, 55 watts
The bulb is pressurized. There-
fore, wear safety glasses and
protective gloves. Failure to comply
with this precaution could lead to injury
if the bulb is accidentally damaged
during replacement.<
Please contact a BMW center in the
event of a malfunction.462de229
Tail lamps Tail lamps (4): 21/4 watt bulbs
Remaining bulbs: 21 watts
1 Turn signal indicator yellow
2 Backup lamps white
3 Tail lamp red
4 Tail lamp/Brake lamp red462us010

156n
Lamps and bulbsThe illustration shows the right-hand
luggage compartment opening.

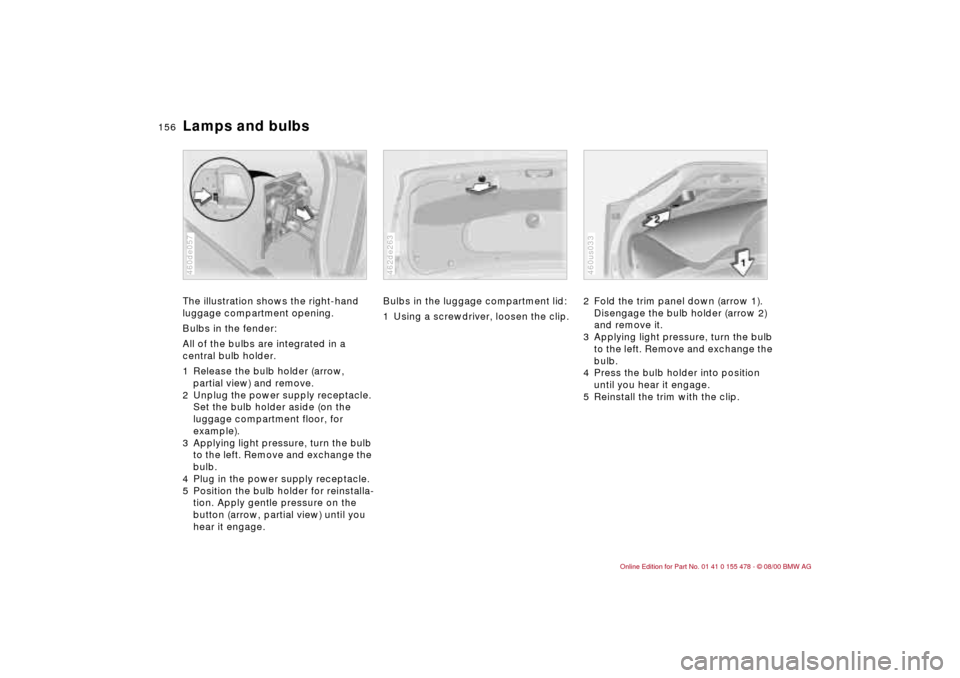

Bulbs in the fender:
All of the bulbs are integrated in a
central bulb holder.
1 Release the bulb holder (arrow,
partial view) and remove.
2 Unplug the power supply receptacle.
Set the bulb holder aside (on the
luggage compartment floor, for
example).
3 Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb.
4 Plug in the power supply receptacle.
5 Position the bulb holder for reinstalla-
tion. Apply gentle pressure on the
button (arrow, partial view) until you
hear it engage.460de057
Bulbs in the luggage compartment lid:
1 Using a screwdriver, loosen the clip.462de263
2 Fold the trim panel down (arrow 1).
Disengage the bulb holder (arrow 2)
and remove it.
3 Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb.
4 Press the bulb holder into position
until you hear it engage.
5 Reinstall the trim with the clip.460us033

157n
IndexDataTechnologyRepairsCar careControlsOverview

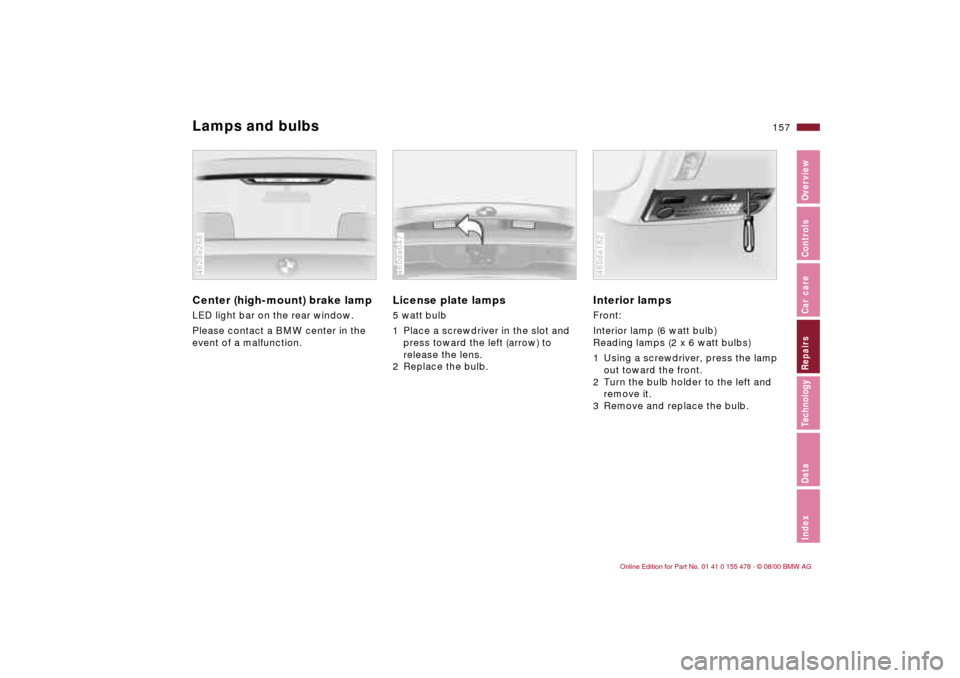

Lamps and bulbsCenter (high-mount) brake lampLED light bar on the rear window.
Please contact a BMW center in the
event of a malfunction.462de268
License plate lamps 5 watt bulb
1 Place a screwdriver in the slot and
press toward the left (arrow) to
release the lens.
2 Replace the bulb.460de047
Interior lamps Front:
Interior lamp (6 watt bulb)
Reading lamps (2 x 6 watt bulbs)
1 Using a screwdriver, press the lamp
out toward the front.
2 Turn the bulb holder to the left and
remove it.
3 Remove and replace the bulb.460de182

158n
Lamps and bulbsRear:
Interior lamp (6 watt bulb)
Reading lamp (6 watt bulb)
1 Press the lamp out using a
screwdriver.
2 Turn the bulb holder to the left and
remove it.
3 Remove and replace the bulb.460de179
Lighted vanity mirror
*
10 watt bulb
1 Remove the bulb housing Ð use a
screwdriver if necessary.
Replace the bulb.460de181
Footwell lamps 5 watt bulb
1 Press the lamp out using a
screwdriver.
2 Replace the bulb.Glove compartment lamp 5 watt bulb
1 Press the lamp out using a
screwdriver.
2 Replace the bulb.Luggage compartment lamps One lamp each in the bulb holder of the
tail lamp assembly: 10 watt bulb.
1 Apply a screwdriver to the recess and
remove the lens.
2 Replace the bulb.

159n
IndexDataTechnologyRepairsCar careControlsOverview
Changing a wheel
Take these precautionary
measures if you have either a flat
tire or are changing the tire:
Stop the vehicle as far as possible from
passing traffic. Park on a firm, flat
surface. Switch on the hazard warning
flashers. Turn the steering wheel to the
straight-ahead position, remove the key
and engage the steering lock. Shift into
1st gear or reverse (selector lever in
"Park" with automatic transmission) and
engage the parking brake.
All passengers should be outside the
vehicle and well away from your imme-
diate working area (behind a guardrail,
for instance).
If a warning triangle
or portable hazard
warning lamp is available, set it up on
the roadside at an appropriate distance
from the rear of the vehicle. Comply
with all safety guidelines and
regulations.
Change the wheel only on a level, firm
surface which is not slippery. Avoid
jacking the vehicle on a soft or slippery
support surface (snow, ice, loose
gravel, etc.), as it could slide sideways.
Position the jack on a firm support
surface. Do not place wooden blocks or
similar objects under the jack. If this is
done, the jack might not be able to
reach its full support capacity because
of the limited height.
Do not lie under the vehicle or start the
engine when the vehicle is supported
by the jack. Failure to comply with this
creates a risk of fatal injury.< Your BMW has a spare tire
or a space-
saver spare tire for temporary use to
ensure your mobility.
To remove the spare tire, lift out
the floor panel in the luggage
compartment completely (refer to
page 41).<

160n
Changing a wheelYou will need the followingIn order to avoid rattling noises later,
note the position of the tools when you
remove them and return them to their
original position when you are through
using them.
>Jack (1)
Raise the floor panel in the luggage
compartment (refer to page 41) and
loosen the red wing nut (arrow).
When you have completed work,
screw the jack all the way back
down. Fold the handle back and
insert it in its holder.
>Wedge (2)
Located behind the jack on the wall
in the luggage compartment. Loosen
the wing nut to remove it.460de058
>Spare tire or space-saver spare tire
Next to the jack.
Loosen the wing nut (arrow) by hand,
remove the storage shelf and take the
wheel out.
>Lug wrench
In the onboard tool kit on the under-
side of the luggage compartment lid
(refer to page 152).460de059
Procedure1 Read and comply with the safety
precautions provided on the
previous page.
2 Secure the vehicle from rolling:
Place the wedge against the rear
surface of the front tire on the side
opposite the side being raised. If
the vehicle is parked on a down-
ward slope, place the wedge
securely in front of the tire. If the
wheel must be changed on a
surface with a more severe slope,
take additional precautions to
secure the vehicle from rolling.
3 If your wheels are equipped with full
wheel covers
*: reach into the venti-
lation openings and pull off the
cover.
462de251
