BMW 330Ci COUPE 2001 E46 User Guide

11n

Controls and features
Operation, care and maintenance

Lamps:

Side lamps/Low beams87
Instrument panel lighting87
High beams/Parking lamps88
Fog lamps88
Interior lamps88

Controlling the climate
for pleasant driving:

Air conditioner90
Automatic climate control96
Seat heating101
Roller sun blind101

Interior convenience:

HiFi system101
Glove compartment102
Storage facilities102
Cellular phone104
Ashtray, front104
Cigarette lighter105
Ashtray, rear105
Clothes hooks105

Loading and transporting:

Through-loading system106
Ski bag107
Cargo loading108
Roof-mounted luggage rack109

Special operating instructions:

Break-in procedures112
Driving notes113
Catalytic converter113
Antilock Brake System
(ABS)115
Disc brakes117
Brake system118
Winter operation119
Power steering121
Cellular phones121
Radio reception121

Wheels and tires:

Tire inflation pressure122
Tire condition122
Tire replacement123
Tire rotation124
Wheel and tire
combinations125
Winter tires126
Snow chains126
Approved wheel and tire
specifications127

Under the hood:

Hood130
Engine compartment132
Washer fluids134
Washer nozzles134
Engine oil135
Coolant137
Brake fluid138
Vehicle Identification
Number139

Care and maintenance:

The BMW Maintenance
System140
Caring for your vehicle141
Airbags146
Vehicle storage147

Laws and regulations:

Technical modifications148
California Proposition
65 Warning148
ODB interface socket149

Contents

Repairs
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit152
Windshield wiper blades152
Lamps and bulbs152
Changing a wheel159
Battery162
Fuses166
Microfilter/Activated-charcoal
filter166

In case of electrical
malfunction:

Fuel filler door167
Sliding/tilt sunroof167

Assistance, giving and
receiving:

Jump-starting168
Towing the vehicle169Adaptive Transmission Control
(ATC)174
Airbags175
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC)175
Radio reception176
Safety belt tensioner176
Interior rearview mirror with
automatic dimming
feature177
Rain sensor178
Tire Pressure Control (RDC)179
Self-diagnostics180
Xenon lamps181Engine data184
Dimensions185
Weights186
Capacities187
Electrical system188
V-belts188

13n

Index

Everything from A to Z192
Owner service procedures199

14n

Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology

15n

IndexDataTechnologyRepairsCar careControlsOverview

Cockpit16
Instrument cluster18
Indicator and warning lamps20
Multifunction steering wheel
(MFL)24
Hazard warning flashers25
Warning triangle25
First-aid kit25
Refueling26
Fuel specifications27
Tire inflation pressure28
Overview

16n
462us040

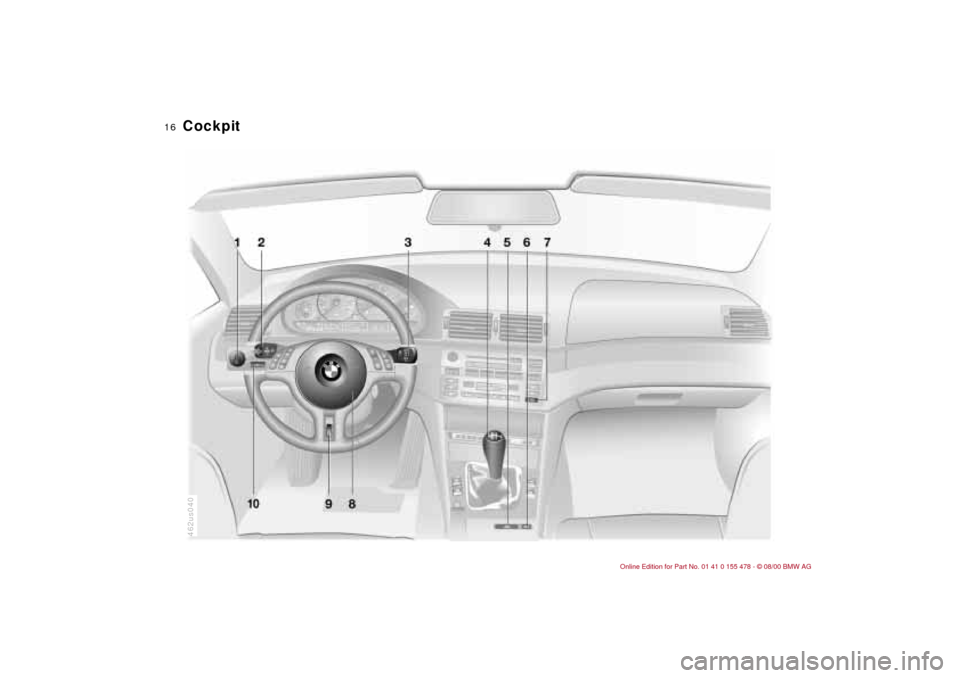

Cockpit

17n

IndexDataTechnologyRepairsCar careControlsOverview

Cockpit

1 Parking lamps/Low beams87
2

d

Turn signal indicator70

>

Parking lamps88

>

High beams88

>

Headlamp flasher70

>

Computer77
3 Washer/Wiper system70
4 Shift lever/Selector lever

*
66
For vehicles equipped with manual
transmission:
To shift into reverse, push the gear
shift lever to the left, overcoming
the slight resistance
5 Hazard warning flashers25
6 Central locking system34
7 Rear window defroster72
8 Horn: the entire surface functions as
the horn
9 Adjusting steering wheel52
10 Front fog lamps88

18n

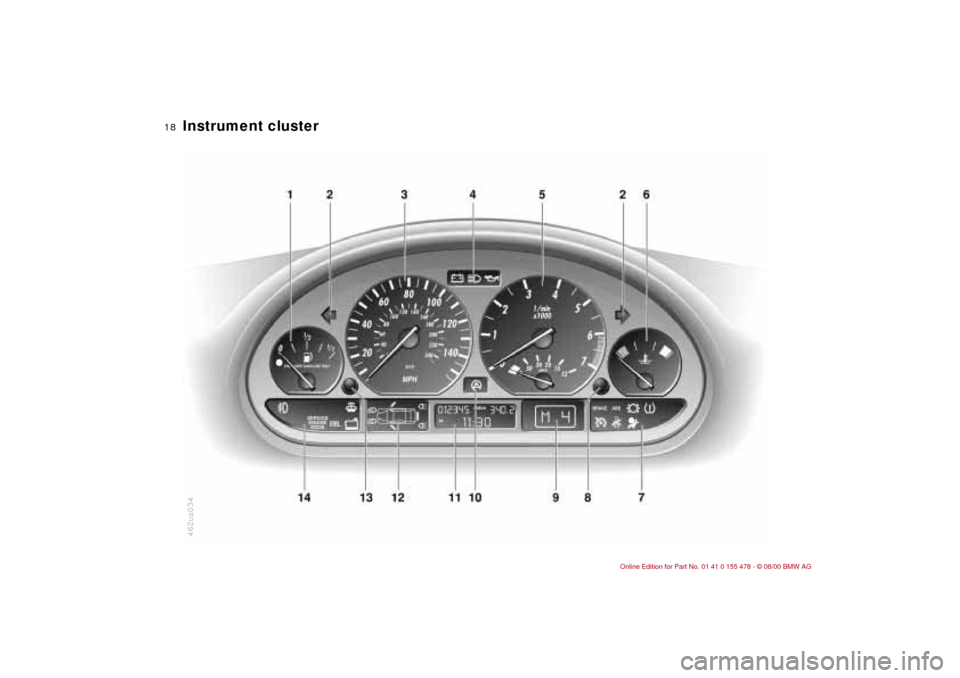

Instrument cluster 462us034

19n

IndexDataTechnologyRepairsCar careControlsOverview

Instrument cluster

1 Fuel gauge with indicator lamp
for fuel reserve76
2 Indicator lamp for turn signal
indicator23
3 Speedometer
4 Indicator lamp for:

>

Battery charge current20

>

High beams23

>

Engine oil pressure/Engine oil
level20, 22
5 Tachometer and Energy control75
6 Engine coolant temperature gauge
with "Coolant temperature too high"
indicator76
7 Indicator and warning lamps
(clockwise) for:

>

Parking brake/Brake hydraulic
system/Cornering Brake Control
(CBC/DBC)20

>
Antilock Brake System (ABS)22 > Brake pads22
>

Tire Pressure Control
(RDC)

*
20, 22

>

Airbags21

>

Please fasten safety belts21

>

Cruise control23
8 Set button for the clock789 Program display for automatic
transmission

*
69
Indicator lamp for automatic
transmission

*
21, 69
10 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability Control
(DSC)

*
and ADB22
11 Indicator for:

>

Odometer75

>

Trip odometer75

>

Clock78

>

Service Interval76
Indicator for computer, operation
using the turn signal lever, refer to
page 77:

>

Clock

>

Outside temperature

>

Average fuel consumption
> Range >
Average speed
12 Indicator for Check Control77
13 Trip odometer, reset to zero7514 Indicator and warning lamps
(clockwise) for:
>

Front fog lamps23

>

Add washer fluid22

>

Coolant level23

>

Electronic Throttle Control
(EML)

*
23

>

Service Engine Soon22
You can display the outside
temperature and distance driven
in different units of measurement.

<

20n

Indicator and warning lamps

Technology that monitors itself

Many of the systems of your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
that are identified by "

l

" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started, or
it lights up while the vehicle is moving.
You will see how to react to this below.

Red: stop immediately

Battery charge

l


The battery is no longer being
charged. There is a malfunction
of the alternator V-belt or in the
charging circuit of the alternator. Please
contact the nearest BMW center.
If the V-belt is defective, do not
continue driving, otherwise, the
engine could be damaged due to over-
heating. If the V-belt is defective,
increased steering effort is also
required.

<

Engine oil pressure


l


Stop the vehicle immediately
and switch off the engine.
Check the engine oil and top off as
required. If the oil level is correct,
please contact the nearest BMW
center.
Do not continue driving. If you do
so, the engine could be damaged
because of inadequate lubrication.

<


Tire Pressure Control (RDC) l
In addition, an acoustic signal is
sounded: a tire failure has
occurred. Reduce vehicle speed imme-
diately to stop the vehicle. Avoid hard
brake applications. Do not oversteer.
For additional information, refer to
page 85.
Brake hydraulic system l
If the lamp comes on when the
parking brake is not engaged:
check the brake fluid level. Before
driving further, be sure to read the
notes on pages 118 and 138.
Brake warning lamp for Cana-
dian models.
