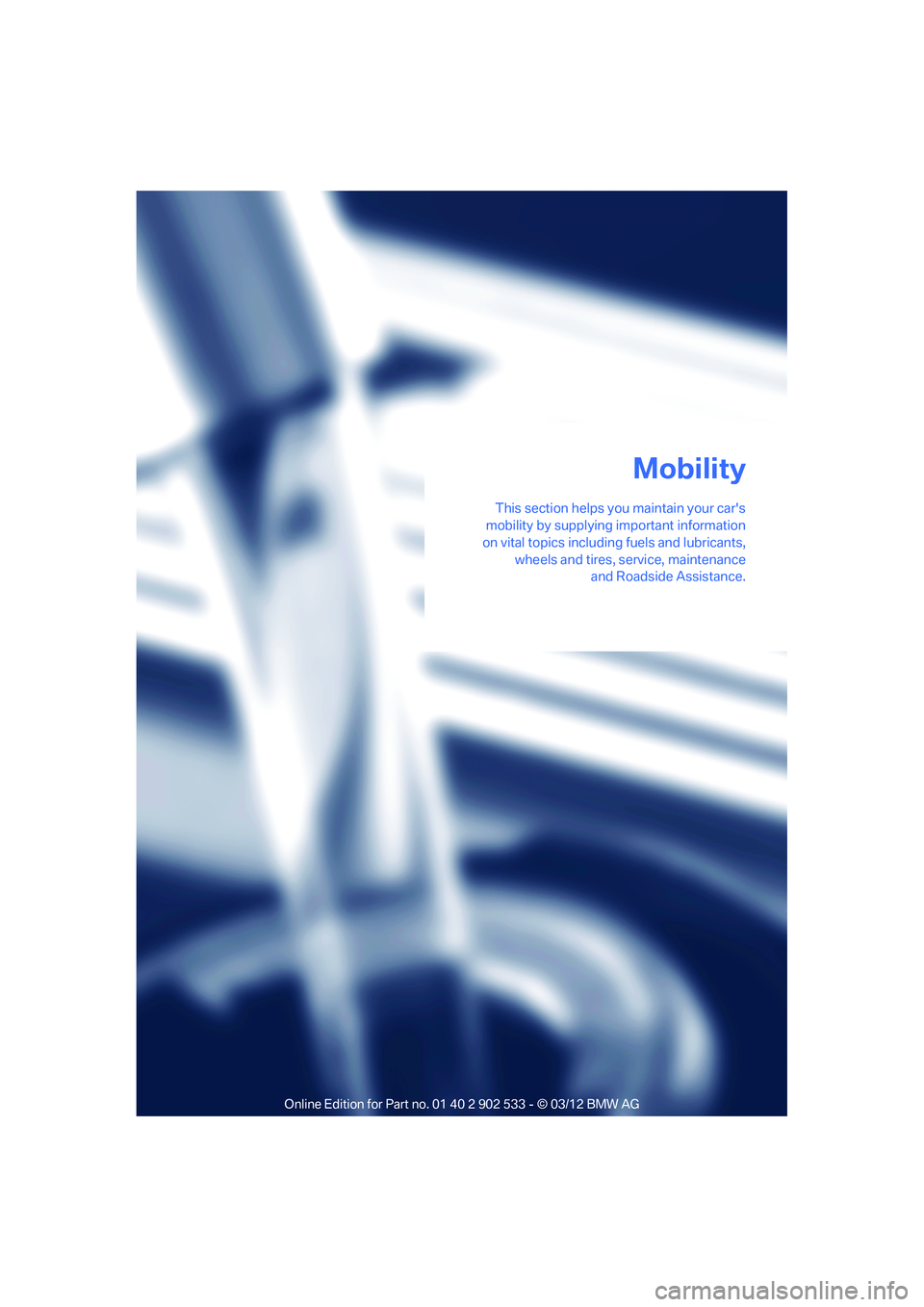

This section helps you maintain your car's
mobility by supplying important information
on vital topics including fuels and lubricants, wheels and tires, service, maintenance and Roadside Assistance.
Mobility

00320051004F004C00510048000300280047004C0057004C005200510003

232

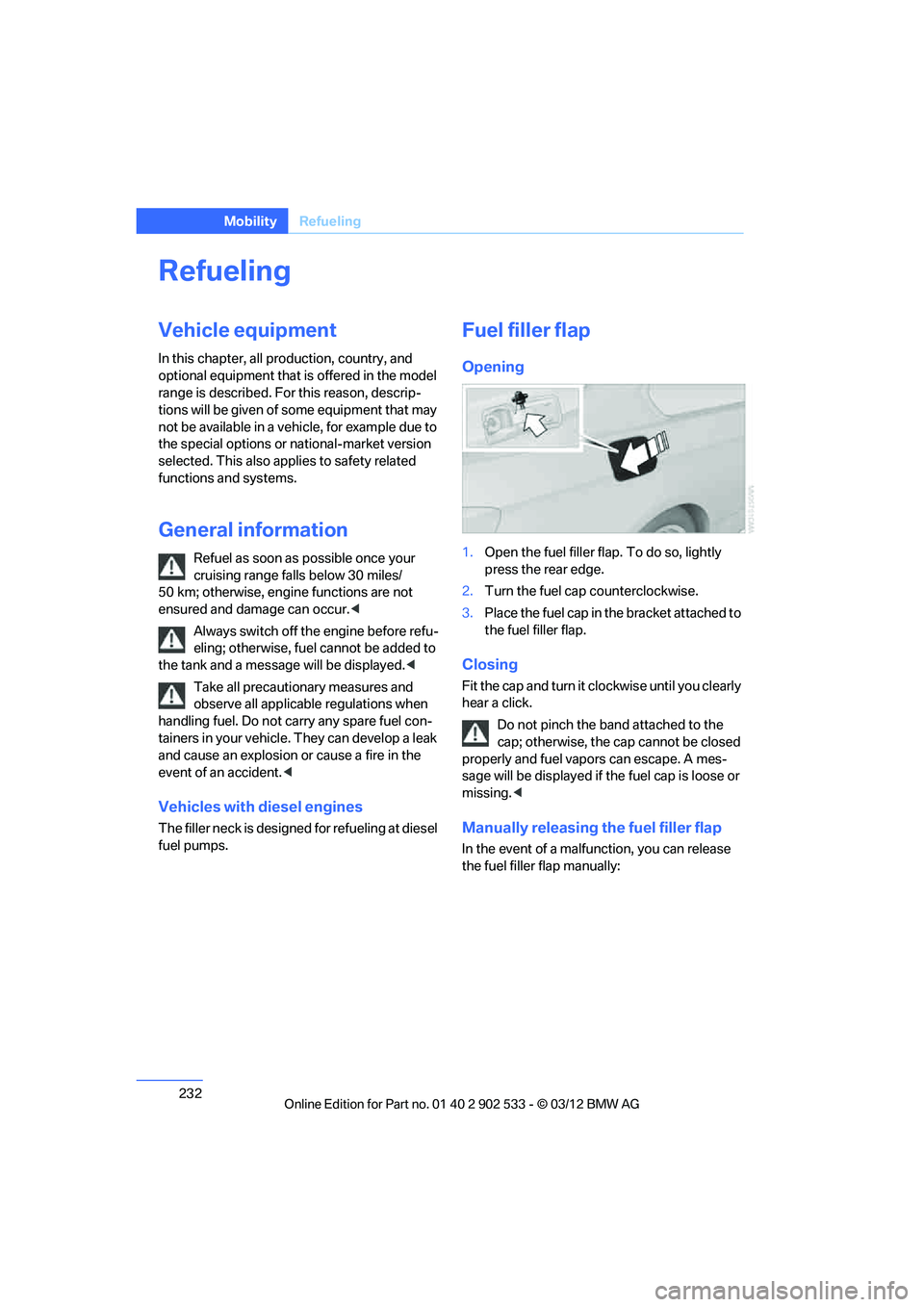

MobilityRefueling
Refueling
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
General information
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km; otherwise, engine functions are not
ensured and damage can occur. <
Always switch off the engine before refu-
eling; otherwise, fuel cannot be added to
the tank and a message will be displayed. <
Take all precautionary measures and
observe all applicable regulations when
handling fuel. Do not carry any spare fuel con-
tainers in your vehicle. They can develop a leak
and cause an explosion or cause a fire in the
event of an accident. <
Vehicles with diesel engines
The filler neck is designed for refueling at diesel
fuel pumps.
Fuel filler flap
Opening
1.Open the fuel filler flap. To do so, lightly
press the rear edge.
2. Turn the fuel cap counterclockwise.
3. Place the fuel cap in the bracket attached to
the fuel filler flap.
Closing
Fit the cap and turn it clockwise until you clearly
hear a click.
Do not pinch the band attached to the
cap; otherwise, the cap cannot be closed
properly and fuel vapors can escape. A mes-
sage will be displayed if the fuel cap is loose or
missing. <
Manually releasing the fuel filler flap
In the event of a malfunction, you can release
the fuel filler flap manually:

00320051004F004C00510048000300280047004C0057004C005200510003

233
Refueling
Mobility

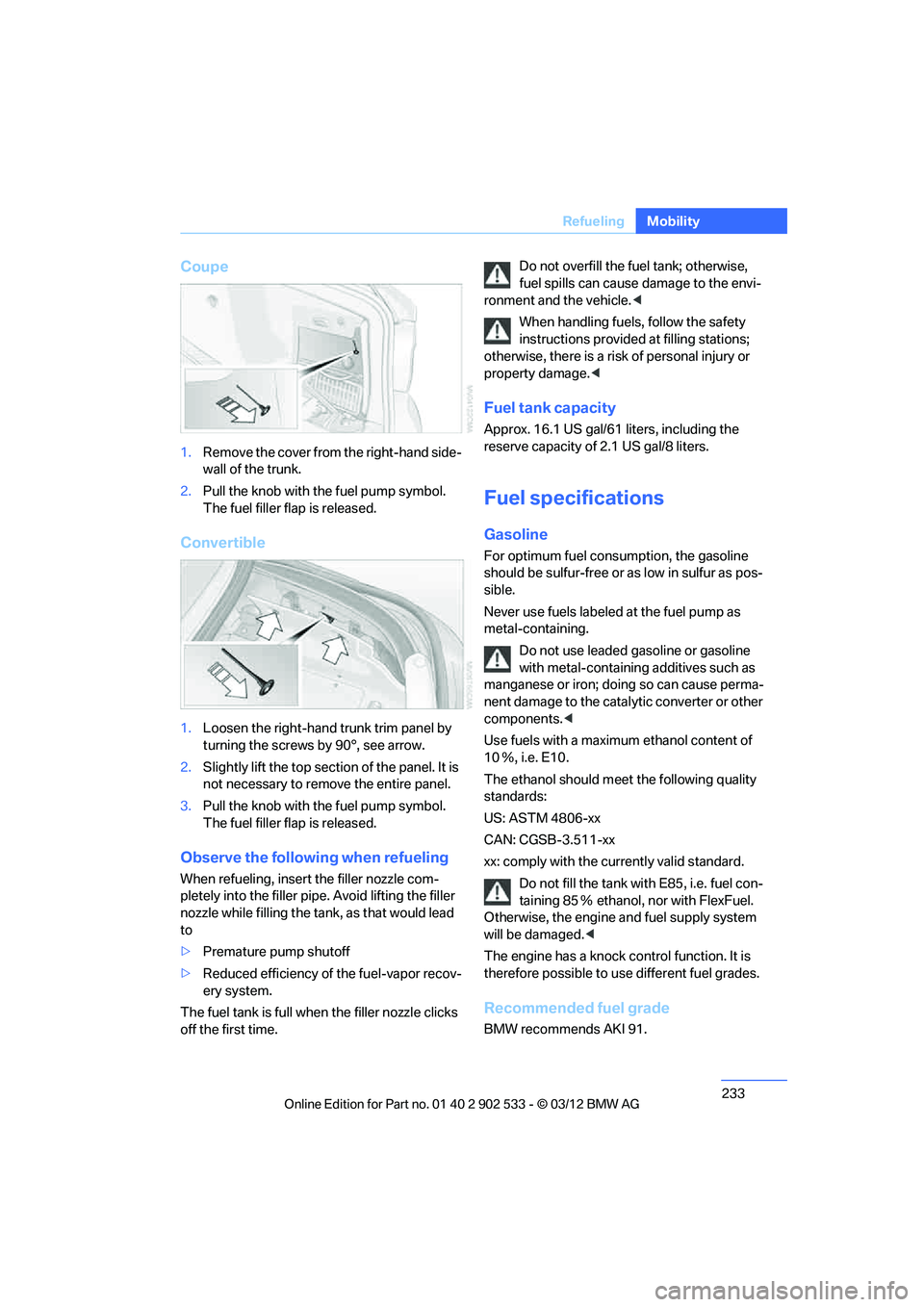

Coupe
1.
Remove the cover from the right-hand side-
wall of the trunk.
2. Pull the knob with the fuel pump symbol.
The fuel filler flap is released.
Convertible
1.Loosen the right-hand trunk trim panel by
turning the screws by 90°, see arrow.
2. Slightly lift the top section of the panel. It is
not necessary to remove the entire panel.
3. Pull the knob with the fuel pump symbol.
The fuel filler flap is released.
Observe the following when refueling
When refueling, insert the filler nozzle com-
pletely into the filler pipe. Avoid lifting the filler
nozzle while filling the tank, as that would lead
to
>Premature pump shutoff
> Reduced efficiency of the fuel-vapor recov-
ery system.
The fuel tank is full when the filler nozzle clicks
off the first time. Do not overfill the fuel tank; otherwise,
fuel spills can cause damage to the envi-
ronment and the vehicle. <
When handling fuels, follow the safety
instructions provided at filling stations;
otherwise, there is a risk of personal injury or
property damage. <
Fuel tank capacity
Approx. 16.1 US gal/61 liters, including the
reserve capacity of 2.1 US gal/8 liters.
Fuel specifications
Gasoline
For optimum fuel consumption, the gasoline
should be sulfur-free or as low in sulfur as pos-
sible.
Never use fuels labeled at the fuel pump as
metal-containing.
Do not use leaded gasoline or gasoline
with metal-containing additives such as
manganese or iron; doing so can cause perma-
nent damage to the catalytic converter or other
components. <
Use fuels with a maximum ethanol content of
10 Ξ, i.e. E10.
The ethanol should meet the following quality
standards:
US: ASTM 4806-xx
CAN: CGSB-3.511-xx
xx: comply with the currently valid standard. Do not fill the tank with E85, i.e. fuel con-
taining 85 Ξ ethanol, nor with FlexFuel.
Otherwise, the engine and fuel supply system
will be damaged. <
The engine has a knock control function. It is
therefore possible to use different fuel grades.
Recommended fuel grade
BMW recommends AKI 91.

00320051004F004C00510048000300280047004C0057004C005200510003

234
MobilityRefueling

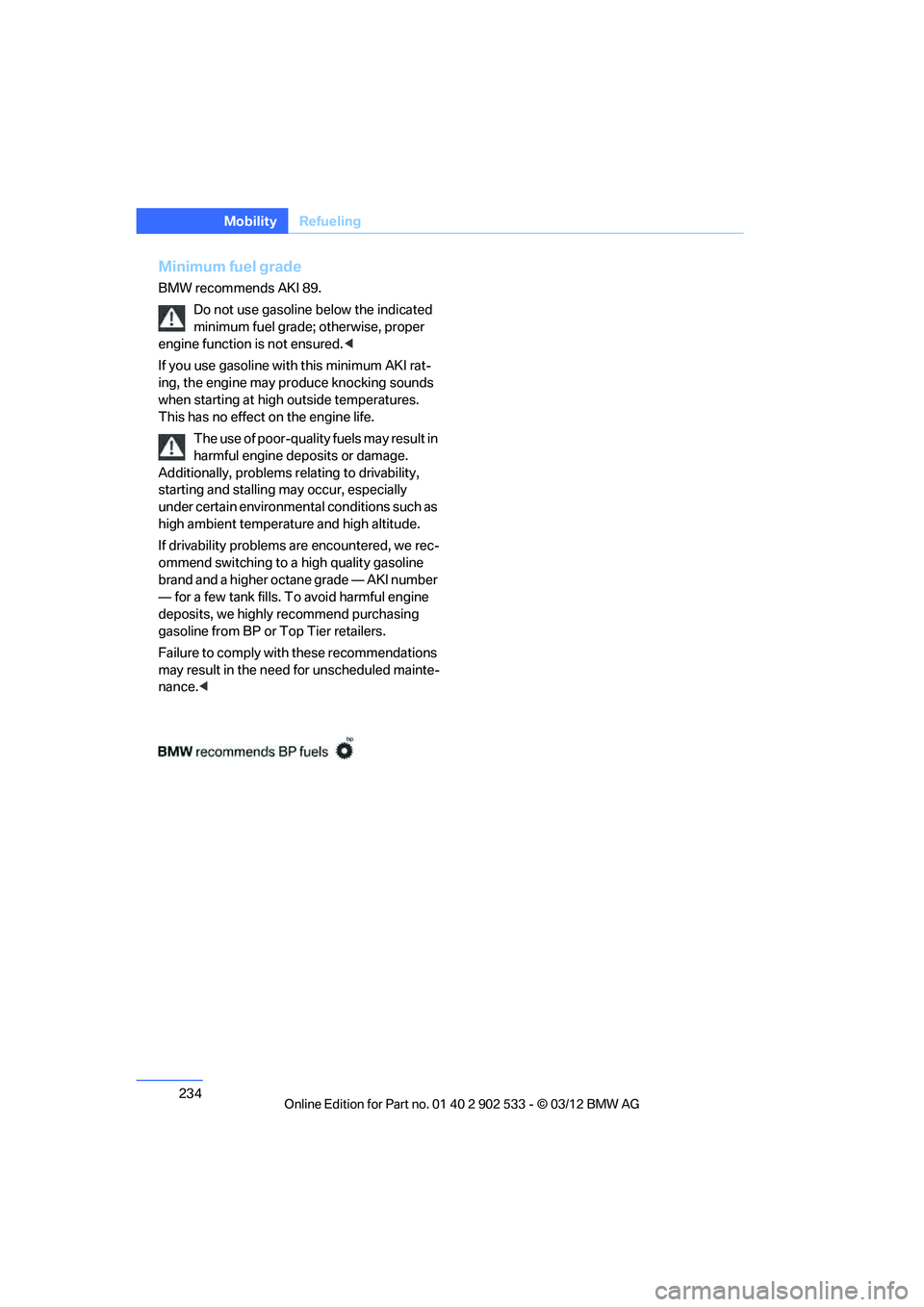

Minimum fuel grade
BMW recommends AKI 89.
Do not use gasoline below the indicated
minimum fuel grade; otherwise, proper
engine function is not ensured. <
If you use gasoline with this minimum AKI rat-
ing, the engine may produce knocking sounds
when starting at high outside temperatures.
This has no effect on the engine life. The use of poor-quality fuels may result in
harmful engine deposits or damage.
Additionally, problems relating to drivability,
starting and stalling may occur, especially
under certain environmental conditions such as
high ambient temperature and high altitude.
If drivability problems are encountered, we rec-
ommend switching to a high quality gasoline
brand and a higher octane grade — AKI number
— for a few tank fills. To avoid harmful engine
deposits, we highly recommend purchasing
gasoline from BP or Top Tier retailers.
Failure to comply with these recommendations
may result in the need for unscheduled mainte-
nance. <

00320051004F004C00510048000300280047004C0057004C005200510003

235
Wheels and tires
Mobility
Wheels and tires
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
Tire inflation pressures
Information for your safety
It is not merely the tires' service life, but also
driving comfort and, to a great extent, driving
safety that depend on the condition of the tires
and the maintenance of the specified tire pres-
sure.
Check the tire inflation pressure regularly
and correct it, if necessary: at least twice a
month and before starting long trips. If you fail
to observe this precaution you may be driving
on tires with incorrect tire pressures, a condi-
tion that can not only compromise your vehi-
cle's driving stability, but also lead to tire dam-
age and the risk of an accident. Do not drive
with deflated, i.e. flat tires, except when using
run-flat tires. A flat tire will seriously impair your
vehicle's handling and braking response.
Attempts to drive on a flat tire can lead to loss of
control over the vehicle. <
Checking pressure
Only check tire inflation pressure when the
tires are cold. This means after a maximum of
1.25 miles/2 km driving or when the vehicle has
been parked for at least 2 hours. When tires are
warm, the tire inflation pressure is higher.
After correcting the tire inflation pressure,
reset the Tire Pressure Monitor, refer to page
101, or reinitialize the Flat Tire Monitor,
refer to page 98.<
Inflation pressure specifications
The tables below provide all the correct inflation
pressures for the specified tire sizes at ambient
temperature.
The inflation pressures apply to the tire
sizes approved and tire brands recom-
mended by BMW; a list of these is available
from your BMW center. <
For correct identification of the right tire infla-
tion pressures, observe the following:
> Tire sizes for your vehicle
> Maximum allowable driving speed
Tire inflation pressures for driving up to
100 mph or 160 km/h
For normal driving up to 100 mph or 160 km/h
and to achieve optimum driving comfort, adjust
pressures to the respective tire inflation pres-
sures listed on the following pages in the col-
umns for traveling speeds up to a maximum of
100mph or 160km/h.
These tire inflation pressures can also be found
on the driver's side door pillar when the driver's
door is open.
The maximum permissible speed for
these tire pressures is 100 mph or
160 km/h. Do not exceed this speed; otherwise,
tire damage and accidents could occur. <

00320051004F004C00510048000300280047004C0057004C005200510003

236
MobilityWheels and tires

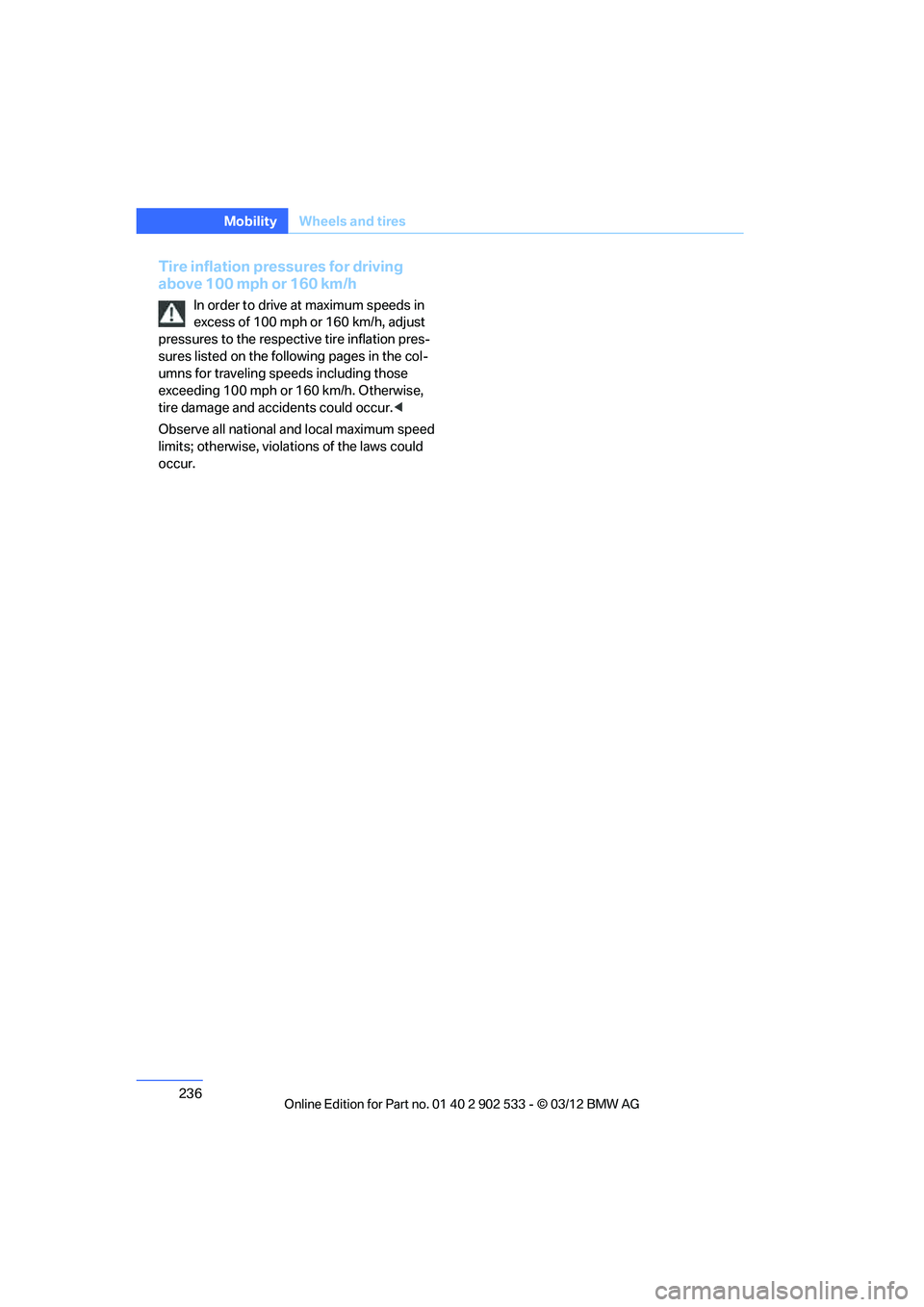

Tire inflation pressures for driving
above 100 mph or 160 km/h
In order to drive at maximum speeds in
excess of 100mph or 160km/h, adjust
pressures to the respective tire inflation pres-
sures listed on the following pages in the col-
umns for traveling speeds including those
exceeding 100 mph or 160 km/h. Otherwise,
tire damage and accidents could occur. <
Observe all national and local maximum speed
limits; otherwise, violations of the laws could
occur.

00320051004F004C00510048000300280047004C0057004C005200510003

237
Wheels and tires
Mobility
Coupe: tire inflation pressures for the 328i
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S RSC
225/50 R 16 92 H M+S RSC
225/45 R 17 91 H M+S A/S RSC
225/45 R 17 91 H M+S RSC
225/45 R 17 91 V RSC 2.2/32 2.6/38 2.5/36 3.0/44
225/45 R 17 94 V M+S XL 2.2/32 2.7/39 2.5/36 3.0/44
Front: 225/45 R 17 91 V 2.2/32 - 2.5/36 -
Rear: 255/40 R 17 94 V - 2.4/35 - 2.7/39
Front: 225/40 R 18 88 W RSC 2.2/32 - 2.5/36 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 2.9/42
Front: 225/35 R 19 88 Y XL 2.5/36 -2.5/36 -
Rear: 255/30 R 19 91 Y XL - 3.0/44- 3.0/44
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
With Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
225/45 R 17 91 H M+S 2.2/32 2.6/38
2.5/36 3.0/44
225/45 R 17 91 V 2.2/32 2.6/382.9/42 3.4/49
225/45 R 17 94 V M+S XL 2.2/32 2.7/392.9/42 3.4/49
Front: 225/45 R 17 91 V 2.2/32 -2.9/42 -
Rear: 255/40 R 17 94 V - 2.4/35- 3.0/44
Front: 225/40 R 18 88 W RSC 2.2/32 -2.7/39 -
Rear: 255/35 R 18 90 W RSC - 2.7/39- 3.2/46

00320051004F004C00510048000300280047004C0057004C005200510003

238
MobilityWheels and tires
Front: 225/35 R 19 88 Y XL 2.5/36 -2.7/39 -
Rear: 255/30 R 19 91 Y XL - 3.0/44- 3.2/46
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature

00320051004F004C00510048000300280047004C0057004C005200510003

239
Wheels and tires
Mobility
Coupe: tire inflation pressures for the 328xi
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S RSC
225/50 R 16 92 H M+S RSC
225/45 R 17 91 H M+S A/S RSC
225/45 R 17 91 H M+S RSC
225/45 R 17 91 V RSC 2.2/32 2.6/38 2.4/35 2.9/42
225/45 R 17 94 V M+S XL 2.2/32 2.7/39 2.5/36 3.0/44
Front: 225/45 R 17 91 V 2.2/32 - 2.3/33 -
Rear: 255/40 R 17 94 V - 2.3/33 - 2.7/39
Front: 225/40 R 18 88 W RSC 2.3/33 - 2.5/36 -
Rear: 255/35 R 18 90 W RSC - 2.6/38 - 2.9/42
Front: 225/35 R 19 88 Y XL 2.7/39 -2.7/39 -
Rear: 255/30 R 19 91 Y XL - 3.0/44- 3.0/44
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60

00320051004F004C00510048000300280047004C0057004C005200510003
