BMW 335IS COUPE 2013 Owners Manual
Manufacturer: BMW, Model Year: 2013, Model line: 335IS COUPE, Model: BMW 335IS COUPE 2013Pages: 308, PDF Size: 5.65 MB

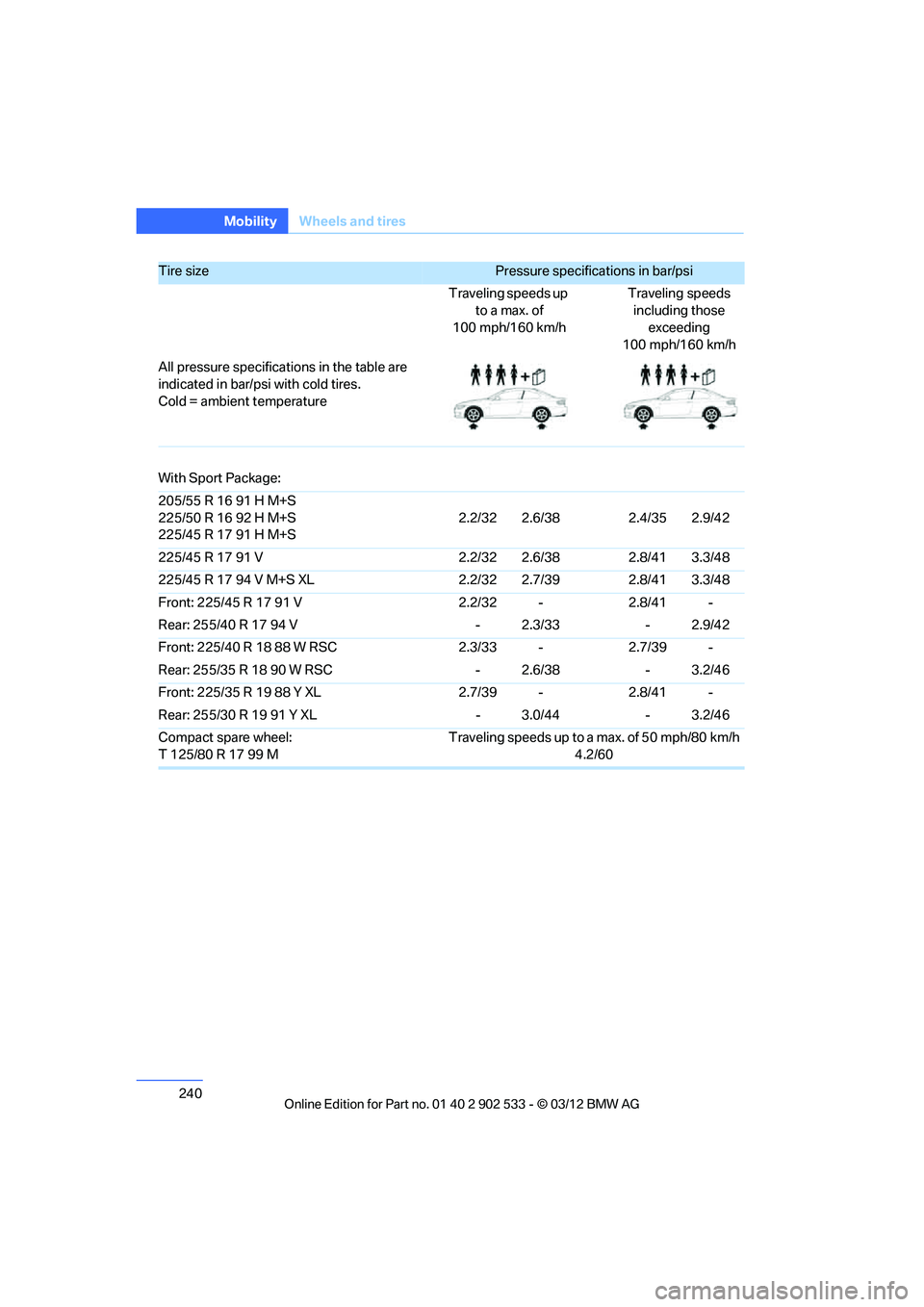

Page 241 of 308
240
MobilityWheels and tires
With Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
225/45 R 17 91 H M+S 2.2/32 2.6/38 2.4/35 2.9/42
225/45 R 17 91 V 2.2/32 2.6/38 2.8/41 3.3/48
225/45 R 17 94 V M+S XL 2.2/32 2.7/39 2.8/41 3.3/48
Front: 225/45 R 17 91 V 2.2/32 - 2.8/41 -
Rear: 255/40 R 17 94 V - 2.3/33 - 2.9/42
Front: 225/40 R 18 88 W RSC 2.3/33 - 2.7/39 -
Rear: 255/35 R 18 90 W RSC - 2.6/38 - 3.2/46
Front: 225/35 R 19 88 Y XL 2.7/39 -2.8/41 -
Rear: 255/30 R 19 91 Y XL - 3.0/44- 3.2/46
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
00320051004F004C00510048000300280047004C0057004C005200510003
Page 242 of 308
241
Wheels and tires
Mobility
Coupe: tire inflation pressures for the 335i
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S
225/45 R 17 91 H M+S 2.2/32 2.7/39 2.6/38 3.1/45
225/45 R 17 94 V M+S XL 2.3/33 2.8/41 2.6/38 3.1/45
Front: 225/45 R 17 91 V 2.2/32 - 2.6/38 -
Rear: 255/40 R 17 94 V - 2.4/35 - 2.8/41
Front: 225/40 R 18 88 W RSC 2.2/32 - 2.6/38 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 3.1/45
Front: 225/40 R 18 88 Y 2.2/32 - 2.4/35 -
Rear: 255/35 R 18 90 Y - 2.7/39 - 2.8/41
Front: 225/35 R 19 88 Y XL 2.6/38 - 2.6/38 -
Rear: 255/30 R 19 91 Y XL - 3.1/45 - 3.1/45
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
With Sport Package:
225/45 R 17 91 H M+S 2.2/32 2.7/39 2.6/38 3.1/45
225/45 R 17 94 V M+S XL 2.3/33 2.8/41 2.9/42 3.4/49
Front: 225/45 R 17 91 V 2.2/32 - 2.6/38 -
Rear: 255/40 R 17 94 V - 2.4/35 - 3.0/44
Front: 225/40 R 18 88 W RSC 2.2/32 - 2.8/41 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 3.3/48
Front: 225/40 R 18 88 Y 2.2/32 - 2.5/36 -
Rear: 255/35 R 18 90 Y - 2.7/39 - 3.0/44
00320051004F004C00510048000300280047004C0057004C005200510003

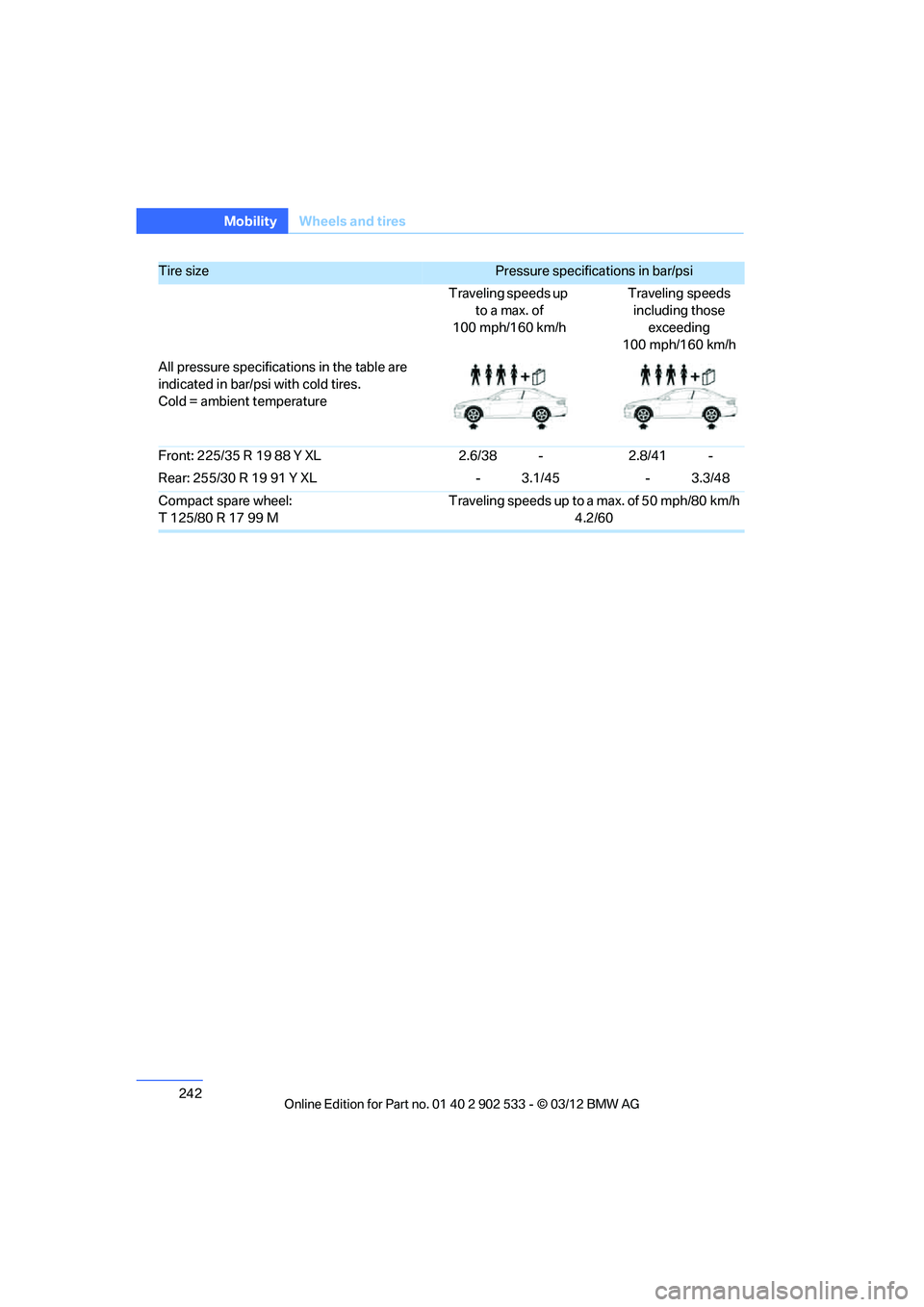

Page 243 of 308
242
MobilityWheels and tires
Front: 225/35 R 19 88 Y XL 2.6/38 -2.8/41 -
Rear: 255/30 R 19 91 Y XL - 3.1/45- 3.3/48
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
00320051004F004C00510048000300280047004C0057004C005200510003

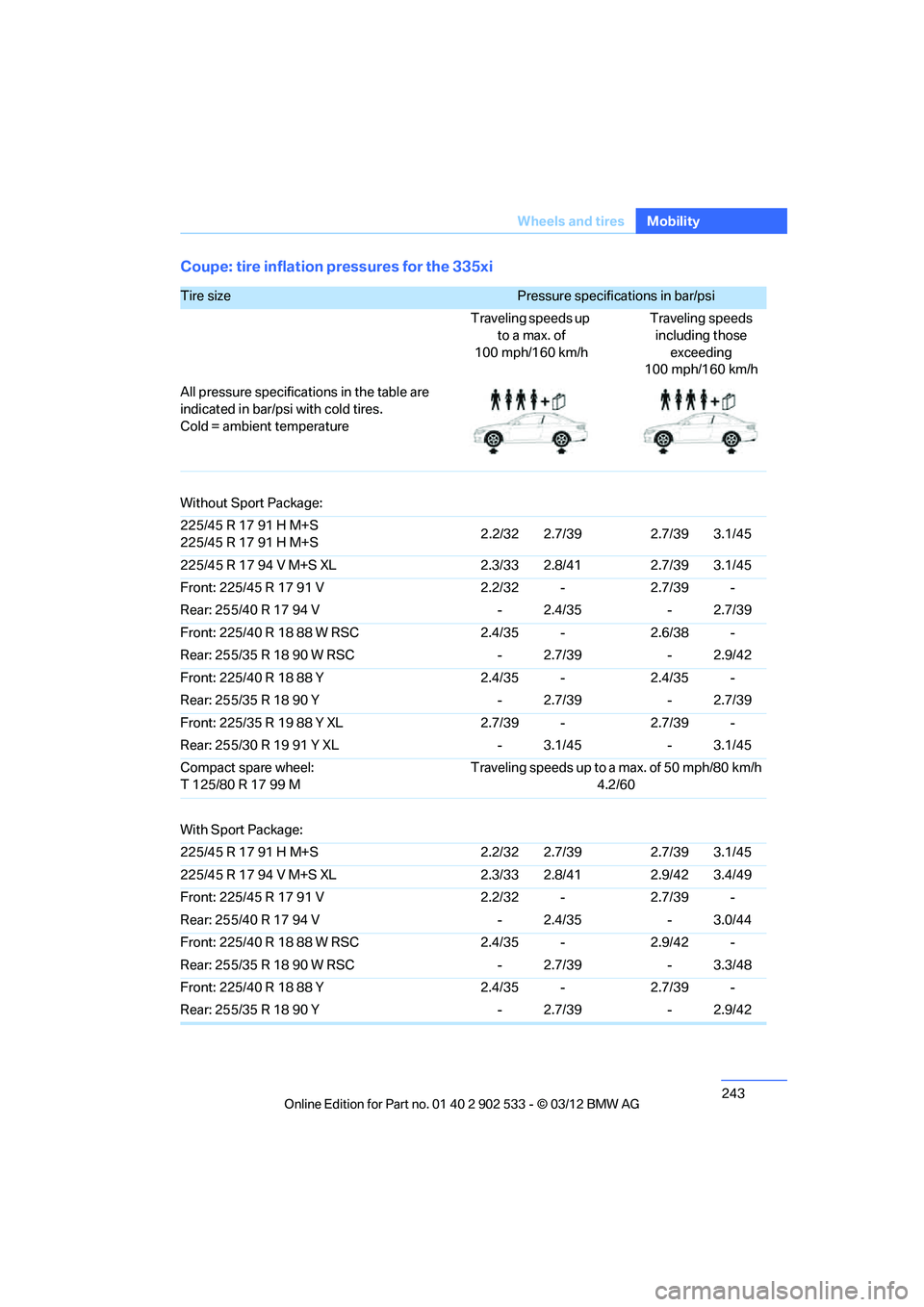

Page 244 of 308
243
Wheels and tires
Mobility
Coupe: tire inflation pressures for the 335xi
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S
225/45 R 17 91 H M+S 2.2/32 2.7/39 2.7/39 3.1/45
225/45 R 17 94 V M+S XL 2.3/33 2.8/41 2.7/39 3.1/45
Front: 225/45 R 17 91 V 2.2/32 - 2.7/39 -
Rear: 255/40 R 17 94 V - 2.4/35 - 2.7/39
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 2.9/42
Front: 225/40 R 18 88 Y 2.4/35 - 2.4/35 -
Rear: 255/35 R 18 90 Y - 2.7/39 - 2.7/39
Front: 225/35 R 19 88 Y XL 2.7/39 - 2.7/39 -
Rear: 255/30 R 19 91 Y XL - 3.1/45 - 3.1/45
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
With Sport Package:
225/45 R 17 91 H M+S 2.2/32 2.7/39 2.7/39 3.1/45
225/45 R 17 94 V M+S XL 2.3/33 2.8/41 2.9/42 3.4/49
Front: 225/45 R 17 91 V 2.2/32 - 2.7/39 -
Rear: 255/40 R 17 94 V - 2.4/35 - 3.0/44
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.7/39 - 3.3/48
Front: 225/40 R 18 88 Y 2.4/35 - 2.7/39 -
Rear: 255/35 R 18 90 Y - 2.7/39 - 2.9/42
00320051004F004C00510048000300280047004C0057004C005200510003
Page 245 of 308
244
MobilityWheels and tires
Front: 225/35 R 19 88 Y XL 2.7/39 -2.9/42 -
Rear: 255/30 R 19 91 Y XL - 3.1/45- 3.3/48
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
00320051004F004C00510048000300280047004C0057004C005200510003

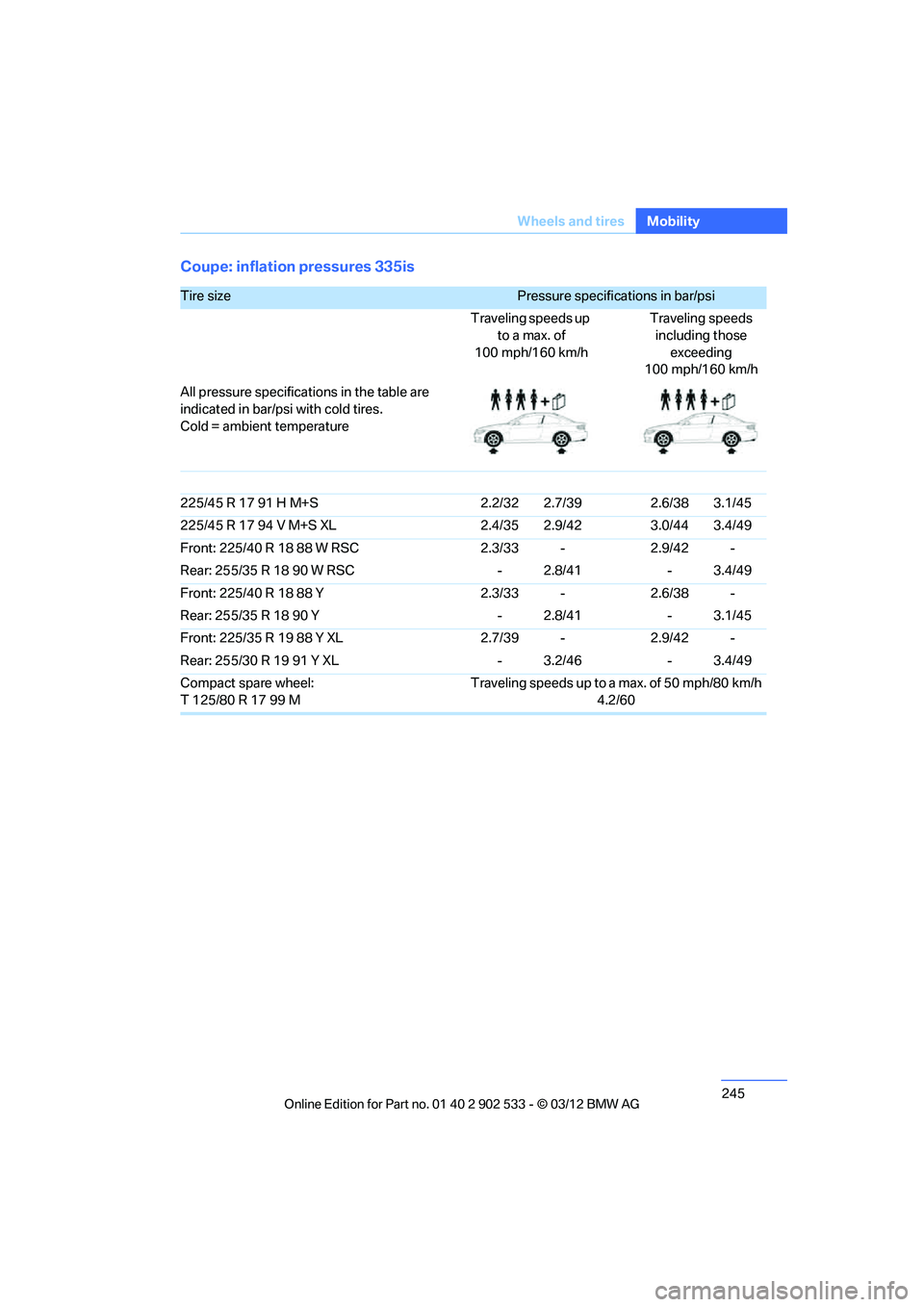

Page 246 of 308
245
Wheels and tires
Mobility
Coupe: inflation pressures 335is
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
225/45 R 17 91 H M+S 2.2/32 2.7/39 2.6/38 3.1/45
225/45 R 17 94 V M+S XL 2.4/35 2.9/42 3.0/44 3.4/49
Front: 225/40 R 18 88 W RSC 2.3/33 - 2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.8/41 - 3.4/49
Front: 225/40 R 18 88 Y 2.3/33 - 2.6/38 -
Rear: 255/35 R 18 90 Y - 2.8/41 - 3.1/45
Front: 225/35 R 19 88 Y XL 2.7/39 - 2.9/42 -
Rear: 255/30 R 19 91 Y XL - 3.2/46 - 3.4/49
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
00320051004F004C00510048000300280047004C0057004C005200510003

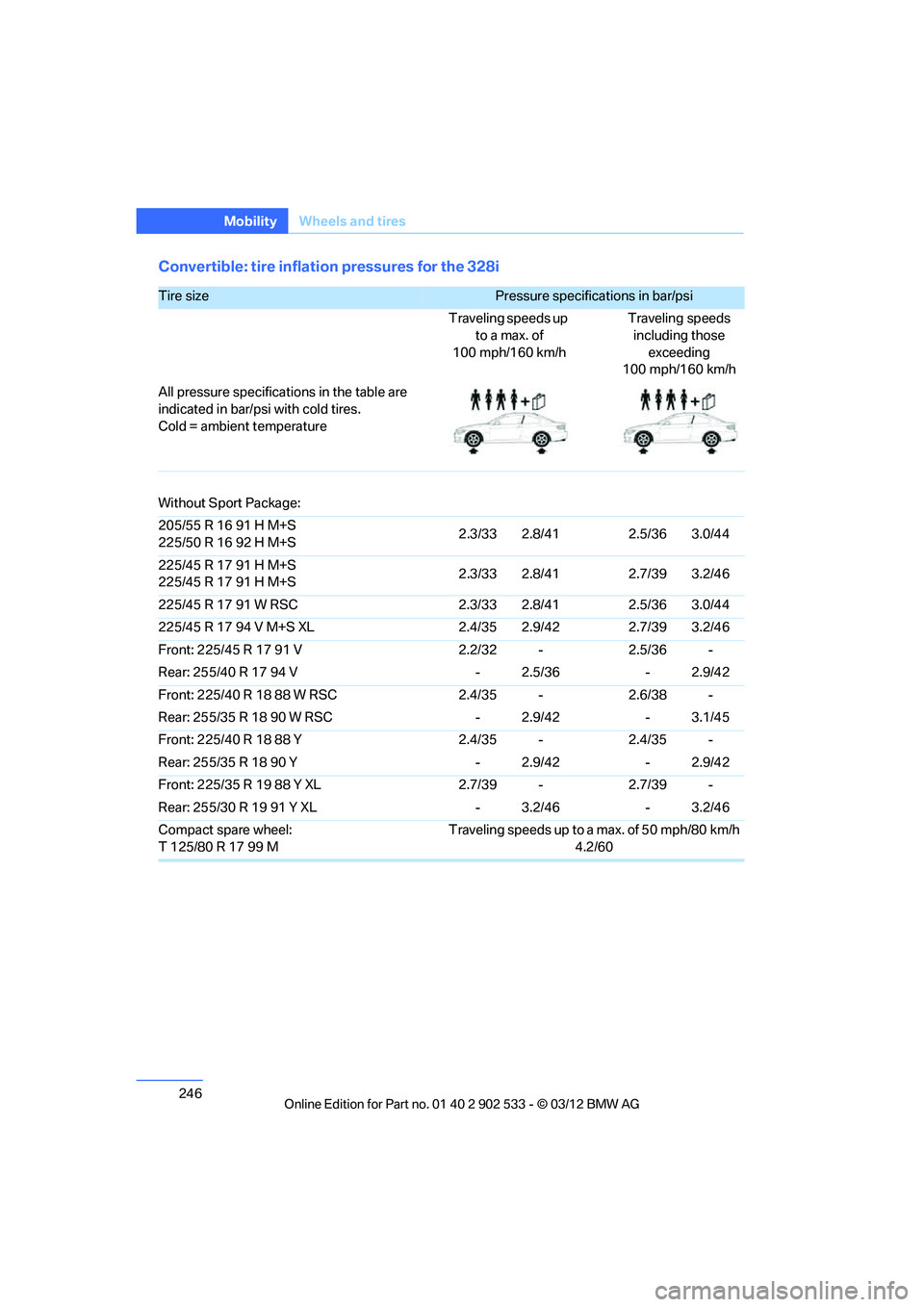

Page 247 of 308
246
MobilityWheels and tires
Convertible: tire inflation pressures for the 328i
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S 2.3/33 2.8/41 2.5/36 3.0/44
225/45 R 17 91 H M+S
225/45 R 17 91 H M+S 2.3/33 2.8/41 2.7/39 3.2/46
225/45 R 17 91 W RSC 2.3/33 2.8/41 2.5/36 3.0/44
225/45 R 17 94 V M+S XL 2.4/35 2.9/42 2.7/39 3.2/46
Front: 225/45 R 17 91 V 2.2/32 - 2.5/36 -
Rear: 255/40 R 17 94 V - 2.5/36 - 2.9/42
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 W RSC - 2.9/42 - 3.1/45
Front: 225/40 R 18 88 Y 2.4/35 - 2.4/35 -
Rear: 255/35 R 18 90 Y - 2.9/42 - 2.9/42
Front: 225/35 R 19 88 Y XL 2.7/39 - 2.7/39 -
Rear: 255/30 R 19 91 Y XL - 3.2/46 - 3.2/46
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
00320051004F004C00510048000300280047004C0057004C005200510003

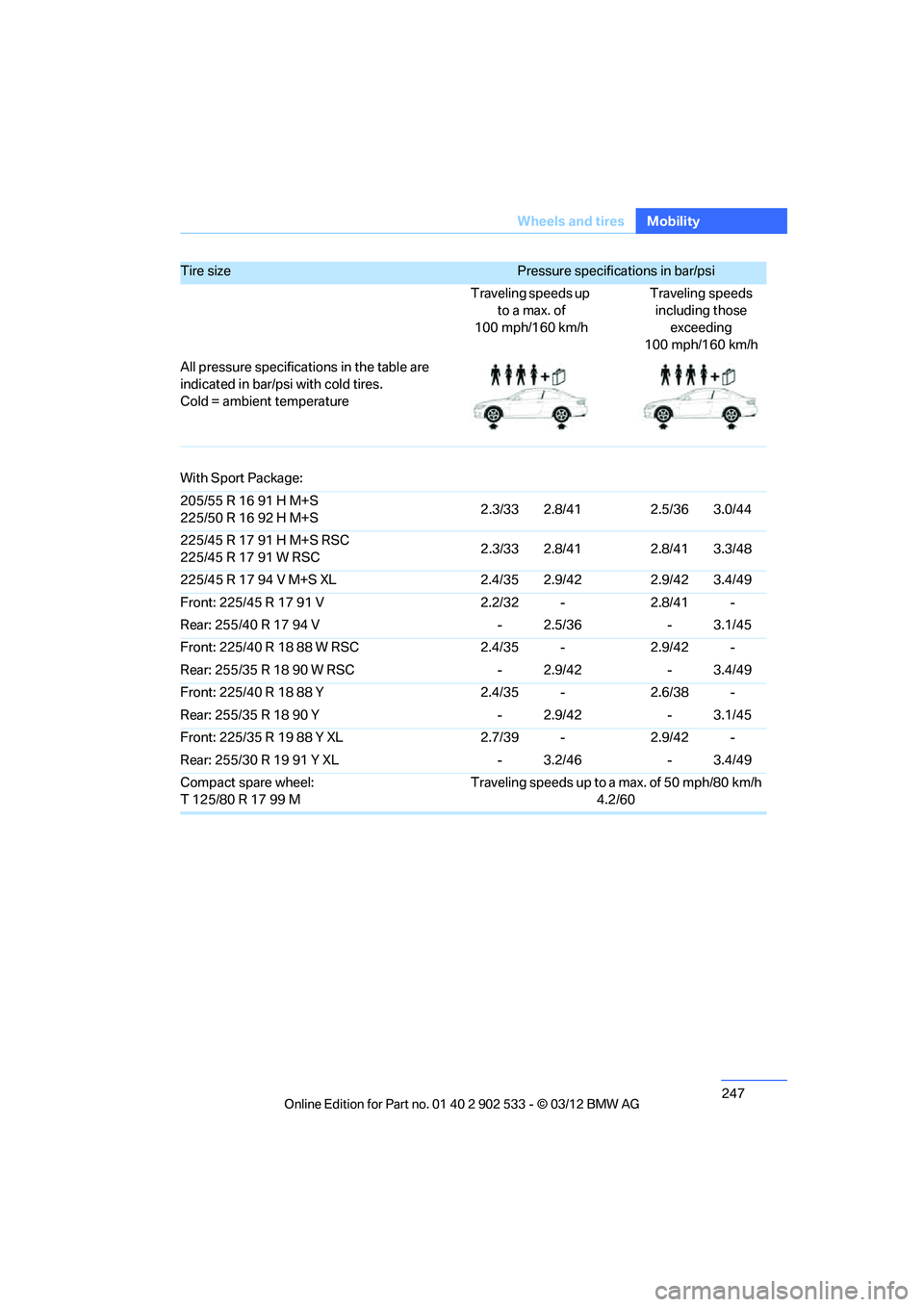

Page 248 of 308
247
Wheels and tires
Mobility
With Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
2.3/33 2.8/41
2.5/36 3.0/44
225/45 R 17 91 H M+S RSC
225/45 R 17 91 W RSC 2.3/33 2.8/41
2.8/41 3.3/48
225/45 R 17 94 V M+S XL 2.4/35 2.9/422.9/42 3.4/49
Front: 225/45 R 17 91 V 2.2/32 -2.8/41 -
Rear: 255/40 R 17 94 V - 2.5/36- 3.1/45
Front: 225/40 R 18 88 W RSC 2.4/35 -2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.9/42- 3.4/49
Front: 225/40 R 18 88 Y 2.4/35 -2.6/38 -
Rear: 255/35 R 18 90 Y - 2.9/42- 3.1/45
Front: 225/35 R 19 88 Y XL 2.7/39 -2.9/42 -
Rear: 255/30 R 19 91 Y XL - 3.2/46- 3.4/49
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
00320051004F004C00510048000300280047004C0057004C005200510003

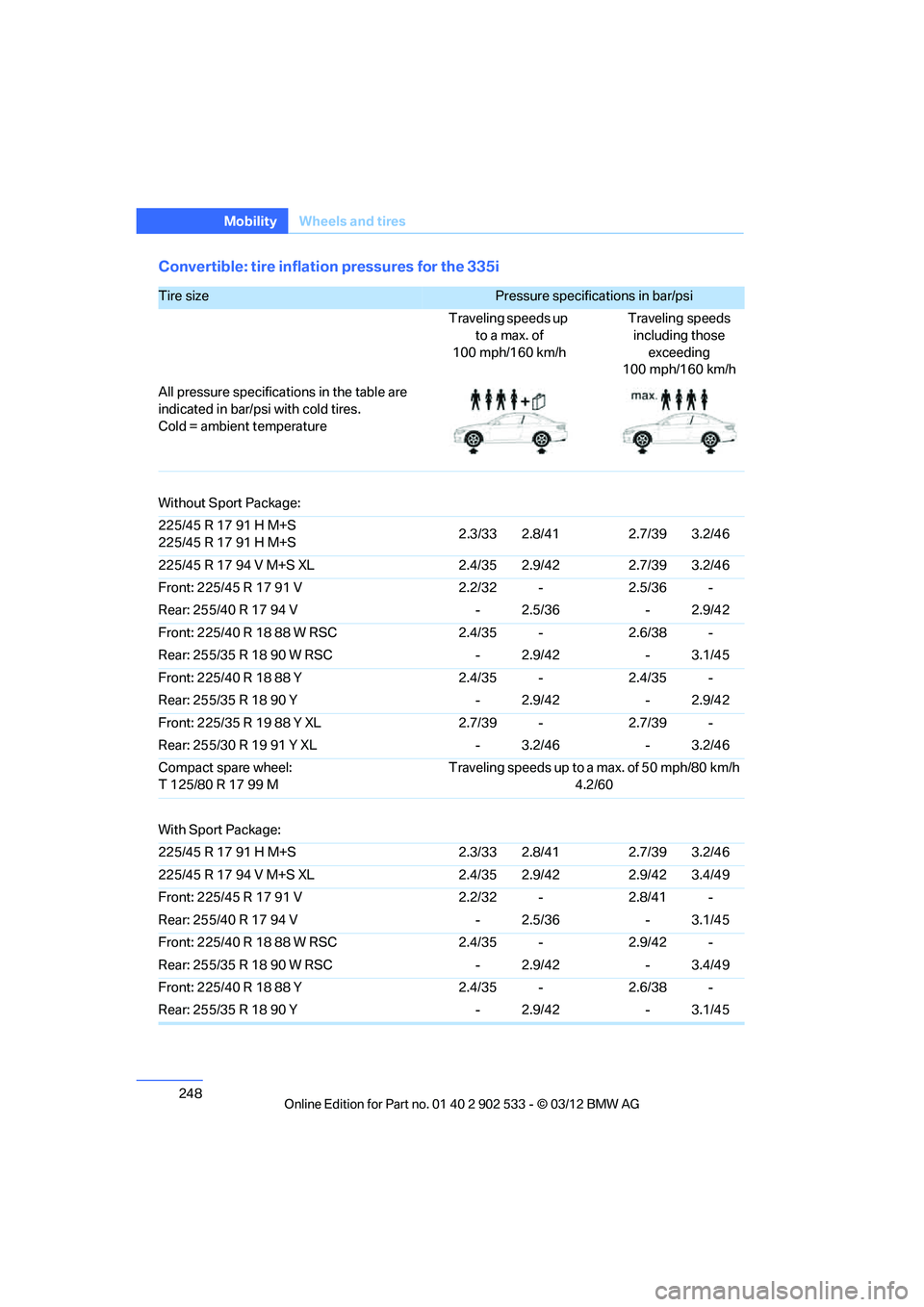

Page 249 of 308
248
MobilityWheels and tires
Convertible: tire inflation pressures for the 335i
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S
225/45 R 17 91 H M+S 2.3/33 2.8/41 2.7/39 3.2/46
225/45 R 17 94 V M+S XL 2.4/35 2.9/42 2.7/39 3.2/46
Front: 225/45 R 17 91 V 2.2/32 - 2.5/36 -
Rear: 255/40 R 17 94 V - 2.5/36 - 2.9/42
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 W RSC - 2.9/42 - 3.1/45
Front: 225/40 R 18 88 Y 2.4/35 - 2.4/35 -
Rear: 255/35 R 18 90 Y - 2.9/42 - 2.9/42
Front: 225/35 R 19 88 Y XL 2.7/39 - 2.7/39 -
Rear: 255/30 R 19 91 Y XL - 3.2/46 - 3.2/46
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
With Sport Package:
225/45 R 17 91 H M+S 2.3/33 2.8/41 2.7/39 3.2/46
225/45 R 17 94 V M+S XL 2.4/35 2.9/42 2.9/42 3.4/49
Front: 225/45 R 17 91 V 2.2/32 - 2.8/41 -
Rear: 255/40 R 17 94 V - 2.5/36 - 3.1/45
Front: 225/40 R 18 88 W RSC 2.4/35 - 2.9/42 -
Rear: 255/35 R 18 90 W RSC - 2.9/42 - 3.4/49
Front: 225/40 R 18 88 Y 2.4/35 - 2.6/38 -
Rear: 255/35 R 18 90 Y - 2.9/42 - 3.1/45
00320051004F004C00510048000300280047004C0057004C005200510003

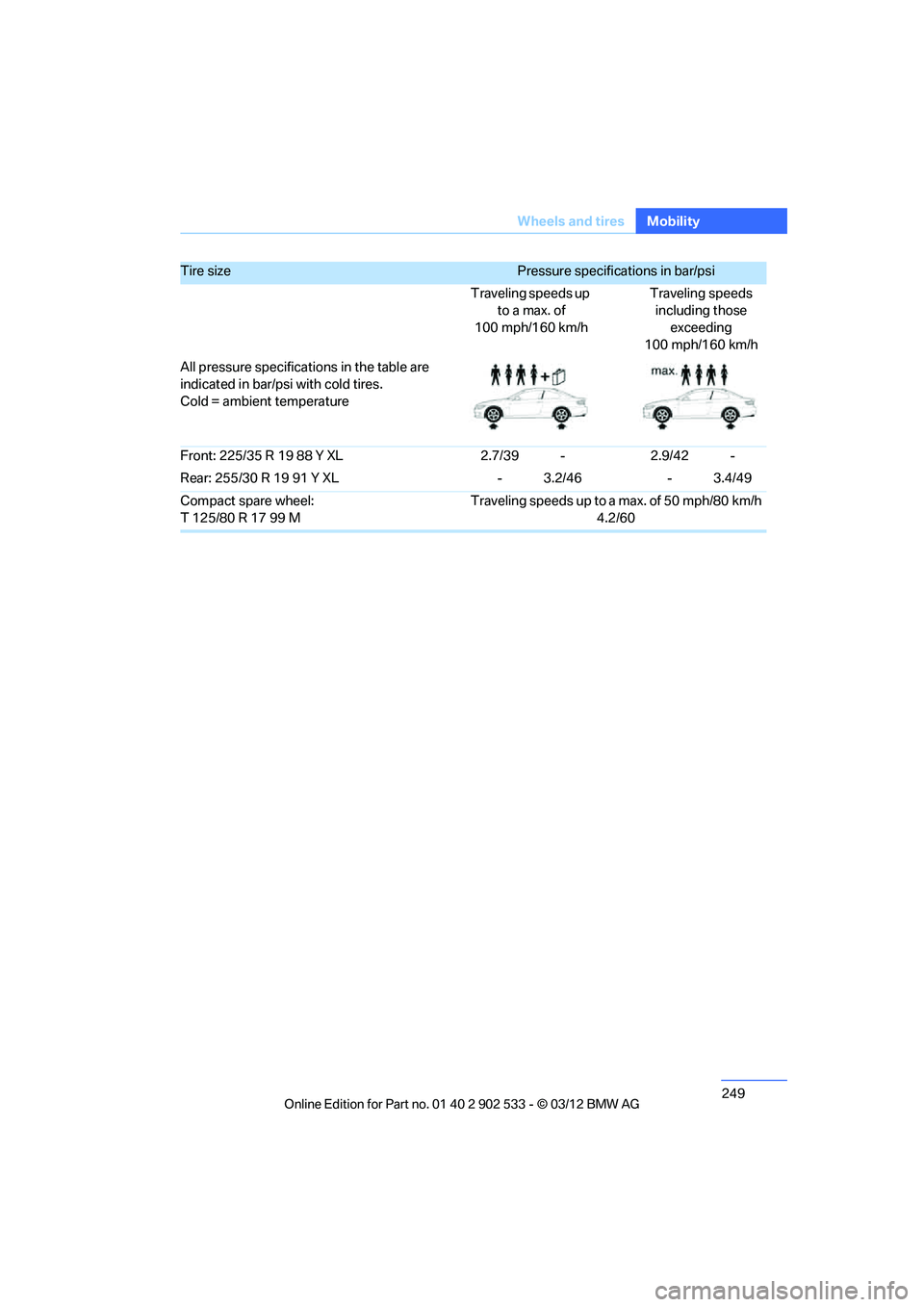

Page 250 of 308
249
Wheels and tires
Mobility
Front: 225/35 R 19 88 Y XL
2.7/39 -2.9/42 -
Rear: 255/30 R 19 91 Y XL - 3.2/46- 3.4/49
Compact spare wheel:
T 125/80 R 17 99 M Traveling speeds up to a max. of 50 mph/80 km/h
4.2/60
Tire size Pressure specifications in bar/psi
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in bar/psi with cold tires.
Cold = ambient temperature
