adding oil BMW 335XI CONVERTIBLE 2008 E93 Owner's Manual

Mobility
225Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Important parts of the engine compartment
1Expansion tank for coolant, refer to
page227
2Washer fluid filler neck for headlamp clean-
ing system and window washer system,
refer to page653Jump-starting connection, refer to
page237
4Filler neck for engine oil, refer to Adding
engine oil
Engine oil
The engine oil consumption is dependent on
driving style and driving conditions.
Checking oil level
Your car is equipped with an electronic oil-level
monitor.
For a precise measurement and display of the
oil level, it is necessary that the engine be at
operating temperature, i.e. after uninterrupted
driving for at least approx. 6.5 miles/10 km. You
can have the oil level displayed while you are
driving, or while the vehicle is at a standstill on a
level surface and the engine is running.
Display in the instrument cluster
1.Push button 1 in the turn indicator lever up
or down repeatedly until the appropriate
symbol is shown in the display, accompa-
nied by the word "OIL".
2.Press button 2 in the turn indicator lever.
The oil level is checked and the reading dis-
played.

Under the hood
226

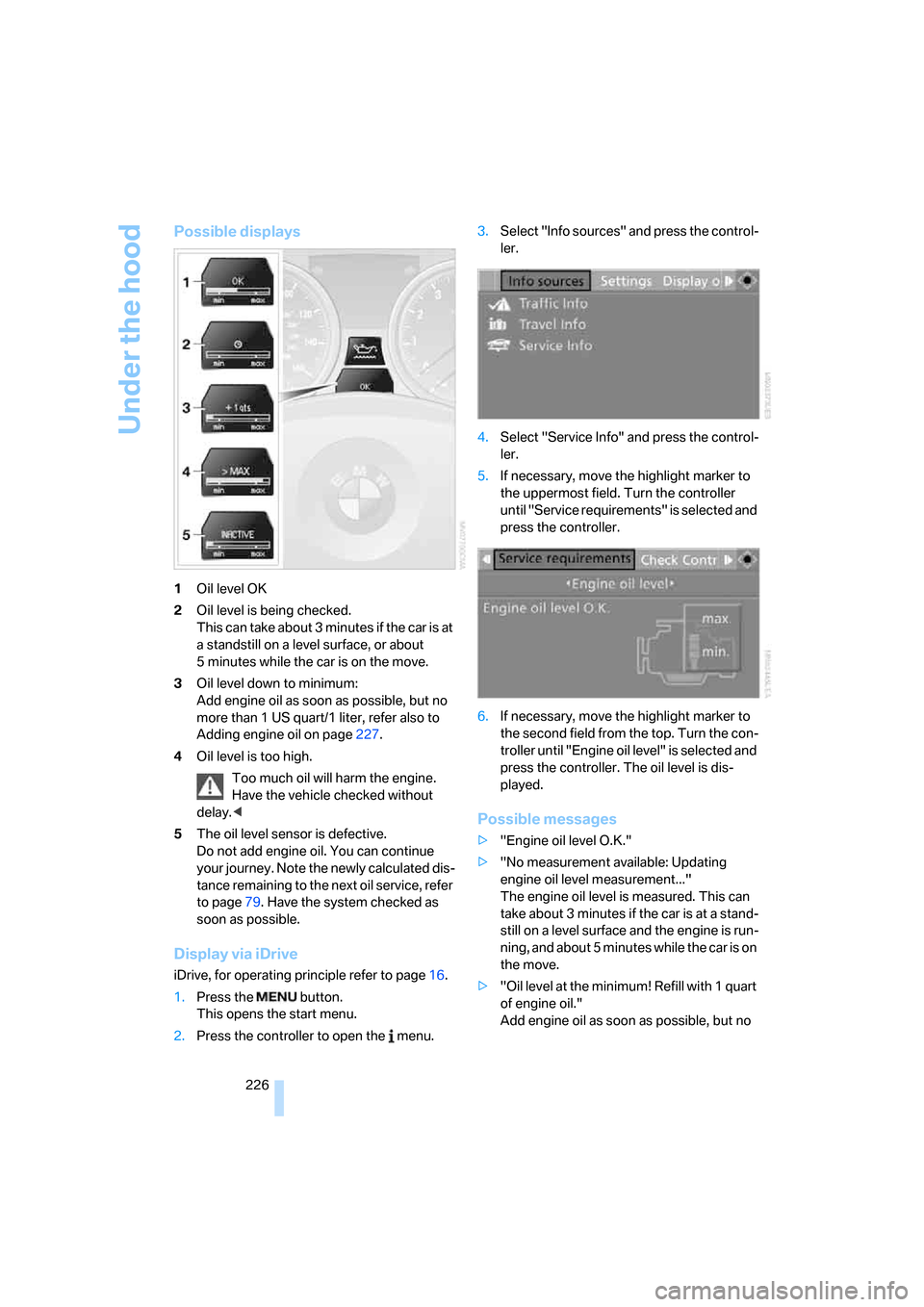

Possible displays
1Oil level OK
2Oil level is being checked.
This can take about 3 minutes if the car is at
a standstill on a level surface, or about
5 minutes while the car is on the move.
3Oil level down to minimum:
Add engine oil as soon as possible, but no
more than 1 US quart/1 liter, refer also to
Adding engine oil on page227.
4Oil level is too high.
Too much oil will harm the engine.
Have the vehicle checked without
delay.<
5The oil level sensor is defective.
Do not add engine oil. You can continue
your journey. Note the newly calculated dis-
tance remaining to the next oil service, refer
to page79. Have the system checked as
soon as possible.
Display via iDrive
iDrive, for operating principle refer to page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.3.Select "Info sources" and press the control-
ler.
4.Select "Service Info" and press the control-
ler.
5.If necessary, move the highlight marker to
the uppermost field. Turn the controller
until "Service requirements" is selected and
press the controller.
6.If necessary, move the highlight marker to
the second field from the top. Turn the con-
troller until "Engine oil level" is selected and
press the controller. The oil level is dis-
played.
Possible messages
>"Engine oil level O.K."
>"No measurement available: Updating
engine oil level measurement..."
The engine oil level is measured. This can
take about 3 minutes if the car is at a stand-
still on a level surface and the engine is run-
ning, and about 5 minutes while the car is on
the move.
>"Oil level at the minimum! Refill with 1 quart
of engine oil."
Add engine oil as soon as possible, but no

Mobility
227Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

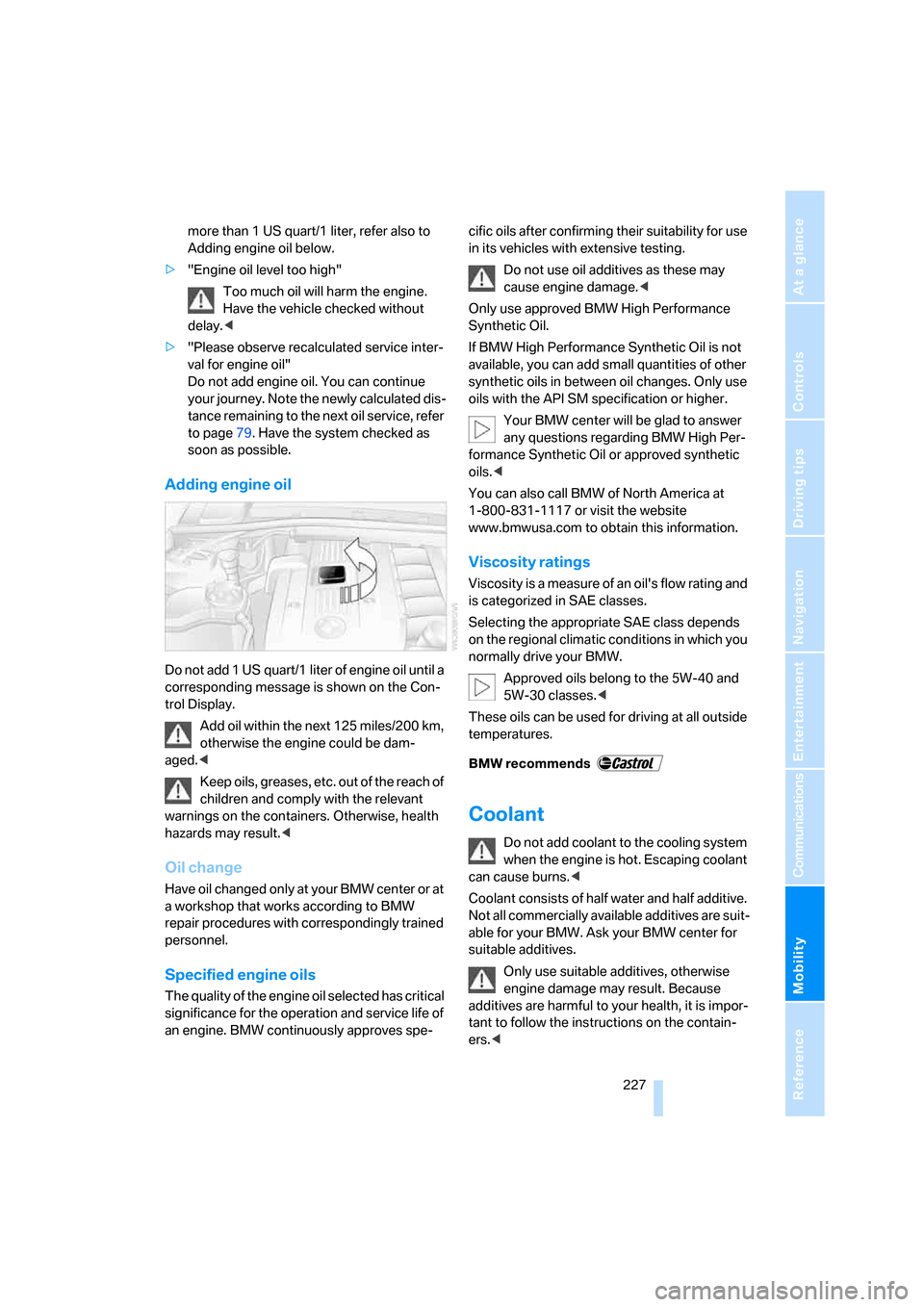

more than 1 US quart/1 liter, refer also to
Adding engine oil below.
>"Engine oil level too high"
Too much oil will harm the engine.
Have the vehicle checked without
delay.<
>"Please observe recalculated service inter-
val for engine oil"
Do not add engine oil. You can continue
your journey. Note the newly calculated dis-
tance remaining to the next oil service, refer
to page79. Have the system checked as
soon as possible.
Adding engine oil
Do not add 1 US quart/1 liter of engine oil until a
corresponding message is shown on the Con-
trol Display.
Add oil within the next 125 miles/200 km,
otherwise the engine could be dam-
aged.<
Keep oils, greases, etc. out of the reach of
children and comply with the relevant
warnings on the containers. Otherwise, health
hazards may result.<
Oil change
Have oil changed only at your BMW center or at
a workshop that works according to BMW
repair procedures with correspondingly trained
personnel.
Specified engine oils
The quality of the engine oil selected has critical
significance for the operation and service life of
an engine. BMW continuously approves spe-cific oils after confirming their suitability for use
in its vehicles with extensive testing.
Do not use oil additives as these may
cause engine damage.<
Only use approved BMW High Performance
Synthetic Oil.
If BMW High Performance Synthetic Oil is not
available, you can add small quantities of other
synthetic oils in between oil changes. Only use
oils with the API SM specification or higher.
Your BMW center will be glad to answer
any questions regarding BMW High Per-
formance Synthetic Oil or approved synthetic
oils.<
You can also call BMW of North America at
1-800-831-1117 or visit the website
www.bmwusa.com to obtain this information.
Viscosity ratings
Viscosity is a measure of an oil's flow rating and
is categorized in SAE classes.
Selecting the appropriate SAE class depends
on the regional climatic conditions in which you
normally drive your BMW.
Approved oils belong to the 5W-40 and
5W-30 classes.<
These oils can be used for driving at all outside
temperatures.
Coolant
Do not add coolant to the cooling system
when the engine is hot. Escaping coolant
can cause burns.<
Coolant consists of half water and half additive.
Not all commercially available additives are suit-
able for your BMW. Ask your BMW center for
suitable additives.
Only use suitable additives, otherwise
engine damage may result. Because
additives are harmful to your health, it is impor-
tant to follow the instructions on the contain-
ers.<

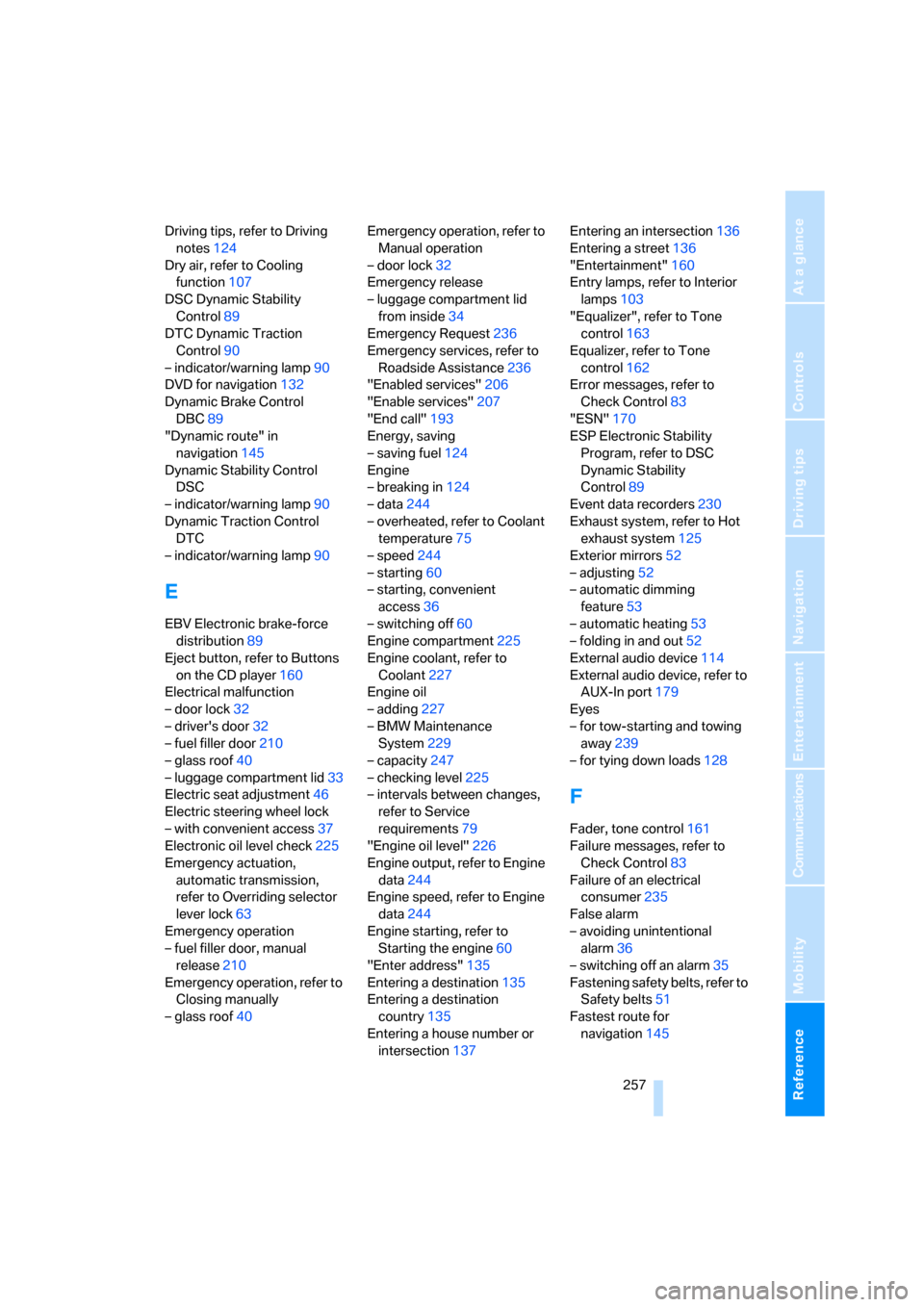

Reference 257
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Driving tips, refer to Driving
notes124
Dry air, refer to Cooling
function107
DSC Dynamic Stability
Control89
DTC Dynamic Traction
Control90
– indicator/warning lamp90
DVD for navigation132
Dynamic Brake Control
DBC89
"Dynamic route" in
navigation145
Dynamic Stability Control
DSC
– indicator/warning lamp90
Dynamic Traction Control
DTC
– indicator/warning lamp90
E
EBV Electronic brake-force
distribution89
Eject button, refer to Buttons
on the CD player160
Electrical malfunction
– door lock32
– driver's door32
– fuel filler door210
– glass roof40
– luggage compartment lid33
Electric seat adjustment46
Electric steering wheel lock
– with convenient access37
Electronic oil level check225
Emergency actuation,
automatic transmission,
refer to Overriding selector
lever lock63
Emergency operation
– fuel filler door, manual
release210
Emergency operation, refer to
Closing manually
– glass roof40Emergency operation, refer to
Manual operation
– door lock32
Emergency release
– luggage compartment lid
from inside34
Emergency Request236
Emergency services, refer to
Roadside Assistance236
"Enabled services"206
"Enable services"207
"End call"193
Energy, saving
– saving fuel124
Engine
– breaking in124
– data244
– overheated, refer to Coolant
temperature75
– speed244
– starting60
– starting, convenient
access36
– switching off60
Engine compartment225
Engine coolant, refer to
Coolant227
Engine oil
– adding227
– BMW Maintenance
System229
– capacity247
– checking level225
– intervals between changes,
refer to Service
requirements79
"Engine oil level"226
Engine output, refer to Engine
data244
Engine speed, refer to Engine
data244
Engine starting, refer to
Starting the engine60
"Enter address"135
Entering a destination135
Entering a destination
country135
Entering a house number or
intersection137Entering an intersection136
Entering a street136
"Entertainment"160
Entry lamps, refer to Interior
lamps103
"Equalizer", refer to Tone
control163
Equalizer, refer to Tone
control162
Error messages, refer to
Check Control83
"ESN"170
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control89
Event data recorders230
Exhaust system, refer to Hot
exhaust system125
Exterior mirrors52
– adjusting52
– automatic dimming
feature53
– automatic heating53
– folding in and out52
External audio device114
External audio device, refer to
AUX-In port179
Eyes
– for tow-starting and towing
away239
– for tying down loads128
F
Fader, tone control161
Failure messages, refer to
Check Control83
Failure of an electrical
consumer235
False alarm
– avoiding unintentional
alarm36
– switching off an alarm35
Fastening safety belts, refer to
Safety belts51
Fastest route for
navigation145
