BMW 4.8I 2008 Owners Manual

Mobility
259Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

Reference
This chapter contains the technical data,
the short commands of the voice command
system, and the index that will direct you
as quickly as possible to the information
you are looking for.
Reference

Technical data
262

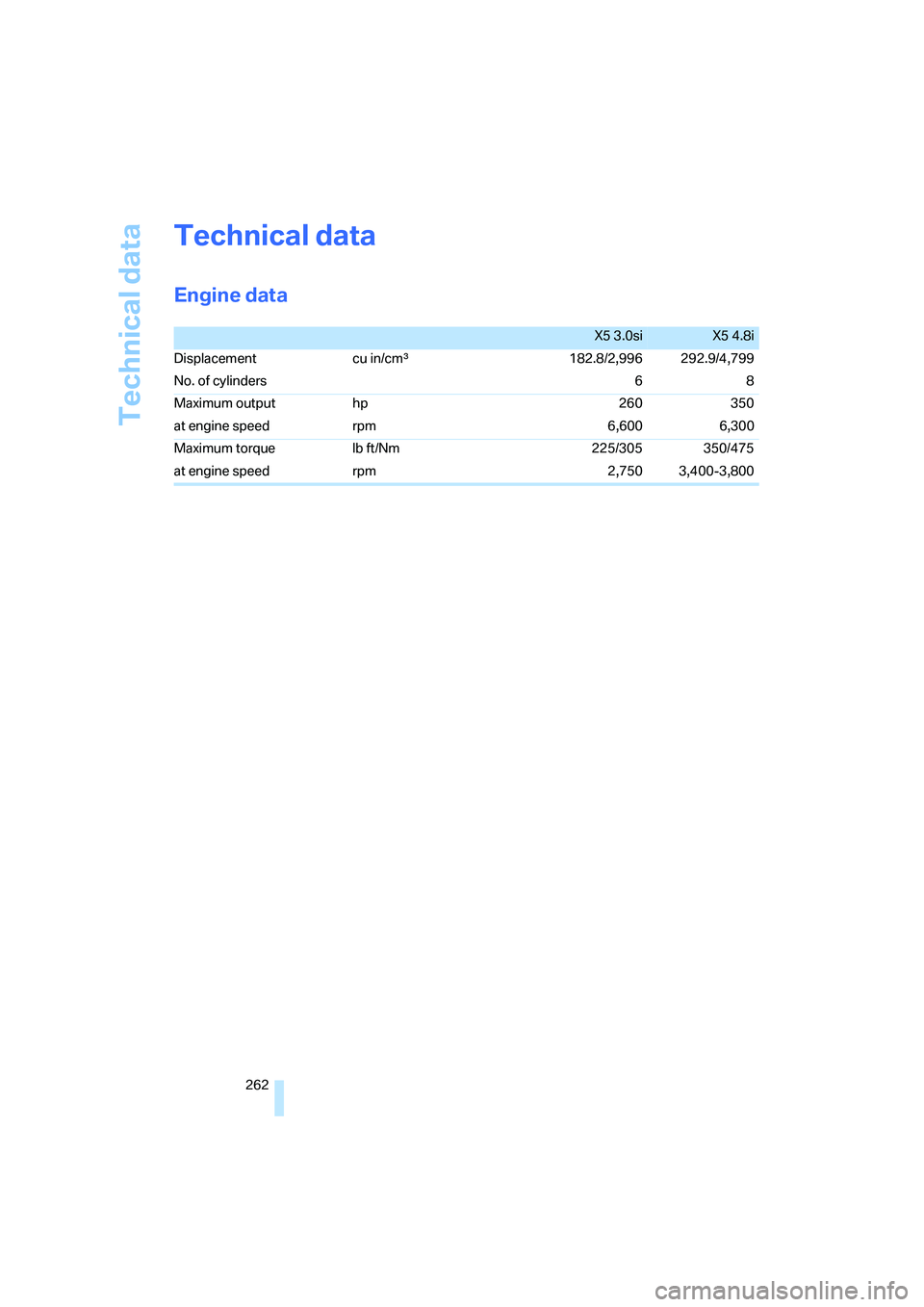

Technical data
Engine data
X5 3.0siX5 4.8i
Displacement cu in/cmμ182.8/2,996 292.9/4,799
No. of cylinders 6 8
Maximum output hp 260 350
at engine speed rpm 6,600 6,300
Maximum torque lb ft/Nm 225/305 350/475
at engine speed rpm 2,750 3,400-3,800

Reference 263
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

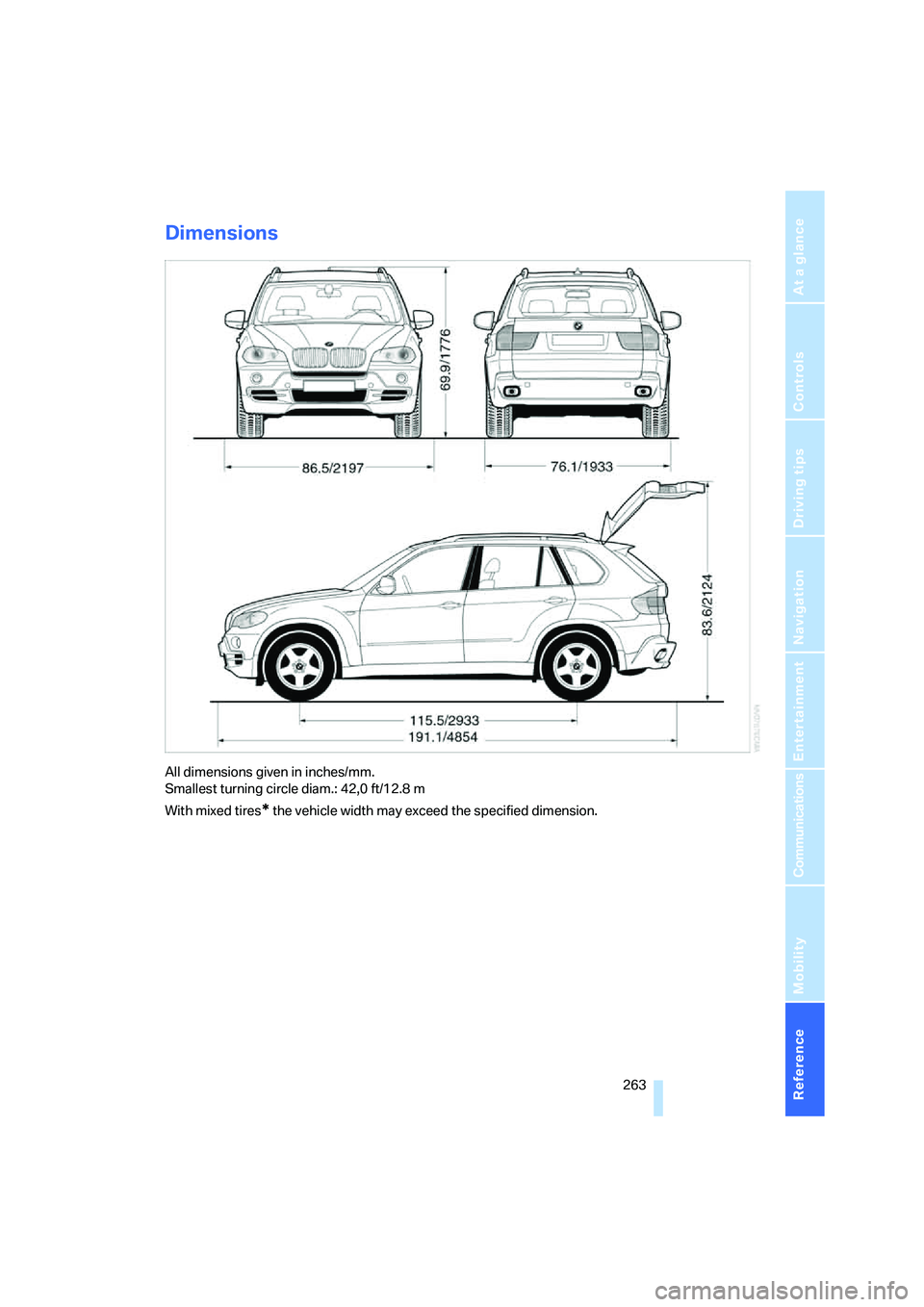

Dimensions
All dimensions given in inches/mm.
Smallest turning circle diam.: 42,0 ft/12.8 m
With mixed tires
* the vehicle width may exceed the specified dimension.

Technical data
264

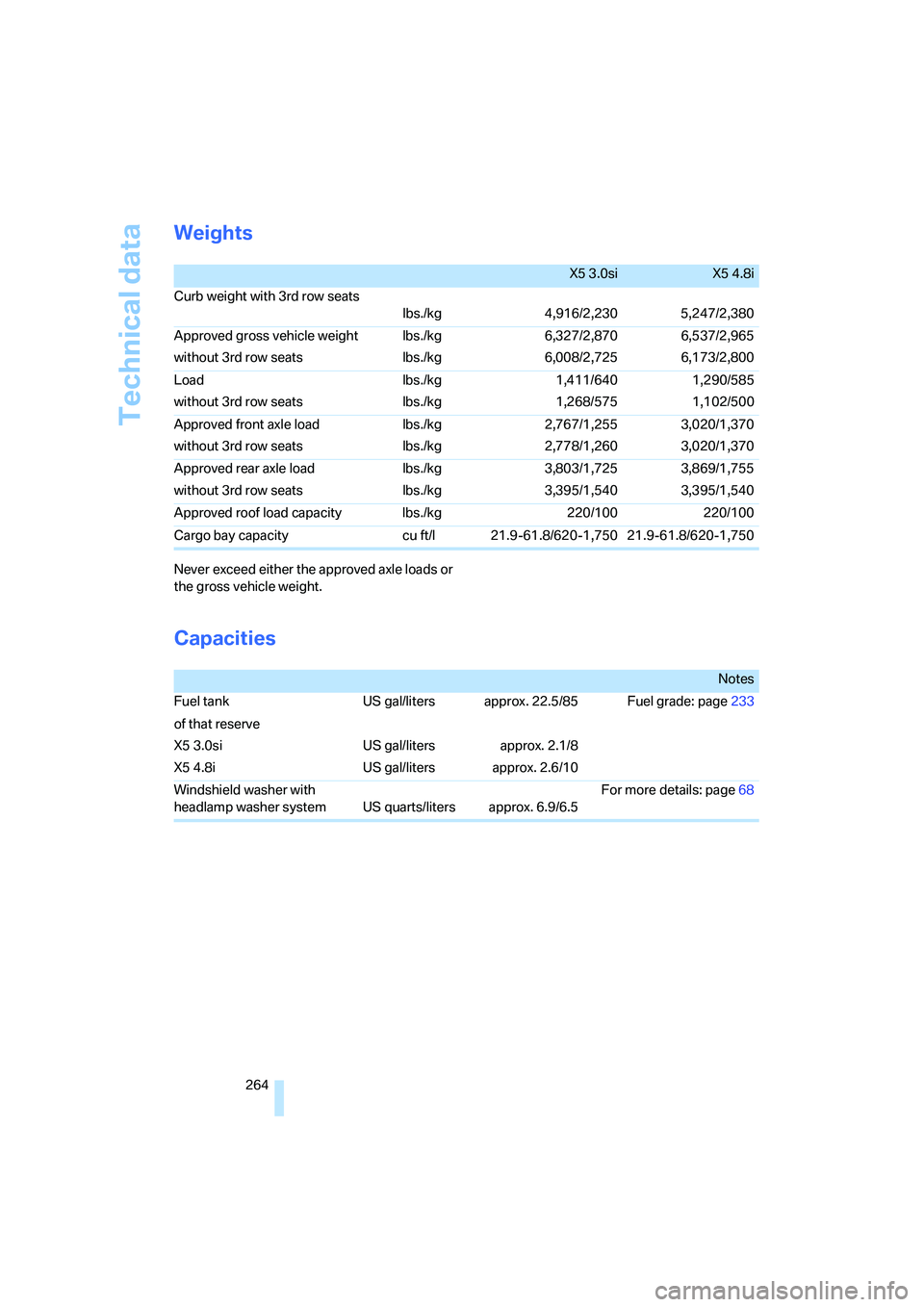

Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
X5 3.0siX5 4.8i
Curb weight with 3rd row seats
lbs./kg 4,916/2,230 5,247/2,380
Approved gross vehicle weight
without 3rd row seatslbs./kg
lbs./kg6,327/2,870
6,008/2,7256,537/2,965
6,173/2,800
Load
without 3rd row seatslbs./kg
lbs./kg1,411/640
1,268/5751,290/585
1,102/500
Approved front axle load
without 3rd row seatslbs./kg
lbs./kg2,767/1,255
2,778/1,2603,020/1,370
3,020/1,370
Approved rear axle load
without 3rd row seatslbs./kg
lbs./kg3,803/1,725
3,395/1,5403,869/1,755
3,395/1,540
Approved roof load capacity lbs./kg 220/100 220/100
Cargo bay capacity cu ft/l 21.9-61.8/620-1,750 21.9-61.8/620-1,750
Notes
Fuel tank US gal/liters approx. 22.5/85 Fuel grade: page233
of that reserve
X5 3.0si
X5 4.8iUS gal/liters
US gal/litersapprox. 2.1/8
approx. 2.6/10
Windshield washer with
headlamp washer system US quarts/liters approx. 6.9/6.5For more details: page68

Reference 265
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

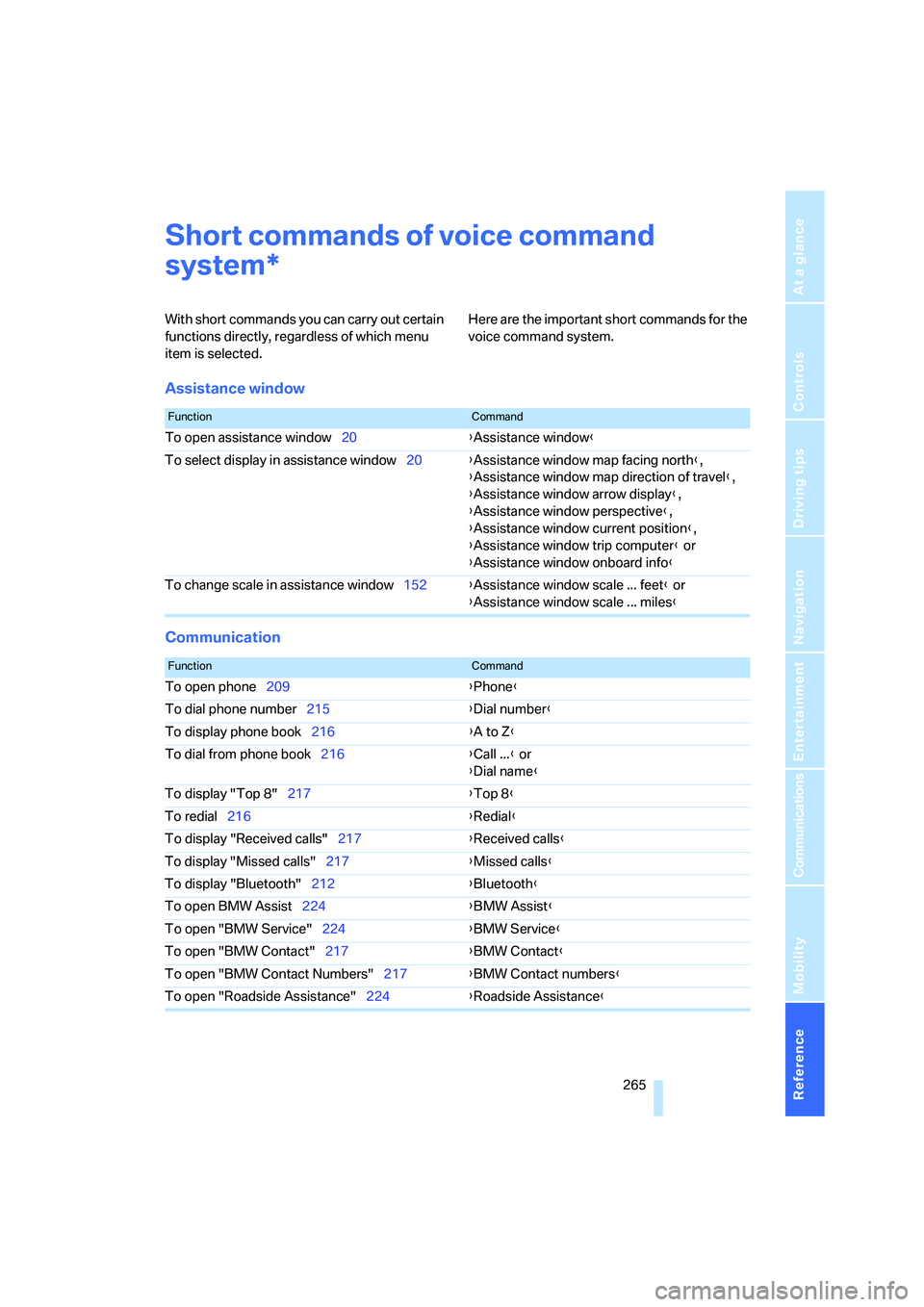

Short commands of voice command
system
With short commands you can carry out certain
functions directly, regardless of which menu
item is selected. Here are the important short commands for the
voice command system.
Assistance window
Communication
*
FunctionCommand
To open assistance window20{Assistance window}
To select display in assistance window20{Assistance window map facing north},
{Assistance window map direction of travel},
{Assistance window arrow display},
{Assistance window perspective},
{Assistance window current position},
{Assistance window trip computer} or
{Assistance window onboard info}
To change scale in assistance window152{Assistance window scale ... feet} or
{Assistance window scale ... miles}
FunctionCommand
To open phone209{Phone}
To dial phone number215{Dial number}
To display phone book216{A to Z}
To dial from phone book216{Call ...} or
{Dial name}
To display "Top 8"217{Top 8}
To redial216{Redial}
To display "Received calls"217{Received calls}
To display "Missed calls"217{Missed calls}
To display "Bluetooth"212{Bluetooth}
To open BMW Assist224{BMW Assist}
To open "BMW Service"224{BMW Service}
To open "BMW Contact"217{BMW Contact}
To open "BMW Contact Numbers"217{BMW Contact numbers}
To open "Roadside Assistance"224{Roadside Assistance}

Short commands of voice command system
266

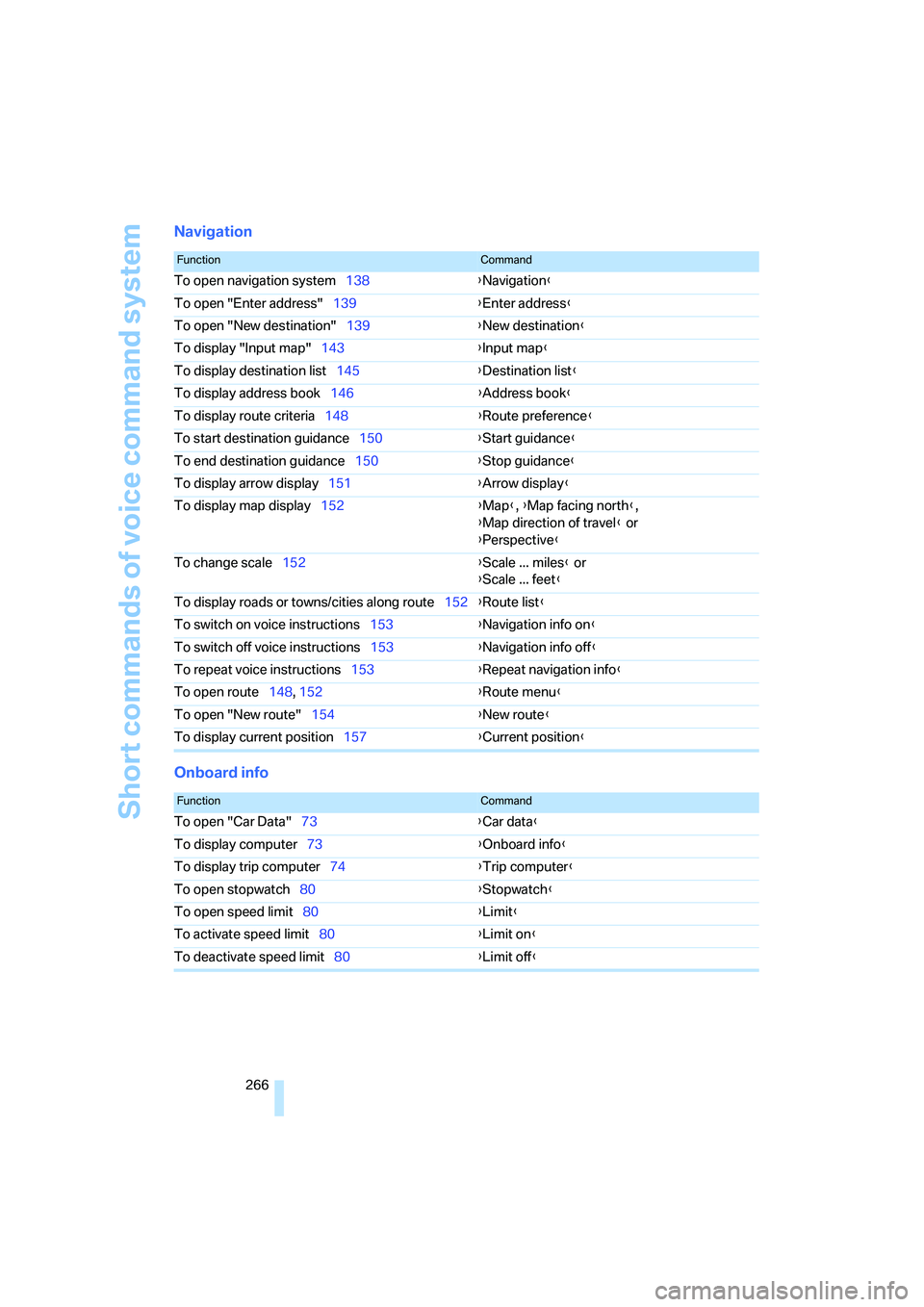

Navigation
Onboard info
FunctionCommand
To open navigation system138{Navigation}
To open "Enter address"139{Enter address}
To open "New destination"139{New destination}
To display "Input map"143{Input map}
To display destination list145{Destination list}
To display address book146{Address book}
To display route criteria148{Route preference}
To start destination guidance150{Start guidance}
To end destination guidance150{Stop guidance}
To display arrow display151{Arrow display}
To display map display152{Map}, {Map facing north},
{Map direction of travel} or
{Perspective}
To change scale152{Scale ... miles} or
{Scale ... feet}
To display roads or towns/cities along route152{Route list}
To switch on voice instructions153{Navigation info on}
To switch off voice instructions153{Navigation info off}
To repeat voice instructions153{Repeat navigation info}
To open route148, 152
{Route menu}
To open "New route"154{New route}
To display current position157{Current position}
FunctionCommand
To open "Car Data"73{Car data}
To display computer73{Onboard info}
To display trip computer74{Trip computer}
To open stopwatch80{Stopwatch}
To open speed limit80{Limit}
To activate speed limit80{Limit on}
To deactivate speed limit80{Limit off}

Reference 267
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

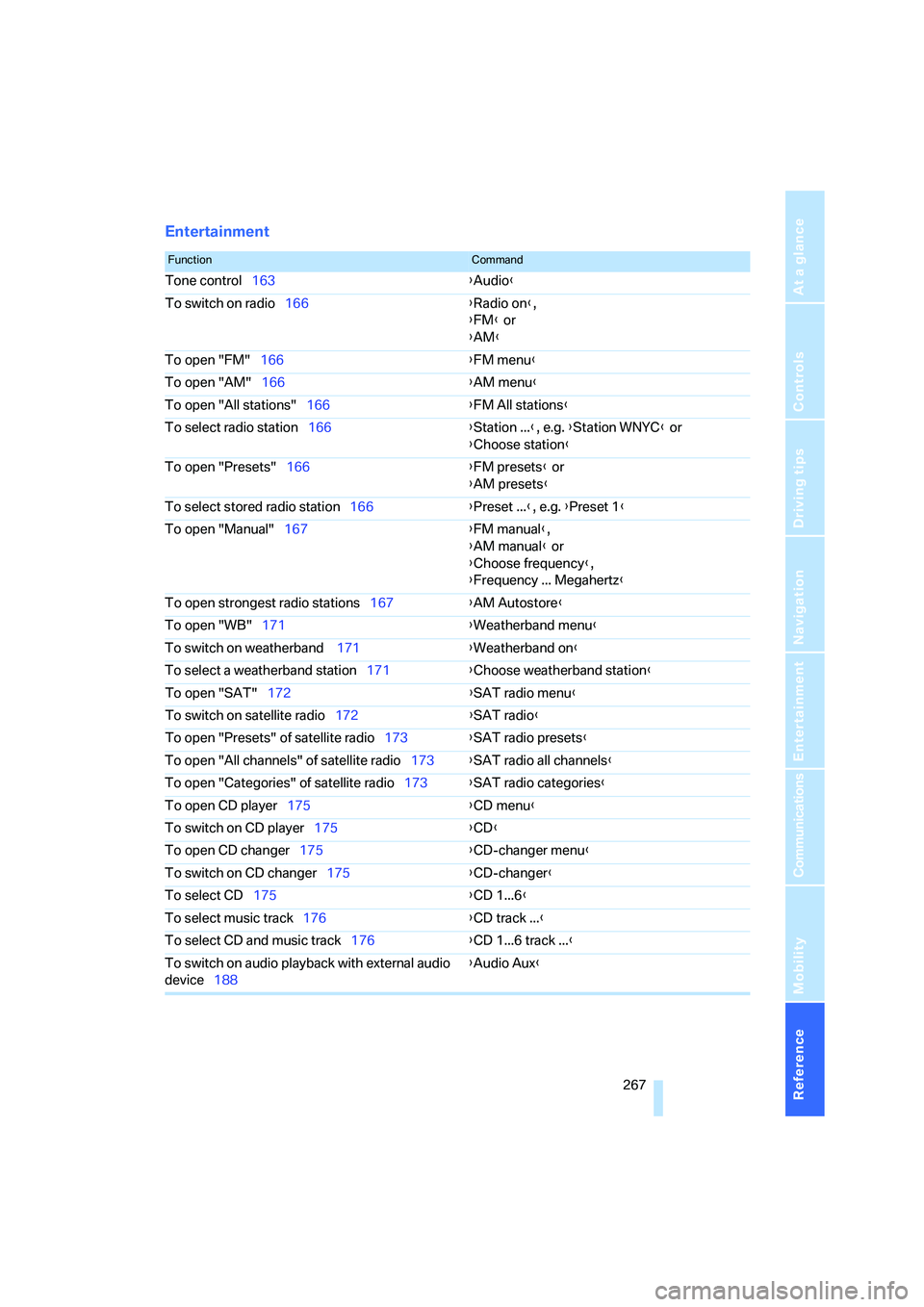

Entertainment
FunctionCommand
Tone control163{Audio}
To switch on radio166{Radio on},
{FM} or
{AM}
To open "FM"166{FM menu}
To open "AM"166{AM menu}
To open "All stations"166{FM All stations}
To select radio station166{Station ...}, e.g. {Station WNYC} or
{Choose station}
To open "Presets"166{FM presets} or
{AM presets}
To select stored radio station166{Preset ...}, e.g. {Preset 1}
To open "Manual"167{FM manual},
{AM manual} or
{Choose frequency},
{Frequency ... Megahertz}
To open strongest radio stations167{AM Autostore}
To open "WB"171{Weatherband menu}
To switch on weatherband 171{Weatherband on}
To select a weatherband station171{Choose weatherband station}
To open "SAT"172{SAT radio menu}
To switch on satellite radio172{SAT radio}
To open "Presets" of satellite radio173{SAT radio presets}
To open "All channels" of satellite radio173{SAT radio all channels}
To open "Categories" of satellite radio173{SAT radio categories}
To open CD player175{CD menu}
To switch on CD player175{CD}
To open CD changer175{CD-changer menu}
To switch on CD changer175{CD-changer}
To select CD175{CD 1...6}
To select music track176{CD track ...}
To select CD and music track176{CD 1...6 track ...}
To switch on audio playback with external audio
device188{Audio Aux}

Short commands of voice command system
268

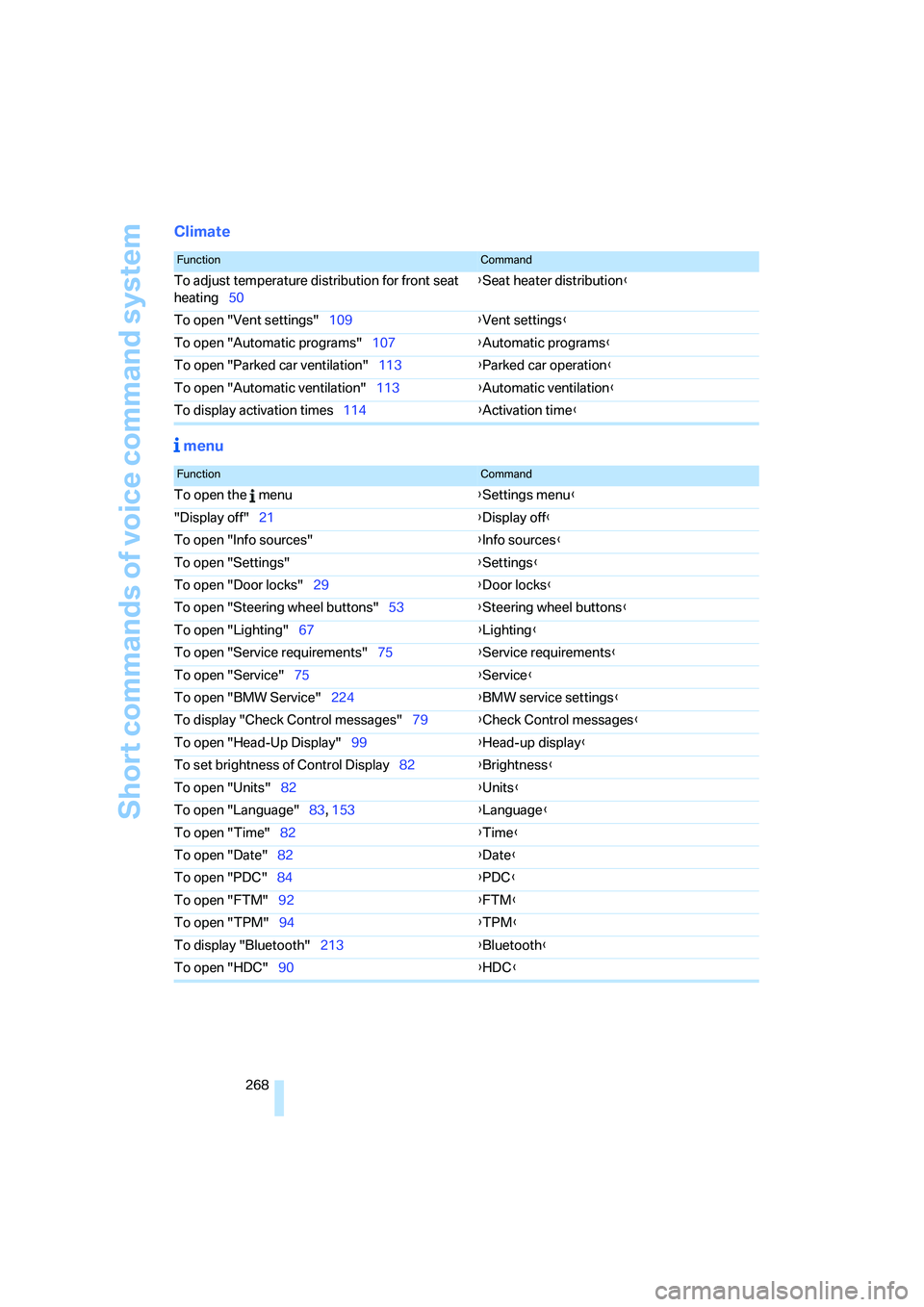

Climate
menu
FunctionCommand
To adjust temperature distribution for front seat
heating50{Seat heater distribution}
To open "Vent settings"109{Vent settings}
To open "Automatic programs"107{Automatic programs}
To open "Parked car ventilation"113{Parked car operation}
To open "Automatic ventilation"113{Automatic ventilation}
To display activation times114{Activation time}
FunctionCommand
To open the menu{Settings menu}
"Display off"21{Display off}
To open "Info sources"{Info sources}
To open "Settings"{Settings}
To open "Door locks"29{Door locks}
To open "Steering wheel buttons"53{Steering wheel buttons}
To open "Lighting"67{Lighting}
To open "Service requirements"75{Service requirements}
To open "Service"75{Service}
To open "BMW Service"224{BMW service settings}
To display "Check Control messages"79{Check Control messages}
To open "Head-Up Display"99{Head-up display}
To set brightness of Control Display82{Brightness}
To open "Units"82{Units}
To open "Language"83, 153{Language}
To open "Time"82{Time}
To open "Date"82{Date}
To open "PDC"84{PDC}
To open "FTM"92{FTM}
To open "TPM"94{TPM}
To display "Bluetooth"213
{Bluetooth}
To open "HDC"90{HDC}
