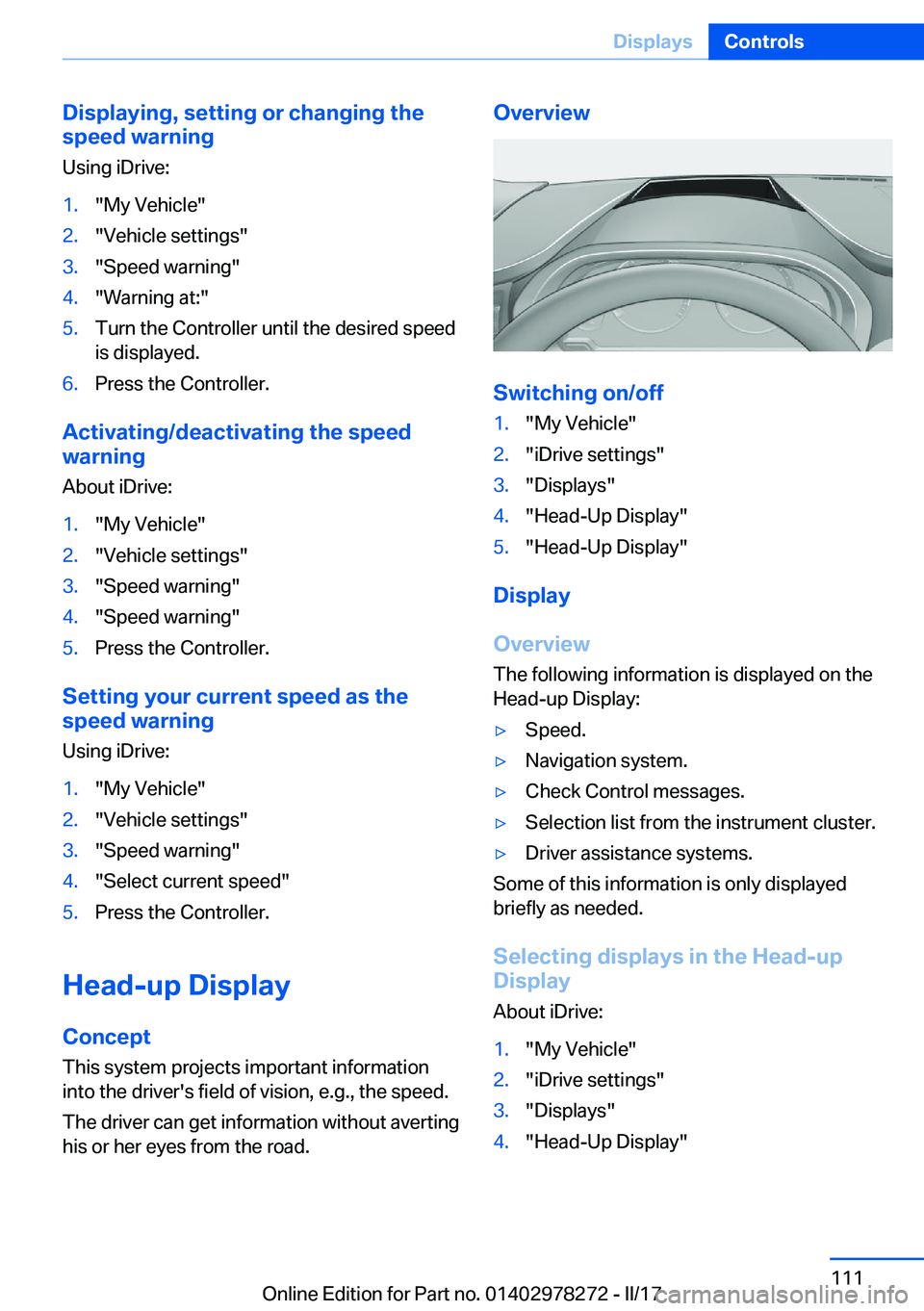

BMW 4 SERIES COUPE 2018 Owners Manual

Displaying,
setting
or
changing
the
speed
warning
Using iDrive:1."My Vehicle"2."Vehicle settings"3."Speed warning"4."Warning at:"5.Turn the Controller until the desired speed is displayed.6.Press the Controller.
Activating/deactivating
the
speed
warning
About iDrive:
1."My Vehicle"2."Vehicle settings"3."Speed warning"4."Speed warning"5.Press the Controller.
Setting
your
current
speed
as
the
speed
warning
Using iDrive:
1."My Vehicle"2."Vehicle settings"3."Speed warning"4."Select current speed"5.Press the Controller.
Head-up
Display
Concept
This system projects important information
into the driver's field of vision, e.g., the speed.
The driver can get information without averting
his or her eyes from the road.
Overview
Switching
on/off
1."My Vehicle"2."iDrive settings"3."Displays"4."Head-Up Display"5."Head-Up Display"
Display
Overview
The following information is displayed on the Head-up Display:
'ySpeed.'yNavigation system.'yCheck Control messages.'ySelection list from the instrument cluster.'yDriver assistance systems.
Some of this information is only displayedbriefly as needed.
Selecting
displays
in
the
Head-up
Display
About iDrive:
1."My Vehicle"2."iDrive settings"3."Displays"4."Head-Up Display"Seite 111DisplaysControls111
Online Edition for Part no. 01402978272 - II/17

5."Displayed information"6.Select the desired displays in the Head-upDisplay.
Settings are stored for the profile currentlyused.
Setting
the
brightness The brightness is automatically adjusted to the
ambient brightness.
The basic setting can be adjusted.
Via iDrive:
1."My Vehicle"2."iDrive settings"3."Displays"4."Head-Up Display"5."Brightness"6.Turn the controller until the desired brightj ness is set.7.Press the controller.
When the low beams are activated, the brightjness of the Head-up Display can be additionj
ally influenced using the instrument lighting.
Settings are stored for the driver profile curj rently used.
Adjusting
the
height Using iDrive:
1."My Vehicle"2."iDrive settings"3."Displays"4."Head-Up Display"5."Height"6.Turn the Controller until the desired height
is reached.7.Press the Controller.
Settings are stored for the profile currently used.
The height of the Head-up Display can also be
stored using the memory function, refer to
page 72.
Setting
the
rotation
The screen of the Head-up Display can be roj
tated around its own axis.
About iDrive:1."My Vehicle"2."iDrive settings"3."Displays"4."Head-Up Display"5."Rotation"6.Turn the Controller until the desired setj ting is selected.7.Press the Controller.
Settings are stored for the profile currentlyused.
Display
visibility The visibility of the displays in the Head-up
Display is influenced by the following factors:
'yCertain sitting positions.'yObjects on the cover of the Head-up Disj
play.'ySunglasses with certain polarization filters.'yWet roads.'yUnfavorable light conditions.
If the image is distorted, have the basic setj tings checked by a dealerss service center or
another qualified service center or repair shop.
Follow the instructions for cleaning the Head- up Display, refer to page 261.
Special
windshield The windshield is part of the system.
The shape of the windshield makes it possible
to display a precise image.
A film in the windshield prevents double imj
ages from being displayed.
Seite 112ControlsDisplays112
Online Edition for Part no. 01402978272 - II/17

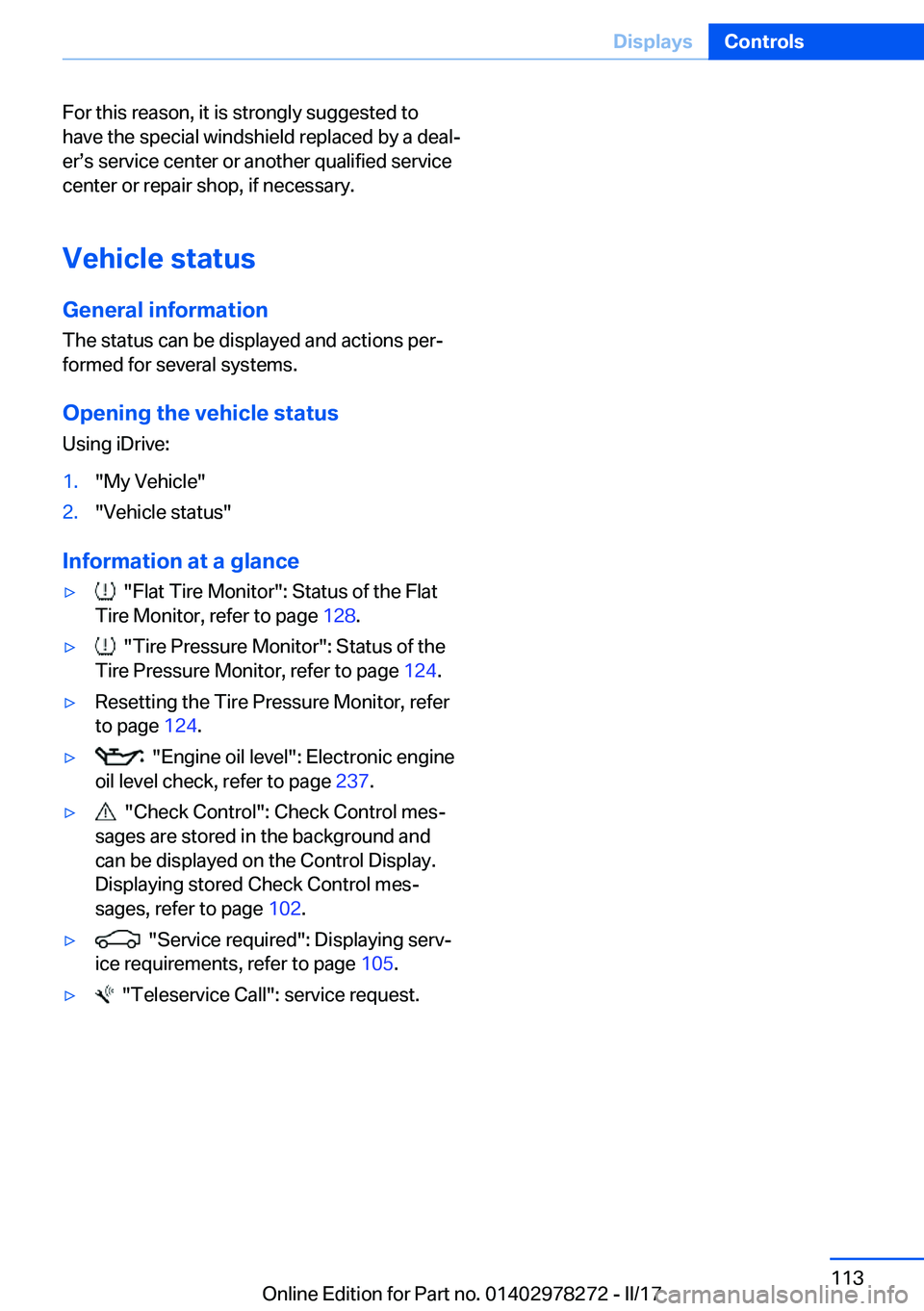

For this reason, it is strongly suggested tohave the special windshield replaced by a dealj
erss service center or another qualified service center or repair shop, if necessary.
Vehicle
status
General
information
The status can be displayed and actions perj
formed for several systems.
Opening
the
vehicle
status
Using iDrive:1."My Vehicle"2."Vehicle status"
Information
at
a
glance
'y "Flat Tire Monitor": Status of the Flat
Tire Monitor, refer to page 128.'y "Tire Pressure Monitor": Status of the
Tire Pressure Monitor, refer to page 124.'yResetting the Tire Pressure Monitor, refer
to page 124.'y "Engine oil level": Electronic engine
oil level check, refer to page 237.'y "Check Control": Check Control mesj
sages are stored in the background and
can be displayed on the Control Display.
Displaying stored Check Control mesj
sages, refer to page 102.'y "Service required": Displaying servj
ice requirements, refer to page 105.'y "Teleservice Call": service request.Seite 113DisplaysControls113
Online Edition for Part no. 01402978272 - II/17

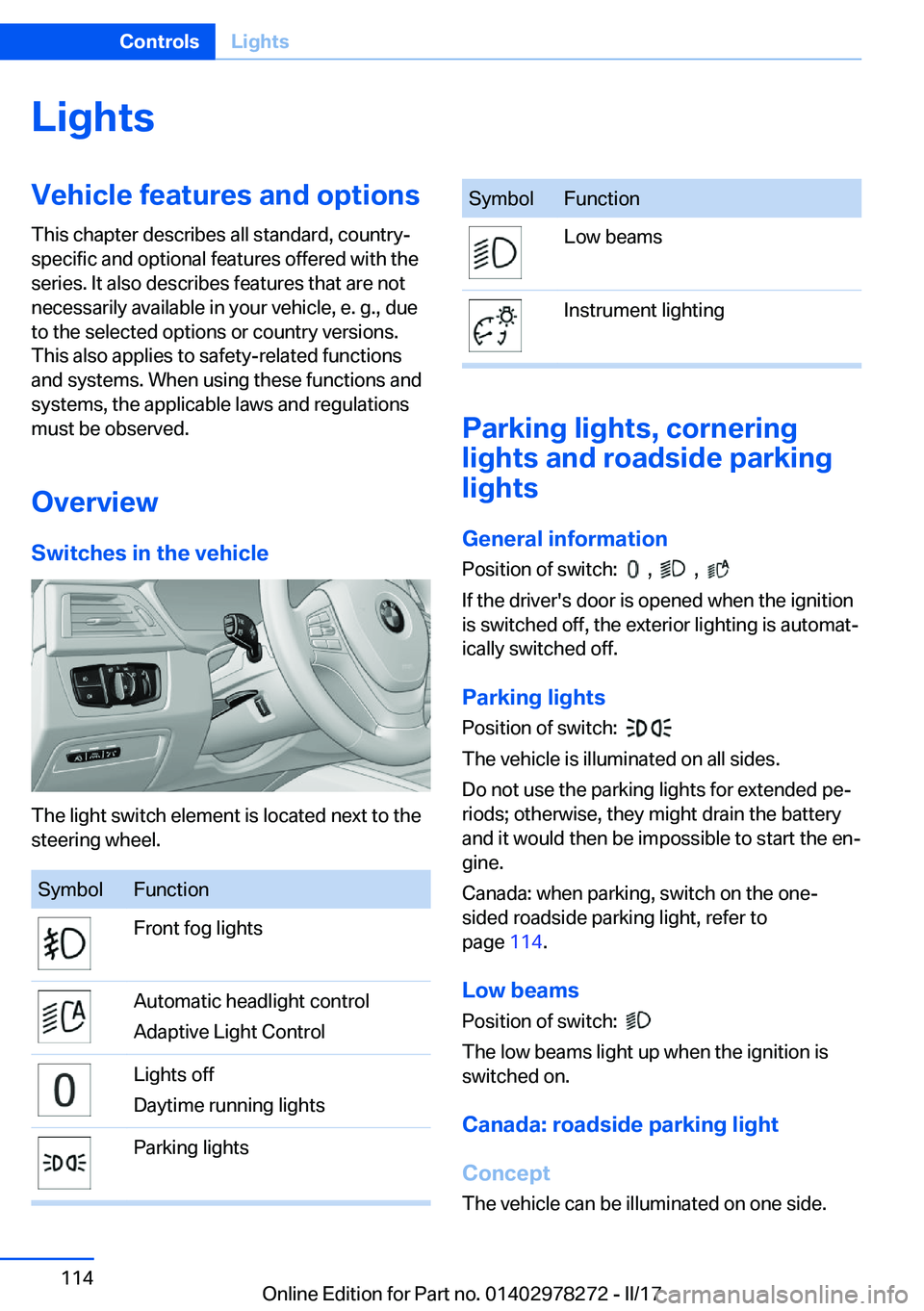

LightsVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Overview Switches
in
the
vehicle
The light switch element is located next to the
steering wheel.
SymbolFunctionFront fog lightsAutomatic headlight control
Adaptive Light ControlLights off
Daytime running lightsParking lightsSymbolFunctionLow beamsInstrument lighting
Parking
lights,
cornering
lights
and
roadside
parking
lights
General
information Position of switch:
, ,
If the driver's door is opened when the ignition is switched off, the exterior lighting is automatj
ically switched off.
Parking
lights
Position of switch:

The vehicle is illuminated on all sides.
Do not use the parking lights for extended pej
riods; otherwise, they might drain the battery
and it would then be impossible to start the enj
gine.
Canada: when parking, switch on the one- sided roadside parking light, refer to
page 114.
Low
beams Position of switch:

The low beams light up when the ignition is
switched on.
Canada:
roadside
parking
light
Concept
The vehicle can be illuminated on one side.
Seite 114ControlsLights114
Online Edition for Part no. 01402978272 - II/17

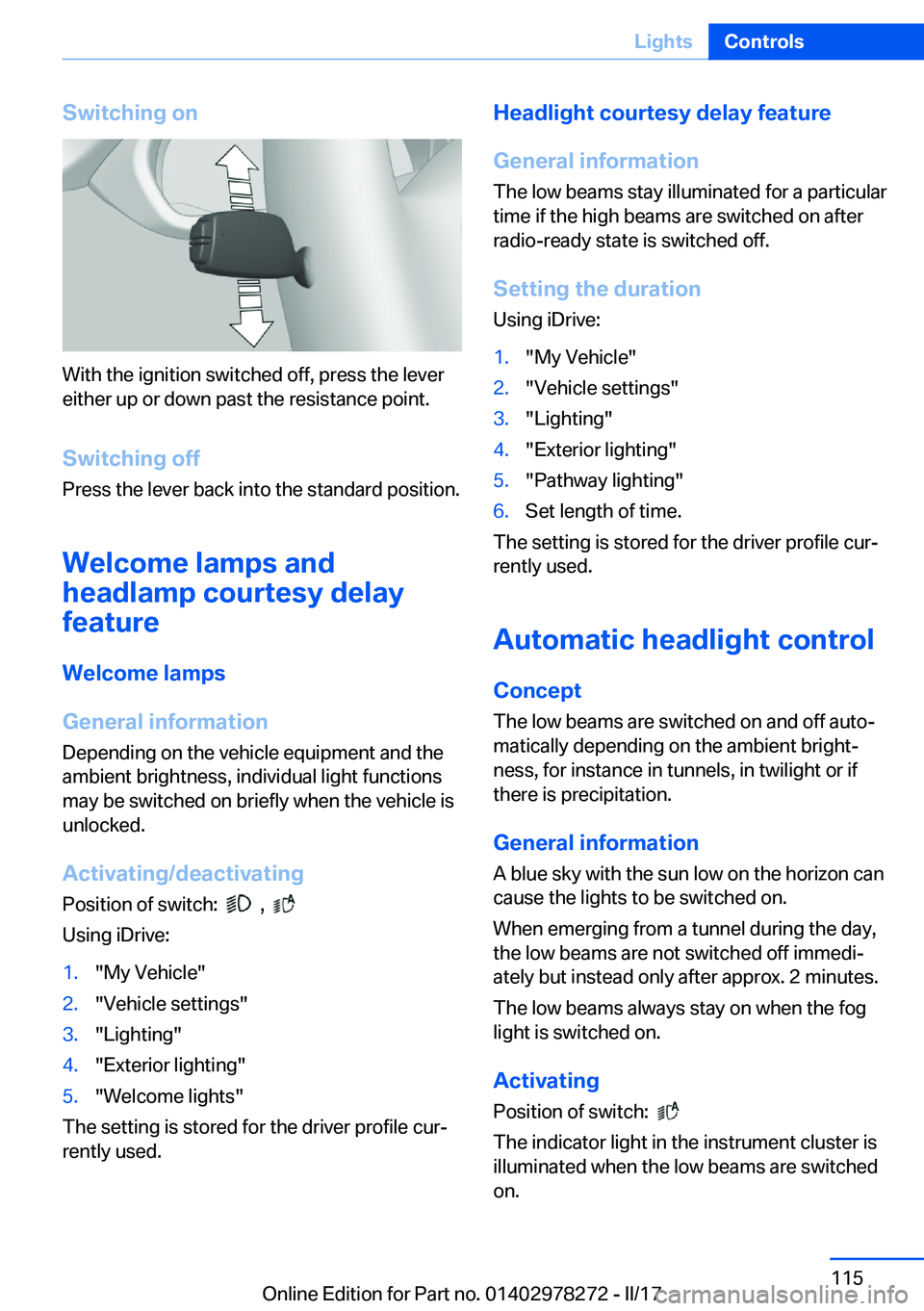

Switching
on
With the ignition switched off, press the lever
either up or down past the resistance point.
Switching
off Press the lever back into the standard position.
Welcome
lamps
and
headlamp
courtesy
delay
feature
Welcome
lamps
General
information
Depending on the vehicle equipment and the ambient brightness, individual light functions
may be switched on briefly when the vehicle is unlocked.
Activating/deactivating
Position of switch:
,
Using iDrive:
1."My Vehicle"2."Vehicle settings"3."Lighting"4."Exterior lighting"5."Welcome lights"
The setting is stored for the driver profile curj
rently used.
Headlight
courtesy
delay
feature
General
information
The low beams stay illuminated for a particular time if the high beams are switched on after
radio-ready state is switched off.
Setting
the
duration Using iDrive:1."My Vehicle"2."Vehicle settings"3."Lighting"4."Exterior lighting"5."Pathway lighting"6.Set length of time.
The setting is stored for the driver profile curj
rently used.
Automatic
headlight
control Concept
The low beams are switched on and off autoj matically depending on the ambient brightj
ness, for instance in tunnels, in twilight or if there is precipitation.
General
information
A blue sky with the sun low on the horizon can
cause the lights to be switched on.
When emerging from a tunnel during the day,
the low beams are not switched off immedij
ately but instead only after approx. 2 minutes.
The low beams always stay on when the fog
light is switched on.
Activating Position of switch:

The indicator light in the instrument cluster is
illuminated when the low beams are switched
on.
Seite 115LightsControls115
Online Edition for Part no. 01402978272 - II/17

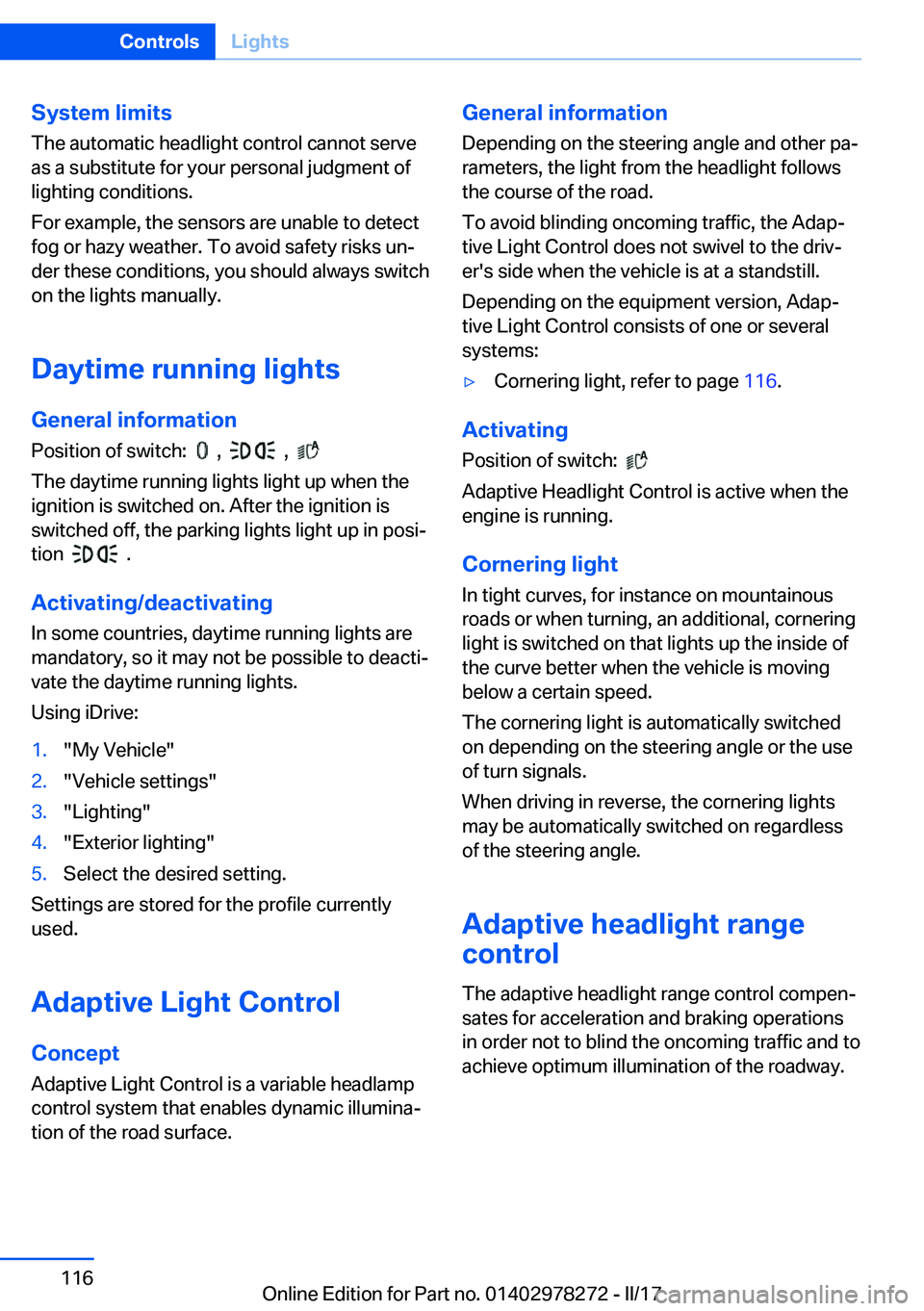

System
limits
The automatic headlight control cannot serve
as a substitute for your personal judgment of
lighting conditions.
For example, the sensors are unable to detect
fog or hazy weather. To avoid safety risks unj
der these conditions, you should always switch
on the lights manually.
Daytime
running
lights
General
information Position of switch:
, ,
The daytime running lights light up when the
ignition is switched on. After the ignition is
switched off, the parking lights light up in posij
tion
.
Activating/deactivating In some countries, daytime running lights are
mandatory, so it may not be possible to deactij
vate the daytime running lights.
Using iDrive:
1."My Vehicle"2."Vehicle settings"3."Lighting"4."Exterior lighting"5.Select the desired setting.
Settings are stored for the profile currently used.
Adaptive
Light
Control
Concept
Adaptive Light Control is a variable headlamp control system that enables dynamic illuminaj
tion of the road surface.
General
information
Depending on the steering angle and other paj rameters, the light from the headlight follows
the course of the road.
To avoid blinding oncoming traffic, the Adapj
tive Light Control does not swivel to the drivj
er's side when the vehicle is at a standstill.
Depending on the equipment version, Adapj
tive Light Control consists of one or several systems:'yCornering light, refer to page 116.
Activating
Position of switch:

Adaptive Headlight Control is active when the
engine is running.
Cornering
light In tight curves, for instance on mountainous
roads or when turning, an additional, cornering
light is switched on that lights up the inside of
the curve better when the vehicle is moving
below a certain speed.
The cornering light is automatically switched
on depending on the steering angle or the use
of turn signals.
When driving in reverse, the cornering lights
may be automatically switched on regardless of the steering angle.
Adaptive
headlight
range
control
The adaptive headlight range control compenj
sates for acceleration and braking operations
in order not to blind the oncoming traffic and to
achieve optimum illumination of the roadway.
Seite 116ControlsLights116
Online Edition for Part no. 01402978272 - II/17

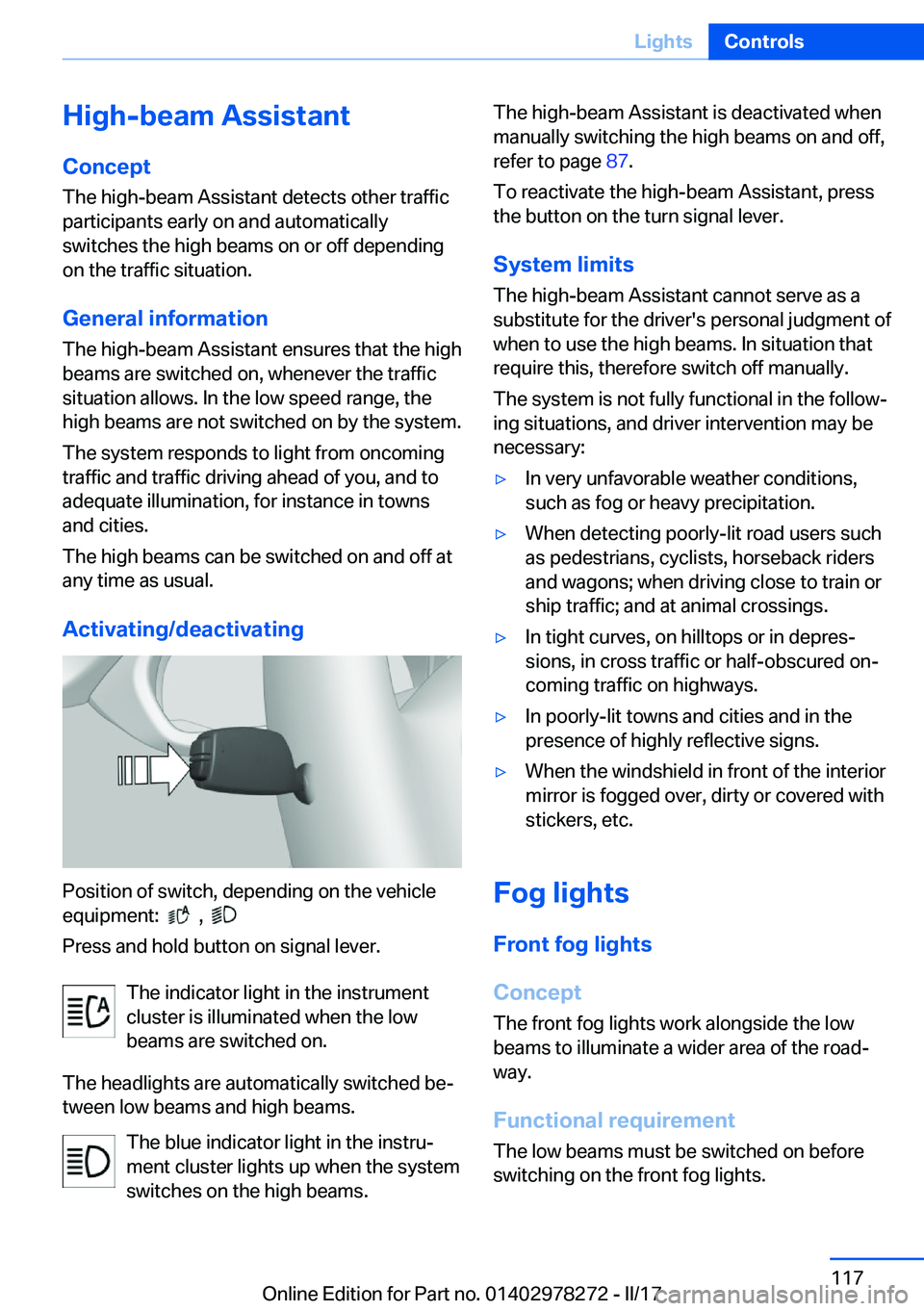

High-beam
AssistantConcept
The high-beam Assistant detects other traffic
participants early on and automatically
switches the high beams on or off depending
on the traffic situation.
General
information
The high-beam Assistant ensures that the high beams are switched on, whenever the traffic
situation allows. In the low speed range, the high beams are not switched on by the system.
The system responds to light from oncoming
traffic and traffic driving ahead of you, and to
adequate illumination, for instance in towns
and cities.
The high beams can be switched on and off at
any time as usual.
Activating/deactivating
Position of switch, depending on the vehicle
equipment:
,
Press and hold button on signal lever.
The indicator light in the instrument
cluster is illuminated when the low
beams are switched on.
The headlights are automatically switched bej tween low beams and high beams.
The blue indicator light in the instruj
ment cluster lights up when the system
switches on the high beams.
The high-beam Assistant is deactivated when manually switching the high beams on and off,
refer to page 87.
To reactivate the high-beam Assistant, press the button on the turn signal lever.
System
limits
The high-beam Assistant cannot serve as a substitute for the driver's personal judgment of
when to use the high beams. In situation that require this, therefore switch off manually.
The system is not fully functional in the followj ing situations, and driver intervention may be
necessary:'yIn very unfavorable weather conditions,
such as fog or heavy precipitation.'yWhen detecting poorly-lit road users such
as pedestrians, cyclists, horseback riders
and wagons; when driving close to train or ship traffic; and at animal crossings.'yIn tight curves, on hilltops or in depresj
sions, in cross traffic or half-obscured onj coming traffic on highways.'yIn poorly-lit towns and cities and in thepresence of highly reflective signs.'yWhen the windshield in front of the interior
mirror is fogged over, dirty or covered with stickers, etc.
Fog
lights
Front
fog
lights
Concept
The front fog lights work alongside the low
beams to illuminate a wider area of the roadj
way.
Functional
requirement
The low beams must be switched on before switching on the front fog lights.
Seite 117LightsControls117
Online Edition for Part no. 01402978272 - II/17

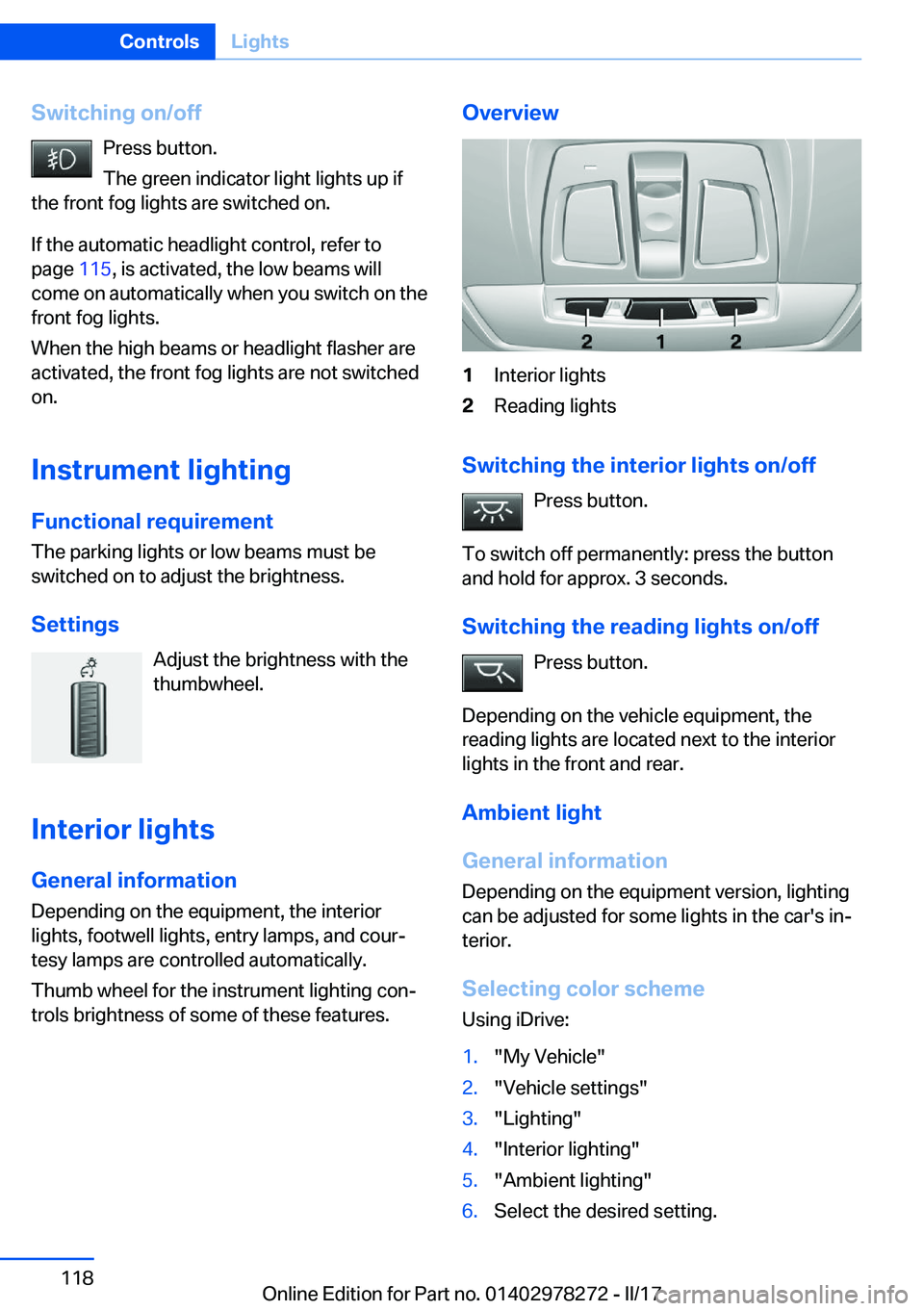

Switching
on/offPress button.
The green indicator light lights up if
the front fog lights are switched on.
If the automatic headlight control, refer topage 115, is activated, the low beams will
come on automatically when you switch on the front fog lights.
When the high beams or headlight flasher are
activated, the front fog lights are not switched
on.
Instrument
lighting Functional
requirement
The parking lights or low beams must be
switched on to adjust the brightness.
Settings Adjust the brightness with the
thumbwheel.
Interior
lights
General
information
Depending on the equipment, the interior
lights, footwell lights, entry lamps, and courj tesy lamps are controlled automatically.
Thumb wheel for the instrument lighting conjtrols brightness of some of these features.Overview1Interior lights2Reading lights
Switching
the
interior
lights
on/off
Press button.
To switch off permanently: press the button
and hold for approx. 3 seconds.
Switching
the
reading
lights
on/off Press button.
Depending on the vehicle equipment, the reading lights are located next to the interior
lights in the front and rear.
Ambient
light
General
information Depending on the equipment version, lighting
can be adjusted for some lights in the car's inj
terior.
Selecting
color
scheme Using iDrive:
1."My Vehicle"2."Vehicle settings"3."Lighting"4."Interior lighting"5."Ambient lighting"6.Select the desired setting.Seite 118ControlsLights118
Online Edition for Part no. 01402978272 - II/17

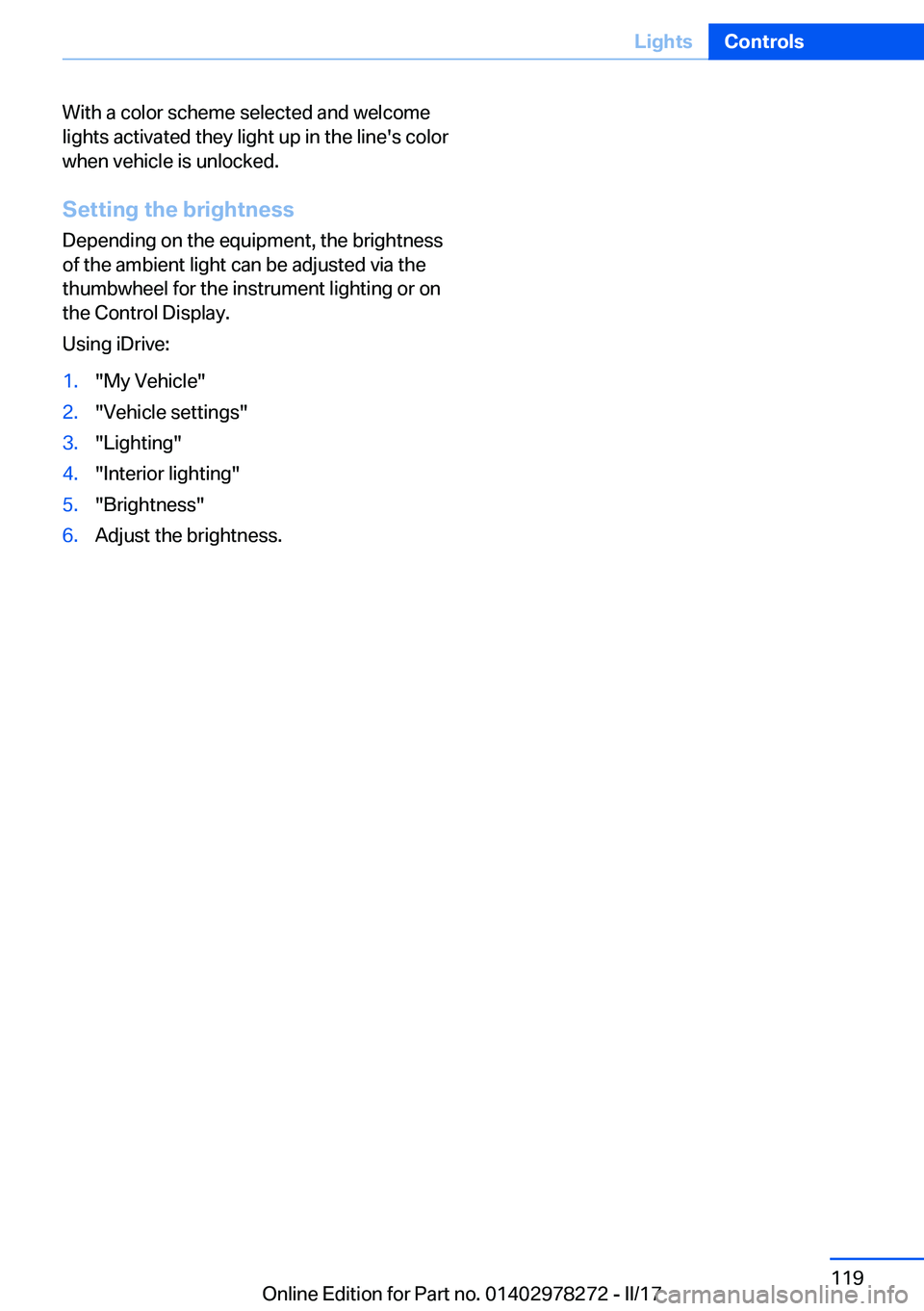

With a color scheme selected and welcomelights activated they light up in the line's color
when vehicle is unlocked.
Setting
the
brightness
Depending on the equipment, the brightness
of the ambient light can be adjusted via the
thumbwheel for the instrument lighting or on the Control Display.
Using iDrive:1."My Vehicle"2."Vehicle settings"3."Lighting"4."Interior lighting"5."Brightness"6.Adjust the brightness.Seite 119LightsControls119
Online Edition for Part no. 01402978272 - II/17

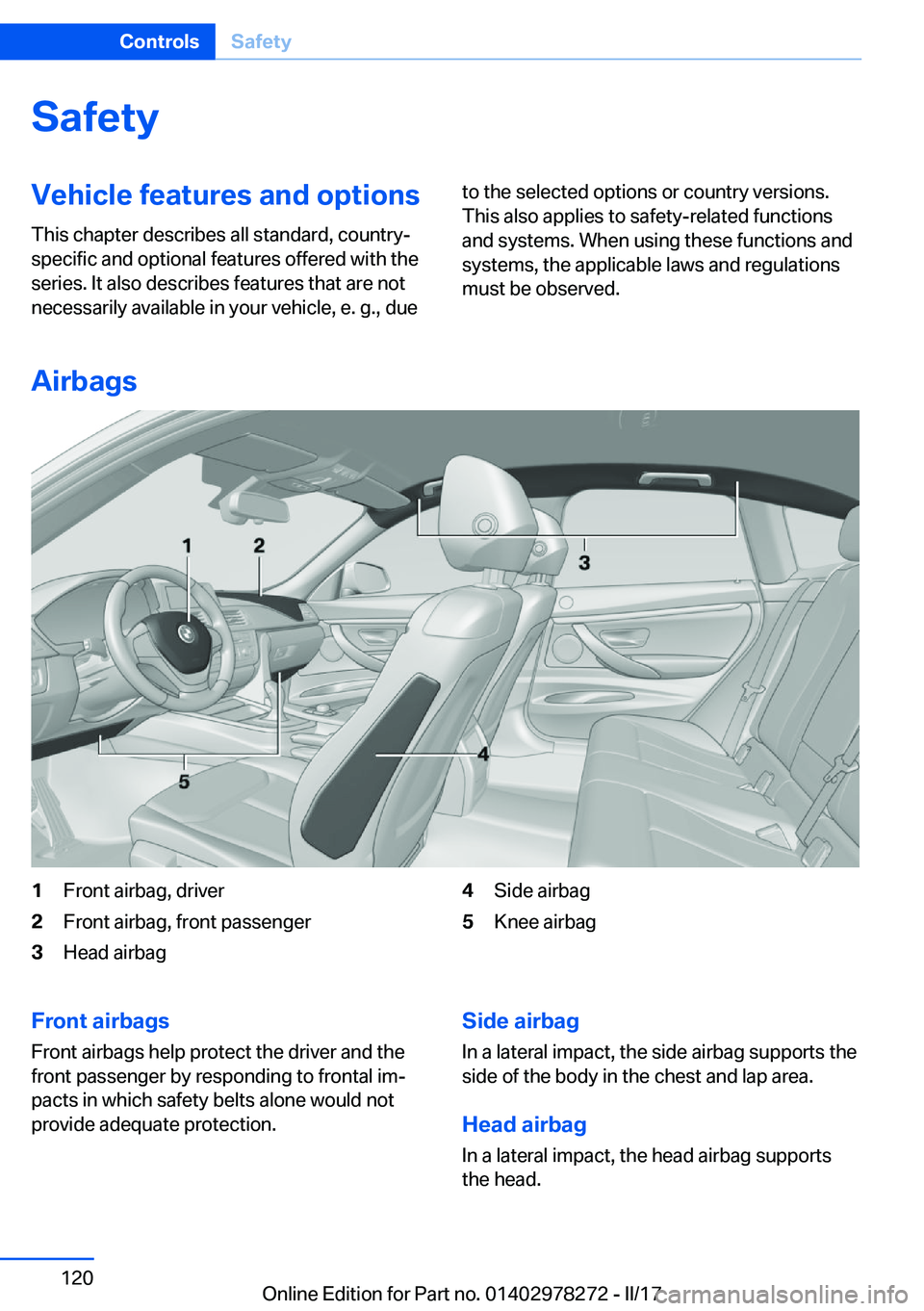

SafetyVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Airbags
1Front airbag, driver2Front airbag, front passenger3Head airbag4Side airbag5Knee airbagFront
airbags
Front airbags help protect the driver and the front passenger by responding to frontal imj
pacts in which safety belts alone would not
provide adequate protection.Side
airbag
In a lateral impact, the side airbag supports the
side of the body in the chest and lap area.
Head
airbag In a lateral impact, the head airbag supportsthe head.Seite 120ControlsSafety120
Online Edition for Part no. 01402978272 - II/17
