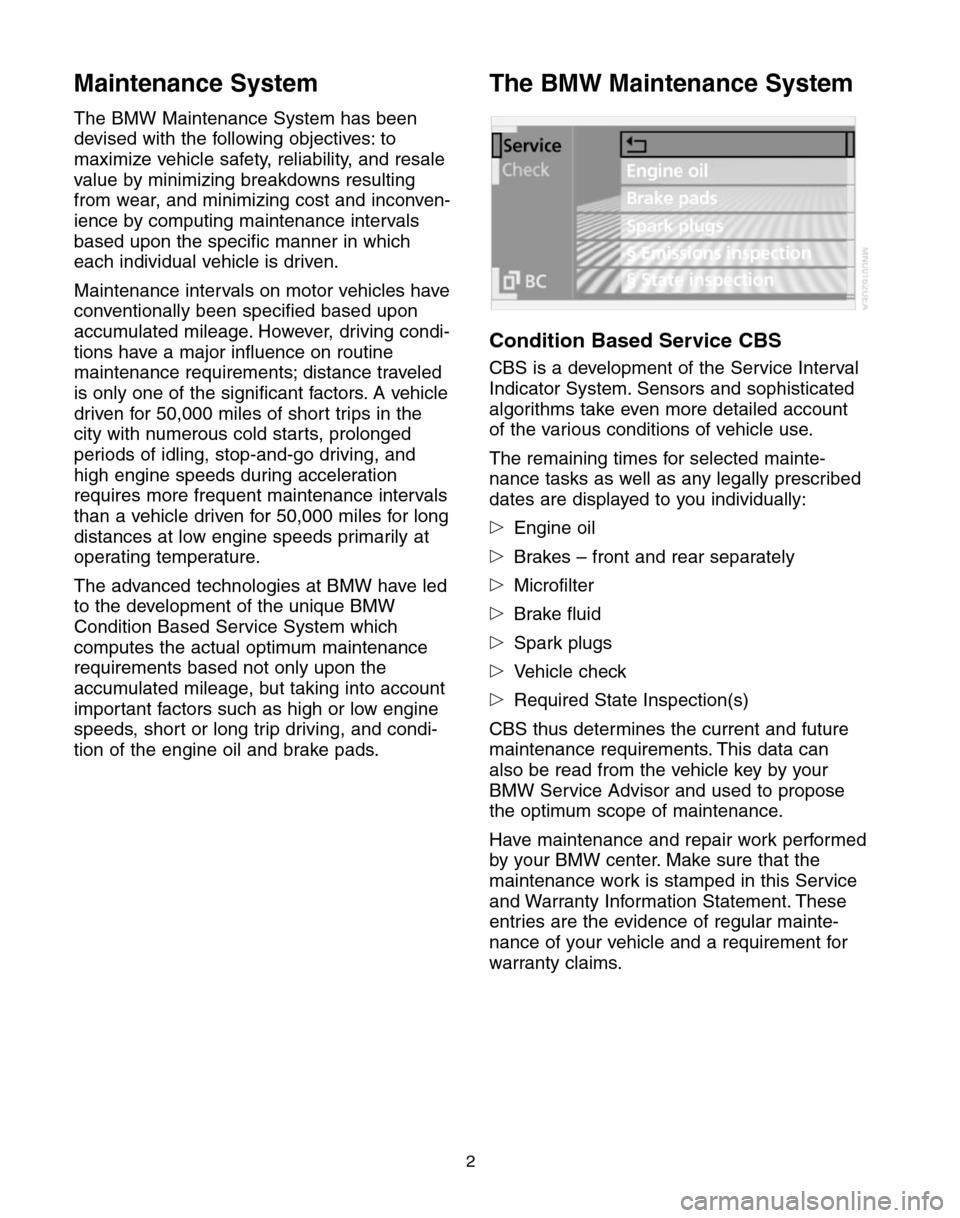

Maintenance System
The BMW Maintenance System has been
devised with the following objectives: to
maximize vehicle safety, reliability, and resale
value by minimizing breakdowns resulting
from wear, and minimizing cost and inconven-
ience by computing maintenance intervals
based upon the specific manner in which
each individual vehicle is driven.
Maintenance intervals on motor vehicles have
conventionally been specified based upon
accumulated mileage. However, driving condi-
tions have a major influence on routine
maintenance requirements; distance traveled
is only one of the significant factors. A vehicle
driven for 50,000 miles of short trips in the
city with numerous cold starts, prolonged
periods of idling, stop-and-go driving, and
high engine speeds during acceleration
requires more frequent maintenance intervals
than a vehicle driven for 50,000 miles for long
distances at low engine speeds primarily at
operating temperature.
The advanced technologies at BMW have led
to the development of the unique BMW
Condition Based Service System which
computes the actual optimum maintenance
requirements based not only upon the
accumulated mileage, but taking into account
important factors such as high or low engine
speeds, short or long trip driving, and condi-
tion of the engine oil and brake pads.
The BMWMaintenance System
Condition Based Service CBS
CBS is a development of the Service Interval
Indicator System. Sensors and sophisticated
algorithms take even more detailed account
of the various conditions of vehicle use.
The remaining times for selected mainte-
nance tasks as well as any legally prescribed
dates are displayed to you individually:
Engine oil
Brakes – front and rear separately
Microfilter
Brake fluid
Spark plugs
Vehicle check
Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can
also be read from the vehicle key by your
BMW Service Advisor and used to propose
the optimum scope of maintenance.
Have maintenance and repair work performed
by your BMW center. Make sure that the
maintenance work is stamped in this Service
and Warranty Information Statement. These
entries are the evidence of regular mainte-
nance of your vehicle and a requirement for
warranty claims.
2

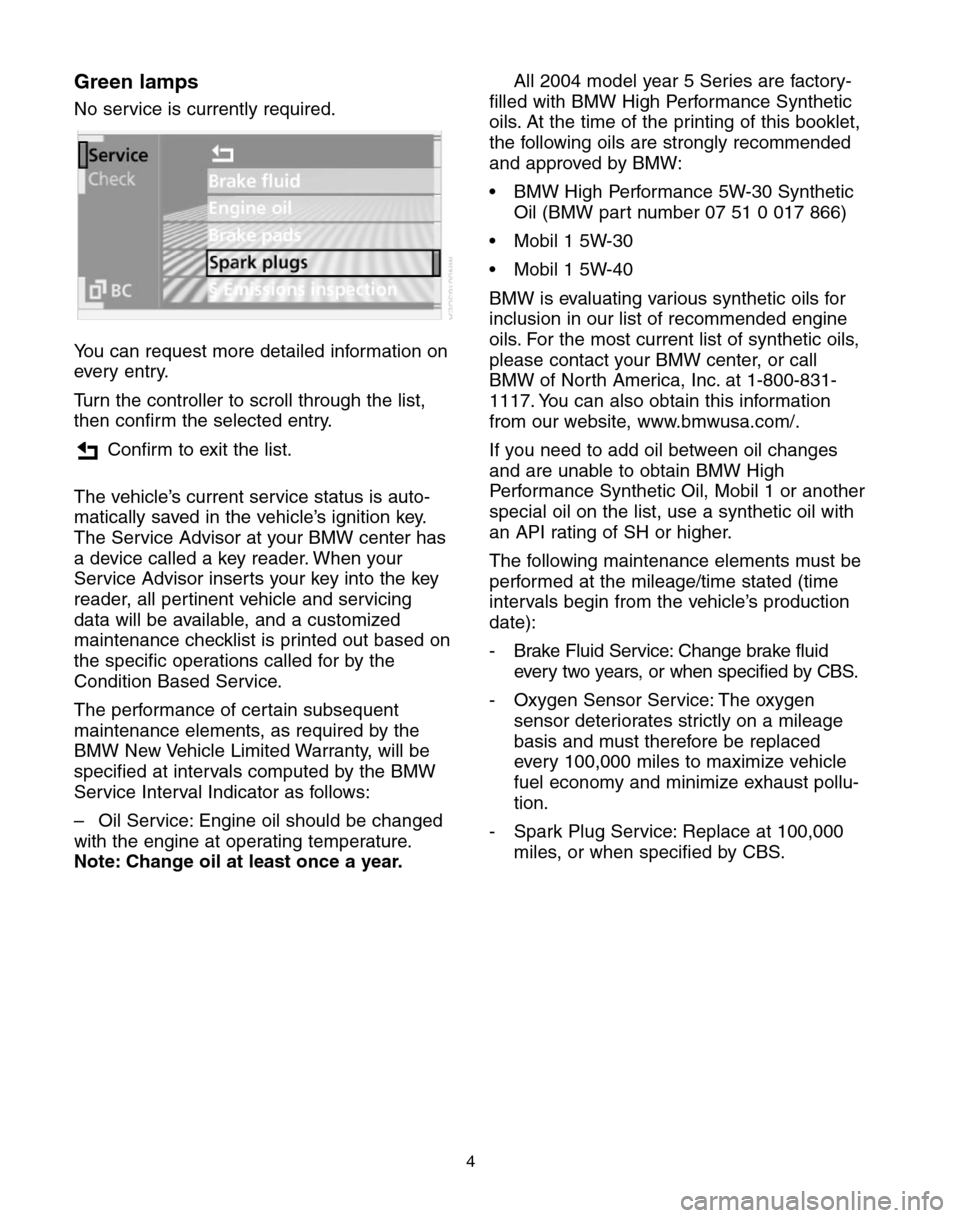

Green lamps
No service is currently required.
You can request more detailed information on
every entry.
Turn the controller to scroll through the list,
then confirm the selected entry.
Confirm to exit the list.
The vehicle’s current service status is auto-
matically saved in the vehicle’s ignition key.
The Service Advisor at your BMW center has
a device called a key reader. When your
Service Advisor inserts your key into the key
reader, all pertinent vehicle and servicing
data will be available, and a customized
maintenance checklist is printed out based on
the specific operations called for by the
Condition Based Service.
The performance of certain subsequent
maintenance elements, as required by the
BMW New Vehicle Limited Warranty, will be
specified at intervals computed by the BMW
Service Interval Indicator as follows:
– Oil Service: Engine oil should be changed
with the engine at operating temperature.
Note:Change oil at least once a year.
All 2004 model year 5 Series are factory-
filled with BMW High Performance Synthetic
oils. At the time of the printing of this booklet,
the following oils are strongly recommended
and approved by BMW:
•BMW High Performance 5W-30 Synthetic
Oil (BMW part number 07 51 0 017 866)
•Mobil 1 5W-30
•Mobil 1 5W-40
BMW is evaluating various synthetic oils for
inclusion in our list of recommended engine
oils. For the most current list of synthetic oils,
please contact your BMW center, or call
BMW of North America, Inc. at 1-800-831-
1117. You can also obtain this information
from our website, www.bmwusa.com/.
If you need to add oil between oil changes
and are unable to obtain BMW High
Performance Synthetic Oil, Mobil 1 or another
special oil on the list, use a synthetic oil with
an API rating of SH or higher.
The following maintenance elements must be
performed at the mileage/time stated (time
intervals begin from the vehicle’s production
date):
- Brake Fluid Service: Change brake fluid
every two years, or when specified by CBS.
- Oxygen Sensor Service: The oxygen
sensor deteriorates strictly on a mileage
basis and must therefore be replaced
every 100,000 miles to maximize vehicle
fuel economy and minimize exhaust pollu-
tion.
- Spark Plug Service: Replace at 100,000
miles, or when specified by CBS.
4

Emission Control
Maintenance Schedule
The maintenance schedule as shown is
required for the proper functioning of the
emission control systems for optimum vehicle
performance and fuel economy.
Basic Engine
Engine oil As specified by CBS
Engine oil filter As specified by CBS
Fuel System
Air filter As specified by CBS
Ignition System
Spark plugs As specified by CBS
Emission Control Components
Oxygen sensor Replace at intervalsas follows:
- 525i, 530i with manual transmission or optional automatic transmission: 120,000
miles
- 530i with optional Sequential Manual Gearbox (SMG), all 545i: 100,000 miles
Battery Care
If your car is driven only for short distances of
less than 10 miles over a prolonged period of
time, without an occasional drive at highway
speeds, the engine’s charging system will not
maintain the battery. Insufficient use of the
vehicle could result in short term starting
problems and in the long term could damage
the battery.
In case the car is not operated for several
weeks it is advisable to:
a) slide battery switch to “Off ” position. Refer to “Battery Switch” in vehicle owner’s
manual.
b) consider using a proper trickle charger, following the charger manufacturer’s
instructions, to maintain the battery’s state
of charge; or
c) consult your BMW center regarding battery removal. Once removed, the battery must
be charged and stored in a cool, dry place
where it can be protected from freezing. If
the battery will be stored for over 3
months, it must be recharged every 3
months, or else it will become damaged
and useless.
Please consult with your BMW center for
further guidance and information.
16
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 16

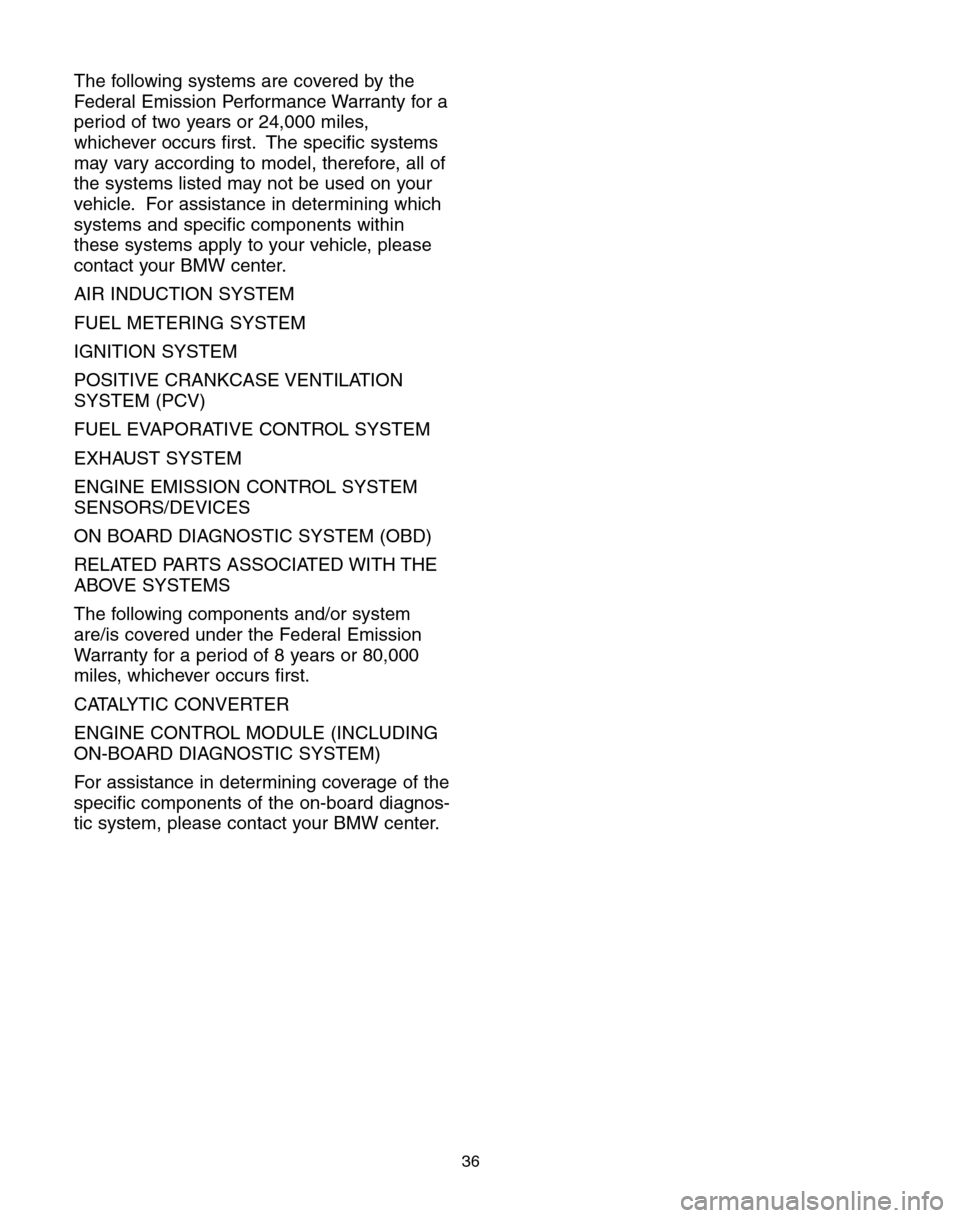

The following systems are covered by the
Federal Emission Performance Warranty for a
period of two years or 24,000 miles,
whichever occurs first. The specific systems
may vary according to model, therefore, all of
the systems listed may not be used on your
vehicle. For assistance in determining which
systems and specific components within
these systems apply to your vehicle, please
contact your BMW center.
AIR INDUCTION SYSTEM
FUEL METERING SYSTEM
IGNITION SYSTEM
POSITIVE CRANKCASE VENTILATION
SYSTEM (PCV)
FUEL EVAPORATIVE CONTROL SYSTEM
EXHAUST SYSTEM
ENGINE EMISSION CONTROL SYSTEM
SENSORS/DEVICES
ON BOARD DIAGNOSTIC SYSTEM (OBD)
RELATED PARTS ASSOCIATED WITH THE
ABOVE SYSTEMS
The following components and/or system
are/is covered under the Federal Emission
Warranty for a period of 8 years or 80,000
miles, whichever occurs first.
CATALYTIC CONVERTER
ENGINE CONTROL MODULE (INCLUDING
ON-BOARD DIAGNOSTIC SYSTEM)
For assistance in determining coverage of the
specific components of the on-board diagnos-
tic system, please contact your BMW center.
36

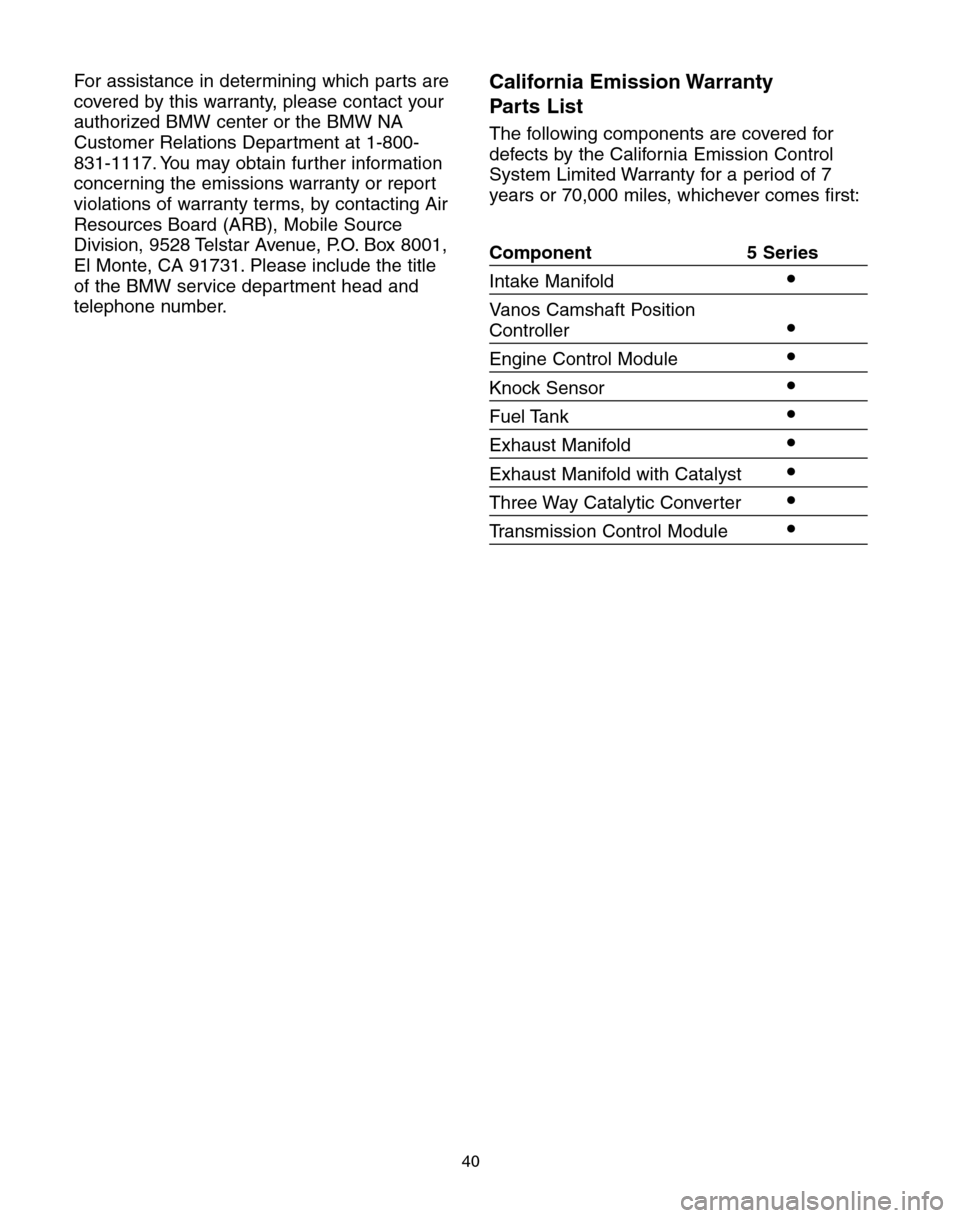

For assistance in determining which parts are
covered by this warranty, please contact your
authorized BMW center or the BMW NA
Customer Relations Department at 1-800-
831-1117. You may obtain further information
concerning the emissions warranty or report
violations of warranty terms, by contacting Air
Resources Board (ARB), Mobile Source
Division, 9528 Telstar Avenue, P.O. Box 8001,
El Monte, CA 91731. Please include the title
of the BMW service department head and
telephone number.California Emission Warranty
Parts List
The following components are covered for
defects by the California Emission Control
System Limited Warranty for a period of 7
years or 70,000 miles, whichever comes first:
Component5 Series
Intake Manifold•
Vanos Camshaft Position Controller•
Engine Control Module•
Knock Sensor•
Fuel Tank•
Exhaust Manifold•
Exhaust Manifold with Catalyst•
Three Way Catalytic Converter•
Transmission Control Module•
40
