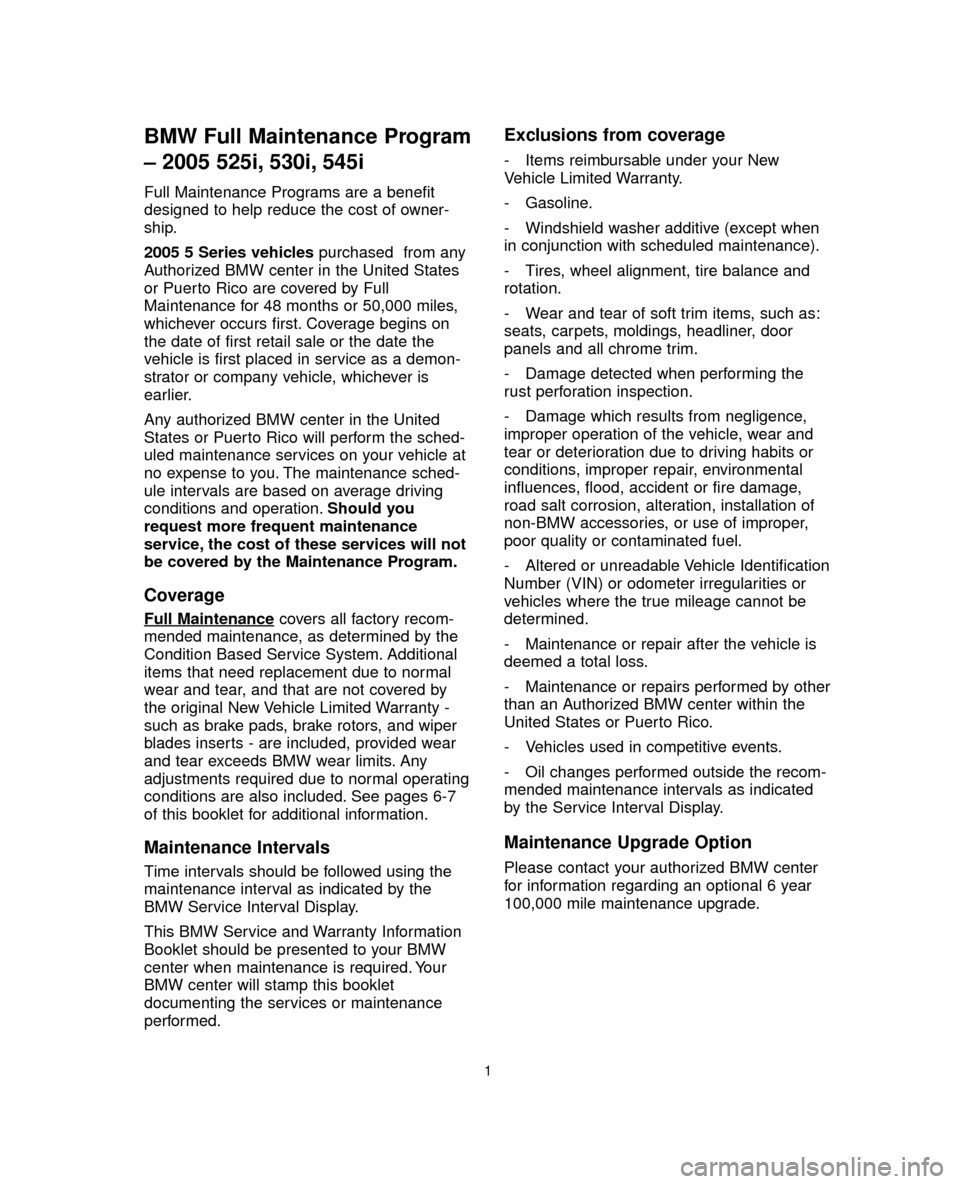

BMW Full Maintenance Program
– 2005 525i, 530i, 545i
Full Maintenance Programs are a benefit
designed to help reduce the cost of owner-
ship.
2005 5 Series vehiclespurchased from any
Authorized BMW center in the United States
or Puerto Rico are covered by Full
Maintenance for 48 months or 50,000 miles,
whichever occurs first. Coverage begins on
the date of first retail sale or the date the
vehicle is first placed in service as a demon-
strator or company vehicle, whichever is
earlier.
Any authorized BMW center in the United
States or Puerto Rico will perform the sched-
uled maintenance services on your vehicle at
no expense to you. The maintenance sched-
ule intervals are based on average driving
conditions and operation.Should you
request more frequent maintenance
service, the cost of these services will not
be covered by the Maintenance Program.
Coverage
Full Maintenancecovers all factory recom-
mended maintenance, as determined by the
Condition Based Service System. Additional
items that need replacement due to normal
wear and tear, and that are not covered by
the original New Vehicle Limited Warranty -
such as brake pads, brake rotors, and wiper
blades inserts - are included, provided wear
and tear exceeds BMW wear limits. Any
adjustments required due to normal operating
conditions are also included. See pages 6-7
of this booklet for additional information.
Maintenance Intervals
Time intervals should be followed using the
maintenance interval as indicated by the
BMW Service Interval Display.
This BMW Service and Warranty Information
Booklet should be presented to your BMW
center when maintenance is required. Your
BMW center will stamp this booklet
documenting the services or maintenance
performed.
Exclusions from coverage
- Items reimbursable under your New
Vehicle Limited Warranty.
- Gasoline.
- Windshield washer additive (except when
in conjunction with scheduled maintenance).
- Tires, wheel alignment, tire balance and
rotation.
- Wear and tear of soft trim items, such as:
seats, carpets, moldings, headliner, door
panels and all chrome trim.
- Damage detected when performing the
rust perforation inspection.
- Damage which results from negligence,
improper operation of the vehicle, wear and
tear or deterioration due to driving habits or
conditions, improper repair, environmental
influences, flood, accident or fire damage,
road salt corrosion, alteration, installation of
non-BMW accessories, or use of improper,
poor quality or contaminated fuel.
- Altered or unreadable Vehicle Identification
Number (VIN) or odometer irregularities or
vehicles where the true mileage cannot be
determined.
- Maintenance or repair after the vehicle is
deemed a total loss.
- Maintenance or repairs performed by other
than an Authorized BMW center within the
United States or Puerto Rico.
- Vehicles used in competitive events.
- Oil changes performed outside the recom-
mended maintenance intervals as indicated
by the Service Interval Display.
Maintenance Upgrade Option
Please contact your authorized BMW center
for information regarding an optional 6 year
100,000 mile maintenance upgrade.
1
SD92 270
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 1

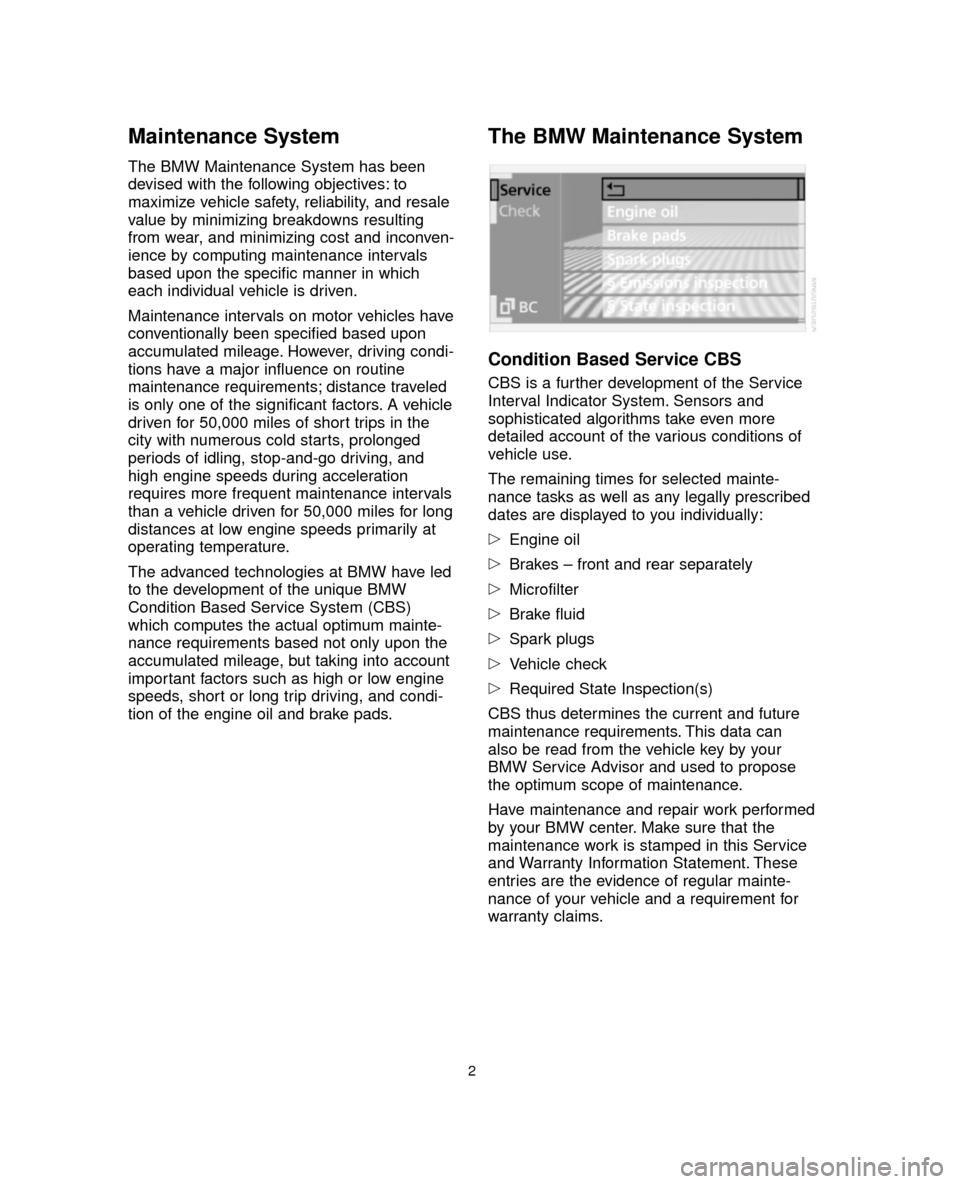

Maintenance System
The BMW Maintenance System has been
devised with the following objectives: to
maximize vehicle safety, reliability, and resale
value by minimizing breakdowns resulting
from wear, and minimizing cost and inconven-
ience by computing maintenance intervals
based upon the specific manner in which
each individual vehicle is driven.
Maintenance intervals on motor vehicles have
conventionally been specified based upon
accumulated mileage. However, driving condi-
tions have a major influence on routine
maintenance requirements; distance traveled
is only one of the significant factors. A vehicle
driven for 50,000 miles of short trips in the
city with numerous cold starts, prolonged
periods of idling, stop-and-go driving, and
high engine speeds during acceleration
requires more frequent maintenance intervals
than a vehicle driven for 50,000 miles for long
distances at low engine speeds primarily at
operating temperature.
The advanced technologies at BMW have led
to the development of the unique BMW
Condition Based Service System (CBS)
which computes the actual optimum mainte-
nance requirements based not only upon the
accumulated mileage, but taking into account
important factors such as high or low engine
speeds, short or long trip driving, and condi-
tion of the engine oil and brake pads.
The BMW Maintenance System
Condition Based Service CBS
CBS is a further development of the Service
Interval Indicator System. Sensors and
sophisticated algorithms take even more
detailed account of the various conditions of
vehicle use.
The remaining times for selected mainte-
nance tasks as well as any legally prescribed
dates are displayed to you individually:

Engine oil

Brakes – front and rear separately

Microfilter

Brake fluid

Spark plugs

Vehicle check

Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can
also be read from the vehicle key by your
BMW Service Advisor and used to propose
the optimum scope of maintenance.
Have maintenance and repair work performed
by your BMW center. Make sure that the
maintenance work is stamped in this Service
and Warranty Information Statement. These
entries are the evidence of regular mainte-
nance of your vehicle and a requirement for
warranty claims.
2
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 2

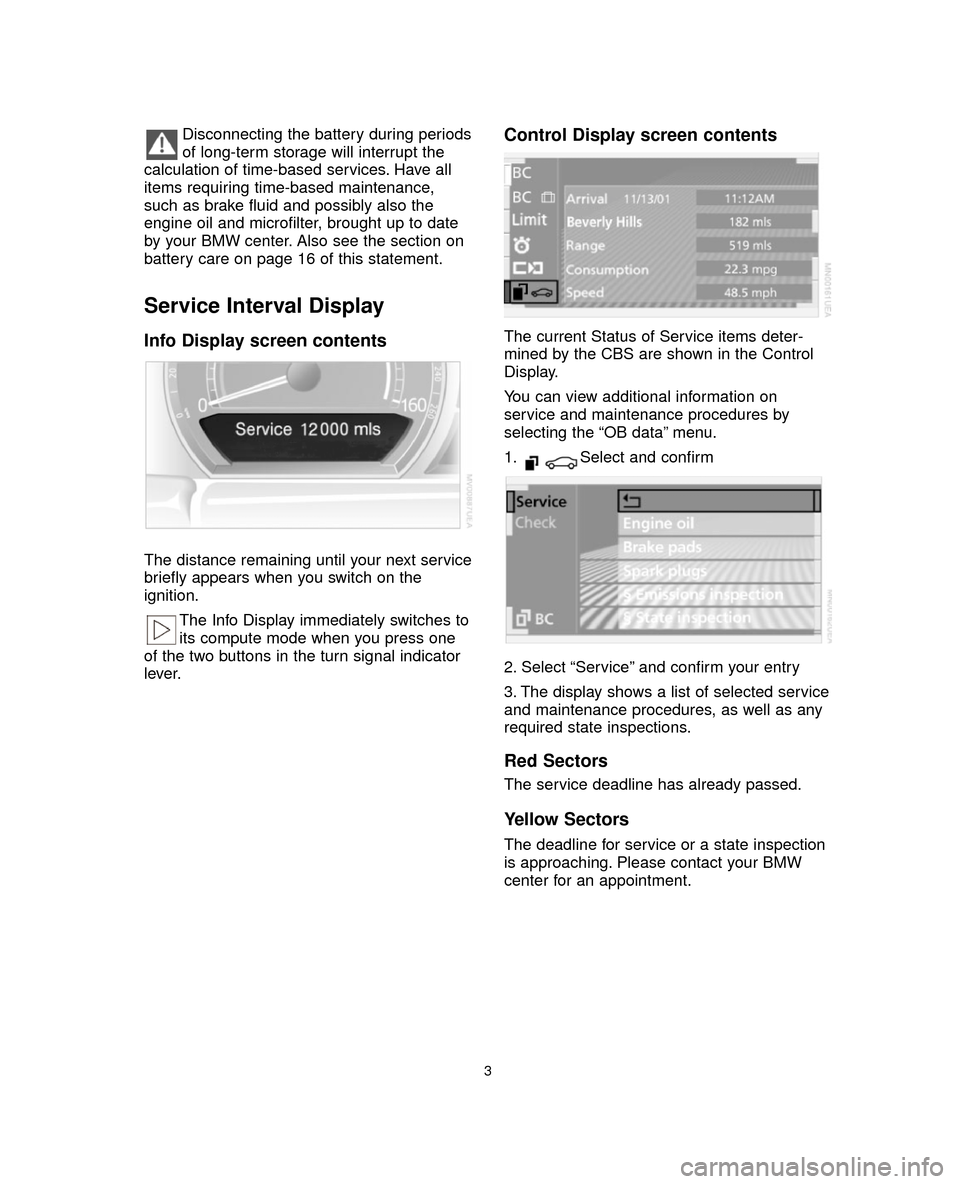

Disconnecting the battery during periods
of long-term storage will interrupt the
calculation of time-based services. Have all
items requiring time-based maintenance,
such as brake fluid and possibly also the
engine oil and microfilter, brought up to date
by your BMW center. Also see the section on
battery care on page 16 of this statement.
Service Interval Display
Info Display screen contents
The distance remaining until your next service
briefly appears when you switch on the
ignition.
The Info Display immediately switches to
its compute mode when you press one
of the two buttons in the turn signal indicator
lever.
Control Display screen contents
The current Status of Service items deter-
mined by the CBS are shown in the Control
Display.
You can view additional information on
service and maintenance procedures by
selecting the “OB data” menu.
1. Select and confirm
2. Select “Service” and confirm your entry
3. The display shows a list of selected service
and maintenance procedures, as well as any
required state inspections.
Red Sectors
The service deadline has already passed.
Yellow Sectors
The deadline for service or a state inspection
is approaching. Please contact your BMW
center for an appointment.
3
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 3

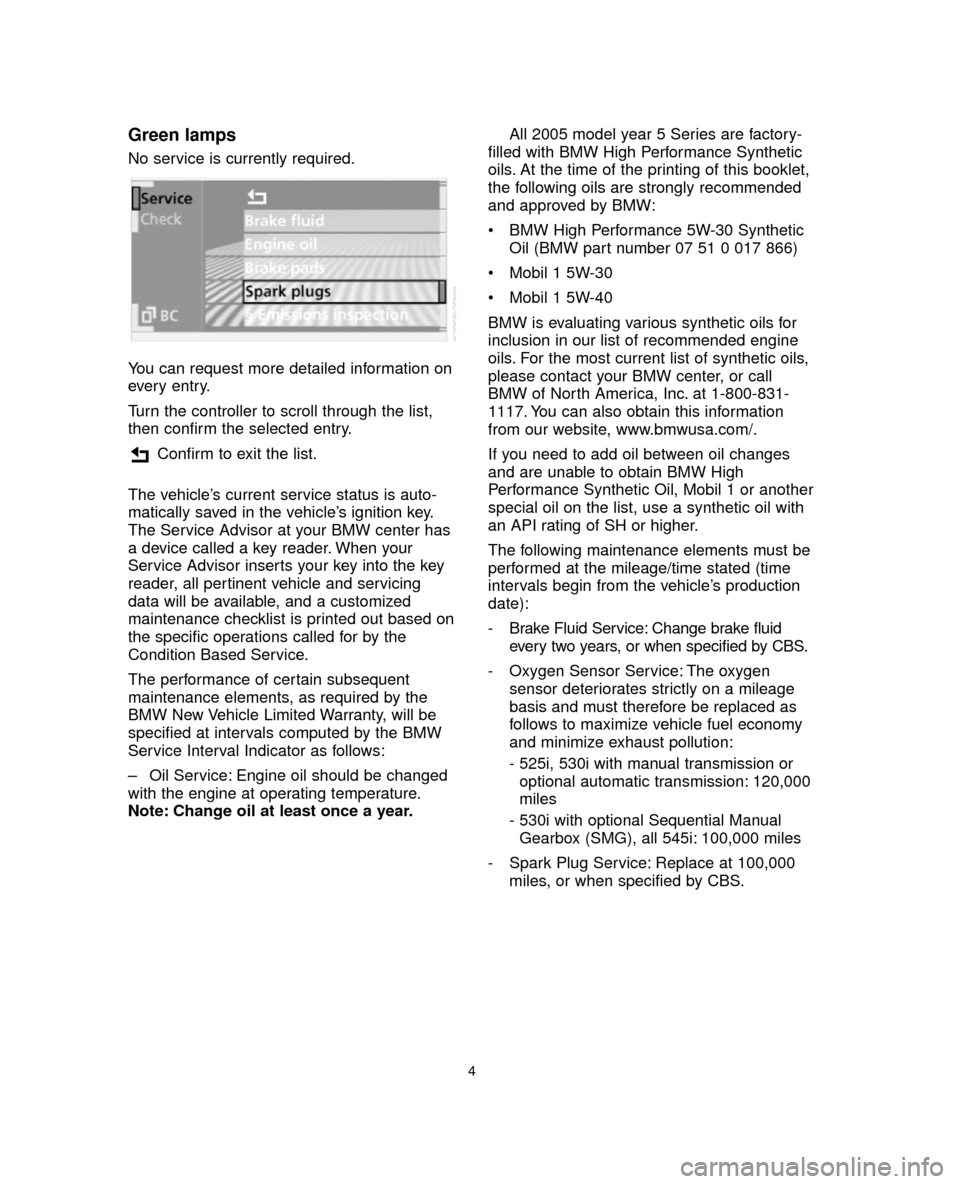

Green lamps
No service is currently required.
You can request more detailed information on
every entry.
Turn the controller to scroll through the list,
then confirm the selected entry.
Confirm to exit the list.
The vehicle’s current service status is auto-
matically saved in the vehicle’s ignition key.
The Service Advisor at your BMW center has
a device called a key reader. When your
Service Advisor inserts your key into the key
reader, all pertinent vehicle and servicing
data will be available, and a customized
maintenance checklist is printed out based on
the specific operations called for by the
Condition Based Service.
The performance of certain subsequent
maintenance elements, as required by the
BMW New Vehicle Limited Warranty, will be
specified at intervals computed by the BMW
Service Interval Indicator as follows:
– Oil Service: Engine oil should be changed
with the engine at operating temperature.
Note: Change oil at least once a year.All 2005 model year 5 Series are factory-
filled with BMW High Performance Synthetic
oils. At the time of the printing of this booklet,
the following oils are strongly recommended
and approved by BMW:
• BMW High Performance 5W-30 Synthetic
Oil (BMW part number 07 51 0 017 866)
• Mobil 1 5W-30
• Mobil 1 5W-40
BMW is evaluating various synthetic oils for
inclusion in our list of recommended engine
oils. For the most current list of synthetic oils,
please contact your BMW center, or call
BMW of North America, Inc. at 1-800-831-
1117. You can also obtain this information
from our website, www.bmwusa.com/.
If you need to add oil between oil changes
and are unable to obtain BMW High
Performance Synthetic Oil, Mobil 1 or another
special oil on the list, use a synthetic oil with
an API rating of SH or higher.
The following maintenance elements must be
performed at the mileage/time stated (time
intervals begin from the vehicle’s production
date):
- Brake Fluid Service: Change brake fluid
every two years, or when specified by CBS.
- Oxygen Sensor Service: The oxygen
sensor deteriorates strictly on a mileage
basis and must therefore be replaced as
follows to maximize vehicle fuel economy
and minimize exhaust pollution:
- 525i, 530i with manual transmission or
optional automatic transmission: 120,000
miles
- 530i with optional Sequential Manual
Gearbox (SMG), all 545i: 100,000 miles
- Spark Plug Service: Replace at 100,000
miles, or when specified by CBS.
4
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 4

Maintenance summary
The Condition Based Service System (CBS)
will determine the requirement for perform-
ance of the maintenance services described
on this and the following page. These
services may be required either individually or
in conjunction with other maintenance
services.
Standard operations
Maintenance work
• Brief diagnostic test
• Verify Check Control messages
• Check indicator and warning lights
• Reset CBS display
Engine oil
Maintenance work
• Change the engine oil and oil filter. We
recommend BMW High Performance 5W-30
Synthetic Oil P/N 07 51 0 017 866.
• After every 3rd engine oil change:
Intake air cleaner: replace air filter element
(reduce replacement interval in dusty
operating conditions).
• Parking brake: check function
Microfilter
Maintenance work
• Replace ventilation microfilter
Front brake
Maintenance work
• Replace brake pads, clean brake pad
contact points in calipers.
• Brake discs:
Check surface and thickness, if necessary
replace at extra charge*
Rear brake
Maintenance work
• Replace brake pads, clean brake pad
contact points in calipers.
• Brake discs:
Check surface and thickness, if necessary
replace at extra charge*
• Parking brake:
Check condition, brake lining thickness and
function, if necessary replace at extra charge*.
*Unless covered by Maintenance Program
Vehicle Check
Maintenance work
• Check operation of horn, headlight flasher
and hazard warning flashers.
• Check instrument and control lighting and
heater/air-conditioning blower.
• Check lighting system: turn signals, back-up,
license plate, interior (incl. map, reading
lights), glovebox, flashlight, luggage area
lights.
• Safety belts: check condition and function.
• Check windshield wiper and washer jet
positions.
• Body: check for corrosion (except cavities).
• Tires: check tread depth, wear pattern, outer
condition, inflation pressure (also spare tire).
If necessary, correct pressure (also spare).
• Battery: check state of charge (magic eye)
and charge if required.
• Power steering reservoir: Check fluid level.
• Visually inspect all SRS airbag units for torn
covers, obvious damage or attachment of
stickers.
• Rear-view mirrors
• Coolant: check fluid level and concentration.
• Windshield washer and intensive cleaning
system: check protection level, fluid level,
top if necessary.
6
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 6

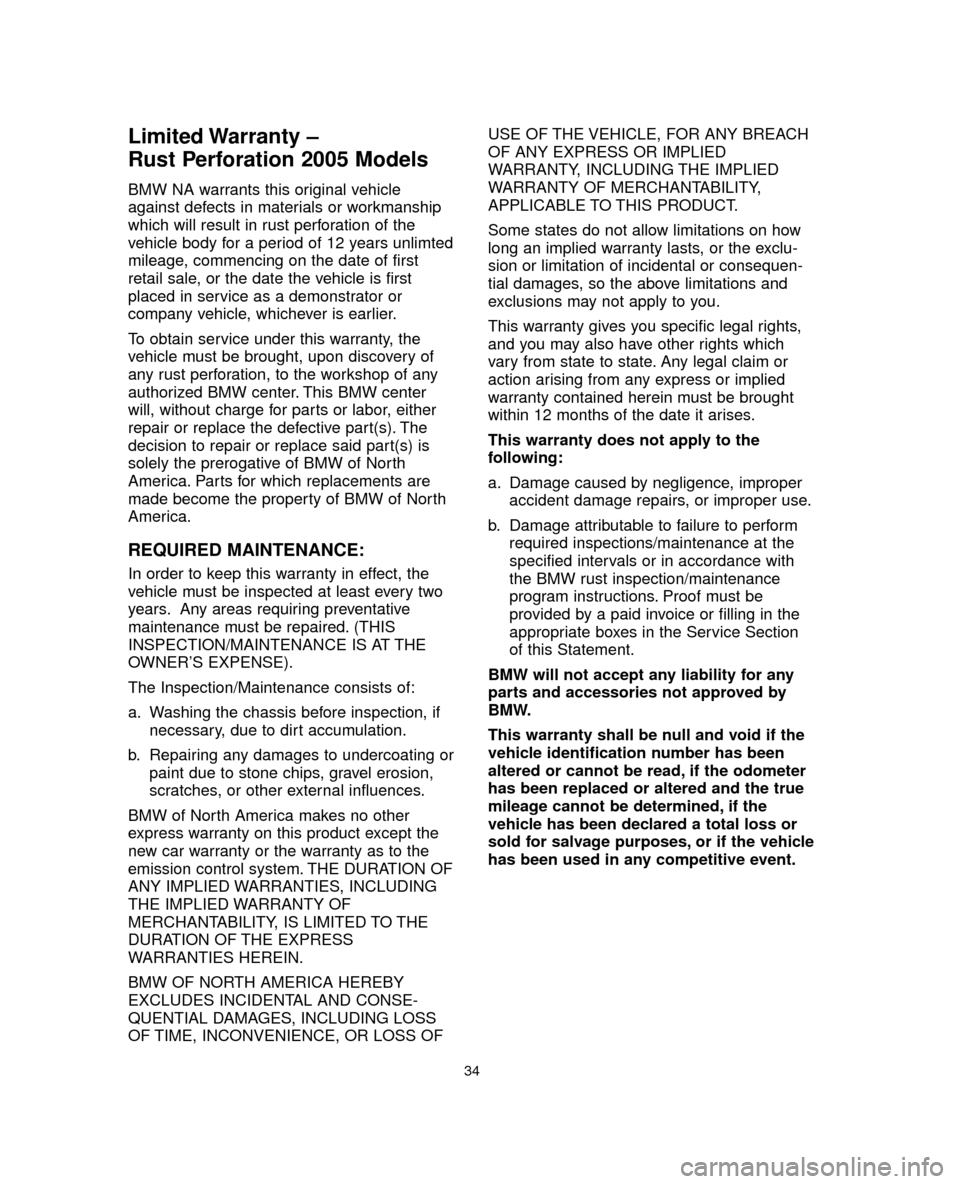

Limited Warranty –
Rust Perforation 2005 Models
BMW NA warrants this original vehicle
against defects in materials or workmanship
which will result in rust perforation of the
vehicle body for a period of 12 years unlimted
mileage, commencing on the date of first
retail sale, or the date the vehicle is first
placed in service as a demonstrator or
company vehicle, whichever is earlier.
To obtain service under this warranty, the
vehicle must be brought, upon discovery of
any rust perforation, to the workshop of any
authorized BMW center. This BMW center
will, without charge for parts or labor, either
repair or replace the defective part(s). The
decision to repair or replace said part(s) is
solely the prerogative of BMW of North
America. Parts for which replacements are
made become the property of BMW of North
America.
REQUIRED MAINTENANCE:
In order to keep this warranty in effect, the
vehicle must be inspected at least every two
years. Any areas requiring preventative
maintenance must be repaired. (THIS
INSPECTION/MAINTENANCE IS AT THE
OWNER’S EXPENSE).
The Inspection/Maintenance consists of:
a. Washing the chassis before inspection, if
necessary, due to dirt accumulation.
b. Repairing any damages to undercoating or
paint due to stone chips, gravel erosion,
scratches, or other external influences.
BMW of North America makes no other
express warranty on this product except the
new car warranty or the warranty as to the
emission control system. THE DURATION OF
ANY IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTY OF
MERCHANTABILITY, IS LIMITED TO THE
DURATION OF THE EXPRESS
WARRANTIES HEREIN.
BMW OF NORTH AMERICA HEREBY
EXCLUDES INCIDENTAL AND CONSE-
QUENTIAL DAMAGES, INCLUDING LOSS
OF TIME, INCONVENIENCE, OR LOSS OFUSE OF THE VEHICLE, FOR ANY BREACH
OF ANY EXPRESS OR IMPLIED
WARRANTY, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY,
APPLICABLE TO THIS PRODUCT.
Some states do not allow limitations on how
long an implied warranty lasts, or the exclu-
sion or limitation of incidental or consequen-
tial damages, so the above limitations and
exclusions may not apply to you.
This warranty gives you specific legal rights,
and you may also have other rights which
vary from state to state. Any legal claim or
action arising from any express or implied
warranty contained herein must be brought
within 12 months of the date it arises.
This warranty does not apply to the
following:
a. Damage caused by negligence, improper
accident damage repairs, or improper use.
b. Damage attributable to failure to perform
required inspections/maintenance at the
specified intervals or in accordance with
the BMW rust inspection/maintenance
program instructions. Proof must be
provided by a paid invoice or filling in the
appropriate boxes in the Service Section
of this Statement.
BMW will not accept any liability for any
parts and accessories not approved by
BMW.
This warranty shall be null and void if the
vehicle identification number has been
altered or cannot be read, if the odometer
has been replaced or altered and the true
mileage cannot be determined, if the
vehicle has been declared a total loss or
sold for salvage purposes, or if the vehicle
has been used in any competitive event.
34
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 34

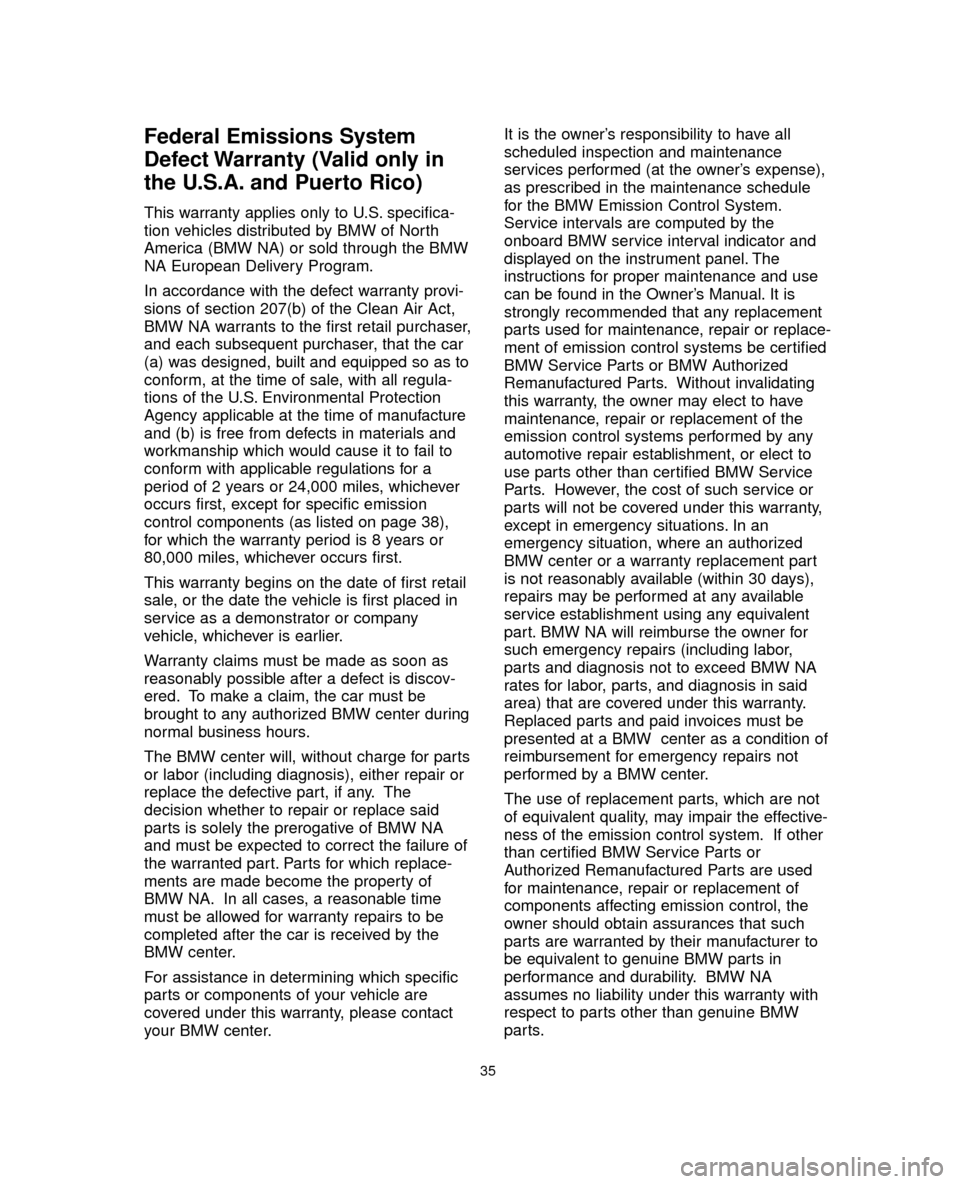

Federal Emissions System
Defect Warranty (Valid only in
the U.S.A. and Puerto Rico)
This warranty applies only to U.S. specifica-
tion vehicles distributed by BMW of North
America (BMW NA) or sold through the BMW
NA European Delivery Program.
In accordance with the defect warranty provi-
sions of section 207(b) of the Clean Air Act,
BMW NA warrants to the first retail purchaser,
and each subsequent purchaser, that the car
(a) was designed, built and equipped so as to
conform, at the time of sale, with all regula-
tions of the U.S. Environmental Protection
Agency applicable at the time of manufacture
and (b) is free from defects in materials and
workmanship which would cause it to fail to
conform with applicable regulations for a
period of 2 years or 24,000 miles, whichever
occurs first, except for specific emission
control components (as listed on page 38),
for which the warranty period is 8 years or
80,000 miles, whichever occurs first.
This warranty begins on the date of first retail
sale, or the date the vehicle is first placed in
service as a demonstrator or company
vehicle, whichever is earlier.
Warranty claims must be made as soon as
reasonably possible after a defect is discov-
ered. To make a claim, the car must be
brought to any authorized BMW center during
normal business hours.
The BMW center will, without charge for parts
or labor (including diagnosis), either repair or
replace the defective part, if any. The
decision whether to repair or replace said
parts is solely the prerogative of BMW NA
and must be expected to correct the failure of
the warranted part. Parts for which replace-
ments are made become the property of
BMW NA. In all cases, a reasonable time
must be allowed for warranty repairs to be
completed after the car is received by the
BMW center.
For assistance in determining which specific
parts or components of your vehicle are
covered under this warranty, please contact
your BMW center.It is the owner’s responsibility to have all
scheduled inspection and maintenance
services performed (at the owner’s expense),
as prescribed in the maintenance schedule
for the BMW Emission Control System.
Service intervals are computed by the
onboard BMW service interval indicator and
displayed on the instrument panel. The
instructions for proper maintenance and use
can be found in the Owner’s Manual. It is
strongly recommended that any replacement
parts used for maintenance, repair or replace-
ment of emission control systems be certified
BMW Service Parts or BMW Authorized
Remanufactured Parts. Without invalidating
this warranty, the owner may elect to have
maintenance, repair or replacement of the
emission control systems performed by any
automotive repair establishment, or elect to
use parts other than certified BMW Service
Parts. However, the cost of such service or
parts will not be covered under this warranty,
except in emergency situations. In an
emergency situation, where an authorized
BMW center or a warranty replacement part
is not reasonably available (within 30 days),
repairs may be performed at any available
service establishment using any equivalent
part. BMW NA will reimburse the owner for
such emergency repairs (including labor,
parts and diagnosis not to exceed BMW NA
rates for labor, parts, and diagnosis in said
area) that are covered under this warranty.
Replaced parts and paid invoices must be
presented at a BMW center as a condition of
reimbursement for emergency repairs not
performed by a BMW center.
The use of replacement parts, which are not
of equivalent quality, may impair the effective-
ness of the emission control system. If other
than certified BMW Service Parts or
Authorized Remanufactured Parts are used
for maintenance, repair or replacement of
components affecting emission control, the
owner should obtain assurances that such
parts are warranted by their manufacturer to
be equivalent to genuine BMW parts in
performance and durability. BMW NA
assumes no liability under this warranty with
respect to parts other than genuine BMW
parts.
35
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 35

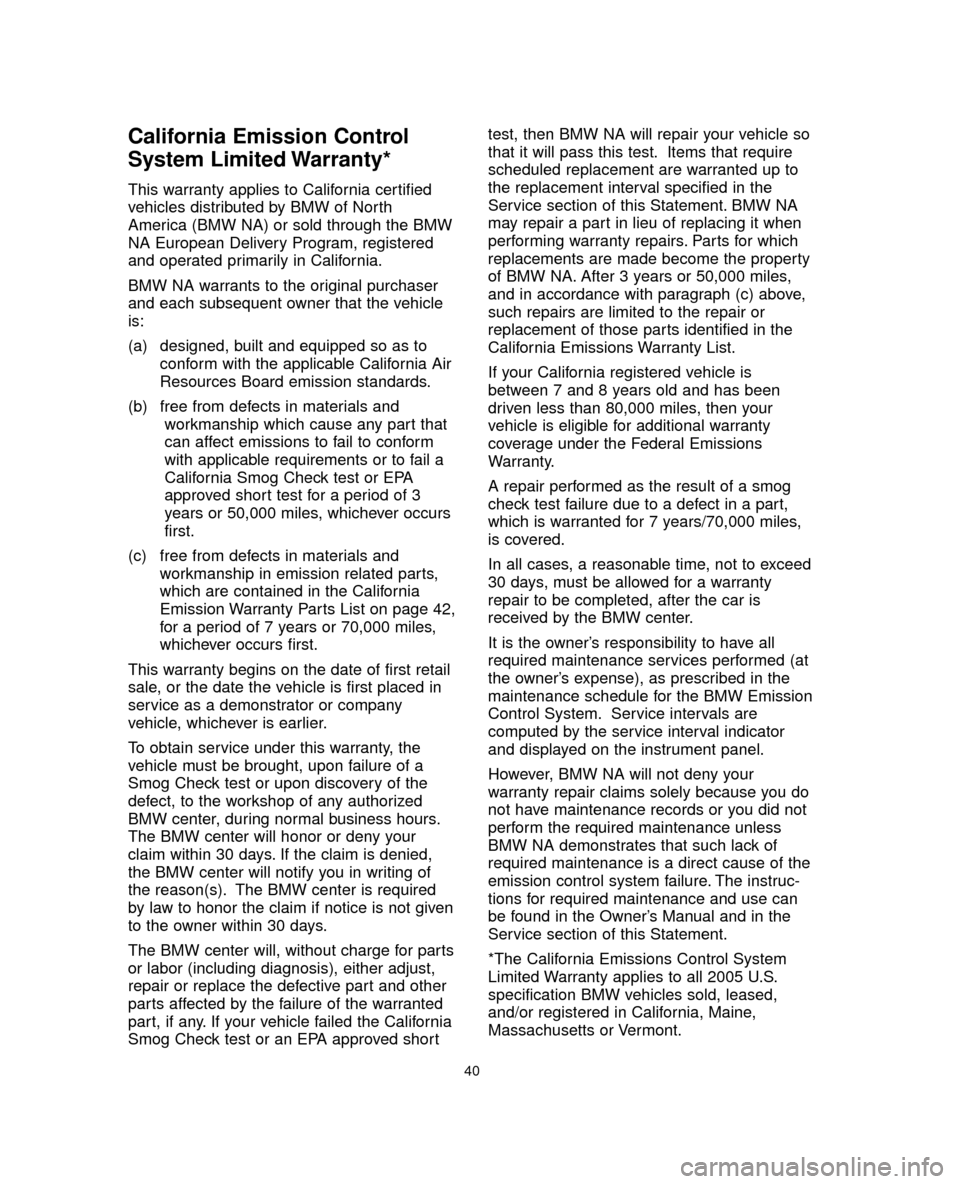

California Emission Control
System Limited Warranty*
This warranty applies to California certified
vehicles distributed by BMW of North
America (BMW NA) or sold through the BMW
NA European Delivery Program, registered
and operated primarily in California.
BMW NA warrants to the original purchaser
and each subsequent owner that the vehicle
is:
(a) designed, built and equipped so as to
conform with the applicable California Air
Resources Board emission standards.
(b) free from defects in materials and
workmanship which cause any part that
can affect emissions to fail to conform
with applicable requirements or to fail a
California Smog Check test or EPA
approved short test for a period of 3
years or 50,000 miles, whichever occurs
first.
(c) free from defects in materials and
workmanship in emission related parts,
which are contained in the California
Emission Warranty Parts List on page 42,
for a period of 7 years or 70,000 miles,
whichever occurs first.
This warranty begins on the date of first retail
sale, or the date the vehicle is first placed in
service as a demonstrator or company
vehicle, whichever is earlier.
To obtain service under this warranty, the
vehicle must be brought, upon failure of a
Smog Check test or upon discovery of the
defect, to the workshop of any authorized
BMW center, during normal business hours.
The BMW center will honor or deny your
claim within 30 days. If the claim is denied,
the BMW center will notify you in writing of
the reason(s). The BMW center is required
by law to honor the claim if notice is not given
to the owner within 30 days.
The BMW center will, without charge for parts
or labor (including diagnosis), either adjust,
repair or replace the defective part and other
parts affected by the failure of the warranted
part, if any. If your vehicle failed the California
Smog Check test or an EPA approved shorttest, then BMW NA will repair your vehicle so
that it will pass this test. Items that require
scheduled replacement are warranted up to
the replacement interval specified in the
Service section of this Statement. BMW NA
may repair a part in lieu of replacing it when
performing warranty repairs. Parts for which
replacements are made become the property
of BMW NA. After 3 years or 50,000 miles,
and in accordance with paragraph (c) above,
such repairs are limited to the repair or
replacement of those parts identified in the
California Emissions Warranty List.
If your California registered vehicle is
between 7 and 8 years old and has been
driven less than 80,000 miles, then your
vehicle is eligible for additional warranty
coverage under the Federal Emissions
Warranty.
A repair performed as the result of a smog
check test failure due to a defect in a part,
which is warranted for 7 years/70,000 miles,
is covered.
In all cases, a reasonable time, not to exceed
30 days, must be allowed for a warranty
repair to be completed, after the car is
received by the BMW center.
It is the owner’s responsibility to have all
required maintenance services performed (at
the owner’s expense), as prescribed in the
maintenance schedule for the BMW Emission
Control System. Service intervals are
computed by the service interval indicator
and displayed on the instrument panel.
However, BMW NA will not deny your
warranty repair claims solely because you do
not have maintenance records or you did not
perform the required maintenance unless
BMW NA demonstrates that such lack of
required maintenance is a direct cause of the
emission control system failure. The instruc-
tions for required maintenance and use can
be found in the Owner’s Manual and in the
Service section of this Statement.
*The California Emissions Control System
Limited Warranty applies to all 2005 U.S.
specification BMW vehicles sold, leased,
and/or registered in California, Maine,
Massachusetts or Vermont.
40
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 40

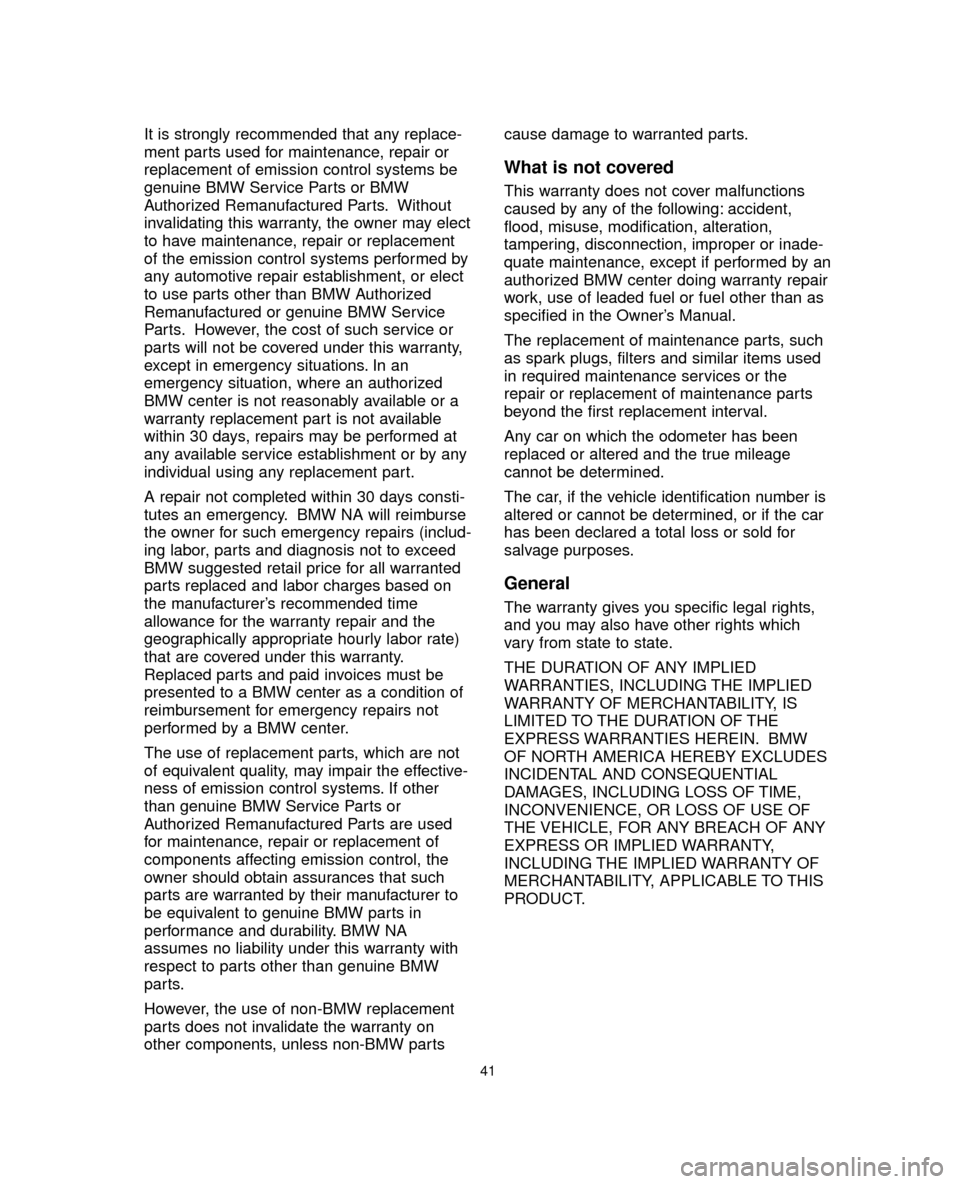

It is strongly recommended that any replace-
ment parts used for maintenance, repair or
replacement of emission control systems be
genuine BMW Service Parts or BMW
Authorized Remanufactured Parts. Without
invalidating this warranty, the owner may elect
to have maintenance, repair or replacement
of the emission control systems performed by
any automotive repair establishment, or elect
to use parts other than BMW Authorized
Remanufactured or genuine BMW Service
Parts. However, the cost of such service or
parts will not be covered under this warranty,
except in emergency situations. In an
emergency situation, where an authorized
BMW center is not reasonably available or a
warranty replacement part is not available
within 30 days, repairs may be performed at
any available service establishment or by any
individual using any replacement part.
A repair not completed within 30 days consti-
tutes an emergency. BMW NA will reimburse
the owner for such emergency repairs (includ-
ing labor, parts and diagnosis not to exceed
BMW suggested retail price for all warranted
parts replaced and labor charges based on
the manufacturer’s recommended time
allowance for the warranty repair and the
geographically appropriate hourly labor rate)
that are covered under this warranty.
Replaced parts and paid invoices must be
presented to a BMW center as a condition of
reimbursement for emergency repairs not
performed by a BMW center.
The use of replacement parts, which are not
of equivalent quality, may impair the effective-
ness of emission control systems. If other
than genuine BMW Service Parts or
Authorized Remanufactured Parts are used
for maintenance, repair or replacement of
components affecting emission control, the
owner should obtain assurances that such
parts are warranted by their manufacturer to
be equivalent to genuine BMW parts in
performance and durability. BMW NA
assumes no liability under this warranty with
respect to parts other than genuine BMW
parts.
However, the use of non-BMW replacement
parts does not invalidate the warranty on
other components, unless non-BMW partscause damage to warranted parts.
What is not covered
This warranty does not cover malfunctions
caused by any of the following: accident,
flood, misuse, modification, alteration,
tampering, disconnection, improper or inade-
quate maintenance, except if performed by an
authorized BMW center doing warranty repair
work, use of leaded fuel or fuel other than as
specified in the Owner’s Manual.
The replacement of maintenance parts, such
as spark plugs, filters and similar items used
in required maintenance services or the
repair or replacement of maintenance parts
beyond the first replacement interval.
Any car on which the odometer has been
replaced or altered and the true mileage
cannot be determined.
The car, if the vehicle identification number is
altered or cannot be determined, or if the car
has been declared a total loss or sold for
salvage purposes.
General
The warranty gives you specific legal rights,
and you may also have other rights which
vary from state to state.
THE DURATION OF ANY IMPLIED
WARRANTIES, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY, IS
LIMITED TO THE DURATION OF THE
EXPRESS WARRANTIES HEREIN. BMW
OF NORTH AMERICA HEREBY EXCLUDES
INCIDENTAL AND CONSEQUENTIAL
DAMAGES, INCLUDING LOSS OF TIME,
INCONVENIENCE, OR LOSS OF USE OF
THE VEHICLE, FOR ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY,
INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY, APPLICABLE TO THIS
PRODUCT.
41
26246 2005 BMW 5 Series #EB.qxd 10/6/04 10:26 PM Page 41
