sensor BMW 5 SERIES 2007 E60 Service and warranty information

Maintenance Program
The BMW Maintenance Program has been
devised with the following objectives: to maxi-
mize vehicle safety, reliability, and resale value by
minimizing breakdowns resulting from wear, and
minimizing cost and inconvenience by comput-
ing maintenance intervals based upon the spe-
cific manner in which each individual vehicle is
driven.
Maintenance intervals on motor vehicles have
conventionally been specified based upon accu-
mulated mileage. However, driving conditions
have a major influence on routine maintenance
requirements; distance traveled is only one of the
significant factors. A vehicle driven for 50,000
miles of short trips in the city with numerous cold
starts, prolonged periods of idling, stop-and-go
driving, and high engine speeds during accelera-
tion requires more frequent maintenance inter-
vals than a vehicle driven for 50,000 miles for
long distances at low engine speeds primarily at
operating temperature.
The advanced technologies at BMW have led to
the development of the unique BMW Condition
Based Service (CBS) system which computes
the actual optimum maintenance requirements
based not only upon the accumulated mileage,
but taking into account important factors such as
high or low engine speeds, short or long trip driv-
ing, and condition of the engine oil and brake
pads.
The BMW Maintenance Program
Condition Based Service (CBS)
CBS is a further development of the Service
Interval Indicator System. Sensors and sophisti-
cated algorithms take even more detailed
account of the various conditions of vehicle use.
The remaining times for selected maintenance
tasks as well as any legally prescribed dates are
displayed to you individually:

Engine oil

Brakes - front and rear separately

Microfilter

Brake fluid

Spark plugs

Vehicle check

Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can also be
read from the vehicle key by your BMW Service
Advisor and used to propose the optimum scope
of maintenance.
Have maintenance and repair work performed by
your BMW center. Make sure that the mainte-
nance work is stamped in this Service and War-
ranty Information Statement. These entries are
the evidence of regular maintenance of your vehi-
cle and a requirement for warranty claims.
Disconnecting the battery during periods
of long-term storage will interrupt the
calculation of time-based services. Have all items
requiring time-based maintenance, such as
brake fluid and possibly also the engine oil and
microfilter, brought up to date by your BMW cen-
ter. Also see the section on battery care on page
16 of this statement.
2

Green lamps
No service is currently required.
You can request more detailed information on
every entry.
Turn the controller to scroll through the list, then
confirm the selected entry.
Confirm to exit the list.
The vehicles current service status is automati-
cally saved in the vehicles ignition key. The Ser-
vice Advisor at your BMW center has a device
called a key reader. When your Service Advisor
inserts your key into the key reader, all pertinent
vehicle and servicing data will be available, and a
customized maintenance checklist is printed out
based on the specific operations called for by the
Condition Based Service.
The performance of certain subsequent mainte-
nance elements, as required by the BMW New
Vehicle Limited Warranty, will be specified at
intervals computed by the BMW Service Interval
Indicator as follows:
– Oil Service: Engine oil should be changed with the engine at operating temperature. Note:
Change oil at least once a year. All 2007 model year 5 Series are factory-filled
with BMW High Performance Synthetic oils. At
the time of the printing of this booklet, the follow-
ing oils are strongly recommended and approved
by BMW:
•
BMW High Performance 5W-30 Synthetic Oil
(BMW part number 07 51 0 017 866)
• Mobil 1 5W-30
• Mobil 1 5W-40
BMW is evaluating various synthetic oils for
inclusion in our list of recommended engine oils.
For the most current list of synthetic oils, please
contact your BMW center, or call BMW of North
America, LLC at 1 800 831-1117. You can also
obtain this information from our website,
www.bmwusa.com/.
BMW recommends that you check your engine
oil level whenever you add fuel to your vehicle. If
you need to add oil between oil changes and are
unable to obtain BMW High Performance Syn-
thetic Oil, Mobil 1 or another special oil on the
list, use a synthetic oil with an API rating of SH or
higher.
The following maintenance elements must be
performed at the mileage/time stated (time inter-
vals begin from the vehicles production date):
– Brake Fluid Service: Change brake fluid every two years, or when specified by CBS.
– Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and
must therefore be replaced as follows to maxi-
mize vehicle fuel economy and minimize
exhaust pollution: 120,000 miles
– Spark Plug Service: Replace at 100,000 miles, or when specified by CBS.
4

Emission Control Maintenance
Schedule
The maintenance schedule as shown is required
for the proper functioning of the emission control
systems for optimum vehicle performance and
fuel economy.
Basic Engine
Engine oil As specified by CBS
Engine oil filter As specified by CBS
Fuel System
Air filter As specified by CBS
Ignition System
Spark plugs As specified by CBS
Emission Control
Components
Oxygen sensor 120,000 miles
Battery Care
If your car is driven only for short distances of
less than 10 miles over a prolonged period of
time, without an occasional drive at highway
speeds, the engines charging system will not
maintain the battery. Insufficient use of the vehi-
cle could result in short term starting problems
and in the long term could damage the battery.
In case the car is not operated for several weeks
it is advisable to:
a. consider using a proper trickle charger, follow- ing the charger manufacturers instructions, to
maintain the batterys state of charge; or
b. consult your BMW center regarding battery removal. Once removed, the battery must be
charged and stored in a cool, dry place where
it can be protected from freezing. If the battery
will be stored for over 3 months, it must be
recharged every 3 months, or else it will
become damaged and useless.
Please consult with your BMW center for further
guidance and information.
16

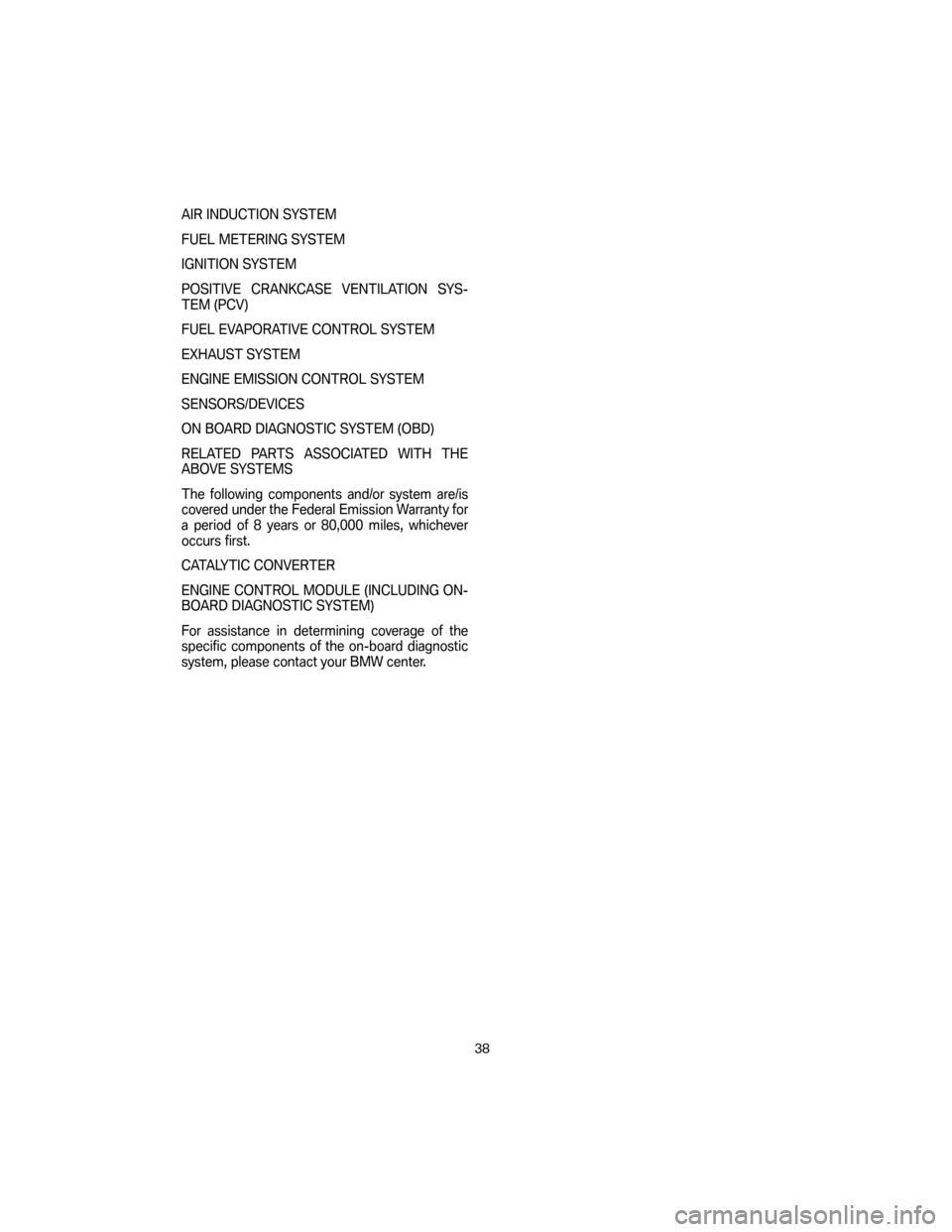

AIR INDUCTION SYSTEM
FUEL METERING SYSTEM
IGNITION SYSTEM
POSITIVE CRANKCASE VENTILATION SYS-
TEM (PCV)
FUEL EVAPORATIVE CONTROL SYSTEM
EXHAUST SYSTEM
ENGINE EMISSION CONTROL SYSTEM
SENSORS/DEVICES
ON BOARD DIAGNOSTIC SYSTEM (OBD)
RELATED PARTS ASSOCIATED WITH THE
ABOVE SYSTEMS
The following components and/or system are/is
covered under the Federal Emission Warranty for
a period of 8 years or 80,000 miles, whichever
occurs first.
CATALYTIC CONVERTER
ENGINE CONTROL MODULE (INCLUDING ON-
BOARD DIAGNOSTIC SYSTEM)
For assistance in determining coverage of the
specific components of the on-board diagnostic
system, please contact your BMW center.
38

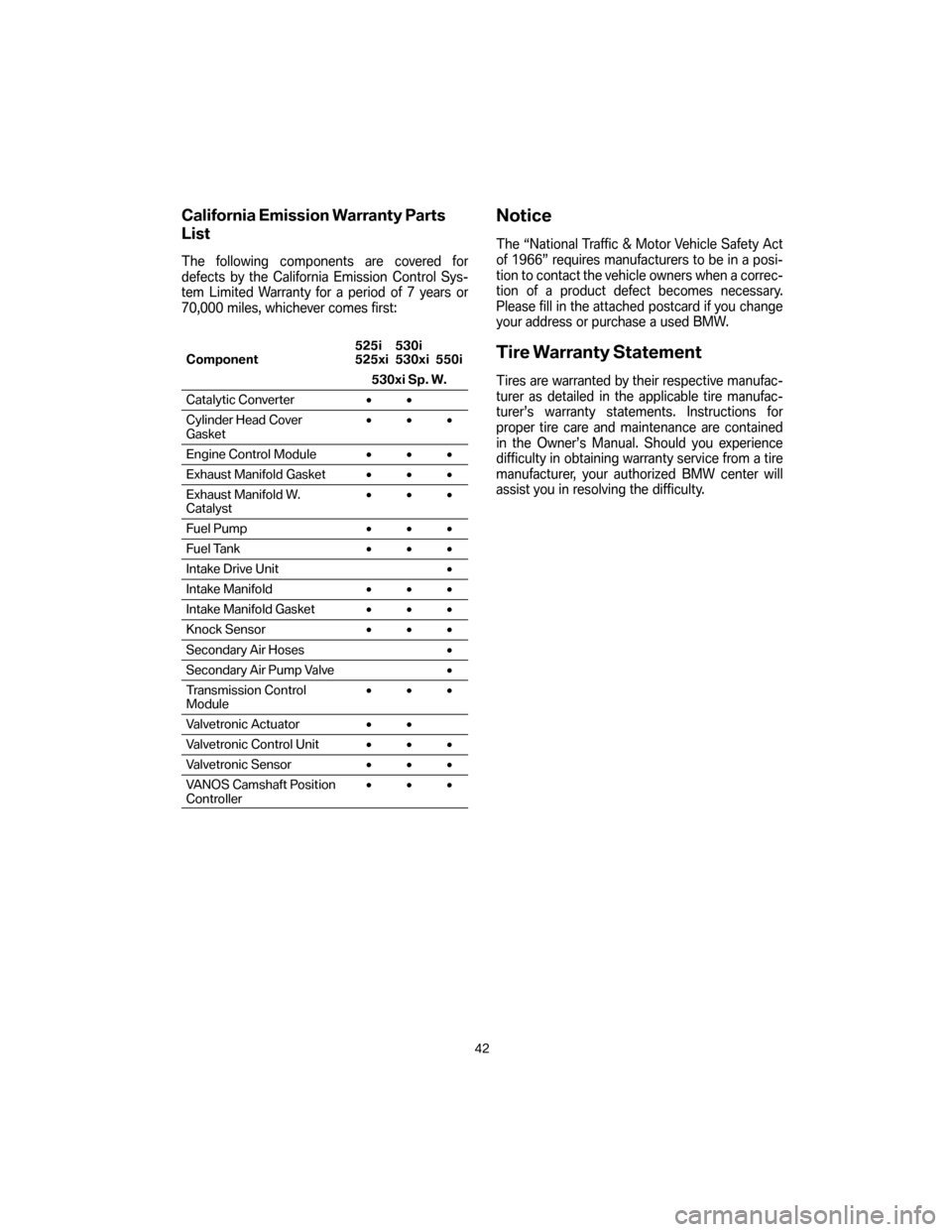

California Emission Warranty Parts
List
The following components are covered for
defects by the California Emission Control Sys-
tem Limited Warranty for a period of 7 years or
70,000 miles, whichever comes first:
Component 525i
525xi 530i
530xi 550i
530xi Sp. W.
Catalytic Converter ••
Cylinder Head Cover
Gasket •••
Engine Control Module •••
Exhaust Manifold Gasket •••
Exhaust Manifold W.
Catalyst •••
Fuel Pump •••
Fuel Tank •••
Intake Drive Unit •
Intake Manifold •••
Intake Manifold Gasket •••
Knock Sensor •••
Secondary Air Hoses •
Secondary Air Pump Valve •
Transmission Control
Module •••
Valvetronic Actuator ••
Valvetronic Control Unit •••
Valvetronic Sensor •••
VANOS Camshaft Position
Controller •••
Notice
The “National Traffic & Motor Vehicle Safety Act
of 1966” requires manufacturers to be in a posi-
tion to contact the vehicle owners when a correc-
tion of a product defect becomes necessary.
Please fill in the attached postcard if you change
your address or purchase a used BMW.
Tire Warranty Statement
Tires are warranted by their respective manufac-
turer as detailed in the applicable tire manufac-
turer’s warranty statements. Instructions for
proper tire care and maintenance are contained
in the Owner’s Manual. Should you experience
difficulty in obtaining warranty service from a tire
manufacturer, your authorized BMW center will
assist you in resolving the difficulty.
42
