BMW 5 SERIES 2010 Owners Manual

Reference 239
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

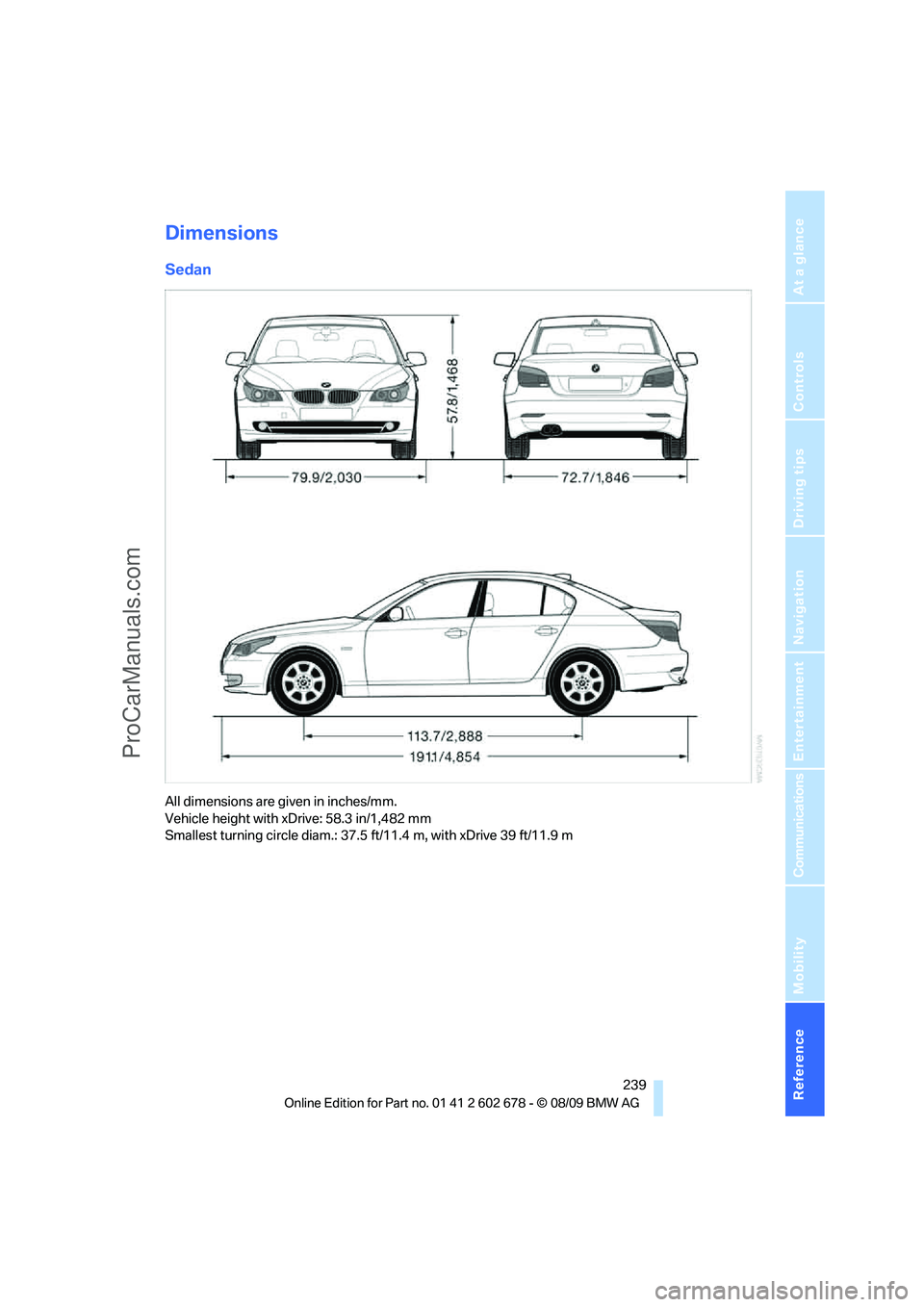

Dimensions
Sedan
All dimensions are given in inches/mm.
Vehicle height with xDrive: 58.3 in/1,482 mm
Smallest turning circle diam.: 37.5 ft/11.4 m, with xDrive 39 ft/11.9 m
ProCarManuals.com

Technical data
240
Sports Wagon
All dimensions given in inches/mm. Smallest turning circle diam.: 39 ft/11.9 m
ProCarManuals.com

Reference 241
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

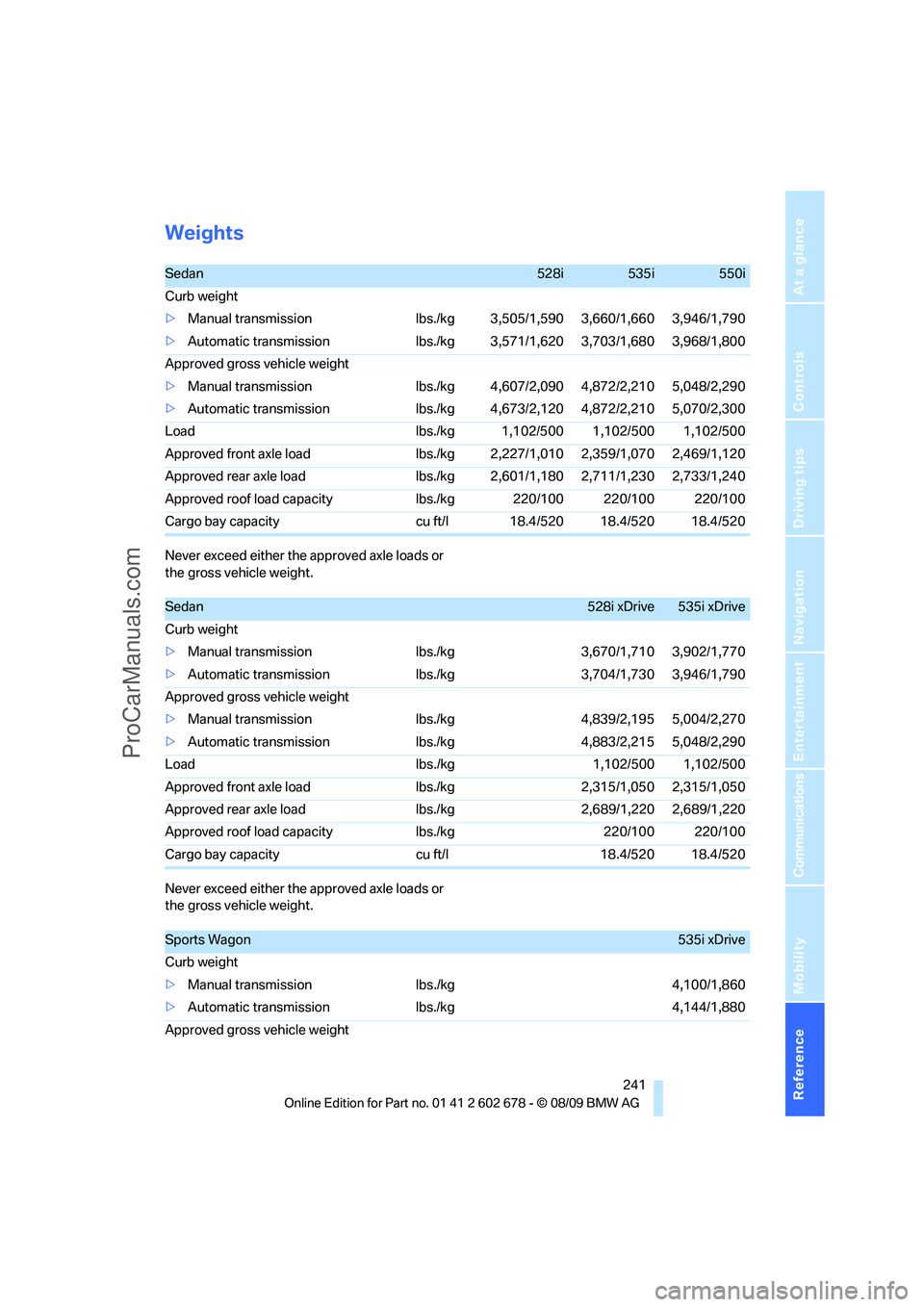

Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
Never exceed either the approved axle loads or
the gross vehicle weight.
Sedan528i535i550i
Curb weight
>Manual transmission lbs./kg 3,505/1,590 3,660/1,660 3,946/1,790
>Automatic transmission lbs./kg 3,571/1,620 3,703/1,680 3,968/1,800
Approved gross vehicle weight
>Manual transmission lbs./kg 4,607/2,090 4,872/2,210 5,048/2,290
>Automatic transmission lbs./kg 4,673/2,120 4,872/2,210 5,070/2,300
Load lbs./kg 1,102/500 1,102/500 1,102/500
Approved front axle load lbs./kg 2,227/1,010 2,359/1,070 2,469/1,120
Approved rear axle load lbs./kg 2,601/1,180 2,711/1,230 2,733/1,240
Approved roof load capacity lbs./kg 220/100 220/100 220/100
Cargo bay capacity cu ft/l 18.4/520 18.4/520 18.4/520
Sedan528i xDrive535i xDrive
Curb weight
>Manual transmission lbs./kg 3,670/1,710 3,902/1,770
>Automatic transmission lbs./kg 3,704/1,730 3,946/1,790
Approved gross vehicle weight
>Manual transmission lbs./kg 4,839/2,195 5,004/2,270
>Automatic transmission lbs./kg 4,883/2,215 5,048/2,290
Load lbs./kg 1,102/500 1,102/500
Approved front axle load lbs./kg 2,315/1,050 2,315/1,050
Approved rear axle load lbs./kg 2,689/1,220 2,689/1,220
Approved roof load capacity lbs./kg 220/100 220/100
Cargo bay capacity cu ft/l 18.4/520 18.4/520
Sports Wagon535i xDrive
Curb weight
>Manual transmission lbs./kg 4,100/1,860
>Automatic transmission lbs./kg 4,144/1,880
Approved gross vehicle weight
ProCarManuals.com

Technical data
242 Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
>Manual transmission lbs./kg 5,291/2,400
>Automatic transmission lbs./kg 5,335/2,420
Load lbs./kg 1,190/540
Approved front axle load lbs./kg 2,381/1,080
Approved rear axle load lbs./kg 2,866/1,300
Approved roof load capacity lbs./kg 220/100
Cargo bay capacity cu ft/l 17.7-58.3/500-1,650
Sports Wagon535i xDrive
Notes
Fuel tank US gal/liters approx. 18.5/70 Fuel grade: page201
of that reserve US gal/liters approx. 2.1/8
550i US gal/liters approx. 2.6/10
Window cleaning system For more details: page65
>Sedan US quarts/liters approx. 3.2/3
>with headlamp cleaning system US quarts/liters approx. 5.3/5
>Sports Wagon US quarts/liters approx. 5.3/5
ProCarManuals.com

Reference 243
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

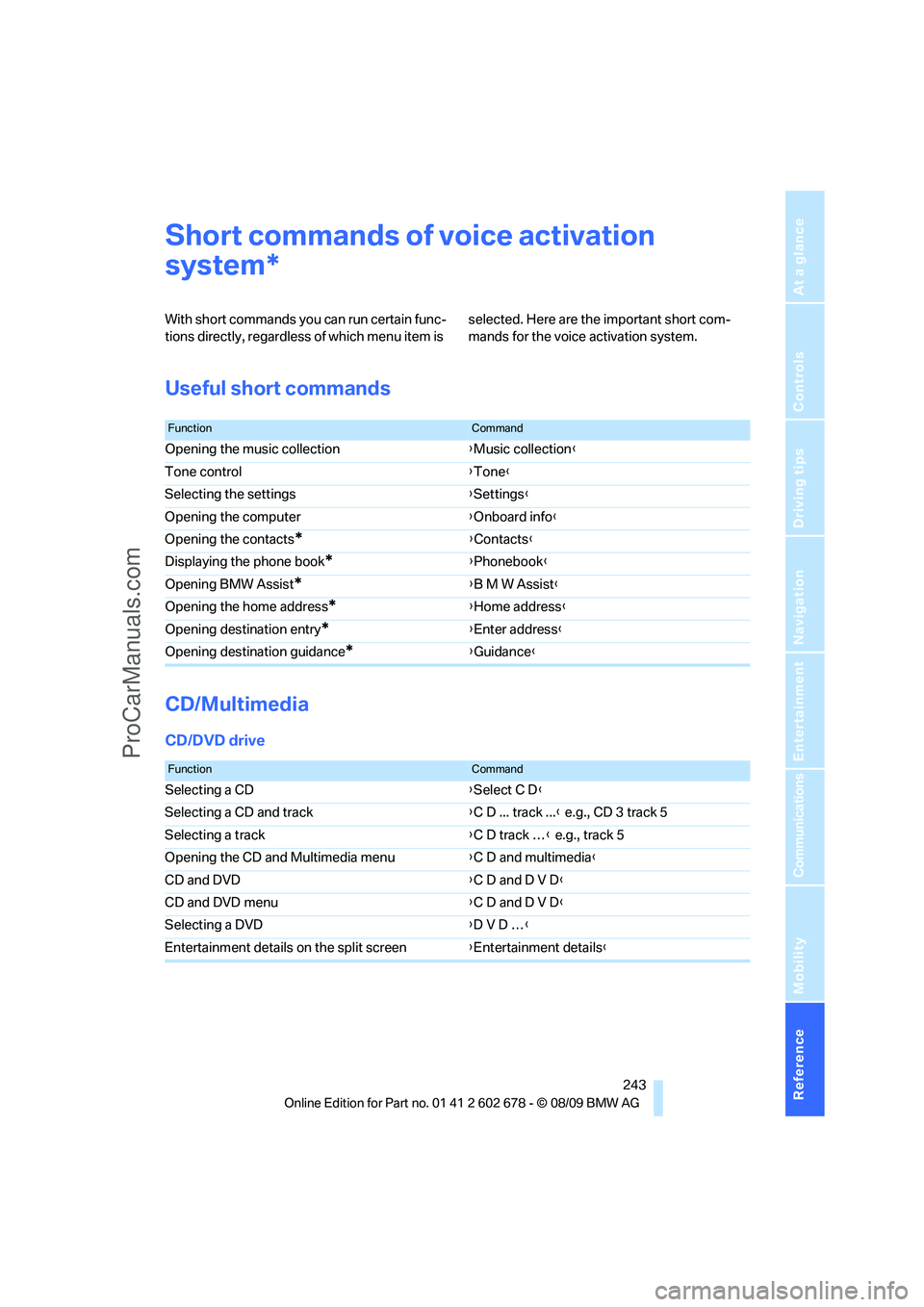

Short commands of voice activation
system
With short commands you can run certain func-
tions directly, regardless of which menu item is selected. Here are the important short com-
mands for the voice activation system.
Useful short commands
CD/Multimedia
CD/DVD drive
*
FunctionCommand
Opening the music collection{Music collection}
Tone control{Tone}
Selecting the settings{Settings}
Opening the computer{Onboard info}
Opening the contacts
*{Contacts}
Displaying the phone book
*{Phonebook}
Opening BMW Assist
*{B M W Assist}
Opening the home address
*{Home address}
Opening destination entry
*{Enter address}
Opening destination guidance
*{Guidance}
FunctionCommand
Selecting a CD{Select C D}
Selecting a CD and track{C D ... track ...} e.g., CD 3 track 5
Selecting a track{C D track …} e.g., track 5
Opening the CD and Multimedia menu{C D and multimedia}
CD and DVD{C D and D V D}
CD and DVD menu{C D and D V D}
Selecting a DVD{D V D …}
Entertainment details on the split screen{Entertainment details}
ProCarManuals.com

Short commands of voice activation system
244

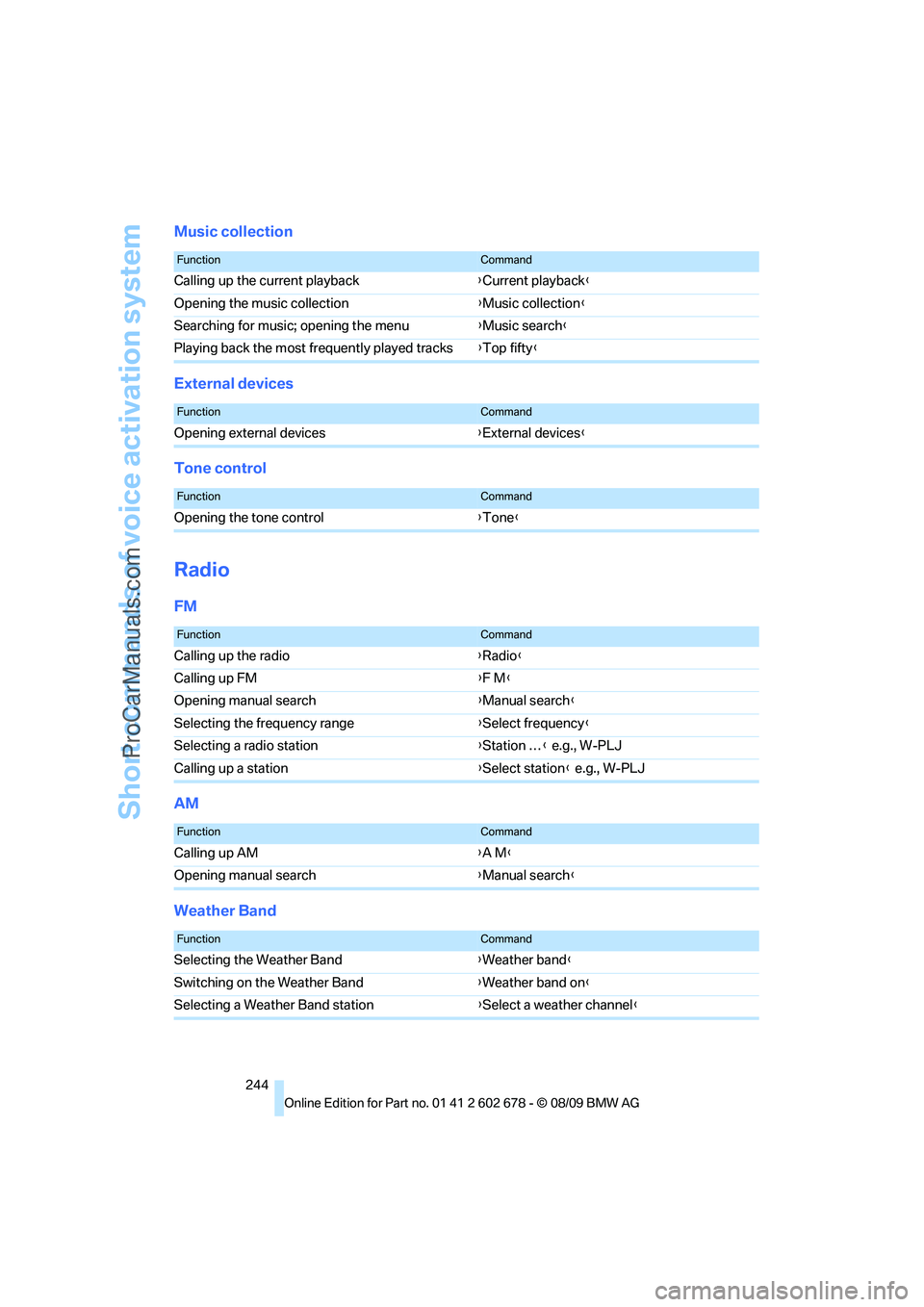

Music collection
External devices
Tone control
Radio
FM
AM
Weather Band
FunctionCommand
Calling up the current playback{Current playback}
Opening the music collection{Music collection}
Searching for music; opening the menu{Music search}
Playing back the most frequently played tracks{Top fifty}
FunctionCommand
Opening external devices{External devices}
FunctionCommand
Opening the tone control{Tone}
FunctionCommand
Calling up the radio{Radio}
Calling up FM{F M}
Opening manual search{Manual search}
Selecting the frequency range{Select frequency}
Selecting a radio station{Station …} e.g., W-PLJ
Calling up a station{Select station} e.g., W-PLJ
FunctionCommand
Calling up AM{A M}
Opening manual search{Manual search}
FunctionCommand
Selecting the Weather Band{Weather band}
Switching on the Weather Band{Weather band on}
Selecting a Weather Band station{Select a weather channel}
ProCarManuals.com

Reference 245
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

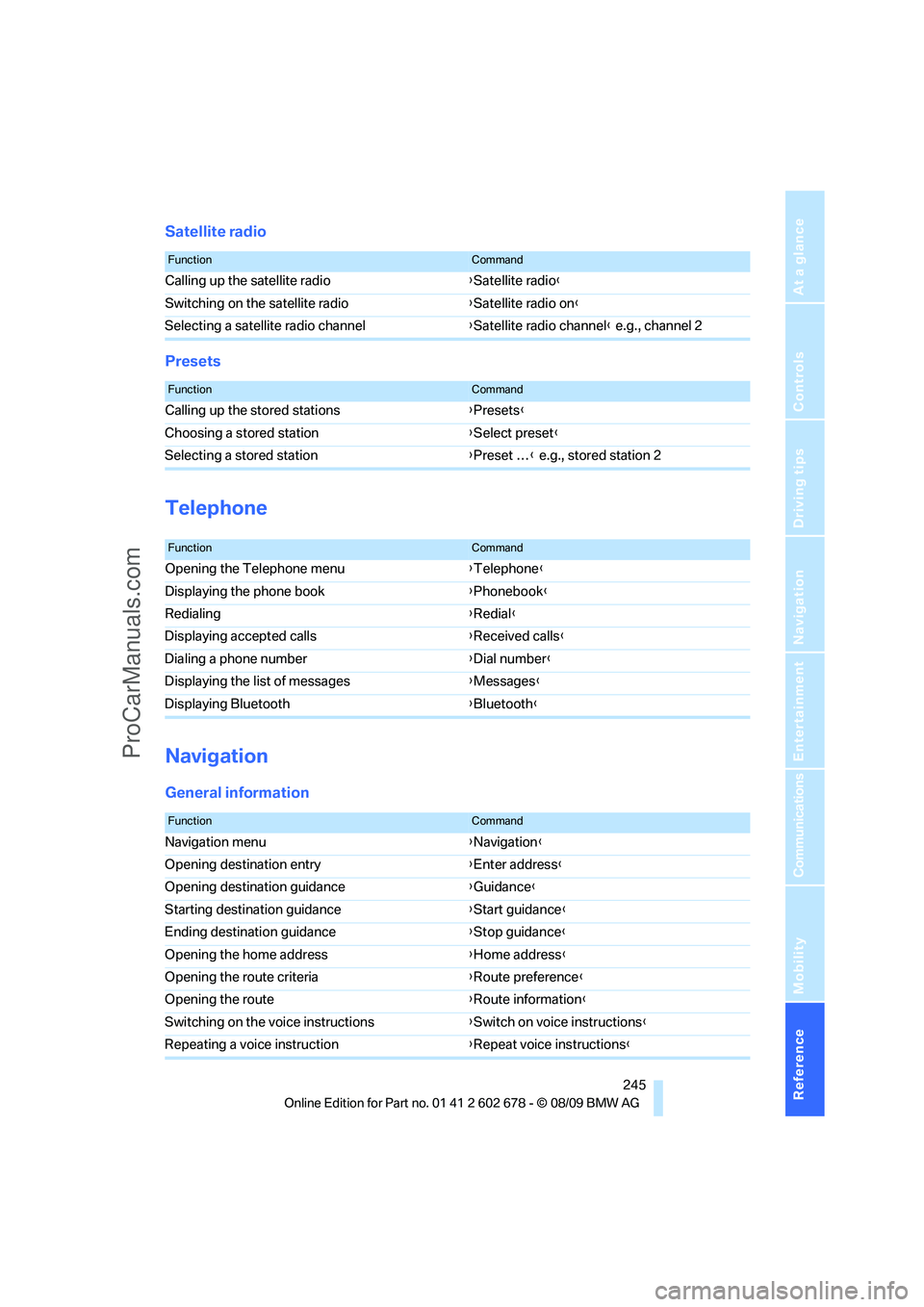

Satellite radio
Presets
Telephone
Navigation
General information
FunctionCommand
Calling up the satellite radio{Satellite radio}
Switching on the satellite radio{Satellite radio on}
Selecting a satellite radio channel{Satellite radio channel} e.g., channel 2
FunctionCommand
Calling up the stored stations{Presets}
Choosing a stored station{Select preset}
Selecting a stored station{Preset …} e.g., stored station 2
FunctionCommand
Opening the Telephone menu{Telephone}
Displaying the phone book{Phonebook}
Redialing{Redial}
Displaying accepted calls{Received calls}
Dialing a phone number{Dial number}
Displaying the list of messages{Messages}
Displaying Bluetooth{Bluetooth}
FunctionCommand
Navigation menu{Navigation}
Opening destination entry{Enter address}
Opening destination guidance{Guidance}
Starting destination guidance{Start guidance}
Ending destination guidance{Stop guidance}
Opening the home address{Home address}
Opening the route criteria{Route preference}
Opening the route{Route information}
Switching on the voice instructions{Switch on voice instructions}
Repeating a voice instruction{Repeat voice instructions}
ProCarManuals.com

Short commands of voice activation system
246

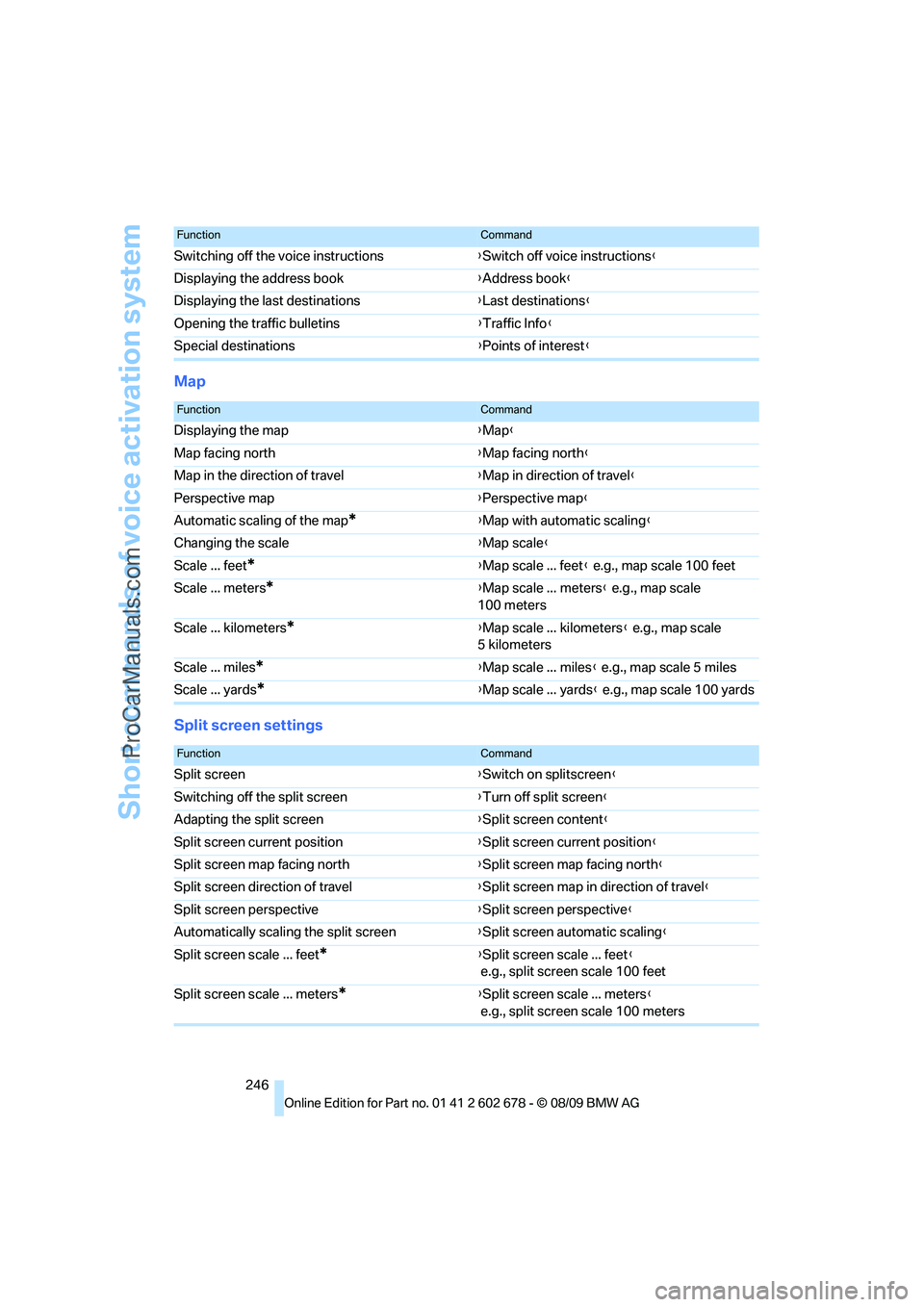

Map
Split screen settings
Switching off the voice instructions{Switch off voice instructions}
Displaying the address book{Address book}
Displaying the last destinations{Last destinations}
Opening the traffic bulletins{Traffic Info}
Special destinations{Points of interest}
FunctionCommand
FunctionCommand
Displaying the map{Map}
Map facing north{Map facing north}
Map in the direction of travel{Map in direction of travel}
Perspective map{Perspective map}
Automatic scaling of the map
*{Map with automatic scaling}
Changing the scale{Map scale}
Scale ... feet
*{Map scale ... feet} e.g., map scale 100 feet
Scale ... meters
*{Map scale ... meters} e.g., map scale
100 meters
Scale ... kilometers
*{Map scale ... kilometers} e.g., map scale
5 kilometers
Scale ... miles
*{Map scale ... miles} e.g., map scale 5 miles
Scale ... yards
*{Map scale ... yards} e.g., map scale 100 yards
FunctionCommand
Split screen{Switch on splitscreen}
Switching off the split screen{Turn off split screen}
Adapting the split screen{Split screen content}
Split screen current position{Split screen current position}
Split screen map facing north{Split screen map facing north}
Split screen direction of travel{Split screen map in direction of travel}
Split screen perspective{Split screen perspective}
Automatically scaling the split screen{Split screen automatic scaling}
Split screen scale ... feet
*{Split screen scale ... feet}
e.g., split screen scale 100 feet
Split screen scale ... meters
*{Split screen scale ... meters}
e.g., split screen scale 100 meters
ProCarManuals.com

Reference 247
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

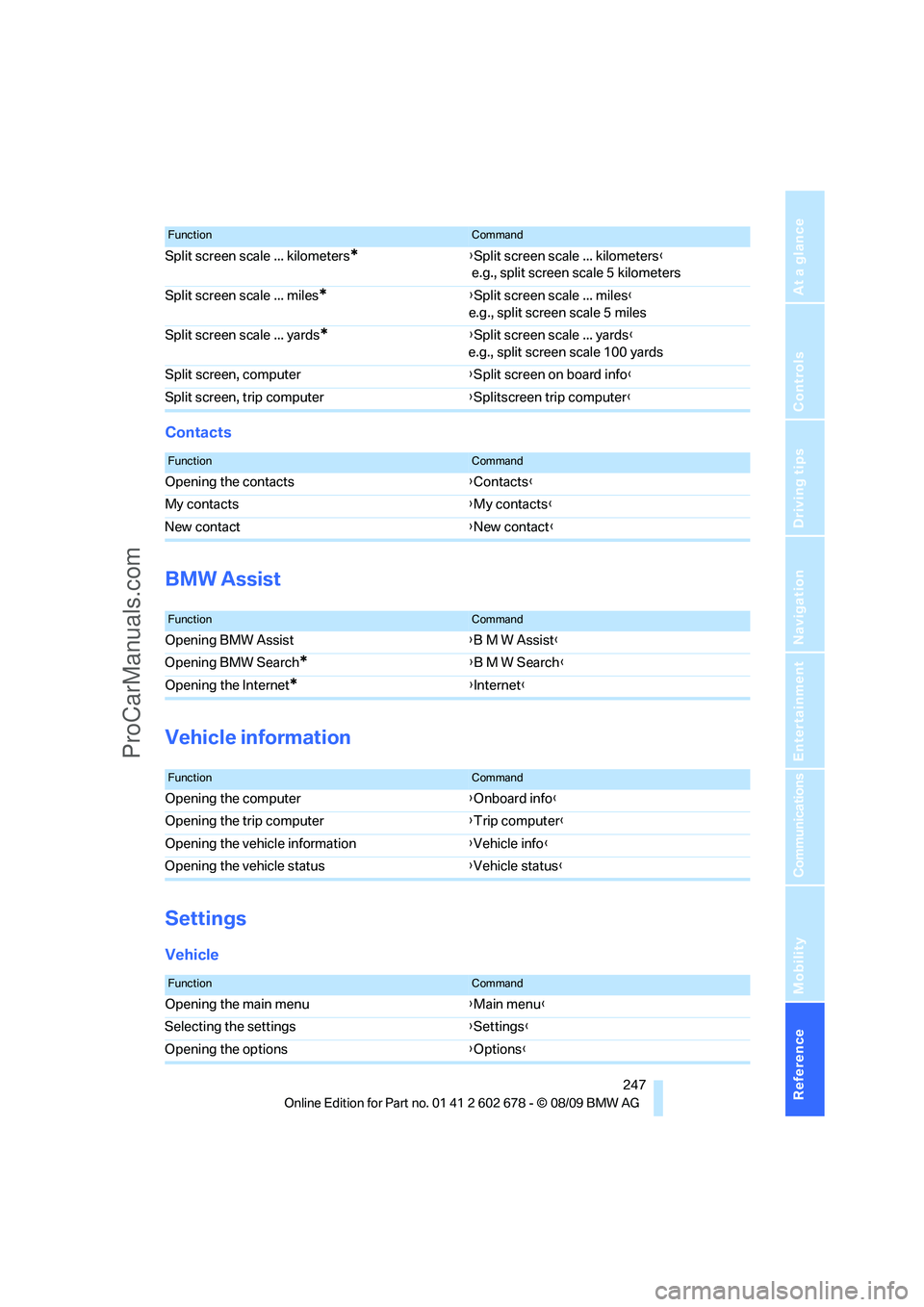

Contacts
BMW Assist
Vehicle information
Settings
Vehicle
Split screen scale ... kilometers*{Split screen scale ... kilometers}
e.g., split screen scale 5 kilometers
Split screen scale ... miles
*{Split screen scale ... miles}
e.g., split screen scale 5 miles
Split screen scale ... yards
*{Split screen scale ... yards}
e.g., split screen scale 100 yards
Split screen, computer{Split screen on board info}
Split screen, trip computer{Splitscreen trip computer}
FunctionCommand
FunctionCommand
Opening the contacts{Contacts}
My contacts{My contacts}
New contact{New contact}
FunctionCommand
Opening BMW Assist{B M W Assist}
Opening BMW Search
*{B M W Search}
Opening the Internet
*{Internet}
FunctionCommand
Opening the computer{Onboard info}
Opening the trip computer{Trip computer}
Opening the vehicle information{Vehicle info}
Opening the vehicle status{Vehicle status}
FunctionCommand
Opening the main menu{Main menu}
Selecting the settings{Settings}
Opening the options{Options}
ProCarManuals.com

Short commands of voice activation system
248

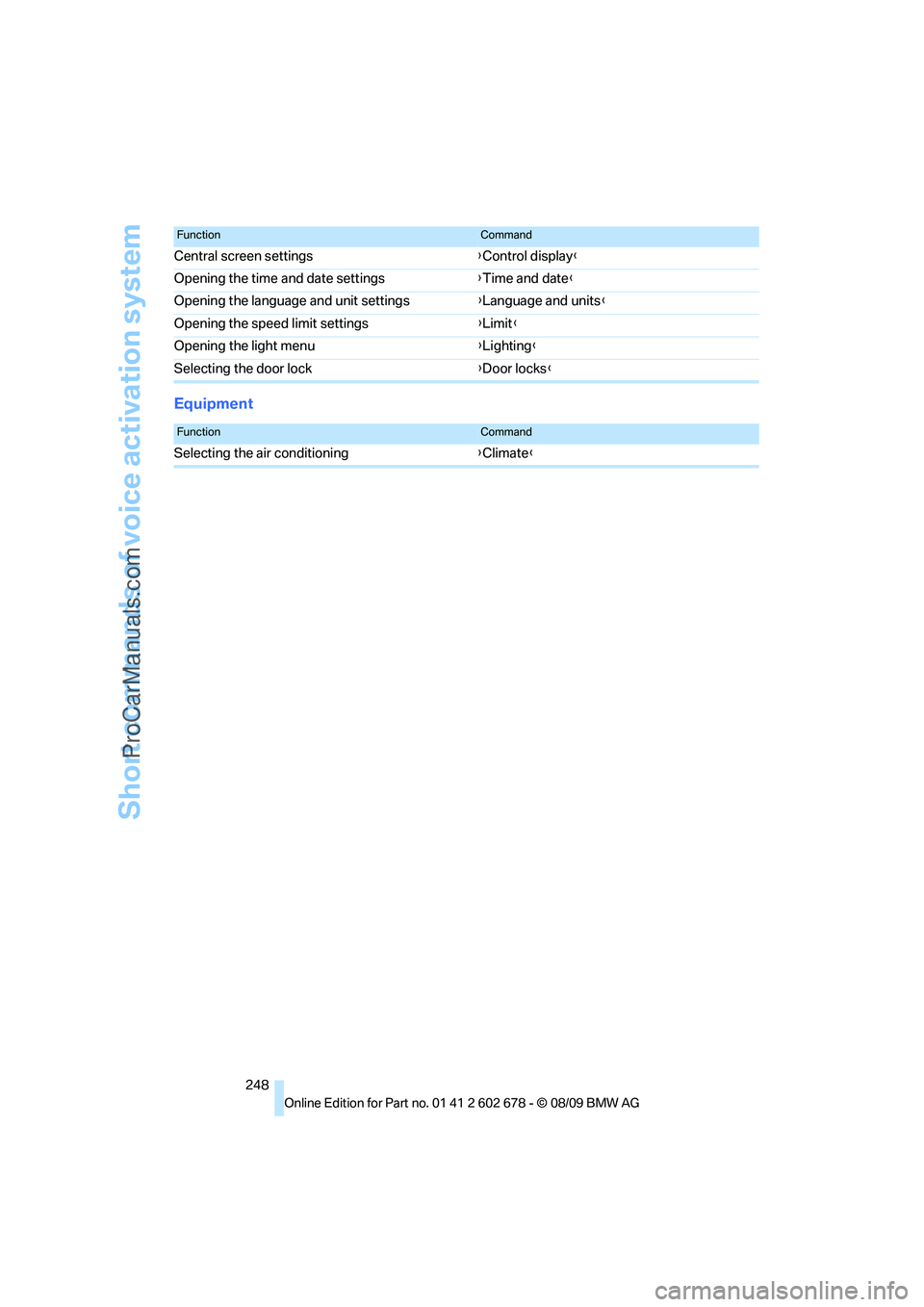

Equipment
Central screen settings{Control display}
Opening the time and date settings{Time and date}
Opening the language and unit settings{Language and units}
Opening the speed limit settings{Limit}
Opening the light menu{Lighting}
Selecting the door lock{Door locks}
FunctionCommand
FunctionCommand
Selecting the air conditioning{Climate}
ProCarManuals.com
