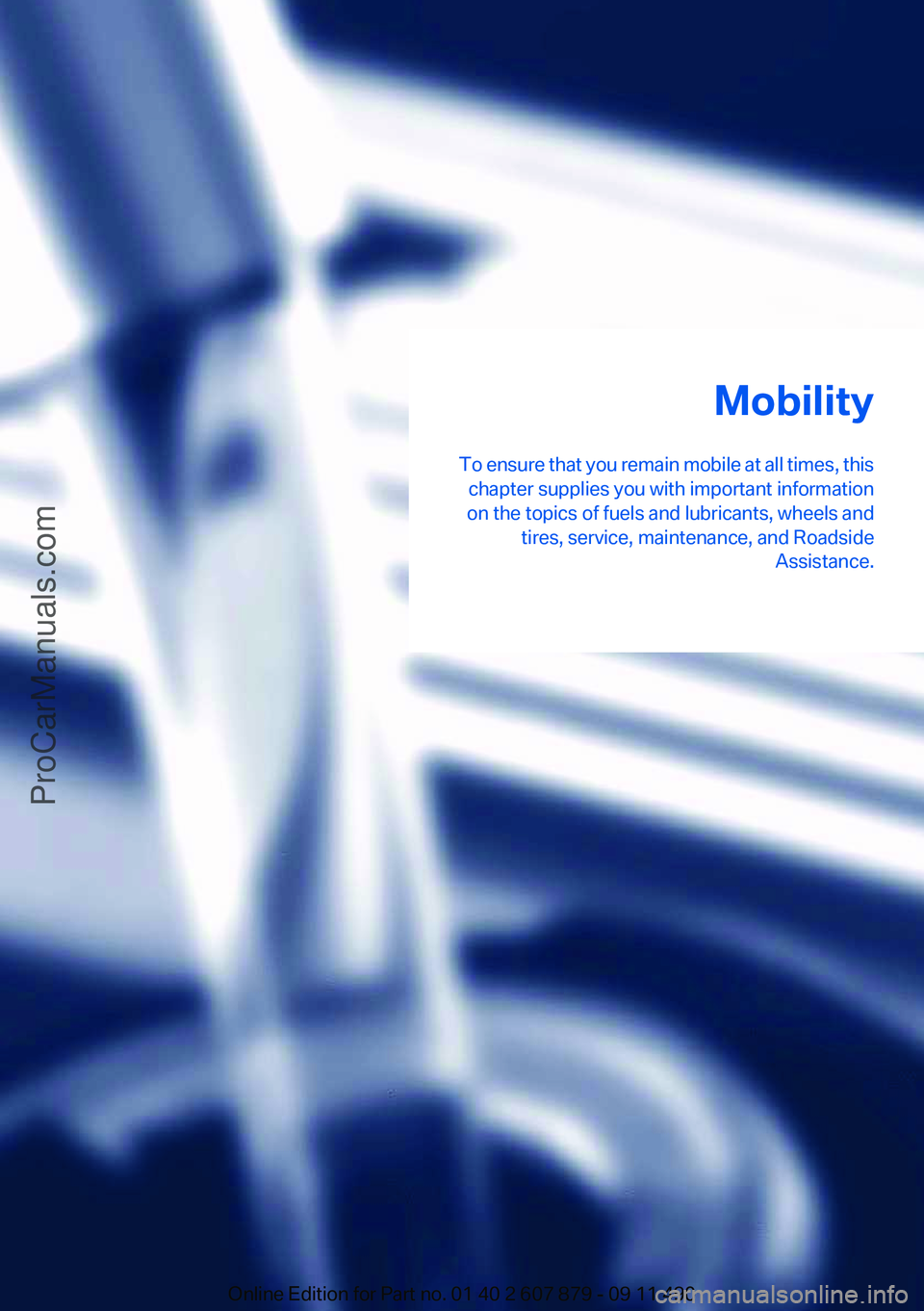

Mobility
To ensure that you remain mobile at all times, this chapter supplies you with important information
on the topics of fuels and lubricants, wheels and tires, service, maintenance, and Roadside Assistance.Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

RefuelingVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
General information Refuel promptly
Refuel below a range of 30 miles/50 km;
otherwise, engine functions are not ensured and
damage may occur.◀
Fuel cap
Opening1.Briefly press the rear edge of the fuel filler
flap.2.Turn the fuel cap counterclockwise.3.Place the fuel cap in the bracket attached to
the fuel filler flap.
Closing
1.Fit the cap and turn it clockwise until you
clearly hear a click.2.Close the fuel filler flap.
Do not pinch the retaining strap
Do not pinch the retaining strap attached
to the cap; otherwise, the cap cannot be closed
properly and fuel vapors can escape.
A message is displayed if the cap is loose or
missing.◀
Manually unlocking fuel filler flap
In the event of an electrical malfunction, for ex‐
ample.
Seite 262MobilityRefueling262
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

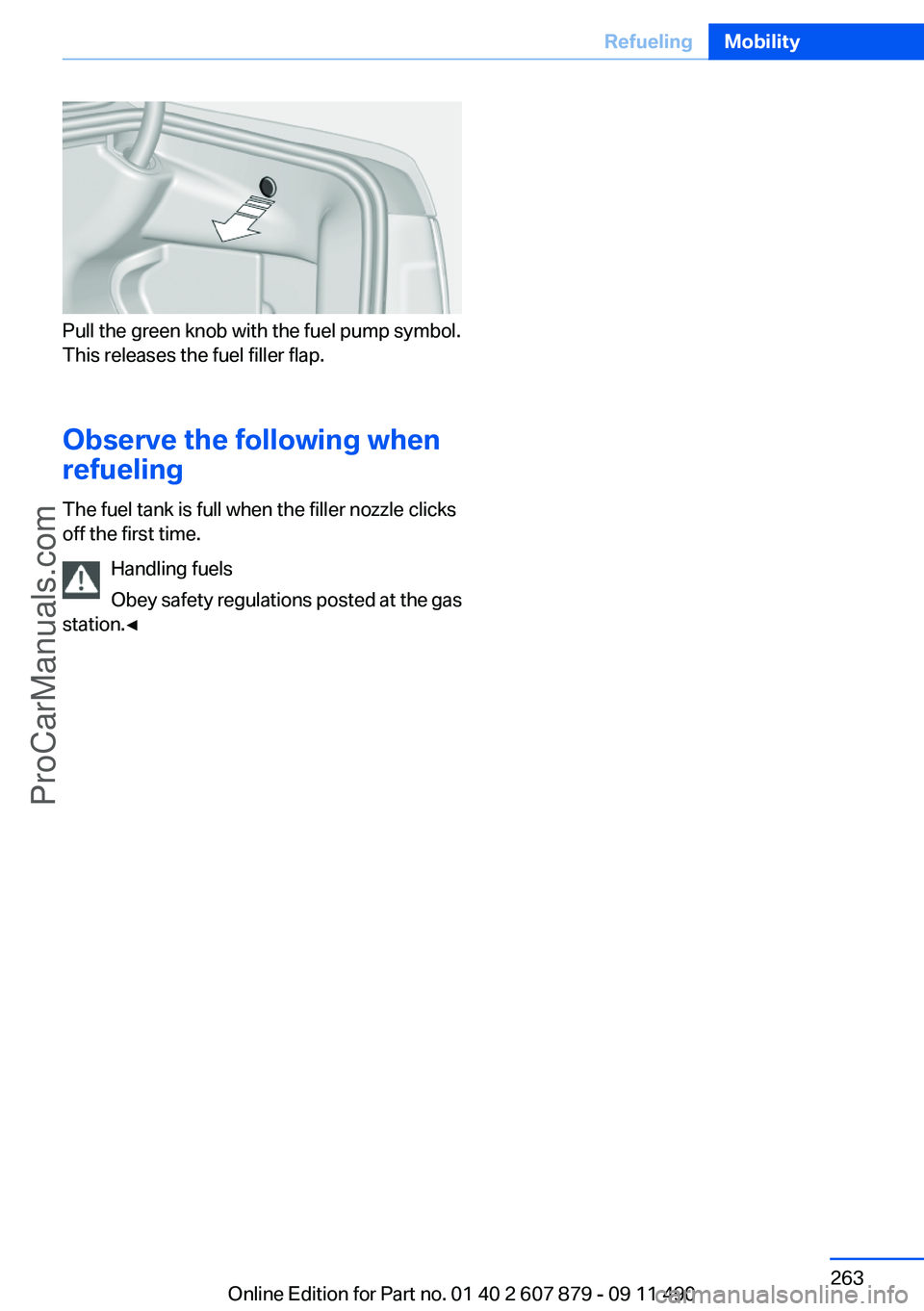

Pull the green knob with the fuel pump symbol.
This releases the fuel filler flap.
Observe the following when
refueling
The fuel tank is full when the filler nozzle clicks
off the first time.
Handling fuels
Obey safety regulations posted at the gas
station.◀
Seite 263RefuelingMobility263
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

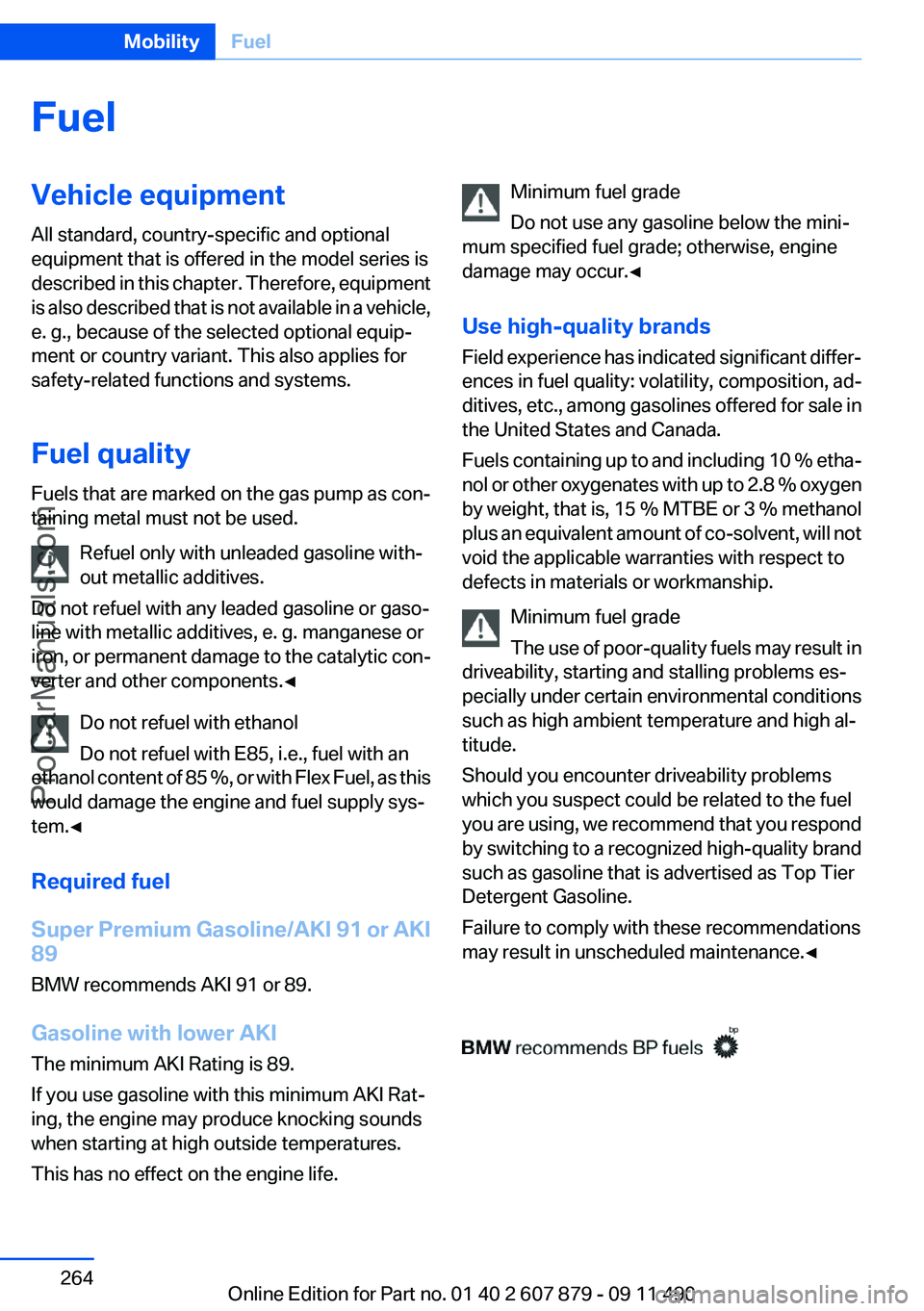

FuelVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
Fuel quality
Fuels that are marked on the gas pump as con‐
taining metal must not be used.
Refuel only with unleaded gasoline with‐
out metallic additives.
Do not refuel with any leaded gasoline or gaso‐
line with metallic additives, e. g. manganese or
iron, or permanent damage to the catalytic con‐
verter and other components.◀
Do not refuel with ethanol
Do not refuel with E85, i.e., fuel with an
ethanol content of 85 %, or with Flex Fuel, as this
would damage the engine and fuel supply sys‐
tem.◀
Required fuel
Super Premium Gasoline/AKI 91 or AKI
89
BMW recommends AKI 91 or 89.
Gasoline with lower AKI
The minimum AKI Rating is 89.
If you use gasoline with this minimum AKI Rat‐
ing, the engine may produce knocking sounds
when starting at high outside temperatures.
This has no effect on the engine life.Minimum fuel grade
Do not use any gasoline below the mini‐
mum specified fuel grade; otherwise, engine
damage may occur.◀
Use high-quality brands
Field experience has indicated significant differ‐
ences in fuel quality: volatility, composition, ad‐
ditives, etc., among gasolines offered for sale in
the United States and Canada.
Fuels containing up to and including 10 % etha‐
nol or other oxygenates with up to 2.8 % oxygen
by weight, that is, 15 % MTBE or 3 % methanol
plus an equivalent amount of co-solvent, will not
void the applicable warranties with respect to
defects in materials or workmanship.
Minimum fuel grade
The use of poor-quality fuels may result in
driveability, starting and stalling problems es‐
pecially under certain environmental conditions
such as high ambient temperature and high al‐
titude.
Should you encounter driveability problems
which you suspect could be related to the fuel
you are using, we recommend that you respond
by switching to a recognized high-quality brand
such as gasoline that is advertised as Top Tier
Detergent Gasoline.
Failure to comply with these recommendations
may result in unscheduled maintenance.◀Seite 264MobilityFuel264
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

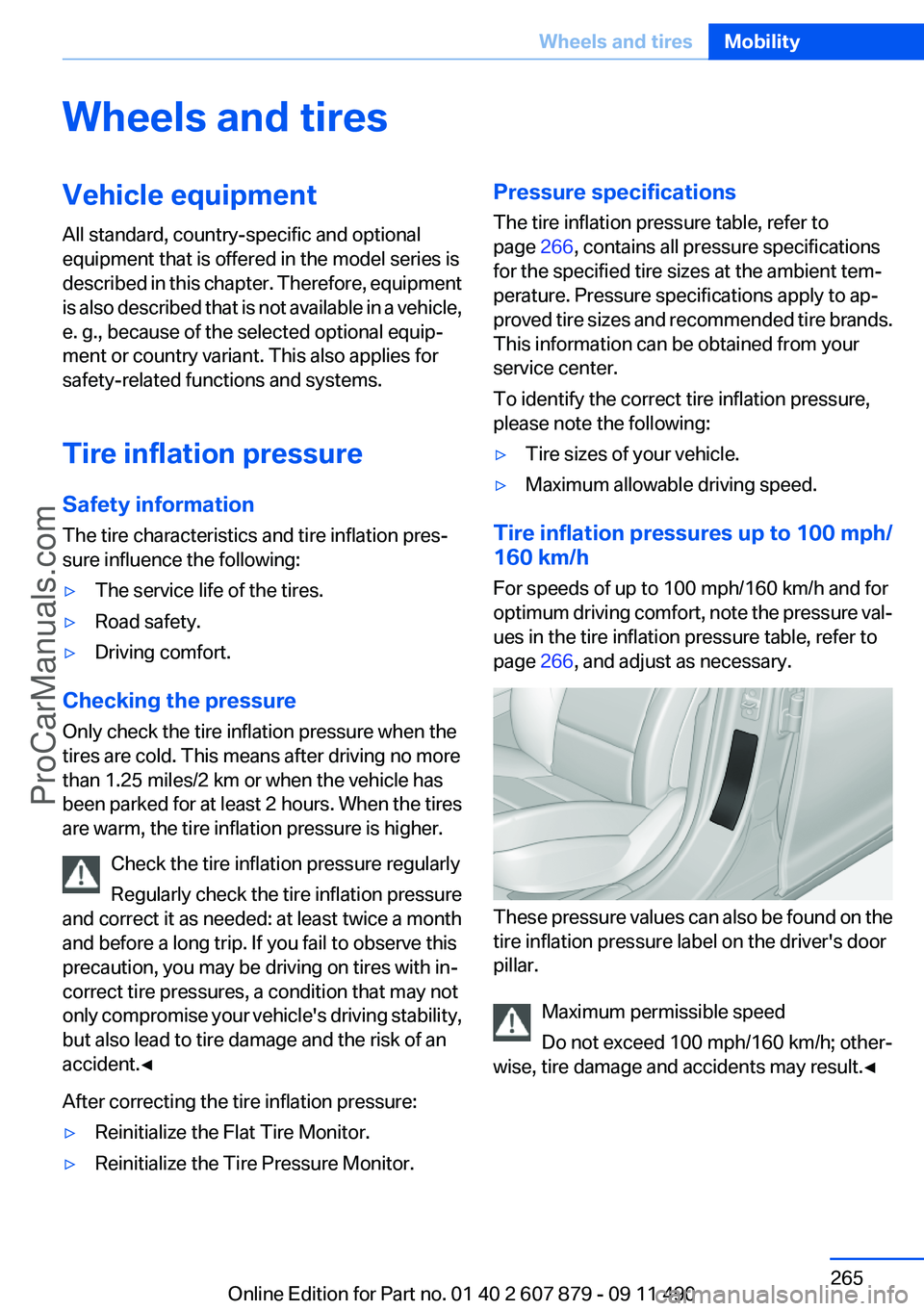

Wheels and tiresVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
Tire inflation pressure
Safety information
The tire characteristics and tire inflation pres‐
sure influence the following:▷The service life of the tires.▷Road safety.▷Driving comfort.
Checking the pressure
Only check the tire inflation pressure when the
tires are cold. This means after driving no more
than 1.25 miles/2 km or when the vehicle has
been parked for at least 2 hours. When the tires
are warm, the tire inflation pressure is higher.
Check the tire inflation pressure regularly
Regularly check the tire inflation pressure
and correct it as needed: at least twice a month
and before a long trip. If you fail to observe this
precaution, you may be driving on tires with in‐
correct tire pressures, a condition that may not
only compromise your vehicle's driving stability,
but also lead to tire damage and the risk of an
accident.◀
After correcting the tire inflation pressure:
▷Reinitialize the Flat Tire Monitor.▷Reinitialize the Tire Pressure Monitor.Pressure specifications
The tire inflation pressure table, refer to
page 266, contains all pressure specifications
for the specified tire sizes at the ambient tem‐
perature. Pressure specifications apply to ap‐
proved tire sizes and recommended tire brands.
This information can be obtained from your
service center.
To identify the correct tire inflation pressure,
please note the following:▷Tire sizes of your vehicle.▷Maximum allowable driving speed.
Tire inflation pressures up to 100 mph/
160 km/h
For speeds of up to 100 mph/160 km/h and for
optimum driving comfort, note the pressure val‐
ues in the tire inflation pressure table, refer to
page 266, and adjust as necessary.
These pressure values can also be found on the
tire inflation pressure label on the driver's door
pillar.
Maximum permissible speed
Do not exceed 100 mph/160 km/h; other‐
wise, tire damage and accidents may result.◀
Seite 265Wheels and tiresMobility265
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

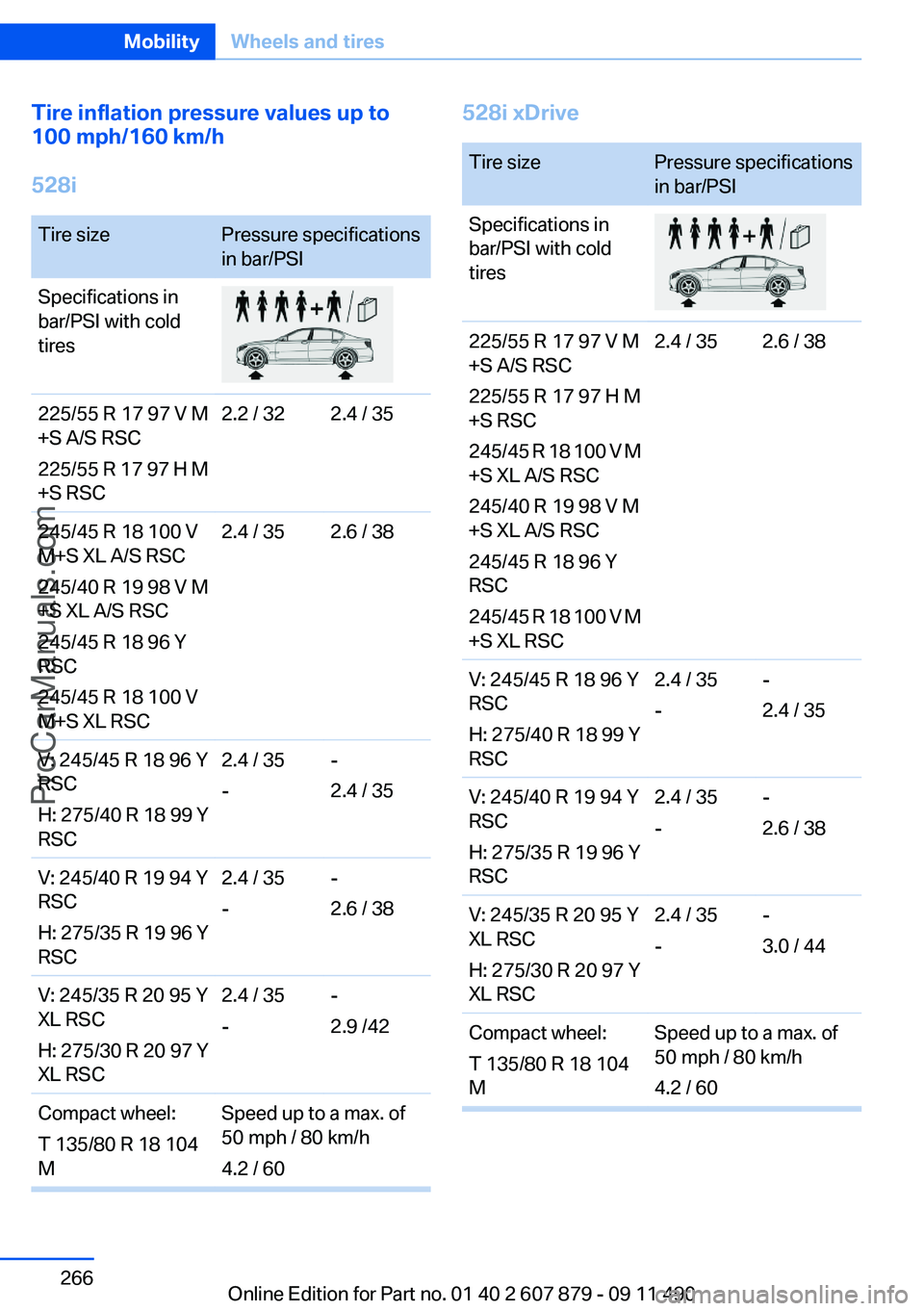

Tire inflation pressure values up to
100 mph/160 km/h
528iTire sizePressure specifications
in bar/PSISpecifications in
bar/PSI with cold
tires225/55 R 17 97 V M
+S A/S RSC
225/55 R 17 97 H M
+S RSC2.2 / 322.4 / 35245/45 R 18 100 V
M+S XL A/S RSC
245/40 R 19 98 V M
+S XL A/S RSC
245/45 R 18 96 Y
RSC
245/45 R 18 100 V
M+S XL RSC2.4 / 352.6 / 38V: 245/45 R 18 96 Y
RSC
H: 275/40 R 18 99 Y
RSC2.4 / 35
--
2.4 / 35V: 245/40 R 19 94 Y
RSC
H: 275/35 R 19 96 Y
RSC2.4 / 35
--
2.6 / 38V: 245/35 R 20 95 Y
XL RSC
H: 275/30 R 20 97 Y
XL RSC2.4 / 35
--
2.9 /42Compact wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60528i xDriveTire sizePressure specifications
in bar/PSISpecifications in
bar/PSI with cold
tires225/55 R 17 97 V M
+S A/S RSC
225/55 R 17 97 H M
+S RSC
245/45 R 18 100 V M
+S XL A/S RSC
245/40 R 19 98 V M
+S XL A/S RSC
245/45 R 18 96 Y
RSC
245/45 R 18 100 V M
+S XL RSC2.4 / 352.6 / 38V: 245/45 R 18 96 Y
RSC
H: 275/40 R 18 99 Y
RSC2.4 / 35
--
2.4 / 35V: 245/40 R 19 94 Y
RSC
H: 275/35 R 19 96 Y
RSC2.4 / 35
--
2.6 / 38V: 245/35 R 20 95 Y
XL RSC
H: 275/30 R 20 97 Y
XL RSC2.4 / 35
--
3.0 / 44Compact wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60Seite 266MobilityWheels and tires266
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

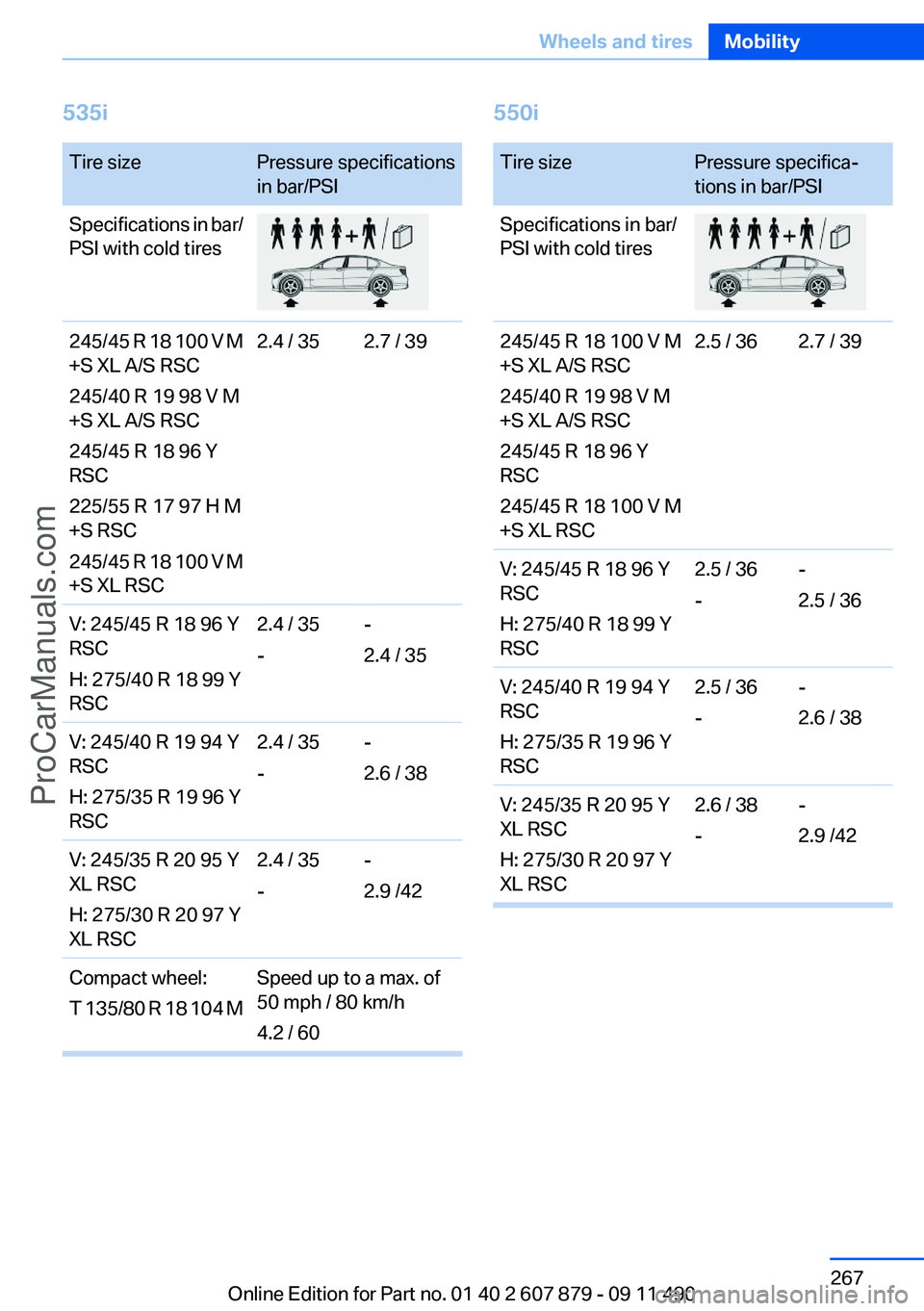

535iTire sizePressure specifications
in bar/PSISpecifications in bar/
PSI with cold tires245/45 R 18 100 V M
+S XL A/S RSC
245/40 R 19 98 V M
+S XL A/S RSC
245/45 R 18 96 Y
RSC
225/55 R 17 97 H M
+S RSC
245/45 R 18 100 V M
+S XL RSC2.4 / 352.7 / 39V: 245/45 R 18 96 Y
RSC
H: 275/40 R 18 99 Y
RSC2.4 / 35
--
2.4 / 35V: 245/40 R 19 94 Y
RSC
H: 275/35 R 19 96 Y
RSC2.4 / 35
--
2.6 / 38V: 245/35 R 20 95 Y
XL RSC
H: 275/30 R 20 97 Y
XL RSC2.4 / 35
--
2.9 /42Compact wheel:
T 135/80 R 18 104 MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60550iTire sizePressure specifica‐
tions in bar/PSISpecifications in bar/
PSI with cold tires245/45 R 18 100 V M
+S XL A/S RSC
245/40 R 19 98 V M
+S XL A/S RSC
245/45 R 18 96 Y
RSC
245/45 R 18 100 V M
+S XL RSC2.5 / 362.7 / 39V: 245/45 R 18 96 Y
RSC
H: 275/40 R 18 99 Y
RSC2.5 / 36
--
2.5 / 36V: 245/40 R 19 94 Y
RSC
H: 275/35 R 19 96 Y
RSC2.5 / 36
--
2.6 / 38V: 245/35 R 20 95 Y
XL RSC
H: 275/30 R 20 97 Y
XL RSC2.6 / 38
--
2.9 /42Seite 267Wheels and tiresMobility267
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

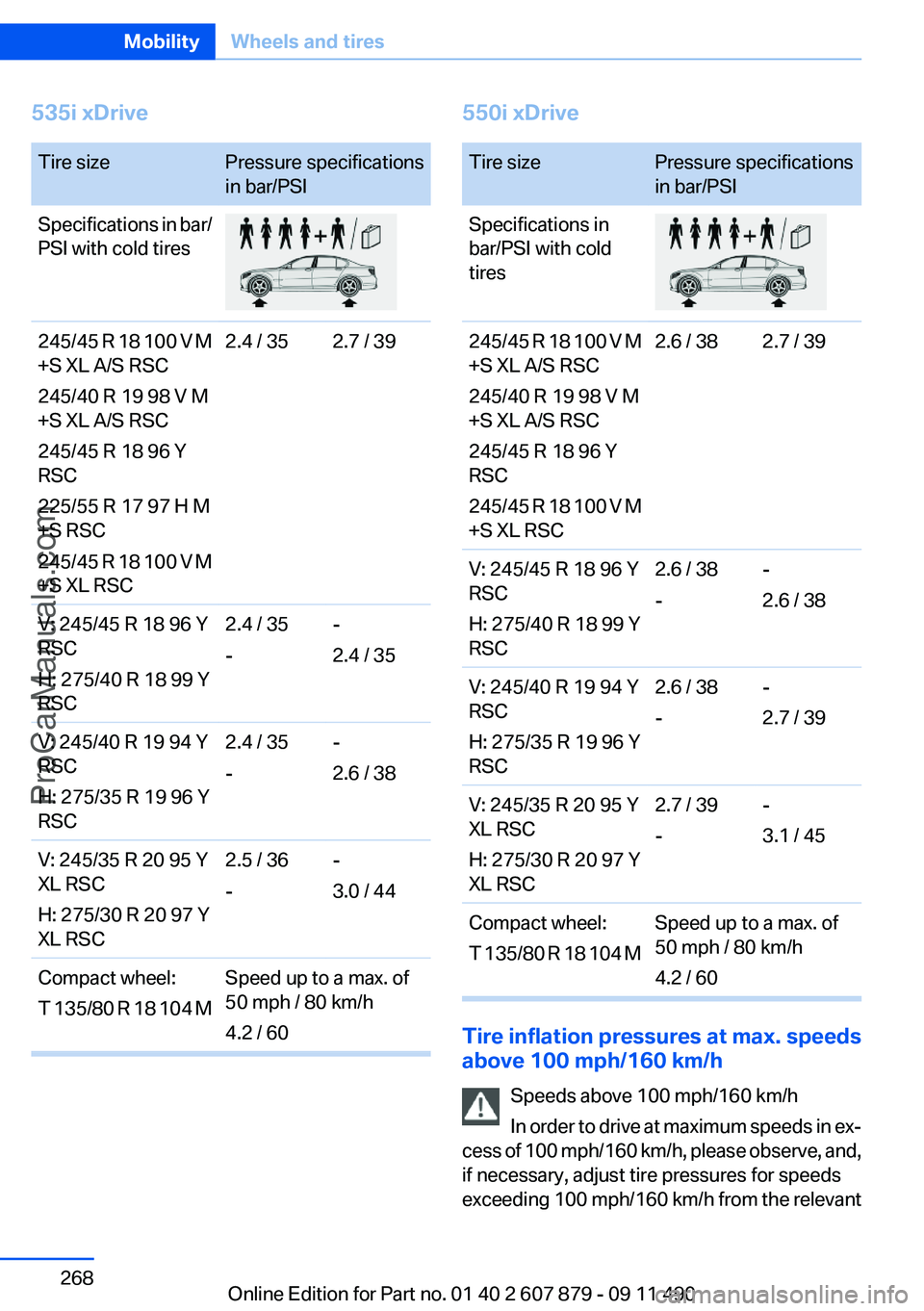

535i xDriveTire sizePressure specifications
in bar/PSISpecifications in bar/
PSI with cold tires245/45 R 18 100 V M
+S XL A/S RSC
245/40 R 19 98 V M
+S XL A/S RSC
245/45 R 18 96 Y
RSC
225/55 R 17 97 H M
+S RSC
245/45 R 18 100 V M
+S XL RSC2.4 / 352.7 / 39V: 245/45 R 18 96 Y
RSC
H: 275/40 R 18 99 Y
RSC2.4 / 35
--
2.4 / 35V: 245/40 R 19 94 Y
RSC
H: 275/35 R 19 96 Y
RSC2.4 / 35
--
2.6 / 38V: 245/35 R 20 95 Y
XL RSC
H: 275/30 R 20 97 Y
XL RSC2.5 / 36
--
3.0 / 44Compact wheel:
T 135/80 R 18 104 MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60550i xDriveTire sizePressure specifications
in bar/PSISpecifications in
bar/PSI with cold
tires245/45 R 18 100 V M
+S XL A/S RSC
245/40 R 19 98 V M
+S XL A/S RSC
245/45 R 18 96 Y
RSC
245/45 R 18 100 V M
+S XL RSC2.6 / 382.7 / 39V: 245/45 R 18 96 Y
RSC
H: 275/40 R 18 99 Y
RSC2.6 / 38
--
2.6 / 38V: 245/40 R 19 94 Y
RSC
H: 275/35 R 19 96 Y
RSC2.6 / 38
--
2.7 / 39V: 245/35 R 20 95 Y
XL RSC
H: 275/30 R 20 97 Y
XL RSC2.7 / 39
--
3.1 / 45Compact wheel:
T 135/80 R 18 104 MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60
Tire inflation pressures at max. speeds
above 100 mph/160 km/h
Speeds above 100 mph/160 km/h
In order to drive at maximum speeds in ex‐
cess of 100 mph/160 km/h, please observe, and,
if necessary, adjust tire pressures for speeds
exceeding 100 mph/160 km/h from the relevant
Seite 268MobilityWheels and tires268
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

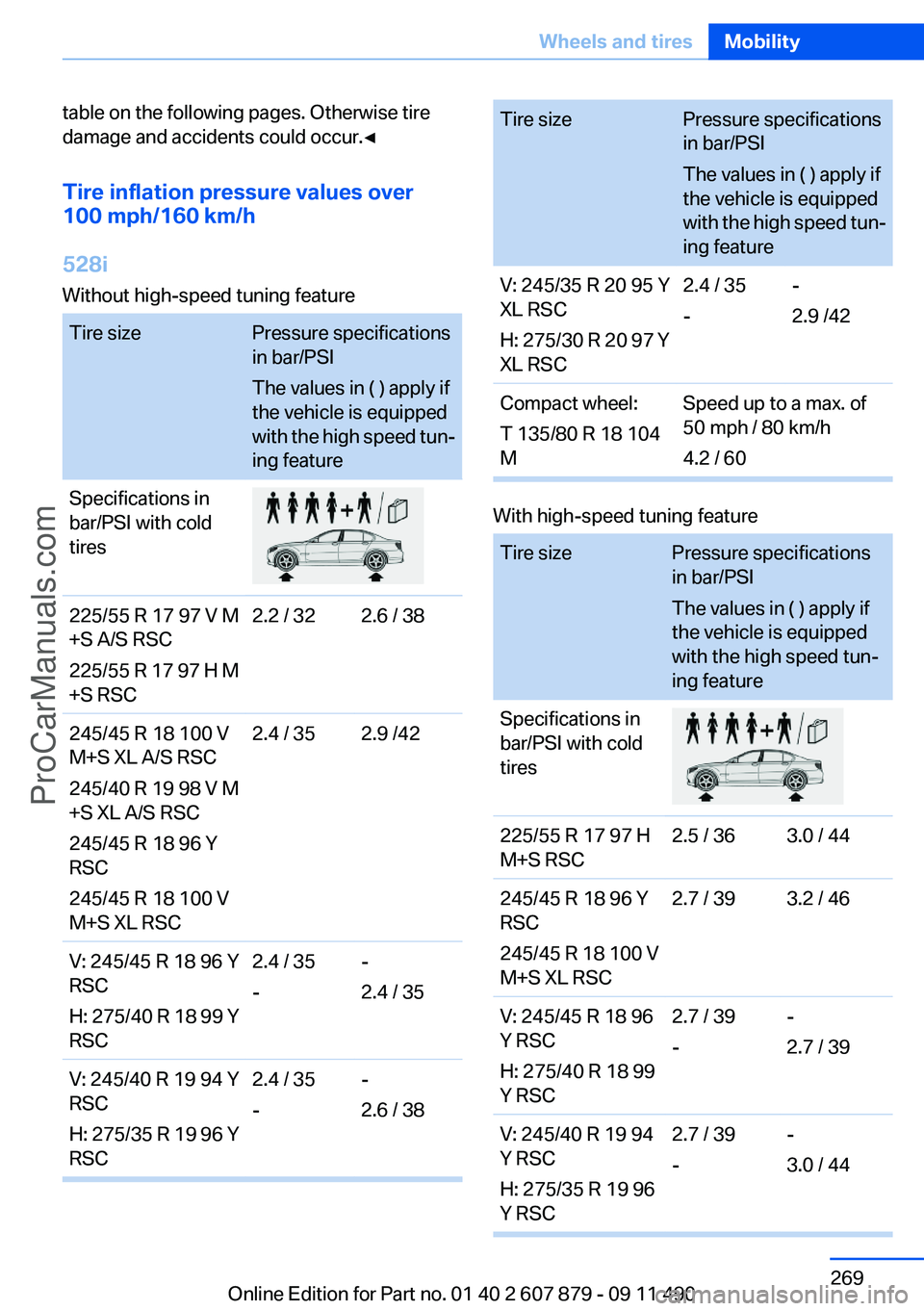

table on the following pages. Otherwise tire
damage and accidents could occur.◀
Tire inflation pressure values over
100 mph/160 km/h
528i
Without high-speed tuning featureTire sizePressure specifications
in bar/PSI
The values in ( ) apply if
the vehicle is equipped
with the high speed tun‐
ing featureSpecifications in
bar/PSI with cold
tires225/55 R 17 97 V M
+S A/S RSC
225/55 R 17 97 H M
+S RSC2.2 / 322.6 / 38245/45 R 18 100 V
M+S XL A/S RSC
245/40 R 19 98 V M
+S XL A/S RSC
245/45 R 18 96 Y
RSC
245/45 R 18 100 V
M+S XL RSC2.4 / 352.9 /42V: 245/45 R 18 96 Y
RSC
H: 275/40 R 18 99 Y
RSC2.4 / 35
--
2.4 / 35V: 245/40 R 19 94 Y
RSC
H: 275/35 R 19 96 Y
RSC2.4 / 35
--
2.6 / 38Tire sizePressure specifications
in bar/PSI
The values in ( ) apply if
the vehicle is equipped
with the high speed tun‐
ing featureV: 245/35 R 20 95 Y
XL RSC
H: 275/30 R 20 97 Y
XL RSC2.4 / 35
--
2.9 /42Compact wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60
With high-speed tuning feature
Tire sizePressure specifications
in bar/PSI
The values in ( ) apply if
the vehicle is equipped
with the high speed tun‐
ing featureSpecifications in
bar/PSI with cold
tires225/55 R 17 97 H
M+S RSC2.5 / 363.0 / 44245/45 R 18 96 Y
RSC
245/45 R 18 100 V
M+S XL RSC2.7 / 393.2 / 46V: 245/45 R 18 96
Y RSC
H: 275/40 R 18 99
Y RSC2.7 / 39
--
2.7 / 39V: 245/40 R 19 94
Y RSC
H: 275/35 R 19 96
Y RSC2.7 / 39
--
3.0 / 44Seite 269Wheels and tiresMobility269
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com

Tire sizePressure specifications
in bar/PSI
The values in ( ) apply if
the vehicle is equipped
with the high speed tun‐
ing featureV: 245/35 R 20 95
Y XL RSC
H: 275/30 R 20 97
Y XL RSC2.7 / 39
--
3.2 / 46Compact wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60

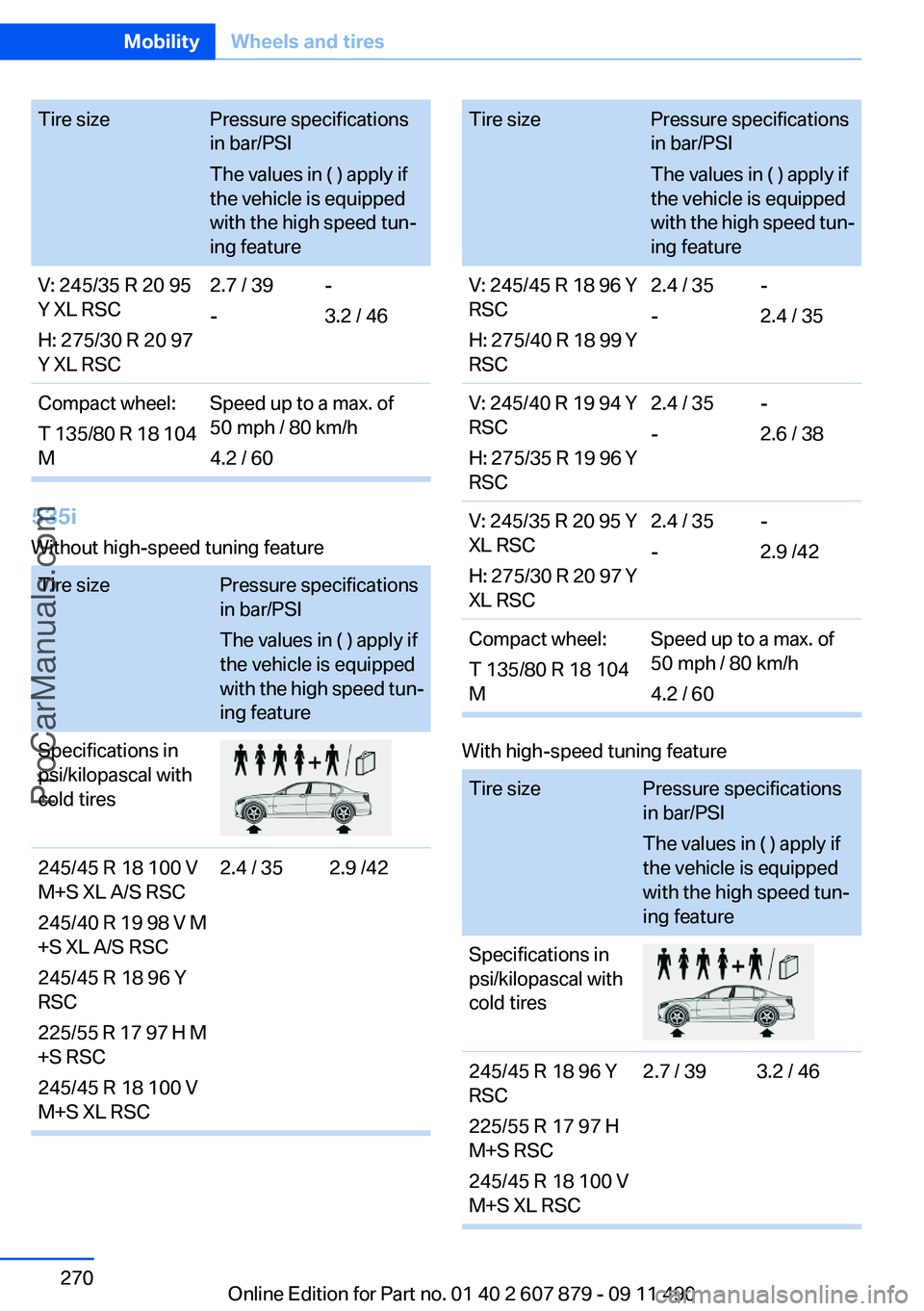

535i
Without high-speed tuning feature
Tire sizePressure specifications
in bar/PSI
The values in ( ) apply if
the vehicle is equipped
with the high speed tun‐
ing featureSpecifications in
psi/kilopascal with
cold tires245/45 R 18 100 V
M+S XL A/S RSC
245/40 R 19 98 V M
+S XL A/S RSC
245/45 R 18 96 Y
RSC
225/55 R 17 97 H M
+S RSC
245/45 R 18 100 V
M+S XL RSC2.4 / 352.9 /42Tire sizePressure specifications
in bar/PSI
The values in ( ) apply if
the vehicle is equipped
with the high speed tun‐
ing featureV: 245/45 R 18 96 Y
RSC
H: 275/40 R 18 99 Y
RSC2.4 / 35
--
2.4 / 35V: 245/40 R 19 94 Y
RSC
H: 275/35 R 19 96 Y
RSC2.4 / 35
--
2.6 / 38V: 245/35 R 20 95 Y
XL RSC
H: 275/30 R 20 97 Y
XL RSC2.4 / 35
--
2.9 /42Compact wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60
With high-speed tuning feature
Tire sizePressure specifications
in bar/PSI
The values in ( ) apply if
the vehicle is equipped
with the high speed tun‐
ing featureSpecifications in
psi/kilopascal with
cold tires245/45 R 18 96 Y
RSC
225/55 R 17 97 H
M+S RSC
245/45 R 18 100 V
M+S XL RSC2.7 / 393.2 / 46Seite 270MobilityWheels and tires270
Online Edition for Part no. 01 40 2 607 879 - 09 11 490
ProCarManuals.com
