BMW 5 SERIES 2016 Owners Manual

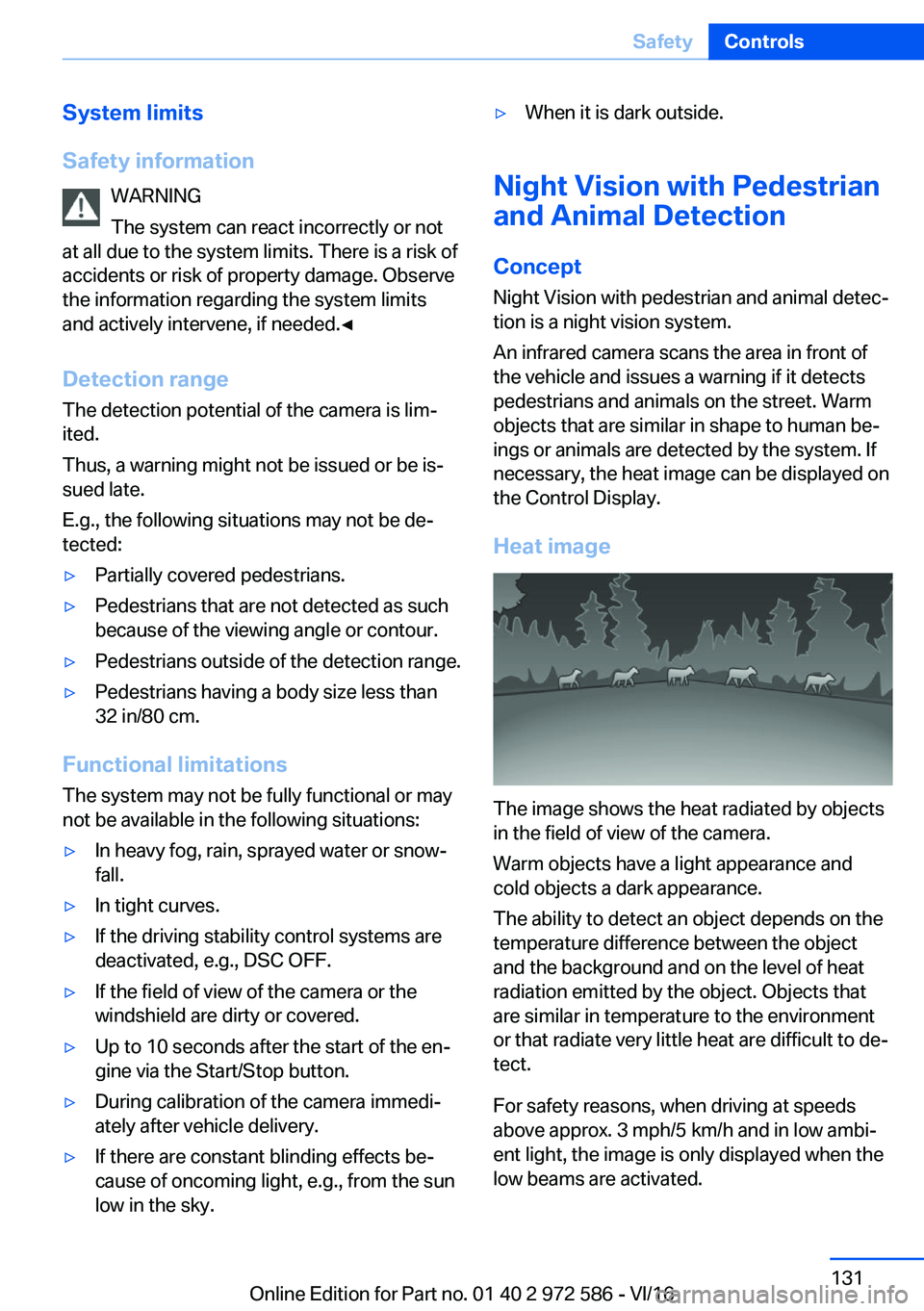

System
limits
Safety
information WARNING
The system can react incorrectly or not
at all due to the system limits. There is a risk of
accidents or risk of property damage. Observe the information regarding the system limits
and actively intervene, if needed.'

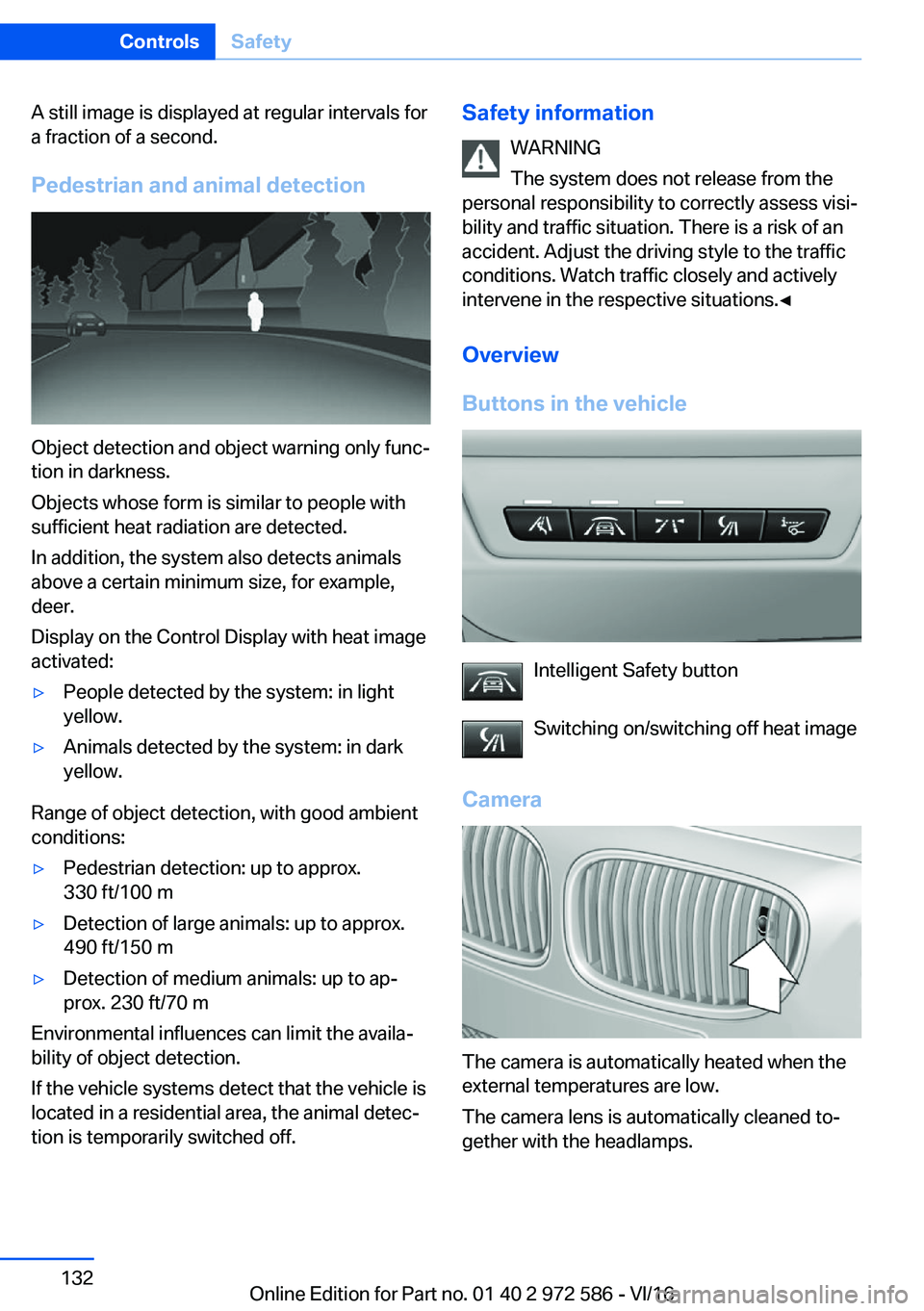

A still image is displayed at regular intervals for
a fraction of a second.
Pedestrian
and
animal
detection
Object detection and object warning only funcj
tion in darkness.
Objects whose form is similar to people with
sufficient heat radiation are detected.
In addition, the system also detects animalsabove a certain minimum size, for example,
deer.
Display on the Control Display with heat image
activated:
'yPeople detected by the system: in light yellow.'yAnimals detected by the system: in dark
yellow.
Range of object detection, with good ambient
conditions:
'yPedestrian detection: up to approx.
330 ft/100 m'yDetection of large animals: up to approx.
490 ft/150 m'yDetection of medium animals: up to apj prox. 230 ft/70 m
Environmental influences can limit the availaj
bility of object detection.
If the vehicle systems detect that the vehicle is located in a residential area, the animal detecj
tion is temporarily switched off.
Safety
information
WARNING
The system does not release from the
personal responsibility to correctly assess visij bility and traffic situation. There is a risk of anaccident. Adjust the driving style to the traffic
conditions. Watch traffic closely and actively intervene in the respective situations.'

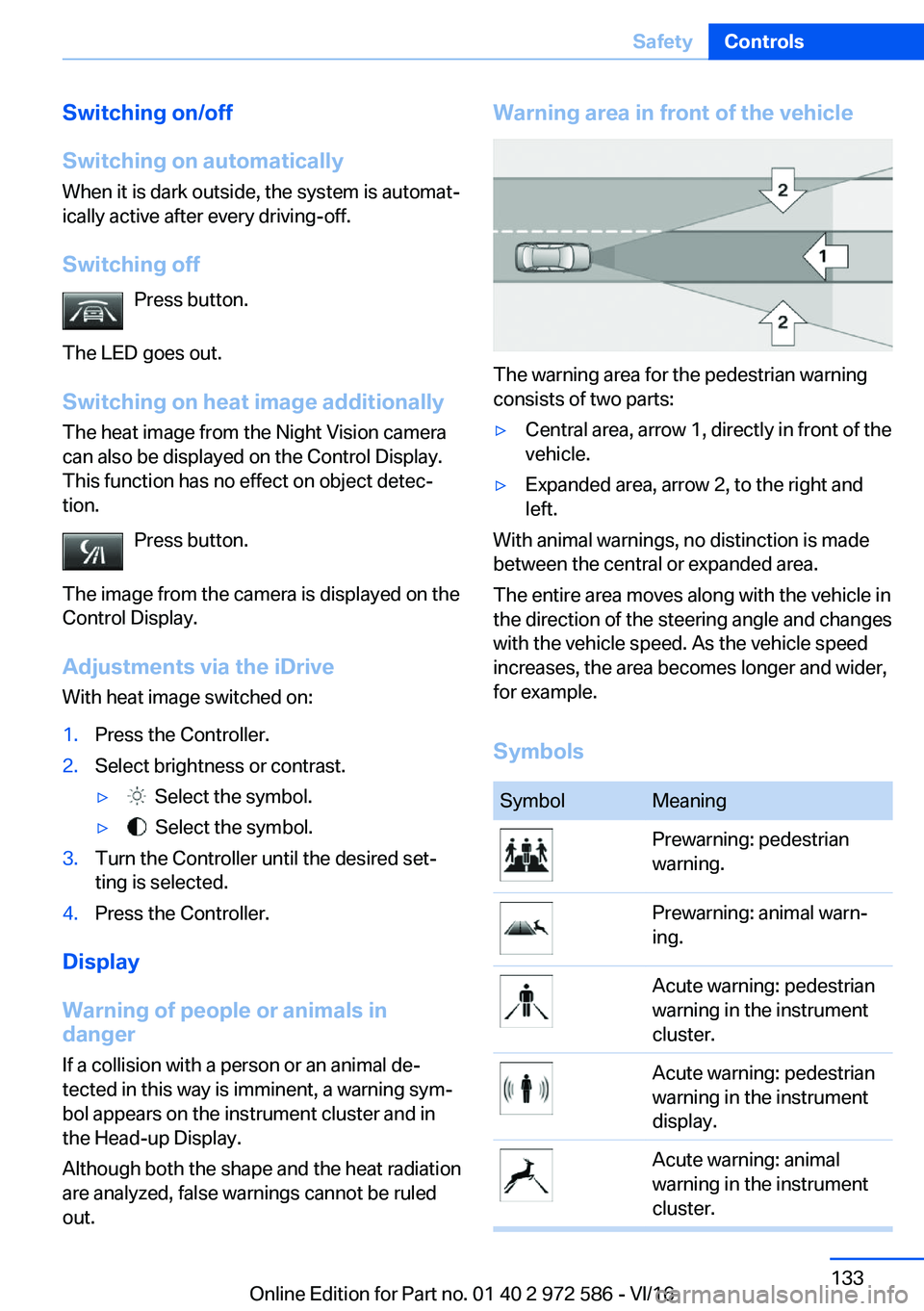

Switching
on/off
Switching
on
automatically When it is dark outside, the system is automatjically active after every driving-off.
Switching
off Press button.
The LED goes out. Switching
on
heat
additionally
The heat image from the Night Vision camera
can also be displayed on the Control Display.
This function has no effect on object detecj
tion.
Press button.
The image from the camera is displayed on the
Control Display.
Adjustments
via
the
iDrive
With heat image switched on:1.Press the Controller.2.Select brightness or contrast.'y Select the symbol.'y Select the symbol.3.Turn the Controller until the desired setj ting is selected.4.Press the Controller.
Display
Warning
of
people
or
animals
in
danger
If a collision with a person or an animal dej tected in this way is imminent, a warning symj
bol appears on the instrument cluster and in the Head-up Display.
Although both the shape and the heat radiation
are analyzed, false warnings cannot be ruled
out.
Warning
area
in
front
of
the
vehicle
The warning area for the pedestrian warning consists of two parts:
'yCentral area, arrow 1, directly in front of thevehicle.'yExpanded area, arrow 2, to the right and
left.
With animal warnings, no distinction is made
between the central or expanded area.
The entire area moves along with the vehicle in
the direction of the steering angle and changes
with the vehicle speed. As the vehicle speed
increases, the area becomes longer and wider,for example.
Symbols
SymbolMeaningPrewarning: pedestrian
warning.Prewarning: animal warnj
ing.Acute warning: pedestrian
warning in the instrument
cluster.Acute warning: pedestrian
warning in the instrument
display.Acute warning: animal
warning in the instrument
cluster.Seite 133SafetyControls133
Online Edition for Part no. 01 40 2 972 586 - VI/16

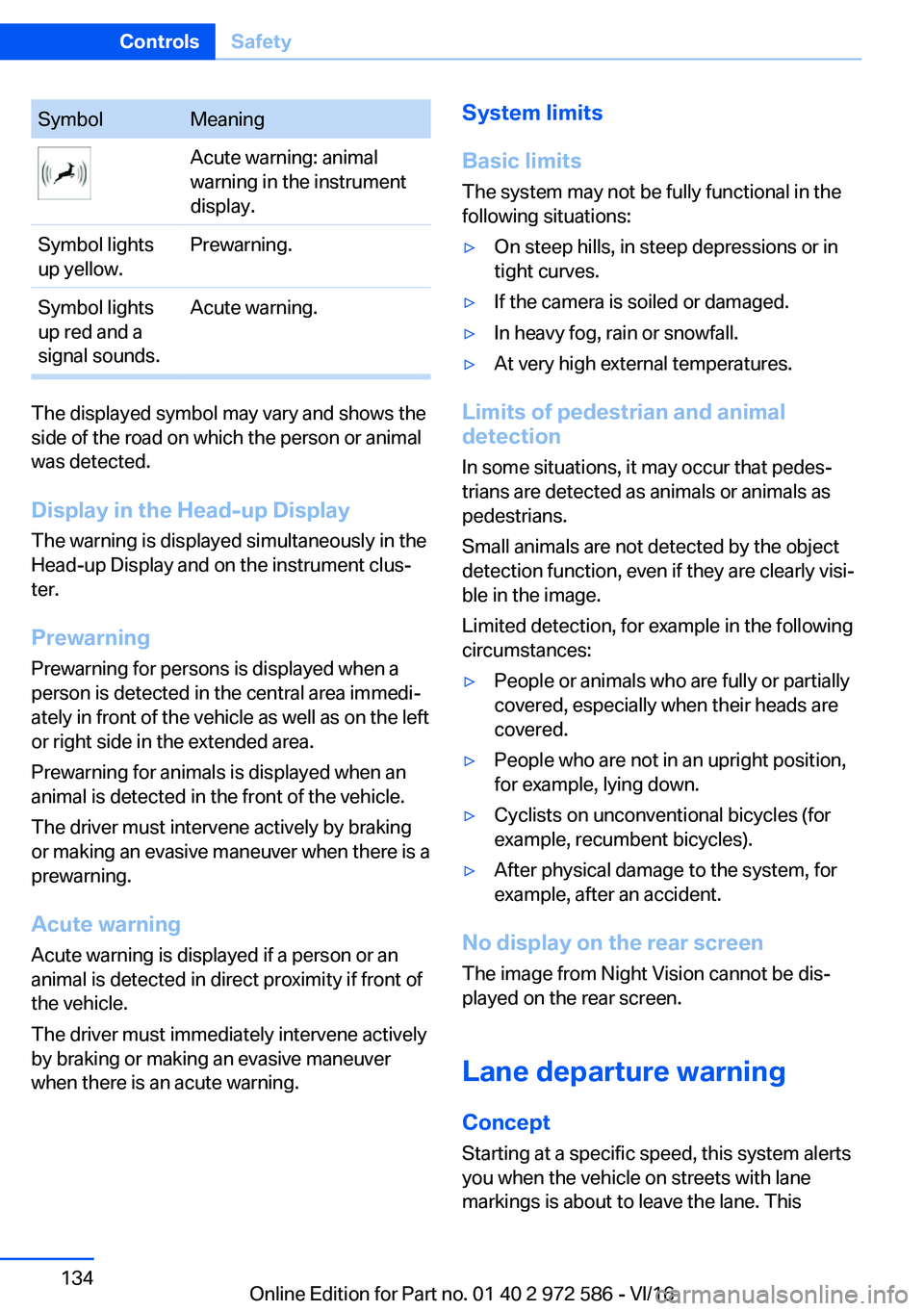

SymbolMeaningAcute warning: animal
warning in the instrument
display.Symbol lights
up yellow.Prewarning.Symbol lights
up red and a
signal sounds.Acute warning.
The displayed symbol may vary and shows the
side of the road on which the person or animal was detected.
Display
in
the
Head-up
Display
The warning is displayed simultaneously in the Head-up Display and on the instrument clusjter.
Prewarning
Prewarning for persons is displayed when a person is detected in the central area immedij
ately in front of the vehicle as well as on the left
or right side in the extended area.
Prewarning for animals is displayed when an
animal is detected in the front of the vehicle.
The driver must intervene actively by braking
or making an evasive maneuver when there is a
prewarning.
Acute
warning
Acute warning is displayed if a person or an animal is detected in direct proximity if front of the vehicle.
The driver must immediately intervene actively by braking or making an evasive maneuver
when there is an acute warning.
System
limits
Basic
limits The system may not be fully functional in the
following situations:'yOn steep hills, in steep depressions or in
tight curves.'yIf the camera is soiled or damaged.'yIn heavy fog, rain or snowfall.'yAt very high external temperatures.
Limits
of
pedestrian
and
animal
detection
In some situations, it may occur that pedesj
trians are detected as animals or animals as
pedestrians.
Small animals are not detected by the object
detection function, even if they are clearly visij ble in the image.
Limited detection, for example in the following
circumstances:
'yPeople or animals who are fully or partially covered, especially when their heads are
covered.'yPeople who are not in an upright position,
for example, lying down.'yCyclists on unconventional bicycles (for example, recumbent bicycles).'yAfter physical damage to the system, forexample, after an accident.
No
display
on
the
rear
screen
The image from Night Vision cannot be disj
played on the rear screen.
Lane
departure
warning Concept
Starting at a specific speed, this system alerts you when the vehicle on streets with lanemarkings is about to leave the lane. This
Seite 134ControlsSafety134
Online Edition for Part no. 01 40 2 972 586 - VI/16

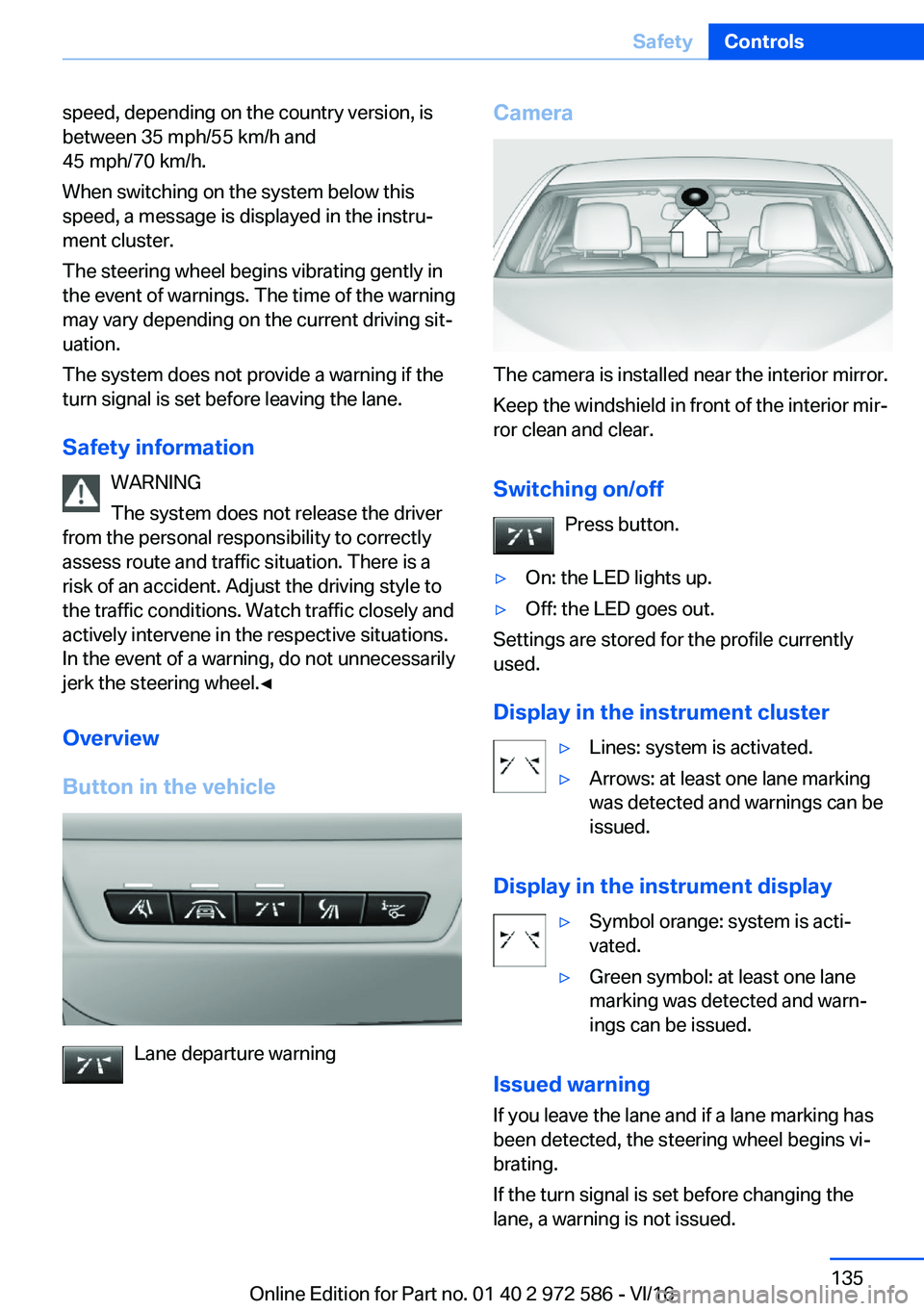

speed, depending on the country version, is
between 35 mph/55 km/h and
45 mph/70 km/h.
When switching on the system below this
speed, a message is displayed in the instruj
ment cluster.
The steering wheel begins vibrating gently in
the event of warnings. The time of the warning
may vary depending on the current driving sitj
uation.
The system does not provide a warning if the
turn signal is set before leaving the lane.
Safety
information WARNING
The system does not release the driver
from the personal responsibility to correctly assess route and traffic situation. There is arisk of an accident. Adjust the driving style to
the traffic conditions. Watch traffic closely and actively intervene in the respective situations.In the event of a warning, do not unnecessarilyjerk the steering wheel.'

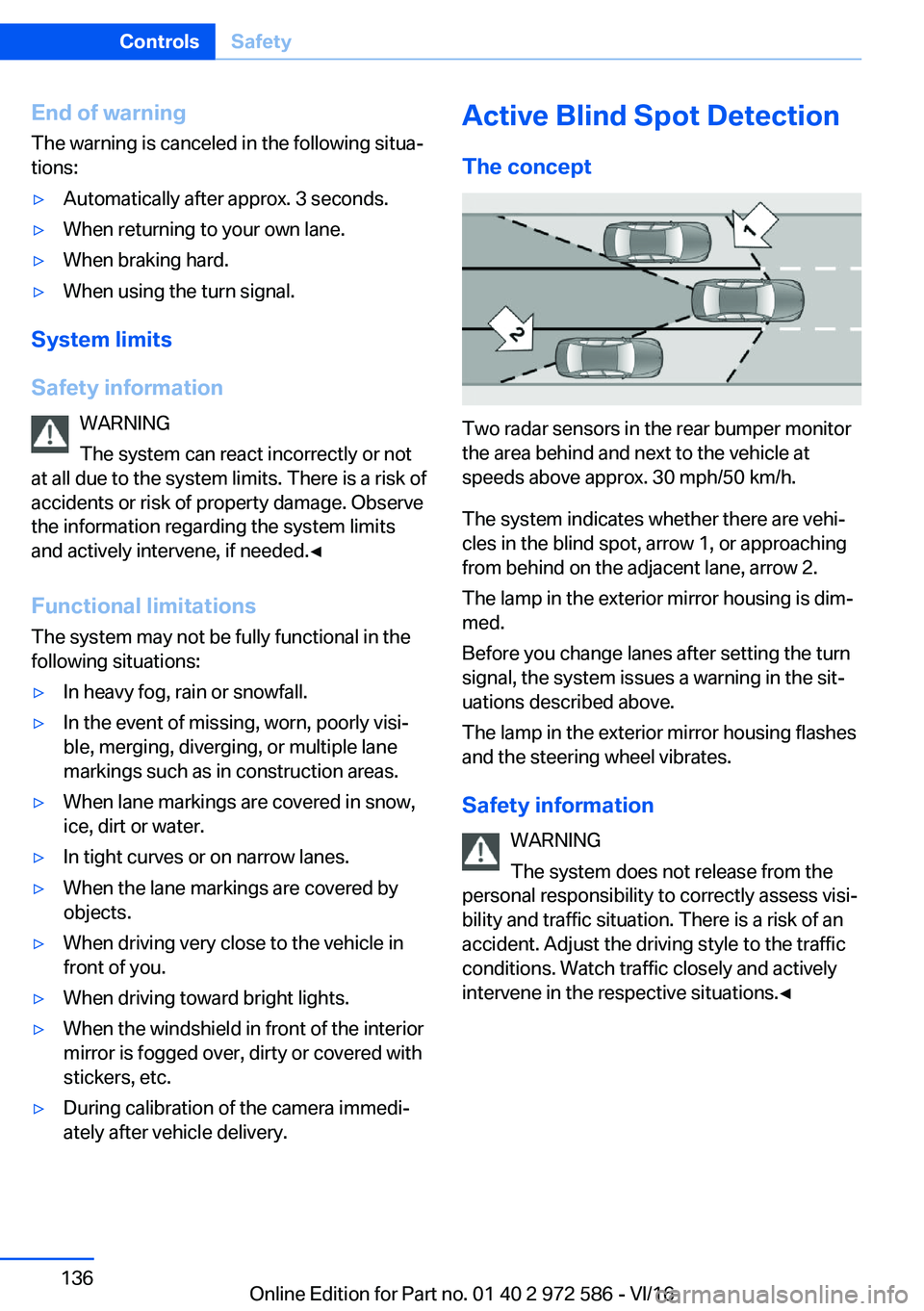

End
of
warningThe warning is canceled in the following situaj
tions:'yAutomatically after approx. 3 seconds.'yWhen returning to your own lane.'yWhen braking hard.'yWhen using the turn signal.
System
limits
Safety
information WARNING
The system can react incorrectly or not
at all due to the system limits. There is a risk of
accidents or risk of property damage. Observe the information regarding the system limits
and actively intervene, if needed.'

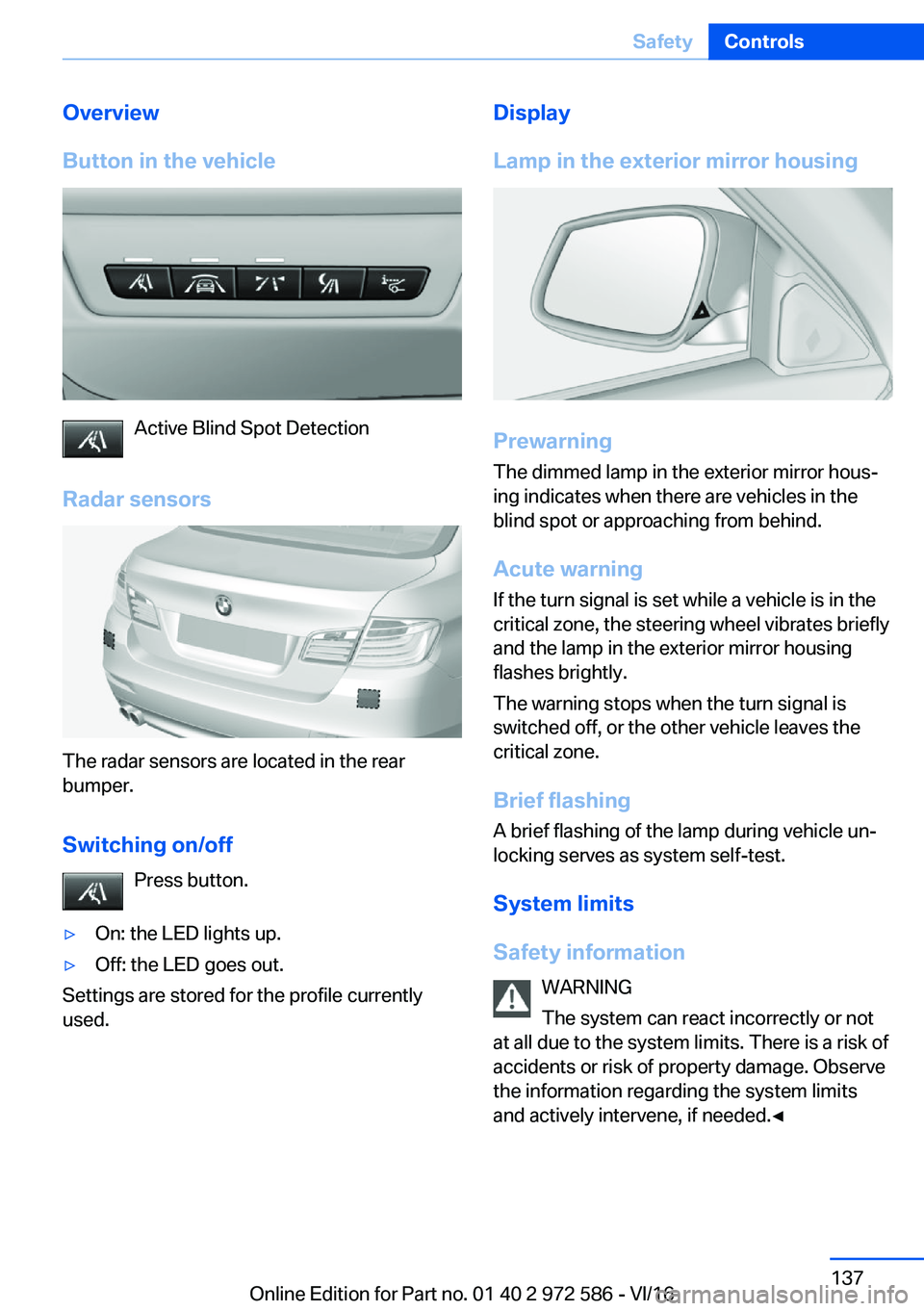

Overview
Button
in
the
vehicle
Active Blind Spot Detection
Radar
sensors
The radar sensors are located in the rear bumper.
Switching
on/off Press button.
'yOn: the LED lights up.'yOff: the LED goes out.
Settings are stored for the profile currentlyused.
Display
Lamp
in
the
exterior
mirror
housing
Prewarning
The dimmed lamp in the exterior mirror housj ing indicates when there are vehicles in the
blind spot or approaching from behind.
Acute
warning If the turn signal is set while a vehicle is in the
critical zone, the steering wheel vibrates briefly
and the lamp in the exterior mirror housing
flashes brightly.
The warning stops when the turn signal is
switched off, or the other vehicle leaves the
critical zone.
Brief
flashing A brief flashing of the lamp during vehicle unj
locking serves as system self-test.
System
limits
Safety
information WARNING
The system can react incorrectly or not
at all due to the system limits. There is a risk of
accidents or risk of property damage. Observe the information regarding the system limits
and actively intervene, if needed.'

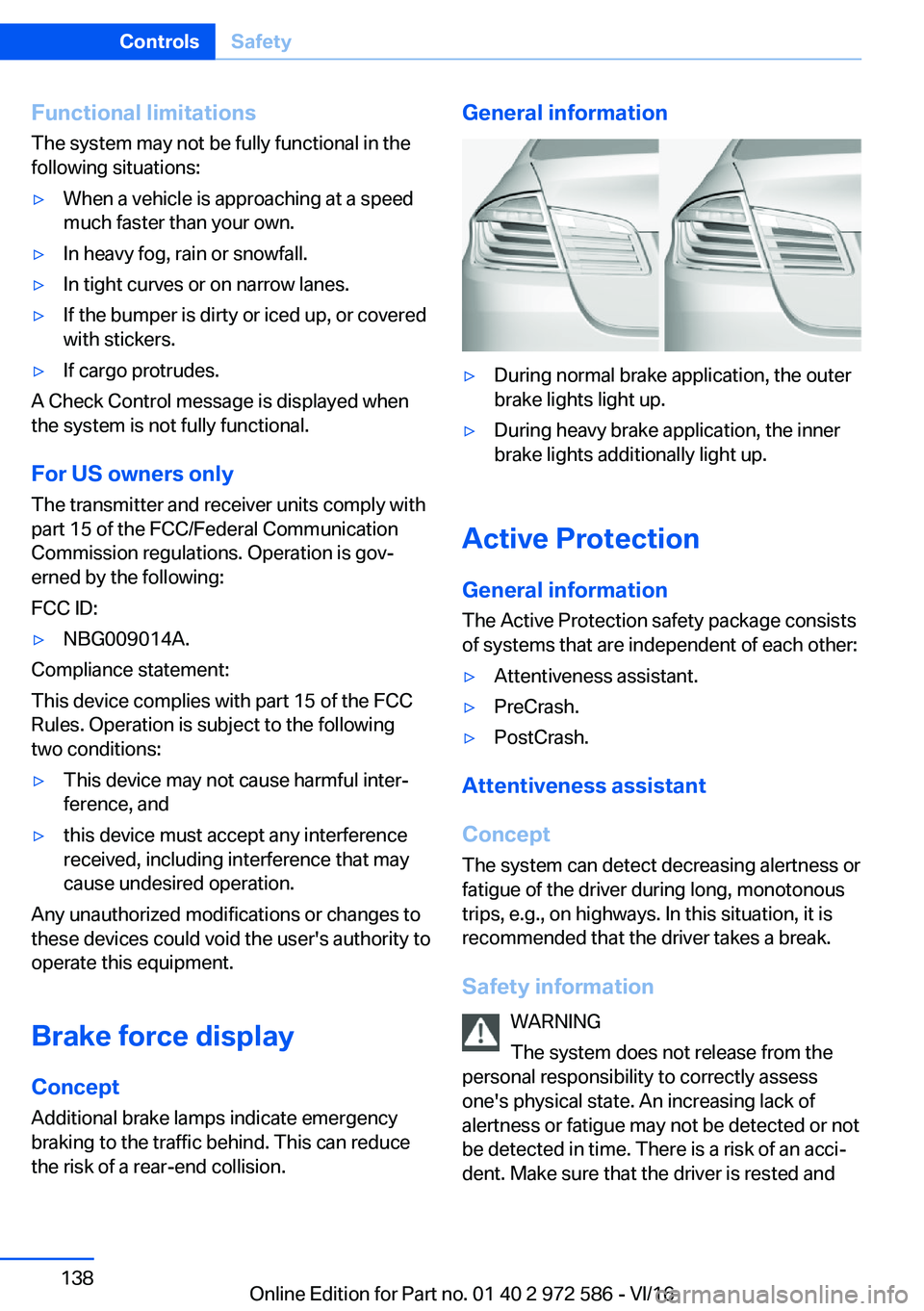

Functional
limitations
The system may not be fully functional in the
following situations:'yWhen a vehicle is approaching at a speed much faster than your own.'yIn heavy fog, rain or snowfall.'yIn tight curves or on narrow lanes.'yIf the bumper is dirty or iced up, or coveredwith stickers.'yIf cargo protrudes.
A Check Control message is displayed when
the system is not fully functional.
For
US
owners
only The transmitter and receiver units comply with
part 15 of the FCC/Federal Communication
Commission regulations. Operation is govj
erned by the following:
FCC ID:
'yNBG009014A.
Compliance statement:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
'yThis device may not cause harmful interj
ference, and'ythis device must accept any interference
received, including interference that may cause undesired operation.
Any unauthorized modifications or changes tothese devices could void the user's authority tooperate this equipment.
Brake
force
display
Concept
Additional brake lamps indicate emergency
braking to the traffic behind. This can reduce
the risk of a rear-end collision.
General
information'yDuring normal brake application, the outer brake lights light up.'yDuring heavy brake application, the innerbrake lights additionally light up.
Active
Protection
General
information
The Active Protection safety package consists
of systems that are independent of each other:
'yAttentiveness assistant.'yPreCrash.'yPostCrash.
Attentiveness
assistant
Concept
The system can detect decreasing alertness or
fatigue of the driver during long, monotonous trips, e.g., on highways. In this situation, it is
recommended that the driver takes a break.
Safety
information WARNING
The system does not release from the
personal responsibility to correctly assess
one's physical state. An increasing lack of
alertness or fatigue may not be detected or not
be detected in time. There is a risk of an accij
dent. Make sure that the driver is rested and
Seite 138ControlsSafety138
Online Edition for Part no. 01 40 2 972 586 - VI/16

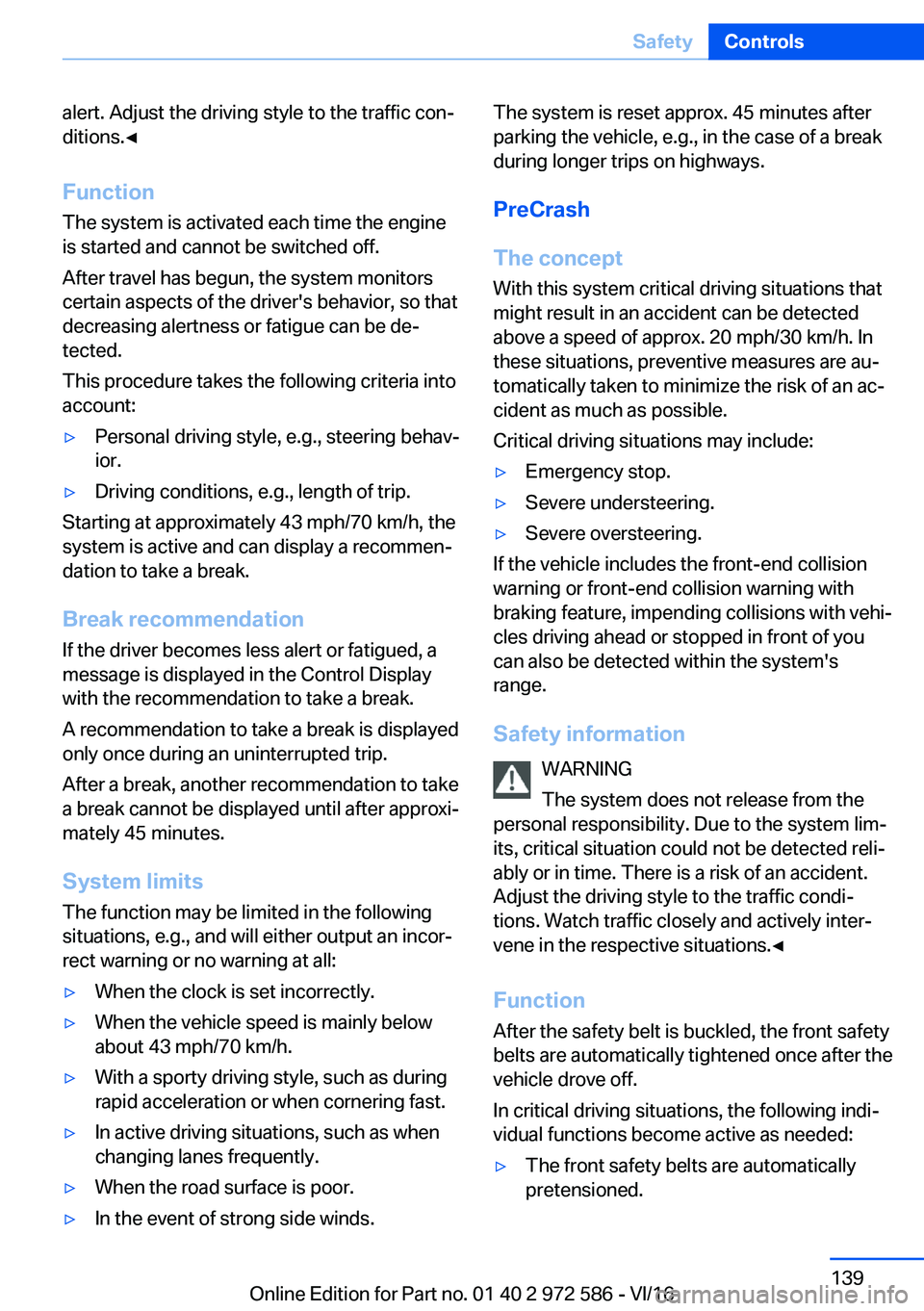

alert. Adjust the driving style to the traffic conj
ditions.'

'yAutomatic closing of the windows.'yAutomatic closing of the glass sunroof.'yFor vehicles equipped with Comfort Seats:
automatic positioning of the backrest for
the front passenger seat.
After a critical driving situation without an accij
dent, the front safety belts are loosened again.
All other systems can be restored to the dej sired setting.
If the belt tension does not loosen automatij
cally, stop the vehicle and unbuckle the safety belt using the red button in the buckle. Fasten
the safety belt before continuing on your trip.

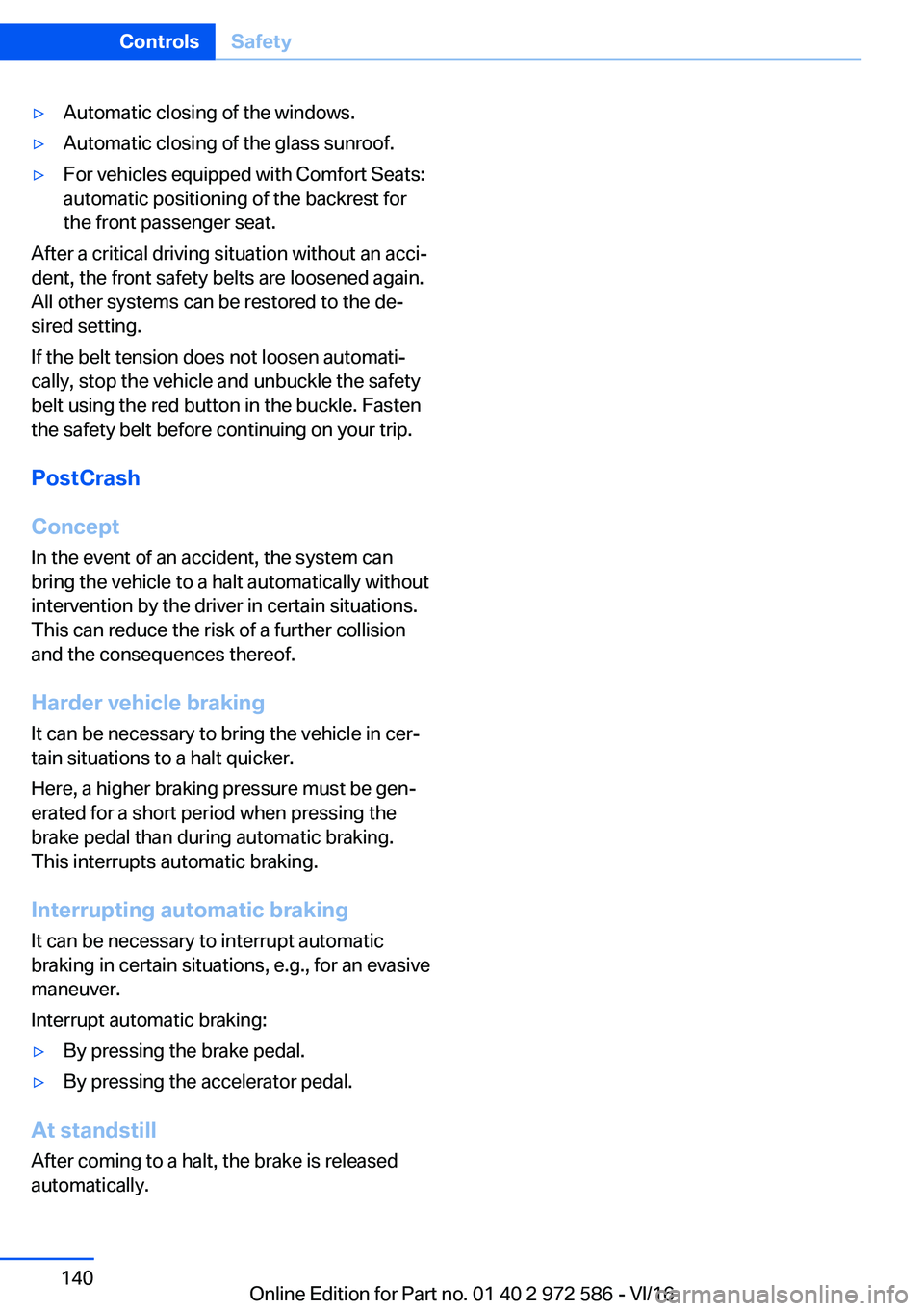

PostCrash
Concept
In the event of an accident, the system can
bring the vehicle to a halt automatically without
intervention by the driver in certain situations.
This can reduce the risk of a further collision
and the consequences thereof.
Harder
vehicle
braking It can be necessary to bring the vehicle in cerj
tain situations to a halt quicker.
Here, a higher braking pressure must be genj
erated for a short period when pressing the brake pedal than during automatic braking.This interrupts automatic braking.
Interrupting
automatic
braking
It can be necessary to interrupt automatic
braking in certain situations, e.g., for an evasive
maneuver.
Interrupt automatic braking:
'yBy pressing the brake pedal.'yBy pressing the accelerator pedal.
At
standstill After coming to a halt, the brake is releasedautomatically.
Seite 140ControlsSafety140
Online Edition for Part no. 01 40 2 972 586 - VI/16
