BMW 5 SERIES 2017 Owners Manual

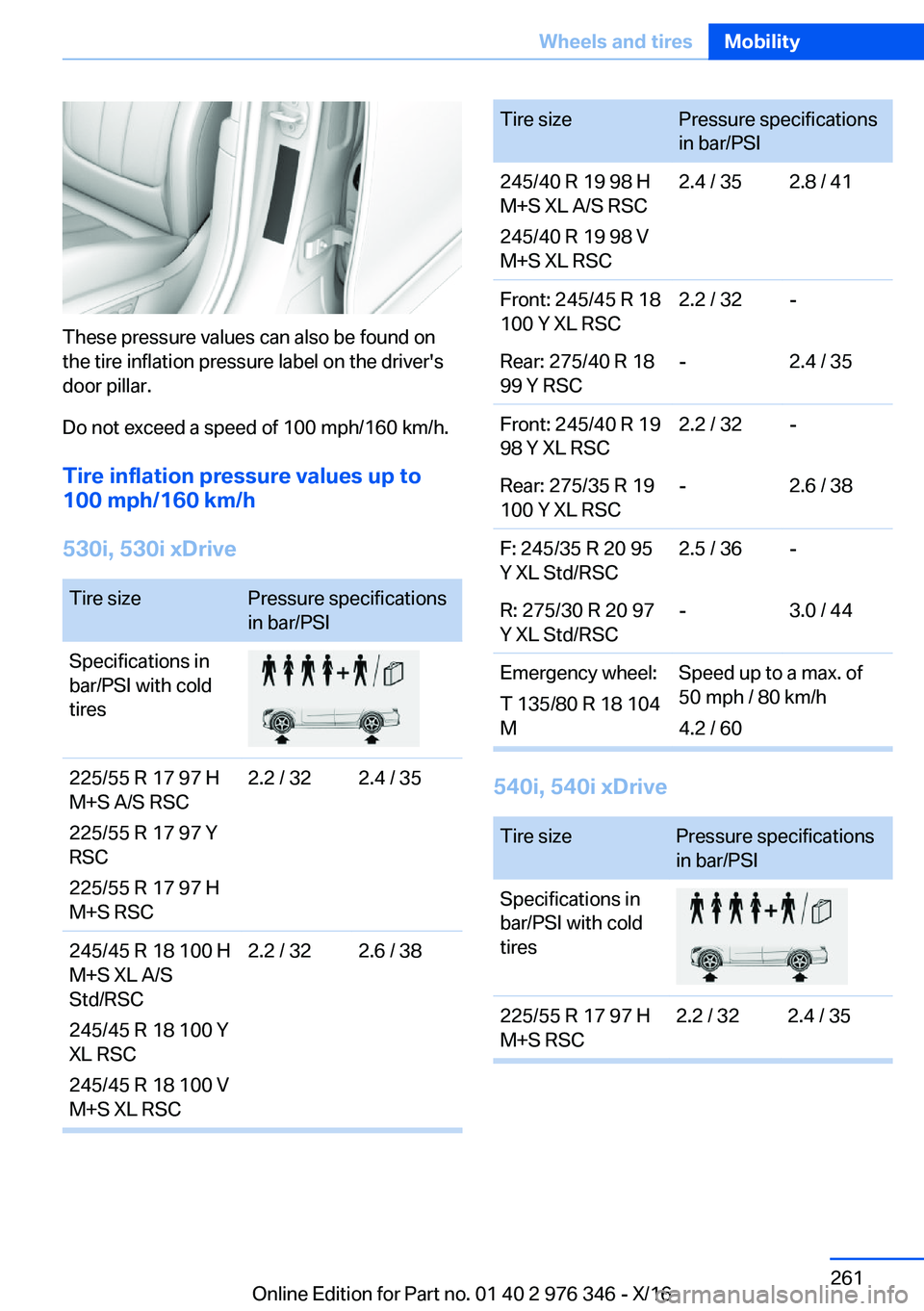

These pressure values can also be found onthe tire inflation pressure label on the driver's
door pillar.
Do not exceed a speed of 100 mph/160 km/h.
Tire
inflation
pressure
values
up
to
100
mph/160
km/h
530i,
530i
xDrive
Tire sizePressure specifications
in bar/PSISpecifications in
bar/PSI with cold
tires225/55 R 17 97 H
M+S A/S RSC
225/55 R 17 97 Y
RSC
225/55 R 17 97 H
M+S RSC2.2 / 322.4 / 35245/45 R 18 100 H
M+S XL A/S
Std/RSC
245/45 R 18 100 Y
XL RSC
245/45 R 18 100 V
M+S XL RSC2.2 / 322.6 / 38Tire sizePressure specifications
in bar/PSI245/40 R 19 98 H
M+S XL A/S RSC
245/40 R 19 98 V
M+S XL RSC2.4 / 352.8 / 41Front: 245/45 R 18
100 Y XL RSC2.2 / 32-Rear: 275/40 R 18
99 Y RSC-2.4 / 35Front: 245/40 R 19
98 Y XL RSC2.2 / 32-Rear: 275/35 R 19
100 Y XL RSC-2.6 / 38F: 245/35 R 20 95
Y XL Std/RSC2.5 / 36-R: 275/30 R 20 97
Y XL Std/RSC-3.0 / 44Emergency wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60
540i,
540i
xDrive
Tire sizePressure specifications
in bar/PSISpecifications in
bar/PSI with cold
tires225/55 R 17 97 H
M+S RSC2.2 / 322.4 / 35Seite 261Wheels
and
tiresMobility261
Online Edition for Part no. 01 40 2 976 346 - X/16

Tire sizePressure specifications
in bar/PSI245/45 R 18 100 H
M+S XL A/S
Std/RSC
245/45 R 18 100 Y
XL RSC
245/45 R 18 100 V
M+S XL RSC2.2 / 322.6 / 38245/40 R 19 98 H
M+S XL A/S RSC
245/40 R 19 98 V
M+S XL RSC2.4 / 352.8 / 41Front: 245/45 R 18
100 Y XL RSC2.2 / 32-Rear: 275/40 R 18
99 Y RSC-2.4 / 35Front: 245/40 R 19
98 Y XL RSC2.2 / 32-Rear: 275/35 R 19
100 Y XL RSC-2.6 / 38F: 245/35 R 20 95
Y XL Std/RSC2.5 / 36-R: 275/30 R 20 97 Y XL Std/RSC-3.0 / 44Emergency wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60

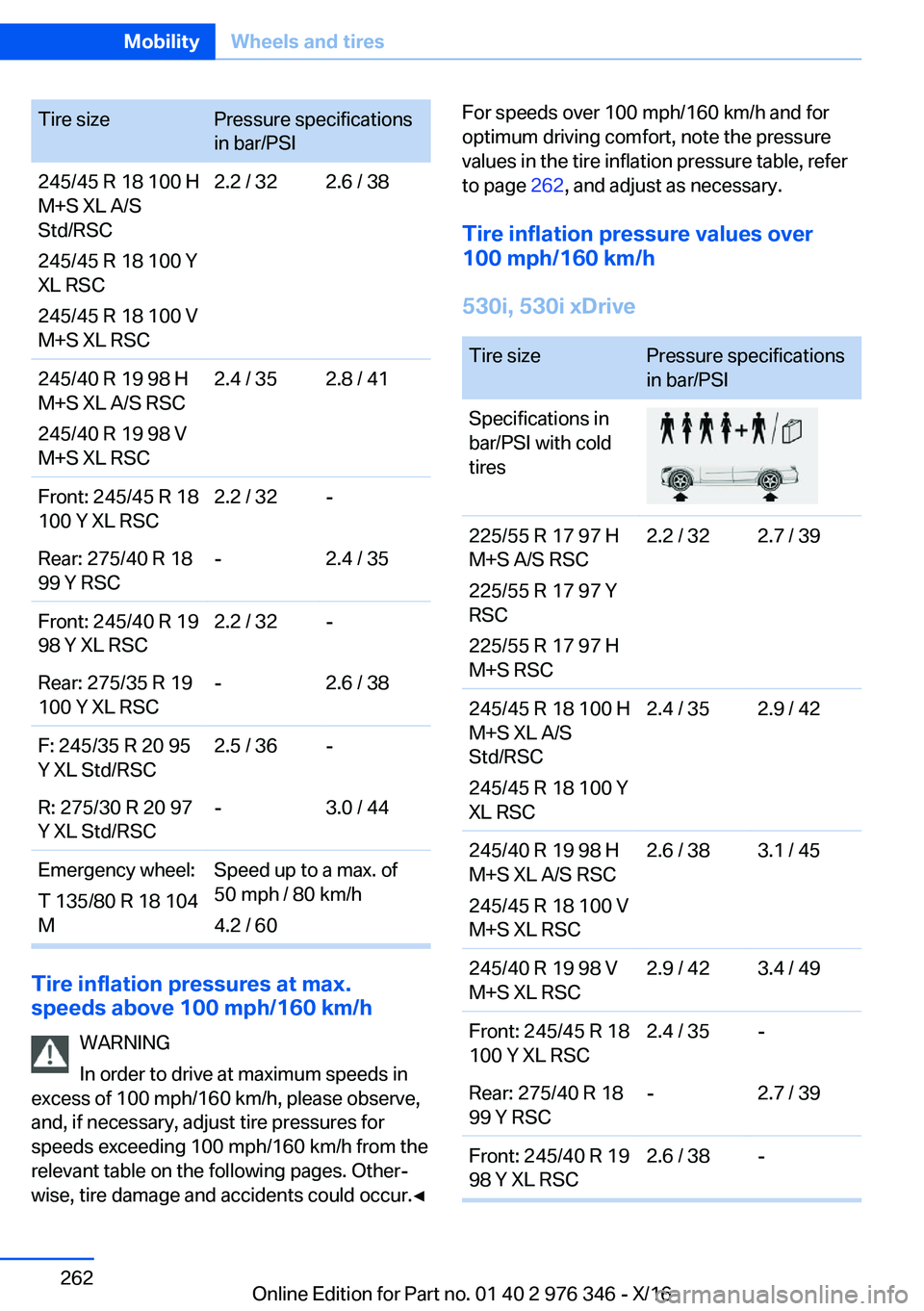

Tire
inflation
pressures
at
max.
speeds
above
100
mph/160
km/h
WARNING
In order to drive at maximum speeds in
excess of 100 mph/160 km/h, please observe, and, if necessary, adjust tire pressures for
speeds exceeding 100 mph/160 km/h from the
relevant table on the following pages. Otherj wise, tire damage and accidents could occur.'

Tire sizePressure specifications
in bar/PSIRear: 275/35 R 19
100 Y XL RSC-2.9 / 42F: 245/35 R 20 95
Y XL Std/RSC2.9 / 42-R: 275/30 R 20 97
Y XL Std/RSC-3.4 / 49Emergency wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60

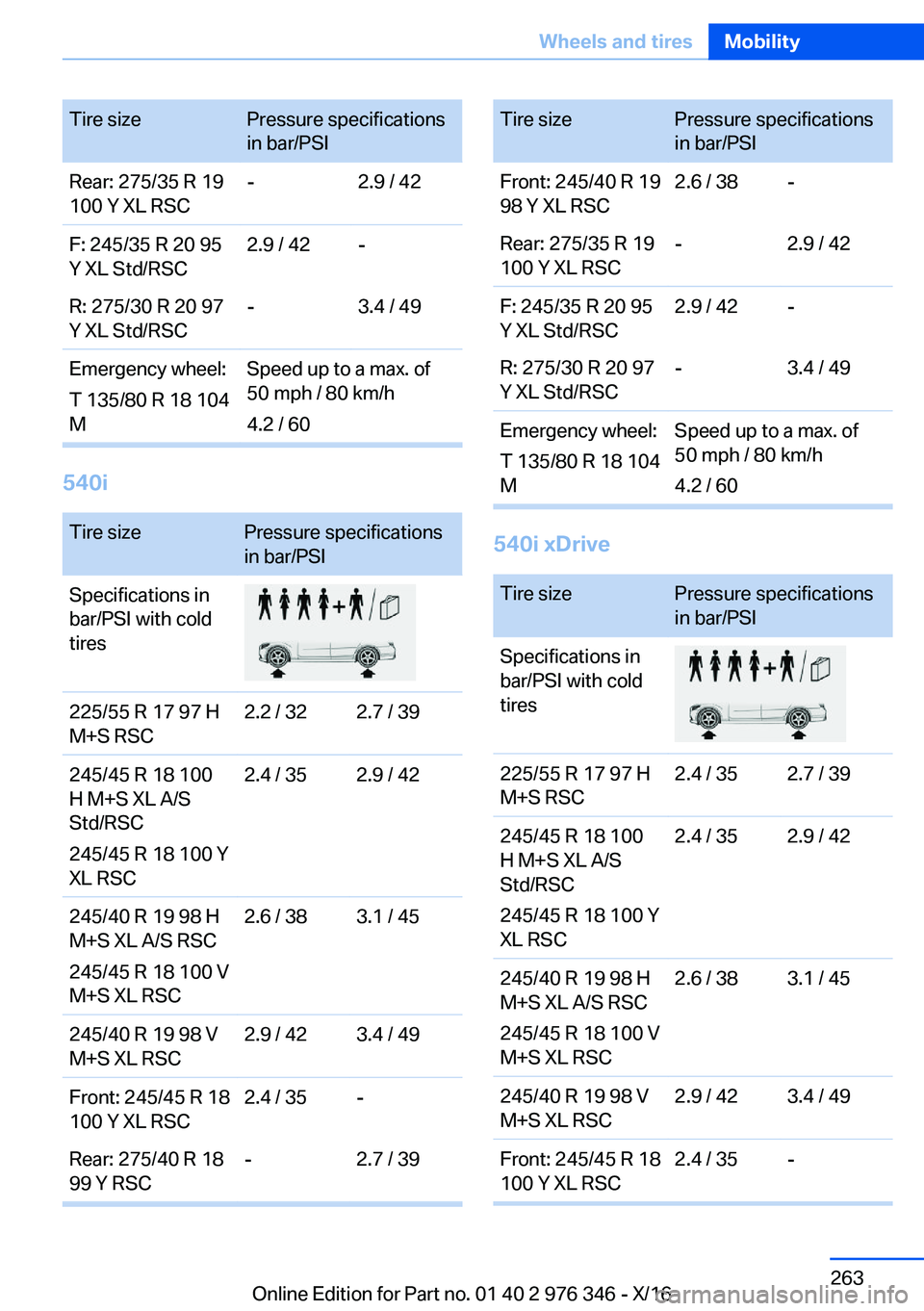

540i
Tire sizePressure specifications
in bar/PSISpecifications in
bar/PSI with cold
tires225/55 R 17 97 H
M+S RSC2.2 / 322.7 / 39245/45 R 18 100
H M+S XL A/S
Std/RSC
245/45 R 18 100 Y
XL RSC2.4 / 352.9 / 42245/40 R 19 98 H
M+S XL A/S RSC
245/45 R 18 100 V
M+S XL RSC2.6 / 383.1 / 45245/40 R 19 98 V
M+S XL RSC2.9 / 423.4 / 49Front: 245/45 R 18
100 Y XL RSC2.4 / 35-Rear: 275/40 R 18
99 Y RSC-2.7 / 39Tire sizePressure specifications
in bar/PSIFront: 245/40 R 19
98 Y XL RSC2.6 / 38-Rear: 275/35 R 19
100 Y XL RSC-2.9 / 42F: 245/35 R 20 95
Y XL Std/RSC2.9 / 42-R: 275/30 R 20 97
Y XL Std/RSC-3.4 / 49Emergency wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60
540i
xDrive
Tire sizePressure specifications
in bar/PSISpecifications in
bar/PSI with cold
tires225/55 R 17 97 H
M+S RSC2.4 / 352.7 / 39245/45 R 18 100
H M+S XL A/S
Std/RSC
245/45 R 18 100 Y
XL RSC2.4 / 352.9 / 42245/40 R 19 98 H
M+S XL A/S RSC
245/45 R 18 100 V
M+S XL RSC2.6 / 383.1 / 45245/40 R 19 98 V
M+S XL RSC2.9 / 423.4 / 49Front: 245/45 R 18
100 Y XL RSC2.4 / 35-Seite 263Wheels
and
tiresMobility263
Online Edition for Part no. 01 40 2 976 346 - X/16

Tire sizePressure specifications
in bar/PSIRear: 275/40 R 18
99 Y RSC-2.7 / 39Front: 245/40 R 19
98 Y XL RSC2.6 / 38-Rear: 275/35 R 19
100 Y XL RSC-2.9 / 42F: 245/35 R 20 95
Y XL Std/RSC2.9 / 42-R: 275/30 R 20 97
Y XL Std/RSC-3.4 / 49Emergency wheel:
T 135/80 R 18 104
MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60

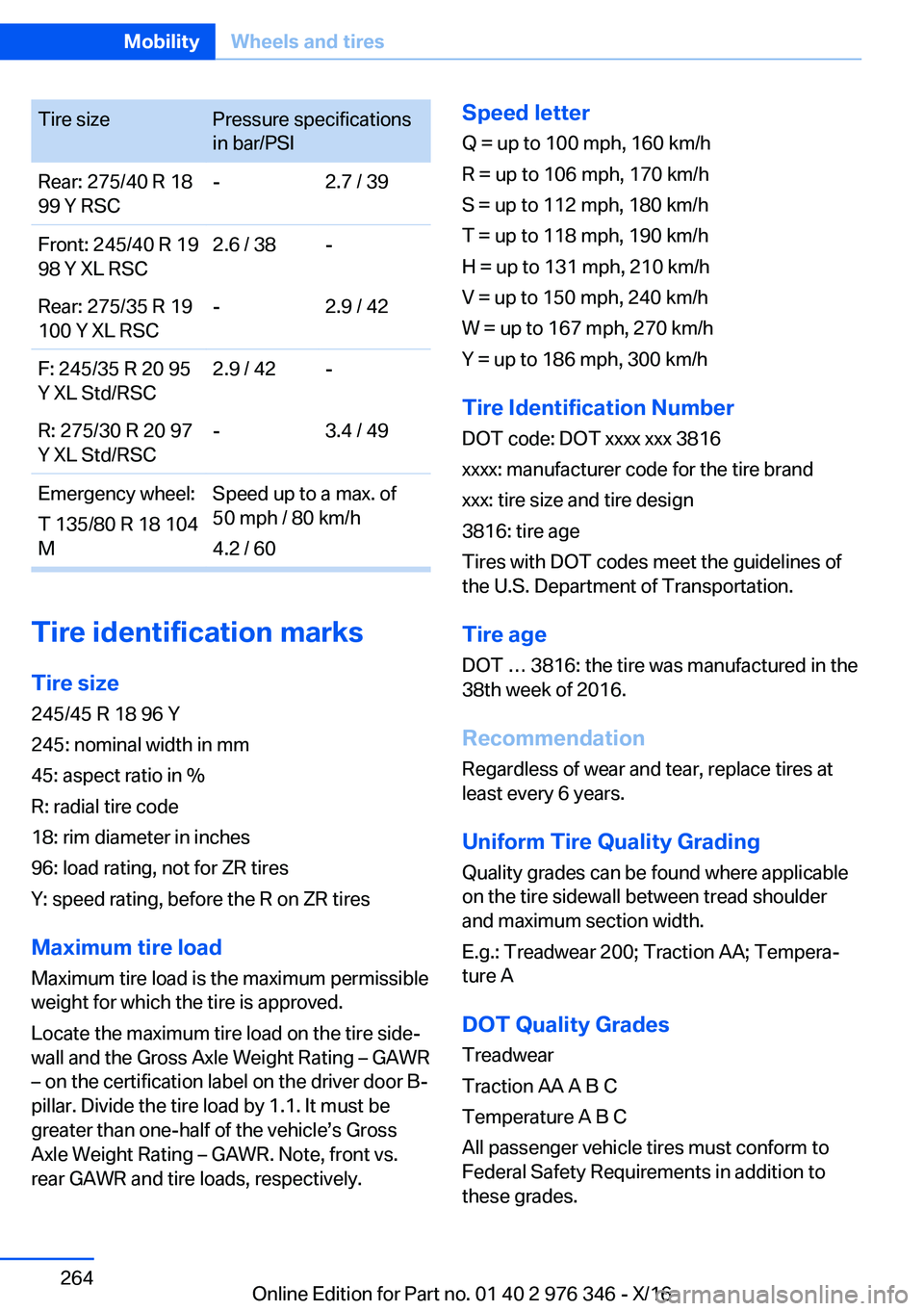

Tire
identification
marks
Tire
size 245/45 R 18 96 Y
245: nominal width in mm
45: aspect ratio in %
R: radial tire code
18: rim diameter in inches 96: load rating, not for ZR tires
Y: speed rating, before the R on ZR tires
Maximum
tire
load
Maximum tire load is the maximum permissible
weight for which the tire is approved.
Locate the maximum tire load on the tire sidejwall and the Gross Axle Weight Rating m GAWR
m on the certification label on the driver door B-
pillar. Divide the tire load by 1.1. It must be greater than one-half of the vehicless GrossAxle Weight Rating m GAWR. Note, front vs.
rear GAWR and tire loads, respectively.
Speed
letter
Q  up to 100 mph, 160 km/h
R  up to 106 mph, 170 km/h
S  up to 112 mph, 180 km/h
T  up to 118 mph, 190 km/h
H  up to 131 mph, 210 km/h
V  up to 150 mph, 240 km/h
W  up to 167 mph, 270 km/h
Y  up to 186 mph, 300 km/h
Tire
Identification
NumberDOT code: DOT xxxx xxx 3816
xxxx: manufacturer code for the tire brand xxx: tire size and tire design
3816: tire age
Tires with DOT codes meet the guidelines of
the U.S. Department of Transportation.
Tire
age DOT

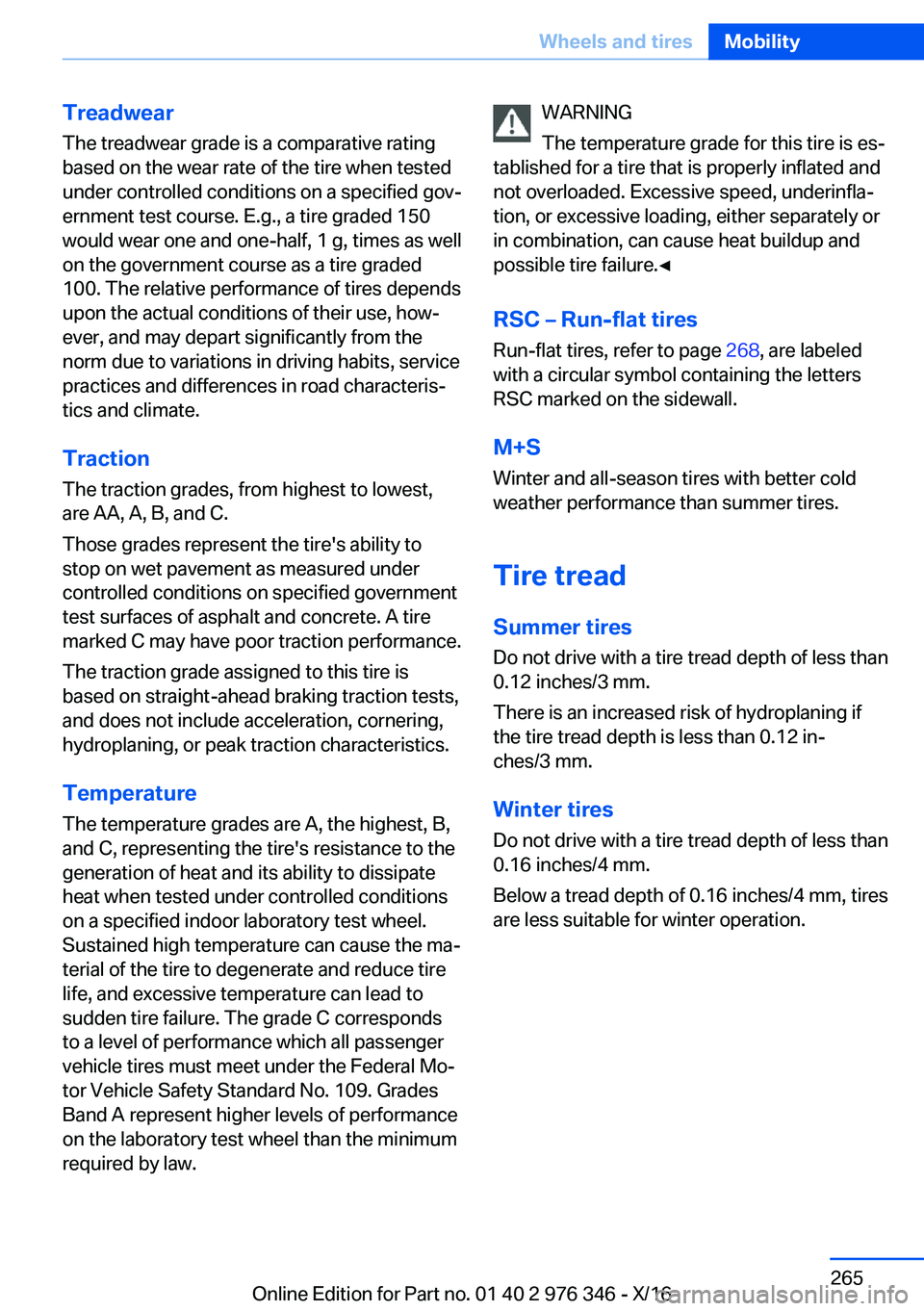

TreadwearThe treadwear grade is a comparative ratingbased on the wear rate of the tire when tested under controlled conditions on a specified govjernment test course. E.g., a tire graded 150
would wear one and one-half, 1 g, times as well
on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, howj ever, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characterisj tics and climate.
Traction The traction grades, from highest to lowest,
are AA, A, B, and C.
Those grades represent the tire's ability to
stop on wet pavement as measured under controlled conditions on specified governmenttest surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction tests,
and does not include acceleration, cornering,
hydroplaning, or peak traction characteristics.
Temperature
The temperature grades are A, the highest, B, and C, representing the tire's resistance to the
generation of heat and its ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the maj
terial of the tire to degenerate and reduce tire
life, and excessive temperature can lead to sudden tire failure. The grade C correspondsto a level of performance which all passenger
vehicle tires must meet under the Federal Moj
tor Vehicle Safety Standard No. 109. Grades
Band A represent higher levels of performance
on the laboratory test wheel than the minimum
required by law.WARNING
The temperature grade for this tire is esj
tablished for a tire that is properly inflated and
not overloaded. Excessive speed, underinflaj
tion, or excessive loading, either separately or
in combination, can cause heat buildup and
possible tire failure.'

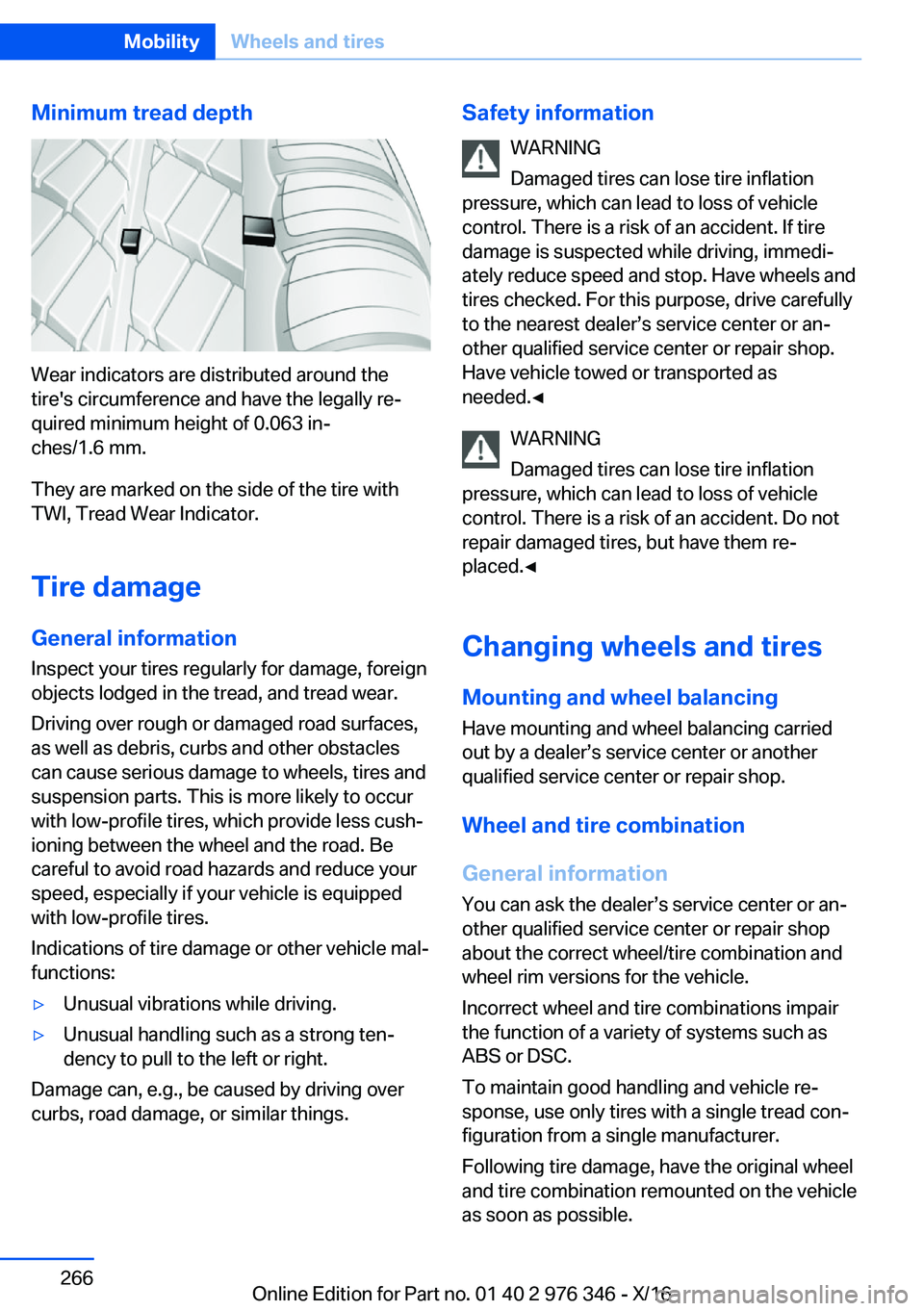

Minimum
tread
depth
Wear indicators are distributed around thetire's circumference and have the legally rejquired minimum height of 0.063 inj
ches/1.6 mm.
They are marked on the side of the tire with
TWI, Tread Wear Indicator.
Tire
damage
General
information
Inspect your tires regularly for damage, foreign
objects lodged in the tread, and tread wear.
Driving over rough or damaged road surfaces, as well as debris, curbs and other obstaclescan cause serious damage to wheels, tires andsuspension parts. This is more likely to occurwith low-profile tires, which provide less cushj
ioning between the wheel and the road. Be
careful to avoid road hazards and reduce your
speed, especially if your vehicle is equipped
with low-profile tires.
Indications of tire damage or other vehicle malj functions:
'yUnusual vibrations while driving.'yUnusual handling such as a strong tenjdency to pull to the left or right.
Damage can, e.g., be caused by driving over
curbs, road damage, or similar things.
Safety
information
WARNING
Damaged tires can lose tire inflation
pressure, which can lead to loss of vehicle control. There is a risk of an accident. If tiredamage is suspected while driving, immedijately reduce speed and stop. Have wheels andtires checked. For this purpose, drive carefully
to the nearest dealerss service center or anj
other qualified service center or repair shop.
Have vehicle towed or transported as
needed.'

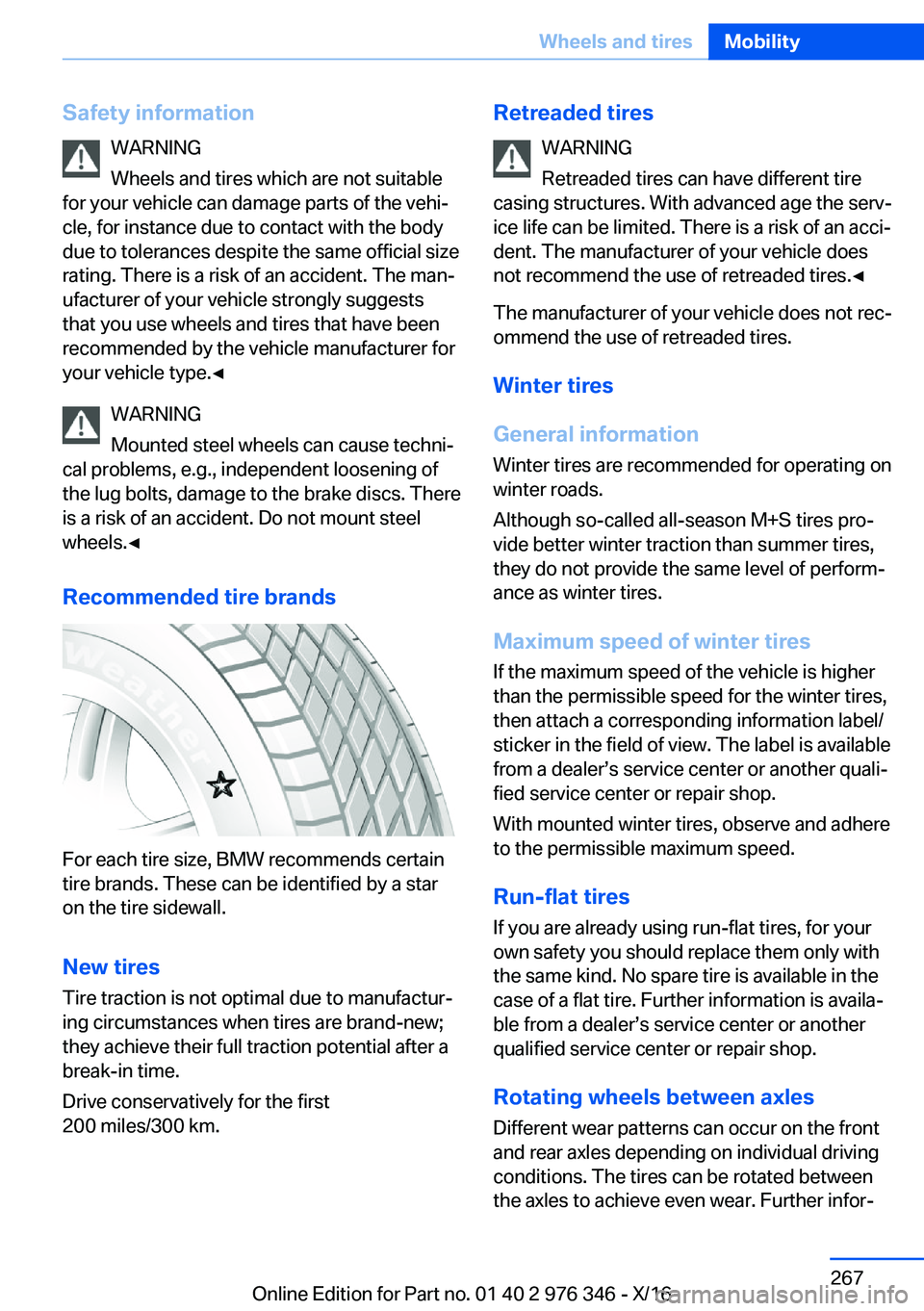

Safety
informationWARNING
Wheels and tires which are not suitable
for your vehicle can damage parts of the vehij cle, for instance due to contact with the body
due to tolerances despite the same official size rating. There is a risk of an accident. The manjufacturer of your vehicle strongly suggests
that you use wheels and tires that have been
recommended by the vehicle manufacturer for your vehicle type.'

mation is available from a dealerss service cenjter or another qualified service center or repair
shop. After rotating, check the tire pressure and correct, if needed.
Rotating the tires is not permissible on vehij
cles with different tire sizes or rim sizes on the
front and rear axles.

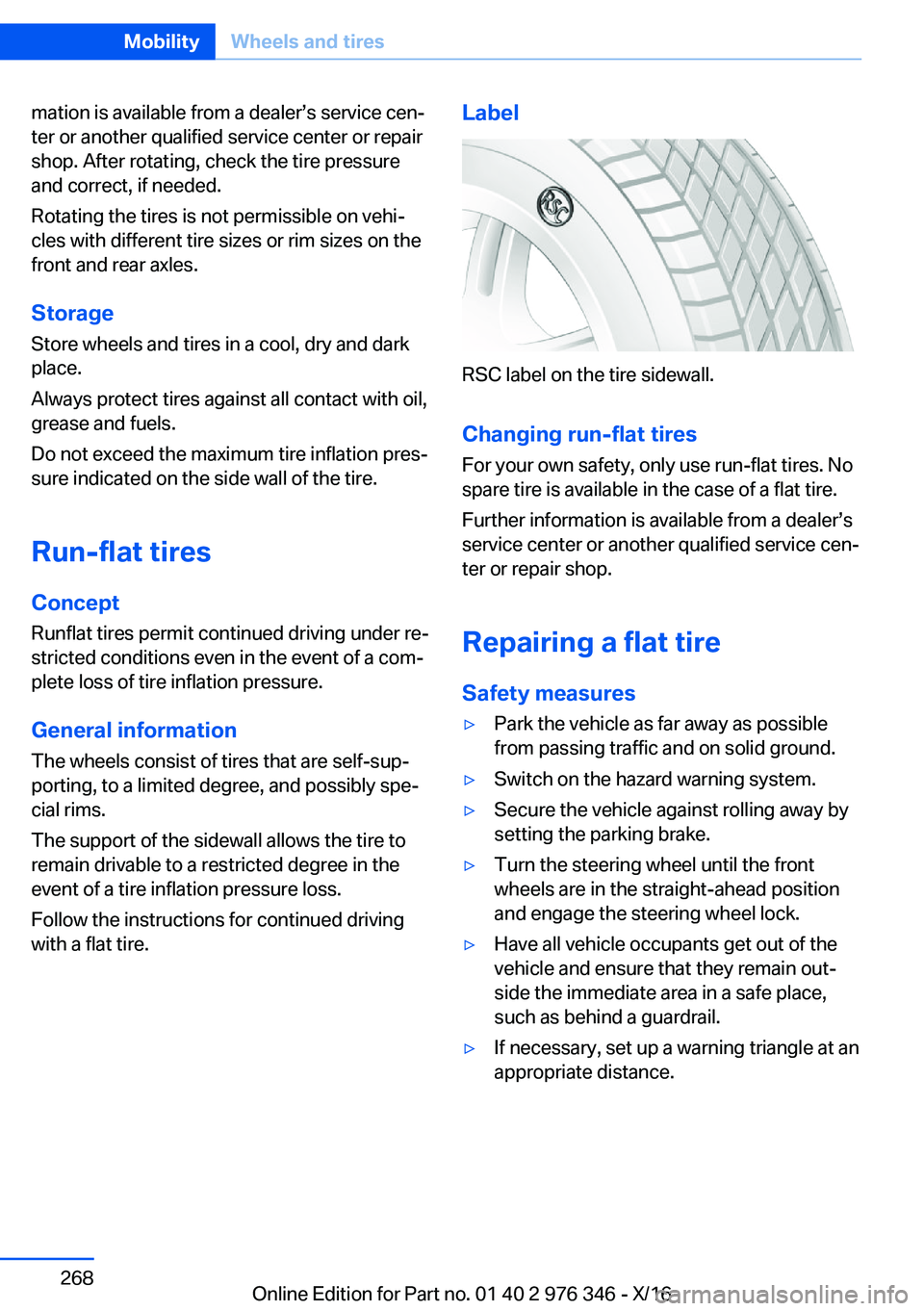

Storage
Store wheels and tires in a cool, dry and dark
place.
Always protect tires against all contact with oil,
grease and fuels.
Do not exceed the maximum tire inflation presj sure indicated on the side wall of the tire.
Run-flat
tires
Concept
Runflat tires permit continued driving under rej stricted conditions even in the event of a comj plete loss of tire inflation pressure.
General
information The wheels consist of tires that are self-supj
porting, to a limited degree, and possibly spej
cial rims.
The support of the sidewall allows the tire to remain drivable to a restricted degree in the event of a tire inflation pressure loss.
Follow the instructions for continued drivingwith a flat tire.Label
RSC label on the tire sidewall.
Changing
run-flat
tires For your own safety, only use run-flat tires. No
spare tire is available in the case of a flat tire.
Further information is available from a dealerssservice center or another qualified service cenj
ter or repair shop.
Repairing
a
flat
tire
Safety
measures
'yPark the vehicle as far away as possible
from passing traffic and on solid ground.'ySwitch on the hazard warning system.'ySecure the vehicle against rolling away by setting the parking brake.'yTurn the steering wheel until the frontwheels are in the straight-ahead position
and engage the steering wheel lock.'yHave all vehicle occupants get out of the vehicle and ensure that they remain outjside the immediate area in a safe place,
such as behind a guardrail.'yIf necessary, set up a warning triangle at an
appropriate distance.Seite 268MobilityWheels
and
tires268
Online Edition for Part no. 01 40 2 976 346 - X/16

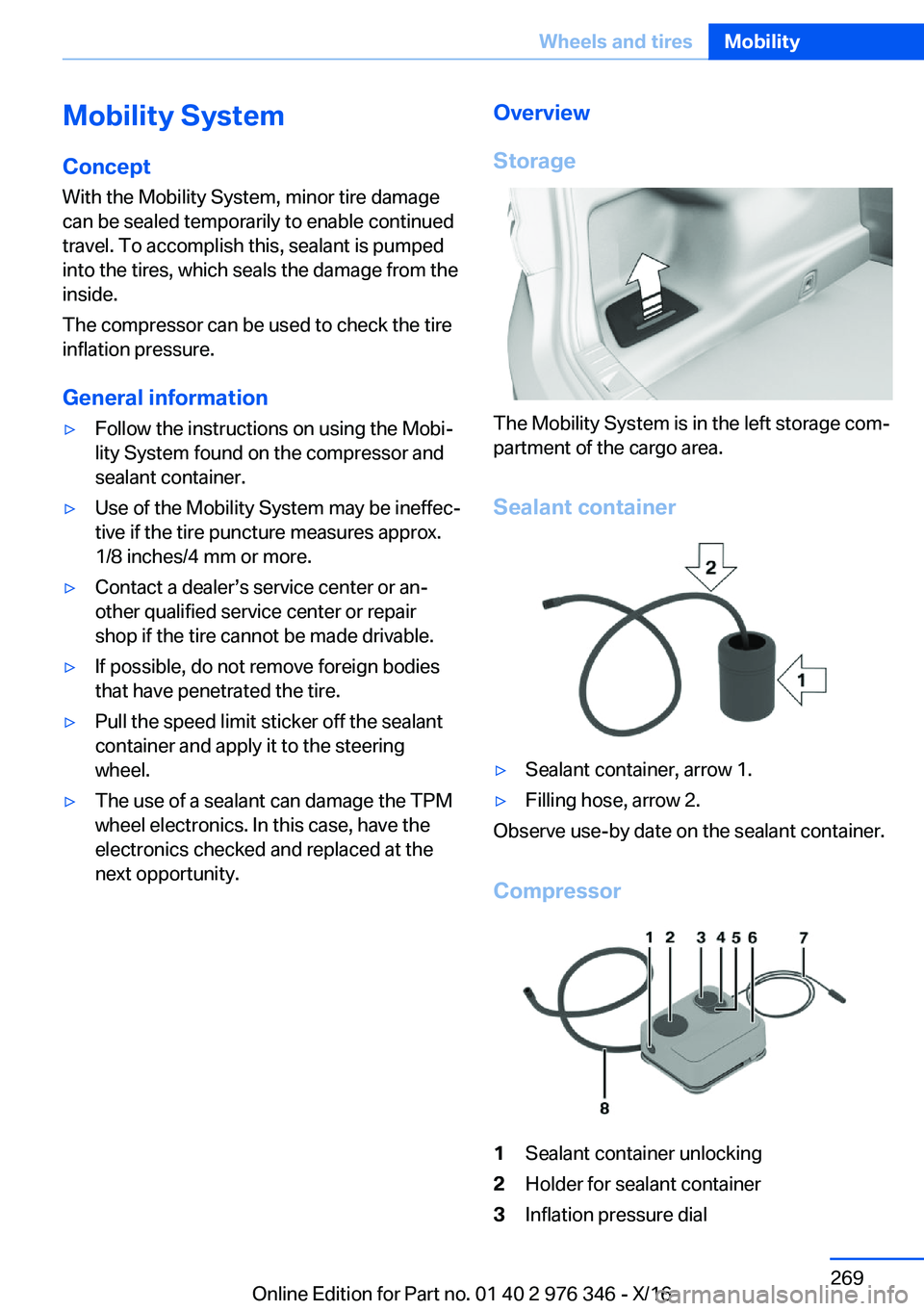

Mobility
SystemConcept
With the Mobility System, minor tire damage can be sealed temporarily to enable continued
travel. To accomplish this, sealant is pumped
into the tires, which seals the damage from the inside.
The compressor can be used to check the tire inflation pressure.
General
information'yFollow the instructions on using the Mobij lity System found on the compressor and
sealant container.'yUse of the Mobility System may be ineffecj
tive if the tire puncture measures approx.
1/8 inches/4 mm or more.'yContact a dealerss service center or anj other qualified service center or repair
shop if the tire cannot be made drivable.'yIf possible, do not remove foreign bodies that have penetrated the tire.'yPull the speed limit sticker off the sealant
container and apply it to the steering
wheel.'yThe use of a sealant can damage the TPM wheel electronics. In this case, have theelectronics checked and replaced at the
next opportunity.Overview
Storage
The Mobility System is in the left storage comj partment of the cargo area.
Sealant
container
'ySealant container, arrow 1.'yFilling hose, arrow 2.
Observe use-by date on the sealant container.
Compressor
1Sealant container unlocking2Holder for sealant container3Inflation pressure dialSeite 269Wheels
and
tiresMobility269
Online Edition for Part no. 01 40 2 976 346 - X/16

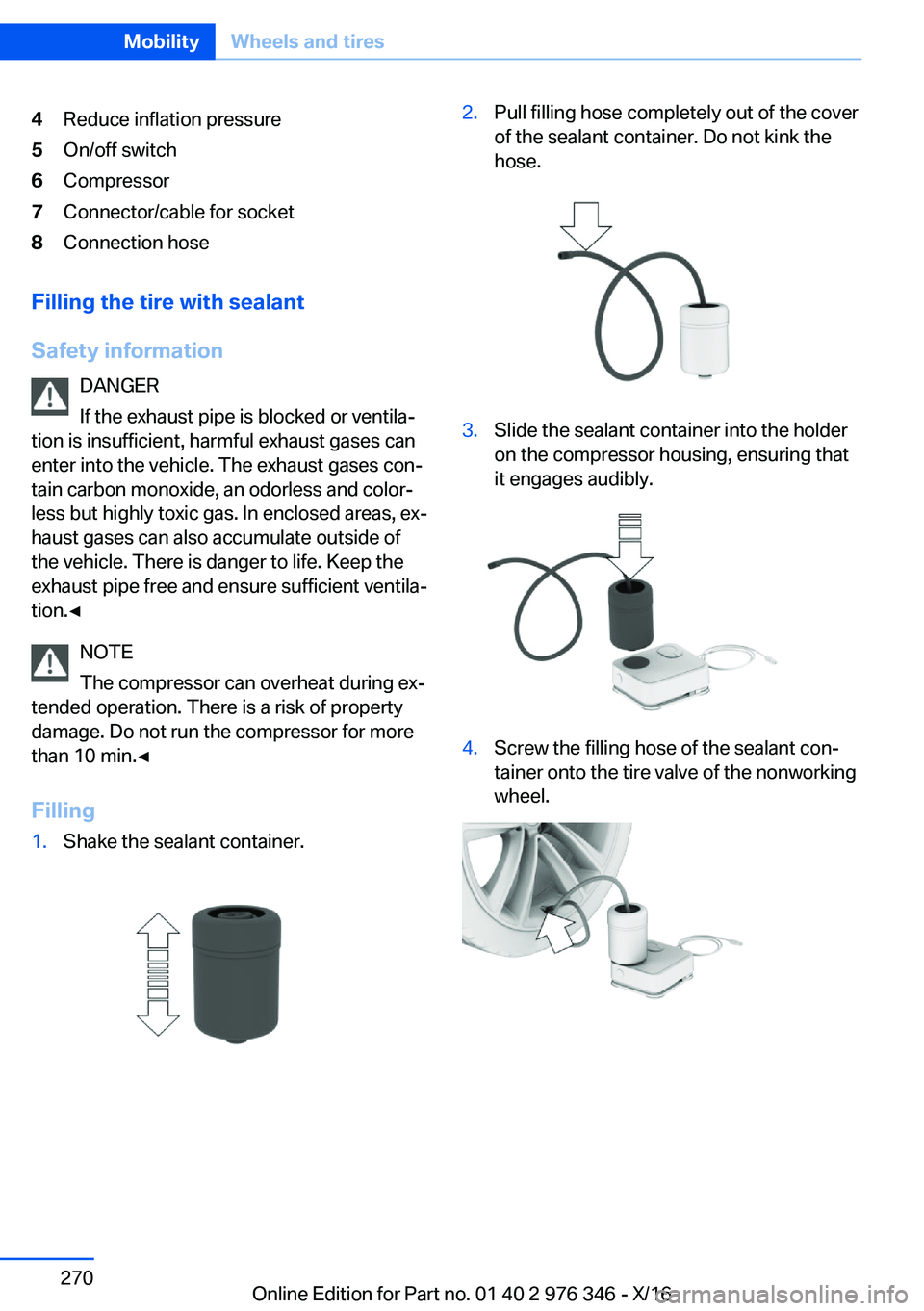

4Reduce inflation pressure5On/off switch6Compressor7Connector/cable for socket8Connection hose
Filling
the
tire
with
sealant
Safety
information DANGER
If the exhaust pipe is blocked or ventilaj
tion is insufficient, harmful exhaust gases can
enter into the vehicle. The exhaust gases conj tain carbon monoxide, an odorless and colorjless but highly toxic gas. In enclosed areas, exj
haust gases can also accumulate outside of
the vehicle. There is danger to life. Keep the
exhaust pipe free and ensure sufficient ventilaj
tion.'
