fold seats BMW 530I 2006 Owners Manual

Controls
47Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

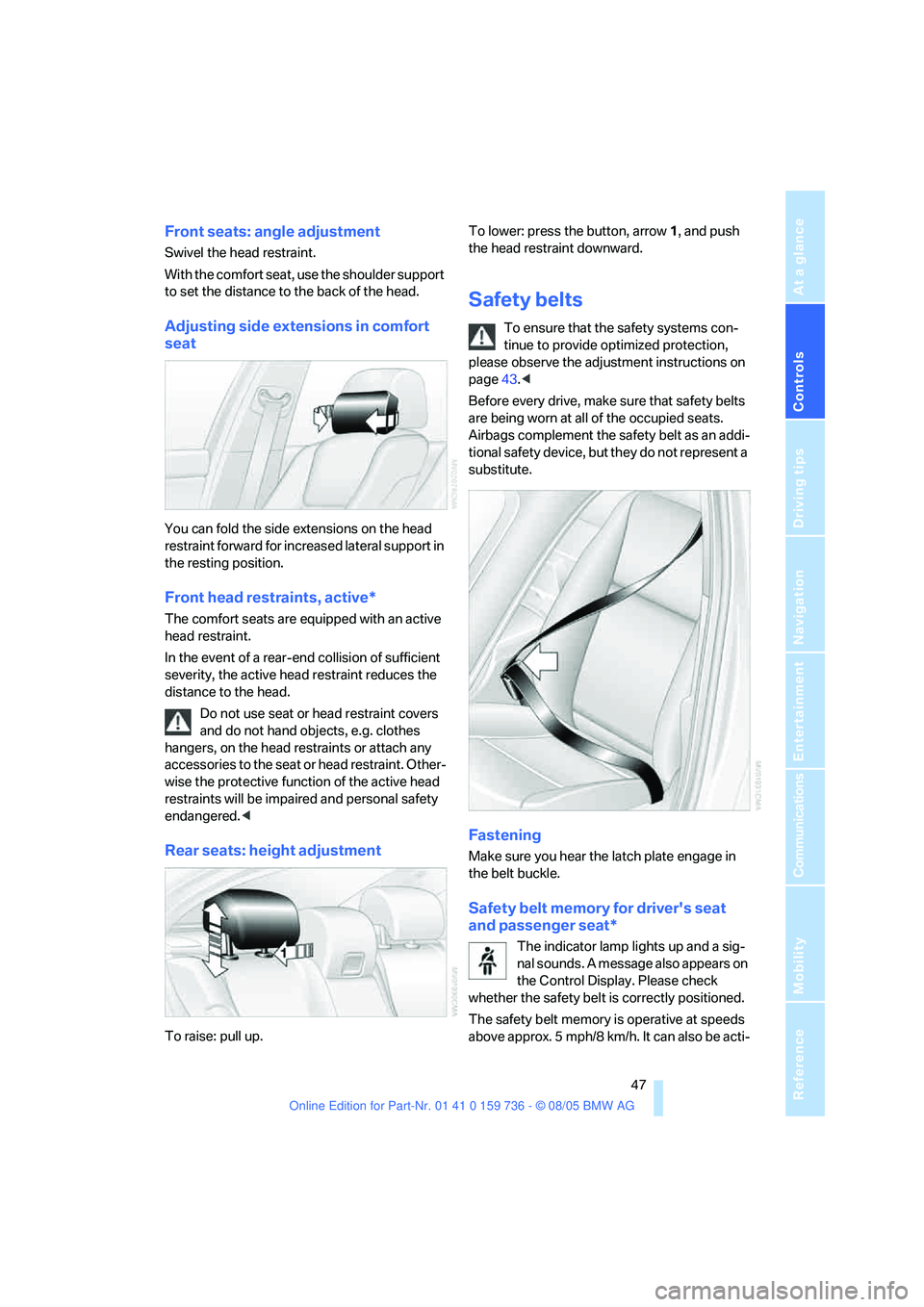

Front seats: angle adjustment
Swivel the head restraint.
With the comfort seat, use the shoulder support
to set the distance to the back of the head.
Adjusting side extensions in comfort
seat
You can fold the side extensions on the head
restraint forward for increased lateral support in
the resting position.
Front head restraints, active*
The comfort seats are equipped with an active
head restraint.
In the event of a rear-end collision of sufficient
severity, the active head restraint reduces the
distance to the head.
Do not use seat or head restraint covers
and do not hand objects, e.g. clothes
hangers, on the head restraints or attach any
accessories to the seat or head restraint. Other-
wise the protective function of the active head
restraints will be impaired and personal safety
endangered.<
Rear seats: height adjustment
To raise: pull up.To lower: press the button, arrow1, and push
the head restraint downward.
Safety belts
To ensure that the safety systems con-
tinue to provide optimized protection,
please observe the adjustment instructions on
page43.<
Before every drive, make sure that safety belts
are being worn at all of the occupied seats.
Airbags complement the safety belt as an addi-
tional safety device, but they do not represent a
substitute.
Fastening
Make sure you hear the latch plate engage in
the belt buckle.
Safety belt memory for driver's seat
and passenger seat*
The indicator lamp lights up and a sig-
nal sounds. A message also appears on
the Control Display. Please check
whether the safety belt is correctly positioned.
The safety belt memory is operative at speeds
above approx. 5 mph/8 km/h. It can also be acti-

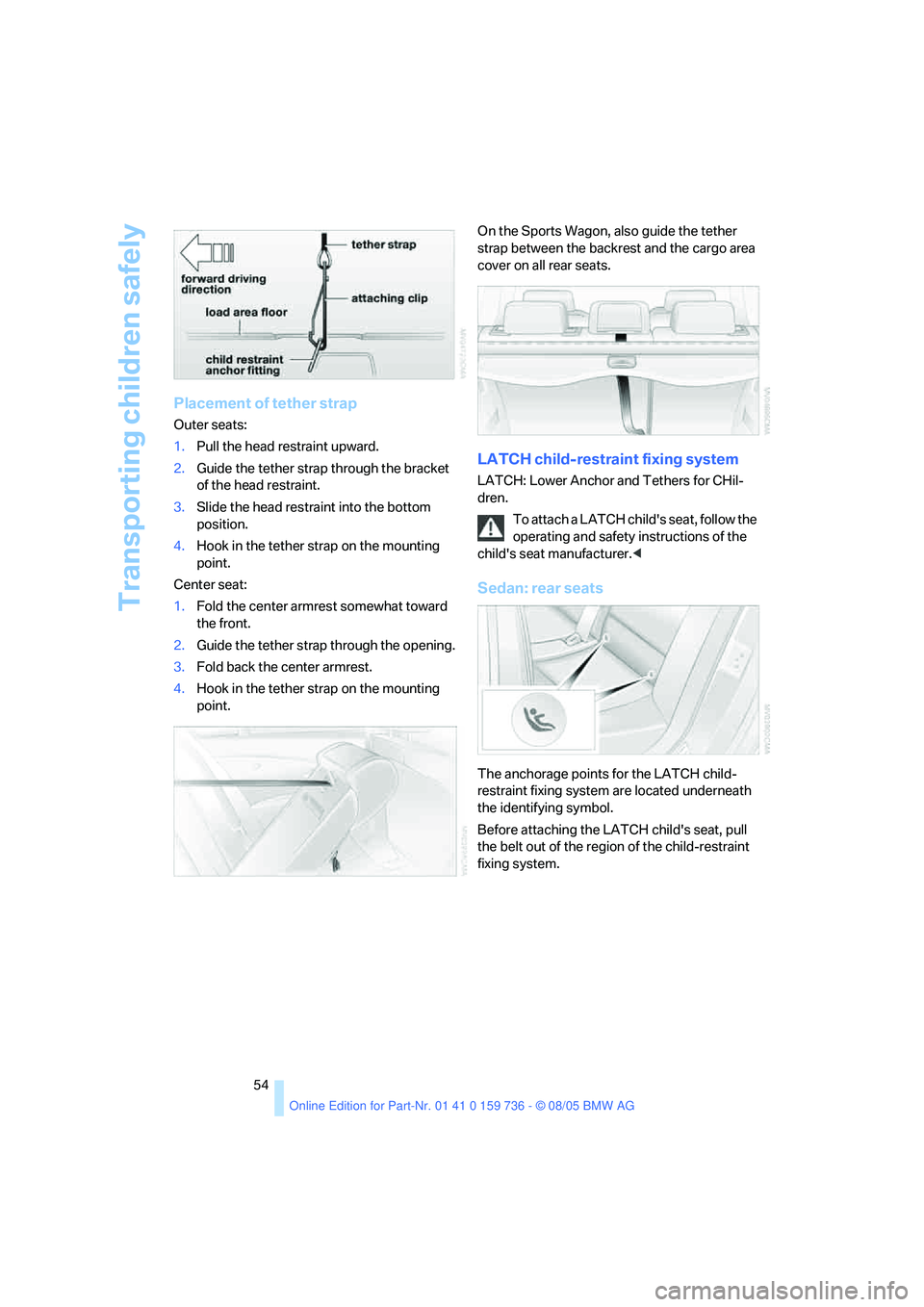

Transporting children safely
54
Placement of tether strap
Outer seats:
1.Pull the head restraint upward.
2.Guide the tether strap through the bracket
of the head restraint.
3.Slide the head restraint into the bottom
position.
4.Hook in the tether strap on the mounting
point.
Center seat:
1.Fold the center armrest somewhat toward
the front.
2.Guide the tether strap through the opening.
3.Fold back the center armrest.
4.Hook in the tether strap on the mounting
point.On the Sports Wagon, also guide the tether
strap between the backrest and the cargo area
cover on all rear seats.
LATCH child-restraint fixing system
LATCH: Lower Anchor and Tethers for CHil-
dren.
To attach a LATCH child's seat, follow the
operating and safety instructions of the
child's seat manufacturer.<
Sedan: rear seats
The anchorage points for the LATCH child-
restraint fixing system are located underneath
the identifying symbol.
Before attaching the LATCH child's seat, pull
the belt out of the region of the child-restraint
fixing system.

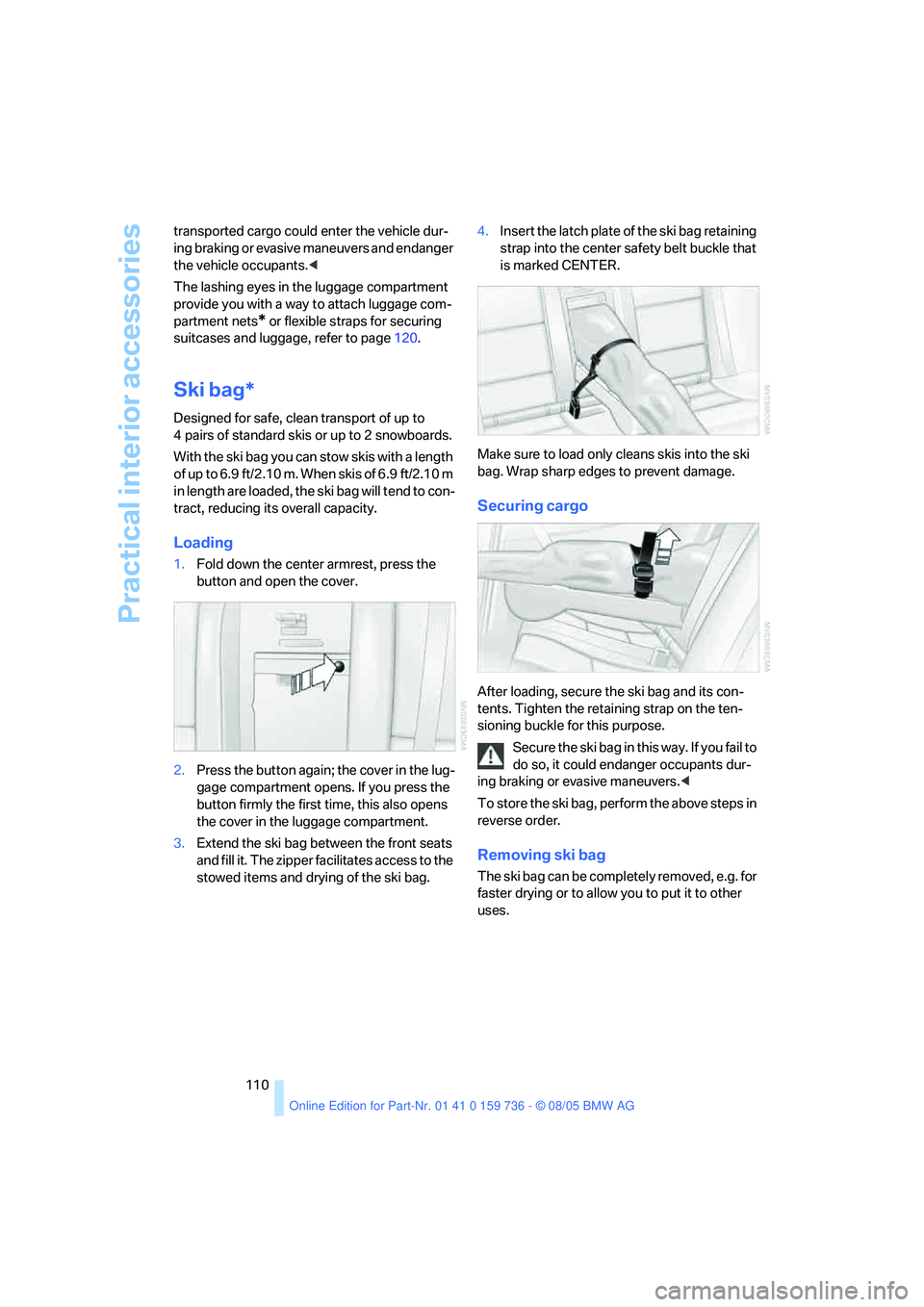

Practical interior accessories
110 transported cargo could enter the vehicle dur-
ing braking or evasive maneuvers and endanger
the vehicle occupants.<
The lashing eyes in the luggage compartment
provide you with a way to attach luggage com-
partment nets
* or flexible straps for securing
suitcases and luggage, refer to page120.
Ski bag*
Designed for safe, clean transport of up to
4 pairs of standard skis or up to 2 snowboards.
With the ski bag you can stow skis with a length
o f u p t o 6 . 9 f t / 2 . 1 0 m . W h e n s k i s o f 6 . 9 f t / 2 . 1 0 m
in length are loaded, the ski bag will tend to con-
tract, reducing its overall capacity.
Loading
1.Fold down the center armrest, press the
button and open the cover.
2.Press the button again; the cover in the lug-
gage compartment opens. If you press the
button firmly the first time, this also opens
the cover in the luggage compartment.
3.Extend the ski bag between the front seats
and fill it. The zipper facilitates access to the
stowed items and drying of the ski bag.4.Insert the latch plate of the ski bag retaining
strap into the center safety belt buckle that
is marked CENTER.
Make sure to load only cleans skis into the ski
bag. Wrap sharp edges to prevent damage.
Securing cargo
After loading, secure the ski bag and its con-
tents. Tighten the retaining strap on the ten-
sioning buckle for this purpose.
Secure the ski bag in this way. If you fail to
do so, it could endanger occupants dur-
ing braking or evasive maneuvers.<
To store the ski bag, perform the above steps in
reverse order.
Removing ski bag
The ski bag can be completely removed, e.g. for
faster drying or to allow you to put it to other
uses.

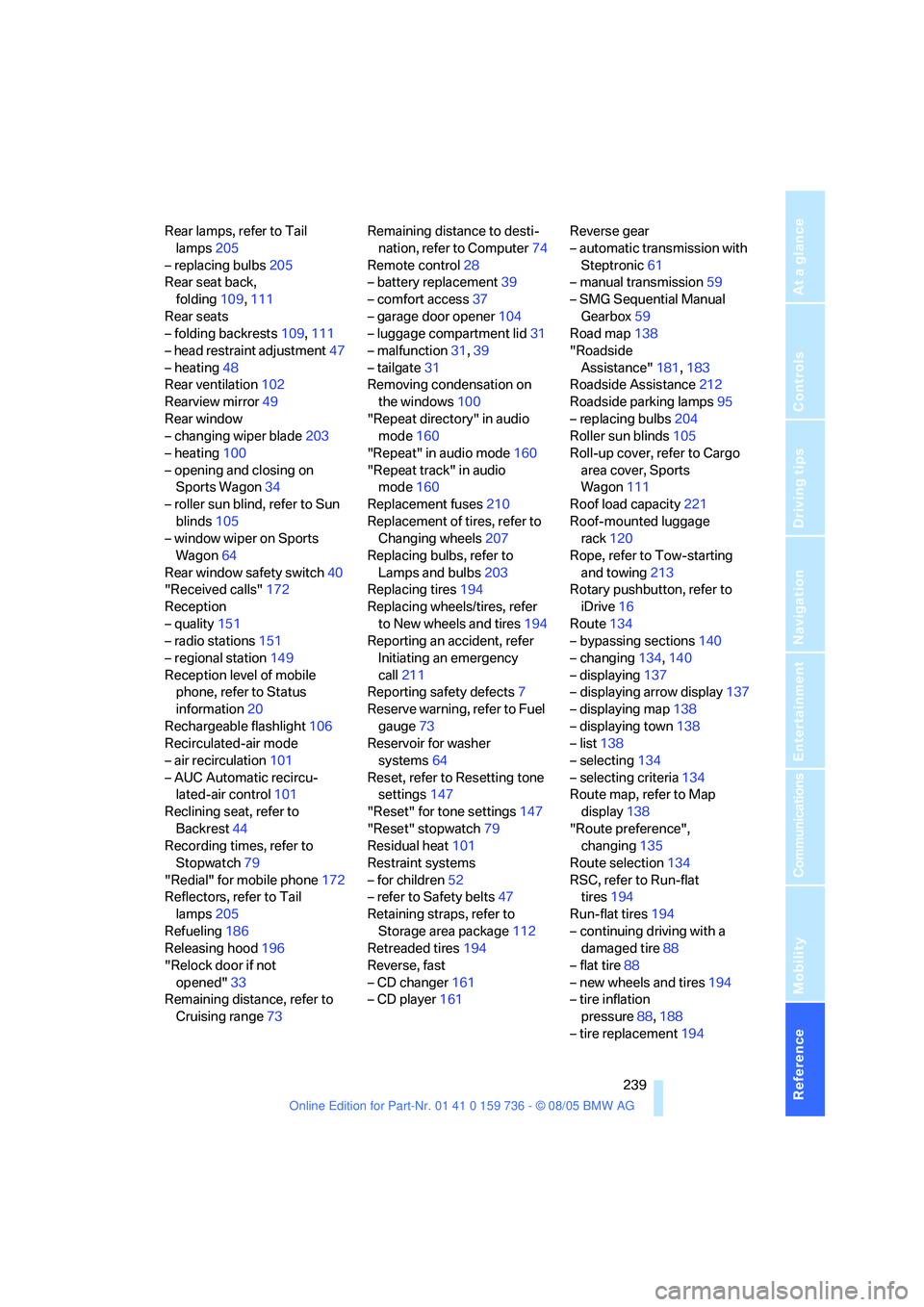

Reference 239
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Rear lamps, refer to Tail
lamps205
– replacing bulbs205
Rear seat back,
folding109,111
Rear seats
– folding backrests109,111
– head restraint adjustment47
– heating48
Rear ventilation102
Rearview mirror49
Rear window
– changing wiper blade203
– heating100
– opening and closing on
Sports Wagon34
– roller sun blind, refer to Sun
blinds105
– window wiper on Sports
Wagon64
Rear window safety switch40
"Received calls"172
Reception
– quality151
– radio stations151
– regional station149
Reception level of mobile
phone, refer to Status
information20
Rechargeable flashlight106
Recirculated-air mode
– air recirculation101
– AUC Automatic recircu-
lated-air control101
Reclining seat, refer to
Backrest44
Recording times, refer to
Stopwatch79
"Redial" for mobile phone172
Reflectors, refer to Tail
lamps205
Refueling186
Releasing hood196
"Relock door if not
opened"33
Remaining distance, refer to
Cruising range73Remaining distance to desti-
nation, refer to Computer74
Remote control28
– battery replacement39
– comfort access37
– garage door opener104
– luggage compartment lid31
– malfunction31,39
– tailgate31
Removing condensation on
the windows
100
"Repeat directory" in audio
mode160
"Repeat" in audio mode160
"Repeat track" in audio
mode160
Replacement fuses210
Replacement of tires, refer to
Changing wheels207
Replacing bulbs, refer to
Lamps and bulbs203
Replacing tires194
Replacing wheels/tires, refer
to New wheels and tires194
Reporting an accident, refer
Initiating an emergency
call211
Reporting safety defects7
Reserve warning, refer to Fuel
gauge73
Reservoir for washer
systems64
Reset, refer to Resetting tone
settings147
"Reset" for tone settings147
"Reset" stopwatch79
Residual heat101
Restraint systems
– for children52
– refer to Safety belts47
Retaining straps, refer to
Storage area package112
Retreaded tires194
Reverse, fast
– CD changer161
– CD player161Reverse gear
– automatic transmission with
Steptronic61
– manual transmission59
– SMG Sequential Manual
Gearbox59
Road map138
"Roadside
Assistance"181,183
Roadside Assistance212
Roadside parking lamps95
– replacing bulbs204
Roller sun blinds105
Roll-up cover, refer to Cargo
area cover, Sports
Wagon111
Roof load capacity221
Roof-mounted luggage
rack120
Rope, refer to Tow-starting
and towing213
Rotary pushbutton, refer to
iDrive16
Route134
– bypassing sections140
– changing134,
140
– displaying137
– displaying arrow display137
– displaying map138
– displaying town138
– list138
– selecting134
– selecting criteria134
Route map, refer to Map
display138
"Route preference",
changing135
Route selection134
RSC, refer to Run-flat
tires194
Run-flat tires194
– continuing driving with a
damaged tire88
– flat tire88
– new wheels and tires194
– tire inflation
pressure88,188
– tire replacement194
