seat memory BMW 530I 2007 Owners Manual

Controls
47Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Adjusting lumbar support*
You can also adjust the contour of the backrest
to obtain additional support in the lumbar
region.
The upper hips and spinal column receive sup-
plementary support to help you maintain a
relaxed, upright sitting position.
>Increase or decrease curvature: press front
or rear section of switch.
>Shift curvature up or down: press upper or
lowers section of switch.
Adjusting active backrest width*
First set a comfortable backrest width, see
above. Based on the backrest width set, the lat-
eral support is automatically adapted to the cur-
rent driving situation.
The adaptation of the backrest width and the
speed of the adjustment vary depending on the
program. You can select from among three pro-
grams from comfort to sport.
Press button once per program:
>"Comfort" program: one LED
>"Normal" program: two LEDs
>"Sport" program: three LEDs
To switch off: press button longer.
Easy entry/exit*
To facilitate entry and exit, the backrest width
temporarily opens all the way.
Seat, mirror and steering
wheel memory*
You can store and request two different posi-
tions for the driver's seat and passenger seat
*,
exterior rearview mirrors, and steering wheel.
The adjustment of the lumbar support is not
stored in the memory.
Storing
1.Switch on radio readiness or ignition, refer
to page59.
2.Set the desired seat, exterior mirror and
steering wheel positions.
3.Press the button:
The LED in the button lights up.
4.Press the desired memory button1 or2:
The LED goes out.
Requesting
Do not request a position from the mem-
ory while the vehicle is moving. There is a
risk of accident from unexpected movement of
the seat or steering wheel.<
Comfort mode
1.Open the driver's door after unlocking or
switch on radio readiness.
2.Briefly press the desired memory button1
or2.

Adjusting

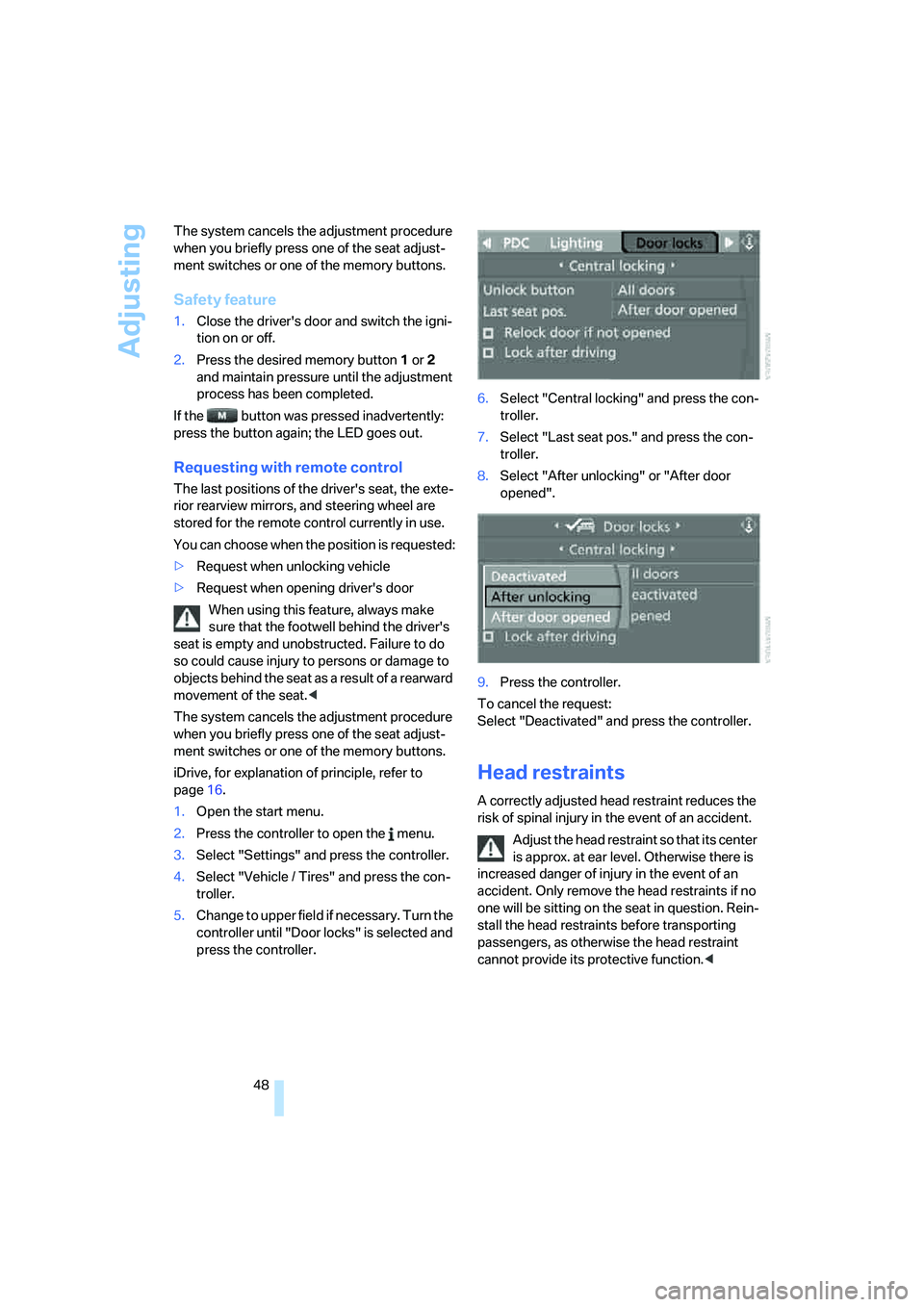

48 The system cancels the adjustment procedure
when you briefly press one of the seat adjust-
ment switches or one of the memory buttons.
Safety feature
1.Close the driver's door and switch the igni-
tion on or off.
2.Press the desired memory button1 or2
and maintain pressure until the adjustment
process has been completed.
If the button was pressed inadvertently:
press the button again; the LED goes out.
Requesting with remote control
The last positions of the driver's seat, the exte-
rior rearview mirrors, and steering wheel are
stored for the remote control currently in use.
You can choose when the position is requested:
>Request when unlocking vehicle
>Request when opening driver's door
When using this feature, always make
sure that the footwell behind the driver's
seat is empty and unobstructed. Failure to do
so could cause injury to persons or damage to
objects behind the seat as a result of a rearward
movement of the seat.<
The system cancels the adjustment procedure
when you briefly press one of the seat adjust-
ment switches or one of the memory buttons.
iDrive, for explanation of principle, refer to
page16.
1.Open the start menu.
2.Press the controller to open the menu.
3.Select "Settings" and press the controller.
4.Select "Vehicle / Tires" and press the con-
troller.
5.Change to upper field if necessary. Turn the
controller until "Door locks" is selected and
press the controller.6.Select "Central locking" and press the con-
troller.
7.Select "Last seat pos." and press the con-
troller.
8.Select "After unlocking" or "After door
opened".
9.Press the controller.
To cancel the request:
Select "Deactivated" and press the controller.
Head restraints
A correctly adjusted head restraint reduces the
risk of spinal injury in the event of an accident.
Adjust the head restraint so that its center
is approx. at ear level. Otherwise there is
increased danger of injury in the event of an
accident. Only remove the head restraints if no
one will be sitting on the seat in question. Rein-
stall the head restraints before transporting
passengers, as otherwise the head restraint
cannot provide its protective function.<

Adjusting
52

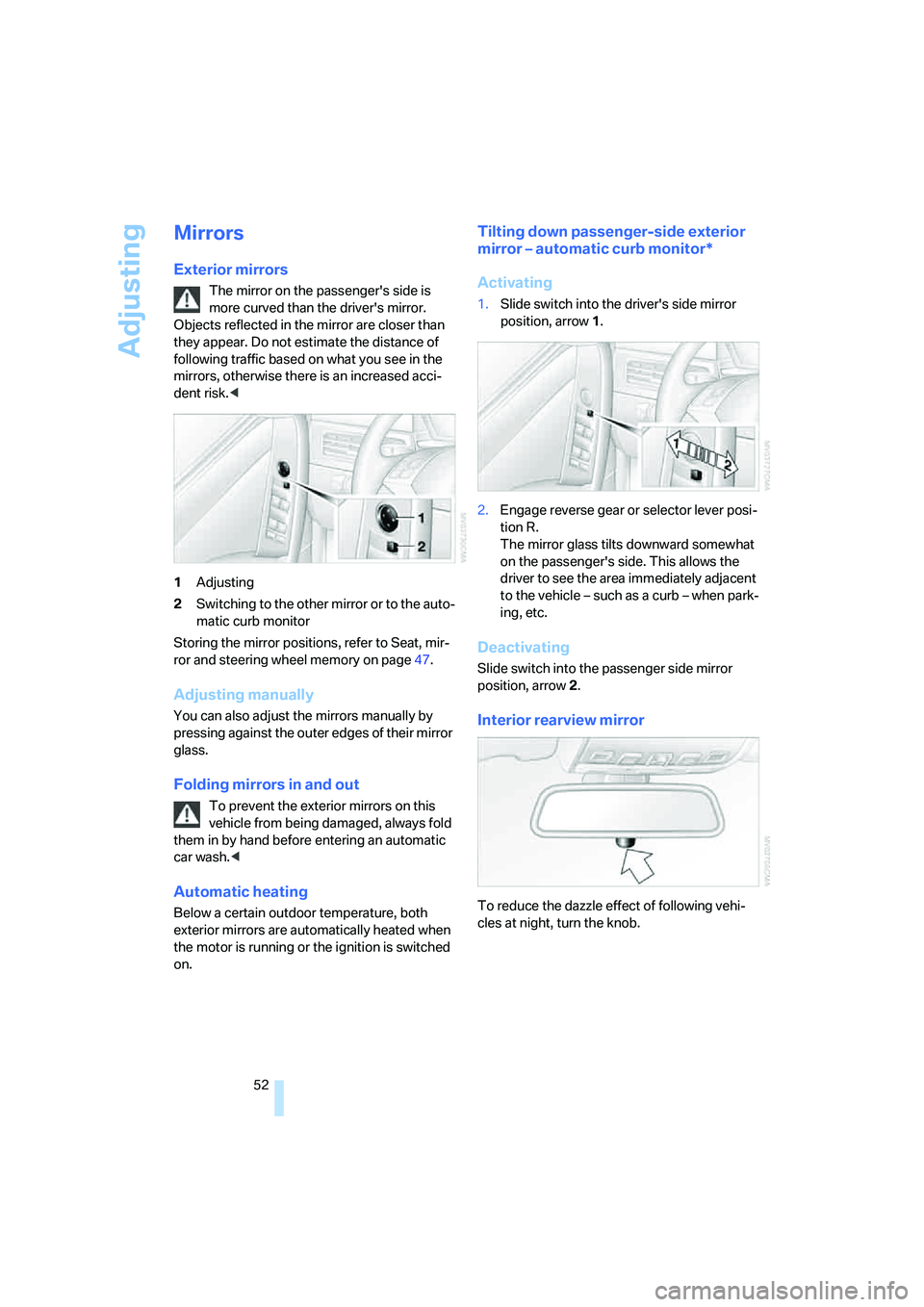

Mirrors
Exterior mirrors
The mirror on the passenger's side is
more curved than the driver's mirror.
Objects reflected in the mirror are closer than
they appear. Do not estimate the distance of
following traffic based on what you see in the
mirrors, otherwise there is an increased acci-
dent risk.<
1Adjusting
2Switching to the other mirror or to the auto-
matic curb monitor
Storing the mirror positions, refer to Seat, mir-
ror and steering wheel memory on page47.
Adjusting manually
You can also adjust the mirrors manually by
pressing against the outer edges of their mirror
glass.
Folding mirrors in and out
To prevent the exterior mirrors on this
vehicle from being damaged, always fold
them in by hand before entering an automatic
car wash.<
Automatic heating
Below a certain outdoor temperature, both
exterior mirrors are automatically heated when
the motor is running or the ignition is switched
on.
Tilting down passenger-side exterior
mirror – automatic curb monitor*
Activating
1.Slide switch into the driver's side mirror
position, arrow 1.
2.Engage reverse gear or selector lever posi-
tion R.
The mirror glass tilts downward somewhat
on the passenger's side. This allows the
driver to see the area immediately adjacent
to the vehicle – such as a curb – when park-
ing, etc.
Deactivating
Slide switch into the passenger side mirror
position, arrow 2.
Interior rearview mirror
To reduce the dazzle effect of following vehi-
cles at night, turn the knob.

Controls
53Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

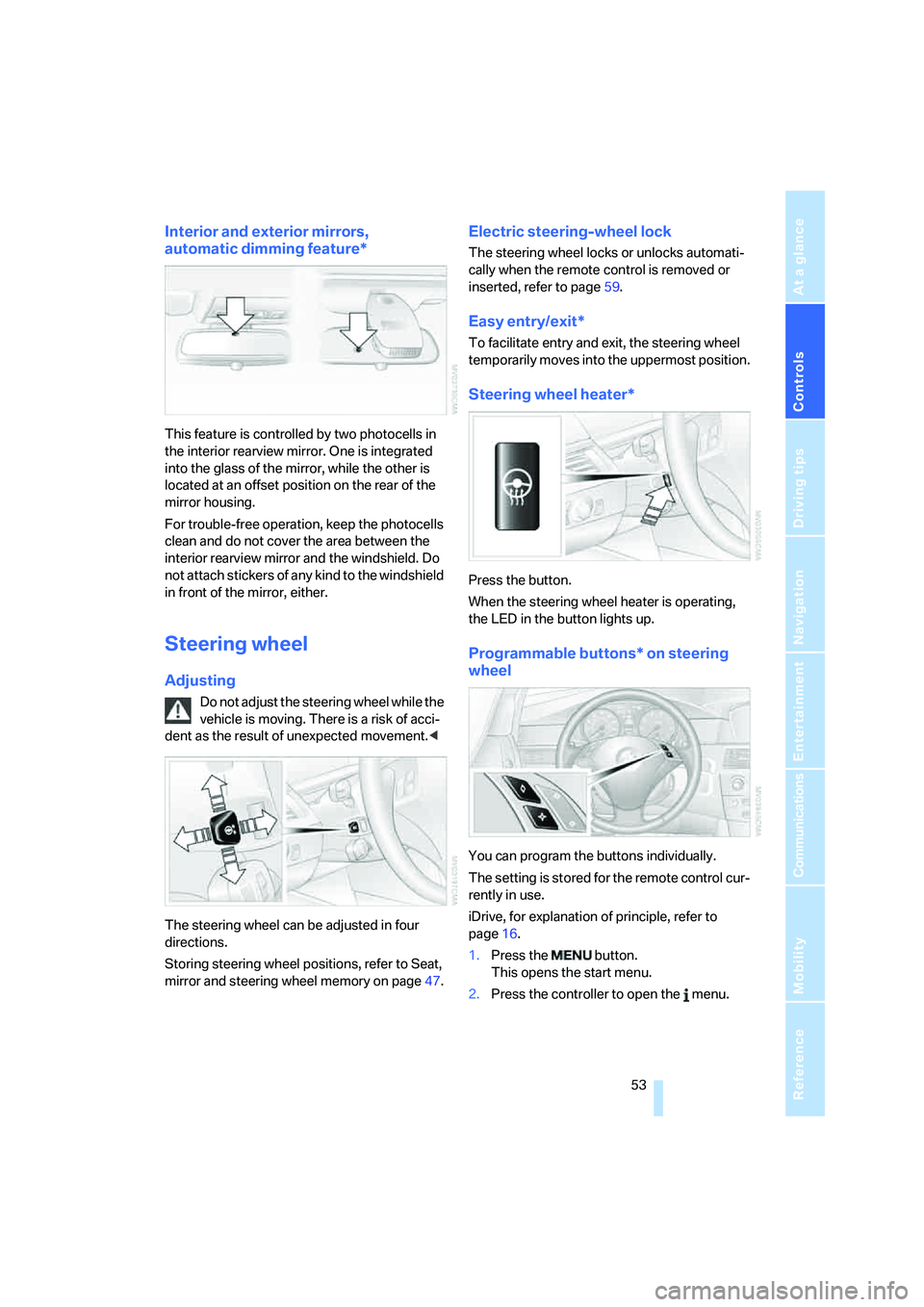

Interior and exterior mirrors,
automatic dimming feature*
This feature is controlled by two photocells in
the interior rearview mirror. One is integrated
into the glass of the mirror, while the other is
located at an offset position on the rear of the
mirror housing.
For trouble-free operation, keep the photocells
clean and do not cover the area between the
interior rearview mirror and the windshield. Do
not attach stickers of any kind to the windshield
in front of the mirror, either.
Steering wheel
Adjusting
Do not adjust the steering wheel while the
vehicle is moving. There is a risk of acci-
dent as the result of unexpected movement.<
The steering wheel can be adjusted in four
directions.
Storing steering wheel positions, refer to Seat,
mirror and steering wheel memory on page47.
Electric steering-wheel lock
The steering wheel locks or unlocks automati-
cally when the remote control is removed or
inserted, refer to page59.
Easy entry/exit*
To facilitate entry and exit, the steering wheel
temporarily moves into the uppermost position.
Steering wheel heater*
Press the button.
When the steering wheel heater is operating,
the LED in the button lights up.
Programmable buttons* on steering
wheel
You can program the buttons individually.
The setting is stored for the remote control cur-
rently in use.
iDrive, for explanation of principle, refer to
page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.

Controls
55Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Transporting children safely
The right place for children
Do not leave children unattended in the
vehicle, otherwise they could endanger
themselves and other persons, e.g. by opening
the doors.<
Children always in the rear
Accident research shows that the safest place
for children is on the rear seat.
Children younger than 13 years of age or
with a height under 5 ft/150 cm may only
be transported in the rear in child restraint sys-
tems which correspond to the age, weight and
height of the child. Otherwise there is an
increased danger of injury in an accident.<
Children 13 years of age or older must wear a
safety belt as soon as a suitable child restraint
system can no longer be used due to their age,
size and weight.
With the exception of the driver's seat, all seats
in your BMW comply with the recommenda-
tions of the standard SAE J1819 for the safe
securing of child restraint systems in motor
vehicles.
Exception for front passenger seat
Should it be necessary to use a child
restraint system on the front passenger
seat, the front and side airbags on the passen-
ger side must be deactivated. Otherwise, there
is an increased risk of injury for the child if the
airbags are triggered, even with a child restraint
system. Your BMW center will be glad to advise
you.<
For more information on automatic deactivation
of the front passenger airbags, refer to page97.
Installing child restraint
systems
Observe the child restraint system manu-
facturer's instructions for selection,
installation and use of the child restraint sys-
tems. Otherwise the degree of protection may
be reduced.<
Backrest width* on front passenger
seat
Before mounting a child restraint system
on the front passenger seat, the backrest
width adjustment must be open completely.
After mounting the child's seat, no memory
position may be called up and the active back-
rest width adjustment must be deactivated,
otherwise the stability of the child's seat on the
front passenger seat is limited.<
1.After unlocking the vehicle, sit on the front
passenger seat and close the door to call up
the memory position.
2.Completely open the backrest width adjust-
ment, refer to page46.
3.Deactivate active backrest width adjust-
ment, refer to page47.
4.Install child's seat.
Child seat security
All rear safety belts and the safety belt for the
front passenger can be locked against pulling
out to secure child restraint systems.

Mobility
229Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

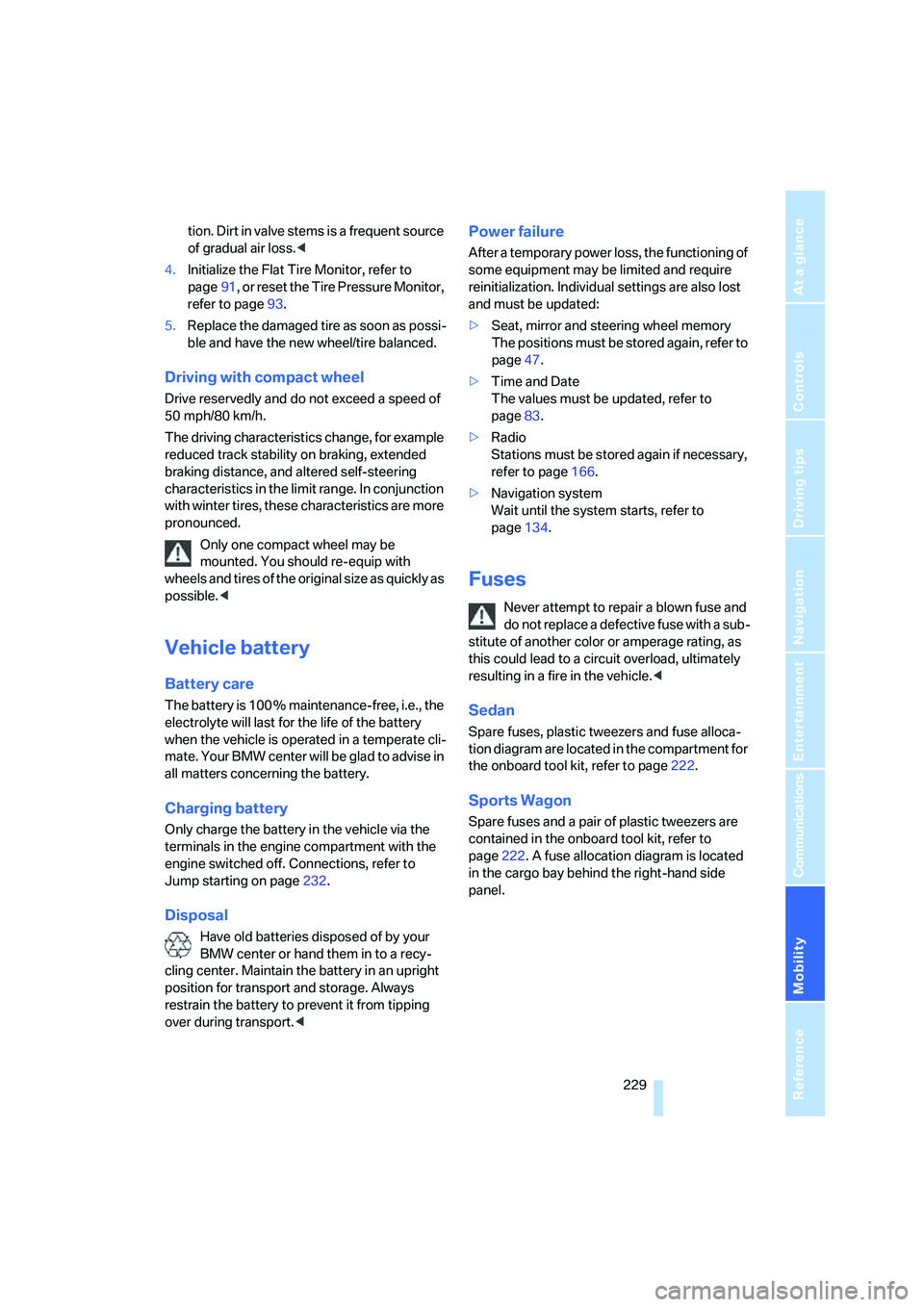

tion. Dirt in valve stems is a frequent source
of gradual air loss.<
4.Initialize the Flat Tire Monitor, refer to
page91, or reset the Tire Pressure Monitor,
refer to page93.
5.Replace the damaged tire as soon as possi-
ble and have the new wheel/tire balanced.
Driving with compact wheel
Drive reservedly and do not exceed a speed of
50 mph/80 km/h.
The driving characteristics change, for example
reduced track stability on braking, extended
braking distance, and altered self-steering
characteristics in the limit range. In conjunction
with winter tires, these characteristics are more
pronounced.
Only one compact wheel may be
mounted. You should re-equip with
wheels and tires of the original size as quickly as
possible.<
Vehicle battery
Battery care
The battery is 100 % maintenance-free, i.e., the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate cli-
mate. Your BMW center will be glad to advise in
all matters concerning the battery.
Charging battery
Only charge the battery in the vehicle via the
terminals in the engine compartment with the
engine switched off. Connections, refer to
Jump starting on page232.
Disposal
Have old batteries disposed of by your
BMW center or hand them in to a recy-
cling center. Maintain the battery in an upright
position for transport and storage. Always
restrain the battery to prevent it from tipping
over during transport.<
Power failure
After a temporary power loss, the functioning of
some equipment may be limited and require
reinitialization. Individual settings are also lost
and must be updated:
>Seat, mirror and steering wheel memory
The positions must be stored again, refer to
page47.
>Time and Date
The values must be updated, refer to
page83.
>Radio
Stations must be stored again if necessary,
refer to page166.
>Navigation system
Wait until the system starts, refer to
page134.
Fuses
Never attempt to repair a blown fuse and
do not replace a defective fuse with a sub-
stitute of another color or amperage rating, as
this could lead to a circuit overload, ultimately
resulting in a fire in the vehicle.<
Sedan
Spare fuses, plastic tweezers and fuse alloca-
tion diagram are located in the compartment for
the onboard tool kit, refer to page222.
Sports Wagon
Spare fuses and a pair of plastic tweezers are
contained in the onboard tool kit, refer to
page222. A fuse allocation diagram is located
in the cargo bay behind the right-hand side
panel.

Reference 257
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

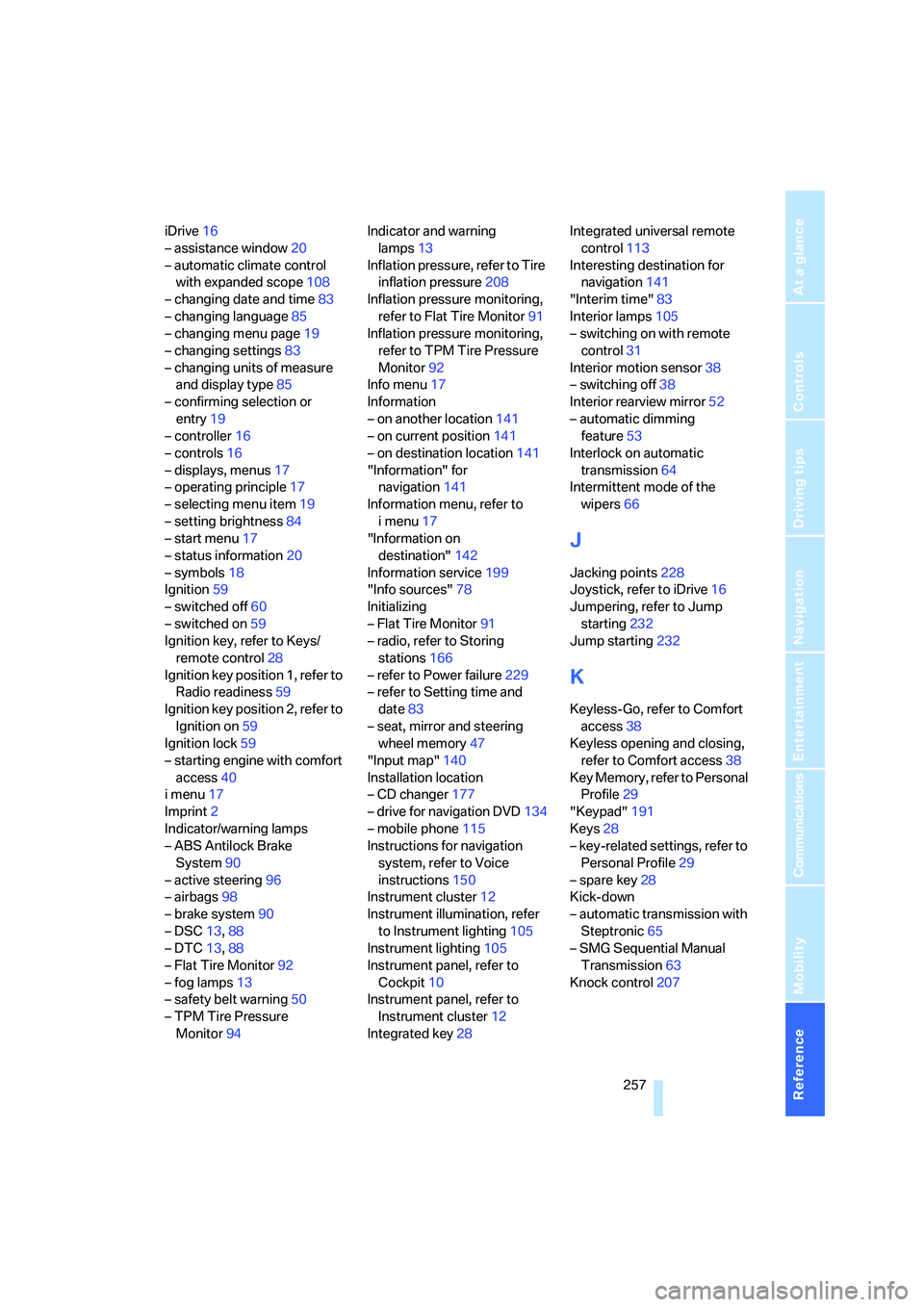

iDrive16
– assistance window20
– automatic climate control
with expanded scope108
– changing date and time83
– changing language85
– changing menu page19
– changing settings83
– changing units of measure
and display type85
– confirming selection or
entry19
– controller16
– controls16
– displays, menus17
– operating principle17
– selecting menu item19
– setting brightness84
– start menu17
– status information20
– symbols18
Ignition59
– switched off60
– switched on59
Ignition key, refer to Keys/
remote control28
Ignition key position 1, refer to
Radio readiness59
Ignition key position 2, refer to
Ignition on59
Ignition lock59
– starting engine with comfort
access40
i menu17
Imprint2
Indicator/warning lamps
– ABS Antilock Brake
System90
– active steering96
– airbags98
– brake system90
– DSC13,88
– DTC13,88
– Flat Tire Monitor92
– fog lamps13
– safety belt warning50
– TPM Tire Pressure
Monitor94Indicator and warning
lamps13
Inflation pressure, refer to Tire
inflation pressure208
Inflation pressure monitoring,
refer to Flat Tire Monitor91
Inflation pressure monitoring,
refer to TPM Tire Pressure
Monitor92
Info menu17
Information
– on another location141
– on current position141
– on destination location141
"Information" for
navigation141
Information menu, refer to
imenu17
"Information on
destination"142
Information service199
"Info sources"78
Initializing
– Flat Tire Monitor91
– radio, refer to Storing
stations166
– refer to Power failure229
– refer to Setting time and
date83
– seat, mirror and steering
wheel memory47
"Input map"140
Installation location
– CD changer177
– drive for navigation DVD134
– mobile phone115
Instructions for navigation
system, refer to Voice
instructions150
Instrument cluster12
Instrument illumination, refer
to Instrument lighting105
Instrument lighting105
Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Instrument cluster12
Integrated key28Integrated universal remote
control113
Interesting destination for
navigation141
"Interim time"83
Interior lamps105
– switching on with remote
control31
Interior motion sensor38
– switching off38
Interior rearview mirror52
– automatic dimming
feature53
Interlock on automatic
transmission64
Intermittent mode of the
wipers66
J
Jacking points228
Joystick, refer to iDrive16
Jumpering, refer to Jump
starting232
Jump starting232
K
Keyless-Go, refer to Comfort
access38
Keyless opening and closing,
refer to Comfort access38
Key Memory, refer to Personal
Profile29
"Keypad"191
Keys28
– key-related settings, refer to
Personal Profile29
– spare key28
Kick-down
– automatic transmission with
Steptronic65
– SMG Sequential Manual
Transmission63
Knock control207

Reference 259
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

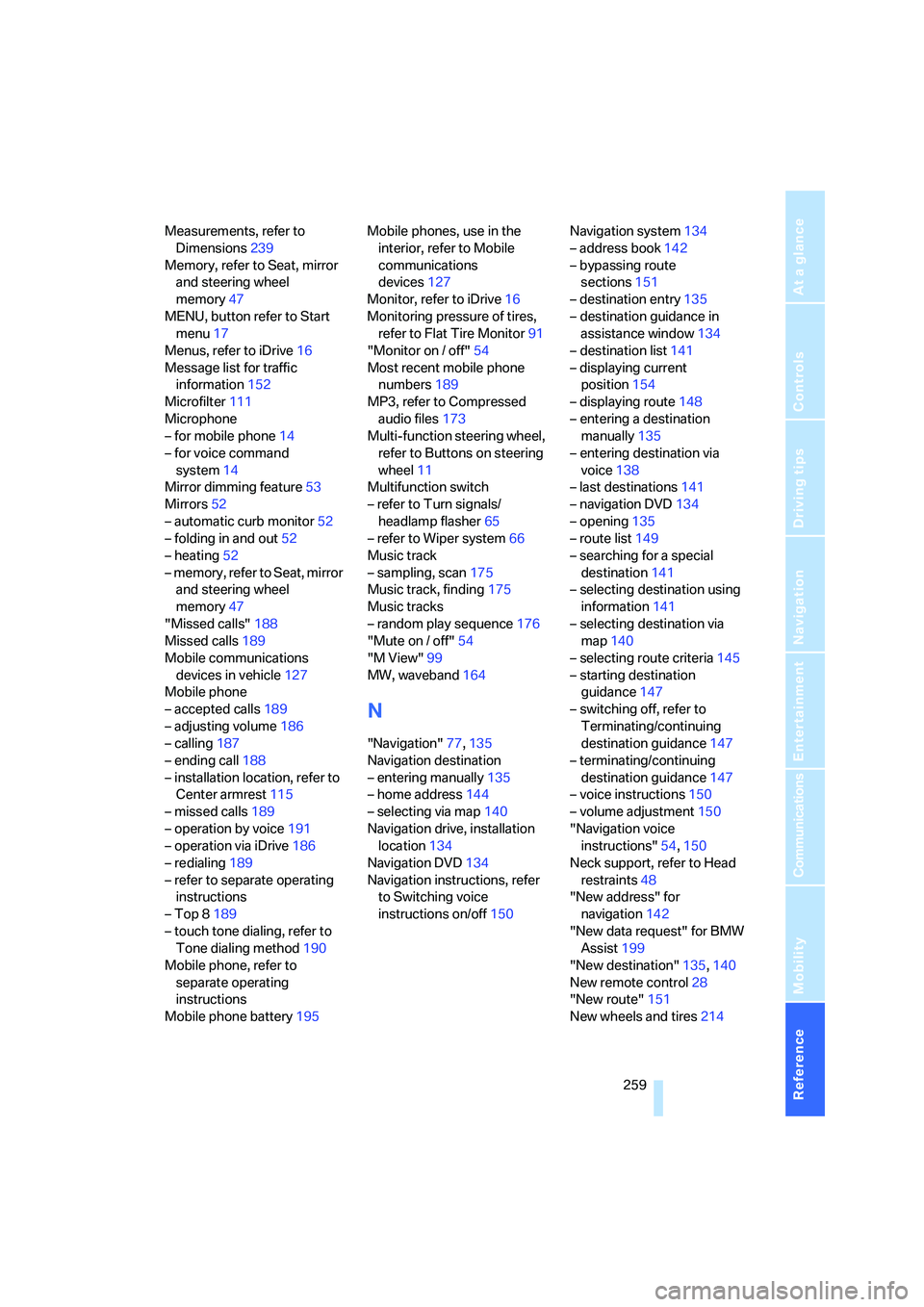

Measurements, refer to
Dimensions239
Memory, refer to Seat, mirror
and steering wheel
memory47
MENU, button refer to Start
menu17
Menus, refer to iDrive16
Message list for traffic
information152
Microfilter111
Microphone
– for mobile phone14
– for voice command
system14
Mirror dimming feature53
Mirrors52
– automatic curb monitor52
– folding in and out52
– heating52
– memory, refer to Seat, mirror
and steering wheel
memory47
"Missed calls"188
Missed calls189
Mobile communications
devices in vehicle127
Mobile phone
– accepted calls189
– adjusting volume186
– calling187
– ending call188
– installation location, refer to
Center armrest115
– missed calls189
– operation by voice191
– operation via iDrive186
– redialing189
– refer to separate operating
instructions
– Top 8189
– touch tone dialing, refer to
Tone dialing method190
Mobile phone, refer to
separate operating
instructions
Mobile phone battery195Mobile phones, use in the
interior, refer to Mobile
communications
devices127
Monitor, refer to iDrive16
Monitoring pressure of tires,
refer to Flat Tire Monitor91
"Monitor on / off"54
Most recent mobile phone
numbers189
MP3, refer to Compressed
audio files173
Multi-function steering wheel,
refer to Buttons on steering
wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher65
– refer to Wiper system
66
Music track
– sampling, scan175
Music track, finding175
Music tracks
– random play sequence176
"Mute on / off"54
"M View"99
MW, waveband164
N
"Navigation"77,135
Navigation destination
– entering manually135
– home address144
– selecting via map140
Navigation drive, installation
location134
Navigation DVD134
Navigation instructions, refer
to Switching voice
instructions on/off150Navigation system134
– address book142
– bypassing route
sections151
– destination entry135
– destination guidance in
assistance window134
– destination list141
– displaying current
position154
– displaying route148
– entering a destination
manually135
– entering destination via
voice138
– last destinations141
– navigation DVD134
– opening135
– route list149
– searching for a special
destination141
– selecting destination using
information141
– selecting destination via
map140
– selecting route criteria145
– starting destination
guidance147
– switching off, refer to
Terminating/continuing
destination guidance147
– terminating/continuing
destination guidance147
– voice instructions150
– volume adjustment150
"Navigation voice
instructions"54,150
Neck support, refer to Head
restraints48
"New address" for
navigation142
"New data request" for BMW
Assist199
"New destination"135,140
New remote control28
"New route"151
New wheels and tires214

Everything from A to Z

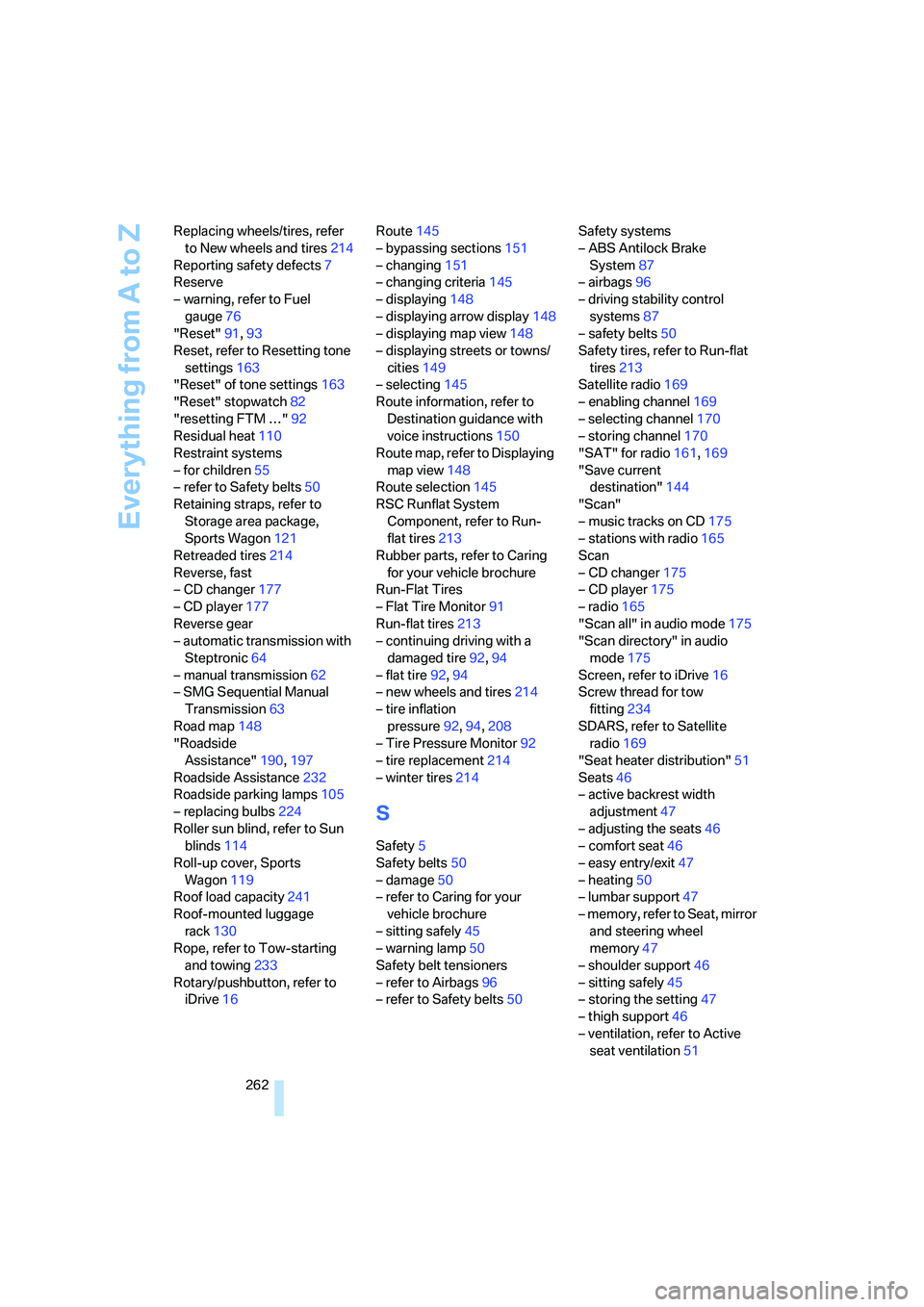

262 Replacing wheels/tires, refer
to New wheels and tires214
Reporting safety defects7
Reserve
– warning, refer to Fuel
gauge76
"Reset"91,93
Reset, refer to Resetting tone
settings163
"Reset" of tone settings163
"Reset" stopwatch82
"resetting FTM …"92
Residual heat110
Restraint systems
– for children55
– refer to Safety belts50
Retaining straps, refer to
Storage area package,
Sports Wagon121
Retreaded tires214
Reverse, fast
– CD changer177
– CD player177
Reverse gear
– automatic transmission with
Steptronic64
– manual transmission62
– SMG Sequential Manual
Transmission63
Road map148
"Roadside
Assistance"190,197
Roadside Assistance232
Roadside parking lamps105
– replacing bulbs224
Roller sun blind, refer to Sun
blinds114
Roll-up cover, Sports
Wagon119
Roof load capacity241
Roof-mounted luggage
rack130
Rope, refer to Tow-starting
and towing233
Rotary/pushbutton, refer to
iDrive16Route145
– bypassing sections151
– changing151
– changing criteria145
– displaying148
– displaying arrow display148
– displaying map view148
– displaying streets or towns/
cities149
– selecting145
Route information, refer to
Destination guidance with
voice instructions
150
Route map, refer to Displaying
map view148
Route selection145
RSC Runflat System
Component, refer to Run-
flat tires213
Rubber parts, refer to Caring
for your vehicle brochure
Run-Flat Tires
– Flat Tire Monitor91
Run-flat tires213
– continuing driving with a
damaged tire92,94
– flat tire92,94
– new wheels and tires214
– tire inflation
pressure92,94,208
– Tire Pressure Monitor92
– tire replacement214
– winter tires214
S
Safety5
Safety belts50
– damage50
– refer to Caring for your
vehicle brochure
– sitting safely45
– warning lamp50
Safety belt tensioners
– refer to Airbags96
– refer to Safety belts50Safety systems
– ABS Antilock Brake
System87
– airbags96
– driving stability control
systems87
– safety belts50
Safety tires, refer to Run-flat
tires213
Satellite radio169
– enabling channel169
– selecting channel170
– storing channel170
"SAT" for radio161,169
"Save current
destination"144
"Scan"
– music tracks on CD175
– stations with radio165
Scan
– CD changer175
– CD player175
– radio165
"Scan all" in audio mode175
"Scan directory" in audio
mode175
Screen, refer to iDrive16
Screw thread for tow
fitting234
SDARS, refer to Satellite
radio169
"Seat heater distribution"51
Seats46
– active backrest width
adjustment47
– adjusting the seats46
– comfort seat46
– easy entry/exit47
– heating50
– lumbar support47
– memory, refer to Seat, mirror
and steering wheel
memory47
– shoulder support46
– sitting safely45
– storing the setting47
– thigh support46
– ventilation, refer to Active
seat ventilation51

Reference 265
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

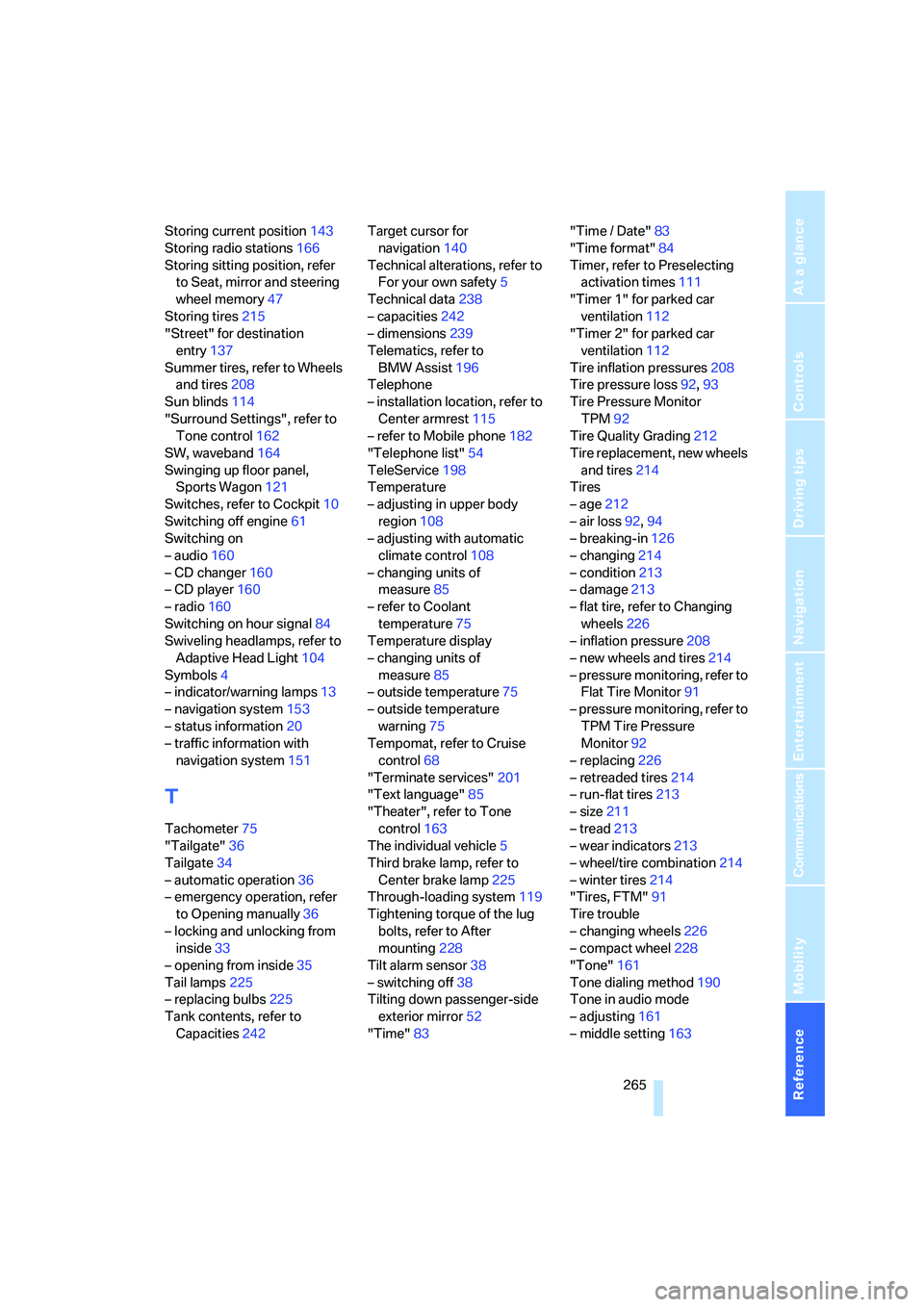

Storing current position143
Storing radio stations166
Storing sitting position, refer
to Seat, mirror and steering
wheel memory47
Storing tires215
"Street" for destination
entry137
Summer tires, refer to Wheels
and tires208
Sun blinds114
"Surround Settings", refer to
Tone control162
SW, waveband164
Swinging up floor panel,
Sports Wagon121
Switches, refer to Cockpit10
Switching off engine61
Switching on
– audio160
– CD changer160
– CD player160
– radio160
Switching on hour signal84
Swiveling headlamps, refer to
Adaptive Head Light104
Symbols4
– indicator/warning lamps13
– navigation system153
– status information20
– traffic information with
navigation system151
T
Tachometer75
"Tailgate"36
Tailgate34
– automatic operation36
– emergency operation, refer
to Opening manually36
– locking and unlocking from
inside33
– opening from inside35
Tail lamps225
– replacing bulbs225
Tank contents, refer to
Capacities242Target cursor for
navigation140
Technical alterations, refer to
For your own safety5
Technical data238
– capacities242
– dimensions239
Telematics, refer to
BMW Assist196
Telephone
– installation location, refer to
Center armrest115
– refer to Mobile phone182
"Telephone list"54
TeleService198
Temperature
– adjusting in upper body
region108
– adjusting with automatic
climate control108
– changing units of
measure85
– refer to Coolant
temperature75
Temperature display
– changing units of
measure85
– outside temperature75
– outside temperature
warning75
Tempomat, refer to Cruise
control68
"Terminate services"201
"Text language"85
"Theater", refer to Tone
control163
The individual vehicle5
Third brake lamp, refer to
Center brake lamp225
Through-loading system119
Tightening torque of the lug
bolts, refer to After
mounting228
Tilt alarm sensor38
– switching off38
Tilting down passenger-side
exterior mirror52
"Time"83"Time / Date"
83
"Time format"84
Timer, refer to Preselecting
activation times111
"Timer 1" for parked car
ventilation112
"Timer 2" for parked car
ventilation112
Tire inflation pressures208
Tire pressure loss92,93
Tire Pressure Monitor
TPM92
Tire Quality Grading212
Tire replacement, new wheels
and tires214
Tires
– age212
– air loss92,94
– breaking-in126
– changing214
– condition213
– damage213
– flat tire, refer to Changing
wheels226
– inflation pressure208
– new wheels and tires214
– pressure monitoring, refer to
Flat Tire Monitor91
– pressure monitoring, refer to
TPM Tire Pressure
Monitor92
– replacing226
– retreaded tires214
– run-flat tires213
– size211
– tread213
– wear indicators213
– wheel/tire combination214
– winter tires214
"Tires, FTM"91
Tire trouble
– changing wheels226
– compact wheel228
"Tone"161
Tone dialing method190
Tone in audio mode
– adjusting161
– middle setting163
