service reset BMW 530I 2007 Owners Manual

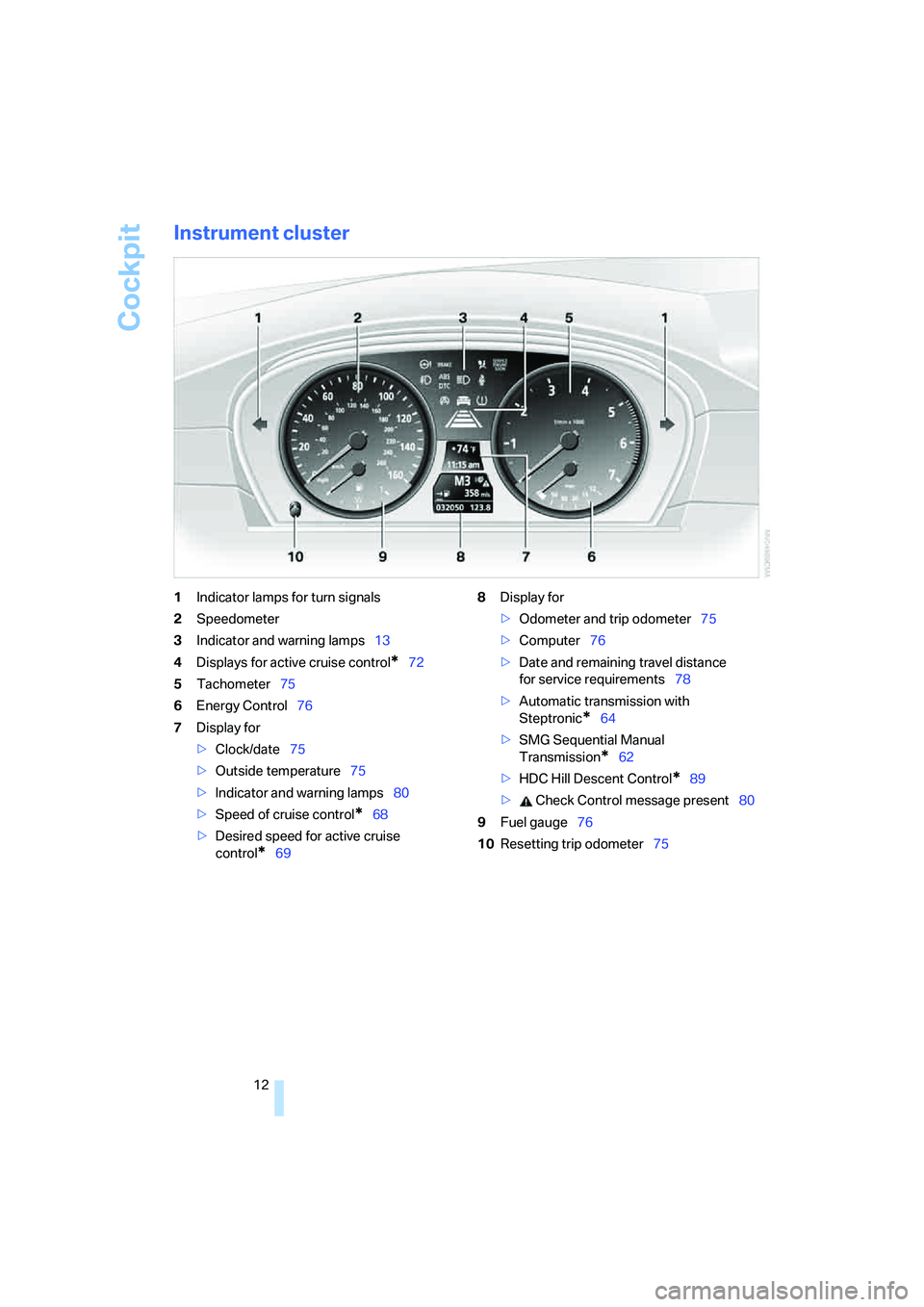

Cockpit
12
Instrument cluster
1Indicator lamps for turn signals
2Speedometer
3Indicator and warning lamps13
4Displays for active cruise control
*72
5Tachometer75
6Energy Control76
7Display for
>Clock/date75
>Outside temperature75
>Indicator and warning lamps80
>Speed of cruise control
*68
>Desired speed for active cruise
control
*698Display for
>Odometer and trip odometer75
>Computer76
>Date and remaining travel distance
for service requirements78
>Automatic transmission with
Steptronic
*64
>SMG Sequential Manual
Transmission
*62
>HDC Hill Descent Control
*89
> Check Control message present80
9Fuel gauge76
10Resetting trip odometer75

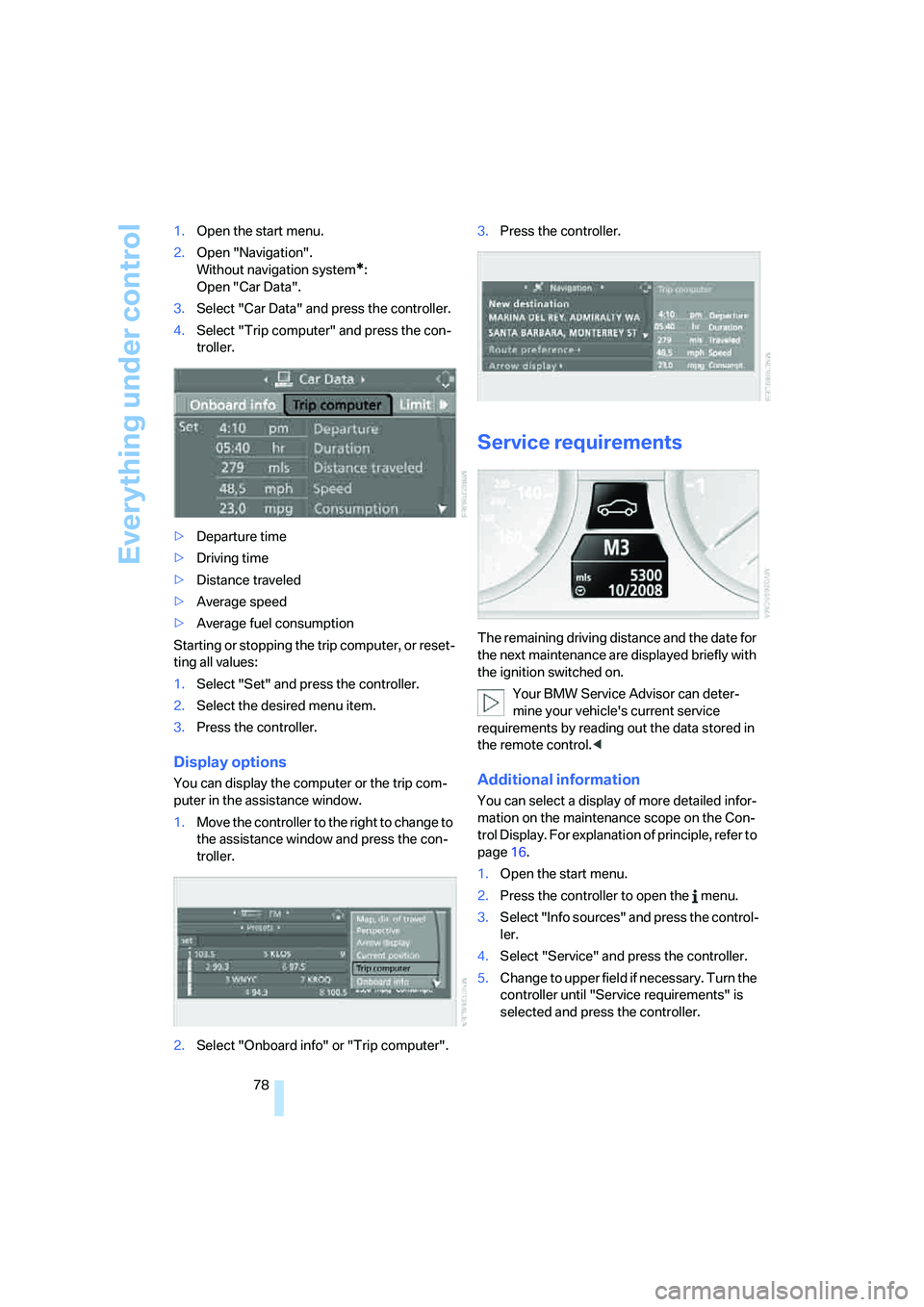

Everything under control
78 1.Open the start menu.
2.Open "Navigation".
Without navigation system
*:
Open "Car Data".
3.Select "Car Data" and press the controller.
4.Select "Trip computer" and press the con-
troller.
>Departure time
>Driving time
>Distance traveled
>Average speed
>Average fuel consumption
Starting or stopping the trip computer, or reset-
ting all values:
1.Select "Set" and press the controller.
2.Select the desired menu item.
3.Press the controller.
Display options
You can display the computer or the trip com-
puter in the assistance window.
1.Move the controller to the right to change to
the assistance window and press the con-
troller.
2.Select "Onboard info" or "Trip computer".3.Press the controller.
Service requirements
The remaining driving distance and the date for
the next maintenance are displayed briefly with
the ignition switched on.
Your BMW Service Advisor can deter-
mine your vehicle's current service
requirements by reading out the data stored in
the remote control.<
Additional information
You can select a display of more detailed infor-
mation on the maintenance scope on the Con-
trol Display. For explanation of principle, refer to
page16.
1.Open the start menu.
2.Press the controller to open the menu.
3.Select "Info sources" and press the control-
ler.
4.Select "Service" and press the controller.
5.Change to upper field if necessary. Turn the
controller until "Service requirements" is
selected and press the controller.

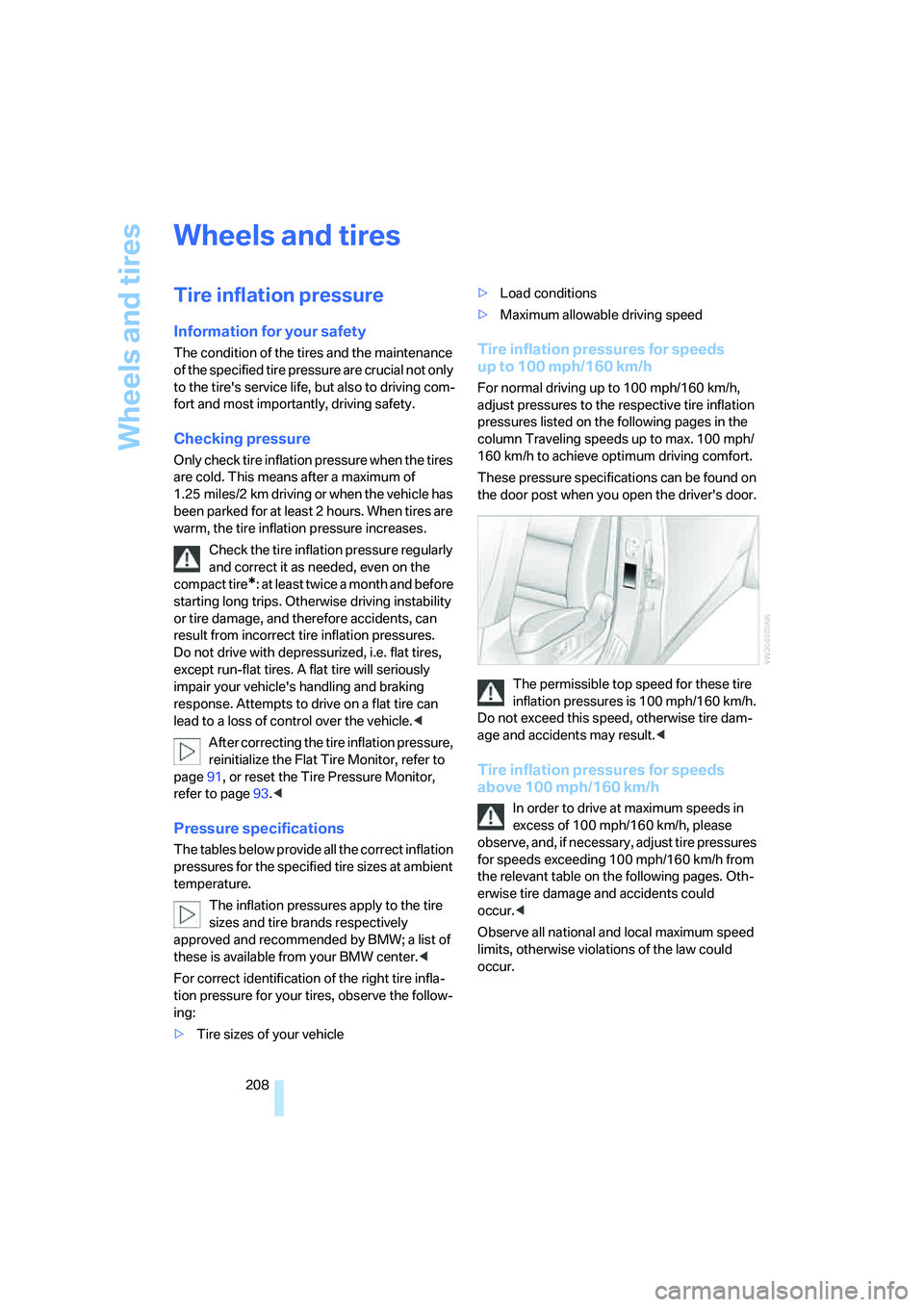

Wheels and tires
208
Wheels and tires
Tire inflation pressure
Information for your safety
The condition of the tires and the maintenance
of the specified tire pressure are crucial not only
to the tire's service life, but also to driving com-
fort and most importantly, driving safety.
Checking pressure
Only check tire inflation pressure when the tires
are cold. This means after a maximum of
1.25 miles/2 km driving or when the vehicle has
been parked for at least 2 hours. When tires are
warm, the tire inflation pressure increases.
Check the tire inflation pressure regularly
and correct it as needed, even on the
compact tire
*: at least twice a month and before
starting long trips. Otherwise driving instability
or tire damage, and therefore accidents, can
result from incorrect tire inflation pressures.
Do not drive with depressurized, i.e. flat tires,
except run-flat tires. A flat tire will seriously
impair your vehicle's handling and braking
response. Attempts to drive on a flat tire can
lead to a loss of control over the vehicle.<
After correcting the tire inflation pressure,
reinitialize the Flat Tire Monitor, refer to
page91, or reset the Tire Pressure Monitor,
refer to page93.<
Pressure specifications
The tables below provide all the correct inflation
pressures for the specified tire sizes at ambient
temperature.
The inflation pressures apply to the tire
sizes and tire brands respectively
approved and recommended by BMW; a list of
these is available from your BMW center.<
For correct identification of the right tire infla-
tion pressure for your tires, observe the follow-
ing:
>Tire sizes of your vehicle>Load conditions
>Maximum allowable driving speed
Tire inflation pressures for speeds
up to 100 mph/160 km/h
For normal driving up to 100 mph/160 km/h,
adjust pressures to the respective tire inflation
pressures listed on the following pages in the
column Traveling speeds up to max. 100 mph/
160 km/h to achieve optimum driving comfort.
These pressure specifications can be found on
the door post when you open the driver's door.
The permissible top speed for these tire
inflation pressures is 100 mph/160 km/h.
Do not exceed this speed, otherwise tire dam-
age and accidents may result.<
Tire inflation pressures for speeds
above 100 mph/160 km/h
In order to drive at maximum speeds in
excess of 100 mph/160 km/h, please
observe, and, if necessary, adjust tire pressures
for speeds exceeding 100 mph/160 km/h from
the relevant table on the following pages. Oth-
erwise tire damage and accidents could
occur.<
Observe all national and local maximum speed
limits, otherwise violations of the law could
occur.

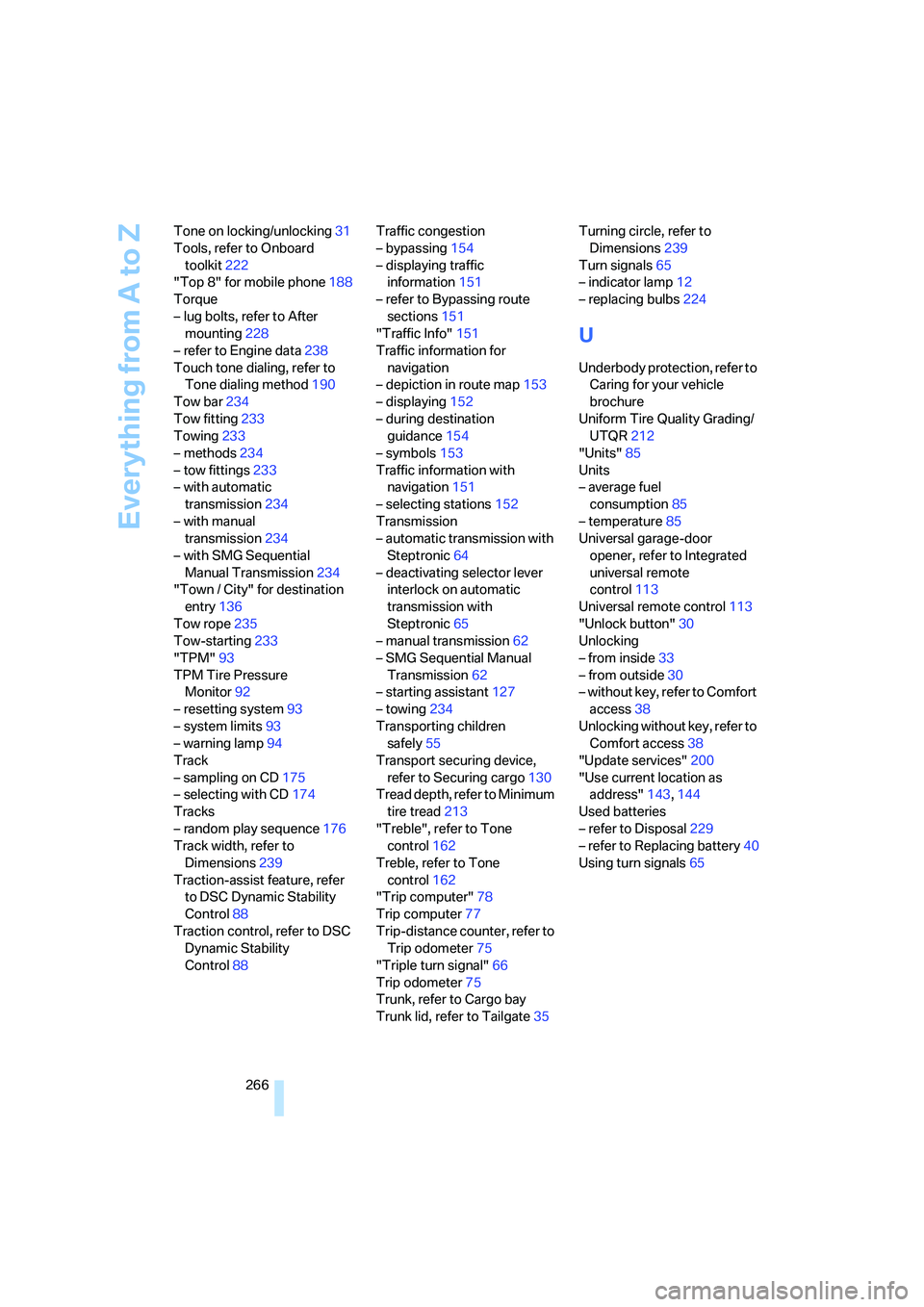

Everything from A to Z
266 Tone on locking/unlocking31
Tools, refer to Onboard
toolkit222
"Top 8" for mobile phone188
Torque
– lug bolts, refer to After
mounting228
– refer to Engine data238
Touch tone dialing, refer to
Tone dialing method190
Tow bar234
Tow fitting233
Towing233
– methods234
– tow fittings233
– with automatic
transmission234
– with manual
transmission234
– with SMG Sequential
Manual Transmission234
"Town / City" for destination
entry136
Tow rope235
Tow-starting233
"TPM"93
TPM Tire Pressure
Monitor92
– resetting system93
– system limits93
– warning lamp94
Track
– sampling on CD175
– selecting with CD174
Tracks
– random play sequence176
Track width, refer to
Dimensions239
Traction-assist feature, refer
to DSC Dynamic Stability
Control88
Traction control, refer to DSC
Dynamic Stability
Control88Traffic congestion
– bypassing154
– displaying traffic
information151
– refer to Bypassing route
sections151
"Traffic Info"151
Traffic information for
navigation
– depiction in route map153
– displaying152
– during destination
guidance154
– symbols153
Traffic information with
navigation151
– selecting stations152
Transmission
– automatic transmission with
Steptronic64
– deactivating selector lever
interlock on automatic
transmission with
Steptronic65
– manual transmission62
– SMG Sequential Manual
Transmission62
– starting assistant127
– towing234
Transporting children
safely55
Transport securing device,
refer to Securing cargo130
Tread depth, refer to Minimum
tire tread213
"Treble", refer to Tone
control162
Treble, refer to Tone
control162
"Trip computer"78
Trip computer77
Trip-distance counter, refer to
Trip odometer75
"Triple turn signal"66
Trip odometer75
Trunk, refer to Cargo bay
Trunk lid, refer to Tailgate35Turning circle, refer to
Dimensions239
Turn signals65
– indicator lamp12
– replacing bulbs224
U
Underbody protection, refer to
Caring for your vehicle
brochure
Uniform Tire Quality Grading/
UTQR212
"Units"85
Units
– average fuel
consumption85
– temperature85
Universal garage-door
opener, refer to Integrated
universal remote
control113
Universal remote control113
"Unlock button"30
Unlocking
– from inside33
– from outside30
– without key, refer to Comfort
access38
Unlocking without key, refer to
Comfort access38
"Update services"200
"Use current location as
address"143,144
Used batteries
– refer to Disposal229
– refer to Replacing battery40
Using turn signals65
