330-1 9
Rear suspension1
Swing arm ball joint, replacing
- Raise rear end of car and remove wheel.
Make sure the car is firmly supported on jack stands de-
signed for the purpose. Place jack stands underneath struc-
tural chassis points. Do not place jack stands under
suspension
parts.
- Sport Wagon model: Support wheel bearing carrier from be-
low.
CA
UTION-
The shock absorberprevents the drive axle and wheel bear-
ing carrier from dropping too far. Supporting the wheel bear-
ing carrier before disconnecting the
shoclc absorber
mounting fastenerprevents damage to the brake hose, park-
ing
brake cable and drive axle CVjoints.
- Model with air shock absorbers: Detach air supply line from
shoclc absorber. Plug ports and lines to keep out dirt.
- Sport Wagon model: Remove shock absorber lower mount-
ing bolt.
4 Remove stabilizer bar link mounting nut (arrow). Press link
out of swing arm.
Model with air springs: Disable air supply pump by discon-
necting electrical plug before performing any repairs. Pump is
located beneath a cover under
the spare tire in the floor of the
carao
comoartment.
4 Model with air springs: Loosen compressed air pipes (ar-
rows) at air distribution assembly to release system pres.
sure.
WARNING-
Vehicle will lower when the air pipes are opened.
- Models with rear coil springs: Remove cargo compartment
floor carpet.

Downloaded from www.Manualslib.com manuals search engine
330-22
I Rear Suspension
s
4 If necessary, machine special tool 33 4 191 as shown.
NOTE-
Slotted end of special tool 33 4 191 points toward wheel
bearing carrier.
Press new bushing into wheel bearing carrier using BMW
special tools
33 4 191,33 4 192,33 4 194 and 33 3 333 until
bushing collar is flush with carrier (arrows).
- Install new snap ring
- Reassembly is reverse of disassembly
Use new self-locking nuts.
Tighten fasteners to final torque only after vehicle has
been lowered and suspension has settled.
Tightening torques Integral link to wheel bearing carrier 105
Nm (77
ft-lb)
Quick coupling screw to air shock 2
Nm (18 in-ib)
absorber
Road wheel to hub
120+lO Nm (89c7ft-ib)
Shock absorber to lower control arm 127 Nm (94 ft-lb)
Stabilizer link to swing arm 65
Nm (48
fl-lb)
Swing arm to wheel bearing carrier (C) 256 Nrn (189 ft-lb)
Upper rear control arm, removing and
installing (sedan models)
- Raise rear end of car and remove wheel.
WARNING-
Make sure the car is firmly supported on jack stands de-
signed for the purpose. Place jack stands underneath struc-
tural chassis points. Do not place
jaclc stands under
suspension parts.

Downloaded from www.Manualslib.com manuals search engine

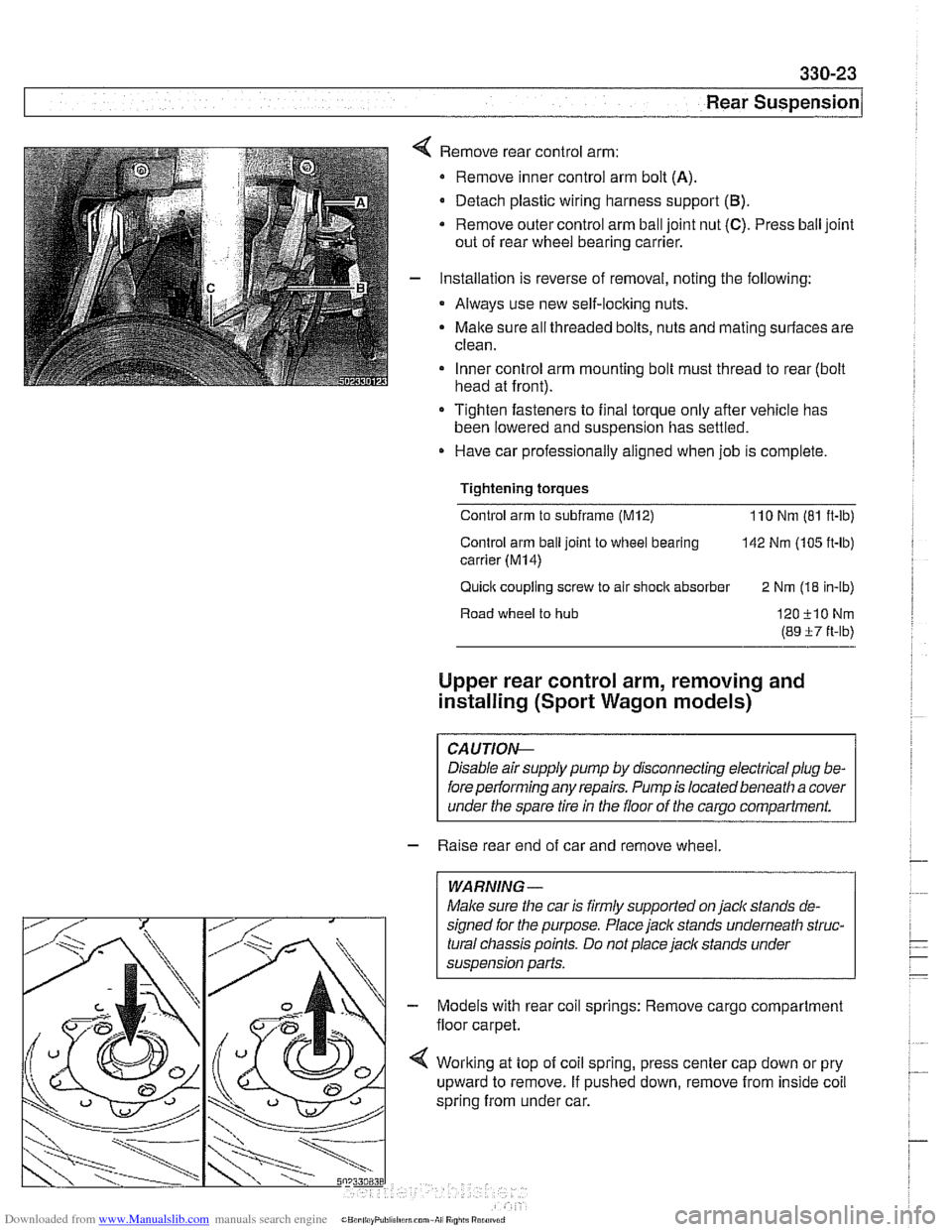

330-23
Rear Suspension
Remove rear control arm:
Remove inner control arm bolt
(A).
Detach plastic wiring harness support (B).
* Remove outer control arm ball joint nut (C). Press ball joint
out of rear wheel bearing carrier.
Installation is reverse of removal, noting the following:
Always use new self-locking nuts.
Malte sure all threaded bolts, nuts and mating surfaces are
clean.
Inner control arm mounting bolt must thread to rear (bolt
head at front).
Tighten fasteners to final torque only afler vehicle has
been lowered and suspension has settled.
Have car professionally aligned when job is complete.
Tightening
torques
Control arm to subframe (M12) 110 Nm (81 ft-ib)
Control arm
ball joint to wheel bearing 142 Nm (105 ft-lb)
carrier
(M14)
Quick coupling screw to air shock absorber
2 Nm (18 in-lb)
Road wheel
to hub 120-flONm
(89 i7 ft-lb)
Upper rear control arm, removing and
installing (Sport Wagon models)
CAUTIOG
Disable air supply pump by disconnecting electrical plug be-
fore
perlorming any repairs. Pump is located beneath a cover
under the spare tire in the floor of the
carqo compartment.
- Raise rear end of car and remove wheel.
WARNING -
Make sure the car is firmly supported on jaclc stands de-
signed for the purpose.
Place jaclc stands underneath struc-
tural chassis points. Do not place jack stands under
suspension parts.
Models with rear coil springs: Remove cargo compartment
floor carpet.
Worlting at top of coil spring, press center cap down or pry
upward to remove. If pushed down, remove from inside coil
spring from under car.

Downloaded from www.Manualslib.com manuals search engine

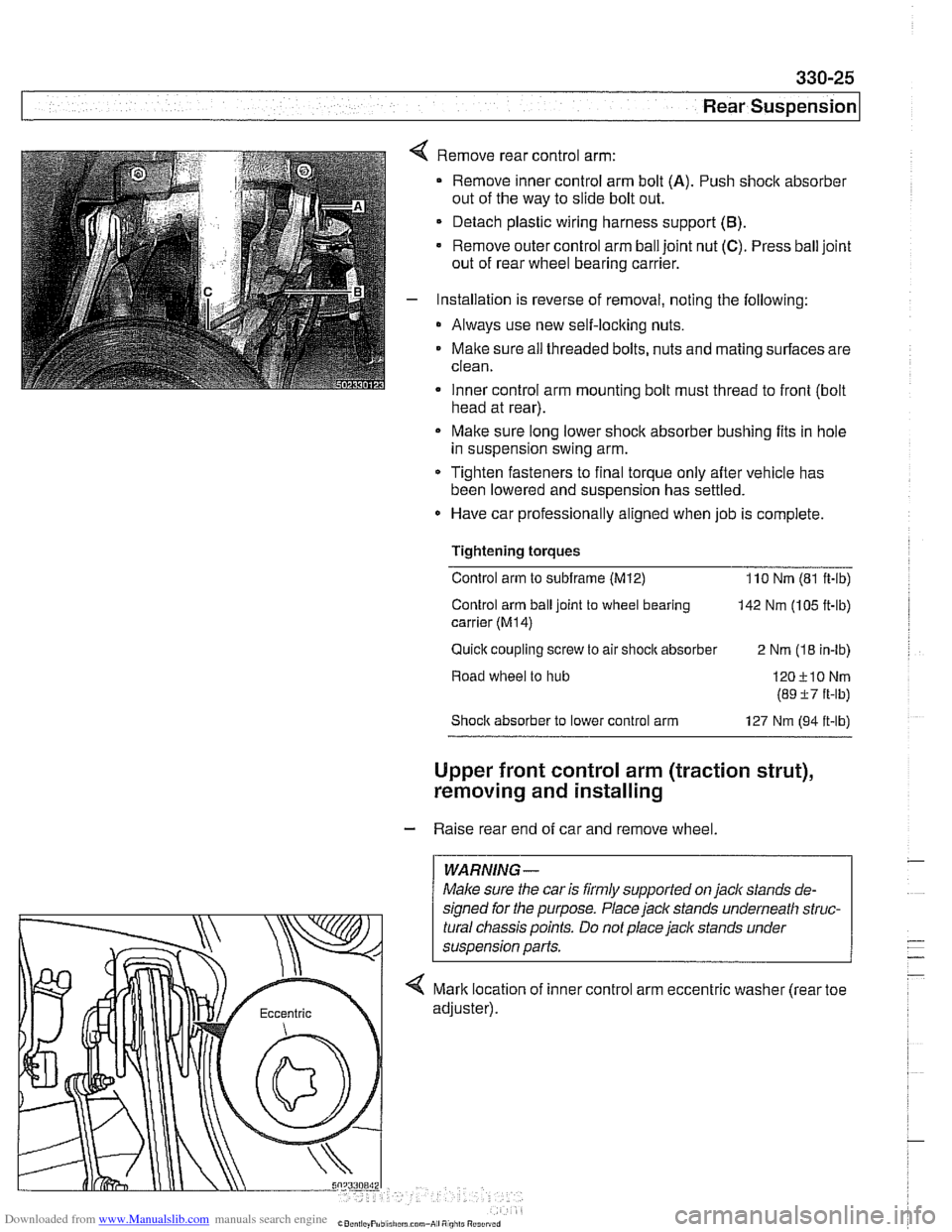

330-25
Rear Suspension
Remove rear control arm:
Remove inner control arm bolt
(A). Push shock absorber
out of the way to slide bolt out.
Detach plastic wiring harness support
(B).
Remove outer control arm ball joint nut (C). Press ball joint
out of rear wheel bearing carrier.
Installation is reverse of removal, noting the following:
* Always use new self-locking nuts.
Maite sure
ail threaded bolts, nuts and mating surfaces are
clean.
Inner control arm mounting bolt must thread to front
(bolt . head at rear).
Make sure long lower shock absorber bushing fits in hole
in suspension swing arm.
* Tighten fasteners to final torque only after vehicle has
been lowered and suspension has settled.
Have car professionally aligned when job is complete.
Tightening torques Control arm to
subframe (M12) 110 Nm (81 ft-ib)
Control arm ball joint to wheel bearing
142 Nm (105 ft-lb)
carrier
(M14)
Quick coupling screw to air shocit absorber
2 Nm (18 in-lb)
Road wheel to hub
Shoclc absorber to lower control arm 127 Nm (94 it-lb)
Upper front control arm (traction strut),
removing and installing
- Raise rear end of car and remove wheel.
WARNING-
Maice sure the car is firmly supported on jack stands de-
signed for the purpose. Place
jack stands underneath struc-
tural chassis points. Do not place jack stands under
< Mark location of inner control arm eccentric washer (rear toe

Downloaded from www.Manualslib.com manuals search engine
330-26
/ Rear Suspension
Remove inner control arm eccentric nut and bolt (A)
Remove control arm ball joint nut (6). Press ball joint out
of wheel bearing carrier.
Lifl out control arm.
Installation is reverse of removal, noting the following:
Use previously made
marks to install eccentric bolt and
nut.
Always use new self-locking nuts.
Tighten fasteners to final torque only after vehicle has
been lowered and suspension has settled.
0 Have car professionally aligned when job is complete.
Tightening
torques
Road wheel to hub 120klONm
(89 i7 ft-lb)
Upper front control arm (traction strut) to 60
Nm (44
ft-lb)
subframe (rear toe adjusting bolt)
Upper front control arm (traction strut) to wheel
65 Nm (48 ft-lb)
carrier
Rear axle assembly, removing and
installing (sedan models)
In case of damage to the subframe, or if a pressed-in bushing
is worn, remove
subframe by removing complete axle assem-
bly.
- Raise car and remove rear wheels.
WARNING-
Make sure the car is firmly supported on jack stands de-
signed for the purpose. Place jack stands underneath struc-
tural chassis points. Do not place
jack stands under
suspension parts.
- Remove exhaust system. See 180 Exhaust System
- Detach driveshaft from differential. See 260 Driveshaft.
- Remove brake caliper and brake disc. Hang brake caliper
aside with stiff wire. Do not disconnect brake fluid hose. See
340 Brakes.
- Remove lefl and right ABS sensors from wheel bearing car-
riers.
- Disconnect parking brake cable from brake shoe expander.
See 340 Brakes.
- Remove heat shield from above driveshaft.

Downloaded from www.Manualslib.com manuals search engine
330-35
Rear Suspension
- Remainder of installation is reverse of removal, noting the fol-
lowing.
Always use new self-loclting nuts.
Make sure all threaded bolts, nuts and mating suriaces are
clean.
Make sure long lower strut bushing fits in hole in wheel
bearing carrier.
Tighten fasteners to final torque only after vehicle has
been lowered and suspension has settled.
Stake axle collar nut after tightening.
Tightening torques
ABS pulse sensor to wheel bearing carrier
8 Nm (6 ft-lb)
Brake rotor to hub 16 Nm (12 ft-lb)
Rear brake pad carrier (caliper) to wheel 65
Nm (48
ft-lb)
bearing carrier
Rear axle shaft to hub
(M27) 300 Nm (221 ft-lb)
Rear strut to wheel bearing carrier 127
Nrn (94 ft-lb)
Road wheel to hub
120+10 Nm
(89
i7 ft-lb)
Swing arm to wheel bearing carrier 256
Nrn (189 ft-lb)
Upper front control arm (traction strut) to 65 Nrn
(48
ft-lb)
wheel carrier
Upper rear control arm to wheel carrier 142
Nrn (105
ft-lb)
Rear wheel bearing carrier, removing and
installing (Sport Wagon models)
- Raise rear end of car and remove wheel.
WARNING-
Make sure the car is firmly supported on jack stands de-
signed for the purpose. Place jack stands underneath struc-
tural chassis points. Do not place jack stands under
suspension parts.
Models
with air springs: Disable air supply pump by discon-
necting electricalplug
beforepedormingany repairs. Pump is
located beneath a cover under the spare tire in the floor of the
cargo compartment.
-- 4 Models with air springs: Loosen compressed air pipes (ar-
rows) at air distribution assembly to release system pres-

Downloaded from www.Manualslib.com manuals search engine
330-39
I Rear suspension1
- Remainder of installation is reverse of removal, noting the fol-
lowing.
Models with coil springs: Fit spring correctly in lower spring
seat.
* Models with air suspension: Fit eccentric lug at bottom of
air spring in recess of wheel carrier spring seat.
Always use new self-locking nuts.
- Make sure all threaded bolts, nuts and mating surfaces are
clean.
a Tighten fasteners to final torque only after vehicle has
been lowered and suspension has settled.
Stake axle collar nut afler tightening.
Tightening torques
ABS pulse sensor to wheel bearing 8 Nm (6
ft-lb)
carrier
Air spring to wheel bearing carrier 20 Nm (15 ft-lb)
Brake rotor to hub 16 Nm (12
it-lb)
Rear axle shaft to hub (M27) 300 Nm (221 ft-lb)
Rear brake pad carrier (caliper) to wheel 65 Nm (48 ft-lb)
bearing carrier
Road wheel to hub
120ilONm
(89 k7 ft-lb)
Swing arm to wheel bearing carrier 256 Nm (189 it-lb)
Upperfrontcontrol arm (traction strut) to 65 Nm (48 ft-lb)
wheel carrier
Upper rear control arm to wheel carrier 142 Nm (105 ft-lb)
Rear wheel bearing, replacing
< The rear wheel bearing is integrated with its mounting flange.
1. Torx bolt
2. Wheel bearing and mounting flange
3. Wheel hub
4. Collar nut
- Raise rear end of car and remove wheel.
WARNING -
Make sure the car is firmly supported on jaclc stands de-
signed for the purpose. Place jack stands underneath struc-
tural chassis points. Do not place jack stands under
suspension parts.

Downloaded from www.Manualslib.com manuals search engine
330-42
/Rear Suspension
- Install ABS sensor and road wheel.
- Lower car to ground. With an assistant applying brakes, use
new axle collar nut to tighten to final torque. Stake nut.
- Remainder of installation is reverse of removal
Tightening torques ABS pulse sensor to wheel bearing carrier
8 Nm (6 ft-lb)
Brake disc to hub
16 Nm
Rear
brake pad carrier (caliper) to wheel
65 Nm (48 ft-lb)
bearing carrier
Rear axle shaft to hub
(M27) 300 Nrn (221 ft-lb)
Road wheel to hub 120F10 Nm
(89 ?7 ft-lb)
The rearstabilizer bar is mounted to the rear
subframe and at-
tached via stabilizer bar
linlts to the lower swing arms.
Stabilizer bar, removing and installing
- Raise rear end of car.
WARNING -
Make sure the car is firmly supported on jack stands de-
signed for the purpose. Place jack stands underneath struc-
tural chassis points.
Do not place jack stands under
suspension parts.
- Paint mark stabilizer bar on left side for ease of assembly.
Remove stabilizer link fastener
(A) on each side. Press out
stabilizer link ball joints.
Remove stabilizer support bracket fastener
(B) on each
side.
Remove stabilizer bar.
Installation is reverse of removal. Use previously made paint
mark for reassembly.
Tightening torques Stabilizer link to stabilizer bar
42 Nm (32 ft-lb)
Stabilizer bar bracket to sublrame (ME) 22 Nm (1 6 fi-lb)

Downloaded from www.Manualslib.com manuals search engine
Final Drive
Drive axles use constant-velocity (CV) joints on both ends.
For replacement parts, only CV joint boots or complete axles
are offered by BMW. The procedure for drive axle removal
varies for sedan and sport wagon. Follow the appropriate pro-
cedure below.
Drive axle assembly
1. lnner CV joint
2. Drive axle
3. Outer CV joint
4. Collar nut
5. Outer CV boot kit
6. lnner CV boot kit
7. Circlip
8. Dust cover
9. Reinforcement
10. Torx bolt
Drive axle, removing and installing (sedan)
4 With an assistant applying brakes, break free staked collar
nut (arrow) at center of rear wheel hub. Do not remove com-
pletely.
NOTE-
The drive flange collar nut is tightened to a torque of over 300
Nm (221 ft-lb). Male sure the car is firmly on the ground.
- Raise rear of car. Remove rear wheel
WARNING -
Make sure that the car is firmly supported on jack stands de-
signed for the purpose. Place the
jack stands beneath struc-
tural chassis points. Do not place jack stands under
suspension parts.
- Remove f~nal drrve. See Final drive, removing and install-
ing.

Downloaded from www.Manualslib.com manuals search engine
Final ~rivel
4 Remove staked collar nut and press output shafl out of wheel
hub with special
BMW tool 33 2 111/116/117.
- Remove drive axle.
- Installation is reverse of removal, noting the following:
Use a new collar nut.
a Apply a light coating of oil to contact face of collar nut and
install it loosely.
* Install road wheel and lower car to ground.
- With an assistant applying brakes, tighten drive axle collar
nut to its final torque.
Stake collar nut.
Tightening torques
-
Drive axle collar nut to drive flange M27 300 Nrn (221 ft-lb)
Drive axle to differential flange
* M10x20 rnm black Torx bolt
83 Nrn (61 ft-lb)
M10x20 rnrn silver Torx bolt
100 Nrn (74 ft-lb)
Road wheel to hub 120 Nrn f 10 (89 ft-lbf7)
Drive axle, removing and installing
(Sport Wagon)
4 With an assistant applying brakes, brealc free staked collar
nut (arrow) at center of rear wheel hub. Do not remove com-
pletely.
NOJE-
The drive flange collar nut is tightened to a torque of over 300
Nm (221 ft-lb). Make sure the car is firmly on the ground.
WARNING -
Disable airsupply pump (if applicable) by disconnecting elec-
tricalplug before performing any repairs. Pump is located be-
neath a cover under the spare tire
in the floor of the cargo
compartment.
- Raise rear of car. Remove rear wheel.
WARNING -
Malce sure that the car is firmly supported on jack stands de-
signed for the purpose. Place the jack stands beneath struc-
tural chassis points. Do not place jack stands under
suspension parts.
- Models with rear coil springs: Remove cargo compartment
floor carpet.
