adding oil BMW 6 SERIES CONVERTIBLE 2014 F12 Owner's Manual

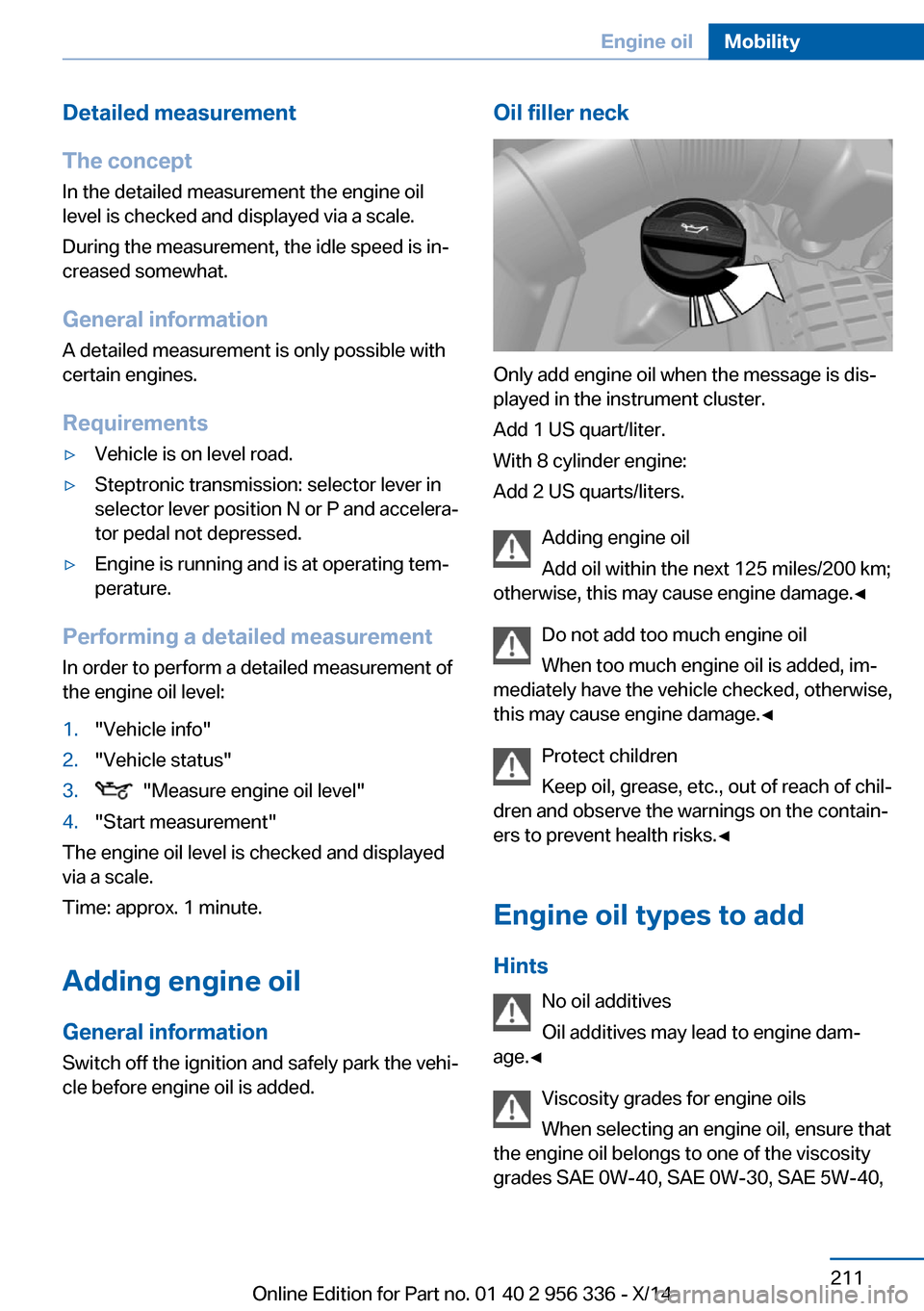

Detailed measurement
The concept In the detailed measurement the engine oil
level is checked and displayed via a scale.
During the measurement, the idle speed is in‐
creased somewhat.
General information
A detailed measurement is only possible with
certain engines.
Requirements▷Vehicle is on level road.▷Steptronic transmission: selector lever in
selector lever position N or P and accelera‐
tor pedal not depressed.▷Engine is running and is at operating tem‐
perature.
Performing a detailed measurement
In order to perform a detailed measurement of
the engine oil level:
1."Vehicle info"2."Vehicle status"3. "Measure engine oil level"4."Start measurement"
The engine oil level is checked and displayed
via a scale.
Time: approx. 1 minute.
Adding engine oil General information
Switch off the ignition and safely park the vehi‐
cle before engine oil is added.
Oil filler neck
Only add engine oil when the message is dis‐
played in the instrument cluster.
Add 1 US quart/liter.
With 8 cylinder engine:
Add 2 US quarts/liters.
Adding engine oil
Add oil within the next 125 miles/200 km;
otherwise, this may cause engine damage.◀
Do not add too much engine oil
When too much engine oil is added, im‐
mediately have the vehicle checked, otherwise,
this may cause engine damage.◀
Protect children
Keep oil, grease, etc., out of reach of chil‐
dren and observe the warnings on the contain‐
ers to prevent health risks.◀
Engine oil types to add Hints No oil additives
Oil additives may lead to engine dam‐
age.◀
Viscosity grades for engine oils
When selecting an engine oil, ensure that
the engine oil belongs to one of the viscosity
grades SAE 0W-40, SAE 0W-30, SAE 5W-40,
Seite 211Engine oilMobility211
Online Edition for Part no. 01 40 2 956 336 - X/14

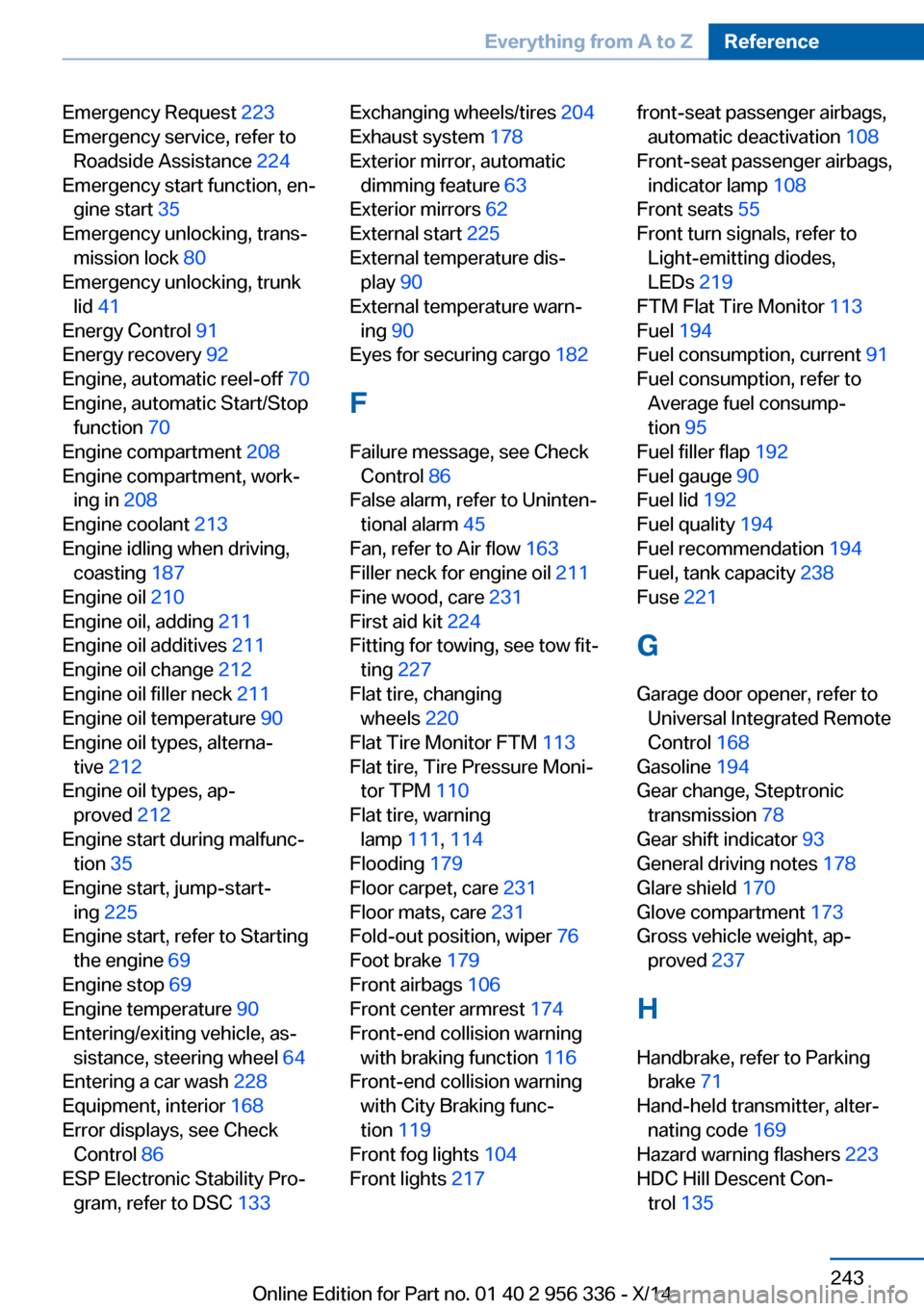

Emergency Request 223
Emergency service, refer to Roadside Assistance 224
Emergency start function, en‐ gine start 35
Emergency unlocking, trans‐ mission lock 80
Emergency unlocking, trunk lid 41
Energy Control 91
Energy recovery 92
Engine, automatic reel-off 70
Engine, automatic Start/Stop function 70
Engine compartment 208
Engine compartment, work‐ ing in 208
Engine coolant 213
Engine idling when driving, coasting 187
Engine oil 210
Engine oil, adding 211
Engine oil additives 211
Engine oil change 212
Engine oil filler neck 211
Engine oil temperature 90
Engine oil types, alterna‐ tive 212
Engine oil types, ap‐ proved 212
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 225
Engine start, refer to Starting the engine 69
Engine stop 69
Engine temperature 90
Entering/exiting vehicle, as‐ sistance, steering wheel 64
Entering a car wash 228
Equipment, interior 168
Error displays, see Check Control 86
ESP Electronic Stability Pro‐ gram, refer to DSC 133 Exchanging wheels/tires 204
Exhaust system 178
Exterior mirror, automatic dimming feature 63
Exterior mirrors 62
External start 225
External temperature dis‐ play 90
External temperature warn‐ ing 90
Eyes for securing cargo 182
F
Failure message, see Check Control 86
False alarm, refer to Uninten‐ tional alarm 45
Fan, refer to Air flow 163
Filler neck for engine oil 211
Fine wood, care 231
First aid kit 224
Fitting for towing, see tow fit‐ ting 227
Flat tire, changing wheels 220
Flat Tire Monitor FTM 113
Flat tire, Tire Pressure Moni‐ tor TPM 110
Flat tire, warning lamp 111, 114
Flooding 179
Floor carpet, care 231
Floor mats, care 231
Fold-out position, wiper 76
Foot brake 179
Front airbags 106
Front center armrest 174
Front-end collision warning with braking function 116
Front-end collision warning with City Braking func‐
tion 119
Front fog lights 104
Front lights 217 front-seat passenger airbags,
automatic deactivation 108
Front-seat passenger airbags, indicator lamp 108
Front seats 55
Front turn signals, refer to Light-emitting diodes,
LEDs 219
FTM Flat Tire Monitor 113
Fuel 194
Fuel consumption, current 91
Fuel consumption, refer to Average fuel consump‐
tion 95
Fuel filler flap 192
Fuel gauge 90
Fuel lid 192
Fuel quality 194
Fuel recommendation 194
Fuel, tank capacity 238
Fuse 221
G
Garage door opener, refer to Universal Integrated Remote
Control 168
Gasoline 194
Gear change, Steptronic transmission 78
Gear shift indicator 93
General driving notes 178
Glare shield 170
Glove compartment 173
Gross vehicle weight, ap‐ proved 237
H
Handbrake, refer to Parking brake 71
Hand-held transmitter, alter‐ nating code 169
Hazard warning flashers 223
HDC Hill Descent Con‐ trol 135 Seite 243Everything from A to ZReference243
Online Edition for Part no. 01 40 2 956 336 - X/14

Length, vehicle 236
Letters and numbers, enter‐ ing 24
License plate lamp, bulb re‐ placement 219
Light alloy wheels, care 231
Light control 102
Light-emitting diodes, LEDs 218
Lighting 101
Lighting, speaker 105
Lighting via remote con‐ trol 38
Light reel 101
Lights 101
Lights and bulbs 217
Load 182
Loading 181
Lock, door 39
Locking/unlocking via door lock 39
Locking/unlocking with re‐ mote control 37
Locking, automatic 43
Locking, settings 43
Locking via trunk lid 41
Low beams 101
Low beams, automatic, refer to High-beam Assistant 103
Lower back support 56
Lumbar support 56
M
Maintenance 215
Maintenance require‐ ments 215
Maintenance, service require‐ ments 92
Maintenance system, BMW 215
Make-up mirror 170
Malfunction displays, see Check Control 86
Manual air distribution 162
Manual air flow 163 Manual brake, refer to Parking
brake 71
Manual mode, Steptronic transmission 78
Manual operation, door lock 39
Manual operation, exterior mirrors 62
Manual operation, fuel filler flap 192
Manual operation, Park Dis‐ tance Control PDC 151
Manual operation, rearview camera 153
Manual operation, Side View 155
Manual operation, Top View 157
Marking on approved tires 205
Marking, run-flat tires 206
Massage seat, front 57
Master key, refer to Remote control 34
Maximum cooling 163
Maximum speed, display 93
Maximum speed, winter tires 205
Measure, units of 98
Medical kit 224
Memory for seat, mirrors, steering wheel 61
Menu, EfficientDynamics 186
Menu in instrument clus‐ ter 94
Menus, operating, iDrive 18
Menus, refer to iDrive operat‐ ing concept 19
Messages, see Check Con‐ trol 86
Microfilter 164
Minimum tread, tires 204
Mirror 62
Mirror memory 61
Mobile communication devi‐ ces in the vehicle 179 Modifications, technical, refer
to Safety 7
Moisture in headlight 218
Monitor, refer to Control Dis‐ play 18
Mounting of child restraint systems 65
Multifunctional instrument display 83
Multifunction steering wheel, buttons 14
N
Navigation, see user's manual for Navigation, Entertain‐
ment and Communication
Neck restraints, front, refer to Head restraints 59
Neutral cleaner, see wheel cleaner 231
New wheels and tires 204
Night Vision 124
Night Vision device, see Night Vision 124
Nylon rope for tow-starting/ towing 226
O OBD Onboard Diagnosis 215
OBD, see OBD Onboard Di‐ agnosis 215
Object detection, see Night Vision 124
Obstacle marking, rearview camera 154
Octane rating, refer to Rec‐ ommended fuel grade 194
Odometer 90
Office, see user's manual for Navigation, Entertainment
and Communication
Oil 210
Oil, adding 211
Oil additives 211 Seite 245Everything from A to ZReference245
Online Edition for Part no. 01 40 2 956 336 - X/14
