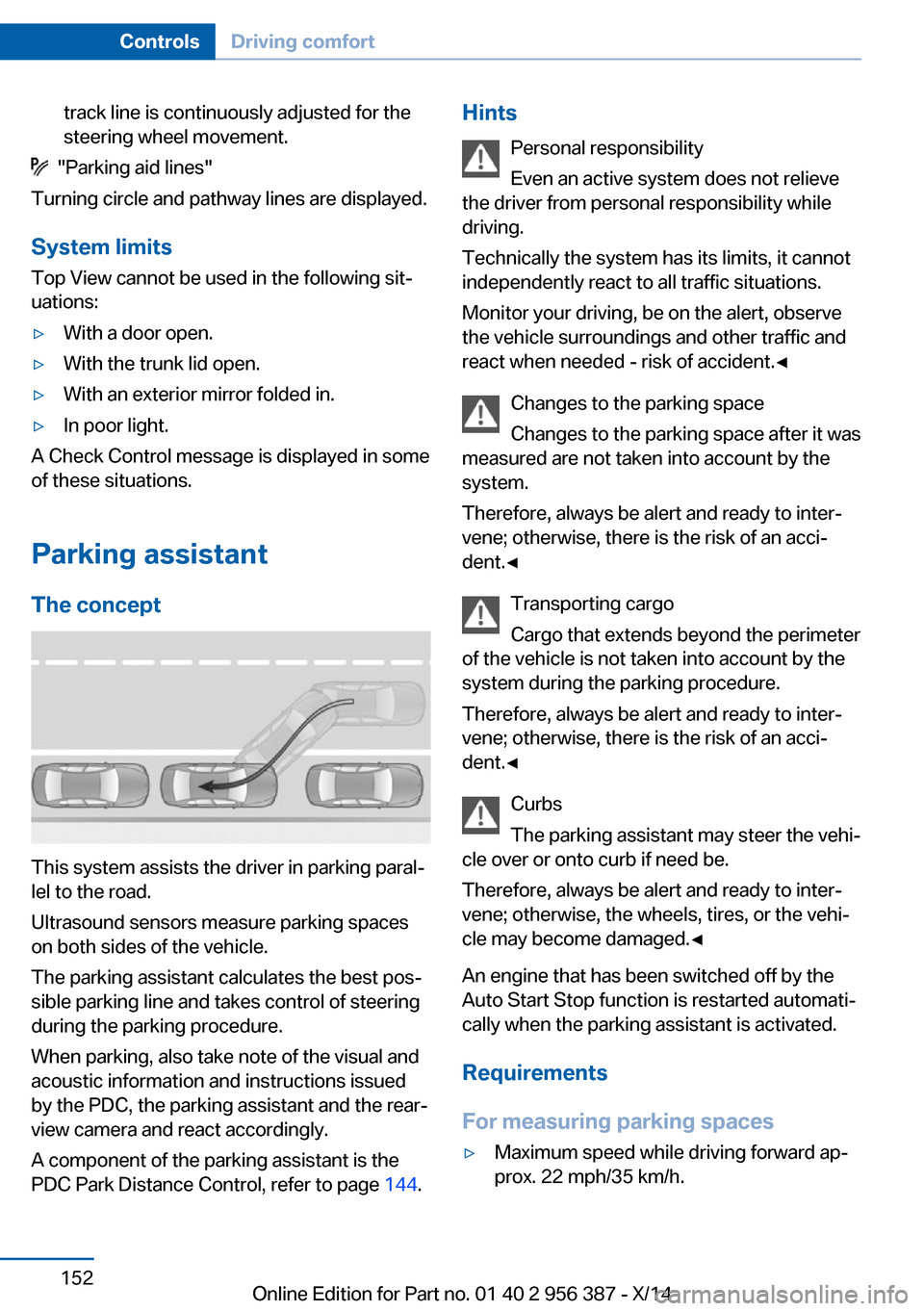

track line is continuously adjusted for the
steering wheel movement.
"Parking aid lines"
Turning circle and pathway lines are displayed.
System limits
Top View cannot be used in the following sit‐
uations:
▷With a door open.▷With the trunk lid open.▷With an exterior mirror folded in.▷In poor light.
A Check Control message is displayed in some
of these situations.
Parking assistant The concept
This system assists the driver in parking paral‐
lel to the road.
Ultrasound sensors measure parking spaces
on both sides of the vehicle.
The parking assistant calculates the best pos‐
sible parking line and takes control of steering
during the parking procedure.
When parking, also take note of the visual and
acoustic information and instructions issued
by the PDC, the parking assistant and the rear‐
view camera and react accordingly.
A component of the parking assistant is the
PDC Park Distance Control, refer to page 144.
Hints
Personal responsibility
Even an active system does not relieve
the driver from personal responsibility while
driving.
Technically the system has its limits, it cannot
independently react to all traffic situations.
Monitor your driving, be on the alert, observe
the vehicle surroundings and other traffic and
react when needed - risk of accident.◀
Changes to the parking space
Changes to the parking space after it was
measured are not taken into account by the system.
Therefore, always be alert and ready to inter‐
vene; otherwise, there is the risk of an acci‐
dent.◀
Transporting cargo
Cargo that extends beyond the perimeter
of the vehicle is not taken into account by the
system during the parking procedure.
Therefore, always be alert and ready to inter‐
vene; otherwise, there is the risk of an acci‐
dent.◀
Curbs
The parking assistant may steer the vehi‐
cle over or onto curb if need be.
Therefore, always be alert and ready to inter‐
vene; otherwise, the wheels, tires, or the vehi‐
cle may become damaged.◀
An engine that has been switched off by the
Auto Start Stop function is restarted automati‐
cally when the parking assistant is activated.
Requirements
For measuring parking spaces▷Maximum speed while driving forward ap‐
prox. 22 mph/35 km/h.Seite 152ControlsDriving comfort152
Online Edition for Part no. 01 40 2 956 387 - X/14

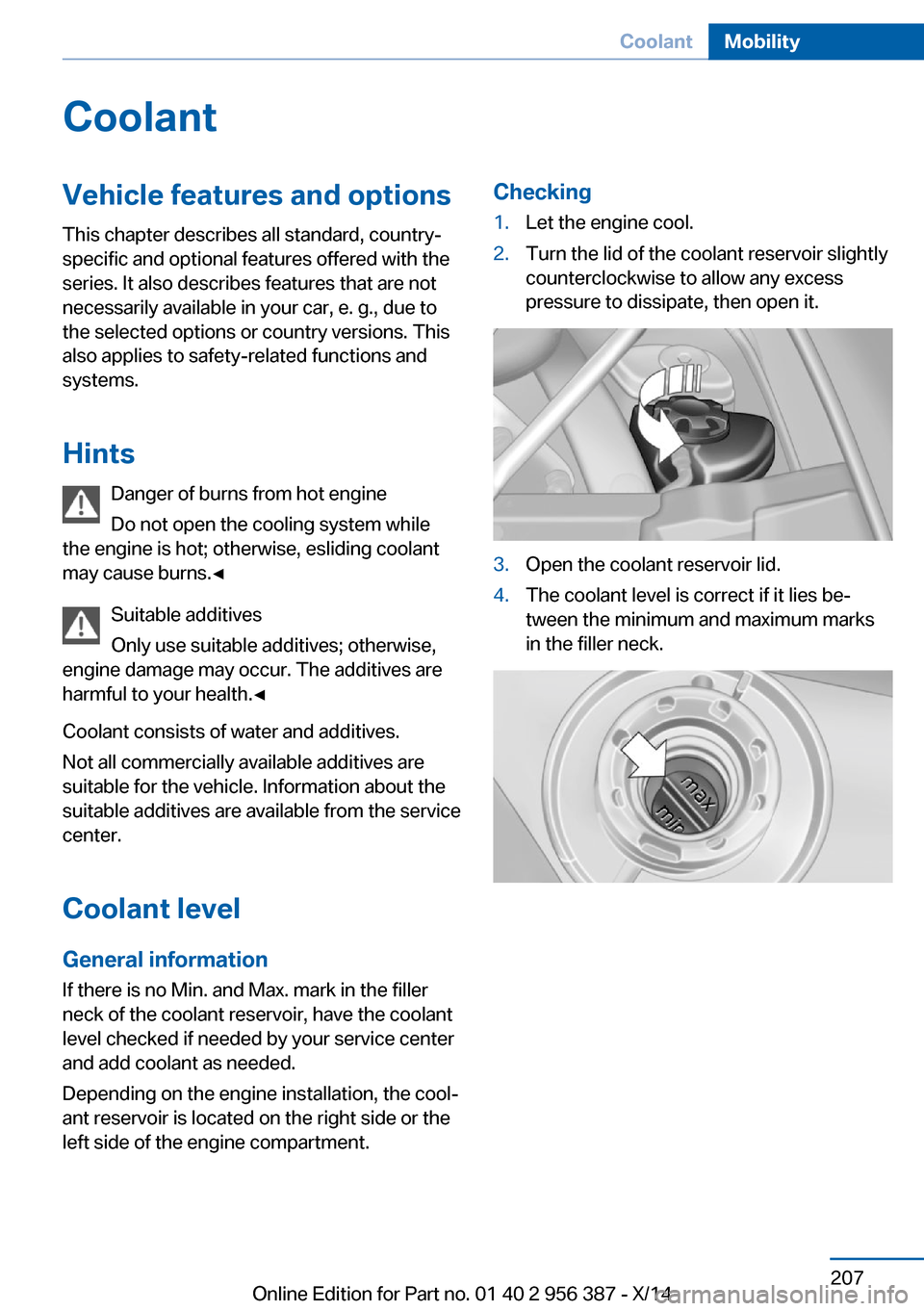

CoolantVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
Hints Danger of burns from hot engine
Do not open the cooling system while
the engine is hot; otherwise, esliding coolant
may cause burns.◀
Suitable additives
Only use suitable additives; otherwise,
engine damage may occur. The additives are
harmful to your health.◀
Coolant consists of water and additives.
Not all commercially available additives are
suitable for the vehicle. Information about the
suitable additives are available from the service
center.
Coolant level
General information If there is no Min. and Max. mark in the filler
neck of the coolant reservoir, have the coolant
level checked if needed by your service center
and add coolant as needed.
Depending on the engine installation, the cool‐
ant reservoir is located on the right side or the
left side of the engine compartment.Checking1.Let the engine cool.2.Turn the lid of the coolant reservoir slightly
counterclockwise to allow any excess
pressure to dissipate, then open it.3.Open the coolant reservoir lid.4.The coolant level is correct if it lies be‐
tween the minimum and maximum marks
in the filler neck.Seite 207CoolantMobility207
Online Edition for Part no. 01 40 2 956 387 - X/14

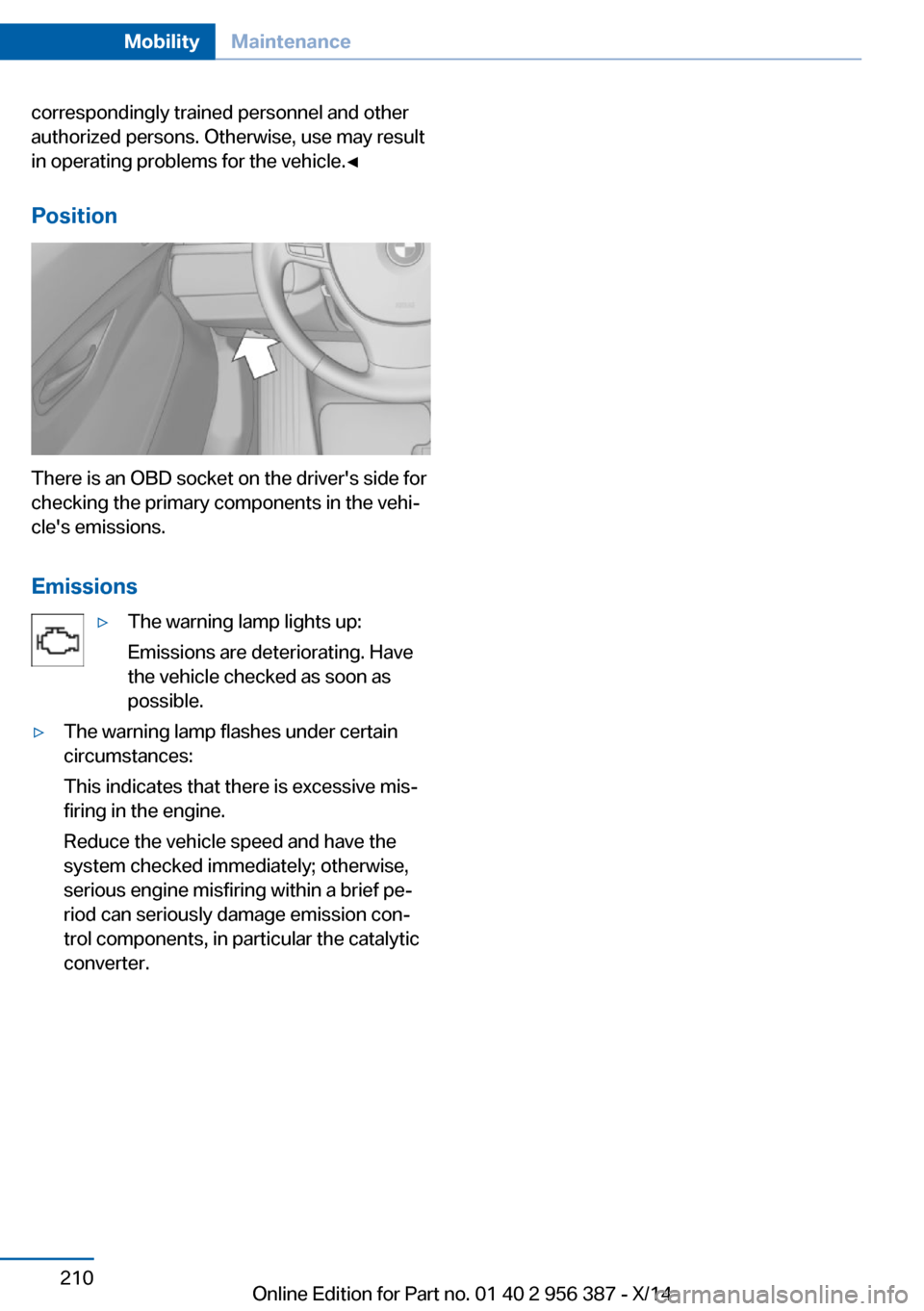

correspondingly trained personnel and other
authorized persons. Otherwise, use may result
in operating problems for the vehicle.◀
Position
There is an OBD socket on the driver's side for
checking the primary components in the vehi‐
cle's emissions.
Emissions
▷The warning lamp lights up:
Emissions are deteriorating. Have
the vehicle checked as soon as
possible.▷The warning lamp flashes under certain
circumstances:
This indicates that there is excessive mis‐
firing in the engine.
Reduce the vehicle speed and have the
system checked immediately; otherwise,
serious engine misfiring within a brief pe‐
riod can seriously damage emission con‐
trol components, in particular the catalytic
converter.Seite 210MobilityMaintenance210
Online Edition for Part no. 01 40 2 956 387 - X/14

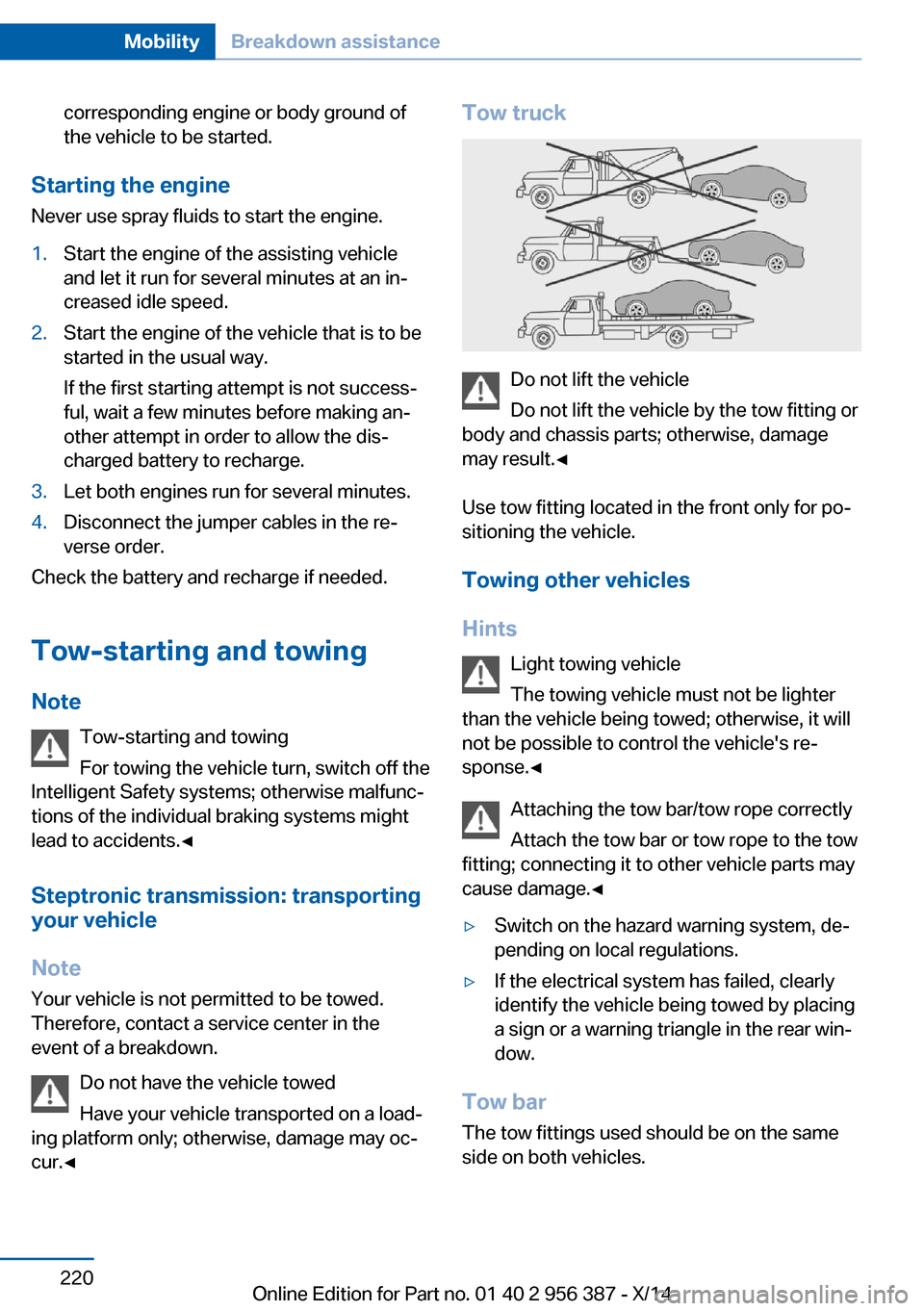

corresponding engine or body ground of
the vehicle to be started.
Starting the engine
Never use spray fluids to start the engine.
1.Start the engine of the assisting vehicle
and let it run for several minutes at an in‐
creased idle speed.2.Start the engine of the vehicle that is to be
started in the usual way.
If the first starting attempt is not success‐
ful, wait a few minutes before making an‐
other attempt in order to allow the dis‐
charged battery to recharge.3.Let both engines run for several minutes.4.Disconnect the jumper cables in the re‐
verse order.
Check the battery and recharge if needed.
Tow-starting and towing Note Tow-starting and towing
For towing the vehicle turn, switch off the
Intelligent Safety systems; otherwise malfunc‐
tions of the individual braking systems might
lead to accidents.◀
Steptronic transmission: transporting
your vehicle
Note Your vehicle is not permitted to be towed.
Therefore, contact a service center in the
event of a breakdown.
Do not have the vehicle towedHave your vehicle transported on a load‐
ing platform only; otherwise, damage may oc‐
cur.◀
Tow truck
Do not lift the vehicle
Do not lift the vehicle by the tow fitting or
body and chassis parts; otherwise, damage
may result.◀
Use tow fitting located in the front only for po‐
sitioning the vehicle.
Towing other vehicles
Hints Light towing vehicle
The towing vehicle must not be lighter
than the vehicle being towed; otherwise, it will
not be possible to control the vehicle's re‐
sponse.◀
Attaching the tow bar/tow rope correctly
Attach the tow bar or tow rope to the tow
fitting; connecting it to other vehicle parts may
cause damage.◀
▷Switch on the hazard warning system, de‐
pending on local regulations.▷If the electrical system has failed, clearly
identify the vehicle being towed by placing
a sign or a warning triangle in the rear win‐
dow.
Tow bar
The tow fittings used should be on the same
side on both vehicles.
Seite 220MobilityBreakdown assistance220
Online Edition for Part no. 01 40 2 956 387 - X/14

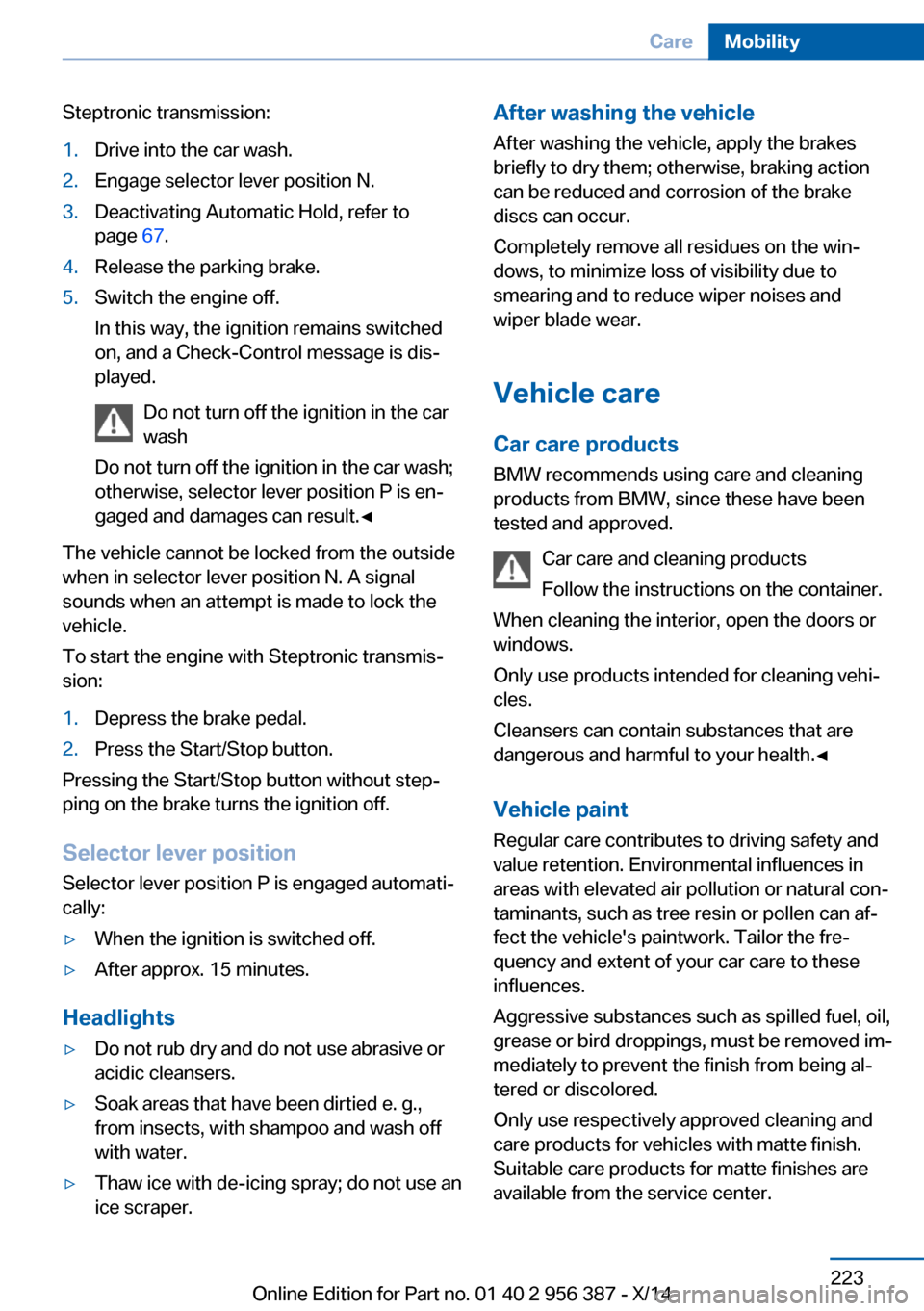

Steptronic transmission:1.Drive into the car wash.2.Engage selector lever position N.3.Deactivating Automatic Hold, refer to
page 67.4.Release the parking brake.5.Switch the engine off.
In this way, the ignition remains switched
on, and a Check-Control message is dis‐
played.
Do not turn off the ignition in the car
wash
Do not turn off the ignition in the car wash;
otherwise, selector lever position P is en‐
gaged and damages can result.◀
The vehicle cannot be locked from the outside
when in selector lever position N. A signal
sounds when an attempt is made to lock the
vehicle.
To start the engine with Steptronic transmis‐
sion:
1.Depress the brake pedal.2.Press the Start/Stop button.
Pressing the Start/Stop button without step‐
ping on the brake turns the ignition off.
Selector lever positionSelector lever position P is engaged automati‐
cally:
▷When the ignition is switched off.▷After approx. 15 minutes.
Headlights
▷Do not rub dry and do not use abrasive or
acidic cleansers.▷Soak areas that have been dirtied e. g.,
from insects, with shampoo and wash off
with water.▷Thaw ice with de-icing spray; do not use an
ice scraper.After washing the vehicle
After washing the vehicle, apply the brakes
briefly to dry them; otherwise, braking action
can be reduced and corrosion of the brake
discs can occur.
Completely remove all residues on the win‐
dows, to minimize loss of visibility due to
smearing and to reduce wiper noises and
wiper blade wear.
Vehicle care
Car care products BMW recommends using care and cleaning
products from BMW, since these have been
tested and approved.
Car care and cleaning products
Follow the instructions on the container.
When cleaning the interior, open the doors or
windows.
Only use products intended for cleaning vehi‐
cles.
Cleansers can contain substances that are
dangerous and harmful to your health.◀
Vehicle paint
Regular care contributes to driving safety and
value retention. Environmental influences in
areas with elevated air pollution or natural con‐
taminants, such as tree resin or pollen can af‐
fect the vehicle's paintwork. Tailor the fre‐
quency and extent of your car care to these
influences.
Aggressive substances such as spilled fuel, oil,
grease or bird droppings, must be removed im‐
mediately to prevent the finish from being al‐
tered or discolored.
Only use respectively approved cleaning and
care products for vehicles with matte finish.
Suitable care products for matte finishes are
available from the service center.Seite 223CareMobility223
Online Edition for Part no. 01 40 2 956 387 - X/14

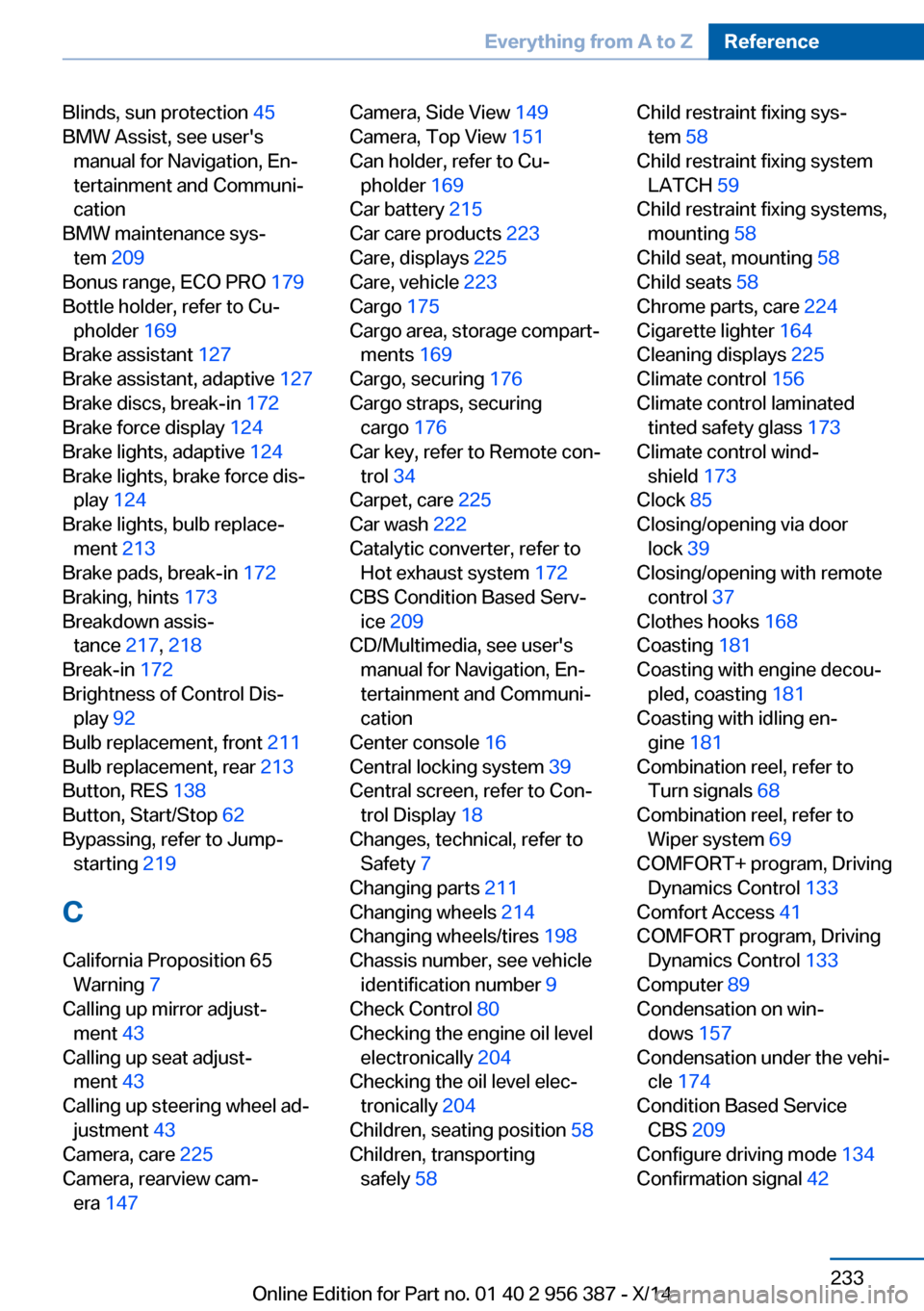

Blinds, sun protection 45
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
BMW maintenance sys‐ tem 209
Bonus range, ECO PRO 179
Bottle holder, refer to Cu‐ pholder 169
Brake assistant 127
Brake assistant, adaptive 127
Brake discs, break-in 172
Brake force display 124
Brake lights, adaptive 124
Brake lights, brake force dis‐ play 124
Brake lights, bulb replace‐ ment 213
Brake pads, break-in 172
Braking, hints 173
Breakdown assis‐ tance 217, 218
Break-in 172
Brightness of Control Dis‐ play 92
Bulb replacement, front 211
Bulb replacement, rear 213
Button, RES 138
Button, Start/Stop 62
Bypassing, refer to Jump- starting 219
C
California Proposition 65 Warning 7
Calling up mirror adjust‐ ment 43
Calling up seat adjust‐ ment 43
Calling up steering wheel ad‐ justment 43
Camera, care 225
Camera, rearview cam‐ era 147 Camera, Side View 149
Camera, Top View 151
Can holder, refer to Cu‐ pholder 169
Car battery 215
Car care products 223
Care, displays 225
Care, vehicle 223
Cargo 175
Cargo area, storage compart‐ ments 169
Cargo, securing 176
Cargo straps, securing cargo 176
Car key, refer to Remote con‐ trol 34
Carpet, care 225
Car wash 222
Catalytic converter, refer to Hot exhaust system 172
CBS Condition Based Serv‐ ice 209
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center console 16
Central locking system 39
Central screen, refer to Con‐ trol Display 18
Changes, technical, refer to Safety 7
Changing parts 211
Changing wheels 214
Changing wheels/tires 198
Chassis number, see vehicle identification number 9
Check Control 80
Checking the engine oil level electronically 204
Checking the oil level elec‐ tronically 204
Children, seating position 58
Children, transporting safely 58 Child restraint fixing sys‐
tem 58
Child restraint fixing system LATCH 59
Child restraint fixing systems, mounting 58
Child seat, mounting 58
Child seats 58
Chrome parts, care 224
Cigarette lighter 164
Cleaning displays 225
Climate control 156
Climate control laminated tinted safety glass 173
Climate control wind‐ shield 173
Clock 85
Closing/opening via door lock 39
Closing/opening with remote control 37
Clothes hooks 168
Coasting 181
Coasting with engine decou‐ pled, coasting 181
Coasting with idling en‐ gine 181
Combination reel, refer to Turn signals 68
Combination reel, refer to Wiper system 69
COMFORT+ program, Driving Dynamics Control 133
Comfort Access 41
COMFORT program, Driving Dynamics Control 133
Computer 89
Condensation on win‐ dows 157
Condensation under the vehi‐ cle 174
Condition Based Service CBS 209
Configure driving mode 134
Confirmation signal 42 Seite 233Everything from A to ZReference233
Online Edition for Part no. 01 40 2 956 387 - X/14

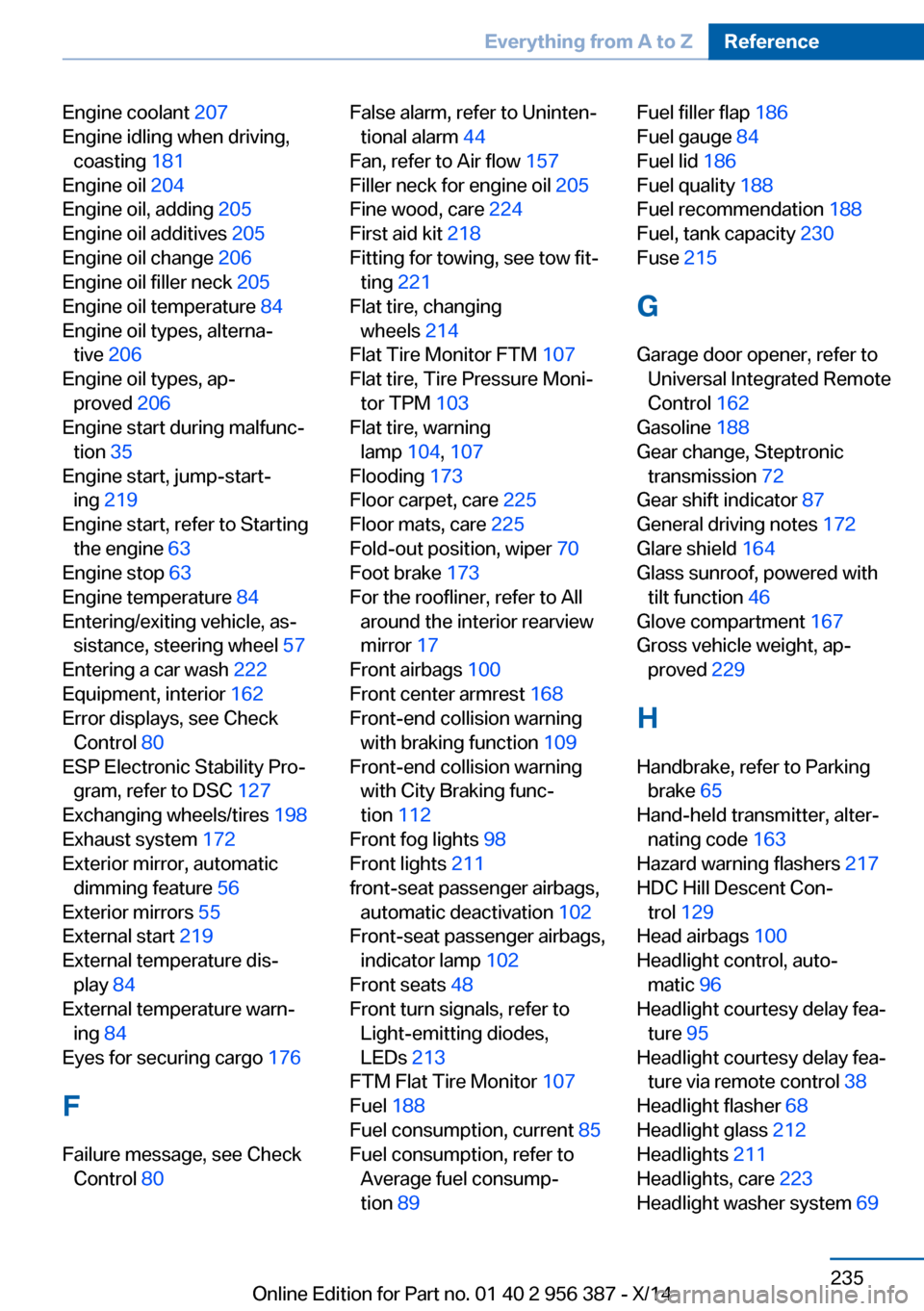

Engine coolant 207
Engine idling when driving, coasting 181
Engine oil 204
Engine oil, adding 205
Engine oil additives 205
Engine oil change 206
Engine oil filler neck 205
Engine oil temperature 84
Engine oil types, alterna‐ tive 206
Engine oil types, ap‐ proved 206
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 219
Engine start, refer to Starting the engine 63
Engine stop 63
Engine temperature 84
Entering/exiting vehicle, as‐ sistance, steering wheel 57
Entering a car wash 222
Equipment, interior 162
Error displays, see Check Control 80
ESP Electronic Stability Pro‐ gram, refer to DSC 127
Exchanging wheels/tires 198
Exhaust system 172
Exterior mirror, automatic dimming feature 56
Exterior mirrors 55
External start 219
External temperature dis‐ play 84
External temperature warn‐ ing 84
Eyes for securing cargo 176
F
Failure message, see Check Control 80 False alarm, refer to Uninten‐
tional alarm 44
Fan, refer to Air flow 157
Filler neck for engine oil 205
Fine wood, care 224
First aid kit 218
Fitting for towing, see tow fit‐ ting 221
Flat tire, changing wheels 214
Flat Tire Monitor FTM 107
Flat tire, Tire Pressure Moni‐ tor TPM 103
Flat tire, warning lamp 104, 107
Flooding 173
Floor carpet, care 225
Floor mats, care 225
Fold-out position, wiper 70
Foot brake 173
For the roofliner, refer to All around the interior rearview
mirror 17
Front airbags 100
Front center armrest 168
Front-end collision warning with braking function 109
Front-end collision warning with City Braking func‐
tion 112
Front fog lights 98
Front lights 211
front-seat passenger airbags, automatic deactivation 102
Front-seat passenger airbags, indicator lamp 102
Front seats 48
Front turn signals, refer to Light-emitting diodes,
LEDs 213
FTM Flat Tire Monitor 107
Fuel 188
Fuel consumption, current 85
Fuel consumption, refer to Average fuel consump‐
tion 89 Fuel filler flap 186
Fuel gauge 84
Fuel lid 186
Fuel quality 188
Fuel recommendation 188
Fuel, tank capacity 230
Fuse 215
G
Garage door opener, refer to Universal Integrated Remote
Control 162
Gasoline 188
Gear change, Steptronic transmission 72
Gear shift indicator 87
General driving notes 172
Glare shield 164
Glass sunroof, powered with tilt function 46
Glove compartment 167
Gross vehicle weight, ap‐ proved 229
H
Handbrake, refer to Parking brake 65
Hand-held transmitter, alter‐ nating code 163
Hazard warning flashers 217
HDC Hill Descent Con‐ trol 129
Head airbags 100
Headlight control, auto‐ matic 96
Headlight courtesy delay fea‐ ture 95
Headlight courtesy delay fea‐ ture via remote control 38
Headlight flasher 68
Headlight glass 212
Headlights 211
Headlights, care 223
Headlight washer system 69 Seite 235Everything from A to ZReference235
Online Edition for Part no. 01 40 2 956 387 - X/14

Tail and brake lights 213
Tail lights 213
Tail lights, bulb replace‐ ment 213
Technical changes, refer to Safety 7
Technical data 228
Telephone, see user's manual for Navigation, Entertain‐
ment and Communication
Temperature, automatic cli‐ mate control 156
Temperature display for ex‐ ternal temperature 84
Temperature, engine oil 84
Terminal, starting aid 219
Text message, supplemen‐ tary 83
Theft alarm system, refer to Alarm system 43
Thermal camera, see Night Vision 117
Thigh support 49
Tilt alarm sensor 44
Tilt glass roof 46
Tilt, seats 48
Time of arrival 90
Tire damage 198
Tire identification marks 196
Tire inflation pressure 190
Tire inflation pressure moni‐ tor, refer to FTM 107
Tire Pressure Monitor TPM 103
Tires, changing 198
Tires, everything on wheels and tires 190
Tires, run-flat tires 200
Tire tread 197
Tone, see user's manual for Navigation, Entertainment
and Communication
Tool 211
Top View 150
Total vehicle weight 229
Touchpad 21 Tow fitting 221
Towing 220
Tow lug, see tow fitting 221
Tow-starting 220
TPM Tire Pressure Moni‐ tor 103
Traction control 128
TRACTION, driving dynam‐ ics 128
TRACTION program, Dy‐ namic Driving Control 132
Transmission lock, electronic unlocking 74
Transmission, see Steptronic transmission 71
Transporting children safely 58
Tread, tires 197
Trip computer 90
Triple turn signal activa‐ tion 68
Trip odometer 84
Trunk lid closing 40
Trunk lid, emergency unlock‐ ing 40
Trunk lid, hotel function 40
Trunk lid opening 39
Trunk lid via remote con‐ trol 38
Turning circle 228
Turning circle lines, rearview camera 148
Turn signals, operation 68
Turn signals, rear, bulb re‐ placement 213
U
Unintentional alarm 44
Units of measure 92
Universal remote control 162
Unlock button, Steptronic transmission 72
Unlocking/locking via door lock 39 Unlocking/locking with re‐
mote control 37
Unlocking, settings 42
Updates made after the edito‐ rial deadline 6
Upholstery care 224
USB interface 167
V
Vanity mirror 164
Variable steering, Integral Ac‐ tive Steering 131
Vehicle battery 215
Vehicle battery, replac‐ ing 215
Vehicle, break-in 172
Vehicle care 223
Vehicle features and op‐ tions 6
Vehicle identification num‐ ber 9
Vehicle jack 214
Vehicle paint 223
Vehicle storage 225
Vehicle wash 222
Ventilation 159
Venting, see ventilation 159
Vent, see ventilation 159
VIN, see vehicle identification number 9
Voice activation system 26
W Warning and indicator lamps, see Check Control 80
Warning displays, see Check Control 80
Warning messages, see Check Control 80
Warning triangle 218
Washer fluid 70
Washer fluid reservoir, ca‐ pacity 230 Seite 240ReferenceEverything from A to Z240
Online Edition for Part no. 01 40 2 956 387 - X/14
