OBD port BMW 6 SERIES COUPE 2014 F13 Owner's Manual

MaintenanceVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.

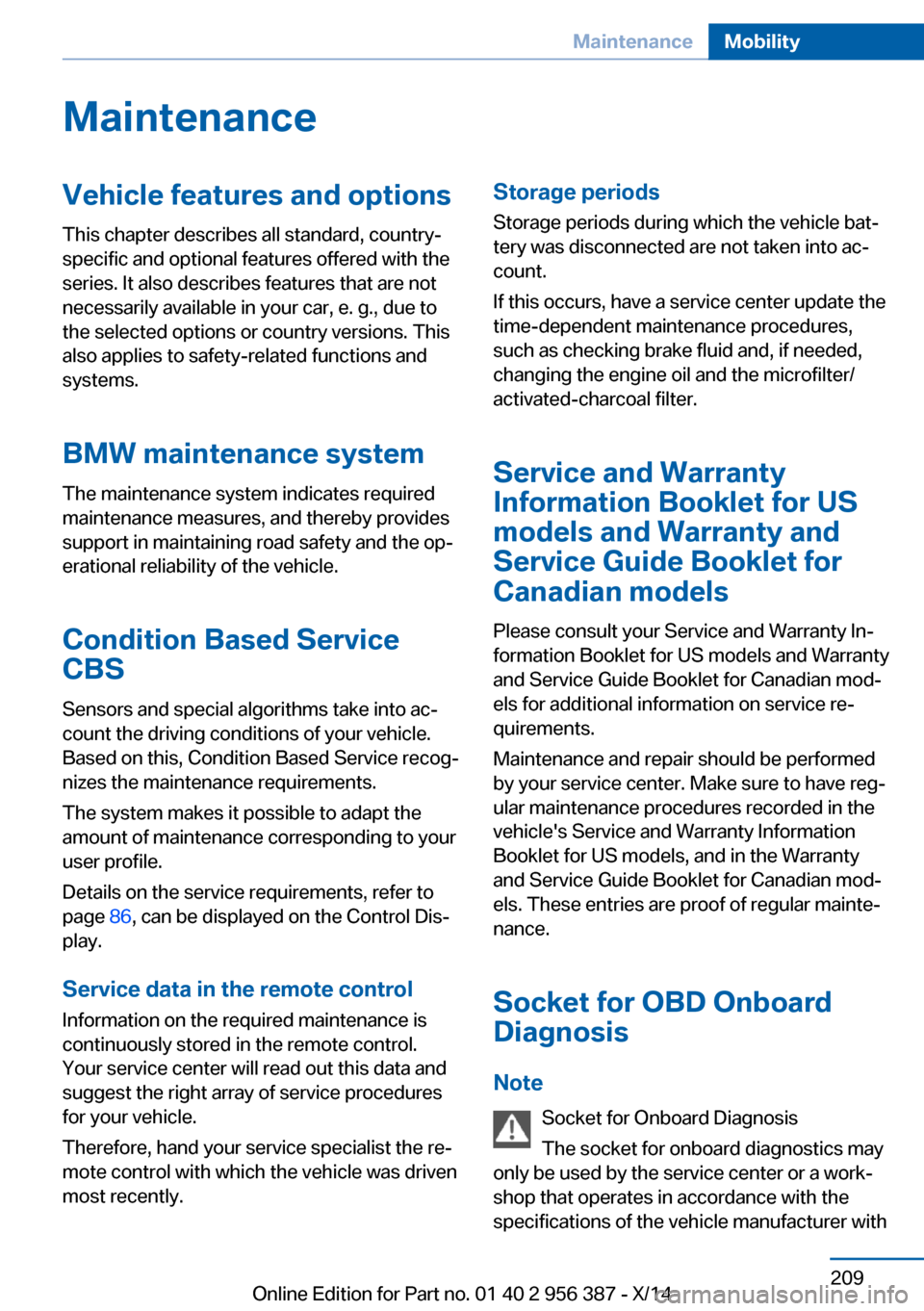

BMW maintenance system
The maintenance system indicates required
maintenance measures, and thereby provides
support in maintaining road safety and the op‐
erational reliability of the vehicle.
Condition Based Service
CBS
Sensors and special algorithms take into ac‐
count the driving conditions of your vehicle.
Based on this, Condition Based Service recog‐
nizes the maintenance requirements.
The system makes it possible to adapt the
amount of maintenance corresponding to your
user profile.
Details on the service requirements, refer to
page 86, can be displayed on the Control Dis‐
play.
Service data in the remote control Information on the required maintenance is
continuously stored in the remote control.
Your service center will read out this data and
suggest the right array of service procedures
for your vehicle.
Therefore, hand your service specialist the re‐
mote control with which the vehicle was driven
most recently.Storage periods
Storage periods during which the vehicle bat‐
tery was disconnected are not taken into ac‐
count.
If this occurs, have a service center update the
time-dependent maintenance procedures,
such as checking brake fluid and, if needed,
changing the engine oil and the microfilter/
activated-charcoal filter.
Service and Warranty
Information Booklet for US
models and Warranty and
Service Guide Booklet for
Canadian models
Please consult your Service and Warranty In‐
formation Booklet for US models and Warranty
and Service Guide Booklet for Canadian mod‐ els for additional information on service re‐
quirements.
Maintenance and repair should be performed
by your service center. Make sure to have reg‐
ular maintenance procedures recorded in the
vehicle's Service and Warranty Information
Booklet for US models, and in the Warranty
and Service Guide Booklet for Canadian mod‐
els. These entries are proof of regular mainte‐
nance.
Socket for OBD Onboard
Diagnosis
Note Socket for Onboard Diagnosis
The socket for onboard diagnostics may
only be used by the service center or a work‐
shop that operates in accordance with the
specifications of the vehicle manufacturer withSeite 209MaintenanceMobility209
Online Edition for Part no. 01 40 2 956 387 - X/14

Lighting via remote con‐trol 37
Light reel 95
Lights 95
Lights and bulbs 211
Load 176
Loading 175
Lock, door 39
Locking/unlocking via door lock 39
Locking/unlocking with re‐ mote control 37
Locking, automatic 42
Locking, settings 42
Locking via trunk lid 40
Low beams 95
Low beams, automatic, refer to High-beam Assistant 97
Lower back support 49
Lumbar support 49
M
Maintenance 209
Maintenance require‐ ments 209
Maintenance, service require‐ ments 86
Maintenance system, BMW 209
Make-up mirror 164
Malfunction displays, see Check Control 80
Manual air distribution 156
Manual air flow 157
Manual brake, refer to Parking brake 65
Manual mode, Steptronic transmission 72
Manual operation, door lock 39
Manual operation, exterior mirrors 55
Manual operation, fuel filler flap 186 Manual operation, Park Dis‐
tance Control PDC 145
Manual operation, rearview camera 147
Manual operation, Side View 149
Manual operation, Top View 151
Marking on approved tires 199
Marking, run-flat tires 200
Massage seat, front 50
Master key, refer to Remote control 34
Maximum cooling 157
Maximum speed, display 87
Maximum speed, winter tires 199
Measure, units of 92
Medical kit 218
Memory for seat, mirrors, steering wheel 54
Menu, EfficientDynamics 180
Menu in instrument clus‐ ter 88
Menus, operating, iDrive 18
Menus, refer to iDrive operat‐ ing concept 19
Messages, see Check Con‐ trol 80
Microfilter 158
Minimum tread, tires 198
Mirror 55
Mirror memory 54
Mobile communication devi‐ ces in the vehicle 173
Modifications, technical, refer to Safety 7
Moisture in headlight 212
Monitor, refer to Control Dis‐ play 18
Mounting of child restraint systems 58
Multifunctional instrument display 77 Multifunction steering wheel,
buttons 14
N
Navigation, see user's manual for Navigation, Entertain‐
ment and Communication
Neck restraints, front, refer to Head restraints 52
Neutral cleaner, see wheel cleaner 224
New wheels and tires 198
Night Vision 117
Night Vision device, see Night Vision 117
Nylon rope for tow-starting/ towing 220
O OBD Onboard Diagnosis 209
OBD, see OBD Onboard Di‐ agnosis 209
Object detection, see Night Vision 117
Obstacle marking, rearview camera 148
Octane rating, refer to Rec‐ ommended fuel grade 188
Odometer 84
Office, see user's manual for Navigation, Entertainment
and Communication
Oil 204
Oil, adding 205
Oil additives 205
Oil change 206
Oil change interval, service requirements 86
Oil filler neck 205
Oil types, alternative 206
Oil types, approved 206
Old batteries, disposal 215
Onboard monitor, refer to Control Display 18 Seite 237Everything from A to ZReference237
Online Edition for Part no. 01 40 2 956 387 - X/14

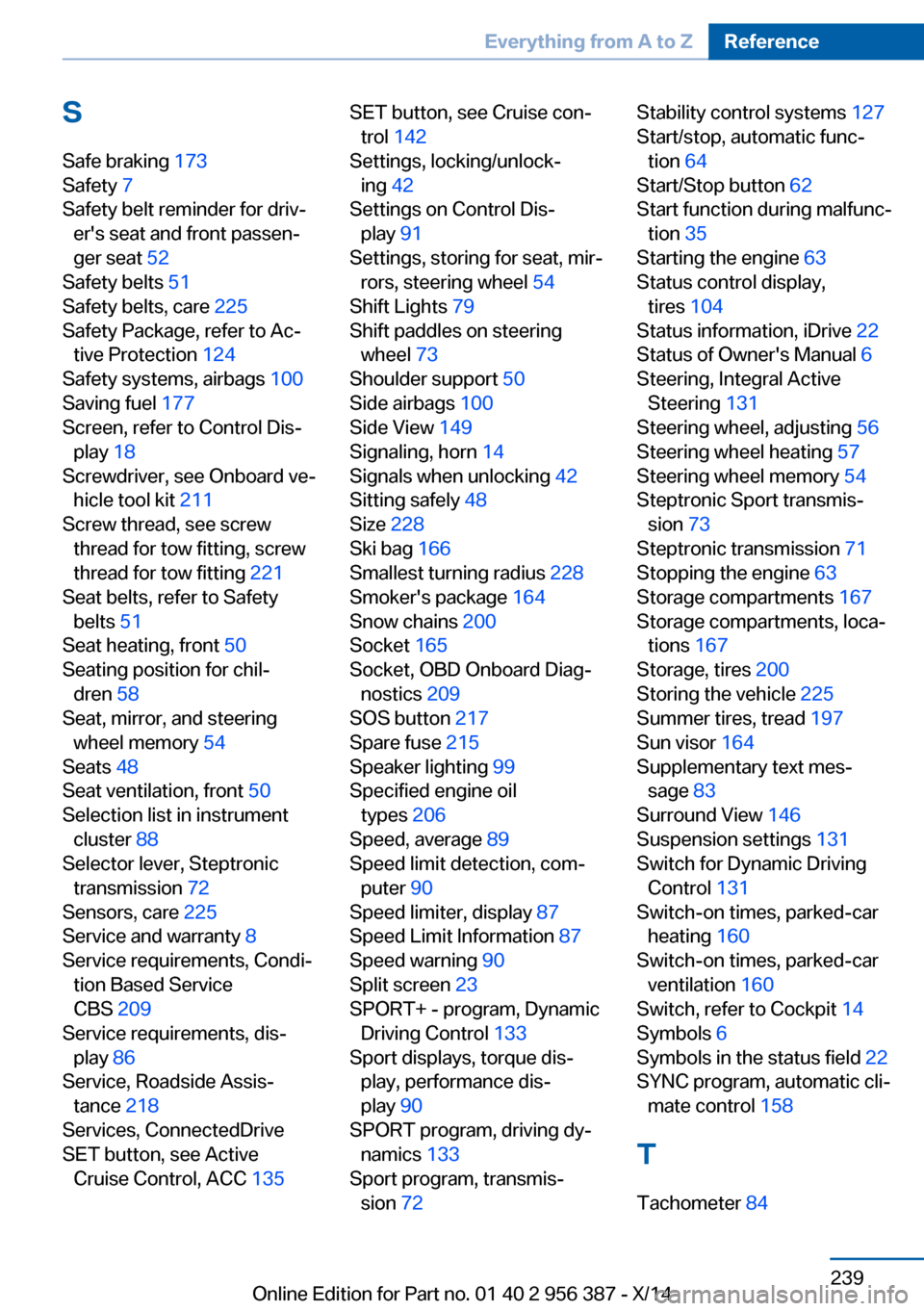

SSafe braking 173
Safety 7
Safety belt reminder for driv‐ er's seat and front passen‐
ger seat 52
Safety belts 51
Safety belts, care 225
Safety Package, refer to Ac‐ tive Protection 124
Safety systems, airbags 100
Saving fuel 177
Screen, refer to Control Dis‐ play 18
Screwdriver, see Onboard ve‐ hicle tool kit 211
Screw thread, see screw thread for tow fitting, screw
thread for tow fitting 221
Seat belts, refer to Safety belts 51
Seat heating, front 50
Seating position for chil‐ dren 58
Seat, mirror, and steering wheel memory 54
Seats 48
Seat ventilation, front 50
Selection list in instrument cluster 88
Selector lever, Steptronic transmission 72
Sensors, care 225
Service and warranty 8
Service requirements, Condi‐ tion Based Service
CBS 209
Service requirements, dis‐ play 86
Service, Roadside Assis‐ tance 218
Services, ConnectedDrive
SET button, see Active Cruise Control, ACC 135 SET button, see Cruise con‐
trol 142
Settings, locking/unlock‐ ing 42
Settings on Control Dis‐ play 91
Settings, storing for seat, mir‐ rors, steering wheel 54
Shift Lights 79
Shift paddles on steering wheel 73
Shoulder support 50
Side airbags 100
Side View 149
Signaling, horn 14
Signals when unlocking 42
Sitting safely 48
Size 228
Ski bag 166
Smallest turning radius 228
Smoker's package 164
Snow chains 200
Socket 165
Socket, OBD Onboard Diag‐ nostics 209
SOS button 217
Spare fuse 215
Speaker lighting 99
Specified engine oil types 206
Speed, average 89
Speed limit detection, com‐ puter 90
Speed limiter, display 87
Speed Limit Information 87
Speed warning 90
Split screen 23
SPORT+ - program, Dynamic Driving Control 133
Sport displays, torque dis‐ play, performance dis‐
play 90
SPORT program, driving dy‐ namics 133
Sport program, transmis‐ sion 72 Stability control systems 127
Start/stop, automatic func‐ tion 64
Start/Stop button 62
Start function during malfunc‐ tion 35
Starting the engine 63
Status control display, tires 104
Status information, iDrive 22
Status of Owner's Manual 6
Steering, Integral Active Steering 131
Steering wheel, adjusting 56
Steering wheel heating 57
Steering wheel memory 54
Steptronic Sport transmis‐ sion 73
Steptronic transmission 71
Stopping the engine 63
Storage compartments 167
Storage compartments, loca‐ tions 167
Storage, tires 200
Storing the vehicle 225
Summer tires, tread 197
Sun visor 164
Supplementary text mes‐ sage 83
Surround View 146
Suspension settings 131
Switch for Dynamic Driving Control 131
Switch-on times, parked-car heating 160
Switch-on times, parked-car ventilation 160
Switch, refer to Cockpit 14
Symbols 6
Symbols in the status field 22
SYNC program, automatic cli‐ mate control 158
T Tachometer 84 Seite 239Everything from A to ZReference239
Online Edition for Part no. 01 40 2 956 387 - X/14
