Mobility
175Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Engine compartment
1Filler neck for engine oil, refer to Topping off
engine oil
2Brake fluid reservoir, located beneath the
microfilter cover, refer to page177
3Dipstick for engine oil, refer to Checking oil
level
4Starting-aid terminal, refer to page186
5Washer fluid reservoir of the headlamp and
windshield cleaning systems, refer to
page61
6Expansion tank for coolant, refer to
page176
Engine oil
The engine oil consumption is dependent on
driving style and driving conditions.
Checking oil level
1.Park the vehicle on a level surface with the
engine warm, i.e. after an uninterrupted
drive of at least 6 miles/10 km.
2.Switch off the engine.3.After approx. 5 minutes, pull the dipstick3
out and wipe it off with a clean lint-free
cloth, paper towel, or similar material.
4.Carefully push the dipstick all the way into
the guide tube and pull it out again.
The oil should extend to between the two
marks on the dipstick.
The oil quantity between the centers of the two
marks on the dipstick, refer to arrows, is approx.
1.6 US quarts/1.5 liters.
Do not fill beyond the upper mark on the
dipstick. Excess oil can damage the
engine.<

Maintenance
178
Maintenance
The BMW Maintenance
System
The BMW maintenance system supports the
preservation of the traffic and operating safety
of your BMW. The service schedule also
includes operations related to the vehicle's
comfort and convenience features, such as
replacement of the filters for the inside air. The
ultimate objective is to ensure economical
maintenance by providing the ideal service for
your vehicle.
Should the day come when you decide to sell
your BMW, you will find that a complete dealer
service history is an asset of inestimable value.
CBS Condition Based Service
Sensors and special algorithms take the differ-
ent driving conditions of your BMW into
account. Condition Based Service uses this to
determine the current and future service
requirements. By letting you define a service
and maintenance regimen that reflects your
own individual requirements, the system builds
the basis for trouble-free driving.
You can set the Control Display to show
remaining times or distances of selected main-
tenance intervals and legally mandated dead-
lines, refer to page70:
>Engine oil
>Brakes, front and rear separately
>Microfilter/activated-charcoal filter
>Brake fluid>Spark plugs
>Vehicle check
>Legally required tests depending on local
regulations
Your vehicle stores this information continu-
ously in the master key while the vehicle is
being driven. After accessing the data stored in
the master key, your BMW Service Advisor can
suggest precisely the right array of service pro-
cedures for your own individual vehicle. You
should therefore give your BMW Service Advi-
sor the key you last used to drive when you take
your vehicle in for service.
Make sure the date in the Control Center
is always set correctly, refer to page78,
as otherwise the effectiveness of CBS Condi-
tion Based Service is not ensured.<
Service and Warranty Information
Booklet for US models and Warranty
and Service Guide Booklet for
Canadian models
Please consult your Service and Warranty Infor-
mation Booklet for US models and Warranty
and Service Guide Booklet for Canadian models
for additional information regarding service
requirements.
Have service and repair operations per-
formed at your BMW center.
Take the time to ensure that these service pro-
cedures are confirmed by entries in your vehi-
cle's Service and Warranty Information Booklet
for US models and Warranty and Service Guide
Booklet for Canadian models. These entries
verify that your vehicle has received the speci-
fied regular maintenance, and may also be
required when submitting warranty claims.<

Reference 195
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

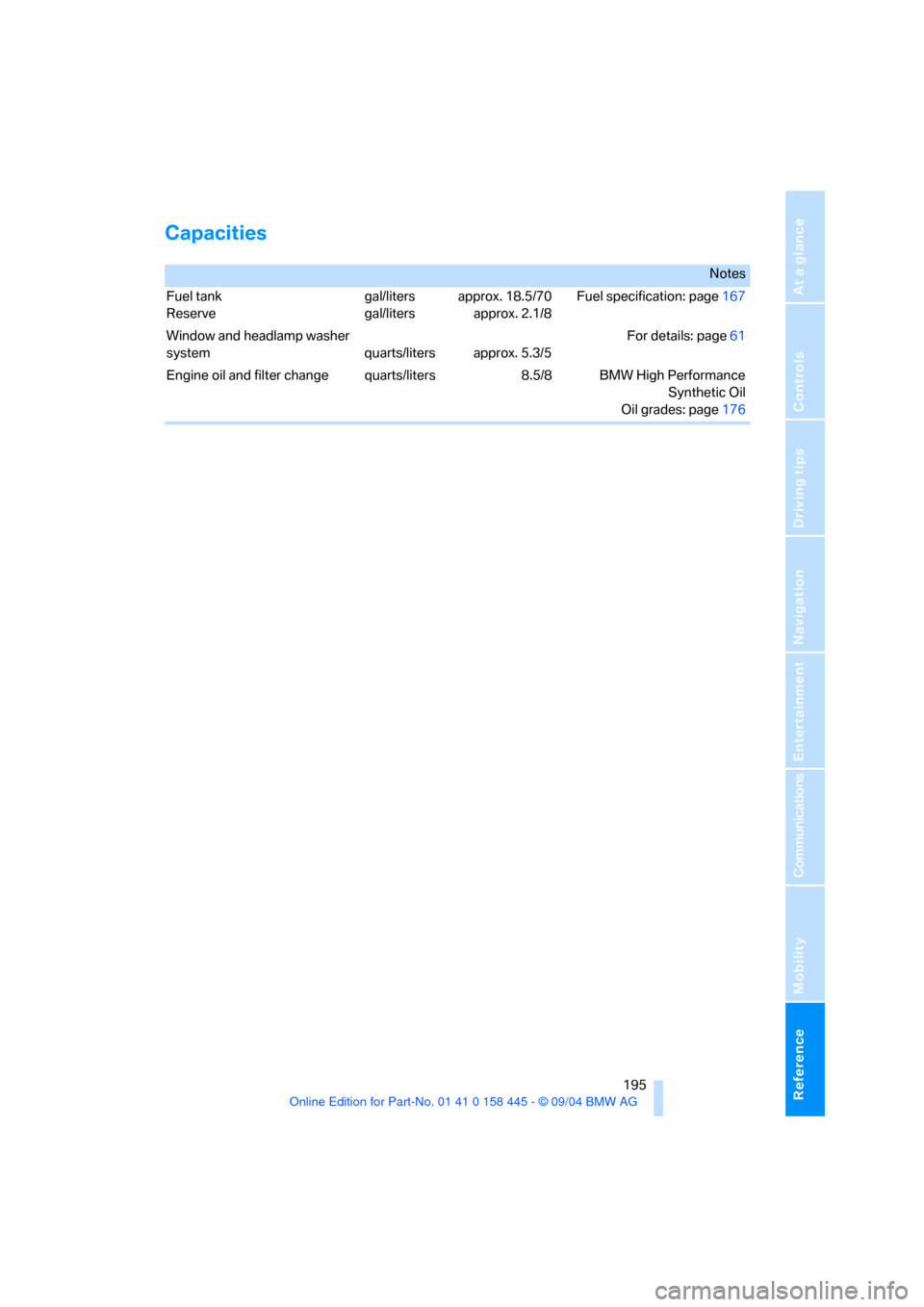

Capacities
Notes
Fuel tank
Reservegal/liters
gal/litersapprox. 18.5/70
approx. 2.1/8Fuel specification: page167
Window and headlamp washer
system quarts/liters approx. 5.3/5For details: page61
Engine oil and filter change quarts/liters 8.5/8 BMW High Performance
Synthetic Oil
Oil grades: page176

Everything from A to Z
208 New keys28
"New route"128
New wheels and tires172
"Next entertainment
source"51
Nozzles
– refer to Ventilation94
– refer to Windshield washer
nozzles61
Nylon rope, refer to Towing
and tow-starting188
O
OBD Socket179
Octane ratings, refer to Fuel
specifications167
Odometer69
Oil
– additives176
– capacity195
– dipstick175
– specified engine oils176
Oil change intervals
– refer to Service
requirements70
– refer to the Service and
Warranty Information
Booklet for US models or to
the Warranty and Service
Guide Booklet for Canadian
models178
Oil consumption175
Oil level175
Old batteries, refer to
Disposal183
"On a new destination" for
navigation119
Onboard computer, refer to
Control Center16
"Onboard information"75
Onboard tool kit180
"On destination"119
"On location"119
Opening and closing
– from inside31
– from outside29
– using door lock31
– using the remote control29Opening and closing rear
window37
Operation by voice
commands for portable
phone156
– adjusting volume157
– canceling156
– correcting phone
number157
– dialing a phone number157
– making a call157
– redialing158
– voice commands156
– voice phone book157
"Options"162
"Options" for portable
phone156
Orientation menu, refer to
Start menu17
Output, refer to Engine
data192
Outside air, refer to AUC
Automatic recirculated-air
control95
Outside mirror
– tilting the passenger-side
mirror47
Outside temperature
display69
– changing unit of
measurement77
P
Panic mode30
Park Distance Control PDC80
"Parked car operation"98
Parking aid, refer to PDC Park
Distance Control80
Parking brake, refer to
Handbrake55
Parking lamps/low beams91
– replacing bulbs180
Parking vehicle55
Parts and accessories, refer to
Your individual vehicle5
Passenger-side mirror tilt
function47"Pathway lighting"91
Pathway lighting91
"PDC"81
PDC Park Distance Control80
Phone book151
Phone numbers
– deleting in the phone
book154
– dialing152
– most recent numbers153
– selecting in the phone
book153
– Top 8153
"Play" on the radio141
Pollen, refer to Microfilter/
activated-charcoal filter97
Portable phone
– accepted calls153
– adjusting volume151
– calling152
– call termination152
– hands-free system151,157
– missed calls153
– operation using Control
Center151
– phone book153
– redialing153
– refer also to separate
Owner's Manual
– SMS155
– Top 8153
– touch tone dialing155
Portable phone battery150
Portable phones, use in
vehicle, refer to Mobile
communication devices in
vehicle109
Position
– displaying125
– storing120
Power failure184
Power windows, refer to
Windows36
"Presets" on the
radio136,141
Presetting independent venti-
lation activation times98
Pressure, tires168
