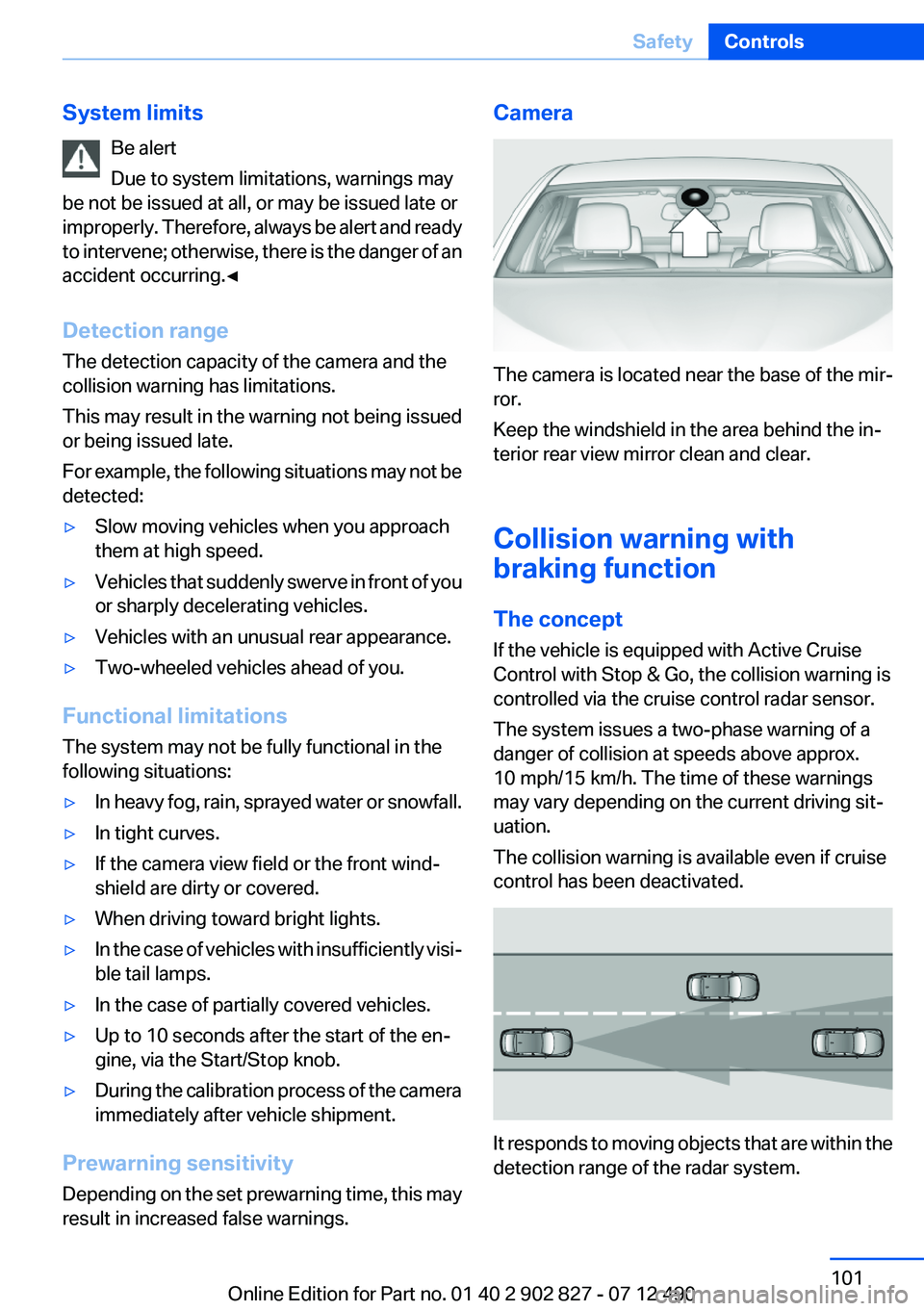

Page 101 of 232

BMW 650I GRAN COUPE 2013  Owners Manual System limitsBe alert
Due to system limitations, warnings may
be not be issued at all, or may be issued late or
improperly. Therefore, always be alert and ready
to intervene; otherwise, there is the d

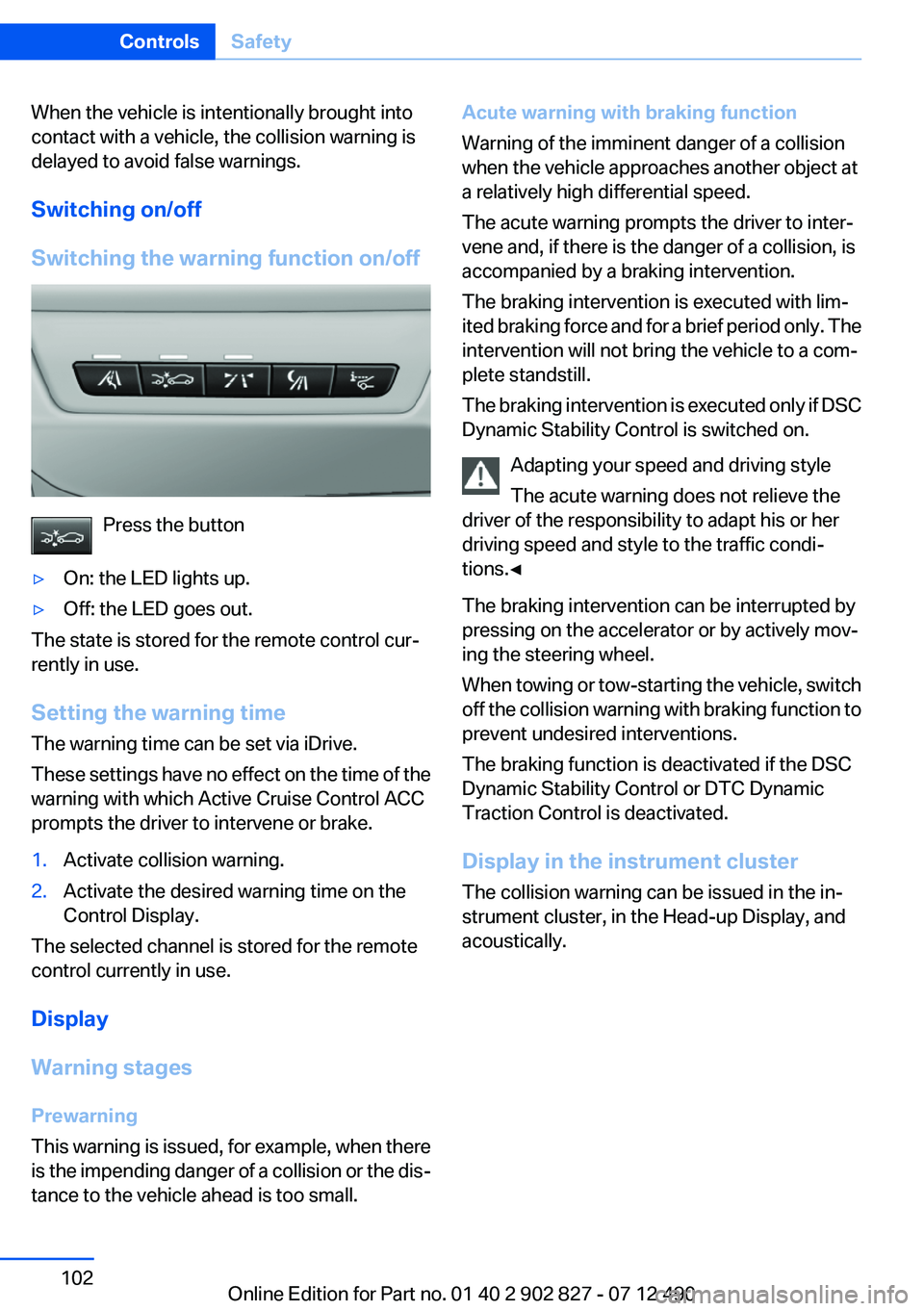

Page 102 of 232

BMW 650I GRAN COUPE 2013  Owners Manual When the vehicle is intentionally brought into
contact with a vehicle, the collision warning is
delayed to avoid false warnings.
Switching on/off
Switching the warning function on/off
Press the button

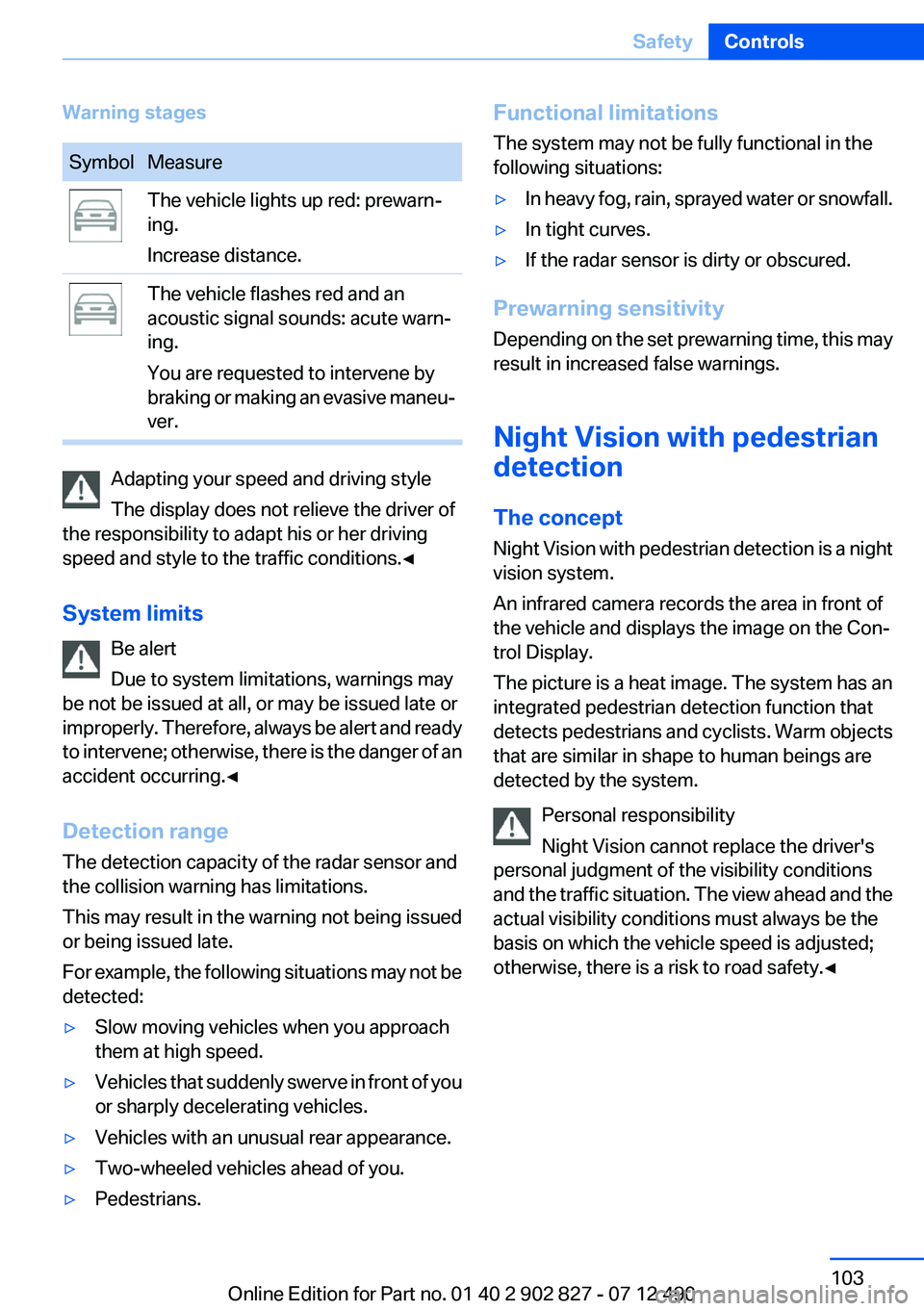

Page 103 of 232

BMW 650I GRAN COUPE 2013  Owners Manual Warning stagesSymbolMeasureThe vehicle lights up red: prewarn‐
ing.
Increase distance.The vehicle flashes red and an
acoustic signal sounds: acute warn‐
ing.
You are requested to intervene by
brak

Page 104 of 232

BMW 650I GRAN COUPE 2013  Owners Manual Heat image
The image shows the heat radiated by objects
in the field of view of the camera.
Warm objects have a light appearance and cold
objects, a dark appearance.
The ability to detect an object de

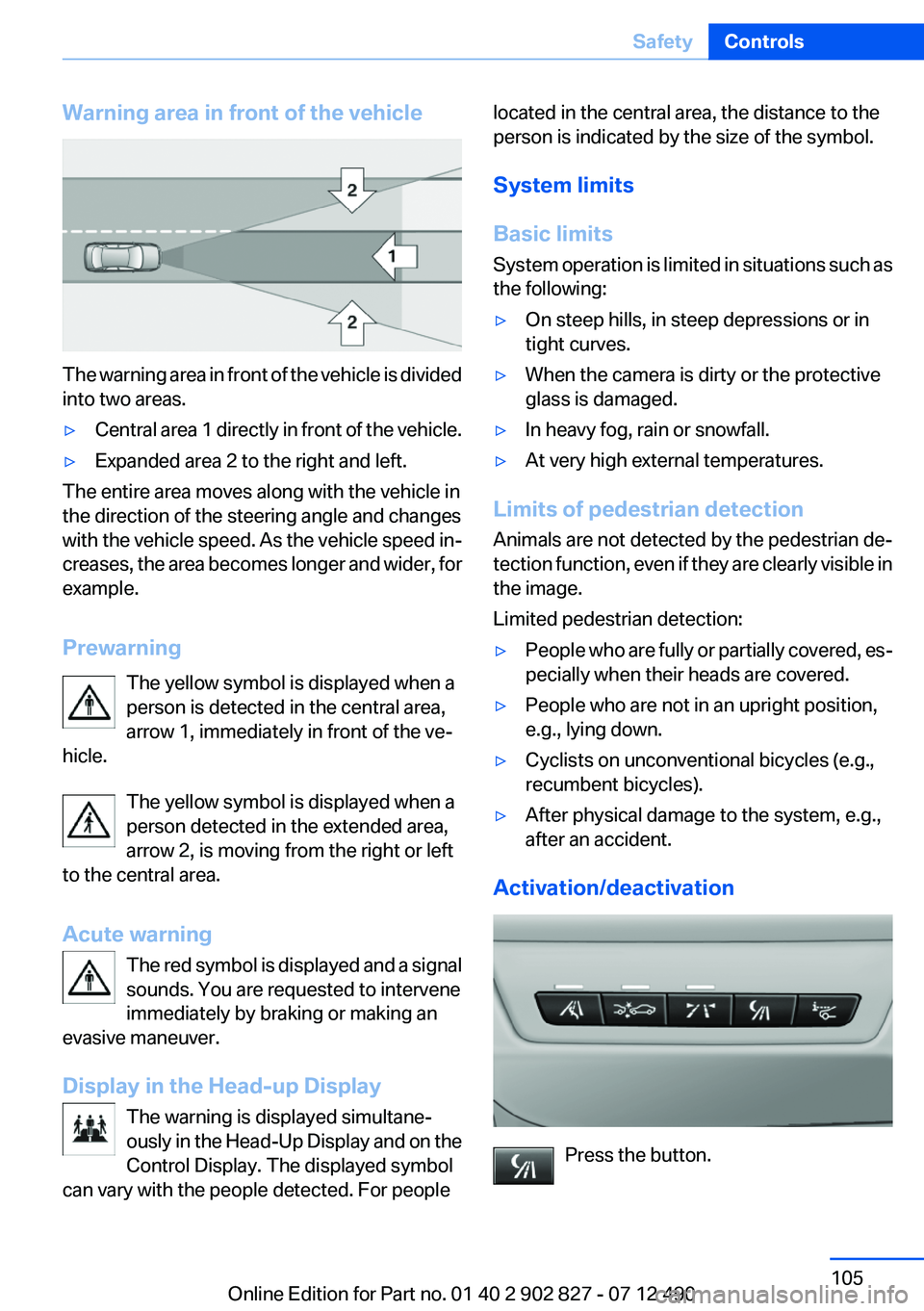

Page 105 of 232

BMW 650I GRAN COUPE 2013  Owners Manual Warning area in front of the vehicle
The warning area in front of the vehicle is divided
into two areas.
▷Central area 1 directly in front of the vehicle.▷Expanded area 2 to the right and left.
Th

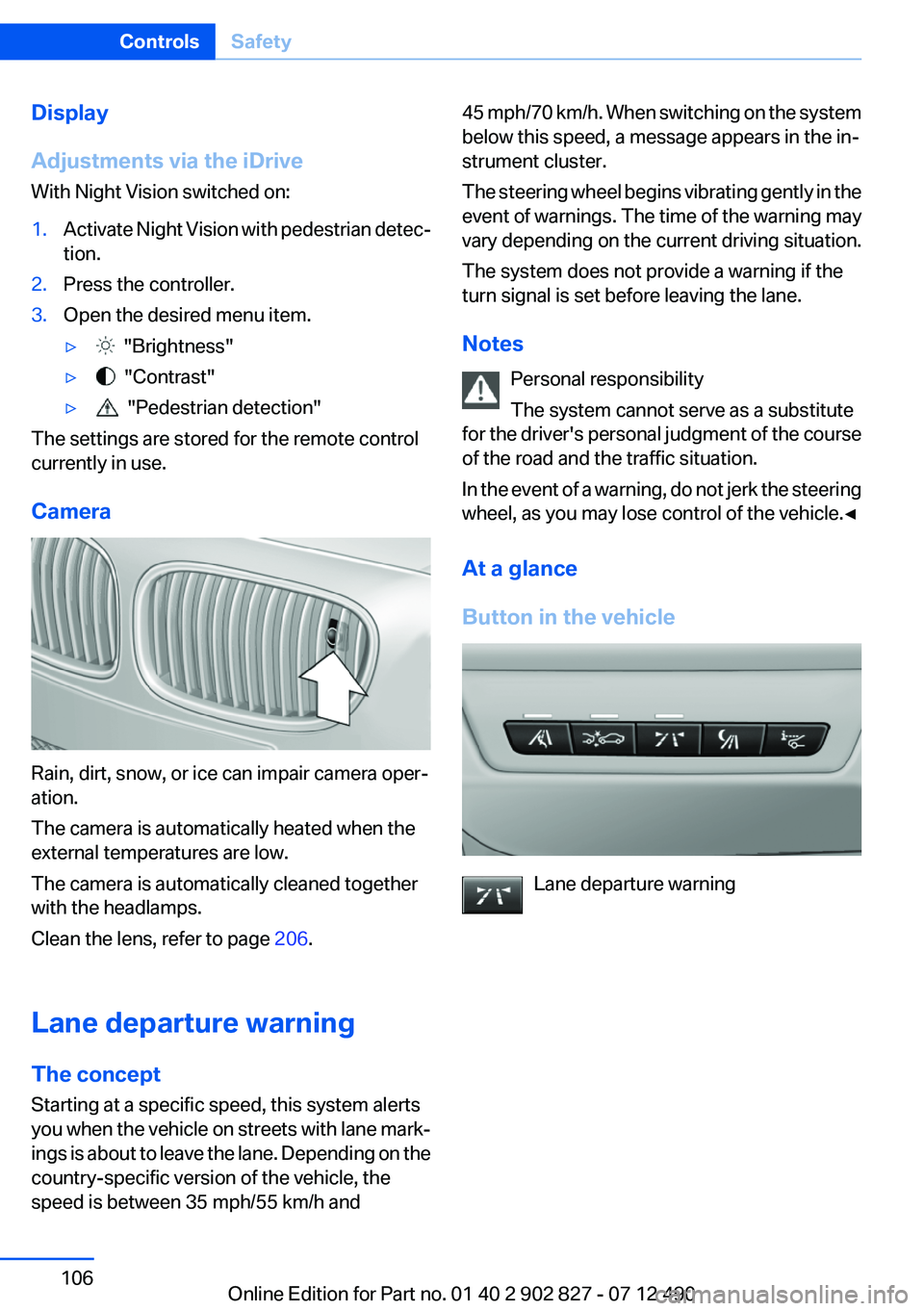

Page 106 of 232

BMW 650I GRAN COUPE 2013  Owners Manual Display
Adjustments via the iDrive
With Night Vision switched on:1.Activate Night Vision with pedestrian detec‐
tion.2.Press the controller.3.Open the desired menu item.▷  "Brightness"▷

Page 107 of 232

BMW 650I GRAN COUPE 2013  Owners Manual Camera
The camera is located near the base of the mir‐
ror.
Keep the windshield in the area behind the in‐
terior rear view mirror clean and clear.
Switching on/off Press the button
▷On: the LED

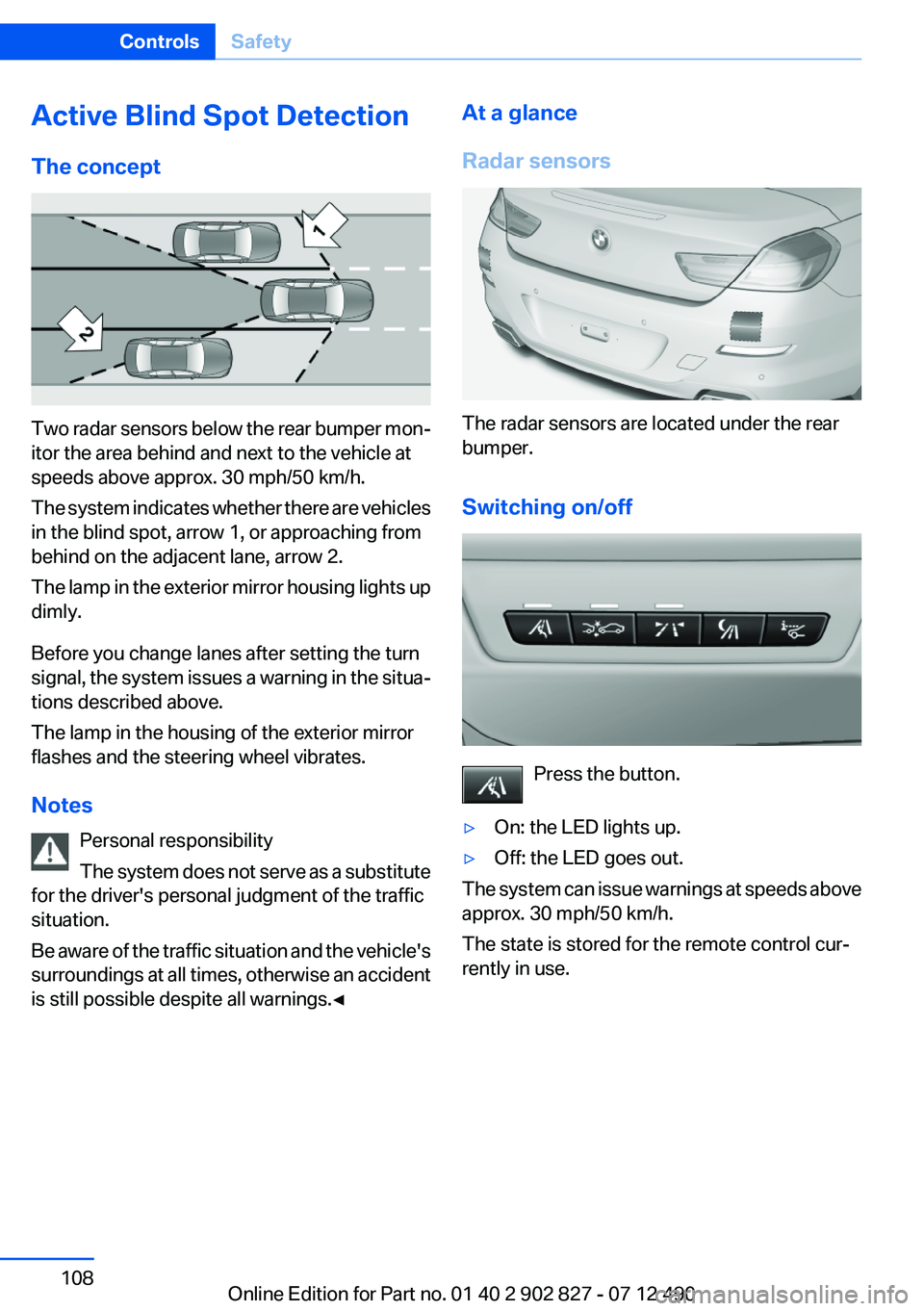

Page 108 of 232

BMW 650I GRAN COUPE 2013  Owners Manual Active Blind Spot Detection
The concept
Two radar sensors below the rear bumper mon‐
itor the area behind and next to the vehicle at
speeds above approx. 30 mph/50 km/h.
The system indicates whether

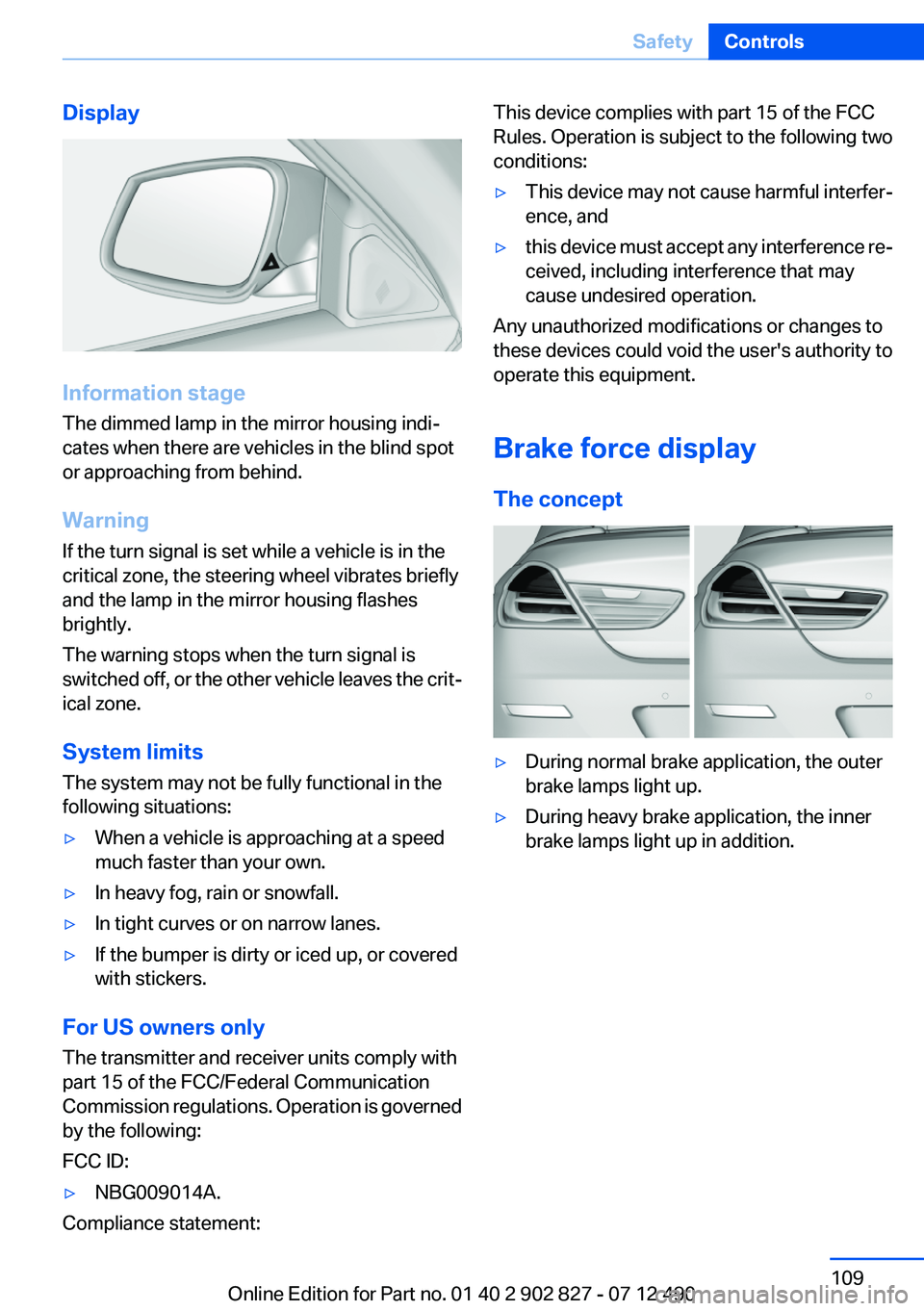

Page 109 of 232

BMW 650I GRAN COUPE 2013  Owners Manual Display
Information stage
The dimmed lamp in the mirror housing indi‐
cates when there are vehicles in the blind spot
or approaching from behind.
Warning
If the turn signal is set while a vehicle is

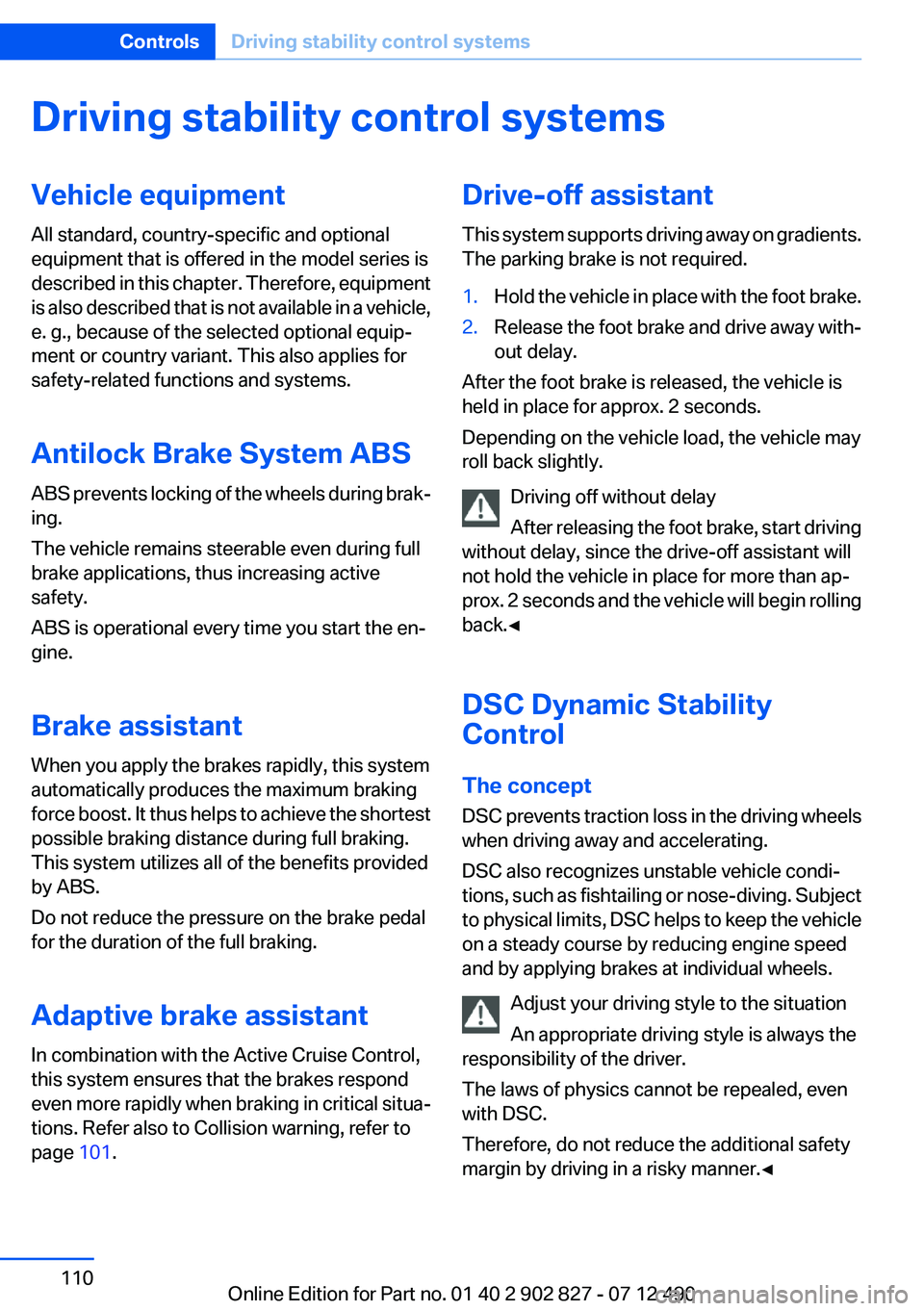

Page 110 of 232

BMW 650I GRAN COUPE 2013  Owners Manual Driving stability control systemsVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also
