BMW 650I GRAN COUPE 2014 User Guide

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 909 877 - VI/13

CockpitVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.

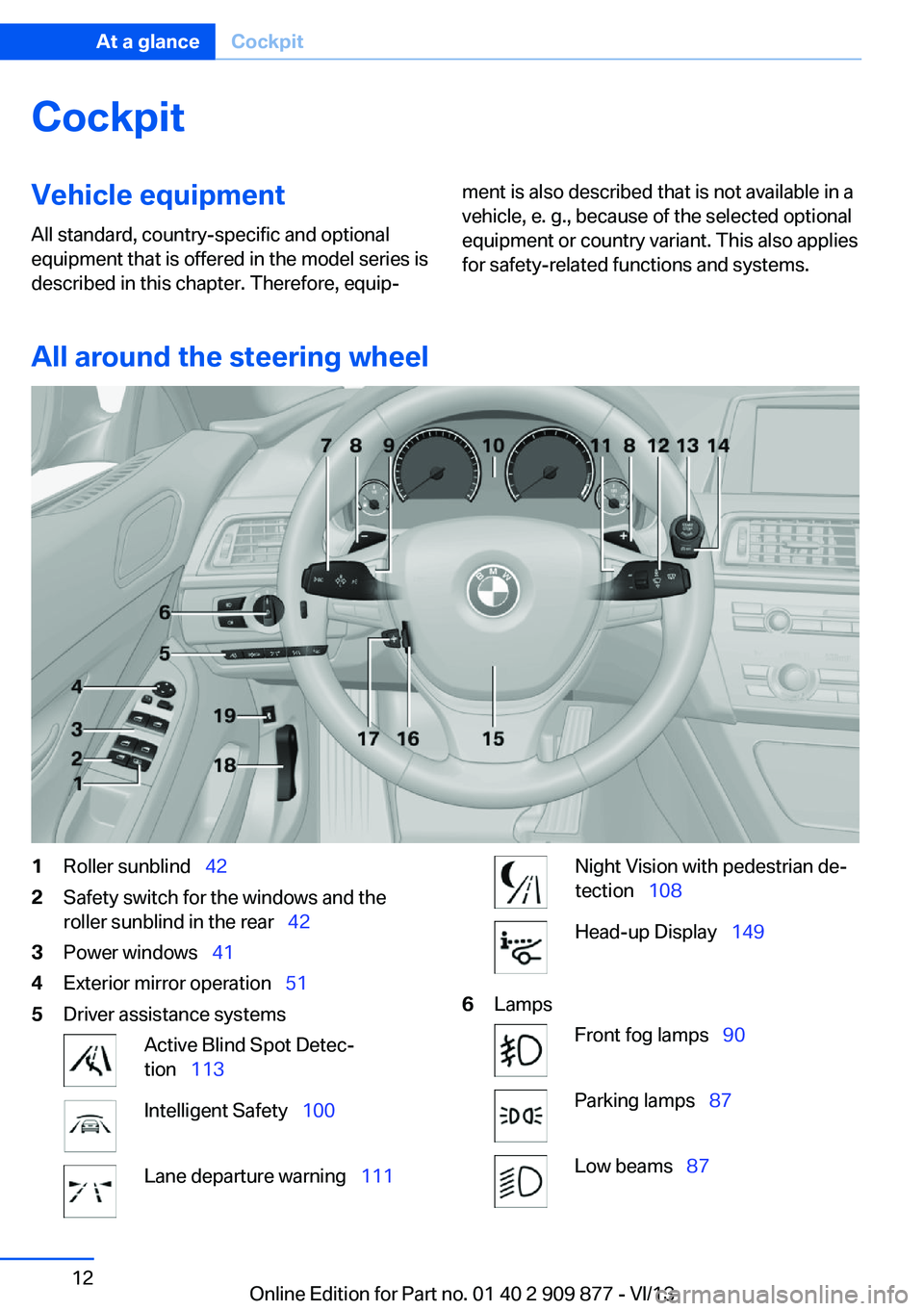

All around the steering wheel
1Roller sunblind   422Safety switch for the windows and the
roller sunblind in the rear   423Power windows  414Exterior mirror operation   515Driver assistance systemsActive Blind Spot Detec‐
tion   113Intelligent Safety   100Lane departure warning   111Night Vision with pedestrian de‐
tection   108Head-up Display   1496LampsFront fog lamps  90Parking lamps  87Low beams  87Seite 12At a glanceCockpit12
Online Edition for Part no. 01 40 2 909 877 - VI/13

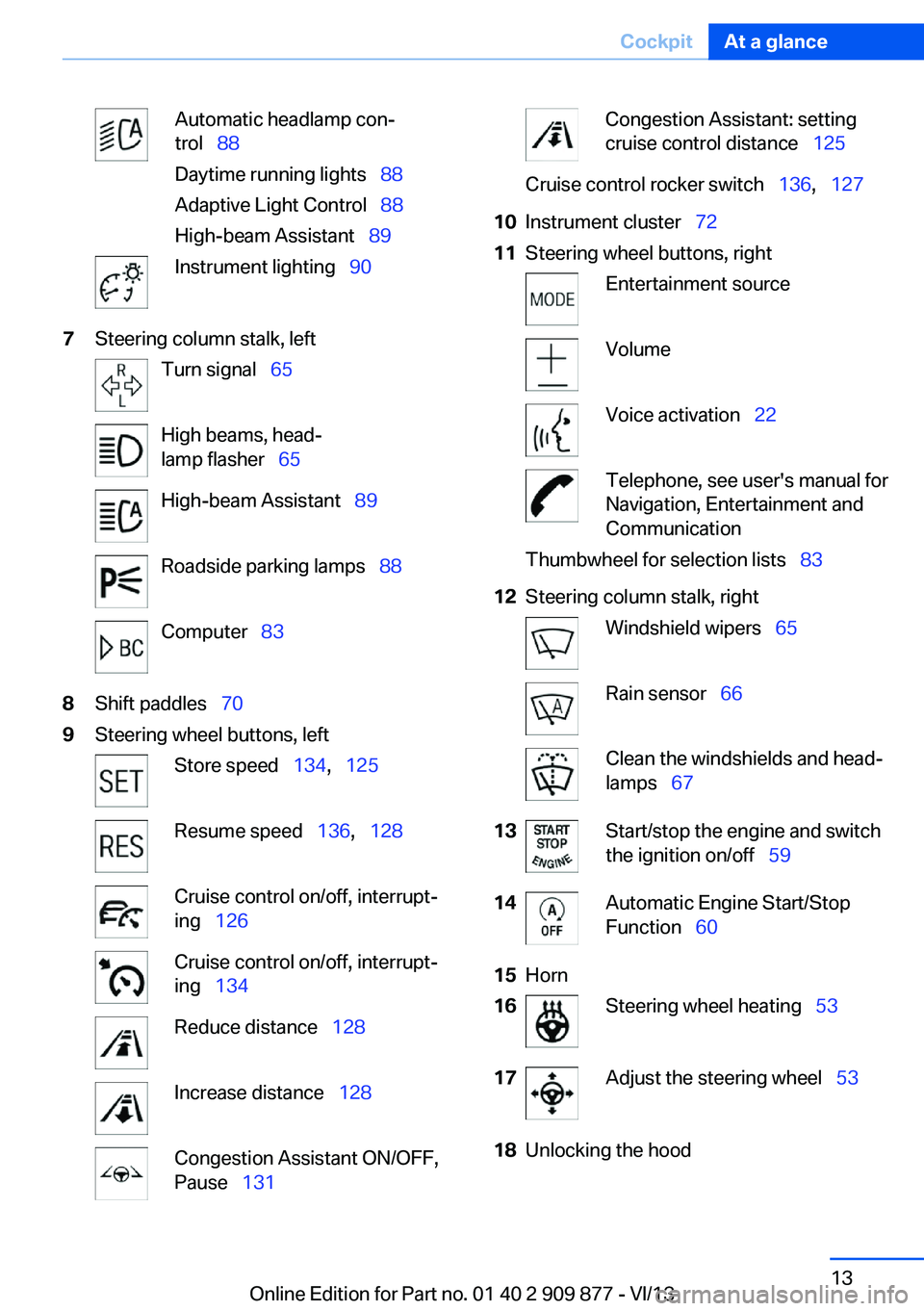

Automatic headlamp con‐
trol   88
Daytime running lights   88
Adaptive Light Control   88
High-beam Assistant   89Instrument lighting  907Steering column stalk, leftTurn signal  65High beams, head‐
lamp flasher   65High-beam Assistant   89Roadside parking lamps   88Computer  838Shift paddles   709Steering wheel buttons, leftStore speed  134,  125Resume speed   136,  128Cruise control on/off, interrupt‐
ing   126Cruise control on/off, interrupt‐
ing   134Reduce distance   128Increase distance   128Congestion Assistant ON/OFF,
Pause   131Congestion Assistant: setting
cruise control distance   125Cruise control rocker switch   136,  12710Instrument cluster   7211Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  22Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   8312Steering column stalk, rightWindshield wipers  65Rain sensor  66Clean the windshields and head‐
lamps   6713Start/stop the engine and switch
the ignition on/off   5914Automatic Engine Start/Stop
Function   6015Horn16Steering wheel heating   5317Adjust the steering wheel   5318Unlocking the hoodSeite 13CockpitAt a glance13
Online Edition for Part no. 01 40 2 909 877 - VI/13

19Open the trunk lid  36

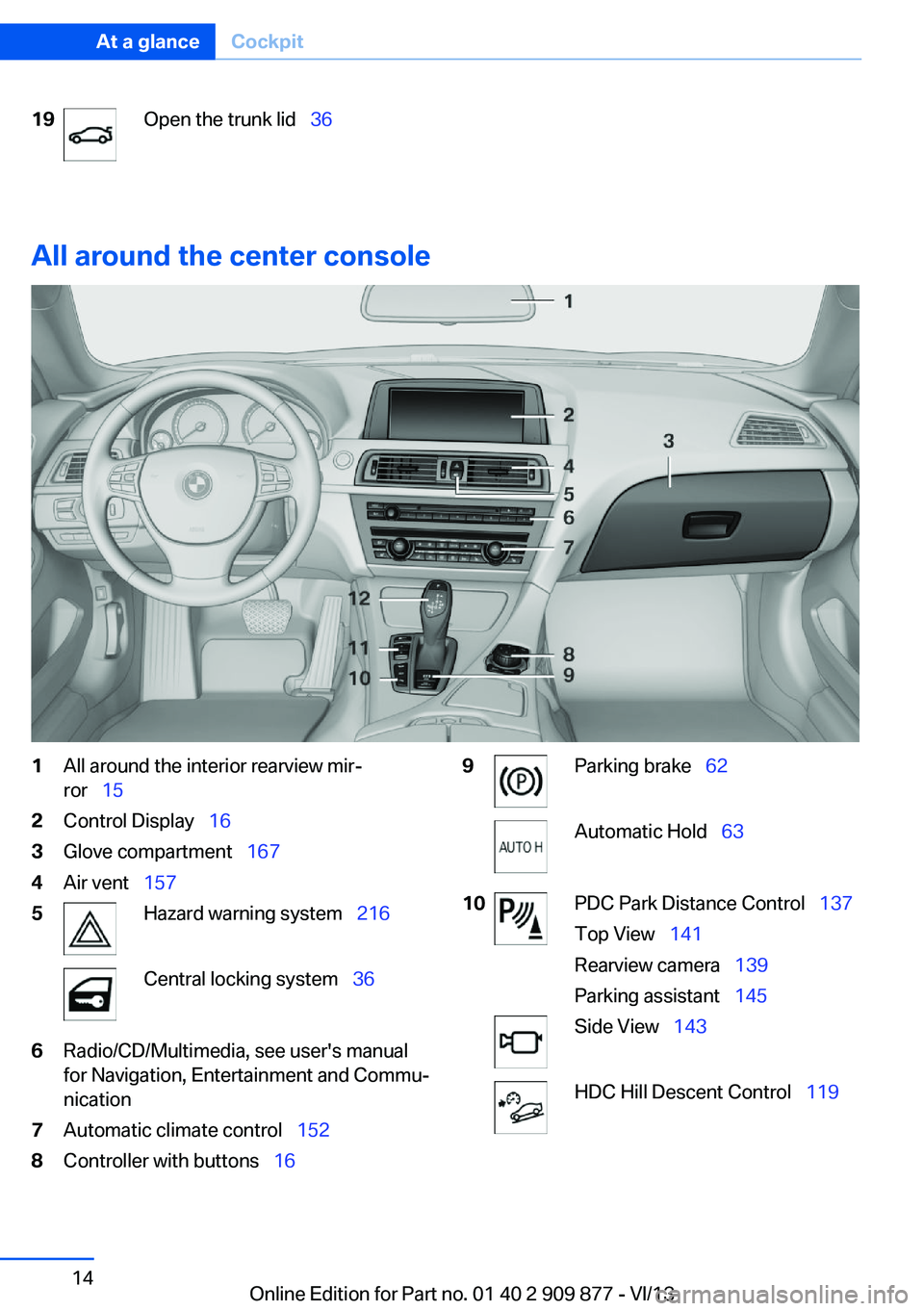

All around the center console
1All around the interior rearview mir‐
ror   152Control Display   163Glove compartment   1674Air vent  1575Hazard warning system   216Central locking system  366Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication7Automatic climate control   1528Controller with buttons  169Parking brake  62Automatic Hold   6310PDC Park Distance Control   137
Top View   141
Rearview camera   139
Parking assistant   145Side View  143HDC Hill Descent Control   119Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 909 877 - VI/13

11Driving Dynamics Control  121DSC Dynamic Stability Con‐
trol   11712Transmission selector lever

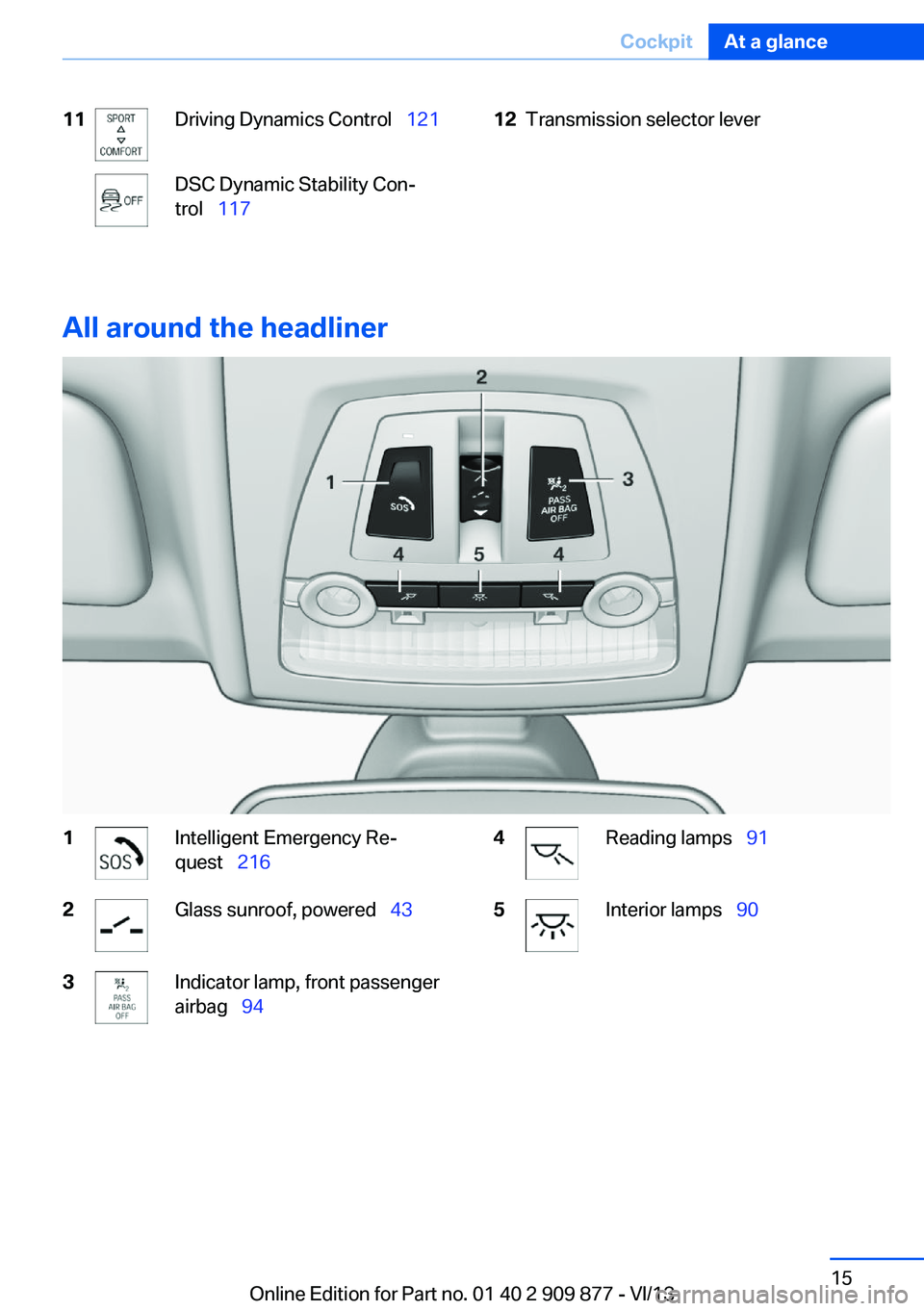

All around the headliner
1Intelligent Emergency Re‐
quest   2162Glass sunroof, powered   433Indicator lamp, front passenger
airbag   944Reading lamps   915Interior lamps  90Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 909 877 - VI/13

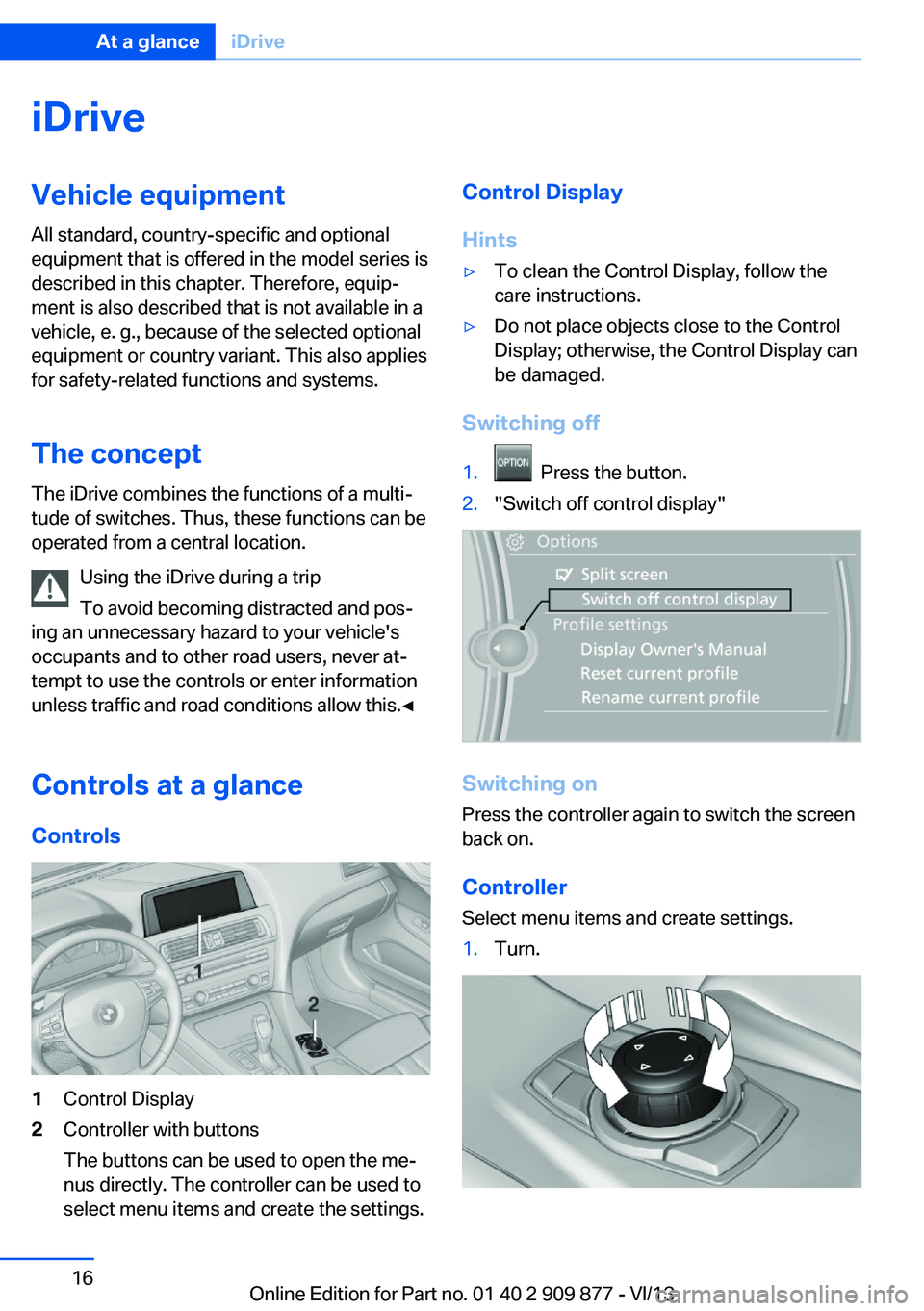

iDriveVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
The concept The iDrive combines the functions of a multi‐
tude of switches. Thus, these functions can be
operated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other road users, never at‐
tempt to use the controls or enter information
unless traffic and road conditions allow this.◀
Controls at a glance Controls1Control Display2Controller with buttons
The buttons can be used to open the me‐
nus directly. The controller can be used to
select menu items and create the settings.Control Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1. Press the button.2."Switch off control display"
Switching on
Press the controller again to switch the screen
back on.
Controller
Select menu items and create settings.
1.Turn.Seite 16At a glanceiDrive16
Online Edition for Part no. 01 40 2 909 877 - VI/13

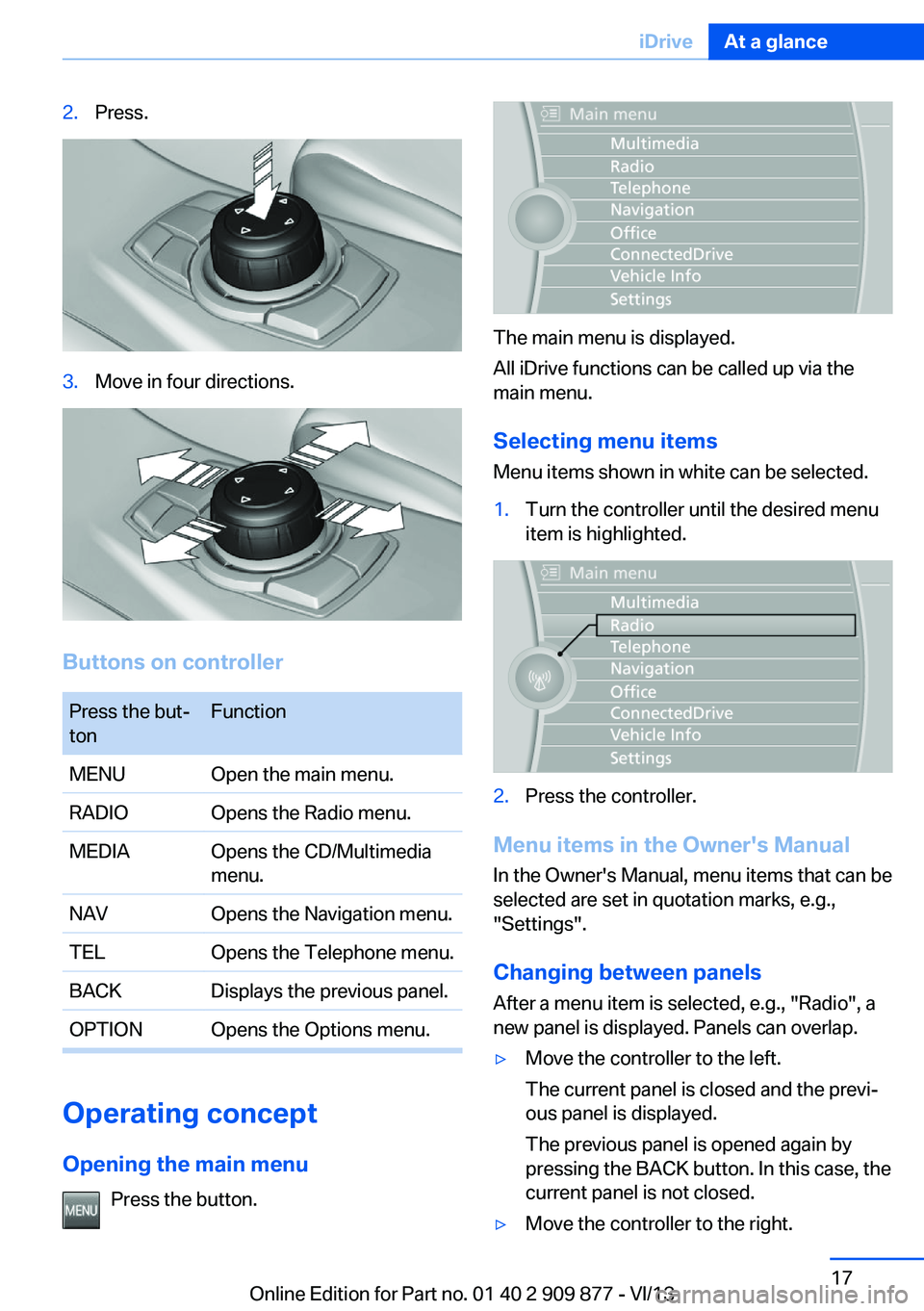

2.Press.3.Move in four directions.
Buttons on controller
Press the but‐
tonFunctionMENUOpen the main menu.RADIOOpens the Radio menu.MEDIAOpens the CD/Multimedia
menu.NAVOpens the Navigation menu.TELOpens the Telephone menu.BACKDisplays the previous panel.OPTIONOpens the Options menu.
Operating concept
Opening the main menu Press the button.
The main menu is displayed.
All iDrive functions can be called up via the
main menu.
Selecting menu items
Menu items shown in white can be selected.
1.Turn the controller until the desired menu
item is highlighted.2.Press the controller.
Menu items in the Owner's Manual
In the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.,
"Settings".
Changing between panels
After a menu item is selected, e.g., "Radio", a
new panel is displayed. Panels can overlap.
▷Move the controller to the left.
The current panel is closed and the previ‐
ous panel is displayed.
The previous panel is opened again by
pressing the BACK button. In this case, the
current panel is not closed.▷Move the controller to the right.Seite 17iDriveAt a glance17
Online Edition for Part no. 01 40 2 909 877 - VI/13

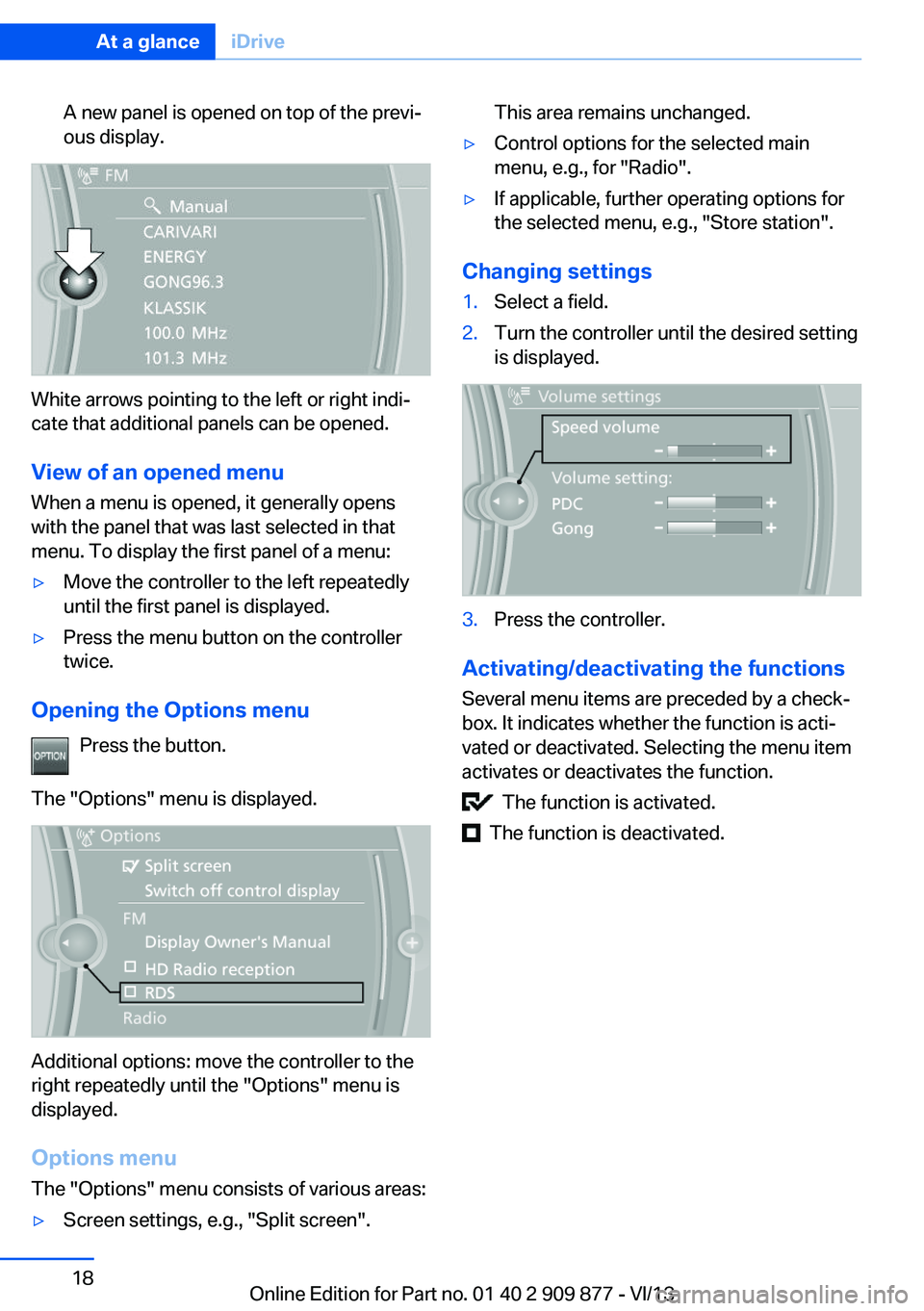

A new panel is opened on top of the previ‐
ous display.
White arrows pointing to the left or right indi‐
cate that additional panels can be opened.
View of an opened menu
When a menu is opened, it generally opens
with the panel that was last selected in that
menu. To display the first panel of a menu:
▷Move the controller to the left repeatedly
until the first panel is displayed.▷Press the menu button on the controller
twice.
Opening the Options menu
Press the button.
The "Options" menu is displayed.
Additional options: move the controller to the
right repeatedly until the "Options" menu is
displayed.
Options menu The "Options" menu consists of various areas:
▷Screen settings, e.g., "Split screen".This area remains unchanged.▷Control options for the selected main
menu, e.g., for "Radio".▷If applicable, further operating options for
the selected menu, e.g., "Store station".
Changing settings
1.Select a field.2.Turn the controller until the desired setting
is displayed.3.Press the controller.
Activating/deactivating the functions
Several menu items are preceded by a check‐
box. It indicates whether the function is acti‐
vated or deactivated. Selecting the menu item
activates or deactivates the function.
The function is activated.
The function is deactivated.
Seite 18At a glanceiDrive18
Online Edition for Part no. 01 40 2 909 877 - VI/13

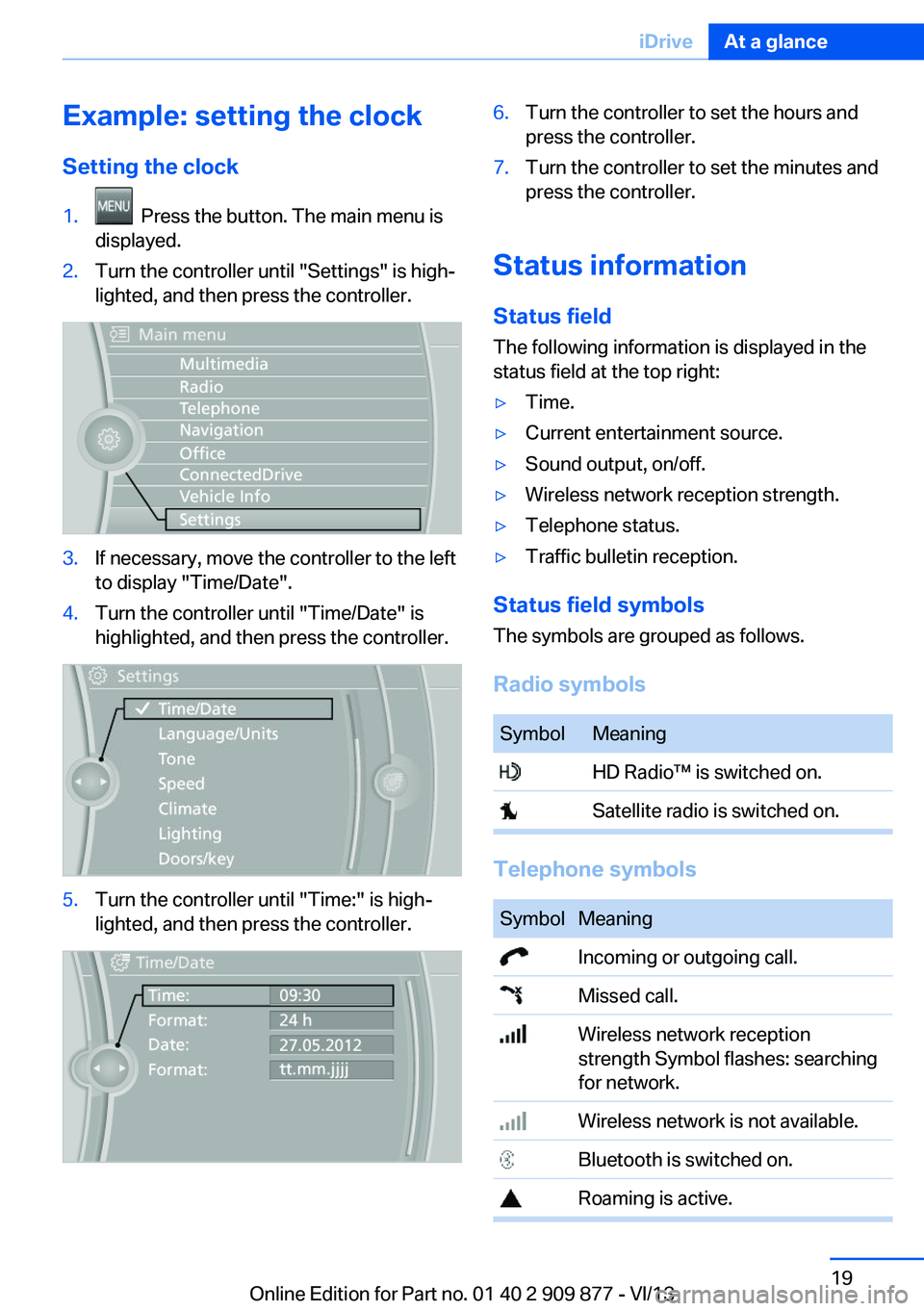

Example: setting the clockSetting the clock1. Press the button. The main menu is
displayed.2.Turn the controller until "Settings" is high‐
lighted, and then press the controller.3.If necessary, move the controller to the left
to display "Time/Date".4.Turn the controller until "Time/Date" is
highlighted, and then press the controller.5.Turn the controller until "Time:" is high‐
lighted, and then press the controller.6.Turn the controller to set the hours and
press the controller.7.Turn the controller to set the minutes and
press the controller.
Status information
Status field The following information is displayed in the
status field at the top right:
▷Time.▷Current entertainment source.▷Sound output, on/off.▷Wireless network reception strength.▷Telephone status.▷Traffic bulletin reception.
Status field symbols
The symbols are grouped as follows.
Radio symbols
SymbolMeaning HD Radio™ is switched on. Satellite radio is switched on.
Telephone symbols
SymbolMeaning Incoming or outgoing call. Missed call. Wireless network reception
strength Symbol flashes: searching
for network. Wireless network is not available. Bluetooth is switched on. Roaming is active.Seite 19iDriveAt a glance19
Online Edition for Part no. 01 40 2 909 877 - VI/13

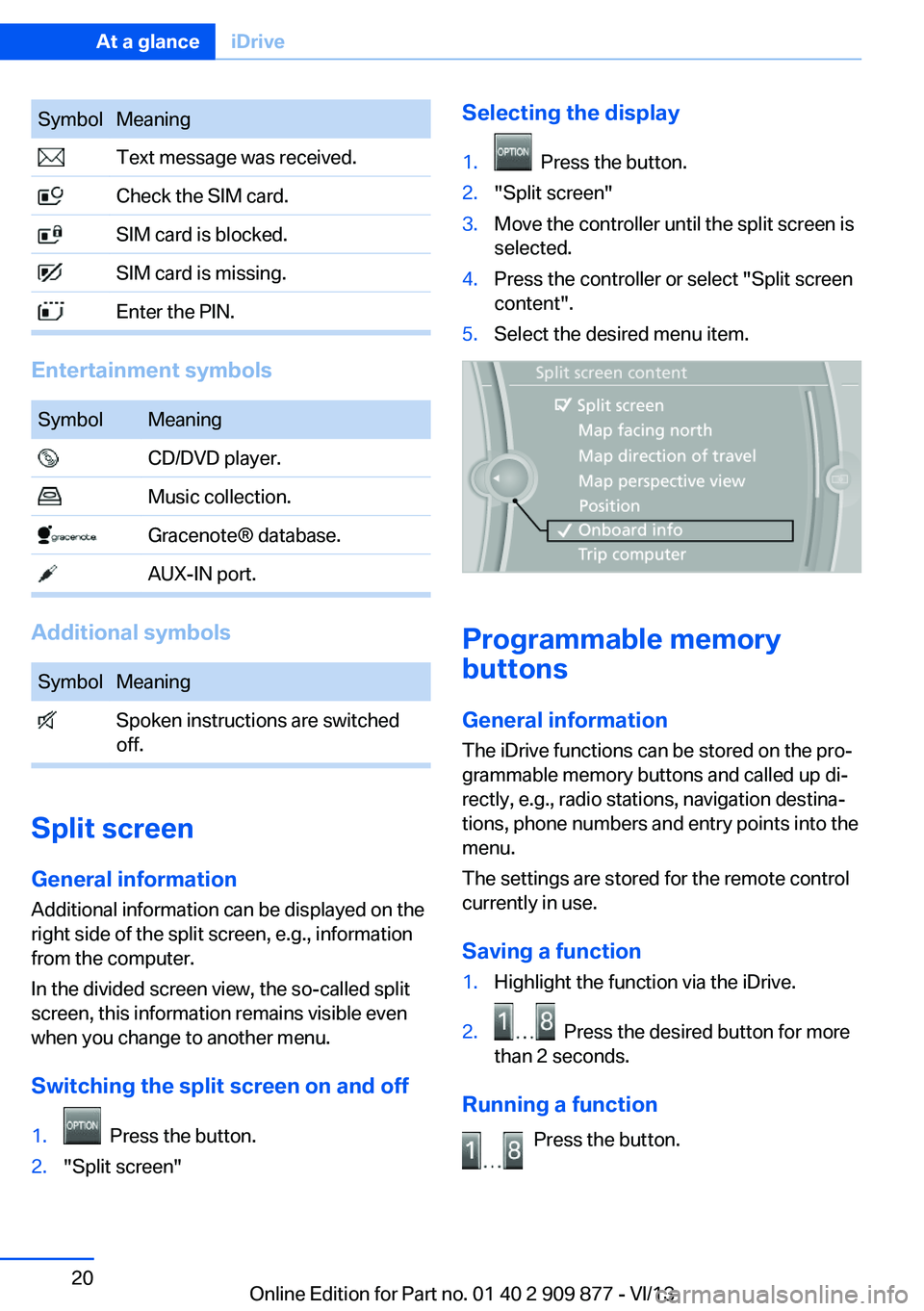

SymbolMeaning Text message was received. Check the SIM card. SIM card is blocked. SIM card is missing. Enter the PIN.
Entertainment symbols
SymbolMeaning CD/DVD player. Music collection. Gracenote® database. AUX-IN port.
Additional symbols
SymbolMeaning Spoken instructions are switched
off.
Split screen
General information Additional information can be displayed on the
right side of the split screen, e.g., information
from the computer.
In the divided screen view, the so-called split
screen, this information remains visible even when you change to another menu.
Switching the split screen on and off
1. Press the button.2."Split screen"Selecting the display1. Press the button.2."Split screen"3.Move the controller until the split screen is
selected.4.Press the controller or select "Split screen
content".5.Select the desired menu item.
Programmable memory
buttons
General information
The iDrive functions can be stored on the pro‐
grammable memory buttons and called up di‐
rectly, e.g., radio stations, navigation destina‐
tions, phone numbers and entry points into the
menu.
The settings are stored for the remote control
currently in use.
Saving a function
1.Highlight the function via the iDrive.2. Press the desired button for more
than 2 seconds.
Running a function
Press the button.
Seite 20At a glanceiDrive20
